USER MANUAL SPA3250 PHILIPS

A B C D E F G H I J N M L K

4235.020.3356.1.indd 34235.020.3356.1.indd 3 06-04-09 09:3206-04-09 09:32Introduction

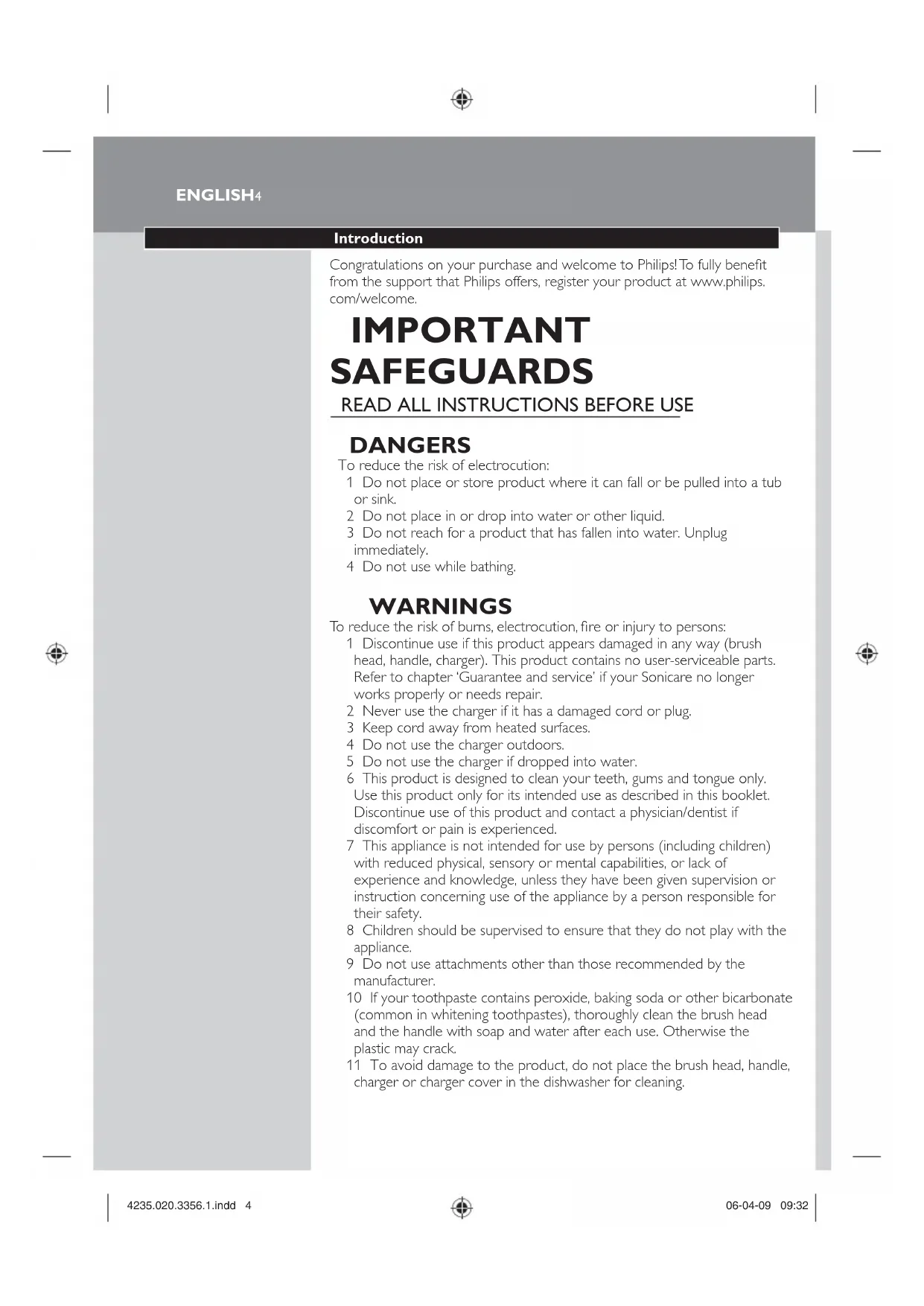

Congratulations on your purchase and welcome to Philips! To fully benefi t

from the support that Philips offers, register your product at www.philips.

IMPORTANT SAFEGUARDS READ ALL INSTRUCTIONS BEFORE USE DANGERS To reduce the risk of electrocution:

1 Do not place or store product where it can fall or be pulled into a tub

2 Do not place in or drop into water or other liquid.

3 Do not reach for a product that has fallen into water. Unplug

4 Do not use while bathing.

WARNINGS To reduce the risk of burns, electrocution, fi re or injury to persons:

1 Discontinue use if this product appears damaged in any way (brush

head, handle, charger). This product contains no user-serviceable parts.

Refer to chapter ‘Guarantee and service’ if your Sonicare no longer

works properly or needs repair.

2 Never use the charger if it has a damaged cord or plug.

3 Keep cord away from heated surfaces.

4 Do not use the charger outdoors.

5 Do not use the charger if dropped into water.

6 This product is designed to clean your teeth, gums and tongue only.

Use this product only for its intended use as described in this booklet.

Discontinue use of this product and contact a physician/dentist if

discomfort or pain is experienced.

7 This appliance is not intended for use by persons (including children)

with reduced physical, sensory or mental capabilities, or lack of

experience and knowledge, unless they have been given supervision or

instruction concerning use of the appliance by a person responsible for

8 Children should be supervised to ensure that they do not play with the

9 Do not use attachments other than those recommended by the

10 If your toothpaste contains peroxide, baking soda or other bicarbonate

(common in whitening toothpastes), thoroughly clean the brush head

and the handle with soap and water after each use. Otherwise the

11 To avoid damage to the product, do not place the brush head, handle,

charger or charger cover in the dishwasher for cleaning.

4235.020.3356.1.indd 44235.020.3356.1.indd 4 06-04-09 09:3206-04-09 09:3212 Discontinue use of the sanitizer if the UV light bulb remains on when

the door is open. UV light can be harmful to the human eye and skin.

Keep the sanitizer out of the reach of children at all times.

13 Do not operate the UV sanitizer without the protective screen in place

to avoid contact with hot bulb.

14 If the sanitizer is used for 3 consecutive UV clean cycles (i.e., 3 times in

a row) a minimum of 30 minutes ‘Off Time’ is required before you start

another UV clean cycle.

15 The UV light bulb is hot during and immediately after the sanitizing

cycle. Do not touch the UV light bulb when it is hot.

16 Do not operate the UV sanitizer where aerosol (spray) products are

being used or where oxygen is being administered.

1 Consult your dental professional before you use this product if you

have had oral or gum surgery in the previous 2 months.

2 Contact your dental professional if excessive bleeding occurs after

using this product or bleeding continues to occur after 1 week of use.

3 If you have a pacemaker or other implanted device, contact your

physician or the device manufacturer prior to use.

4 Sonicare has been tested and is compliant with safety standards for

electromagnetic devices.

5 Consult your physician prior to using the Sonicare if you have medical

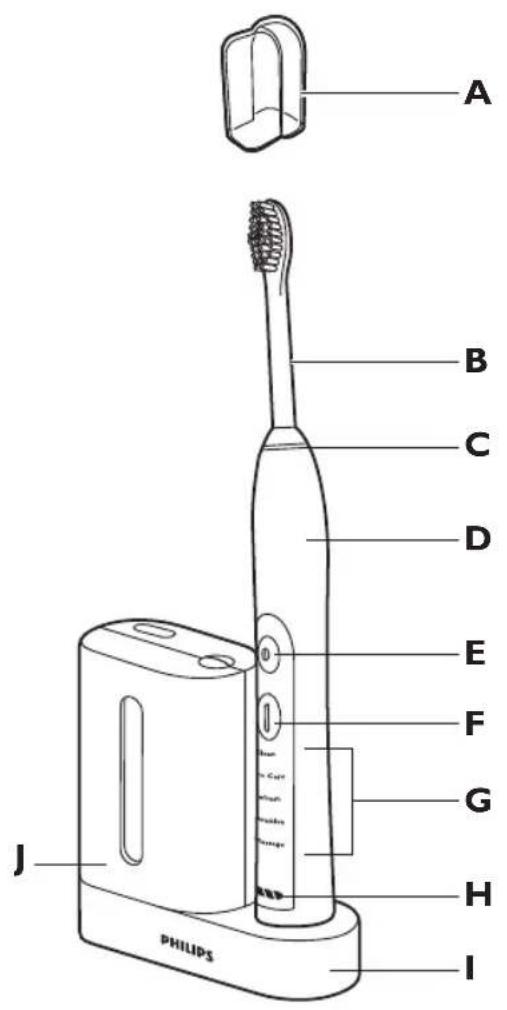

C Interchangeable color code ring

D Handle with soft grip

E Power on/off button

I UV sanitizer base with integrated charger and cord wrap (select

J UV sanitizer (select models)

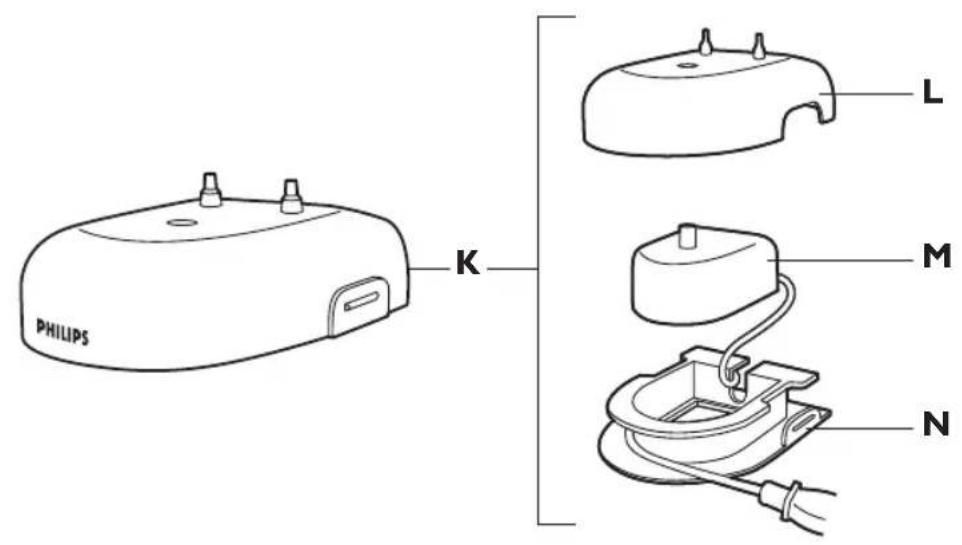

K Deluxe charger (select models)

L Charger cover with brush head holder

N Charger base with cord wrap

- Not shown: UV light bulb

- Not shown: Sanitizer drip tray

- Not shown: Protective screen for UV light bulb

Note: The contents of the box vary based on model purchased

4235.020.3356.1.indd 54235.020.3356.1.indd 5 06-04-09 09:3206-04-09 09:32Getting started

Changing the color code ring

Sonicare brush heads come with interchangeable color code rings to

identify your brush head.

To change the color code ring:

1 Pull the color code ring from the bottom of the brush head.

2 Install a new ring by slipping one edge of the new ring over the

bottom of the brush head.

Attaching the brush head

1 Align the brush head so the bristles face the front of the handle.

2 Firmly press the brush head down on the metal shaft until it stops.

Note: There is a small gap between the color code ring and the handle.

Charging your Sonicare

1 Put the plug of the charger in a live electrical outlet.

2 Place the handle on the charger.

, The fl ashing light of the battery gauge indicates that the toothbrush

- 1 solid green LED indicates that the toothbrush is 34-66% charged.

- 2 solid green LEDs indicate that the toothbrush is 67-94% charged.

- 3 solid green LEDs indicate that the toothbrush is fully charged.

Note: If the battery charge of your Sonicare is low, you hear 3 beeps and 1

LED of the recharge gauge fl ashes yellow for 30 seconds after completing the

4235.020.3356.1.indd 64235.020.3356.1.indd 6 06-04-09 09:3206-04-09 09:32Note: To keep the battery fully charged at all times, you may keep your

Sonicare on the charger when not in use. Once the Sonicare is fully charged,

the charger draws minimal energy from the electrical outlet.

Note: It takes at least 24 hours to fully charge the battery.

Brushing instructions

1 Wet the bristles and apply a small amount of toothpaste.

2 Place the toothbrush bristles against the teeth at a slight angle

towards the gumline.

3 Press the power on/off button to switch on the Sonicare.

4 Apply light pressure to maximize Sonicare’s effectiveness and let the

Sonicare toothbrush do the brushing for you. Do not scrub.

5 Gently move the brush head slowly across the teeth in a small back

and forth motion so the longer bristles reach between your teeth.

Continue this motion throughout your brushing cycle.

Note: To make sure you brush evenly throughout the mouth, divide your mouth

into 4 sections using the Quadpacer feature (see chapter ‘Features’).

6 Begin brushing in section 1 (outside top teeth) and brush for 30

seconds before moving to section 2 (inside top teeth). Continue

brushing in section 3 (outside bottom teeth) and brush for 30

seconds before moving to section 4 (inside bottom teeth).

7 After you have completed the brushing cycle, you can

spend additional time brushing the chewing surfaces of your teeth

and areas where staining occurs. You may also brush your tongue,

with the toothbrush turned on or off, as you prefer.

Your Sonicare is safe to use on:

- Braces (brush heads wear out sooner when used on braces)

- Dental restorations (fi llings, crowns, veneers)

1 Prior to turning on the Sonicare, press the mode button to toggle

, The selected brushing mode illuminates.

, Once a brushing mode has been selected, it remains active until

another brushing mode is selected.

Note: When the toothbrush is switched on, you cannot toggle between modes.

The following brushing modes are available:

4235.020.3356.1.indd 74235.020.3356.1.indd 7 06-04-09 09:3206-04-09 09:32Gum Care

Complete whole mouth cleaning (2 minutes) plus gentle cleaning for

problem areas and along the gumline (1 minute).

Touch-up for a quick clean (1 minute).

Gentle cleaning for sensitive gums and teeth (2 minutes).

Gentle gum stimulation (2 minutes).

Note: When the Sonicare is used in clinical studies, the default 2-minute Clean

mode must be selected. The handle has to be fully charged. Deactivate the

Easy-start feature. For areas where excess staining occurs, an additional 30

seconds of brushing time can be spent to help remove stains.

- This Sonicare model comes with the Easy-start feature activated.

- The Easy-start feature gently increases power over the fi rst 14

brushings to ease into the Sonicare experience.

Note: Each of the fi rst 14 brushings must be at least 1 minute in length to

properly move through the Easy-start ramp-up cycle.

Deactivating or activating the Easy-start feature

1 Attach your brush head to the handle.

2 Place the handle on the plugged-in charger.

- To deactivate Easy-start:

Press and hold the power on/off button for 2 seconds. You hear 1 beep to

indicate that the Easy-start feature has been deactivated.

- To activate Easy-start:

Press and hold the power on/off button for 2 seconds. You hear 2 beeps to

indicate that the Easy-start feature has been activated.

Note: Using the Easy-start feature beyond the initial ramp-up period is not

recommended and reduces Sonicare’s effectiveness in removing plaque.

The Smartimer indicates that your brushing cycle is complete when

it automatically turns off the toothbrush at the end of the brushing cycle.

Dental professionals recommend brushing at least 2 minutes twice a day.

4235.020.3356.1.indd 84235.020.3356.1.indd 8 06-04-09 09:3206-04-09 09:32Quadpacer

- The Quadpacer is an interval timer that has a short beep and pause to

remind you to brush the 4 sections of your mouth. Depending on the

brushing mode you have selected, the Quadpacer beeps at different

intervals during the brushing cycle. See sections ‘Brushing instructions’

and ‘Brushing modes’ in chapter ‘Using your Sonicare’.

The Quadpacer feature on this model has been activated. To deactivate or

reactivate the Quadpacer feature:

1 Place the handle with a brush head attached on the plugged-in

2 Press and hold the mode button for 2 seconds.

, You hear 1 beep to indicate the Quadpacer has been deactivated or

you hear 2 beeps to indicate the Quadpacer has been activated.

Cord wrap on deluxe charger (select models)

If your model includes the deluxe charger cover and base, the travel

charger is pre-installed inside the cover. If you want to shorten the power

cord, you can store excess cord in the cord wrap feature built into the

1 To separate the charger cover from the charger base, press the two

gray snap bars on the charger base and pull the white charger cover

2 Wrap excess power cord around the gray charger base as shown in

the picture. Be sure to wrap the cord on the inside of the two snap

3 When you have stored the excess cord, guide the power cord

through the small groove in the rear of the gray charger base.

4 To reattach the charger cover, press it down over the charger base

until it snaps into place.

Tip: For extra convenience during travel, you can remove the travel charger and

use it without the charger cover and charger base.

4235.020.3356.1.indd 94235.020.3356.1.indd 9 06-04-09 09:3206-04-09 09:32Cord wrap on sanitizer with integrated charger (select models)

- If your model includes the sanitizer, you can store excess cord using the

cord wrap feature built into the bottom of the sanitizer.

Sanitizing (select models)

With the UV sanitizer you can clean your brush head after every use.

Discontinue use of the sanitizer if the UV light bulb remains on when

the door is open or if the blue window is broken or missing from the

sanitizer. UV light can be harmful to the human eye and skin. This device

should be kept out of reach of children at all times.

Unplug the sanitizer and call Consumer Care if the sanitizer gives off

smoke or a burning smell while it is operating..

1 After brushing, rinse the brush head and shake off excess water.

Do not place the travel cap on the brush head during sanitization.

2 Place your fi nger in the door recess on top of the sanitizer and pull

3 Place the brush head on one of the 2 pegs in the sanitizer.

Note: Only clean Sonicare ProResults brush heads in the sanitizer.

Make sure the bristles of the brush head directly face the light bulb.

4 Make sure the sanitizer is plugged into a live outlet of appropriate

5 Close the door and press the green power on/off button once to

select the UV clean cycle.

Note: You can only turn on the sanitizer if the door is properly closed.

Note: The sanitizer stops if you open the door during the sanitizing cycle.

Note: The sanitizer cycle runs for 10 minutes and then automatically shuts off.

, The sanitizer is in operation when the blue light glows through the

, When the sanitizing cycle is complete, the sanitizer automatically

4235.020.3356.1.indd 104235.020.3356.1.indd 10 06-04-09 09:3206-04-09 09:32Cleaning

Do not clean the brush head, handle, travel charger, charger cover and

the UV sanitizer in the dishwasher.

1 Remove the brush head and rinse the metal shaft area with warm

Do not push on the rubber seal on the metal shaft with sharp objects, as

this may cause damage.

2 Use a damp cloth to wipe the entire surface of the handle.

1 Rinse the brush head and bristles after each use.

2 Remove the brush head from the handle and rinse the brush head

connection at least once a week with warm water.

1 Unplug the charger.

2 Use a damp cloth to wipe the surface of the charger.

Brush head UV Sanitizer (select models)

Do not clean the sanitizer when the UV light bulb is hot.

For optimal effectiveness, it is recommended to clean your sanitizer weekly.

1 Unplug the sanitizer.

2 Pull the drip tray straight out. Rinse the drip tray and wipe it clean

3 Clean all refl ector surfaces with a damp cloth.

4 Remove the protective screen in front of the UV light bulb.

To remove the screen, grasp the edges next to the snaps, gently squeeze

and pull out the protective screen.

5 Remove the UV light bulb.

To remove the light bulb, grasp it and pull it out of the metal clasp.

7 Reinsert the UV light bulb.

To reinsert the light bulb, align the bottom of the light bulb with the metal

clasp and push the bulb into the clasp.

8 Reinsert the protective screen.

To reinsert the screen, align the pegs on the screen with the slots on the

refl ective surface near the UV light bulb. Push the screen straight into the

slots on the sanitizer.

If you are not going to use the product for an extended period of

time, unplug it from the electrical outlet, clean it and store it in a cool

and dry place away from direct sunlight. You can use the cord wrap to

store the power cord in an organized manner.

- Replace Sonicare brush heads every 3 months to achieve optimal

- Use only compatible Sonicare replacement brush heads.

- Replacement UV bulbs are available through your Sonicare Consumer

Care Center in North America by calling 1-800-682-7664. Outside

North America, contact your local Philips Consumer Care Center.

The rechargeable battery inside your Sonicare cannot be replaced, but

is easy to remove for recycling. At the end of product life and prior to

disposal, please remove the rechargeable battery from the handle by

following the instructions below.

- Do not throw away the appliance or the UV light bulb (bulb contains

mercury) with the normal household waste at the end of its life, but

hand it in at an offi cial collection point for recycling. By doing this, you

help to preserve the environment.

- If you have any recycling questions, contact your local waste

4235.020.3356.1.indd 124235.020.3356.1.indd 12 06-04-09 09:3206-04-09 09:32Removing the rechargeable battery

Please note that this process is not reversible.

To remove the rechargeable battery, you need a fl at-head (standard)

screwdriver. Observe basic safety precautions when you follow the

procedure outlined below. Be sure to protect your eyes, hands, fi ngers, and

the surface on which you work.

1 To deplete the rechargeable battery of any charge, remove the

handle from the charger, turn on the Sonicare and let it run until

it stops. Repeat this step until you can no longer switch on the

2 Insert a screwdriver into the slot located at the bottom of the

handle and turn counterclockwise to release the bottom cap.

3 Hold the handle upside down and push down on the shaft to release

the internal components of the handle.

4 Insert the screwdriver under the circuit board, next to the battery

connections, and twist to break the connections. Remove the circuit

board and pry the battery from the plastic carrier.

The rechargeable battery can now be recycled and the rest of the product

discarded appropriately.

Guarantee and service

Philips guarantees its products for two years after the date of purchase.

Defects due to faulty materials and workmanship will be repaired or

replaced at Philips expense provided that convincing proof of purchase in

the qualifying period is provided.

Contact our Consumer Care Center at 1-800-682-7664 (North America),

outside North America contact your local Philips Consumer Care Center.

- Damage caused by misuse, abuse, neglect, alterations or unauthorized

- Normal wear and tear, including chips, scratches, abrasions,

discoloration or fading.

4235.020.3356.1.indd 144235.020.3356.1.indd 14 06-04-09 09:3206-04-09 09:32Frequently asked questions

This chapter lists the questions most frequently asked about the appliance.

If you cannot fi nd the answer to your question, contact the Consumer

Care Center in your country.

Why doesn’t the Sonicare

You may need to recharge the Sonicare. Charge the Sonicare for

Make sure the Sonicare charger is plugged into a live electrical

outlet and not into an outlet controlled by a light switch.

You may need to reattach or replace the brush head.

Why do I feel a tickling sensation

when I use the Sonicare?

You may experience a slight tickling/tingling sensation when you

use Sonicare for the fi rst time. As you become accustomed to

brushing with the Sonicare, this sensation diminishes.

Why is there a brief pause in the

bristle motion while I’m brushing?

This is the Quadpacer feature reminding you to move to a new

section of your mouth. This feature enables you to spend equal

time brushing all areas of the mouth (see chapter ‘Using your

Sonicare, section ‘Brushing instructions’).

The brush head chatters against my

teeth. What can I do about this?

To avoid this, keep the brush head properly oriented, with the

bristles placed on the gumline at a slight angle.

Why does the toothbrush seem

You may need to charge the Sonicare.

The Easy-start feature may be on. Deactivate the Easy-start

feature (see chapter ‘Features’).

You may need to replace the brush head.

Why doesn’t the mode

button work during brushing?

Brushing modes should be selected prior to turning on the

Why doesn’t the UV sanitizer

You may need to plug the sanitizer into a live outlet..

You may need to shut the sanitizer door.

You may need to replace the UV light bulb (see chapter

Do I need a special charger if I

travel with my Sonicare?

The travel charger, the deluxe charger and the sanitizer can be

used at common worldwide voltages between 100-240V AC, at

either 50 or 60Hz. All you need is a simple plug adapter.

Travel tip: The Sonicare battery is designed to last up to 3 weeks

©2009 Koninklijke Philips Electronics NV (KPENV).

All rights reserved. PHILIPS and the Philips shield are

registered trademarks of KPENV. Quadpacer and Sonicare

are trademarks of Philips Oral Healthcare, Inc. and/or KPENV.

Printed in the U.S.A.

Printed on 100% recycled paper.

Protected by U.S. and international patents.

Other patents pending. Reg. U.S. Pat. & Tm. Off.
