USER MANUAL WK 288.00 Petra Electric

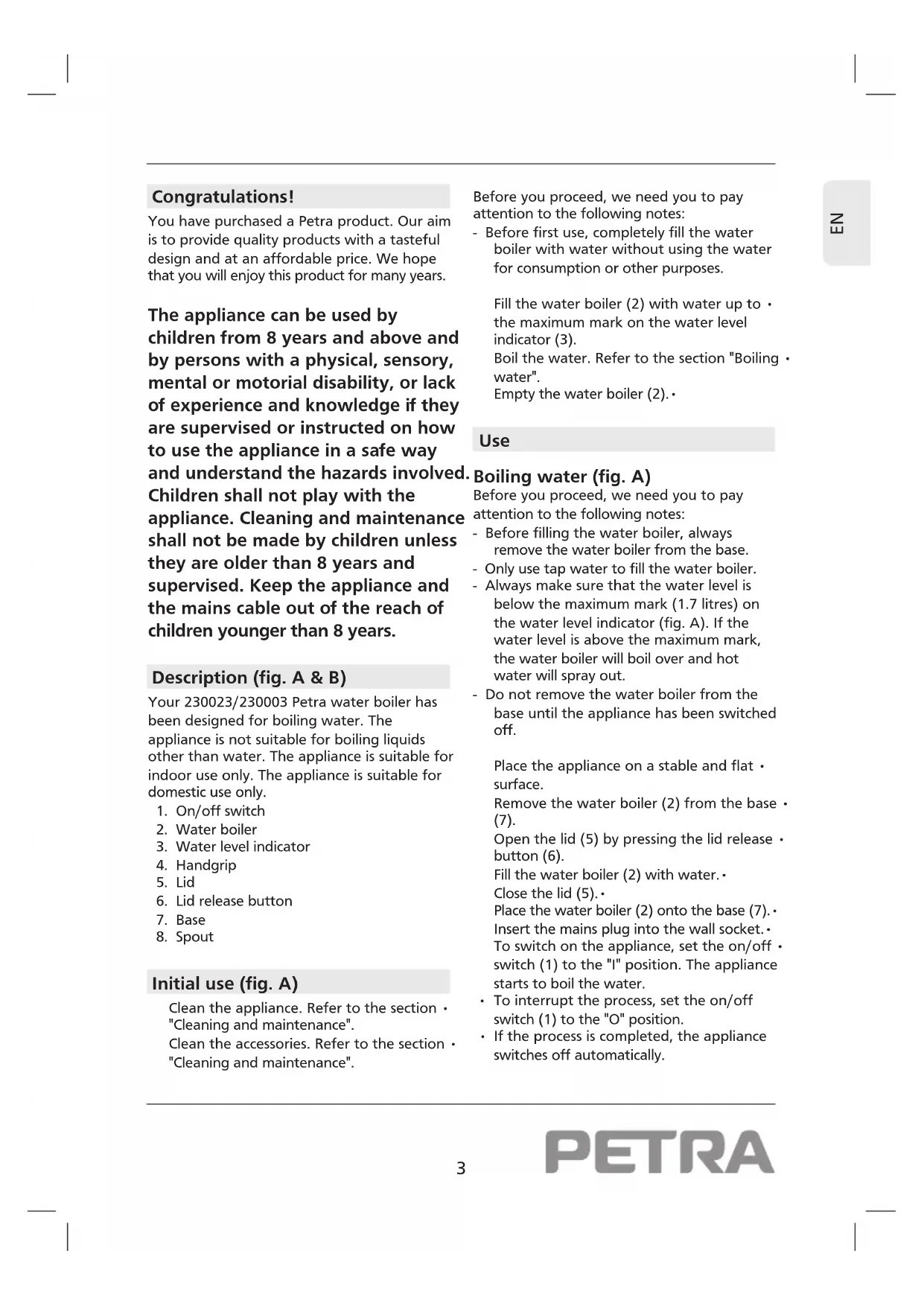

Congratulations! You have purchased a Petra product. Our aim is to provide quality products with a tasteful design and at an affordable price. We hope that you will enjoy this product for many years. The appliance can be used by children from 8 years and above and by persons with a physical, sensory, mental or motorial disability, or lack of experience and knowledge if they are supervised or instructed on how to use the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and maintenance shall not be made by children unless they are older than 8 years and supervised. Keep the appliance and the mains cable out of the reach of children younger than 8 years. Description (fig. A & B) Your 230023/230003 Petra water boiler has been designed for boiling water. The appliance is not suitable for boiling liquids other than water. The appliance is suitable for indoor use only. The appliance is suitable for domestic use only.

Initial use (fig. A) Clean the appliance. Refer to the section • "Cleaning and maintenance". Clean the accessories. Refer to the section • "Cleaning and maintenance". Before you proceed, we need you to pay attention to the following notes: - Before first use, completely fill the water boiler with water without using the water for consumption or other purposes. Fill the water boiler (2) with water up to • the maximum mark on the water level indicator (3). Boil the water. Refer to the section "Boiling • water". Empty the water boiler (2).• Use Boiling water (fig. A) Before you proceed, we need you to pay attention to the following notes: - Before filling the water boiler, always remove the water boiler from the base. - Only use tap water to fill the water boiler. - Always make sure that the water level is below the maximum mark (1.7 litres) on the water level indicator (fig. A). If the water level is above the maximum mark, the water boiler will boil over and hot water will spray out. - Do not remove the water boiler from the base until the appliance has been switched off. Place the appliance on a stable and flat • surface. Remove the water boiler (2) from the base • (7). Open the lid (5) by pressing the lid release • button (6). Fill the water boiler (2) with water.• Close the lid (5).• Place the water boiler (2) onto the base (7).• Insert the mains plug into the wall socket.• To switch on the appliance, set the on/off • switch (1) to the "I" position. The appliance starts to boil the water. To interrupt the process, set the on/off • switch (1) to the "O" position. If the process is completed, the appliance • switches off automatically.4

After use, switch off the appliance, remove • the mains plug from the wall socket and wait until the appliance has cooled down. Cleaning and maintenance Before you proceed, we need you to pay attention to the following notes: - Before cleaning or maintenance, remove the mains plug from the wall socket and wait until the appliance has cooled down. - Do not immerse the appliance in water or other liquids. Before you proceed, we would like you to focus your attention on the following notes: - Do not use aggressive or abrasive cleaning agents to clean the appliance. - Do not use sharp objects to clean the appliance. Regularly check the appliance for possible • damage. Clean the outside of the appliance with a • soft, damp cloth. Thoroughly dry the outside of the appliance with a clean, dry cloth. Clean the lid with a clean, dry cloth.• Clean the base with a clean, dry cloth.• Descaling the appliance (fig. A) The appliance must be descaled after every 25 uses. If the appliance must be descaled, use a suitable descaling agent. Special descaling agents are available from our service station. Note: Petra will not be responsible for any damage caused by descaling agents. Damage caused by not regularly descaling the appliance is not covered by the guarantee. Before you proceed, we need you to pay attention to the following notes: - Before descaling the appliance, remove the mains plug from the wall socket and wait until the appliance has cooled down. - Do not immerse the appliance in water or other liquids. - Do not immerse the base in water or other liquids. Before you proceed, we would like you to focus your attention on the following notes: - Be careful when descaling the appliance to prevent damage to furniture or clothing. - Do not use vinegar or vinegar concentrate to descale the appliance. - Do not use citric acid to descale the appliance. Descale the water boiler (2) with a suitable • descaling agent. Let the descaling agent soak in.• Thoroughly rinse the water boiler (2) with • clean water. Safety instructions General safety Read the manual carefully before use. • Keep the manual for future reference. Only use the appliance and the accessories • for their intended purposes. Do not use the appliance and the accessories for other purposes than described in the manual. Do not use the appliance if any part or any • accessory is damaged or defective. If a part or an accessory is damaged or defective, it must be replaced by the manufacturer or an authorised repair agent. Children should be supervised to ensure • that they do not play with the appliance. The use of this appliance by children or • persons with a physical, sensory, mental or motorial disability, or lack of experience and knowledge can give cause to hazards. Persons responsible for their safety should give explicit instructions or supervise the use of the appliance. Do not use the appliance near bathtubs, • showers, basins or other vessels containing water. Do not immerse the appliance in water or • other liquids. If the appliance is immersed in water or other liquids, do not remove the appliance with your hands. Immediately remove the mains plug from the wall socket. If the appliance is immersed in water or other liquids, do not use the appliance again.5

Electrical safety Before use, always check that the mains • voltage is the same as the voltage on the rating plate of the appliance. The appliance is not intended to be • operated by means of an external timer or separate remote-control system. Connect the appliance to an earthed wall • socket. If necessary, use an earthed extension cable of a suitable diameter (at least 3 x 1 mm

For additional protection, install a residual • current device (RCD) with a rated residual operating current that does not exceed 30 mA. Make sure that water cannot enter the • contact plugs of the mains cable and the extension cable. Always fully unwind the mains cable and • the extension cable. Make sure that the mains cable does not • hang over the edge of a worktop and cannot be caught accidentally or tripped over. Keep the mains cable away from heat, oil • and sharp edges. Do not use the appliance if the mains cable • or the mains plug is damaged or defective. If the mains cable or the mains plug is damaged or defective, it must be replaced by the manufacturer or an authorised repair agent. Do not pull the mains cable to disconnect • the mains plug from the mains. Disconnect the mains plug from the mains • when the appliance is not in use, before assembly or disassembly and before cleaning and maintenance. Safety instructions for water boilers Do not use the appliance outdoors.• Place the appliance on a stable and flat • surface. Place the appliance on a heat-resistant and • splash-proof surface. Make sure that there is sufficient space • around the appliance to allow heat to escape and provide sufficient ventilation. Do not cover the appliance.• Make sure that the appliance does not • come into contact with flammable material. Keep the appliance away from heat sources.• Only use the appliance with the supplied • base. Only switch on the appliance when the • appliance is filled with water. Do not move the appliance while it is • switched on. Be careful with hot water and steam to • avoid burns. Only touch the hot appliance by the • handgrip. Do not open the lid while pouring out the • hot water. Store the appliance in a dry place when • not in use. Make sure that children do not have access to stored appliances. U.K. Wiring instructions The wires in the mains lead are coloured in accordance with the following code: BLUE NEUTRAL BROWN LIVE

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows: The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red. The wire which is coloured GREEN/YELLOW must be connected to the terminal which is marked with the letter E or and is coloured GREEN or GREEN/YELLOW. Warning! This appliance must be earthed. Disclaimer Subject to change; specifications can be changed without further notice.6
