WK 42.00 - Kettle Petra Electric - Free user manual and instructions

USER MANUAL WK 42.00 Petra Electric

White electric water heater with visible branding and control panel (no text or symbols on body)

D

Gebrauchsanweisung

GB

Instructions for use

F

Mode d'emploi

1

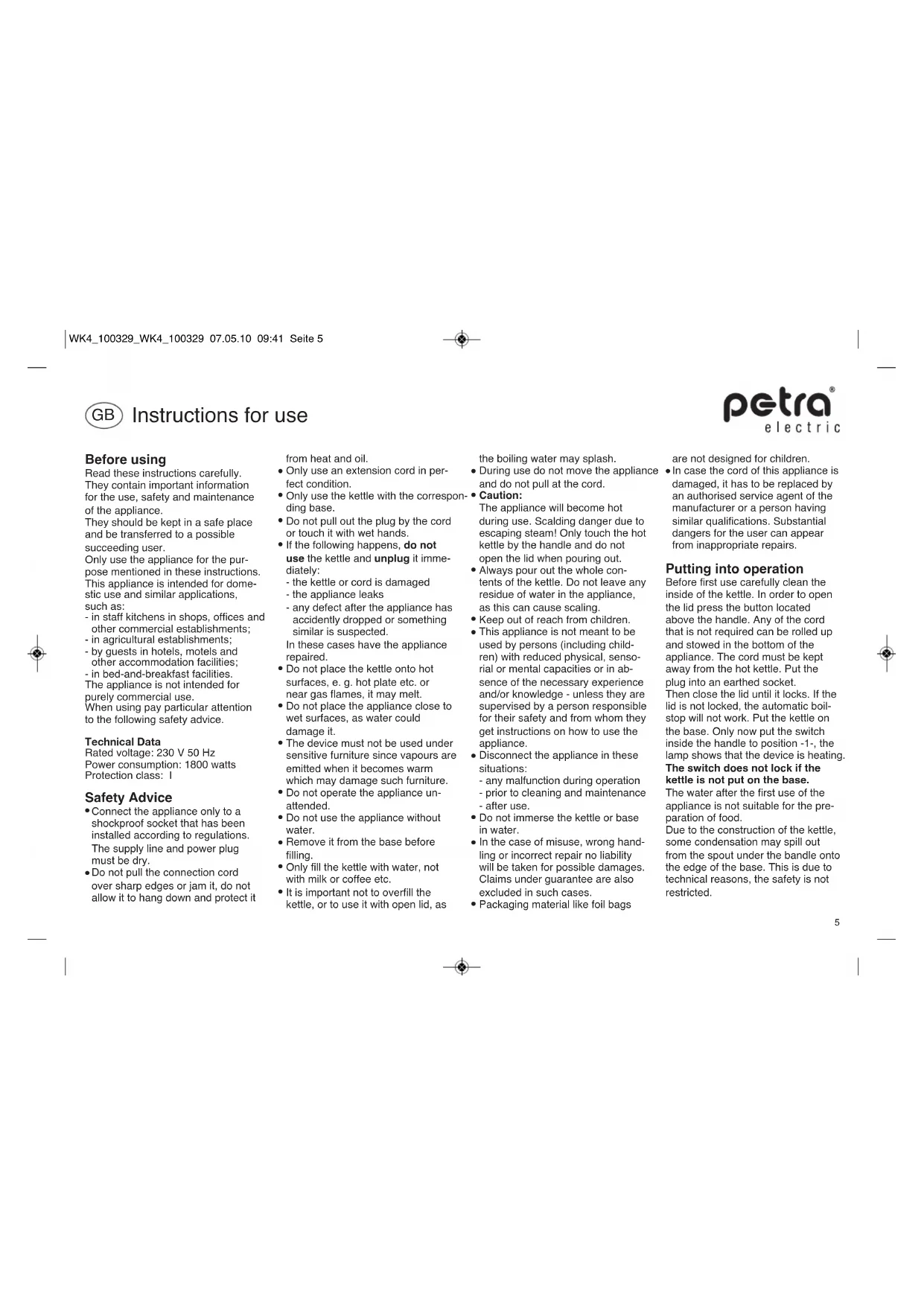

GB Instructions for use

Before using

Read these instructions carefully. They contain important information for the use, safety and maintenance of the appliance.

They should be kept in a safe place and be transferred to a possible succeeding user.

Only use the appliance for the purpose mentioned in these instructions. This appliance is intended for domestic use and similar applications, such as:

• in staff kitchens in shops, offices and other commercial establishments;
• in agricultural establishments;
• by guests in hotels, motels and other accommodation facilities;
• in bed-and-breakfast facilities. The appliance is not intended for purely commercial use. When using pay particular attention to the following safety advice.

Technical Data

Rated voltage: 230 V 50 Hz Power consumption: 1800 watts Protection class: I

Safety Advice

• Connect the appliance only to a shockproof socket that has been installed according to regulations. The supply line and power plug must be dry.
• Do not pull the connection cord over sharp edges or jam it, do not allow it to hang down and protect it

from heat and oil.

• Only use an extension cord in perfect condition.
• Only use the kettle with the corresponding base.
• Do not pull out the plug by the cord or touch it with wet hands.
• If the following happens, do not use the kettle and unplug it immediately:

- the kettle or cord is damaged

- the appliance leaks

- any defect after the appliance has accidentally dropped or something similar is suspected.

In these cases have the appliance repaired.

• Do not place the kettle onto hot surfaces, e. g. hot plate etc. or near gas flames, it may melt.
• Do not place the appliance close to wet surfaces, as water could damage it.
• The device must not be used under sensitive furniture since vapours are emitted when it becomes warm which may damage such furniture.
• Do not operate the appliance unattended.
• Do not use the appliance without water.
• Remove it from the base before filling.
• Only fill the kettle with water, not with milk or coffee etc.
• It is important not to overfill the kettle, or to use it with open lid, as

the boiling water may splash.

• During use do not move the appliance and do not pull at the cord.
• Caution:

The appliance will become hot during use. Scalding danger due to escaping steam! Only touch the hot kettle by the handle and do not open the lid when pouring out.

• Always pour out the whole contents of the kettle. Do not leave any residue of water in the appliance, as this can cause scaling.
- Keep out of reach from children.
- This appliance is not meant to be used by persons (including children) with reduced physical, sensorial or mental capacities or in absence of the necessary experience and/or knowledge - unless they are supervised by a person responsible for their safety and from whom they get instructions on how to use the appliance.
- Disconnect the appliance in these situations:

- any malfunction during operation

- prior to cleaning and maintenance - after use.

• Do not immerse the kettle or base in water.
• In the case of misuse, wrong handling or incorrect repair no liability will be taken for possible damages. Claims under guarantee are also excluded in such cases.
• Packaging material like foil bags

are not designed for children.

- In case the cord of this appliance is damaged, it has to be replaced by an authorised service agent of the manufacturer or a person having similar qualifications. Substantial dangers for the user can appear from inappropriate repairs.

Putting into operation

Before first use carefully clean the inside of the kettle. In order to open the lid press the button located above the handle. Any of the cord that is not required can be rolled up and stowed in the bottom of the appliance. The cord must be kept away from the hot kettle. Put the plug into an earthed socket.

Then close the lid until it locks. If the lid is not locked, the automatic boil-stop will not work. Put the kettle on the base. Only now put the switch inside the handle to position -1-, the lamp shows that the device is heating.

The switch does not lock if the kettle is not put on the base.

The water after the first use of the appliance is not suitable for the preparation of food.

Due to the construction of the kettle, some condensation may spill out from the spout under the handle onto the edge of the base. This is due to technical reasons, the safety is not restricted.

petra® electric

Automatic boilstop

As soon as the water boils the automatic boilstop will interrupt the heating process. The control lamp goes out. In case the kettle is filled with little water, the time until the automatic boilstop works will be prolonged. If you want to boil hot water again the appliance can be switched on again. If only warm water is desired the heating process can be interrupted at any time. The disconnection takes place automatically also if the pot is lifted by the base.

Safety system

In case of unintentional use without water a thermostat protects the kettle from overheating by interrupting the heating process. The button will be put automatically to position -0-. Before refilling with water, wait another 5-10 minutes until the appliance has cooled down. If through improper usage this thermostat should fail an additional temperature security device will be activated.

Cleaning and maintenance

Pull the plug and cool the appliance. Do not immerse the appliance in water, but wipe with a damp cloth to which a dishwashing agent has been added and then wipe dry. Do not use sharp and abrasive cleaning agents.

The pan is made from rust-resistant

stainless steel. If rust spots are seen regardless, these are initially only deposits adhering to the surface. They should be removed immediately with stainless steel cleaner.

Decalcification

Calcium deposits result in energy losses and reduce the service life of the appliance. It switches off early, if the calcium coating is too thick. It is then difficult to remove. Decalcify the pot routinely.

We recommend using durgol® express. It is very effective and gentle to materials.

You may obtain it where you bought the appliance; directly from a select dealer or you can order it directly from petra-electric.

Disconnect the appliance from the socket and let cool prior to decalcification. Fill in 1 to 2 cups of durgol® express and let the appliance stand until the calcium coating is removed from the bottom. Then fill the appliance with cold water past the calcium edge and let stand for 15 minutes. Then pour it out and thoroughly rinse with cold water.

Do not heat the solution during decalcification.

Caution, warranty compensation does not exist for damages that occur due to non-compliance.

Causes for failures

• The appliance switches off before the water is boiling: the lime scale at the bottom of the kettle is too thick.
• The appliance does not switch off: close the lid until it snaps.
• The appliance cannot be switched on after having used the kettle without or with too little water: the appliance has not yet cooled down sufficiently.

If the failures cannot be removed, let the appliance have repaired.

In order to avoid injury, any repairs of the appliance as well as the exchange of a damaged connection cord should only be carried out by the manufacturer, his authorised service agent or a person having similar qualifications.

For UK use only

1. This product is supplied with a 13 A plug conforming to BS 1363 fitted to the mains lead. If the plug is unsuitable for your socket outlets or needs to be replaced, please note the following: If the plug is a nonrewireable one, cut it from the mains lead and immediately dispose of it. Never insert it into a socket outlet as there is a very great risk of an

electric shock.

1. The replacement of the plug at the mains lead has to be done according to the following instructions: Warning - This appliance must be earthed

Important: The wires in this mains lead are coloured in accordance with the following code:

green/yellow: Earth blue: Neutral brown: Live

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

- the wire which is coloured green and yellow must be connected to the terminal which is marked with the letter E or by the earth symbol ☐ or coloured green or green and yellow,

- the wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black,

- the wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

1. If a 13 A (BS 1363) plug is used it must be fitted with a 13 A fuse conforming to BS 1362 and be ASTA approved. If any other type of plug is used, the appliance must

petra® electric

be protected by a 10 A fuse either in the plug or adapter or at the distribution board.

If in doubt - consult a qualified electrician.

1. Never use the plug without closing the fuse cover.

The appliance complies with the European directives 2006/95/EC, 2004/108/EC and 2005/32/EC.

At the end of its lifetime this product must not be disposed of through the normal domestic waste, but it should be handed to an assembly

point for the recycling of electrical and electronic appliances. You can inquire about details at the local administration.

Subject to technical changes.

Universal fast decalcifier durgo® express

durgol® express is a fast decalcifier which frees all household items of lime quickly and simply. Its formula guarantees efficient yet gentle, food-safe and environmentally-friendly decalcification.

durgol® express ist available at selected specialized retailers and from petra-electric in a bottle of 500 ml.
