WK 186.07 - Kettle Petra Electric - Free user manual and instructions

Product type	Electric kettle
Brand	Petra Electric
Model	WK 186.07
Power consumption	1800 W
Supply voltage	220-240 V ~ (according to rating plate)
Protection class	I
Body material	Stainless steel
Capacity	1.7 L (estimate)
Automatic shut-off	Yes, after boiling
Overheating protection	Yes (thermostat + temperature limiter)
Lid opening	By button on handle
Base with cable storage	Yes (wrap under base)
Cleaning	Damp cloth and mild detergent; do not immerse
Recommended descaling	With durgol® express or similar product
Usage	Domestic and similar (offices, hotels, etc.)
Standards	CE (2006/95/EC, 2004/108/EC, 2005/32/EC)
Weight	Approx. 1 kg (estimate)
Dimensions (H x W x D)	Approx. 25 x 20 x 20 cm (estimate)
Safety function	Automatic shut-off in case of water shortage
Plug type	Earthed mains plug

Frequently Asked Questions - WK 186.07 Petra Electric

How to use the kettle for the first time?

Before first use, carefully clean the inside of the pot. Open the lid by pressing the button on top of the handle, fill with water up to the Max mark, close the lid, place the pot on the base and plug in the appliance. Press the power button located under the handle. Discard the water from the first use.

Why does the kettle stop before boiling?

This may be due to excessive limescale deposits at the bottom of the pot or insufficient water quantity. Descale the appliance and ensure you fill at least the minimum level.

How to descale the kettle?

Unplug the appliance and let it cool. Fill with 1 to 2 cups of durgol® express and let it sit until limescale dissolves. Then rinse thoroughly with cold water. Do not heat the descaling solution.

What to do if the kettle does not turn on?

After operation with no water or little water, the appliance may be in thermal safety. Let it cool completely. Also ensure the lid is properly closed. If the problem persists, contact customer service.

Can I open the lid during operation?

No, never open the lid while heating. Boiling water could splash. To refill, open the lid only when the appliance is off and cooled.

How to clean the inside of the kettle?

Let the appliance cool down, then clean the inside with a damp cloth and mild detergent. Never immerse the pot or base in water. Rinse with clean water and dry thoroughly.

What is the maximum capacity of the kettle?

The maximum capacity is indicated by the 'Max' mark inside the pot. Do not exceed this level to avoid splashing boiling water. The approximate capacity is 1.7 liters.

Is the power cord removable?

No, the power cord is fixed. You can wrap the excess length under the base for convenient storage.

How does the automatic shut-off work?

As soon as the water reaches boiling, the automatic shut-off cuts the power. You can also stop manually by pressing the power button. The appliance also turns off if you lift the pot from its base.

What to do if the kettle leaks?

Check that the lid is properly closed. Condensation water may come out of the vents under the handle, which is normal. In case of major leakage, stop using and contact customer service.

USER MANUAL WK 186.07 Petra Electric

Black and silver petroal water heater with glossy glaze, no visible text or symbols on body

D Gebrauchsanweisung
GB Instructions for use
F Mode d'emploi
Istruzioni per l'uso
E Instrucciones de uso
NL Gebruiksaanwijzing

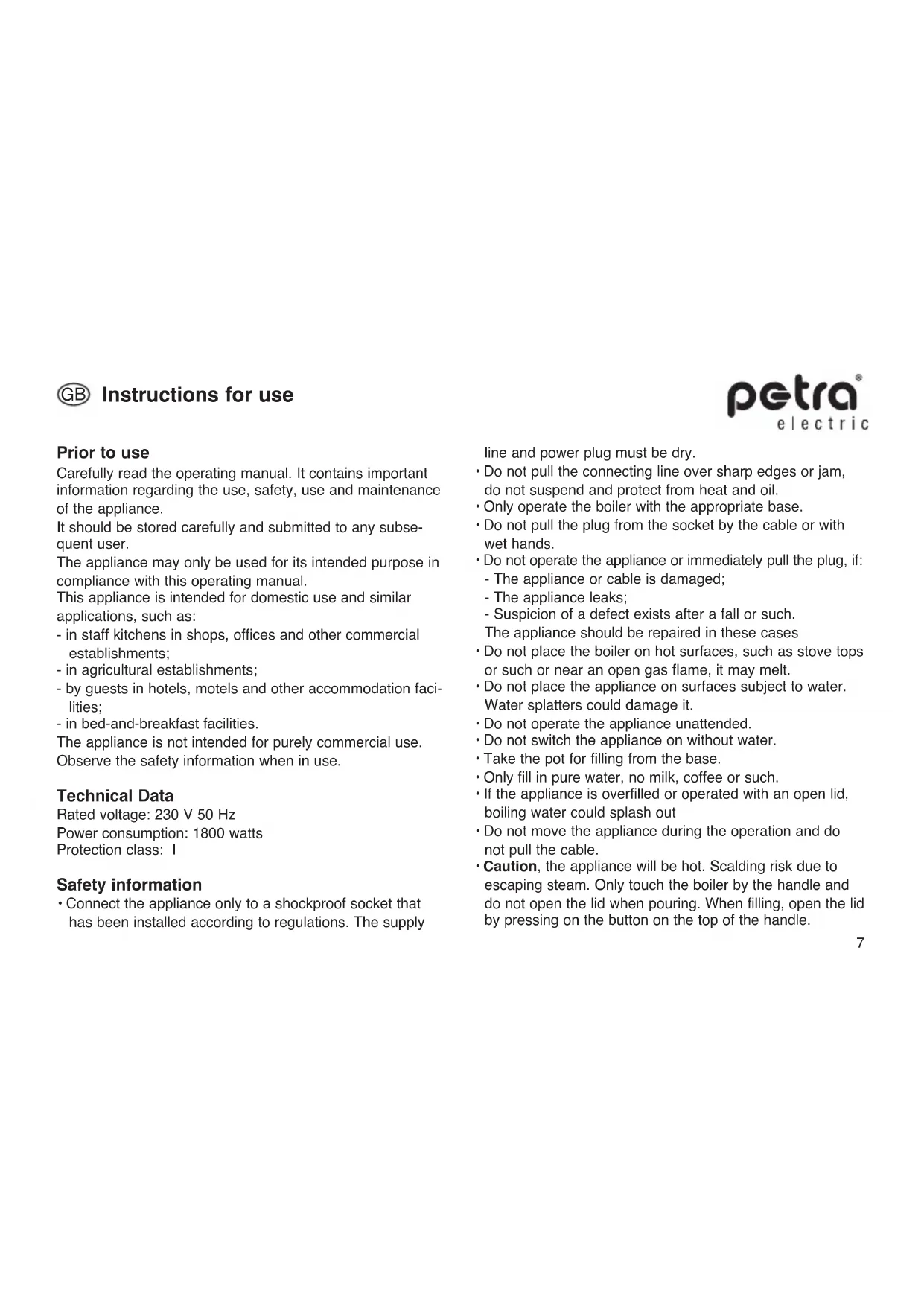

GB Instructions for use

Prior to use

Carefully read the operating manual. It contains important information regarding the use, safety, use and maintenance of the appliance.

It should be stored carefully and submitted to any subsequent user.

The appliance may only be used for its intended purpose in compliance with this operating manual.

This appliance is intended for domestic use and similar applications, such as:

- in staff kitchens in shops, offices and other commercial establishments;

- in agricultural establishments;

- by guests in hotels, motels and other accommodation facilities;

- in bed-and-breakfast facilities.

The appliance is not intended for purely commercial use.

Observe the safety information when in use.

Technical Data

Rated voltage: 230 V 50 Hz

Power consumption: 1800 watts

Protection class: I

Safety information

- Connect the appliance only to a shockproof socket that has been installed according to regulations. The supply

line and power plug must be dry.

- Do not pull the connecting line over sharp edges or jam, do not suspend and protect from heat and oil.

- Only operate the boiler with the appropriate base.

- Do not pull the plug from the socket by the cable or with wet hands.

- Do not operate the appliance or immediately pull the plug, if:

- The appliance or cable is damaged;

- The appliance leaks;

- Suspicion of a defect exists after a fall or such.

The appliance should be repaired in these cases

- Do not place the boiler on hot surfaces, such as stove tops or such or near an open gas flame, it may melt.

- Do not place the appliance on surfaces subject to water. Water splatters could damage it.

- Do not operate the appliance unattended.

- Do not switch the appliance on without water.

• Take the pot for filling from the base.

- Only fill in pure water, no milk, coffee or such.

- If the appliance is overfilled or operated with an open lid, boiling water could splash out

- Do not move the appliance during the operation and do not pull the cable.

- Caution, the appliance will be hot. Scalding risk due to escaping steam. Only touch the boiler by the handle and do not open the lid when pouring. When filling, open the lid by pressing on the button on the top of the handle.

• Always empty the pot completely. Do not keep any residual water in the appliance over an extended period.
- This appliance is not intended to be used by persons (including children) with limited physical, sensory or intellectual faculties or who lack experience and/or knowledge, unless they are supervised by a person responsible for their safety or received instructions on how to use the appliance.
- Please verify that children do not have an opportunity to play with the appliance.
• The plug must be pulled:
- In the event of malfunctions during the operation,
- Prior to each cleaning and care,
- After use.
- Do not immerse the pot and the base in water.
- Liability for any damages will not be assumed in the event of improper use, incorrect operation or improper repairs. Warranties are also ruled out in such cases.
• The appliance is not intended for commercial use.
- Packaging material, such as plastic bags do not belong into the hands of children.
- If the connecting line of this appliance is damaged, it must be replaced by the manufacturer's central customer service or a similarly qualified person. Incorrect repairs may result in considerable hazards for the user.

Start-up

Thoroughly clean the pot prior to first use. Open the lid by pressing on the button on the top of the handle.

The length of the connecting line that is not needed can be reeled in on the bottom of the base section. Always keep the line away from the hot pot.

Connect the plug to a grounded socket.

Only fill the water up to the max mark. It is located in the pot opposite the spout.

Close the lid. The automatic CookStop only operates reliably by this method.

Place the pot in any position onto the base. Only now press the button below the handle.

The push button switch only snaps in, if the pot is located on the base.

Do not use the water from the first cooking process to prepare food.

Automatic shutoff

The automatic cook stop switches the appliance off a short time after the water boils. If the pot is filled with only a little water, the shutoff period is extended.

If only warm water is desired, the heating process can be discontinued at any time by pressing the push button switch. It is also automatically switched off, if the pot is lifted from the base.

Some condensate may drain on the edge of the base on the

bottom of the handle based on the function of the drainage holes. This is technically conditional and will not jeopardize the safety of the appliance.

Safety system

A thermostat protects the boiler from overheating in case of an accidental operation without water by switching off the appliance.

The pot must be cooled off prior to filling with water.

If the first thermostat fails due to improper use, an additional thermostat provides reliable protection.

Cleaning and service

Pull the plug and cool the appliance. Do not immerse the appliance in water, but wipe with a damp cloth to which a dishwashing agent has been added and then wipe dry. Do not use sharp and abrasive cleaning agents.

The pot consists of stainless steel. If rust spots are seen regardless, these are initially only deposits adhering to the surface. They should be removed immediately with stainless steel cleaner.

Decalcification

Calcium deposits result in energy losses and reduce the service life of the appliance. It switches off early, if the calcium coating is too thick. It is then difficult to remove. Decalcify the pot routinely.

We recommend using durgol® express. It is very effective and gentle to materials.

You may obtain it where you bought the appliance; directly from a select dealer or you can order it directly from petra-electric.

Disconnect the appliance from the socket and let cool prior to decalcification. Fill in 1 to 2 cups of durgol® express and let the appliance stand until the calcium coating is removed from the bottom. Then fill the appliance with cold water past the calcium edge and let stand for 15 minutes. Then pour it out and thoroughly rinse with cold water.

Do not heat the solution during decalcification.

Caution, warranty compensation does not exist for damages that occur due to non-compliance.

Reasons for malfunctions

• The appliance switches off prior to cooking

The bottom of the pot is excessively calcified, not enough water has been filled in

• The appliance does not switch off

The lid is not closed

• The appliance cannot be switched on

The appliance is not sufficiently cooled after an operation without or with an insufficient amount of water.

If the malfunction cannot be resolved, the appliance must be repaired.

For UK use only

• This product is supplied with 13 A plug conforming to BS 1363 fitted to the mains lead. If the plug is unsuitable for your socket outlets or needs to be replaced, please note the following. If the plug is a non-rewireable one, cu immediately dispose of it. Never insert it into a socket outlet as there is a very great risk of an electric shock.
• The replacement of the plug at the mains lead has to be done according to the following instructions:

Warning - This appliance must be earthed

Important: The wires in this mains lead are coloured in accordance with the following code:

green / yellow: Earth

blue: Neutral

brown: Live

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

• the wire which is coloured green and yellow must be connected to the terminal which is marked with the letter E or by the earth symbol, or coloured green or green and yellow,
• the wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black,
• the wire which is coloured brown must be connected to

the terminal which is marked with the letter L or coloured red.

• If a 13 A (BS 1363) plug is used it must be fitted with a 13 A fuse conforming to BS 1362 and be ASTA approved. If any other type of plug is used, the appliance must be protected by a 15 A fuse either in the plug or adapter or at the distribution board. If in doubt - consult a qualified electrician.
• Never use the plug without closing the fuse cover.

CE The appliance complies with the European directives 2006/95/EC, 2004/108/EC and 2005/32/EC.

This product may not be disposed of in normal household waste at the end of its service life, but must be delivered to a collecting point for recycling electrical and electronic appliances.

The materials are reusable in accordance with their identification. You are making an important contribution to protect our environment by recycling, reusing the material or other forms of recycling used appliances.

Please request the responsible disposal point from your community administration.

(subject to modifications)

Universal Quick Decalcifier durgol® express

durgol Express Methanolizer Methanolizer Methanolizer

durgol® express quickly and easily frees all objects within the household from calcium. Its formula stands for an efficient and simultaneously mild, safe and environmentally friendly decalcification.

durgol® express is available at select retailers or from petra-electric in a 500 ml bottole.
