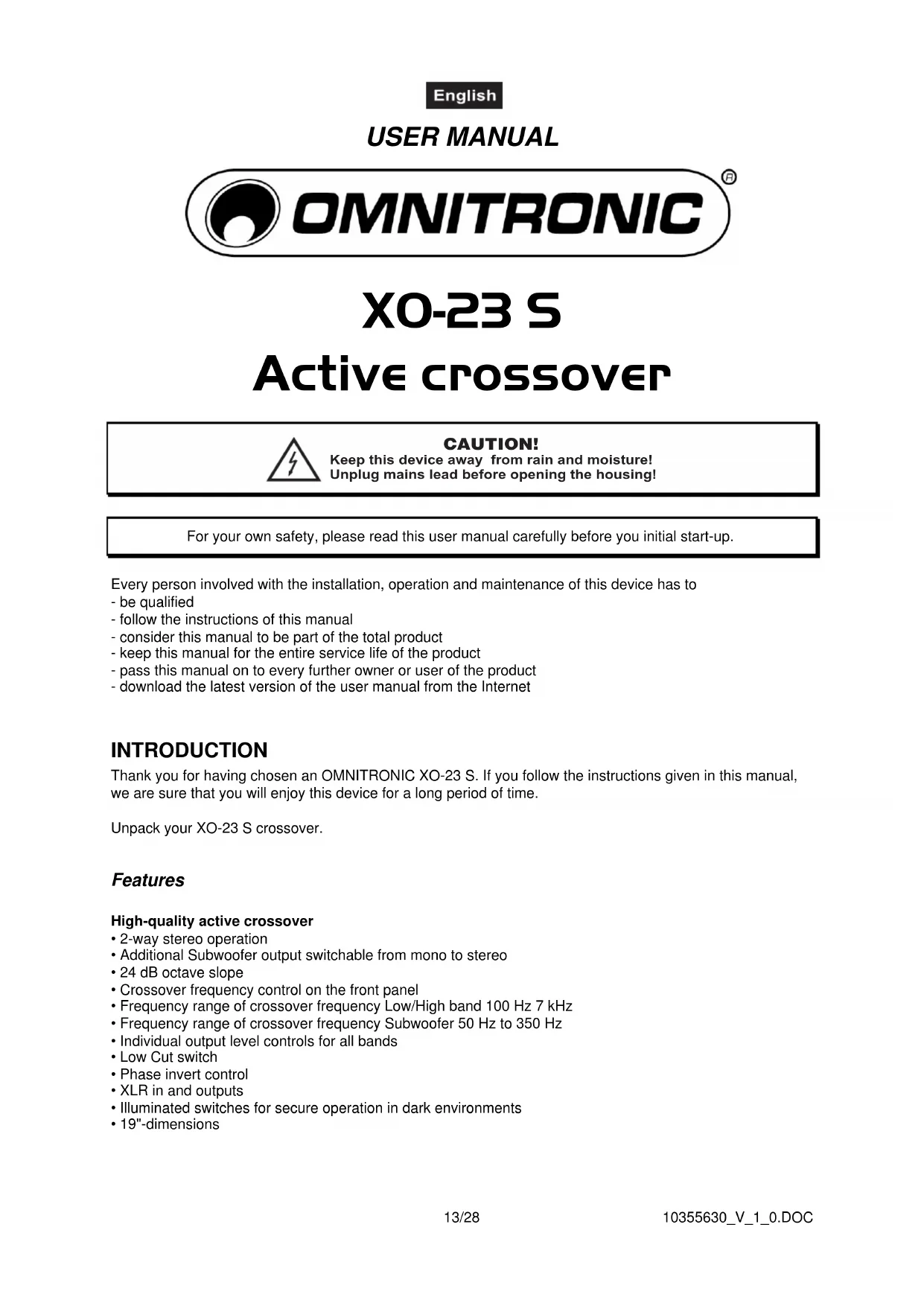

USER MANUAL XO-23 S Active crossover CAUTION! Keepthisdeviceawayfromrainandmoisture!Unplugmainsleadbeforeopeningthehousing!For your own safety, please read this user manual carefully before you initial start-up.Every person involved with the installation, operation and maintenance of this device has to- be qualified- follow the instructions of this manual- consider this manual to be part of the total product- keep this manual for the entire service life of the product- pass this manual on to every further owner or user of the product- download the latest version of the user manual from the Internet INTRODUCTION Thank you for having chosen an OMNITRONIC XO-23 S. If you follow the instructions given in this manual,we are sure that you will enjoy this device for a long period of time.Unpack your XO-23 S crossover. Features High-quality active crossover• 2-way stereo operation• Additional Subwoofer output switchable from mono to stereo• 24 dB octave slope• Crossover frequency control on the front panel• Frequency range of crossover frequency Low/High band 100 Hz 7 kHz• Frequency range of crossover frequency Subwoofer 50 Hz to 350 Hz• Individual output level controls for all bands• Low Cut switch• Phase invert control• XLR in and outputs• Illuminated switches for secure operation in dark environments• 19"-dimensions10355630_V_1_0.DOC 14/28 SAFETY INSTRUCTIONS CAUTION! Becarefulwithyouroperations.Withadangerousvoltageyoucansufferadangerous electricshockwhentouchingthewires! This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual. Important: Damages caused by the disregard of this user manual are not subject to warranty. The dealer will not accept liability for any resulting defects or problems. If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. Please make sure that there are no obvious transport damages. Should you notice any damages on the A/C connection cable or on the casing, do not take the device into operation and immediately consult your local dealer. This device falls under protection-class I. The power plug must only be plugged into a protection class I outlet. The voltage and frequency must exactly be the same as stated on the device. Wrong voltages or power outlets can lead to the destruction of the device and to mortal electrical shock. Always plug in the power plug least. The power plug must always be inserted without force. Make sure that the plug is tightly connected with the outlet. Never let the power-cord come into contact with other cables! Handle the power-cord and all connections with the mains with particular caution! Never touch them with wet hands, as this could lead to mortal electrical shock. Never modify, bend, strain mechanically, put pressure on, pull or heat up the power cord. Never operate next to sources of heat or cold. Disregard can lead to power cord damages, fire or mortal electrical shock. The cable insert or the female part in the device must never be strained. There must always be sufficient cable to the device. Otherwise, the cable may be damaged which may lead to mortal damage. Make sure that the power-cord is never crimped or damaged by sharp edges. Check the device and the power-cord from time to time. If extension cords are used, make sure that the core diameter is sufficient for the required power consumption of the device. All warnings concerning the power cords are also valid for possible extension cords. Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the power-cord by the plug. Never pull out the plug by tugging the power-cord. Otherwise the cable or plug can be damaged leading to mortal electrical shock. If the power plug or the power switch is not accessible, the device must be disconnected via the mains. If the power plug or the device is dusty, the device must be taken out of operation, disconnected and then be cleaned with a dry cloth. Dust can reduce the insulation which may lead to mortal electrical shock. More severe dirt in and at the device should only be removed by a specialist. There must never enter any liquid into power outlets, extension cords or any holes in the housing of the device. If you suppose that also a minimal amount of liquid may have entered the device, it must immediately be disconnected. This is also valid, if the device was exposed to high humidity. Also if the device is still10355630_V_1_0.DOC 15/28 running, the device must be checked by a specialist if the liquid has reduced any insulation. Reduced insulation can cause mortal electrical shock. There must never be any objects entering into the device. This is especially valid for metal parts. If any metal parts like staples or coarse metal chips enter into the device, the device must be taken out of operation and disconnected immediately. Malfunction or short-circuits caused by metal parts may cause mortal injuries. Before the device is switched on all faders and volume controls have to be set to "0" or "min" position. CAUTION: Turn the amplifier on last and off first! Please note that damages caused by manual modifications on the device or unauthorized operation by unqualified persons are not subject to warranty. Keep away children and amateurs! HEALTH HAZARD! By operating an amplifying system, you can produce excessive sound pressure levels that may lead to permanent hearing loss. There are no serviceable parts inside the device. Maintenance and service operations are only to be carried out by authorized dealers. OPERATING DETERMINATIONS This device is a professional crossover. This product is allowed to be operated with an alternating current of 230 V, 50 Hz and was designed for indoor use only. Do not shake the device. Avoid brute force when installing or operating the device. When choosing the installation-spot, please make sure that the device is not exposed to extreme heat, moisture or dust. There should not be any cables lying around. You endanger your own and the safety of others! Do not operate the device in extremely hot (more than 35° C) or extremely cold (less than 5° C) surroundings. Keep away from direct insulation (particularly in cars) and heaters. Operate the device only after having familiarized with its functions. Do not permit operation by persons not qualified for operating the device. Most damages are the result of unprofessional operation! Never use solvents or aggressive detergents in order to clean the device! Rather use a soft and damp cloth. Please use the original packaging if the device is to be transported. Please consider that unauthorized modifications on the device are forbidden due to safety reasons! Never remove the serial barcode from the device as this would make the guarantee void. If this device will be operated in any way different to the one described in this manual, the product may suffer damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like short- circuit, burns, electric shock, etc. DESCRIPTION The OMNITRONIC crossover is designed for professional application. With an active crossover, you can separate the output signal of your mixer in different frequency ranges. In this way you can define which signal portion will go to which amplifier.10355630_V_1_0.DOC 16/28 INSTALLATION RACK MOUNTING The crossover is built for 19" racks/483 mm. The minimum mounting depth is 160 mm. The height is 44 mm. You can fix the crossover with four screws M6 in the rack. When mounting the crossover into a rack, please make sure that there is a proper air circulation. Please make sure that there is enough space around the device so that the heated air can be passed on. The rack should be provided with a cooling fan. Be careful when mounting the crossover into the rack. Put the heaviest devices into the lower part of the rack. Be aware that fastening the crossover with four screws on the front panel is not enough. In order to ensure safety, additional fastening by using ground and side bars is necessary. If racks are to be transported or used for mobile use, additionally fasten the devices by connecting the rear brackets with the side or ground bars of the rack. In this way, the crossover cannot be pushed backwards. The front panel alone is not designed to absorb acceleration forces occuring during transportation. INPUTS A good cable run improves the sound quality remarkably. Input cables should be short and direct, since high frequencies will be mostly be absorbed if the cables are unnecessarily long. Besides that a longer cable may lead to humming and noise trouble. If long cable runs are unavoidable, you should use balanced cables. The inputs of your OMNITRONIC XO-23 S are equipped with electronically balanced XLR-connectors. OUTPUTS The high damping factor of your crossover supplies a clear sound reproduction. Unnecessarily long and thin cables will influence the damping factor and thus the low frequencies in a negative way. In order to safeguard good sound quality, the damping factor should lie around 50. The longer a cable has to be, the thicker it should be. The outputs of your OMNITRONIC XO-23 S are equipped with electronically balanced XLR-connectors. Occupation balanced XLR-connection:

Connect the OMNITRONIC XO-23 S only after having made sure that the right voltage (230 V) is available. This device features a T 0.5 A, 250 V fuse. Connect the device to the mains with the enclosed power supply cable. The occupation of the connection-cables is as follows: Cable Pin International Brown Live L Blue Neutral N Yellow/Green Earth The earth has to be connected! If the device will be directly connected with the local power supply network, a disconnection switch with a minimum opening of 3 mm at every pole has to be included in the permanent electrical installation.10355630_V_1_0.DOC 17/28 The device must only be connected with an electric installation carried out in compliance with the IEC- standards. The electric installation must be equipped with a Residual Current Device (RCD) with a maximum fault current of 30 mA. STARTING UP Make sure to power-up before your power amplifier is turned in order to avoid loud transients which could damage your speakers or annoy your audience. System test After connecting all cables, you should carry out a system test. Press all four Mute-buttons in order to mute all outputs. Activate the HF-outputs first. In case of wrong cabling, HF-signals will come out of bass-speakers that cannot be harmed this way. Vice versa, the LF-signals would destroy your HF-speakers. OPERATION Front panel Channel A and B are identical.

Turns power to the crossover on and off. Be sure to power-up before your power amplifier is turned on to avoid loud transients which could damage your speakers or annoy your audience.

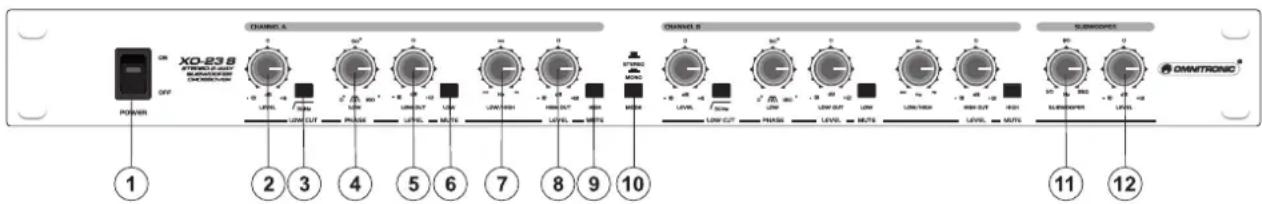

2. INPUT LEVEL Control

To adjust the input level from -

This switch activates the highpassfilter and allows you to cut down unwanted low frequencies. With the Low Cut-function, you can attenuate all signals below 30 Hz. Please keep this button pressed if you do not need these extremely low frequencies at any rate. If your speaker-system does not support these frequencies, there is danger of speaker damage!

This control reverses the polarity of the Low output.

5. LOW OUTPUT LEVEL Control

Controls the output level of the Low band from -

This control adjusts the crossover frequency between Low and High bands.

8. HIGH OUTPUT LEVEL Control

Controls the output level of the High band from -

Mutes the High band.10355630_V_1_0.DOC 18/28

10. SUBWOOFER STEREO / MONO Switch

Switches the Subwoofer output from stereo to mono. Always switch off the entire system before you press this button, as it produces heavy interference noise that could damage your speaker and/or other equipment.

11. XOVER FREQUENCY Control

This control adjusts the crossover frequency for the Subwoofer output between 50 and 350 Hz.

12. SUBWOOFER OUTPUT LEVEL Control

Controls the output level of the Subwoofer from -

to +12 dB. Rear panel

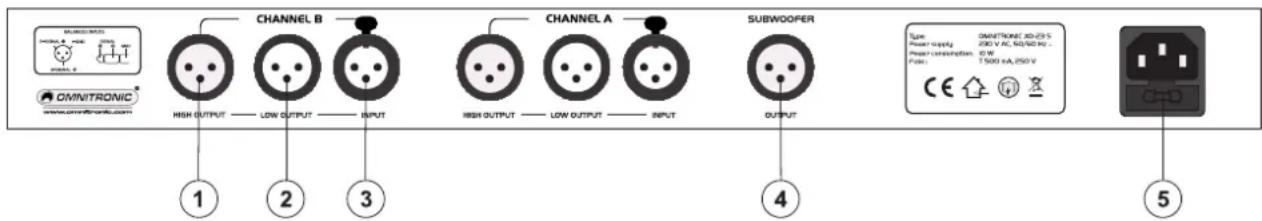

1. HIGH OUTPUT Socket

XLR output for the High Band signal.

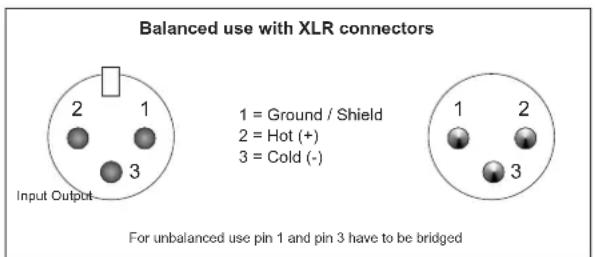

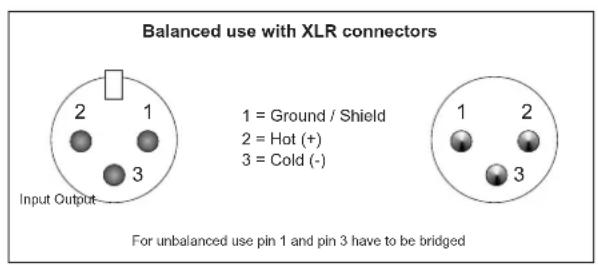

XLR input signal connector.

5. AC-Connection with Fuseholder

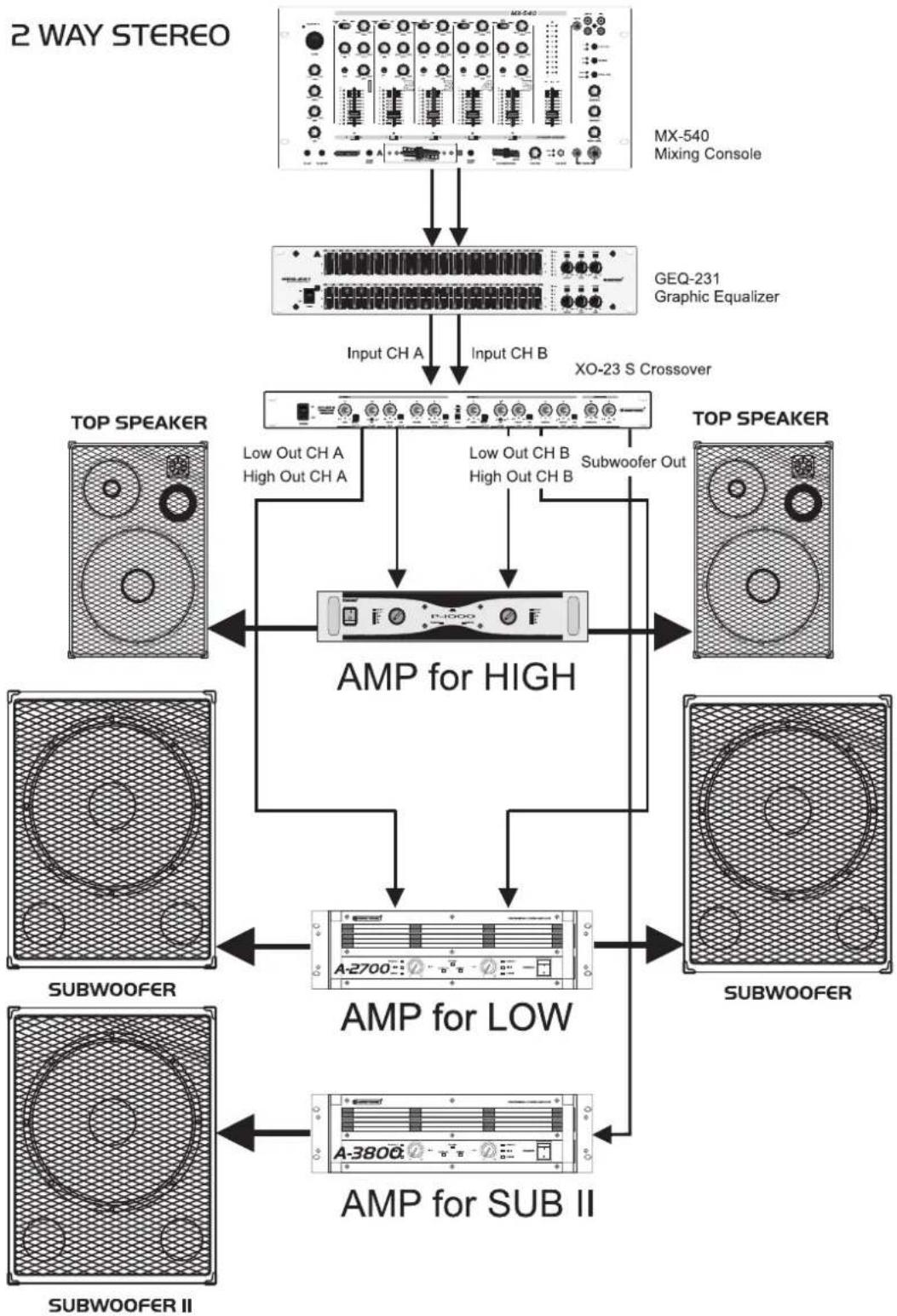

Used to plug the power-cord in.10355630_V_1_0.DOC 19/28 2-way stereo operation with additional Subwoofer Example for setting the frequency ranges (depending on the system and the room): SUB II Bass Highs 33-80 Hz 80-350 Hz 350-20 kHz The frequency can be adjusted via the respective XOVER Frequency Control. With the Input Level Control, you can adjust the incoming signal level from -

to +6 dB. With the Low Level and High Level Controls, you can attenuate the respective output level from -

to +12 dB. In the stero mode, both channels should be adjusted the same way.10355630_V_1_0.DOC 20/28
