USER MANUAL Bellissima B7500 IMETEC

Instructions for use

Mode d'emploi

Οδηγίες χρήσης

Diagram of a hair iron being heated, showing internal components and motion arrows (no text or symbols)

Three technical line drawings of coiled spring-like components (no text or symbols)

77777777

IT

Dear customer, IMETEC thanks you for having purchased this product. We are certain you will appreciate the quality and reliability of this appliance, designed and manufactured with customer satisfaction in mind. These instructions for use have been drawn up in compliance with the European Standard EN 62079.

ATTENTION! Instructions and warnings for a safe use.

Please read the use and safety instructions before using the appliance and follow these at all times. Keep this manual and illustrative guide with the appliance for future consultation. Should you pass the appliance on to another user, make sure to also include this documentation.

Should certain parts of this booklet be difficult to understand or should doubts arise, contact the company before using the product, at the address indicated on the last page.

INDEX

Safety warnings 10

Description of appliance and accessories.... 12

Useful advice 13

Use.... 13

Cleaning 16

Disposal.... 16

Assistance and warranty 16

9999999

EN

SAFETY INSTRUCTIONS

- The appliance may be used by children below 12 years of age, by persons with reduced physical, sensorial or mental abilities or persons lacking experience only if they have received prior instructions concerning its safe use and if they are informed as to the dangers related to use of the appliance.

Children may not play with the appliance. Appliance cleaning and maintenance cannot be completed by children without adult supervision.

- If the appliance is used in the bathroom, remove the plug from the socket after use, as bringing it close to water is dangerous even if the appliance is switched off.

- To ensure optimal protection, you are advised to install a differential current protective device in the bathroom the nominal differential current of which should not exceed 30mA (ideally, 10mA). Ask the

10101010101010

EN

installation technician for advice.

ATTENTION!

Do not use this appliance near bath tubs, wash basins or other water containers! Never place the appliance in water!

• After having removed the appliance from its packaging, verify its integrity based on the drawing and check for any damage caused during transport. If in doubt, do not use the appliance and contact the authorised assistance service.
- Do not let children play with the packaging! Keep the plastic wrapping out of the reach of children; risk of suffocation!
- Before connecting the appliance, check that the mains voltage data reported on the identification plate corresponds to that of the available electric mains. The identification plate is attached to the device.
- This appliance must be used only for the purpose for which it was designed, namely as a hair straightener for home use. Any other use is improper and potentially dangerous.

Do NOT use the appliance with wet hands, damp feet or barefoot.

DO NOT pull the power cable or the appliance itself to remove the plug from the socket.

DO NOT expose the appliance to humidity or weather conditions (rain, sun, etc.).

• Always disconnect the appliance from the mains supply before cleaning or performing maintenance and when the appliance is not in use.
• In case of fault or malfunctioning of the appliance, switch it off and do not tamper with it. If the device needs to be repaired, contact an authorized technical assistance centre.
• If the power cable is damaged it must be replaced by an authorised technical service centre, so as to prevent all risks.

11111111111111

EN

- The device must only be used on human hair. Do not use the device on animals or on wigs made of synthetic material.

• Use a dry cloth to clean the appliance.

Do NOT spray hairspray with the appliance switched on. There is a risk of fire.

MAIN INSTRucTloNS

dEScRIpTIoN of THE ApplIANcE AND THE AccESSoRIES [Fig. z]

Look at Figure [Z] in the illustration section to check the content of the packaging.

All figures are found in the inside pages of the cover.

1. Anti-scalding inserts
2. Heated bodywork
3. Buttons lock activation LED
4. Functioning LED
5. ○/ | Button (off/on)
6. Liquid crystal display
7. Temperature adjustment buttons (+ button and - button)
8. Plate closing lock
9. Power supply cable
10. Ionizer device slot (where present - for the hair straightener features, refer to the external packaging)
11. Heating plates
12. Cover Volume Sleek
13. Cover S-Wave
14. Cover Luxurious Curl

For the appliance features, refer to the external packaging. To be used only with the accessories supplied.

12121212121212

EN

USEFUL ADVICE

The quick understanding of the modes of use of the hair straightener will allow establishing the exact application time for obtaining the desired effect.

• Ensure the hair is dry, clean and without any trace of hairspray, hair mousse or gel
  • Comb the hair ensuring there are no knots
• Start straightening from the head, proceed on the sides and finish on the forehead
• During use, the heating and cooling of the plates, position the appliance on a smooth and heat resistant surface
• While straightening, be careful not to near the plates too much to the sensitive parts of the face, ears, neck or head
• Once finished using, leave the plates to cool down completely before putting them away

ATTENTION!

When using the appliance, if the liquid crystal display (6) starts to flash, it means there is a malfunctioning. In this case, we recommended switching off the appliance, removing the plug (9) from the mains, then take the product to the nearest customer after-sales assistance centre.

After having finished using the hair straightener, ensure it has completely cooled down before putting it away.

Never wrap the power supply cable around the appliance.

USE

PREPARING THE HAIR

• Wash hair as normal and comb removing knots
  • Dry the hair and brush from the roots to the ends

OPERATION

Depending on the desired effect, choose whether to use the plate with the following accessories:

Without cover: for straight hair, flicks and curls

Cover Volume Sleek (12): for volume with movement

Cover S-Wave (13): for soft waves

Cover Luxurious Curl (14): for tight and uniform curls

13131313131313

EN

USER INSTRUCTIONS

• before inserting or removing the shells, ensure the plate is cold;
• insert the shells (12, 13 or 14) making them slide on the bodywork (2);
  • connect the plug (9) to the mains;
• press the ○/ | button (5). The functioning LED (4) goes on;
• select the desired temperature between 140°C and 230°C, depending on the type of hair and the desired effect; the temperature can be varied at any time by pressing + or - (7);
• after having selected the desired temperature, the buttons lock can be activated by pressing the ○/| button (5) twice and quickly. This function prevents accidental temperature changes while using the plate. The activation of the buttons lock is signalled by the LED (3) going on; the lock can be disconnected by pressing the ●/| button (5) twice once again;
• the functioning LED (4) flashes until the plates reach the set temperature. Once the temperature is reached, the functioning LED (4) remains on;
• take a thin lock of hair, the same width of the plate and place it between the two plates;
• with one hand keep the lock of hair taut and with the other, slide the closed plate from the roots towards the ends; In order to discover the numerous methods and effects that can be achieved using the plate, consult the Easy Styling Guide.
• once hair styling is completed, switch-off the appliance by keeping the ○/ | button (5) pressed and disconnect the appliance from the socket.

Note: It is possible that steam develops during straightening; this is excess humidity in the hair that evaporates.

14141414141414

EN

ADJUSTING THE TEMPERATURE

The hair straightener has a digital temperature adjustment system. This allows the plate temperature to be adjusted according to the type of hair and the desired style.

140-160°C: recommended for thin hair

170-190°C: recommended for medium hair

200-230°C: recommended for thick hair

It is recommended to start styling by setting it to the lowest temperature and progressively increasing the temperature according to the desired style.

IONIZER (where present - for the hair straightener features, refer to the external packaging)

The plate has an ionizer - a device that reproduces ionization, which add shine and brightness to the hair. The "static hair" effect is also reduced.

ATTENTION! RISK OF SCALDING

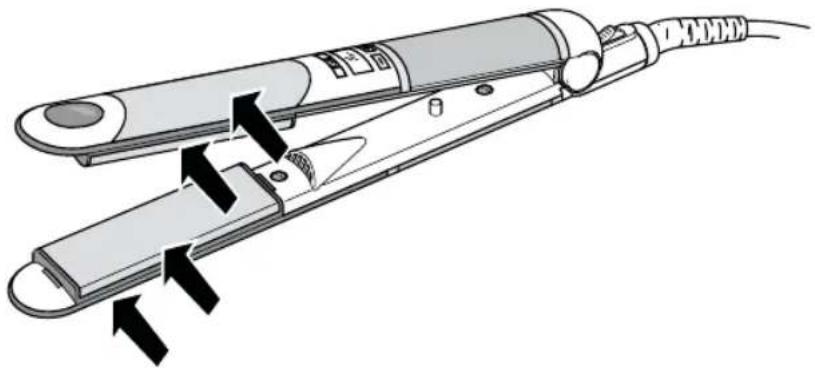

During use, the external parts marked in Figure 1 reach high temperatures. Be particularly careful not to place these parts in contact with the skin or fingers while using the straightener.

Figure 1

Illustration of a hair iron being cut with arrows indicating compression or disassembly (no text or symbols present)

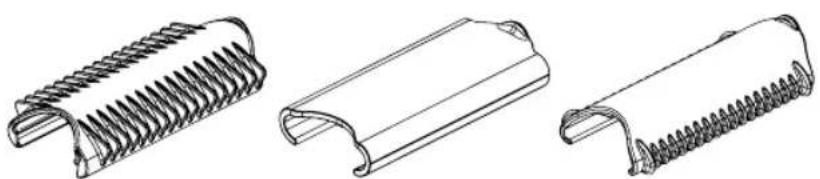

Before applying or removing the covers (Figure 2) ensure the plate is cold.

Figure 2

Three technical line drawings of coiled spring-like components (no text or symbols)

15151515151515

EN

AUTOMATIC SWITCH-OFF

The straightener switches off automatically 1 hour after being switched on.

CLEANING

• Switch off the appliance by pressing the ○/| button (5) and disconnecting the plug (9) from the socket
• Wait for the plates (11) to cool down
• Clean the surface of the heating plates (11), the heated bodywork (2) and the handle with a soft damp cloth.

Before re-using the appliance, ensure that all cleaned parts are completely dry!

dISpoSAI

The packaging is made up of recyclable material. Dispose of it in compliance with the environmental protection standards.

Pursuant to European Standard 2002/96/EC, when the appliance is no longer used, it must be disposed of at the end of its use cycle in a compliant manner.

This regards recycling useful substances in the appliance, which reduces the environmental impact. For further information, contact the local disposal body or the appliance dealer.

SERVicE AND WARRANTY

To request repairs or purchase spare parts, please contact IMETEC's authorised customer assistance service on the Toll-Free Number below or via the website.

The appliance is covered by the manufacturer's warranty. For details, read the attached warranty sheet.

Failure to comply with the instructions for use and maintenance provided in this manual will render the manufacturer's warranty null and void.

IMETEC

www.imetec.com

Tenacta Group S.p.A. Via Piemonte, 5/11 24052 AZZANO S. PAOLO (BG) ITALY Tel. +39.035.688.111 Fax +39.035.320.149

M1000549 0411 (MINYUN)
