USER MANUAL FJ120RW2 011 HOOVER

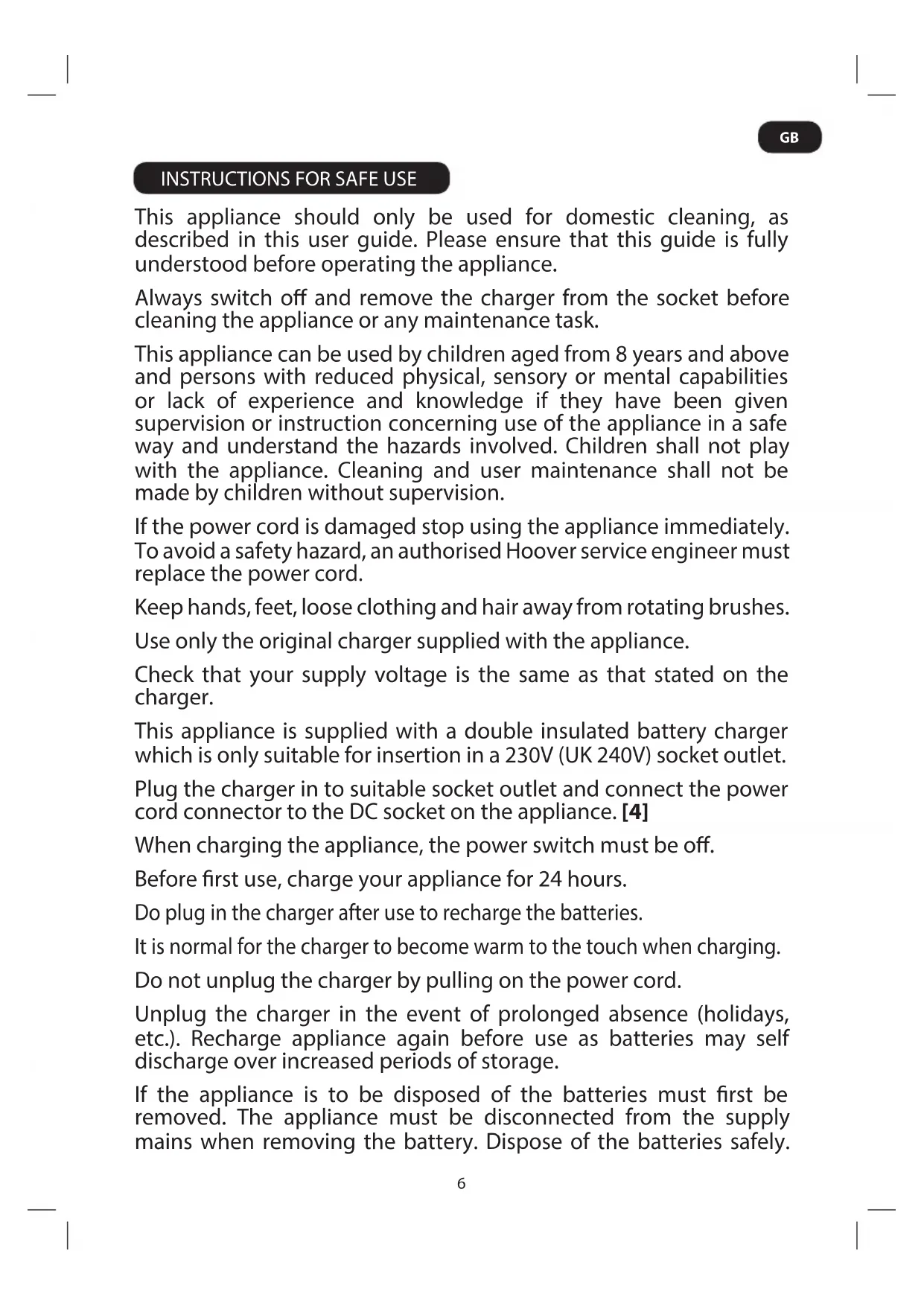

INSTRUCTIONS FOR SAFE USE This appliance should only be used for domestic cleaning, as

described in this user guide. Please ensure that this guide is fully

understood before operating the appliance.

Always switch o and remove the charger from the socket before

cleaning the appliance or any maintenance task.

This appliance can be used by children aged from 8 years and above

and persons with reduced physical, sensory or mental capabilities

or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe

way and understand the hazards involved. Children shall not play

with the appliance. Cleaning and user maintenance shall not be

made by children without supervision.

If the power cord is damaged stop using the appliance immediately.

To avoid a safety hazard, an authorised Hoover service engineer must

replace the power cord.

Keep hands, feet, loose clothing and hair away from rotating brushes.

Use only the original charger supplied with the appliance.

Check that your supply voltage is the same as that stated on the

This appliance is supplied with a double insulated battery charger

which is only suitable for insertion in a 230V (UK 240V) socket outlet.

Plug the charger in to suitable socket outlet and connect the power

cord connector to the DC socket on the appliance. [4]

When charging the appliance, the power switch must be o.

Before rst use, charge your appliance for 24 hours.

Do plug in the charger after use to recharge the batteries.

It is normal for the charger to become warm to the touch when charging.

Do not unplug the charger by pulling on the power cord.

Unplug the charger in the event of prolonged absence (holidays,

etc.). Recharge appliance again before use as batteries may self

discharge over increased periods of storage.

If the appliance is to be disposed of the batteries must rst be

removed. The appliance must be disconnected from the supply

mains when removing the battery. Dispose of the batteries safely.

Run the appliance until it stops because the batteries are fully

discharged. Used batteries should be taken to a recycling station

and not disposed of with household waste. To remove the batteries,

please contact the Hoover Customer Centre or proceed according to

the following instructions.

IMPORTANT: Always fully discharge the batteries before removal.

1. Run the cleaner until the batteries are completely empty.

2. Remove the ergonomic handle and the screws, in the main body

to open the cleaner. [12]

3. Remove the motor battery housing and disconnect the cables.

4. Remove the batteries from the housing.

NOTE: Should you experience any diculty in dismantling the unit or

for more detailed information on treatment, recovery and recycling of

this appliance, please contact your local city oce or your household

waste disposal service.

DO NOT expose the batteries to a room temperature above 40°C.

Use only attachments, consumables or spares recommended or

Static electricity: Some carpets can cause a small build up of static

electricity. Any static discharge is not hazardous to health.

Do not use your appliance out of doors or on any wet surface or for

Do not pick up hard or sharp objects, matches, hot ashes, cigarette

ends or other similar items.

Do not spray with or pick up ammable liquids, cleaning uids,

aerosols or their vapours.

Do not run over the power cord when using your appliance or remove

the plug by pulling on the power cord.

Do not continue to use your appliance or charger if it appears faulty.

Hoover service: To ensure the continued safe and ecient operation

of this appliance we recommend that any servicing or repairs are only

carried out by an authorised Hoover service engineer.

Do not use the appliance to clean animals or people.

Do not replace the batteries with non-rechargeable batteries.

Do frequently clean the dust cup and lter assembly.

This appliance is marked according to the European directive 2011/65/EC on Waste Electrical and Electronic

Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative

consequences for the environment and human health, which could otherwise be caused by inappropriate waste

handling of this product. The symbol on the product indicates that this product may not be treated as household

waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic

equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For

more detailed information about treatment, recovery and recycling of this product, please contact your local city

oce, your household waste disposal service or the shop where you purchased the product.

This product complies with the European Directives 2014/35/EU, 2014/30/EU and 2011/65/EU.

CANDY HOOVER GROUP S.r.l. Via Privata Eden Fumagalli, 20861 Brugherio (MB) Italy

* Features vary according to model

PRODUCT COMPONENTS Main Cleaner Handheld cleaner Filters Accessories

B. Push and Go Release Button

C. Handheld Cleaning Unit

D. Nozzle Release Button

H. Bin Release Button

K. Bin Release Button

PREPARING YOU CLEANER

1. Assembly the handle by pushing it onto the main body until it locks in place [1].

2. Assembly the nozzle onto the neck of the main body. It will lock in place to remove

press the nozzle release button (D) and pull it from the main body [2].

3. Assembly the handheld cleaning unit to the main body [3].

4. Insert charger to handheld cleaning unit. For rst use charge your cleaner

for 24 Hrs [4]. After rst use the normal charging time is 16 Hrs.

5. Fix the Product Holder to your wall using the screw and holder provided [R]. During storage and

charging, secure your appliance handle into the product holder.

NOTE: Use only the charger supplied with your cleaner to recharge.

IMPORTANT: When charging the cleaner the On/O switch must be OFF.

Keep the charger plugged into the socket at all times. It is normal for the charger to become warm to the

touch when charging.

If the operating times reduces after repeated use let the cleaner run until it stops then recharge for 24

hours, repeat this monthly for best results.

1. Prepare your cleaner for use by releasing the parking lock on the nozzle [5].

2. Turn on your cleaner by pressing the On/O switch on the handheld cleaning unit (J).

3. Use the nozzle mode selector to change between carpet and hard oor mode [6].

4. To use as a handheld cleaner press the “Push and Go” button to remove the handheld cleaning unit

from the main body [7].

5. The supplied accessories can be used in handheld mode [8].

CLEANER MAINTENANCE Emptying the Dust Container

Hold the handheld cleaning unit over a bin and pull the bin empty trigger to empty the dust container [9].

Cleaning the Filters

1. Remove the handheld cleaning unit from the main body [7].

2. Press the bin release button and remove the dust container [10].

3. Remove the lter and shroud from the dust container [11].

Wash the lter and shroud in lukewarm water.

Once thoroughly dry return them to the dust container.

NOTE: Do not use hot water or detergents when cleaning the lters.

In the unlikely event of the lters

becoming damaged, t a genuine HOOVER replacement. Do not try and use the product without a lter tted.

End of Product Life Battery Disposal

If your cleaner is to be disposed ok, the batteries should be removed. Used batteries should be taken to a

recycling station and not disposed of with household waste.

IMPORTANT: Always fully discharge the batteries before removal.

1. Run the unit until the batteries are at.

2. Remove the handheld unit from the main body [7].

3. Press the bin release button and remove the dust container [10].

4. Remove 6 screws and to open the handheld cleaning unit [12].

5. Remove the Battery/Motor housing and disconnect the cables [12].

6. Remove the batteries from the housing [12].

NOTE: Should you experience any diculties in dismantling the unit or for more detailed information

about treatment, recovery and recycling of this product, please contact your local city oce or your

household waste disposal service.

YOUR GUARANTEE The guarantee conditions for this appliance are as dened by our representative in the country in which

it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance

was purchased. The bill of sale or receipt must be produced when making any claim under the terms of

Subject to change without notice.

HOOVER SPARES AND CONSUMABLES Always replace parts with genuine HOOVER spares. These are available from your local HOOVER dealer or

direct from HOOVER. When ordering parts always quote your model number.

IMPORTANT: The battery in this cleaner is guaranteed for 6 months from purchase. After 6 months

the customer is liable for the cost of a new battery which will be tted free of charge by an authorised

3. Használja a szívócső mód választót a szönyeg, valamint az erősebb padlótisztító mód között [6].

4. To use as a handheld cleaner press the “Push and Go” button to remove the handheld cleaning unit

from the main body [7].

5. A mellékelt tartozékok kézi módban használhatóak[8].
