USER MANUAL PC 604 (WH)HA HOTPOINT ARISTON

WARNING: The appliance and its

accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

WARNING: Unattended cooking on a

hob with fat or oil can be dangerous and may result in re. NEVER try to extinguish a re with water, but switch off the appliance and then cover ame e.g. with a lid or a re blanket.

WARNING: Danger of re: do not store

• appliance model (Mod.)

• serial number (S/N) This information is found on the data plate located on the appliance and/or on the packaging. Assistance Indiquez-lui :

• ELECTRIC HOTPLATES may have different diameters and operate at different power levels. These power levels may be “normal” or “rapid” (the latter may be distinguished from the others by a red spot in the middle of the hotplate).

• The ELECTRIC HOTPLATE INDICATOR LIGHT switches on whenever the selector knob is moved from the ‘off’ position.

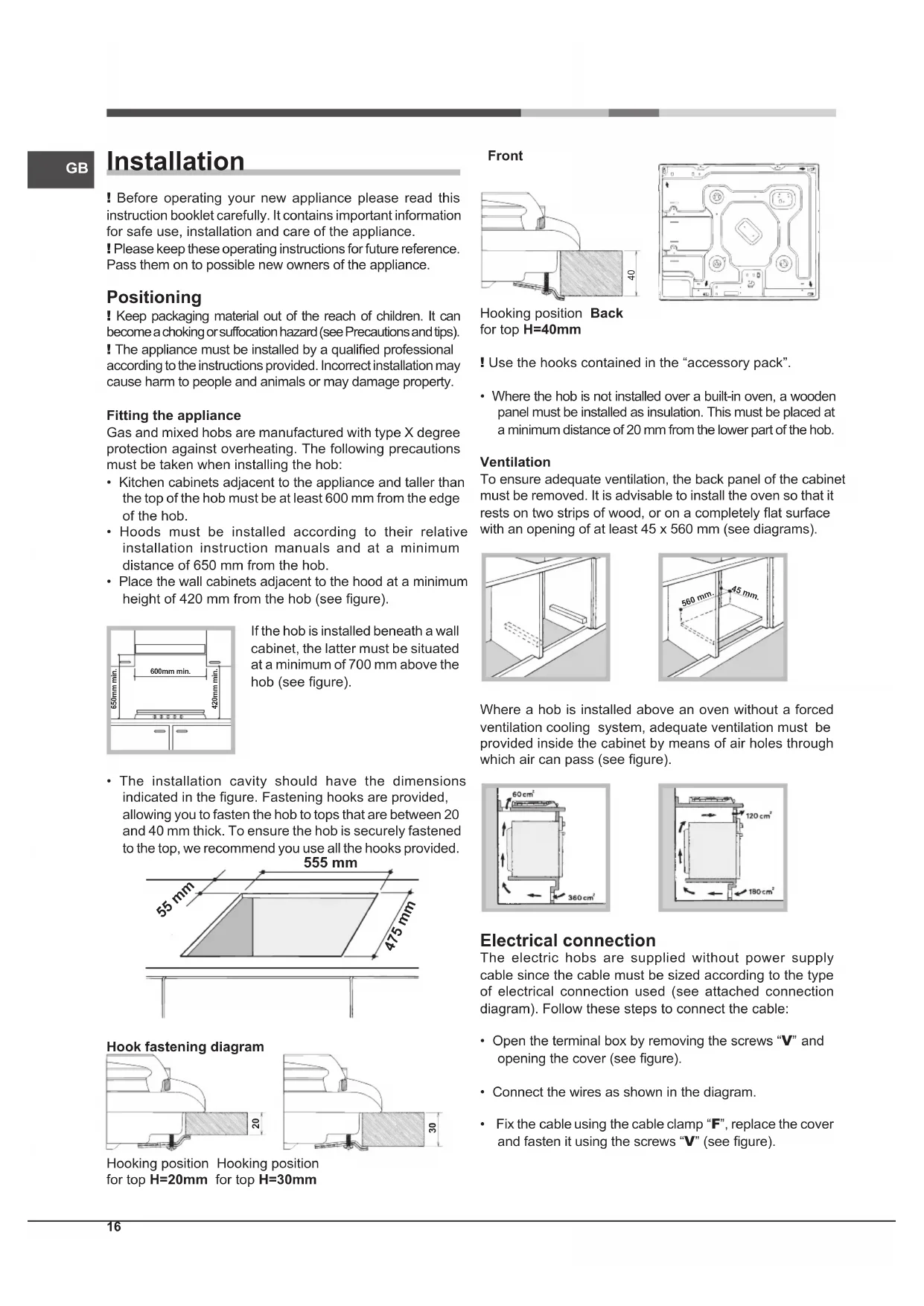

Installation ! Before operating your new appliance please read this instruction booklet carefully. It contains important information for safe use, installation and care of the appliance.! Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance. Positioning ! Keep packaging material out of the reach of children. It can become a choking or suffocation hazard (see Precautions and tips).! The appliance must be installed by a qualied professional according to the instructions provided. Incorrect installation may cause harm to people and animals or may damage property.Fitting the applianceGas and mixed hobs are manufactured with type X degree protection against overheating. The following precautions must be taken when installing the hob:• Kitchen cabinets adjacent to the appliance and taller than the top of the hob must be at least 600 mm from the edge of the hob.• Hoods must be installed according to their relative installation instruction manuals and at a minimum distance of 650 mm from the hob.• Place the wall cabinets adjacent to the hood at a minimum height of 420 mm from the hob (see gure).If the hob is installed beneath a wall cabinet, the latter must be situated at a minimum of 700 mm above the hob (see gure).• The installation cavity should have the dimensions indicated in the gure. Fastening hooks are provided, allowing you to fasten the hob to tops that are between 20 and 40 mm thick. To ensure the hob is securely fastened to the top, we recommend you use all the hooks provided. 555 mm 55 mm 475 mm Hook fastening diagram

Hooking position Backfor top H=40mm! Use the hooks contained in the “accessory pack”.• Where the hob is not installed over a built-in oven, a wooden panel must be installed as insulation. This must be placed at a minimum distance of 20 mm from the lower part of the hob.VentilationTo ensure adequate ventilation, the back panel of the cabinet must be removed. It is advisable to install the oven so that it rests on two strips of wood, or on a completely at surface with an opening of at least 45 x 560 mm (see diagrams). 560 mm.45 mm.Where a hob is installed above an oven without a forced ventilation cooling system, adequate ventilation must be provided inside the cabinet by means of air holes through which air can pass (see gure). Electrical connection The electric hobs are supplied without power supply cable since the cable must be sized according to the type of electrical connection used (see attached connection diagram). Follow these steps to connect the cable:• Open the terminal box by removing the screws “V” and opening the cover (see gure).• Connect the wires as shown in the diagram.

• Fix the cable using the cable clamp “F”, replace the cover and fasten it using the screws “V” (see gure).GB

380-400V 3N~H05RR-F 5x1.5 CEI-UNEL 35363380-400V 2N~H05RR-F 4x1.5 CEI-UNEL 35363220-230V 1N~ H05RR-F 3x2.5 CEI-UNEL 35363 Connecting the supply cable to the mains Install a standardised plug corresponding to the load indicated on the data plate. The appliance must be directly connected to the mains using an omnipolar circuit-breaker with a minimum contact opening of 3 mm installed between the appliance and the mains. The circuit-breaker must be suitable for the charge indicated and must comply with current electrical regulations (the earthing wire must not be interrupted by the circuit- breaker). The supply cable must not come into contact with surfaces with temperatures higher than 50°C. ! The installer must ensure that the correct electrical connection has been made and that it is compliant with safety regulations. Before connecting to the power supply, make sure that:

• The appliance is earthed and the plug is compliant with the law.

• The socket can withstand the maximum power of the appliance, which is indicated on the data plate.

• The voltage is in the range between the values indicated on the data plate.

• The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it. Do not use extension cords or multiple sockets. ! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible. ! The cable must not be bent or compressed. ! The cable must be checked regularly and replaced by authorised technicians only (see Assistance). ! The manufacturer declines any liability should these safety measures not be observed. ! If the appliance is to be installed above a built-in electric oven, the electrical connection of the hob and the oven must be carried out separately, both for electrical safety purposes and to make extracting the oven easier. Electrical connectionsDATA PLATEVoltage 220-230V/380-400V 3N ~ 50/60 HzMax power 5600 WThis appliance conforms to the following European Economic Community directives:- 2006/95/EEC dated 12/12/06 (Low Voltage) and subsequent amendments- 2004/108/EEC dated 15/12/04 (Electromagnetic Compatibility) and subsequent amendments- 93/68/EEC dated 22/07/93 and subsequent amendments.- 2012/19/EC and subsequent amendments. Start-up and use ! The position of the corresponding electric hotplate is shown on every knob. Electric hotplates The corresponding knob may be turned clockwise or anti- clockwise and set to six different positions: Setting Normal o Fast Plate 0 Off Low 2-5 Medium 6 High ! Please refer to the “Practical advice on using the appliance” section for a list of the relative positions and their recommended uses. Practical advice on using the electric hotplates To avoid heat loss and damage to the hotplates, use pans with a at base, whose diameter is no less than that of the hotplate itself. Setting

Setting Off Cooking vegetables, fish Cooking patatoes (using steam) soups, chickpeas, beans. Continuing the cooking of large quantities of food, minestrone. For roasting (average) For roasting (above average) For browning and reaching a boil in a short time ! Before using the hotplates for the rst time, you should heat them at maximum temperature for approximately 4 minutes, without placing any pans on them. During this initial stage, their protective coating hardens and reaches its maximum resistance.18

Precautions and tips ! This appliance has been designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully. General safety

• This is a class 3 built-in appliance.

• These instructions are only valid for the countries whose symbols appear in the manual and on the serial number plate.

• The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.

• The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms.

• Do not touch the appliance with bare feet or with wet or damp hands and feet.

• The appliance must be used by adults only for the preparation of food, in accordance with the instructions outlined in this booklet. Any other use of the appliance (e.g. for heating the room) constitutes improper use and is dangerous. The manufacturer may not be held liable for any damage resulting from improper, incorrect and unreasonable use of the appliance.

• Ensure that the power supply cables of other electrical appliances do not come into contact with the hot parts of the oven.

• The openings used for ventilation and dispersion of heat must never be covered.

• Always make sure the knobs are in the “●”/“○” position when the appliance is not in use.

• When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable.

• Never carry out any cleaning or maintenance work without having detached the plug from the mains.

• In case of malfunction, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance. Contact a Service Centre (see Assistance).

• Always make sure that pan handles are turned towards the centre of the hob in order to avoid accidental burns.

• Do not leave the electric hotplate switched on without a pan placed on it.

• Do not use unstable or deformed pans.

• The appliance should not be operated by people (including children) with reduced physical, sensory or mental capacities, by inexperienced individuals or by anyone who is not familiar with the product. These individuals should, at the very least, be supervised by someone who assumes responsibility for their safety or receive preliminary instructions relating to the operation of the appliance.

• Do not let children play with the appliance.

• IMPORTANT SAFETY INFORMATION FOR UK MARKET: Please note that this product is not tted with a ame supervision device. It is NOT suitable for tting or use in high rise ats or multiple dwellings. If you are in any doubt please contact a CORGI registered gas engineer for advice.

• The appliance is not intended to be operated by means of an external timer or separate remote-control system. Disposal

• When disposing of packaging material: observe local legislation so that the packaging may be reused.

• The European Directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. Maintenance and care Switching the appliance off Disconnect your appliance from the electricity supply before carrying out any work on it. Cleaning the appliance ! Do not use abrasive or corrosive detergents such as stain removers, anti-rust products, powder detergents or sponges with abrasive surfaces: these may scratch the surface beyond repair. ! Never use steam cleaners or pressure cleaners on the appliance.

• It is usually enough to wash the hob with a damp sponge and dry it with absorbent kitchen roll.

• The electric hotplates should be cleaned with a damp cloth and lubricated with a little oil while still warm.

• Stainless steel can be marked by hard water that has been left on the surface for a long time, or by aggressive detergents containing phosphorus. After cleaning, rinse and dry any remaining drops of water.FR
