ECO BL - Blender IMETEC - Free user manual and instructions

Product type	Blender
Brand	Imetec
Model	ECO BL
Usage	Domestic
Maximum capacity	800 ml
Mixing functions	Pulse and Continuous
Max continuous running time	Less than 1 minute
Control	Push button on/off
Jug material	Glass (not specified, estimated)
Blade material	Stainless steel (estimated)
Cleaning of removable parts	Hand wash or dishwasher (max 60°C)
Cleaning of motor unit	With a wrung-out damp sponge
Safety	Do not immerse motor unit
Safety	Do not touch moving blades
Safety	Do not use without ingredients
Safety	Do not pour hot liquid
Electrical class	II
Warranty	Manufacturer's warranty (see enclosed sheet)
After-sales service	Toll-free number and IMETEC website
Spare parts	Available from customer service
Included accessories	Lid, jug, blade unit, motor unit
Standards	Complies with standard EN 62079

Frequently Asked Questions - ECO BL IMETEC

How to clean the blender?

Wash the lid, jug and blade unit by hand or in the dishwasher (max 60°C). Clean the motor unit with a damp sponge wrung out well.

Can I blend hot liquids?

No, never pour hot liquid into the blender to avoid an explosion due to sudden vaporization.

What is the maximum capacity of the jug?

The maximum capacity is 800 ml. Do not exceed this limit.

How to use the Pulse function?

Briefly press the on/off control for pulses. Ideal for the initial blending phase.

What if ice cubes are not properly crushed?

Add a little extra liquid and blend again. If the ice cubes rise, turn off, stir with a plastic spatula and blend in pulses.

Can I wash the parts in the dishwasher?

Yes, the lid, jug and blade unit are dishwasher safe provided the temperature does not exceed 60°C.

How to disassemble the blade unit?

Unscrew the ring from the jug counterclockwise, then remove the blades and the seal.

What to do in case of breakdown or malfunction?

Turn off the appliance and do not tamper with it. Contact an authorized technical assistance center for any repair.

Can children use the appliance?

Children over 12 years old can use it under adult supervision. Younger children should not play with the appliance.

What is the warranty of the blender?

The appliance is covered by a manufacturer's warranty. Refer to the enclosed warranty sheet for details.

USER MANUAL ECO BL IMETEC

Operating instructions

Illustration of a blender with a lid and side blades, showing internal mixing (no text or symbols)

Illustration of hands assembling a mechanical component with a gear and shaft (no text or symbols)

Line drawing of a blender with lid and handle, showing blade and lid structure (no text or symbols)

Line drawing of a hand pouring liquid into a blender with granular contents (no text or symbols)

TYPE G3801

220-240 V 50 Hz 200 W

MANUALE DI ISTRUZIONI PER L'USO DEL FRULLATORE

Dear customer, IMETEC thanks you for having purchased this product. We are certain you will appreciate the quality and reliability of this appliance, designed and manufactured with customer satisfaction in mind. This instruction manual has been drawn up in compliance with the European Standard EN 62079.

ATTENTION!

Instructions and warnings for a safe use.

Please read the instructions on use and safety before using the

appliance and follow these at all times. Keep this manual and illustrative guide with the appliance for future consultation. Should you pass the appliance on to another user, make sure to also include this documentation.

Should certain parts of this booklet be difficult to understand or should doubts arise, contact the company before using the product, at the address indicated on the last page.

INDEX

SAFETY WARNINGS page 8

SYMBOLS page 9

DESCRIPTION OF THE APPLIANCE

AND ACCESSORIES page 9

HOW TO OPERATE THE APPLIANCE page 9

HOW TO CLEAN TO LID,

THE JUG AND THE BLADE UNIT page 10

HOW TO CLEAN THE MOTOR UNIT page 10

USE page 10

PROBLEMS AND SOLUTIONS page 11

DISPOSAL page 11

SERVICE AND WARRANTY page 12

ILLUSTRATIVE GUIDE

TECHNICAL DATA III

GB

SAFETY WARNINGS

• After having removed the appliance from its packaging, verify its integrity based on the drawing and check for any damage caused during transport. If in doubt, do not use the appliance and contact the authorised assistance service.
• Do not let children play with the packaging! Keep the plastic wrapping out of the reach of children; risk of suffocation!
• Before connecting the appliance, check that the mains voltage data reported on the identification plate corresponds to that of the available electric mains. The identification plate is attached to the device.
• This appliance must be used only for the purpose for which it was designed, that is as a BLENDER for home use. Any other use is improper and potentially dangerous.
• The appliance may be used by children below 12 years of age, by persons with reduced physical, sensorial or mental abilities or persons lacking experience only if they have received prior instructions concerning its safe use and if they are informed as to the dangers related to use of the appliance. Children may not play with the appliance. Appliance cleaning and maintenance cannot be completed by children without adult supervision. Keep the appliance and power supply cable from children under 12 when the appliance is on or cooling down.

• DO NOT touch the device with damp or wet hands or feet.

• DO NOT pull on the cord or device to unplug the latter from the mains socket.

• DO NOT expose the appliance to humidity or weather conditions (rain, sun).

- Always disconnect the appliance from the mains supply before cleaning or performing maintenance and when the appliance is not in use.

- In case of fault or malfunctioning of the appliance, switch it off and tamper with it. If the device needs to be repaired, contact an authorised technical assistance centre.

- If the power cable is damaged it must be replaced by an authorised technical service centre, so as to prevent all risks.

- NEVER submerge the appliance in water or other liquids and never place it under running water.

- The appliance is not meant to be operated by an external timer or with a separate remote control system or similar systems.

• DO NOT use the appliance near a washbasin full of water. When used the appliance must be placed in such a way that it cannot fall in the washbasin.

• DO NOT use near a hob. Make sure the cable does not come into contact with hot, incandescent surfaces, open flames, pots and other tools.

• DO NOT touch moving parts.

• DO NOT remove the blender's lid during during operation.

• DO NOT pour hot liquids in the blender, to avoid generating an explosion caused by a sudden vaporisation.

• Failure to follow these instructions or misuse of the product may cause injury.
• Pay special attention when handling sharp blades when processed material is removed from the bowl for cleaning purposes.

SYMBOLS

	Class II appliance
	Operating instructions

DESCRIPTION OF THE APPLIANCE AND ACCESSORIES [Fig. A]

1. Lid
2. Jug
3. Blade unit

3a. Gasket
3b. Blades
3c. Ring

1. Motor unit

2. On/off switch button

3. Power supply cable

HOW TO OPERATE THE APPLIANCE

The on/off switch button may be used as follows:

FUNCTION USE
Pulse Suitable at the beginning of processing.
Continuous	Suitable at the end of processing or to add volume to the processed contents.

ATTENTION!

All parts that come in contact with food when using the machine should be carefully cleaned before use.

tion when handling the blades (3b) to prevent accidental cuts.

Never place the motor unit (4) and the power supply cable (6) in water.

GB

HOW TO CLEAN THE LID (1), THE JUG (2)

AND THE BLADE UNIT (3)

• Lift the jug (2) from the motor unit (4) [Fig B].

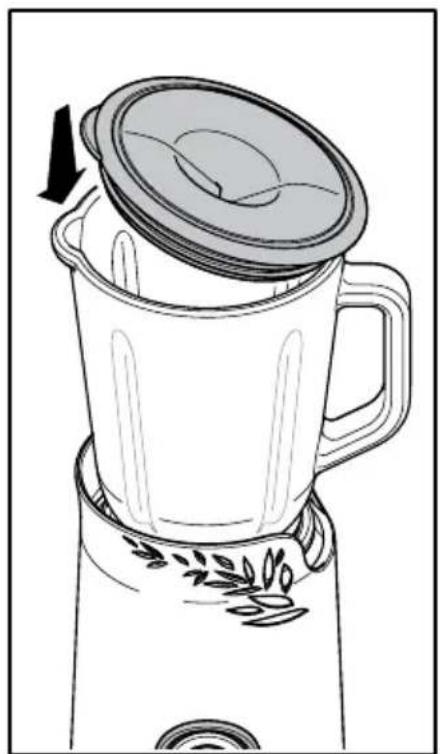

• Remove the lid (1) from the jug (2) [Fig C].

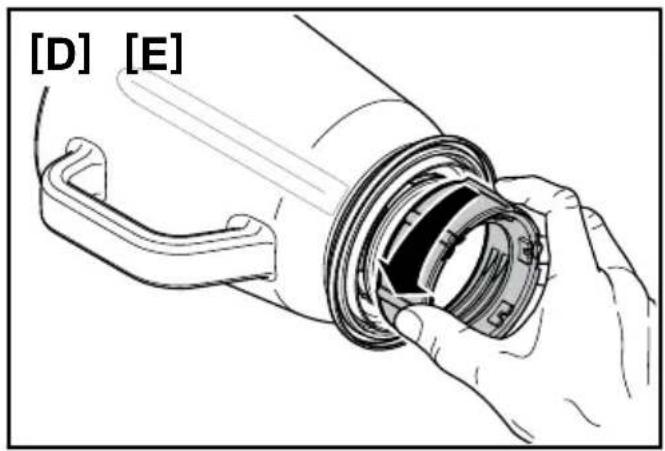

  • Turn the ring (3c) anticlockwise to remove it from the jug (2) [Fig D].

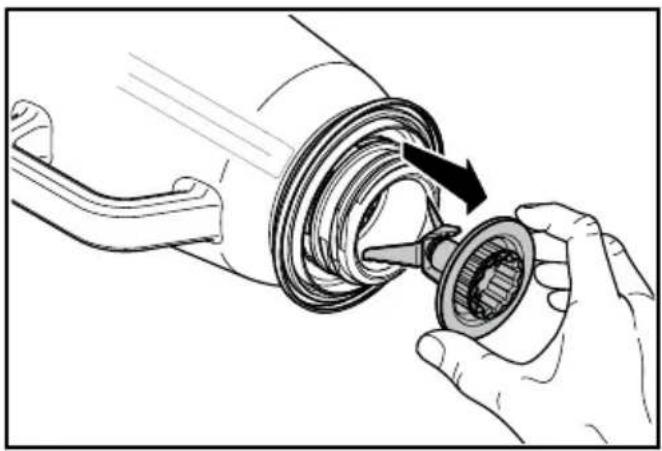

• Remove the blades (3b) and the gasket (3a) from the jug (2) [Fig E].
  • The lid (1), the jug (2) and the blade unit (3) may be cleaned as follows:

- by hand, with water and a detergent;

- in the dishwasher, making sure the water's maximum temperature does not exceed 60^ .

CLEANING THE MOTOR UNIT (4)

- Clean the motor unit (4) and the power supply cable (6) with a damp and well squeezed sponge.

USE

ATTENTION!

• Do not use the appliance with no ingredients in it.
• Do not use the appliance with solid ingredients.

Do not introduce more than 800 ml of ingredients.

ways close the jug (2) with the lid (1) when the appliance operation.

• Operation time should not be under one minute.
- Before repeating this cycle let the appliance to cool down completely.

- Do not leave any food inside the container (8) beyond the time required for preparation.

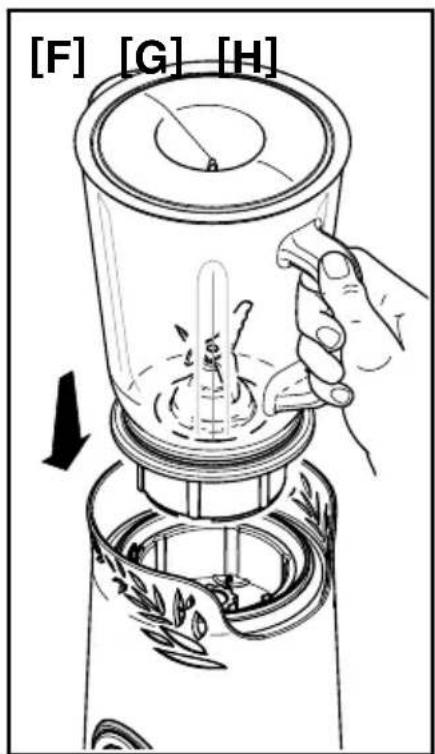

• Place the jug (2) on the motor unit (4) [Fig F].
• Insert solid ingredients in the jug (2), with a high content of liquid ingredients.
• Close the jug (2) with the lift (1) [Fig G].
• Insert the electric plug (6) in the socket.
• Start the blender by pressing the on/off switch button (5).
• Stop the blender by releasing the on/off switch button (5).

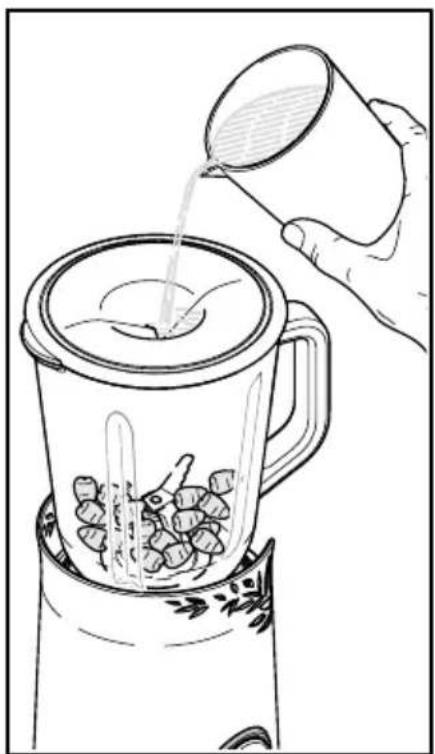

• If necessary, pour in additional liquid via the lid's hole (1) [Fig H].

PROBLEMS AND SOLUTIONS

Should one of the problems indicated occur, adopt the proposed solution:

Problem Possible cause Solution
The ice has not been chopped properly.	Only ice was introduced in the appliance.	Chop the ice by adding some liquid as well.
	The ice remains on top of the blades.	Switch the appliance off.Open the lid (1).Mix the ice and the liquid again with a plastic spatula.Close the lid (1).Blend by activating the pulse mode.
There are lumps in the pesto.	These is not enough basil.	Switch the appliance off.Open the lid (1).Add more basil, until it reaches the 800 ml level.Mix with a plastic spatula.Close the lid (1).Blend by activating the continuous mode.
	There is not enough oil.	Gently add more oil by pouring it in the hole in the lid (1).
	Chopped parmesan cheese was introduced in the appliance.	Grate the cheese separately with an electric grater.

DISPOSAL

The product is packaged in recyclable materials. Dispose of it in compliance with the environmental protection standards.

The product must be disposed of properly, in accordance with the European standard 2002/96/EC. The recyclable materials contained in the appliance must be recovered so as to prevent environmental pollution. For further information, contact the local disposal body or the appliance dealer.

GB

SERVICE AND WARRANTY

To request repairs or purchase spare parts, please contact IMETEC's authorised customer assistance service consulting the website. The appliance is covered by the manufacturer's warranty. For details, read the attached warranty sheet.

Failure to comply with the use and maintenance instructions provided in this user manual will invalidate all and any rights to the manufacturer's warranty.
