USER MANUAL DFP 2731 NX EU INDESIT

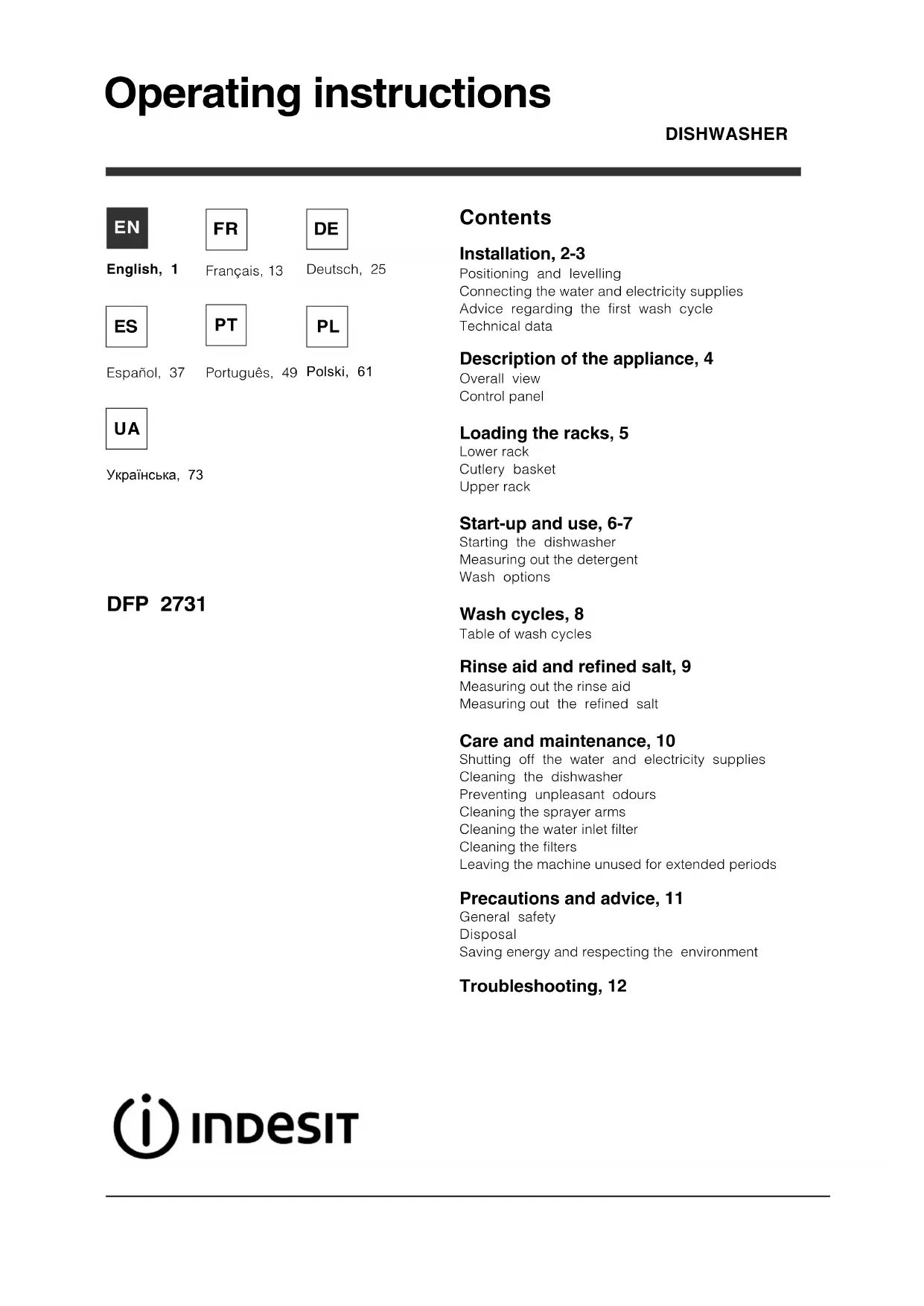

Operating instructions

Positioning and levelling

Connecting the water and electricity supplies

Advice regarding the first wash cycle

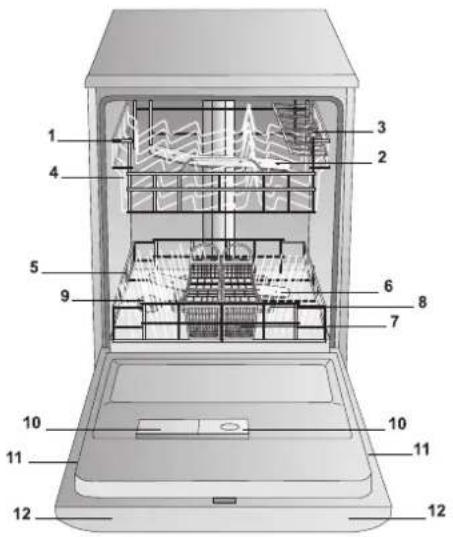

Description of the appliance, 4

Loading the racks, 5

Start-up and use, 6-7

Starting the dishwasher

Measuring out the detergent

Table of wash cycles

Rinse aid and refined salt, 9

Measuring out the rinse aid

Measuring out the refined salt

Care and maintenance, 10

Shutting off the water and electricity supplies

Cleaning the dishwasher

Preventing unpleasant odours

Cleaning the sprayer arms

Cleaning the water inlet filter

Cleaning the filters

Leaving the machine unused for extended periods

Precautions and advice, 11

Saving energy and respecting the environment

DISHWASHER English, 1

Installation Keep this instruction manual in a safe place for futurereference. If the appliance is sold, given away or moved,please ensure the manual is kept with the machine, so that thenew owner may benefit from the advice contained within it.Please read this instruction manual carefully: it containsimportant information regarding the safe installation, use andmaintenance of the appliance.If the appliance must be moved at any time, keep it in anupright position; if absolutely necessary, it may be tilted ontoits back.This appliance is intended to be used in household andsimilar applications such as:- staff kitchen areas in shops, offices and other workingenvironments;- farm houses;- by clients in hotels, motels and other residential typeenvironments;- bed and breakfast type environments. Positioning and levelling 1. Remove the appliance from all packaging and check that ithas not been damaged during transportation.If it has been damaged, contact the retailer and do notproceed any further with the installation process.2. Check the dishwasher by placing it so that its sides or backpanel are in contact with the adjacent cabinets or even with thewall. This appliance can also be recessed under a singleworktop * (see the Assembly instruction sheet). 3. Position the dishwasher on a level and sturdy floor. If thefloor is uneven, the front feet of the appliance may be adjusteduntil it reaches a horizontal position. If the appliance is levelledcorrectly, it will be more stable and much less likely to move orcause vibrations and noise while it is operating. 4

*. Adjust the height of the rear foot from the front of the appliance on the central lower part of the dishwasher, turninga hexagonal spanner (red color) with an opening of 8 mm in aclockwise direction to increase the height or in ananticlockwise direction to decrease the height. Connecting the water and electricity

supplies Connection to the water and electricity supplies shouldonly be performed by a qualified technician.The dishwasher should not stand on top of the waterhoses or the electricity supply cable.The appliance must be connected to the water supplynetwork using new hoses.Do not use old hoses.The water inlet and outlet hoses and the electricity supplycable may be positioned towards the right or the left in orderto achieve the best possible installation. Connecting the water inlet hose  To a suitable cold water connection point: before attachingthe hose, run the water until it is perfectly clear so that anyimpurities that may be present in the water do not clog theappliance; after performing this operation, screw the inlethose tightly onto a tap with a ¾ gas threaded connection. To a suitable hot water connection point: your dishwashermay be supplied with hot water from the mains supply (ifyou have a central heating system with radiators) providedthat it does not exceed a temperature of 60°C.Screw the hose to the tap as described for connection to acold water supply. If the inlet hose is not long enough, contact a specialiststore or an authorised technician (see Assistance). The water pressure must be within the values indicated in the Technical data table (see adjacent information). The hose should not be bent or compressed. Connecting the water outlet hose

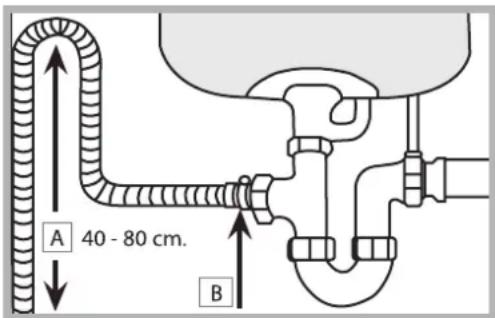

Connect the outlet hose (without bending it) to a drain

duct with a minimum diameter of 4 cm.

The outlet hose must be at a height ranging from 40 to

80 cm from the floor / surface where the dishwasher

Before connecting the water outlet hose to the sink

drain, remove the plastic plug (B).

Anti-flooding protection To ensure floods do not occur, the dishwasher:- is provided with a special system which blocks the watersupply in the event of anomalies or leaks from inside theappliance.Some models are also equipped with the supplementarysafety device New Acqua Stop *, which guarantees anti- flooding protection even in the event of a supply hose rupture.

WARNING: HAZARDOUS VOLTAGE! Under no circumstance should the water inlet hose be cut as itcontains live electrical parts. * Only available in selected models.EN

Electrical connection Before inserting the plug into the electrical socket, make surethat: The socket is earthed and complies with currentregulations. The socket can withstand the maximum load of theappliance, which is indicated on the data plate located onthe inside of the door (see chapter entitled Description ofthe appliance). The power supply voltage falls within the values indicatedon the data plate on the inside of the door. The socket is compatible with the plug of the appliance. Ifthis is not the case, ask an authorised technician to replacethe plug (see Assistance); do not use extension cables ormultiple sockets. Once the appliance has been installed, the power supplycable and the electrical socket should be easily accessible. The cable should not be bent or compressed. If the power supply cable is damaged, it must be replacedby the manufacturer or its Technical Assistance Service in orderto prevent all potential hazards. (See Assistance) The Company shall not be held responsible for anyincidents that occur if these regulations are not observed. * Only available in selected models.

Anti-condensation strip* After installing the dishwasher, open the door and stick theadhesive transparent strip under the wooden shelf in order toprotect it from any condensation which may form. Advice regarding the first wash cycle After the appliance has been installed, immediately beforerunning the first wash cycle, completely fill the salt dispenserwith water and add only then approximately 1 kg of salt (seechapter entitled Rinse aid and refined salt). The water mayoverflow: this is normal and is not a cause for concern. Selectthe water hardness value (see chapter entitled Rinse aid andrefined salt). - After the salt has been poured into the machine, the LOW SALT indicator light * switches off. If the salt container is not filled, the water softener and theheating element may be damaged as a result. Technical data

Dimensions width 60 cm height 85 cm depth 60 cm Capacity 14 standard place-settings Water supply pressure 0,05 ÷ 1MPa (0.5 ÷ 10 bar) 7,25 – 145 psi Power supply voltage See appliance data plate Total absorbed power See appliance data plate Fuse See appliance data plate

This dishwasher conforms to the following European Community Directives: -2006/95/EC (Low Voltage) -2004/108/EC (Electromagnetic Compatibility) -2005/32/EC (Comm. Reg. 1275/2008) (Ecodesign) -97/17/EC (Labelling) -2002/96/EC Waste Electrical and Electronic Equipment (WEEE)EN

3. Tip-up compartments

4. Rack height adjuster

6. Lower sprayer arm

***Only in completely built-in models.

* Only available in selected models. The number and type of wash cycles and options may vary depending on the dishwasher model.Washing and 3h.Delayed startindicator lightDrying and6h.Delayed startindicator lightEnd and 9h.Delayed startindicator lightStart/Pause buttonand indicator lightDelayed startbutton andindicator lightLow Saltindicator lightLow Rinse aidindicator lightHalf load buttonand indicator lightSelect washcycle knobON/OFF/RESETbuttonEN

*Only available in selected models.

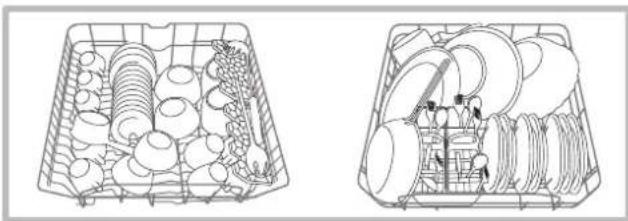

** The number and position may vary. Before loading the racks, remove all food residues fromthe crockery and empty liquids from glasses and cups.After loading the appliance, check that the sprayer armscan rotate freely. Lower rack The lower rack can hold pans, lids, plates, salad bowls,cutlery, etc. as seen in the Loading examples.Plates and large covers should be placed at the sides of therack, ensuring that they do not block the rotation of the uppersprayer arm. Some dishwashermodels arefitted with tip-upsections *, which can be used ina vertical position when arranging plates or in a horizontalposition when arranging pans and salad bowls. Cutlery basket The type of cutlery basket may vary according to thedishwasher model: it may be modular, non-modular or a slidingversion. The non-modular basket must only be positioned atthe front of the lower rack.The modular basket may be separated into two parts, a solutionwhich is recommended when performing a half load wash (onlyin models offering this option), is available in a sliding version(positioned at any point on the lower rack by sliding it betweenthe fixed or tip-up inserts.- Both versionsare fitted witha collapsiblesliding systemwhich meansthe cutlery canbe arranged in the best possible way.Knives and other utensils with sharp edges must beplaced in the cutlery basket with the points facingdownwards, or they must be positioned horizontally in the tip-up compartments on the upper rack. Cutlery basket positioning examples

Upper rack Load this rack with delicate and lightweight crockery:glasses, tea and coffee cups, saucers, small salad bowls,saucepans and small saucepans which are not too soiled,using the Loading examples as a guide. Mugs and cups, long sharp knives and serving utensils:place these on the tip-up compartments **.

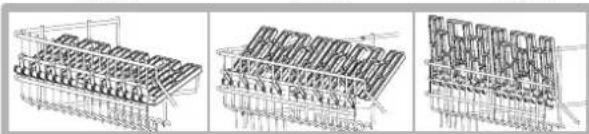

Tip-up compartments with adjustable tilt* - The tilt feature can be used to increase the space in the upperrack, to position wine glasses with different stem lengths safelyand to improve drying performance.- Lift the tip-up compartment, slide it gently and position it in thedesired tilt angle. Adjusting the height of the upper rack In order to make it easier to arrange the crockery, the upperrack may be moved to a higher or lower level. (in modelswhichThe height of the upper rack should ideally be adjustedWHEN THE RACK IS EMPTY.Never lift or lower the rack on one side only.Open the left and right guide railstops and pull out the rack; position ithigher or lower as required, slide italong the guide rails until the frontwheels are in place and close thestops (see figure).If the rack is fitted with Dual Spacehandles * (see figure), pull out the upper rack until it reaches its stoppoint, grip the handles at the sides ofthe rack and move it upwards ordownwards, then slowly let it fall backinto place. Loading examples for the upper/lower rack

Items which should not be washed in the

dishwasher  Wooden items, objects with wooden or horn handles orglued-on parts. Items made from aluminium, copper, brass, pewter or tin. Items made from plastic material which is not heat-resistant. Antique or hand-painted porcelain. Antique silver. Silver which is not antique may, however,be washed in the dishwasher using a delicate wash cycle,provided that it does not come into contact with othermetals.We recommend the use of crockery which is dishwashersafe. Tilt A Tilt B Tilt CEN

Measuring out the detergent

A good wash result also depends on the correct

amount of detergent being used; exceeding the stated

amount does not result in a more effective wash and

increases environmental pollution.

 Only use detergent which has been

specifically designed for dishwashers.

DO NOT USE washing up liquid.

Using excessive detergent may result in foam

residue remaining in the machine after the cycle

The use of tablets is only recommended for

models which offer the MULTI-FUNCTIONAL TABLETS option.

To achieve the best results from each washing

and drying cycle, powder detergent, rinse aid

liquid and salt should be used.

Compartment A: Washing detergent

Compartment B: Pre-wash detergent

1. Open cover C by pressing

2. Pour in the detergent after

consulting the Table of wash

 For powder detergent use

compartments A and B.

 For detergent in tablet form:

when the cycle requires 1 tablet,

place it in compartment A and close the cover; when it

requires 2, place the second tablet at the bottom of the

3. Remove detergent residues from the edges of the

compartment and close the cover until it clicks.

* Only available in selected models.

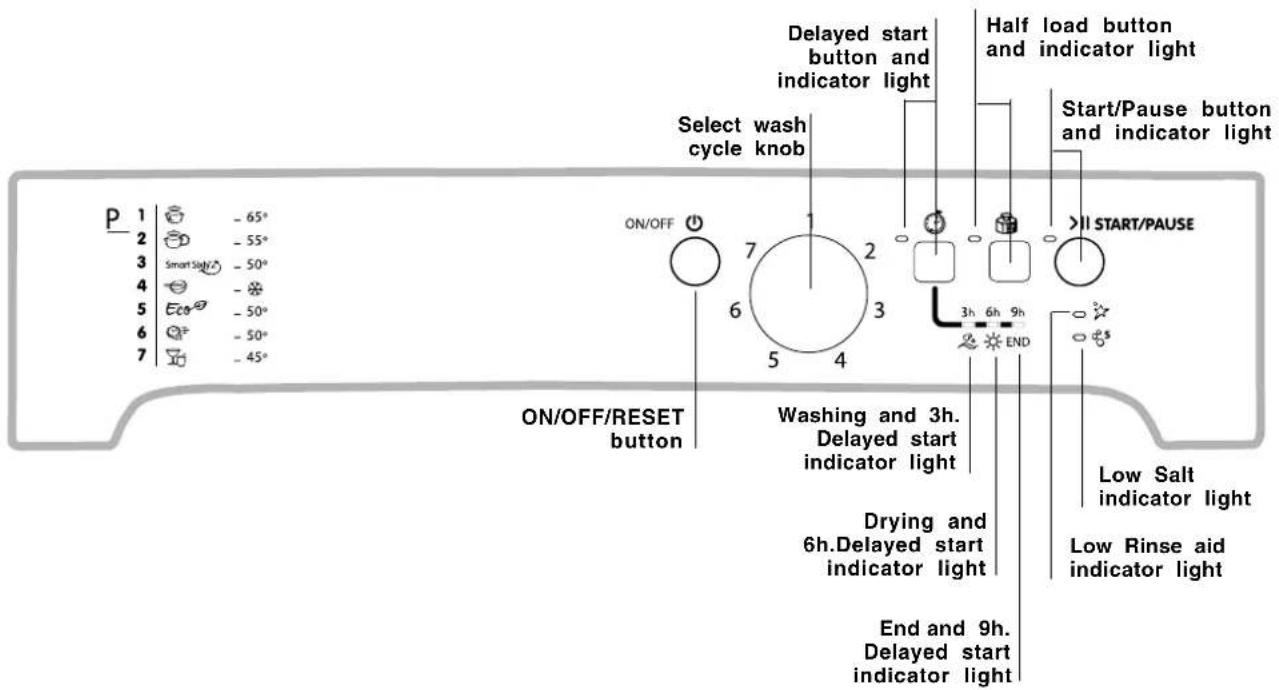

Starting the dishwasher

1. Turn the water tap on.

2. Press the ON/OFF button: all the indicator lights on

the control panel will light up for a few seconds.

3. Open the door and pour in a suitable amount of

detergent (see below).

4. Load the racks (see Loading the racks) and shut the

5. Select the wash cycle by turning the WASH CYCLE SELECT knob in a clockwise direction: align the notch

on the knob with the number or symbol representing

the desired wash cycle. The START/PAUSE indicator

7. Start the cycle by pressing the START button; the

indicator light will light up and remain lit in a fixed

manner. The indicator light corresponding to the

wash phase will switch on, signalling that the wash

8. At the end of the wash cycle the END indicator light

will switch on (fixed light). Switch off the appliance by

pressing the ON/OFF button, shut off the water valve

and unplug the appliance from the electricity socket.

9. Wait for a few minutes before removing the

crockery, in order to avoid burns. Unload the racks,

beginning with the lower level.

- The machine will switch off automatically

during certain periods of inactivity, in order to

minimise electricity consumption.

Modifying a wash cycle in progress

If a mistake was made during the wash cycle selection

process it is possible to change the cycle, provided that

it has only just begun: once the wash cycle has started,

switch off the machine by pressing and holding the ON/

OFF/Reset button. Switch it back on using the same

button and select the desired wash cycle and options.

Adding extra crockery

Press the Start/Pause button (the corresponding

indicator light will flash). Open the door, taking care to

avoid the escaping steam, and place the crockery inside

the appliance. Press the Start/Pause button (fixed light):

the cycle starts from the point at which it was interrupted.

If the Start/Pause button is pressed so as to pause the

machine, the wash cycle or the Delayed Start

(if selected) is interrupted.

At this stage it is not possible to change the wash cycle.

Accidental interruptions

If the door is opened during the wash cycle, or if there is

a power cut, the cycle stops. It starts again from the point

at which it was interrupted once the door has been shut

or once the electricity supply is restored.EN

If there are not many dishes to be washed, a half load

cycle may be used in order to save water, electricity and

detergent. Select the wash cycle and press the HALF LOAD button: the indicator light will illuminate.

Remember to halve the amount of detergent.

It is better to use powder detergent in this case.

This option is incompatible with the following wash

It is possible to delay the start time of the wash cycle by

1: After selecting the desired wash cycle and any other

options, press the DELAYED START button. the indicator

light will illuminate.

2: Select the desired delay time by pressing the De-

layed Start button repeatedly; the wash phase (3 hours),

the drying phase (6 hours) and end (9 hours) indicator

lights will illuminate in succession.

If the Delayed Start button is pressed again, the option is

deselected and the indicator light switches off.

3. The countdown will begin once the Start/Pause but-

ton has been pressed. The selected delay period indi-

cator light flashes and the Start/Pause button stops flash-

ing (the light becomes fixed instead).

3. Once this time has elapsed, the DELAYED START

indicator light switches off and the wash cycle

The Delayed Start function cannot be set once a

wash cycle has been started.

* Only available in selected models.

The OPTIONS may only be set, modified or reset

after the wash cycle has been selected and before

the Start/Pause button has been pressed.

Only the options which are compatible with the type of

wash cycle set may be selected. If an option is not com-

patible with the selected was cycle (see Table of wash

cycles), the corresponding LED flashes rapidly 3 times.

If an option is selected which is incompatible with an-

other option or wash cycle selected previously, the in-

compatible option light will flash 3 times and switches

off, while the most recently selected setting remains lit.

To deselect an option which has been set by mis-

take, press the corresponding button again.

If the crockery is only lightly soiled or if it has been rinsed with water before being placed in the

dishwasher, reduce the amount of detergent used accordingly.

The number and type of wash cycles and options may vary depending on the dishwasher model. Notes: Optimum performance levels when using the "Smart Sixty and Rapid wash" cycles can be achieved by observing the maximum amounts of crockery specified.To make it easier to measure out the detergent, it is worth remembering that: 1 tablespoon = 15 gr. of powder = approximately 15 ml of liquid - 1 teaspoon = 5 gr. of powder = approximately 5 ml of liquid

* The Eco wash cycle adheres to the regulation EN-50242. Although it has a longer duration than other wash cycles it uses less energy and is les harmful to the environment. Note for Test Laboratories: for information relating to comparative EN testing conditions, please send an email to the following address: ASSISTENZA_EN_LVS@indesitcompany.com For available OPTIONS please refer to the Table of options on the Start-up and use page. Detergent (A) = compartment A (B) = compartment B Wash cycle selection instructions Wash cycle Powder Liquid Tablets Wash cycles which include drying Options Wash cycle duration (tolerance ±10%) Hrs. Min. Heavily soiled dishes and pans (not to be used for delicate items). 1.Intensive

Normally soiled pans and dishes. Standard daily wash cycle.

1:50’ Limited quantity of daily soiling. (4 place settings + 1 saucepan +1 frying pan).

1:00’ Pre-wash for dishes while awaiting completion of the load with the dishes from the next meal. 4. Soak

0:08’ Environmentally-friendly wash cycle with low energy consumption levels, suitable for pans and dishes. 5. Eco *

2:55’ Economic and fast wash to be used for lightly soiled dishes. (Run cycle immediately after use) (2 plates + 2 glasses + 4 pieces of cutlery + 1 saucepan + 1 small frying pan). 6. Rapide

0:35’ Economic and fast wash for delicate items which are sensitive to high temperatures. (Run cycle immediately after use) (glasses upper rack + delicate plates, lower rack). 7. Delicate

Rinse aid and refined salt

Only use products which have been

specifically designed for dishwashers.

Do not use table salt or industrial salt, or washing

Follow the instructions given on the packaging. If using a multi-functional product it is not necessary toadd rinse aid; however, we recommend that you add salt,especially if you live in an area where the water is hard orvery hard. Follow the instructions given on the packaging.

If you do not add salt or rinse aid, the LOW SALT

* and LOW RINSE AID* indicator lights

Measuring out the rinse aid Rinse aid makes it easier for the crockery to dry, as waterruns off surfaces more readily and therefore does not leavestreaks or marks.The rinse aid dispenser should be filled: When the LOW RINSE AID* indicator light on the controlpanel is illuminated;1. Open the dispenser by turningthe lid (G) in an anticlockwisedirection.2. Pour in the rinse aid, makingsure it does not overflow from thedispenser. If this happens, cleanthe spill immediately with a drycloth.3. Screw the lid back on.NEVER pour the rinse aid directly into the appliance tub. Adjusting the amount of rinse aid If you are not completely satisfied with the drying results,you may adjust the quantity of rinse aid used. Use ascrewdriver to turn the dosage adjuster (F) to one of the 6pre-set positions (the default position is set to 4): If there are streaks on the crockery, set the adjustmentdevice to a lower number (1-3). If drops of water remain on the crockery or if there arelimescale marks present after the cycle has finished, setthe adjuster to a higher number (4-6). Setting the water hardness Every dishwasher is equipped with a water softener which, byusing refined salt designed especially for this type ofappliance, supplies water without limescale which is then usedto wash the crockery.This dishwasher offers a setting which helps to reducepollution and optimises washing performance in accordancewith the water hardness level in your area. This information canbe obtained from the organisation which supplies yourhousehold with water.- Switch the machine off using the ON/OFF button and openthe door. - Set the SELECT WASH CYCLE knob first to wash cycle 5,

then to wash cycle 1, then to wash cycle 5 again. - Press the ON/OFF button; the wash cycle phase (washing,drying, end) indicator lights will flash. It is now possible toselect the water hardness level. There is a water hardnesslevel for every wash cycle:E.g.: wash cycle 1, water hardness level 1wash cycle 2, water hardness level 2, etc. etc., up to a maxi-mum of 5 * levels. (The default water softener setting is level 3).- To exit the function, wait a few seconds or press one of theoption buttons *, or switch off the machine using the ON/OFF button.Even if using multi-functional tablets, the salt dispenser shouldstill be filled.(°dH = hardness measured in German degrees - °f =hardness measured in French degrees - mmol/l = millimolesper litre) Measuring out the refined salt In order to achieve the best possible results using a washcycle, make sure that the dispenser is never empty.Refined salt removes limescale from the water, thusavoiding the formation of deposits on crockery.The salt dispenser is located in the lower part of thedishwasher (see Description) and should be filled: When the green float * cannot be seen by simply looking at the cap of the salt dispenser. When the LOW SALT * indicator light on the control panel is illuminated;1. Remove the lower rack and unscrew thecontainer cap (anticlockwise).2. The first time you do this: fill the water tankright up to its edge.3. Position the funnel * (see figure) and fill the salt container right up to its edge (this should holdapproximately 1 kg); it is not unusual for a little water to leak out. 4. Remove the funnel* and wipe any salt residue away from theopening; rinse the cap under running water and then screw iton, the head facing downwards so as to let the water flow outof the four cracks which are arranged in a star shape on thelower part of the cap. (Salt cap with green float *) It is advisable to perform this procedure every time youadd salt to the container.Make sure the cap is screwed on tightly, so that no detergentcan get into the container during the wash cycle (this coulddamage the water softener beyond repair). When necessary, measure out the salt before a washcycle so that any saline solution which has leaked out of thesalt dispenser is removed. * Only available in selected models.

G F Water Hardness Table

°dH °fH mmol/l level 0 6 0 10 0 1 1 6 11 11 20 1.1 2 2 12 17 21 30 2.1 3 3 17 34 31 60 3.1 6 4 34 50 61 90 6.1 9 5

For values between 0°f and 10°f, we do not recommend the use of salt. * this setting may cause a slight increase in the duration of the cycle.EN

Care and maintenance

Shutting off the water and electricity

supplies  Turn off the water tap after every wash cycle to avoidleaks. Always unplug the appliance when cleaning it andwhen performing maintenance work. Cleaning the dishwasher  The external surfaces of the machine and the controlpanel may be cleaned using a non-abrasive clothwhich has been dampened with water. Do not usesolvents or abrasive products. Any marks on the inside of the appliance may beremoved using a cloth dampened with water and alittle vinegar. Preventing unpleasant odours  Always keep the door of the appliance ajar in order toavoid moisture from forming and being trapped insidethe machine. Clean the seals around the door and detergentdispensers regularly using a damp sponge. This willavoid food becoming trapped in the seals, which isthe main cause behind the formation of unpleasantodours. Cleaning the sprayer arms Food residue may become encrusted onto the sprayerarms and block the holes used to spray the water. It istherefore recommended that the arms are checked fromtime to time and cleaned with a small non-metallicbrush.The two sprayer arms may both be removed.To remove the upper sprayerarm, rotate the locking ring inan anti-clockwise direction.The upper sprayer arm shouldbe replaced with the holesfacing upwards.The lower sprayer arm can beremoved by pressing on theside tabs and pulling itupwards. Cleaning the water inlet filter* If the water hoses are new or have not been used for anextended period of time, let the water run to make sure itis clear and free of impurities before performing thenecessary connections. If this precaution is not taken,the water inlet could become blocked and damage thedishwasher. Clean the water inlet filter at the tap outlet regularly.

- Turn off the water tap.

- Unscrew the end of the water inlet hose, remove the filter

and clean it carefully under running water.

- Replace the filter and screw the water hose back into

Cleaning the filters

The filter assembly consists of three filters which remove

food residues from the washing water and then recirculate

the water. They should be cleaned if you wish to achieve

the best results in every wash.

Clean the filters regularly.

The dishwasher should not be used without filters, or if

the filter is loose.

After cleaning the filters, replace the filter assembly and fix

it in position correctly; this is essential for maintaining the

efficient operation of the dishwasher.

Leaving the machine unused for

 Disconnect the appliance from the electricity supply and

shut off the water tap.

 Leave the door of the appliance ajar.

 When you return, run a wash cycle when the dishwasher

 After several washes, check the filter assembly and if

necessary clean it thoroughly under running water, using a

non-metallic brush and following the instructions below:

1. Turn the cylindrical filter C in an anti-clockwise direction

and pull it out (fig. 1).

2. Remove the cup filter B by exerting a slight pressure on the

side flaps (fig. 2).

3. Slide out the stainless steel plate filter A (fig. 3).

4. Inspect the trap and remove any food residue. NEVER REMOVE the wash cycle pump (black detail) (fig. 4).

* Only available in selected models.

Precautions and advice This appliance was designed and manufactured incompliance with current international safety standards. Thefollowing information has been provided for safety reasonsand should therefore be read carefully. General safety  This appliance is not intended for use by persons(including children) with reduced physical, sensory ormental capabilities, or lack of experience and knowledge,unless they have been given supervision or instructionconcerning use of the appliance by a person responsiblefor their safety. Children should be supervised to ensure that they do notplay with the appliance. The appliance was designed for domestic use inside thehome and is not intended for commercial or industrial use. The appliance must be used by adults only, to washdomestic crockery in accordance with the instructions inthis manual. The appliance must not be installed outdoors, even incovered areas. It is extremely dangerous to leave themachine exposed to rain and storms. Do not touch the appliance when barefoot. When unplugging the appliance always pull the plug fromthe mains socket, do not pull on the cable. The water supply tap must be shut off and the plug shouldbe removed from the electrical socket before cleaning theappliance or carrying out any maintenance work. If the appliance breaks down, do not under anycircumstances touch the internal parts in an attempt toperform the repair work yourself. Never touch the heating element. Do not lean or sit on the open door of the appliance: thismay cause the appliance to overturn. The door should not be left open as it may create adangerous obstacle. Keep detergent and rinse aid out of reach of children. The packaging material should not be used as a toy. Disposal  Disposal of packaging materials: observe local legislationso that the packaging may be reused. The European Directive 2002/96/EC relating to WasteElectrical and Electronic Equipment (WEEE) states thathousehold appliances should not be disposed of using thenormal solid urban waste cycle. Exhausted appliancesshould be collected separately in order to optimise the costof re-using and recycling the materials inside the machine,while preventing potential damage to the atmosphere andto public health. The crossed-out dustbin is marked on allproducts to remind the owner of their obligations regardingseparated waste collection.For further information relating to the correct disposal ofhousehold appliances, owners may contact the relevantpublic authority or the local appliance dealer. Saving energy and respecting the

Saving water and energy  Only begin a wash cycle when the dishwasher is full. Whilewaiting for the dishwasher to be filled, prevent unpleasantodours using the Soak cycle (see Wash cycles). Select a wash cycle which is suited to the type of crockeryand to the soil level of the crockery using the Table of washcycles:- For dishes with a normal soil level, use the Eco washcycle, which guarantees low energy and waterconsumption levels.- If the load is smaller than usual activate the Half loadoption * (see Start-up and use).  If your electricity supply contract gives details of electricitysaving time bands, run wash cycles during the periodswhen a lower tariff is applied. The Delayed start * button (see Start-up and use) helps you organise the wash cyclesaccordingly. Phosphate-free and chlorine-free detergents

containing enzymes  We strongly recommend that you use detergents that donot contain phosphates or chlorine, as these products areharmful to the environment. Enzymes provide a particularly effective action attemperatures around 50°C, and as a result detergentscontaining enzymes can be used in conjunction with low-temperature wash cycles in order to achieve the sameresults as a normal 65°C wash cycle. To avoid wasting detergent, use the product in appropriatequantities based on the manufacturers recommendations,the hardness of the water and the soil level and quantity ofcrockery to be washed. Even if they are biodegradable,detergents contain substances which may alter the balanceof nature. * Only available in selected models.EN

Whenever the appliance fails to work, check for a solution from the following list before calling for

* Only available in selected models.

Problem: Possible causes / Solutions: The dishwasher does not start or cannot be controlled • Switch off the appliance by pressing the ON/OFF button, switch it back on after approximately one minute and reset the program. • The appliance has not been plugged in properly. • The dishwasher door has not been shut properly. The door won’t close • The lock was released. Strongly push the door until a “clacking” noise is heard. No water drains out from the dishwasher.

• The dishwasher cycle has not yet finished. • The water inlet hose is bent (see Installation). • The drain duct is blocked. • The filter is clogged up with food residues. The dishwasher makes excessive noise. • The dishes are rattling against each other or against the sprayer arms. • An excessive amount of foam has been produced: the detergent has not been measured out correctly or it is not suitable for use in dishwashers (see Start-up and use). The dishes and glasses are covered in a white film or limescale deposits. • The level of the refined salt is low or the dosage setting is not suited to the hardness of the water (see Rinse aid and salt). • The lid on the salt dispenser is not closed properly. • The rinse aid has been used up or the dosage is too low. The dishes and glasses are streaked or have a bluish tinge. • The rinse aid dosage is too high. The crockery has not been dried properly. • A wash cycle without a drying program has been selected. • The rinse aid has been used up or the dosage is too low (see Rinse aid and salt). • The rinse aid dispenser setting is not suitable. • The crockery is made from non-stick material or plastic. The dishes are not clean. • The racks are overloaded (see Loading the racks). • The crockery has not been arranged well. • The sprayer arms cannot move freely. • The wash cycle is too gentle (see Wash cycles). • An excessive amount of foam has been produced: the detergent has not been measured out correctly or it is not suitable for use in dishwashers (see Start-up and use). • The lid on the rinse aid compartment has not been shut correctly. • The filter is dirty or blocked (see Care and maintenance). • The refined salt level is low (see Rinse aid and salt). The dishwasher does not take any water in - Tap shut-off alarm (several short beeps are emitted) (the Drying and End indicator lights flash). • There is no water in the mains supply. • The water inlet hose is bent (see Installation). • Turn on the tap and the appliance will start after a few minutes. • The appliance lock has been activated because no action was taken when the beeps sounded. Switch off the appliance using the ON/OFF button, turn on the tap and switch the appliance back on after 20 seconds by pressing the same button. Re-program the appliance and restart the wash cycle. Water inlet hose alarm / Water inlet filter blocked (the Washing, Drying and End indicator lights flashes). • Switch off the appliance by pressing the ON/OFF button. Shut off the water tap to eliminate the risk of flooding and remove the plug from the electrical socket. Make sure the water inlet filter has not become blocked by impurities (see “Care and maintenance” chapter)..4
