Unpacking and levelling

Unpacking

1. Remove the washing machine from its packaging.
2. Make sure that the washing machine has not been damaged during the transportation process. If it has been damaged, contact the retailer and do not proceed any further with the installation process.

Technical diagram of a mechanical or electrical component with concentric circular and oval shapes, no visible text or symbols.

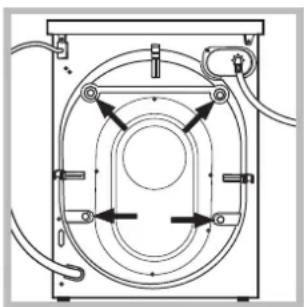

1. Remove the 4 protective screws (used during transportation) and the rubber washer with the corresponding spacer, located on the rear part of the appliance (see figure).

2. Close off the holes using the plastic plugs provided.

3. Keep all the parts in a safe place: you will need them again if the washing machine needs to be moved to another location.
   ! Packaging materials should not be used as toys for children.

Levelling

1. Install the washing machine on a flat sturdy floor, without resting it up against walls, furniture cabinets or anything else.

Line drawing of a car door corner with a circular button and directional arrow (no text or symbols)

1. If the floor is not perfectly level, compensate for any unevenness by tightening or loosening the adjustable front feet (see figure); the angle of inclination, measured in relation to the worktop, must not exceed 2^ .

Levelling the machine correctly will provide it with stability, help to avoid vibrations and excessive noise and prevent it from shifting while it is operating. If it is placed on carpet or a rug, adjust the feet in such a way as to allow a sufficient ventilation space underneath the washing machine.

Connecting the electricity and water supplies

Connecting the water inlet hose

Technical line drawings of two mechanical components: a hexagonal bolt and a cylindrical pin (no text or symbols)

1. Connect the supply pipe by screwing it to a cold water tab using a 3/4 gas threaded connection (see figure).

Before performing the connection, allow the water to run freely until it is perfectly clear.

Diagram of a mechanical device with a valve and handle, showing rotational motion (no text or symbols)

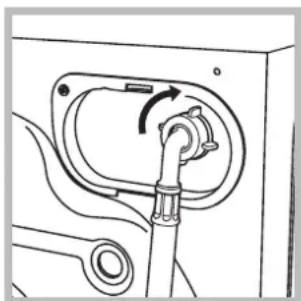

1. Connect the inlet hose to the washing machine by screwing it onto the corresponding water inlet of the appliance, which is situated on the top right-hand side of the rear part of the appliance (see figure).

2. Make sure that the hose is not folded over or bent.

! The water pressure at the tap must fall within the values indicated in the Technical details table (see next page).
! If the inlet hose is not long enough, contact a specialised shop or an authorised technician.
! Never use second-hand hoses.
! Use the ones supplied with the machine.

Connecting the drain hose

65 - 100 cm

Connect the drain hose, without bending it, to a drainage duct or a wall drain located at a height between 65 and 100 cm from the floor;

Diagram of a pipe connection with a hanging object (no text or symbols)

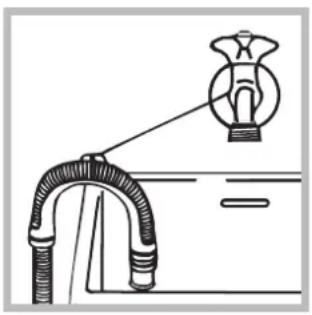

alternatively, rest it on the side of a washbasin or bathtub, fastening the duct supplied to the tap (see figure). The free end of the hose should not be underwater.

! We advise against the use of hose extensions; if it is absolutely necessary, the extension must have the same diameter as the original hose and must not exceed 150 cm in length.

Electrical connections

Before plugging the appliance into the electricity socket, make sure that:

• the socket is earthed and complies with all applicable laws;
• the socket is able to withstand the maximum power load of the appliance as indicated in the Technical data table (see opposite);
• the power supply voltage falls within the values indicated in the Technical data table (see opposite);
• the socket is compatible with the plug of the washing machine. If this is not the case, replace the socket or the plug.

! The washing machine must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain, storms and other weather conditions.

! When the washing machine has been installed, the electricity socket must be within easy reach.

! Do not use extension cords or multiple sockets.
! The cable should not be bent or compressed.
! The power supply cable must only be replaced by authorised technicians.

Warning! The company shall not be held responsible in the event that these regulations are not respected.

The first wash cycle

Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, using the wash cycle 2.

Technical data
Model	IWE 8128
Dimensions	width 59.5 cmheight 85 cmdepth 60 cm
Capacity	from 1 to 8 kg
Electrical connections	please refer to the technical data plate fixed to the machine
Water connections	maximum pressure 1 MPa (10 bar)minimum pressure 0.05 MPa (0.5 bar)drum capacity 62 litres
Spin speed	up to 1200 rotations per minute
Energy rated programmes according to regulationEN 60456	programme 2; temperature 60°C;using a load of 8 kg.
	This appliance conforms to the following EC Directives:- 89/336/EEC dated 03/05/89(Electromagnetic Compatibility) and subsequent modifications- 2002/96/EC- 2006/95/EC (Low Voltage)

Description of the washing machine

Control panel

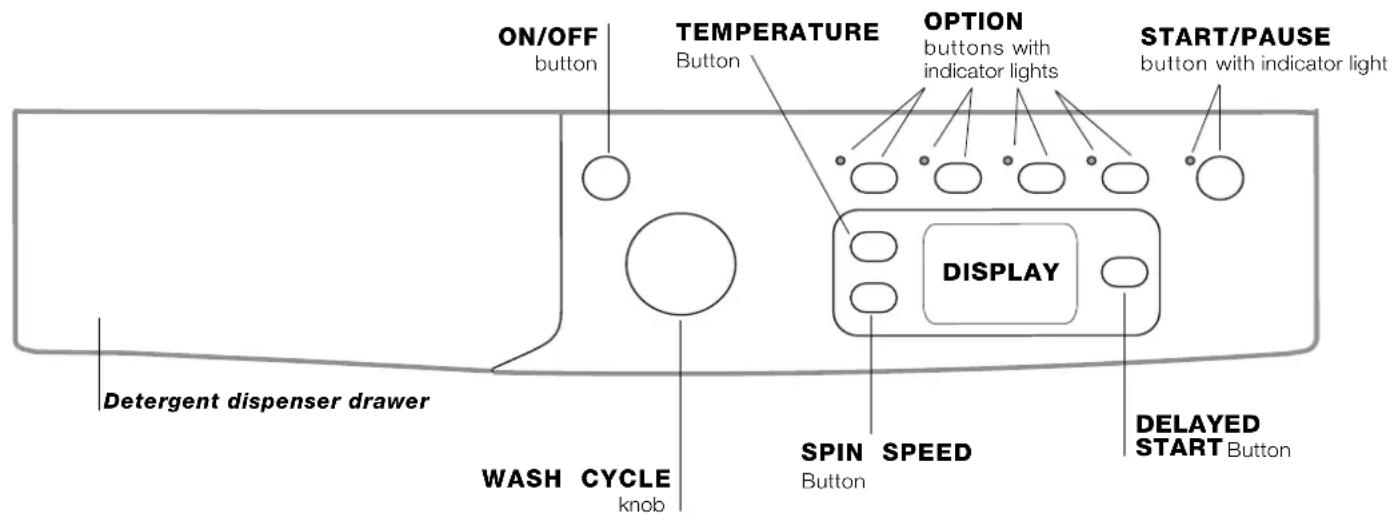

ON/OFF button TEMPERATURE Button OPTION buttons with indicator lights START/PAUSE button with indicator light DISPLAY Detergent dispenser drawer WASH CYCLE knob SPIN SPEED Button DELAYED START Button

Detergent dispenser drawer: used to dispense detergents and washing additives (see "Detergents and laundry").

ON/OFF button ⏻: press this briefly to switch the machine on or off. The START/PAUSE indicator light, which flashes slowly in a green colour shows that the machine is switched on. To switch off the washing machine during the wash cycle, press and hold the button for approximately 3 seconds; if the button is pressed briefly or accidentally the machine will not switch off. If the machine is switched off during a wash cycle, this wash cycle will be cancelled.

WASH CYCLE knob: used to set the desired wash cycle (see "Table of wash cycles").

OPTION buttons with indicator light: used to select the available options. The indicator light corresponding to the selected option will remain lit.

SPIN button Ⓞ: press to reduce or completely exclude the spin cycle - the value is indicated on the display.

TEMPERATURE button ⚫: press to decrease or completely exclude the temperature: the value will be shown on the display.

DELAYED START button ⚙: press to set a delayed start time for the selected wash cycle. The delay time will be shown on the display.

START/PAUSE button >> with indicator light: when the green indicator light flashes slowly, press the button to start a wash cycle. Once the cycle has begun the indicator light will remain lit in a fixed manner. To pause the wash cycle, press the button again; the indicator light will flash in an orange colour. If the symbol 🔒 is not illuminated, the door may be opened. To start the wash cycle from the point at which it was interrupted, press the button again.

Standby mode

This washing machine, in compliance with new energy saving regulations, is fitted with an automatic standby system which is enabled after about 30 minutes if no activity is detected. Press the ON-OFF button briefly and wait for the machine to start up again.

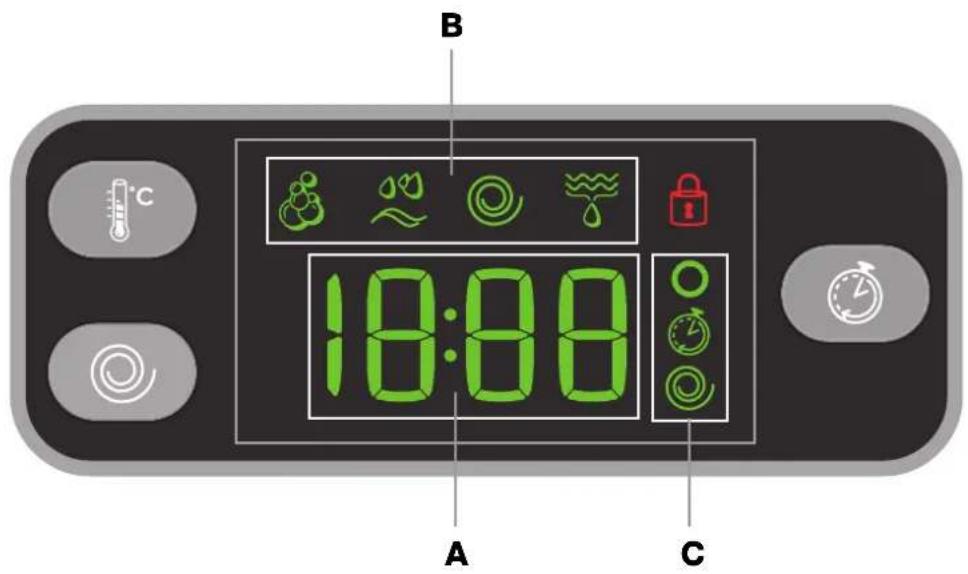

Display

GB

B C 18:00 A C

The display is useful when programming the machine and provides a great deal of information.

The duration of the available programmes and the remaining time of a running cycle appear in section A; if the DELAY START option has been set, the countdown to the start of the selected programme will appear. Pressing the relative button, the machine automatically displays the maximum temperature and spin speed values set for the selected cycle, or the most recently-used settings if they are compatible with the selected cycle.

The "programme phases" relative to the selected programme and the "programme phase" of the running programme appear in section B:

Wash
Rinse
Spin
Drain

The icons corresponding to "temperature" O, "Programmed start" and "spin" appear in section C from top to bottom:

If the O symbol lights up, the display will visualise the set "temperature" value.

When a "delayed start" has been set, the ⚙ symbol lights up.

If the Ⓞ symbol lights up, the display will visualise the set "spin" value.

Door locked symbol

The lit symbol indicates that the door is locked. To prevent any damage, wait until the symbol turns off before opening the door.

To open the door while a cycle is in progress, press the START/PAUSE button; if the DOOR LOCKED symbol is switched off the door may be opened.

1. SWITCH THE MACHINE ON. Press the ⏻ button; the START/PAUSE indicator light will flash slowly in a green colour.
2. LOAD THE LAUNDRY. Open the porthole door. Load the laundry, making sure you do not exceed the maximum load value indicated in the table of programmes on the following page.
3. MEASURE OUT THE DETERGENT. Pull out the detergent dispenser drawer and pour the detergent into the relevant compartments as described in "Detergents and laundry".
4. CLOSE THE DOOR.
5. SELECT THE WASH CYCLE. Set the WASH CYCLE knob to the desired programme; a temperature and spin speed is set for each wash cycle; these may be adjusted. The duration of the cycle will appear on the display.
6. CUSTOMISE THE WASH CYCLE. Use the relevant buttons:

Modifying the temperature and/or spin speed. The machine automatically displays the maximum temperature and spin speed values set for the selected cycle, or the most recently-used settings if they are compatible with the selected cycle. The temperature can be decreased by pressing the button, until the cold wash "OFF" setting is reached. The spin speed may be progressively reduced by pressing the button, until it is completely excluded (the "OFF" setting). If these buttons are pressed again, the maximum values are restored.

Setting a delayed start.

To set a delayed start for the selected programme, press the corresponding button repeatedly until the required delay period has been reached. When this option is enabled, the 🔗 symbol lights up on the display. To remove the delayed start option press the button until the text "OFF" appears on the display.

EcoTime Modifying the cycle settings.

• Press the button to enable the option; the indicator light corresponding to the button will switch on.
• Press the button again to disable the option; the indicator light will switch off.

! If the selected option is not compatible with the programmed wash cycle, the indicator light will flash and the option will not be activated.

! If the selected option is not compatible with another option which has been selected previously, the indicator light corresponding to the first option

selected will flash and only the second option will be activated; the indicator light corresponding to the enabled option will remain lit.

! The options may affect the recommended load value and/or the duration of the cycle.

1. START THE PROGRAMME. Press the START/PAUSE button. The corresponding indicator light will become green, remaining lit in a fixed manner, and the door will be locked (the DOOR LOCKED symbol 📋 will be on). To change a wash cycle while it is in progress, pause the washing machine using the START/PAUSE button (the START/PAUSE indicator light will flash slowly in an orange colour); then select the desired cycle and press the START/PAUSE button again. To open the door while a cycle is in progress, press the START/PAUSE button; if the DOOR LOCKED symbol is switched off the door may be opened. Press the START/PAUSE button again to restart the wash cycle from the point at which it was interrupted.
2. THE END OF THE WASH CYCLE. This will be indicated by the text "END" on the display; when the DOOR LOCKED 🔒 symbol switches off the door may be opened. Open the door, unload the laundry and switch off the machine.
   ! If you wish to cancel a cycle which has already begun, press and hold the ⏻ button. The cycle will be stopped and the machine will switch off.

Table of wash cycles

Wash cycles	Description of the wash cycle	Max. temp. (°C)	Max. speed (rpm)	Detergents Max. load (kg)							Cycle duration
				Pre-wash	Wash	Bleach	Fabric softener	Normal	Mini Load	Eco Time
Daily											The duration of the wash cycles can be checked on the display.
1	Cotton with prewash:extremely soiled whites.	90° 1	200	●	●	-	●	8	4	-
2	Cotton:extremely soiled whites.	90° 1	200	-	●	●	●	8	4	-
2	Cotton (1):heavily soiled whites and resistant colours.	60° 1	200	-	●	●	●	8	4	-
2	Cotton (2):heavily soiled whites and delicate colours.	40° 1	200	-	●	●	●	8	4	-
3	Cotton:heavily soiled whites and resistant colours.	60° 1	200	-	●	●	●	8	4	4
4	Coloured Cottons (3):lightly soiled whites and delicate colours.	40° 1	200	-	●	●	●	8	4	4
5	Synthetics: lightly soiled resistant colours.	60° 8	00	-	●	●	●	3,5 1,5	2,5
Special
6	Wool: for wool, cashmere, etc.	40° 6	00	-	●	-	●	2	1	-
7	Silk/Curtains: for garments in silk and viscose, lingerie.	30° 0		-	●	-	●	2	1	-
8	Jeans	40° 8	00	-	●	-	●	4	-	-
9	Express: to refresh lightly soiled garments quickly (not suitable for wool, silk and clothes which require washing by hand).	30° 8	00	-	●	-	●	1,5	-	-
10	Outwear	30° 4	00	-	●	-	-	2,5	-	-
Sport
11	Sport Intensive	30° 6	00	-	●	-	●	4	-	-
12	Sport Light	30° 6	00	-	●	-	●	4	-	-
13	Sport Shoes	30° 6	00	-	●	-	●	Max. 2 pairs	-	-
Partial wash cycles
	Rinse	-	1200	-	-	●	●	8	4	-
	Spin	-	1200	-	-	--		8	-	-
	Drain	-	0	-	-	--		8	-	-

The information contained in the table is intended as a guide only.
For all Test Institutes:
1) Test wash cycle in compliance with regulation EN 60456: set wash cycle 2 with a temperature of 60°C.
2) Long wash cycle for cottons: set wash cycle 2 with a temperature of 40°C. 3) Short wash cycle for cottons: set wash cycle 4 with a temperature of 40°C.

Wash options

EcoTime

Selecting this option enables you to suitably adjust drum rotation, temperature and water to a reduced load of lightly soiled cotton and synthetic fabrics (refer to the "Table of wash cycles"). "EcoTime" enables you to wash in less time thereby saving water and electricity. We suggest using a liquid detergent suitably measured out to the load quantity.

! It cannot be used with the 1, 2, 6, 7, 8, 9, 10, 11, 12, 13, 🔍, Ⓞ programmes.

Stain removal

This option is particularly useful for the removal of stubborn stains. Place extra compartment 4 (supplied) into compartment 1.

4 1 2 3

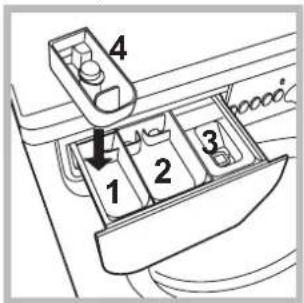

When pouring in the bleach, be careful not to exceed the "max" level marked on the central pivot (see figure). To run the bleach cycle on its own, pour the bleach into extra compartment 4, set the "Rinse" programme and activate the "Stain removal" option.

To bleach during a wash cycle, pour in the detergent and any fabric softener you wish to use, set the desired wash cycle and enable the "Stain removal" option. The use of extra compartment 4 excludes the "Pre-wash" option.

! It cannot be used with the 1, 6, 7, 8, 9, 10, 11, 12, 13, Ⓞ, programmes.

Extra rinse

By selecting this option, the efficiency of the rinse is increased and optimal detergent removal is guaranteed. It is particularly useful for sensitive skin.

! It cannot be used in conjunction with the 9, Ⓞ, ≡ programmes.

Mini load

This option is recommended for when the load of laundry is equal to half, or less than half, of the maximum recommended load (see Table of wash cycles).

! It cannot be used with the 8, 9, 10, 11, 12, 13, 😊, programmes.

Detergent dispenser drawer

Good washing results also depend on the correct dose of detergent: adding too much detergent will not necessarily result in a more efficient wash, and may in fact cause build up on the inside of your appliance and contribute to environmental pollution.

! Do not use hand washing detergents because these create too much foam.

4 1 2 3

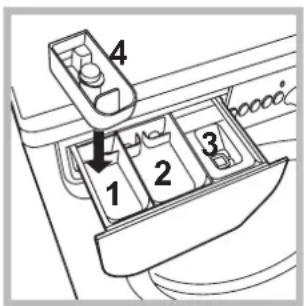

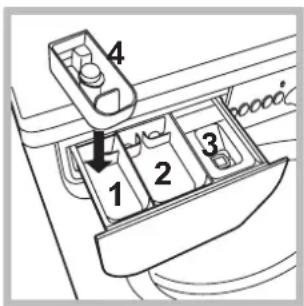

Open the detergent dispenser drawer and pour in the detergent or washing additive, as follows.

compartment 1: Pre-wash detergent (powder)

Before pouring in the detergent, make sure that extra compartment 4 has been removed.

compartment 2: Detergent for the wash cycle (powder or liquid)

Liquid detergent should only be poured in immediately prior to the start of the wash cycle.

compartment 3: Additives (fabric softeners, etc.)

The fabric softener should not overflow the grid.

extra compartment 4: Bleach

Preparing the laundry

• Divide the laundry according to:
• the type of fabric/the symbol on the label
• the colours: separate coloured garments from whites.
• Empty all garment pockets and check the buttons.
• Do not exceed the listed values, which refer to the weight of the laundry when dry:
  Durable fabrics: max. 8 kg
  Synthetic fabrics: max. 3,5 kg
  Delicate fabrics: max. 2 kg
  Wool: max. 2 kg
  Silk: max. 2 kg

How much does your laundry weigh?

1 sheet 400-500 g

1 pillow case 150-200 g

1 tablecloth 400-500 g

1 bathrobe 900-1200 g

1 towel 150-250 g

Special wash cycles

Wool: All wool garments can be washed using programme 6, even those carrying the "hand-wash only" 🎨 label. For best results, use special detergents and do not exceed 2 kg of laundry.

Silk: use special wash cycle 7 to wash all silk garments. We recommend the use of special detergent which has been designed to wash delicate clothes.

Curtains: fold curtains and place them in a pillow case or mesh bag. Use wash cycle 7.

Jeans: Turn garments inside-out before washing and use a liquid detergent. Use programme 8.

Express: this wash cycle was designed to wash lightly soiled garments quickly: it lasts just 15 minutes and therefore saves both energy and time. By selecting this wash cycle (9 at 30°C), it is possible to wash different fabrics together (except for wool and silk items), with a maximum load of 1.5 kg.

Outwear (wash cycle 10): is studied for washing water-repellent fabrics and winter jackets (e.g. Gore-Tex, polyester, nylon); for best results, use a liquid detergent and dosage suitable for a half-load; pretreat necks, cuffs and stains if necessary; do not use softeners or detergents containing softeners. Stuffed duvets cannot be washed with this programme.

Sport Intensive (wash cycle 11): is for washing heavily soiled sports clothing fabrics (tracksuits, shorts, etc.); for best results, we recommend not exceeding the maximum load indicated in the "Table of wash cycles".

Sport Light (wash cycle 12): is for washing lightly soiled sports clothing fabrics (tracksuits, shorts, etc.); for best results, we recommend not exceeding the maximum load indicated in the "Table of wash cycles". We recommend using a liquid detergent and dosage suitable for a half-load.

Sport Shoes (wash cycle 13): is for washing sports shoes; for best results, do not wash more than 2 pairs simultaneously.

Load balancing system

Before every spin cycle, to avoid excessive vibrations and to distribute the load in a uniform manner, the drum rotates continuously at a speed which is slightly greater than the washing rotation speed. If, after several attempts, the load is not balanced correctly, the machine spins at a reduced spin speed. If the load is excessively unbalanced, the washing machine performs the distribution process instead of spinning. To encourage improved load distribution and balance, we recommend small and large garments are mixed in the load.

! This washing machine was designed and constructed in accordance with international safety regulations. The following information is provided for safety reasons and must therefore be read carefully.

General safety

• This appliance was designed for domestic use only.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Do not touch the machine when barefoot or with wet or damp hands or feet.
• Do not pull on the power supply cable when unplugging the appliance from the electricity socket. Hold the plug and pull.
• Do not open the detergent dispenser drawer while the machine is in operation.
• Do not touch the drained water as it may reach extremely high temperatures.
• Never force the porthole door. This could damage the safety lock mechanism designed to prevent accidental opening.
• If the appliance breaks down, do not under any circumstances access the internal mechanisms in an attempt to repair it yourself.
• Always keep children well away from the appliance while it is operating.
• The door can become quite hot during the wash cycle.
• If the appliance has to be moved, work in a group of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy.
• Before loading laundry into the washing machine, make sure the drum is empty.

Disposal

• Disposing of the packaging materials: observe local regulations so that the packaging may be re-used.
• The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment, requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when

you dispose of the appliance it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Opening the porthole door manually

In the event that it is not possible to open the porthole door due to a powercut, and if you wish to remove the laundry, proceed as follows:

Line drawing of a washing machine with a bucket beside it (no text or symbols)

1. remove the plug from the electrical socket.
2. make sure the water level inside the machine is lower than the door opening; if it is not, remove excess water using the drain hose, collecting it in a bucket as indicated in the figure.

Simple line drawing of a screwdriver inserted into a bracket (no text or symbols)

1. using a screwdriver, remove the cover panel on the lower front part of the washing machine (see figure).

Hand holding a device with a black arrow pointing to a component (no text or symbols visible)

Hand inserting a component into a device (no text or symbols visible)

1. pull outwards using the tab as indicated in the figure, until the plastic tie-rod is freed from its stop position; pull downwards and open the door at the same time.
2. reposition the panel, making sure the hooks are securely in place before you push it onto the appliance.

Cutting off the water and electricity supplies

• Turn off the water tap after every wash cycle. This will limit wear on the hydraulic system inside the washing machine and help to prevent leaks.
• Unplug the washing machine when cleaning it and during all maintenance work.

Cleaning the washing machine

The outer parts and rubber components of the appliance can be cleaned using a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives.

Cleaning the detergent dispenser drawer

Diagram of a car interior drawer with a black arrow indicating direction (no text or symbols)

Remove the dispenser by raising it and pulling it out (see figure). Wash it under running water; this operation should be repeated frequently.

Caring for the door and drum of your appliance

• Always leave the porthole door ajar in order to prevent unpleasant odours from forming.

Cleaning the pump

The washing machine is fitted with a self-cleaning pump which does not require any maintenance. Sometimes, small items (such as coins or buttons) may fall into the pre-chamber which protects the pump, situated in its bottom part.

! Make sure the wash cycle has finished and unplug the appliance.

To access the pre-chamber:

Simple line drawing of a screwdriver inserted into a bracket (no text or symbols)

1. using a screwdriver, remove the cover panel on the lower front part of the washing machine (see figure);

Pure technical line drawing of a mechanical component with no text or symbols

1. unscrew the lid by rotating it anti-clockwise (see figure): a little water may trickle out. This is perfectly normal;

2. clean the inside thoroughly;

3. screw the lid back on;
4. reposition the panel, making sure the hooks are securely in place before you push it onto the appliance.

Checking the water inlet hose

Check the inlet hose at least once a year. If there are any cracks, it should be replaced immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open.

! Never use second-hand hoses.

Your washing machine could fail to work. Before contacting the Technical Assistance Centre (see "Assistance"), make sure that the problem cannot be not solved easily using the following list.

Problem:

The washing machine does not switch on.

The wash cycle does not start.

The washing machine does not take in water ("H2O" will flash on the display).

The washing machine continuously takes in and drains water.

The washing machine does not drain or spin.

The washing machine vibrates a lot during the spin cycle.

The washing machine leaks.

The "option" indicator lights and the "start/pause" indicator light flash and an error code appears on the display (e.g.: F-01, F-..).

There is too much foam.

Possible causes / Solutions:

- The appliance is not plugged into the socket fully, or is not making contact. - There is no power in the house.

- The washing machine door is not closed properly.

- The ON/OFF button has not been pressed.

- The START/PAUSE button has not been pressed.

- The water tap has not been opened.

- A delayed start has been set (see "Running a wash cycle").

- The water inlet hose is not connected to the tap.

- The hose is bent.

- The water tap has not been opened.

- There is no water supply in the house.

• The pressure is too low.

- The START/PAUSE button has not been pressed.

- The drain hose is not fitted at a height between 65 and 100 cm from the floor (see "Installation").

- The free end of the hose is under water (see "Installation").

- The wall drainage system is not fitted with a breather pipe.

If the problem persists even after these checks, turn off the water tap, switch the appliance off and contact the Assistance Service. If the dwelling is on one of the upper floors of a building, there may be problems relating to water drainage, causing the washing machine to fill with water and drain continuously. Special anti-draining valves are available in shops and help to avoid this inconvenience.

- The wash cycle does not include draining: some wash cycles require the drain phase to be started manually.

- The drain hose is bent (see "Installation").

- The drainage duct is clogged.

- The drum was not unlocked correctly during installation (see "Installation").

- The washing machine is not level (see "Installation").

- The washing machine is trapped between cabinets and walls (see "Installation").

- The water inlet hose is not screwed on properly (see "Installation").

- The detergent dispenser drawer is blocked (for cleaning instructions, see "Care and maintenance").

- The drain hose is not fixed properly (see "Installation").

- Switch off the machine and unplug it, wait for approximately 1 minute and then switch it back on again.

If the problem persists, contact the Technical Assistance Service.

- The detergent is not suitable for machine washing (it should display the text "for washing machines" or "hand and machine wash", or the like).

- Too much detergent was used.

Before calling for Assistance:

• Check whether you can solve the problem alone (see "Troubleshooting");
• Restart the programme to check whether the problem has been solved;
• If this is not the case, contact an authorised Technical Assistance Centre using the telephone number provided on the guarantee certificate.

!Always request the assistance of authorised technicians.

Have the following information to hand:

• the type of problem;
  • the appliance model (Mod.);
  • the serial number (S/N).
  This information can be found on the data plate applied to the rear of the washing machine, and can also be found on the front of the appliance by opening the door.

Français

Sommaire

Installation, 14-15

Technical diagram of a mechanical or electrical component with concentric circular and oval shapes, no visible text or symbols.

Simple line drawing of a door handle with a circular button and directional arrow (no text or symbols)

Technical line drawings of two mechanical components: a hexagonal bolt and a flanged pin (no text or symbols)

Diagram of a mechanical device with a valve and handle, showing rotational motion (no text or symbols)

Diagram of a pipe connection with a connector, showing tubing and a connector (no text or symbols)

bac 3: Additifs (assouplissant, etc.)

Line drawing of a washing machine with a bucket beside it (no text or symbols)

Simple line drawing of a screwdriver inserted into a bracket (no text or symbols)

Hand inserting a USB into a device component (no text or symbols visible)

Hand inserting a component into a device (no text or symbols visible)

Diagram of a car interior with a directional arrow indicating flow or movement (no text or symbols present)

Simple line drawing of a tool interacting with a bracket (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Technical diagram of a mechanical or electrical component with concentric circular and oval shapes, no visible text or symbols.

Line drawing of a car door corner with a circular button and directional arrow (no text or symbols)

Technical line drawings of two mechanical components: a hexagonal bolt and a flanged pin (no text or symbols)

Line drawing of a mechanical component with a valve and handle, no text or symbols present

Simple line drawing of a pipe connection to a bulb (no text or symbols)

Line drawing of a washing machine with a bucket beside it (no text or symbols)

Simple line drawing of a tool inserted into a bracket with an arrow indicating direction (no text or symbols)

Hand holding a device with a black arrow pointing to a component (no text or symbols visible)

Hand inserting a component into a device (no text or symbols visible)

Diagram of a car interior drawer with a black arrow indicating direction (no text or symbols)

Simple line drawing of a tool inserted into a bracket with an arrow indicating direction (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Technical diagram of a mechanical or electrical component with concentric circular and oval shapes, no visible text or symbols.

Line drawing of a door handle with a spiral pattern on the front panel and an arrow indicating rotation (no text or symbols)

Technical line drawings of two mechanical components: a hexagonal bolt and a flanged pin (no text or symbols)

Technical line drawing of a mechanical component with a valve and handle (no text or symbols)

Diagram of a pipe connection with a bulb above it, no text or symbols present

Line drawing of a washing machine with a bucket beside it (no text or symbols)

Simple line drawing of a screwdriver inserted into a bracket (no text or symbols)

Hand pressing a button on a computer interface (no text or symbols visible)

Hand inserting a USB into a device (no text or symbols visible)

Diagram of a car interior showing a boat with internal compartments and a downward arrow indicating flow or movement (no text or symbols)

Simple line drawing of a screwdriver inserted into a bracket (no text or symbols)

Pure technical diagram of a mechanical component with no text or symbols

Technical diagram of a mechanical or electrical component with concentric circular and oval shapes, no visible text or symbols.

Line drawing of a car door with a circular button and directional arrow (no text or symbols)

Technical line drawings of two mechanical components: a hexagonal bolt and a flanged pin (no text or symbols)

Diagram of a mechanical device with a valve and handle, showing rotational motion (no text or symbols)

Diagram of a pipe connection with a bulb and handle, no text or symbols present

Line drawing of a washing machine with a bucket beside it (no text or symbols)

Simple line drawing of a tool interacting with a bracket (no text or symbols)

Hand inserting a USB into a device component (no text or symbols visible)

Hand inserting a component into a device (no text or symbols visible)

Diagram of a car interior with a directional arrow indicating flow or movement (no text or symbols present)

Simple line drawing of a tool interacting with a bracket (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Technical diagram of a mechanical or electrical component with concentric circular and oval shapes, no visible text or symbols.

Line drawing of a car door corner with a circular button and directional arrow (no text or symbols)

Technical line drawing of two mechanical components: a hexagonal bolt and a flanged pin (no text or symbols)

Diagram of a mechanical valve or pump assembly with directional arrow indicating rotation (no text or symbols)

Diagram of a pipe connection with a connector, showing tubing and a connector (no text or symbols)

10, 11, 12, 13, ≈, Ⓞ. ≡

Anti-mancha

1 2 3 4

Line drawing of a washing machine with a bucket beside it (no text or symbols)

Simple line drawing of a mechanical component with a lever and directional arrows (no text or symbols)

Hand pressing a button on a computer monitor (no text or symbols visible)

Hand inserting a USB into a device (no text or symbols visible)

Diagram of a car air intake system with directional arrow indicating flow (no text or labels)

Simple line drawing of a tool interacting with a bracket (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols
