USER MANUAL G7CE3034XS - INSTALLING OVEN UNDER COOKTOP WHIRLPOOL

CUTOUT DIMENSIONS FOR OVENS INSTALLED UNDER COOKTOP

IMPORTANT: Observe all governing codes and ordinances. Cooktop must be approved for use over an oven. See cooktop Installation Instructions for cutout dimensions. Center the cooktop cutout over oven cutout.

To avoid damage to your cabinets, check with your builder or cabinet supplier to make sure that the materials used will not discolor, delaminate or sustain other damage. This oven has been designed in accordance with UL and CSA International and complies with the maximum allowable wood cabinet temperatures of 194^ F ( 90^ C).

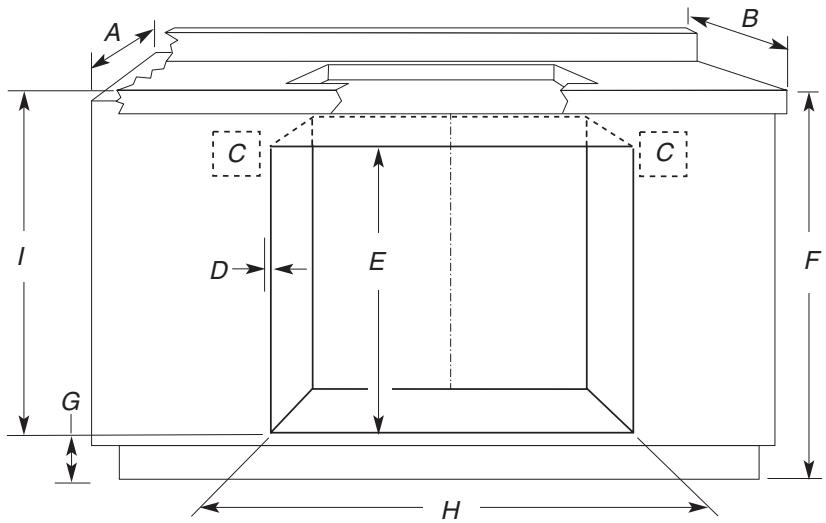

Approved Built-In Oven and Electric Radiant/Coil Cooktop Combinations

A B C D E F G H

A. 24" (61 cm) cabinet depth

B. 25" (63.5 cm) countertop depth

C. Recommended oven and cooktop junction box locations

D. Allow 58 " (1.6 cm) for oven trim to overlap on each side.

E. 27 ^3/4 " (70.5 cm) minimum cutout height

F. 36" (91.4 cm) from cabinet base to countertop

G. 4 ^5/8 " (11.7 cm) maximum from cabinet base

H. See Cutout Dimensions chart.

I. 31 38 (79.7 cm) from top of countertop to bottom of cutout

CUTOUT DIMENSIONS

Oven Size	Oven Cutout Dimension
24" (61 cm)	2212" (57.2 cm)
27" (68.6 cm)	2512" (64.8 cm)
30" (76.2 cm)	2812" (72.4 cm)
36" (91.4 cm)	3412" (87.6 cm)

For the approved model number combinations, refer to the undercounter label located on top of the oven chassis and on the bottom of the cooktop burner box.

NOTE: For undercounter installation, it is recommended that the junction boxes for oven and cooktop be located in the adjacent right or left cabinet. A 1" (2.5 cm) minimum diameter hole should have been drilled in the upper rear right or left corner of the side wall surface to pass the appliance cable through to the junction box. On models with Steam-Assist, it will be necessary to drill a 12 " (1.3 cm) minimum diameter hole in the upper right or left rear corner of the side wall to pass the water supply tubing through to the undersink water filter. If water supply tubing hole is drilled on the same side as the oven cable hole, a minimum of 2" (5.1 cm) is required between the 2 holes.

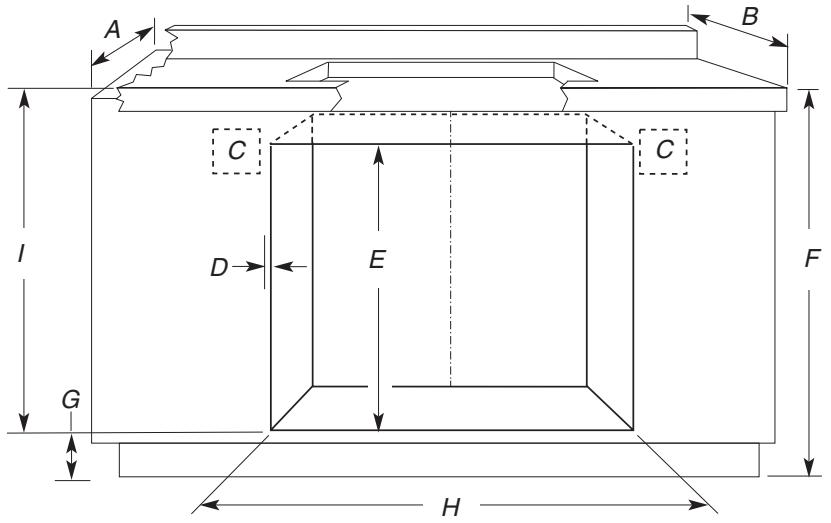

Approved Built-In Oven and Induction Cooktop Combinations

A B C D E F G H

A. 24" (61 cm) cabinet depth
B. 25" (63.5 cm) countertop depth
C. Recommended oven and cooktop junction box locations
D. Allow 58 " (1.6 cm) for oven trim to overlap on each side.
E. 27^3/4 " (70.5 cm) minimum cutout height
F. 36" (91.4 cm) from cabinet base to countertop
G. 3 ^5/8 " (9.2 cm) from cabinet base. If dimension "F" is greater than 36" (91.4 cm), dimension "G" can be increased the same difference for induction combinations.
H. See Cutout Dimensions chart.

1. 32 ^3/8 " (82.2 cm) from top of countertop to bottom of cutout

CUTOUT DIMENSIONS

Oven Size	Oven Cutout Dimension
24" (61 cm)	2212" (57.2 cm)
27" (68.6 cm)	2512" (64.8 cm)
30" (76.2 cm)	2812" (72.4 cm)

For the approved model number combinations, refer to the undercounter label located on top of the oven chassis and on the bottom of the cooktop burner box.

NOTE: For undercounter installation, it is recommended that the junction boxes for oven and cooktop be located in the adjacent right or left cabinet. A 1" (2.5 cm) minimum diameter hole should have been drilled in the upper rear right or left corner of the side wall surface to pass the appliance cable through to the junction box. On models with Steam-Assist, it will be necessary to drill a 1" (1.3 cm) minimum diameter hole in the upper right or left rear corner of the side wall to pass the water supply tubing through to the undersink water filter. If water supply tubing hole is drilled on the same side as the oven cable hole, a minimum of 2" (5.1 cm) is required between the 2 holes.

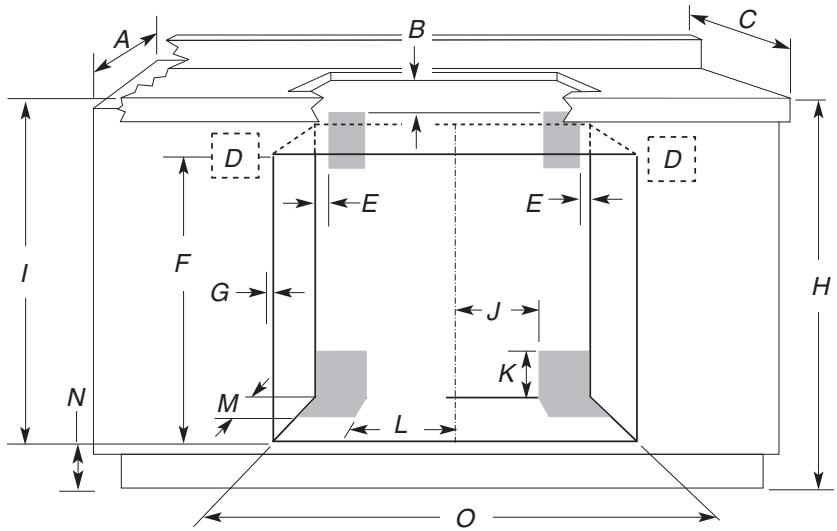

Approved Built-In Oven and Gas Cooktop Combinations

A B C D E E D F G J K M L N O H

A. 24" (61 cm) cabinet depth
B. 1" (2.5 cm) clearance to bottom of countertop
C. 25" (63.5 cm) countertop depth
D. Recommended oven junction box locations
E. 1" (2.5 cm) clearance to cabinet
F. 27 ^3/4 " (70.5 cm) minimum cutout height
G. Allow 58 (1.6 cm) for oven trim to overlap on each side.
H. 36" (91.4 cm) from cabinet base to countertop

I. 31 ^3/8 " (79.7 cm) from top of countertop to bottom of cutout
J. Gas line through wall 10 ^1/2 " (26.7 cm) to center of cutout
K. 3 ^1/4 " (8.3 cm)
L. Gas line through floor 10 ^1/2 " (26.7 cm) to center of cutout
M. 3 ^1/2 " (8.9 cm)
N. 4 ^5/8 " (11.7 cm) maximum from cabinet base
O. See Cutout Dimensions chart.

CUTOUT DIMENSIONS

Oven Size	Oven Cutout Dimension
24" (61 cm)	2212" (57.2 cm)
27" (68.6 cm)	2512" (64.8 cm)
30" (76.2 cm)	2812" (72.4 cm)
36" (91.4 cm)	3412" (87.6 cm)

For the approved model number combinations, refer to the undercounter label located on top of the oven chassis.

NOTE: For undercounter installation, it is recommended that the junction box for oven be located in the adjacent right or left cabinet. A 1" (2.5 cm) minimum diameter hole should have been drilled in the upper rear right or left corner of the side wall surface to pass the appliance cable through to the junction box.

On models with Steam-Assist, it will be necessary to drill a 12 " (1.3 cm) minimum diameter hole in the upper right or left rear corner of the side wall to pass the water supply tubing through to the undersink water filter. If water supply tubing hole is drilled on the same side as the oven cable hole, a minimum of 2" (5.1 cm) is required between the 2 holes.

The upper shaded areas are recommended locations for recessed junction box for 120-volt grounded outlet for cooktop.

Lower shaded areas are recommended locations for flexible or rigid gas pipe installation. The gas connection on the cooktop is on the right (same location as "J" in the above diagram). The gas pipe can be installed on either side of the cutout, and either through the floor or through the wall. Refer to local codes regarding the use of gas lines.
