SF1300 - Iron ALPINA - Free user manual and instructions

USER MANUAL SF1300 ALPINA

EN SF-1300/SF-1301 Steam Iron Instruction for use

RU SF-1300/SF-1301 YTIO COTnpuBaTeJeM

RO SF-1300/SF-1301 Fier de calcat

HR SF-1300/SF-1301 Parno glacalo

CZ SF-1300/SF-1301 Napařovaci zhelicka

SK SF-1300/SF-1301 Naparovacia zhehlicka

HU SF-1300/5F-1301 Gózolós vasaló

EN: For your own safety read these instructions carefully before using the appliances.

1. Spray organ
2. Filler door
3. Steam dial
4. Spray button
5. Shot-steam button
6. Auto shot off indication light
7. Cord bushing
8. Supply cord
9. Plate temperature control light
10. Transparent water tank
11. Thermostat knob for temperature regulation
12. Self-cleaning button
13. Maximum filling level
14. Plate with steam vents
15. Water measure

FR DESCRIPTIONS DES ÉLÉMENTS

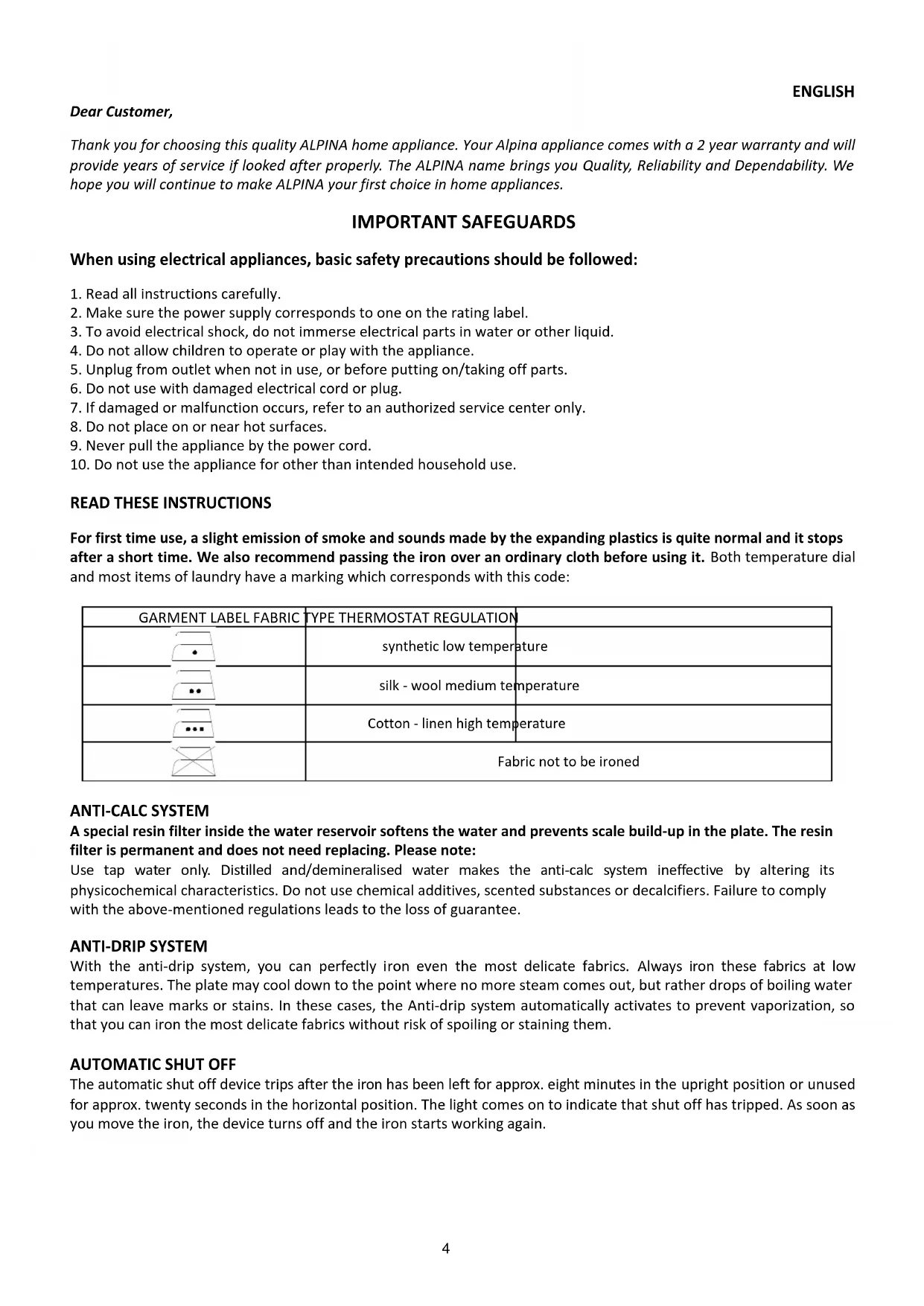

Thank you for choosing this quality ALPINA home appliance. Your Alpina appliance comes with a 2 year warranty and will provide years of service if looked after properly. The ALPINA name brings you Quality, Reliability and Dependability. We hope you will continue to make ALPINA your first choice in home appliances.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should be followed:

1. Read all instructions carefully.
2. Make sure the power supply corresponds to one on the rating label.
3. To avoid electrical shock, do not immerse electrical parts in water or other liquid.
4. Do not allow children to operate or play with the appliance.
5. Unplug from outlet when not in use, or before putting on/taking off parts.
6. Do not use with damaged electrical cord or plug.
7. If damaged or malfunction occurs, refer to an authorized service center only.
8. Do not place on or near hot surfaces.
9. Never pull the appliance by the power cord.
10. Do not use the appliance for other than intended household use.

READ THESE INSTRUCTIONS

For first time use, a slight emission of smoke and sounds made by the expanding plastics is quite normal and it stops after a short time. We also recommend passing the iron over an ordinary cloth before using it. Both temperature dial and most items of laundry have a marking which corresponds with this code:

GARMENT LABEL FABRIC TYPE THERMOSTAT REGULATION
	synthetic low temperature
	silk - wool medium temperature
	Cotton - linen high temperature
	Fabric not to be ironed

ANTI-CALC SYSTEM

A special resin filter inside the water reservoir softens the water and prevents scale build-up in the plate. The resin filter is permanent and does not need replacing. Please note:

Use tap water only. Distilled and/demineralised water makes the anti-calc system ineffective by altering its physicochemical characteristics. Do not use chemical additives, scented substances or decalcifiers. Failure to comply with the above-mentioned regulations leads to the loss of guarantee.

ANTI-DRIP SYSTEM

With the anti-drip system, you can perfectly iron even the most delicate fabrics. Always iron these fabrics at low temperatures. The plate may cool down to the point where no more steam comes out, but rather drops of boiling water that can leave marks or stains. In these cases, the Anti-drip system automatically activates to prevent vaporization, so that you can iron the most delicate fabrics without risk of spoiling or staining them.

AUTOMATIC SHUT OFF

The automatic shut off device trips after the iron has been left for approx. eight minutes in the upright position or unused for approx. twenty seconds in the horizontal position. The light comes on to indicate that shut off has tripped. As soon as you move the iron, the device turns off and the iron starts working again.

GENERAL INSTRUCTIONS

1.STEAM IRONING Filling the reservoir
2. Check that the plug is disconnected from the socket.
3. Move the steam selector (3) to "0".
4. Open the lid (2).
5. Raise the tip of the iron to help the water enter the opening without overflowing.
6. Slowly pour the water into the reservoir using the special measure (15) and taking care not to go over the maximum level (about 300ml) indicated by "MAX" on the reservoir.
7. Close the lid (2).

Selecting the temperature.

• Put the iron in a vertical position.
• Put the plug in the socket.
• Adjust the thermostat knob (11) according to the international symbol on the garment label [Fig. 3]. The plate temperature control light (9) indicates that the iron is heating up. Wait until the plate temperature control light goes off before ironing. Warning: during ironing, the plate temperature control light (9) comes on at intervals, indicating that the selected temperature is maintained. If you lower the thermostat temperature after ironing at a high temperature, do not start ironing until the plate temperature control light comes on again.

Selecting the steam.

The quantity of steam is regulated by the steam selector (3).

• Move the steam selector to a position between minimum and maximum depending on the quantity of steam required and the temperature selected [Fig. 1]. Warning: the iron gives off steam continuously only if you hold the iron horizontally. You can stop the continuous steam by placing the iron in a vertical position or by moving the steam selector to "0". As indicated on the thermostat knob (11) and in the initial table, you can only use steam at the highest temperatures. If the selected temperature is too low, water may drip onto the plate.

Selecting Shot-steam and steam when ironing vertically.

Press the shot-steam button (5) to generate a powerful burst of steam that can penetrate the fabrics and smooth the most difficult and tough creases. Wait for a few seconds before pressing again. By pressing the shot-steam button at intervals you can also iron vertically (curtains, hung garments, etc.). Warning: the shot-steam function can only be used at high temperatures. Stop the emission when the plate temperature control light (9) comes on, than start ironing again only after the light has gone off.

DRY IRONING

To iron w/o steam, follow the instructions in section "steam ironing", leaving the steam selector (3) on position "0".

Spray Function

Make sure that there is water in the reservoir. Press the spray button (4) slowly (for a dense spray) or quickly (for a vaporized spray). Warning: for delicate fabrics, we recommend moistening the fabric beforehand using the spray function (4), or putting a damp cloth between the iron and the fabric. To avoid staining, do not use the spray on silk or synthetic fabrics.

SELF-CLEANING

The self-cleaning feature cleans inside the plate, removing impurities. We recommend using it every 10-15days.

Directions:

• Fill the reservoir up to the maximum level indicated and set the steam selector
• Set the thermostat knob (11) to the maximum temperature and wait for the light (6) to turn off.
• Pull the plug out of the socket and hold the iron horizontally over the sink.
• Hold the cleanout button (12) setting until all the boiling water, steam, and impurities come out.
• When the soleplate has cooled down, you can clean it with a damp cloth.

USEFULL TIPS

1. This iron is designed with anti-calcium filter and anti-drip system to prevent the water from licking to the soleplate when the iron is too cold.
2. The surge steam provides an extra burst which ideal for removal of stubborn creases and wrinkles.
3. This iron has a vertical steam system for hanging clothes, curtains, wall hangings etc.

ENGLISH

Warning:

This appliance is equipped with a grounded, Type G, 3-pin power supply cord. This is a safety feature. Do not attempt to defeat the safety purpose of this plug.

Danger of scalding:

Please use caution when using the steam iron. The steam emitted from this aperture can be very hot.

CLEANING AND MAINTENANCE

1. Apply "self-cleaning" function to your iron once or twice a month or remove any scale or fluff.
2. Hold the iron horizontally over the sink and set the steam knob to "clean" press the steam button. Let the water and steam escape until the anti-drip system cut off the steam.
3. Unplugged the unit before cleaning and wipe with clean, soft damp cloth. Do not use any abrasive or scouring pads to clean the soleplate.
4. Do not use vinegar or other descaling agents into the water tank.
5. Store the iron in a safe and stable place.

DISPOSAL OF YOUR OLD APPLIANCE

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchase the product.

SPECIFICATION

Model No :SF-1300/SF-1301

Voltage:220-240v 50 / 60Hz

Wattage:1650-1960W

Water tank capacity :300ml

GUARANTEE

This product is guaranteed for a period of 2 years from the date of purchase against defects in materials and workmanship. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, provided the product is brought back to the purchase address. This guarantee is only valid if the appliance has been used in accordance with the instructions, and that it has not been modified, repaired or interfered with by any unauthorized person, or damaged through misuse.

This guarantee does not cover wear and tear, or breakables such as ceramic items, etc. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return and bring it to the address of purchase. If within the guarantee period, please also provide the guarantee card and proof of purchase.

E-mail Service Address:

[e-mail]

Sehr gehrter Kunde,

LISEZ CES INSTRUCTIONS

BELANGRIJKE VEILIGHEIDSWAARSCHUWINGEN

E-postserviceaddress:

[e-mail]

Kaere kunde,

MoHHoCTb:1650-1960BT

06xempe3epByapaIaB0dbi:300Mn

TAPAHTN

Ha 3OT npOdyKT npEOCTabIeTc2- yx IeTHra rapaHTn, HauHHa C daTbI NOKyKn, KOtOPa paacnpocpaHaeTcRa DeefekTb MaTePnaIOB n KaueCTBO n3rOToBLeHn. IIO 3TOI rapaHTn npoIN3BOIDteJIb o6aYeTc npoIN3BeCTn peMOHT nII 3aMeHy IIO60i DeTALN, KOTOPa OKaKeTcH HeNCpABHO npu YCIOBn, YTO npOdyKT 6ydt npedbAIEH No MeCTy NOKyKn. DaHHa rapaHTn DeICTBHeH pni UcNOBn, YTO npi6Op INCNoJB3OBaLCB C COOTBECTBn C INHCTpyKUmaH, He NODBepraLCN3MeHEHm, PemOH TY NII BCKpbITNILOIuCaAMn, He IMeIOUIMn Ha TO COOTBeTCTBYIOUX NOLHOMOCh, n He 6bl NOBpeJXDeH B pe3yIbTaTe HENpaBnIBHO 3KcnIyatauNN.

JaHHa rapaHTn He paocpoCTpaHReTc Hn3Hoc, cHn eCt b NOBpeXeHn PnactNKOBbIX DeTaJe KOpnyca n T.I. Ecn npOyKT He pa6oTaet I noDLeKHT BO3BpATy, AKKypaTHo YNaKyTe erO, YKaKnte CBOE mM, aDpec n npuHHy BO3BpATA n DOCTABBe No MeCy TnOKynKn. Ecn cPoK rapaHTn He nCTeK, pnploKNTe TaKHe rapaHTnHbI TaJOn H uek O NOKyPke.

Adec 3JIeKTPoHNOI NOUbI:

[e-mail]

Stimate Client,

Model c.: SF-1300/SF-1301

Napěti:220-240v\~50/60Hz

Príkon:1650-1960W

Objem nadrzky na vodu : 300 ml

ZÁRUKA
