Product type	Hot air styling brush (hot air brush)
Brand	Carmen
Model	DC1080 (Brilliance Ion Pro)
Power	1000 W (2 levels: 500 W, 1000 W)
Power supply	220-240 V ~, 50/60 Hz
Ionic technology	Built-in ion generator to reduce static electricity and add shine
Included brushes	2 ceramic round brushes: Ø 30 mm (retractable bristles) and Ø 38 mm (combi)
Cool air function	Lockable COOL button for curl setting
Speeds / Temperatures	2 airflow speeds, 4 power/temperature combinations (including cooling)
Cord rotation system	Yes, to prevent tangling
Hanging and storage	Can be hung (ring); non-slip base
Thermal protection	Overheat protection with automatic shut-off in case of overload
Electrical safety	Do not use near a bathtub, shower, or sink filled with water; unplug after use
Dimensions (approx.)	Length: 35 cm with brush; brush diameter: 30 mm or 38 mm
Weight (approx.)	400 g (without accessories)
Brush material	Ceramic
Care and cleaning	Unplug and let cool; wipe with a slightly damp cloth, do not immerse in water
Warranty	2 years (excluding wear parts)
Usage	Household, for medium to long human hair

Frequently Asked Questions - DC1080 Carmen

How to use the Carmen DC1080 hot air brush?

Wash and dry your hair. Attach the round brush (ø30 or 38 mm) to the appliance by aligning the marks. Place a section of hair on the brush, slide it from roots to ends, then roll it up. Turn on the appliance to the desired setting (I or II), let the hot air work, then use the COOL button to set the curl. Press the unlock button to remove the brush. Turn off the appliance.

How to activate the ion generator?

Push the ion switch (ION position) on the top of the appliance. The green indicator light turns on. To deactivate, push it back down. Ions reduce static electricity and add more shine.

What to do if the appliance suddenly stops?

The appliance is equipped with overheat protection. If the air openings are blocked, the appliance turns off automatically. Set the switch to '0', wait 5 minutes before turning it back on. Make sure the intake and outlet grilles are not covered.

Can I use the appliance in the bathroom?

Never use the appliance near a bathtub, shower, or sink filled with water. Even when off, it can be dangerous. Unplug after use. Use only in a dry area.

How to clean the Carmen DC1080 hot air brush?

Unplug the appliance and let it cool completely. Wipe the body and brushes with a slightly damp cloth, then dry with a soft cloth. Never immerse the appliance in water and do not use abrasive products.

What is the function of the COOL button?

The COOL button allows you to cool the air during use. Press and hold to send cold air, ideal for setting curls. It is lockable if you hold the pressure (depending on model). The power positions change: in position I + COOL = 250 W, in position II + COOL = 500 W.

How to change the round brush?

Turn off and unplug the appliance. Press the 'push' button and rotate the adapter until it stops, then remove the brush. To install a new brush, align the marks, push in, and rotate until it locks.

What safety precautions should be followed?

Do not use near water, do not touch the hot parts of the brush, do not pull on the cord, unplug after use, do not use if the cord is damaged, keep out of reach of children under 8 years old without supervision.

How long is the warranty?

The warranty is 2 years from the date of purchase, covering manufacturing defects and material defects. It does not cover normal wear, accidental damage, or non-compliant use. Keep the receipt.

Can I use the appliance without a brush?

Yes, you can use the appliance as a regular hairdryer. Remove the brush by pressing the 'push' button and rotating. Hot air will come out directly. Be careful not to place the air outlet too close to eyes or scalp.

USER MANUAL DC1080 Carmen

Carney Tan Pnx electric hair power tool with spiky bristles (no text or symbols visible on body)

Close-up of a black hairdryer with a metallic roller and threaded spool (no text or symbols visible)

CARMEN®

Black-and-white sketch portrait of a woman with long wavy hair, signed with 'Pindy' at the bottom (no other text or symbols)

Model DC1080 (220-240V)

Gebruiksaanwijzing

Mode d'emploi

Gebrauchsanweisung

Manual

a b c d e f g

1 1. 2. push

Illustration of hands using a tool to adjust a mechanical component (no text or symbols visible)

3 1. 2.

Illustration of a person using a handheld device to press or press their hair (no text or symbols present)

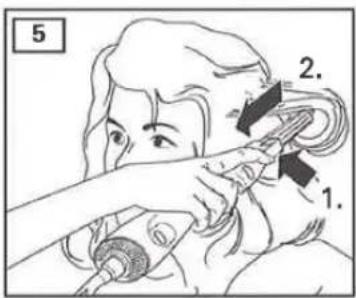

5 1. 2.

6

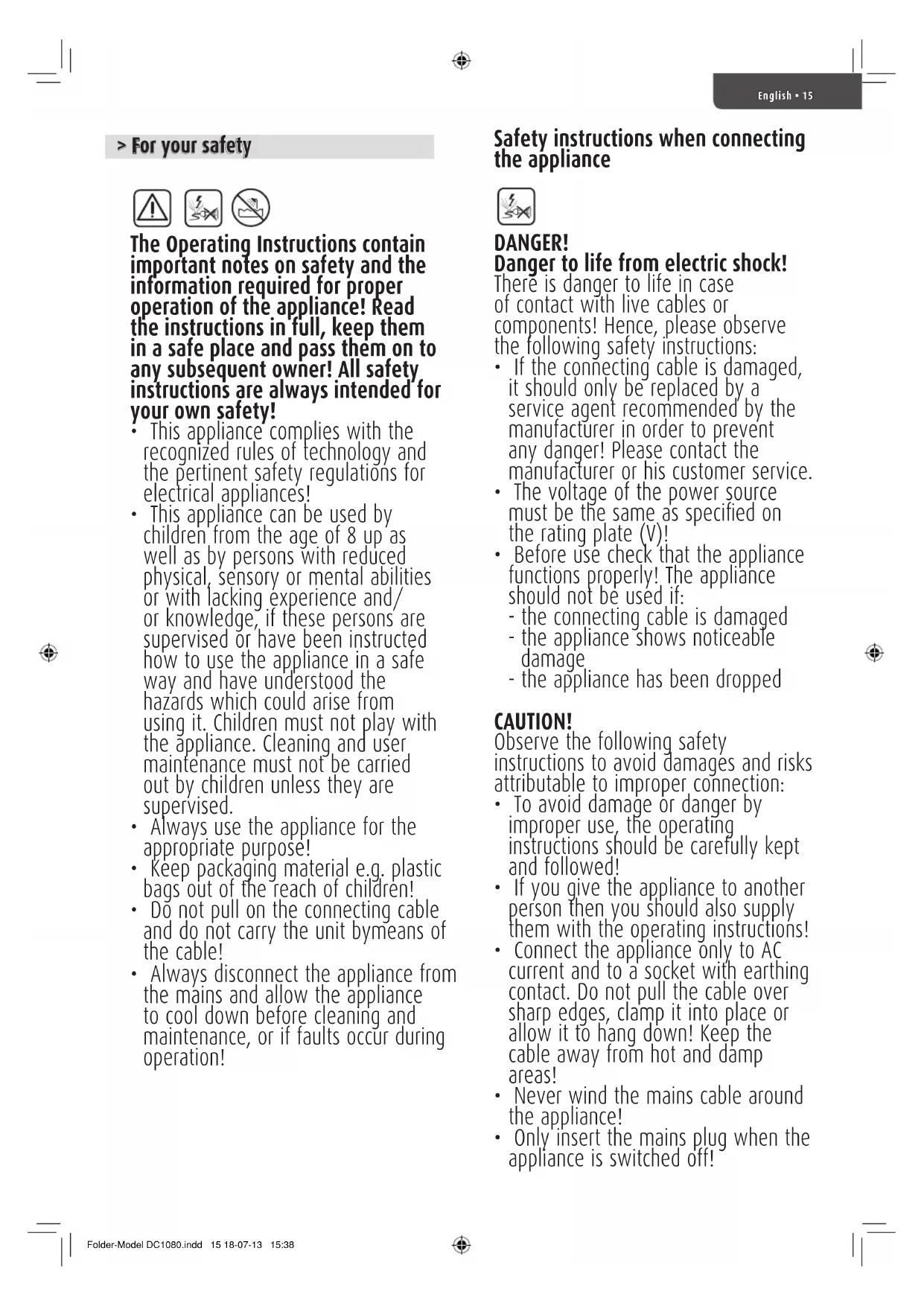

The Operating Instructions contain important notes on safety and the information required for proper operation of the appliance! Read the instructions in full, keep them in a safe place and pass them on to any subsequent owner! All safety instructions are always intended for your own safety!

• This appliance complies with the recognized rules of technology and the pertinent safety regulations for electrical appliances!
• This appliance can be used by children from the age of 8 up as well as by persons with reduced physical, sensory or mental abilities or with lacking experience and/or knowledge, if these persons are supervised or have been instructed how to use the appliance in a safe way and have understood the hazards which could arise from using it. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children unless they are supervised.
  • Always use the appliance for the appropriate purpose!
• Keep packaging material e.g. plastic bags out of the reach of children!
• Do not pull on the connecting cable and do not carry the unit bymeans of the cable!
  • Always disconnect the appliance from the mains and allow the appliance to cool down before cleaning and maintenance, or if faults occur during operation!

Safety instructions when connecting the appliance

DANGER!

Danger to life from electric shock!

There is danger to life in case of contact with live cables or components! Hence, please observe the following safety instructions:

• If the connecting cable is damaged, it should only be replaced by a service agent recommended by the manufacturer in order to prevent any danger! Please contact the manufacturer or his customer service.
• The voltage of the power source must be the same as specified on the rating plate (V)!
• Before use check that the appliance functions properly! The appliance should not be used if:
• the connecting cable is damaged
• the appliance shows noticeable damage.
• the appliance has been dropped

CAUTION!

Observe the following safety instructions to avoid damages and risks attributable to improper connection:

• To avoid damage or danger by improper use, the operating instructions should be carefully kept and followed!
- If you give the appliance to another person then you should also supply them with the operating instructions!
- Connect the appliance only to AC current and to a socket with earthing contact. Do not pull the cable over sharp edges, clamp it into place or allow it to hang down! Keep the cable away from hot and damp areas!

- Never wind the mains cable around the appliance!

- Only insert the mains plug when the appliance is switched off!

Safety instructions when operating the appliance

WARNING! Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

DANGER!

Danger to life from electric shock!

There is danger to life if the live appliance comes in contact with water! Hence, please observe the following safety instructions:

• Never use the appliance with wet hands, in or near the bath, shower or over a filled washbasin. If the appliance falls into water, remove themains plug immediately. Under no circumstances reach into the water when the appliance is still connected to the power supply!
• When the appliance is used in a bathroom, unplug it after use since the proximity of water presents a hazard even when the appliance is switched off!

WARNING!

Danger of burns from hot appliance components!

The round brush, especially the tip, can become very hot during operation and lead to possible burns.

Never grasp at the round brush, especially not at the tip, when the appliance is on. Avoid any contact to skin and eyes. Never transport the round brush when it is hot!

CAUTION!

Please observe the following safety instructions to avoid damages and risks attributable to improper use:

• Never put the appliance on soft cushions or blankets during operation!
  • To avoid damaging of the hair the air outlet should not be too close to the hair!

• Do not cover the air intake or air outlet during use!

• Do not hold the air outlet opening too close to your eyes or skin.
  • Make sure that you switch off the appliance when not in continuous use!
• Do not place the appliance or the connecting cable on hot surfaces e.g. cooker or similar or in the vicinity of open flames!
• The appliance is fitted with an overload protection which switches off in the case of an overload (e.g. air outlet or intake is blocked). If the appliance switches off during use, please reset the graduated switch to "0" and wait for approx. 5 minutes. Then, switch on again!
• The installation of a faulty current protective device with a rated breaking current offers you additional safety by ensuring that 30 mA will not be exceeded in the house installation. Let your installation electrician advise you!
• Remove the plug from the mains:
• if the unit does not function properly.
• 'before' cleaning
• after every use
• Protect the appliance against climatic influences such as damp or direct sunlight. The appliance is not approved for use outdoors.

Safety instructions for cleaning and maintenance

DANGER!

Danger to life from electric shock!

There is danger to life if the live appliance comes in contact with water! Hence, please observe the following safety instructions:

- Protect the appliance from moisture. Never put it into the dishwasher.

- Do not use the connecting cable to pull on the plug nor remove the plug from the socket with wet hands!

- Never immerse it in water!

Use in accordance with purpose The appliance is only intended for drying and styling human hair.

No liability is accepted for any damage resulting from use for other purposes, faulty operation or amateur repairs.

Guarantee services are also excluded in such cases.

> Carmen Ion Pro

Congratulations with your purchase of the Carmen Ion Pro. Please read these instructions carefully before using the product and keep them in a safe place for future reference.

We wish you lots of pleasure with the Carmen Ion Pro!

> The product

Name: Carmen Brilliance Ion Pro

Model: DC1080

Power supply: 220-240V, 50/60Hz

Rated input: 1000W

CE compliance:

This appliance complies with EU EMC

Directives 2004/108/EC and Low Voltage 2006/95/EC.

> Unique elements

• Complete stylingset to style your hair in every desirable style you want
• To untangle your hair pin bristle brush and creates extra shine
• Ion Technology for shiny and anti-static hair
• 1000 Watt (0-500-1000 W) 2 speeds / 4 temperature settings
• ∅ 30 mm ceramic brushes with retractible teeth
• ∅ 38 mm ceramic combi pin bristle
• Cool shot button with special CARE mode
• Special suitable for mid- to long hair
• Rotating cable
• Mounting possibility
• Anti-slip 'knobbly' safety grip
• 2 years warranty

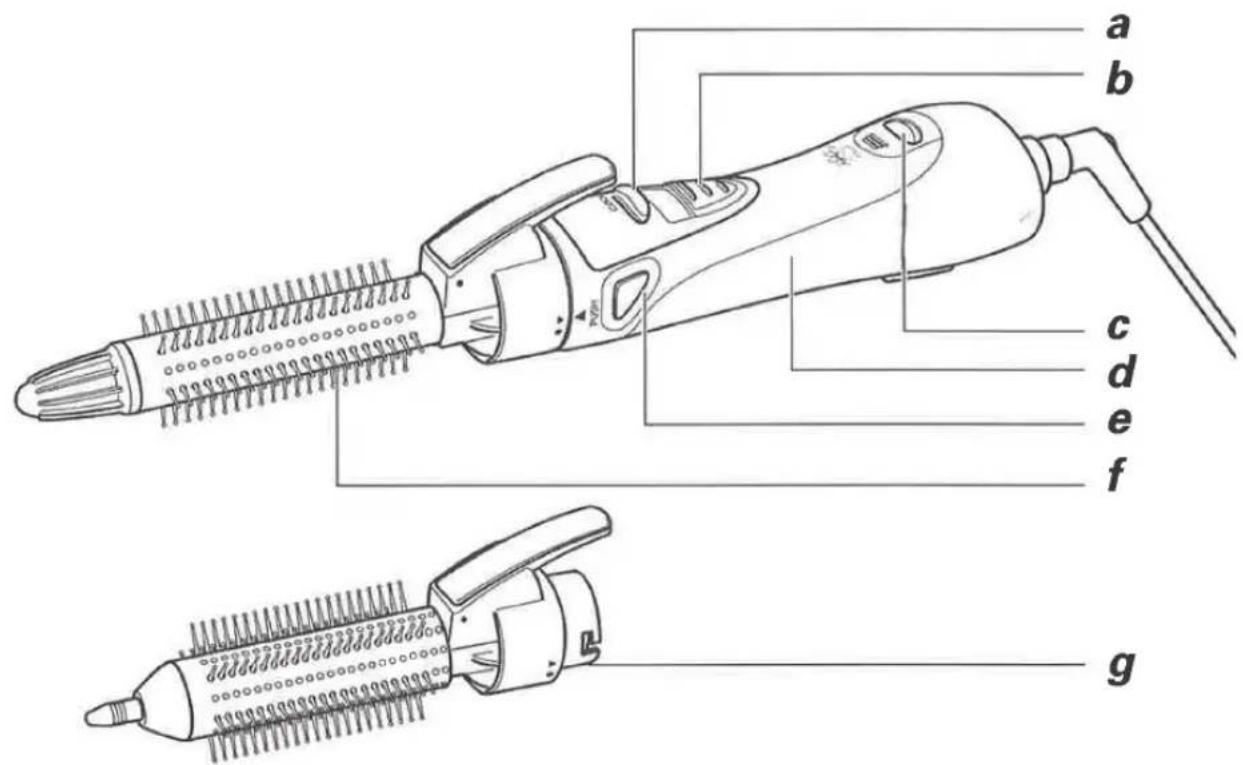

> Parts of the appliance

a Function switch COOL
b 2-step sliding switch (main switch)
c lon on/off switch with lon indicator light
d Casing
e Release key "push"
f Hot air round brush 30 mm ∅ with retractable bristles
g Hot air round brush 38 mm a with combi pin bristle

> Manual

FIG. 1-5 (See picture page 2)

Preparing the hair

• Wash your hair and dry it well.
• Comb your hair thoroughly. Do not use hairspray or other flammable chemical hair care products.

Drying hair

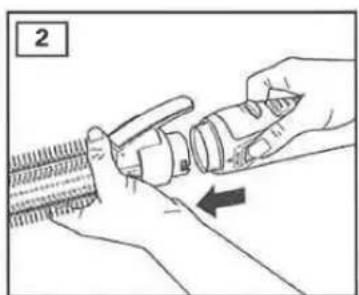

Your appliance may also be used without attachments as a normal hair dryer.

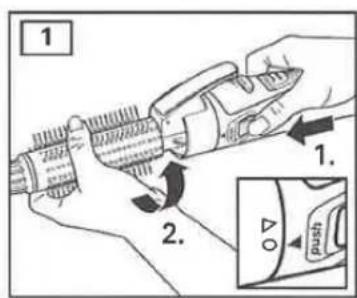

- For this, press the key "push" and turn the top until the stop. Pull the attachment from the appliance (see figs. 1/2).

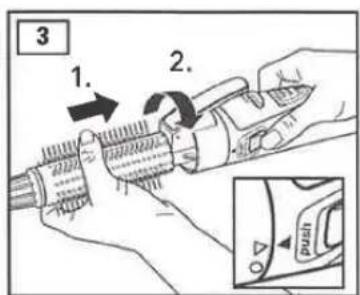

To re-insert the round brush proceed in reversed sequence (see fig. 3). Turn the top until the stop and ensure that the markings are aligned.

Round brushing

WARNING!

Danger of burns from hot appliance components!

Never grasp at the round brush, especially not at the tip, when the appliance is on.

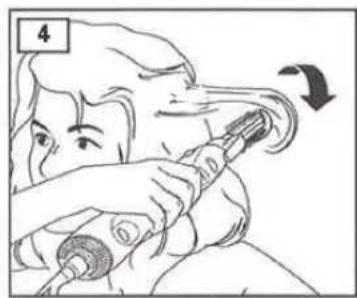

Brush f 30 mm ∅ or g 38 mm ∅ must be fitted for round brushing.

- Place the hair strands over the brush and thoroughly brush from the roots to the tips before rolling. Then beginning with the hair tips roll until a curl is formed. Turn the appliance on (position "or") and allow the warm air to take effect until the hair is dry (see fig. 4). For fixation, press the function switch a "COOL" and let the cold air take effect. Now press the button for automatic curl release and pull the round brush out from the curl (see fig. 5). Switch the appliance off.

Note!

Please pay attention that the hair strands are not too thick.

2-step sliding switch

With the 2-step sliding switch b you can switch the appliance on and select the desired position.

0 = Appliance is switched off
I = low air volume, 500 watt power
I + COOL = low air volume + cool position, 250 wall power
2 = large air volume 1000 watt power
2 + COOL = large air volume + cool position, 500 watt power

COOL SHOT push button

With the COOL SHOT push button a you can lower the air temperature while the appliance is switched on.

COOL = Cool position

By pressing the COOL button to cool down the hair, the air temperature is lowered as long as the COOL button is depressed, irrelevant of the setting of the main switch (for cooling curls respectively a styled section of hair). The COOL SHOT push button a can be locked.

Ion-generator

FIG. 6 (see fig. 1)

Your appliance is fitted with an ion generator. Activating this function will give your hair enhanced shine while styling. The ion generator also prevents the build-up of static charge on your hair.

To activate the function, turn the ion on/off switch c to position "ION" (see fig. 6). The ion indicator light should light up. The ion indicator lamp lights green.

The ion generator is now permanently activated. To deactivate the ion generator, push the ion on/off switch c downwards.

Accessories

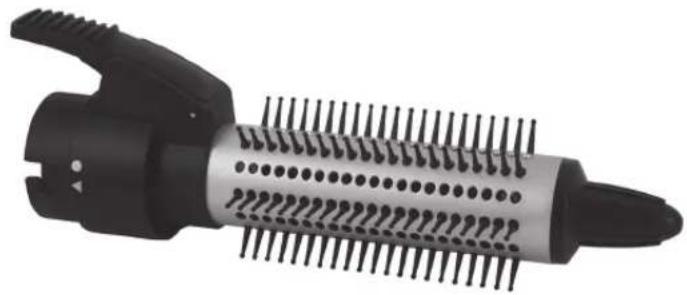

1 x Round brush 30 mm a with retractable bristles
1 x Round brush 38 mm a with combi pin bristle

> Cleaning and maintenance

Danger to life from electric shock!

There is danger to life in case of contact with live cables or components! Hence, please observe the following safety instructions:

• Before cleaning, disconnect the appliance from the mains.
- Never immerse the appliance in water.

WARNING!

Danger of burns from hot appliance components!

Parts of the appliance can be very hot and cause burns even after it has been switched off. Hence, allow the appliance to cool down fully without fail before cleaning it.

CAUTION!

Please observe the following safety instructions to avoid damages and risks attributable to improper use:

• Protect the appliance from dust, dirt and fluff.
• Do not use sharp or abrasive cleaning agents.
• You can clean your appliance with a slightly damp cloth and dry it with a soft dry cloth.

> Environment and disposal

The packing material and the unit and accessories are made of materials that can be recycled.

Appropriate separation and disposal of the remaining materials helps recycling.

Disposal of appliance

This marking indicates that this product should not be disposed with other household wastes throughout the EU.

To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.

To return your used appliance, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental recycling.

> Guarantee

The guarantee covers this product for a period of 2 years, with the exception of individual parts, beginning on the date of original purchase. Use of the guarantee does not result in extension of the guarantee period. The guarantee covers manufacturing faults and material faults in original parts.

This guarantee does not include normal wear and tear and damage to the product by accident or misuse, abuse, alteration to the product or use inconsistent with the technical and/or safety instructions required.

If your product requires repair, you should contact an authorized service dealer.

Never dispose of your appliance with the regular household waste. Follow the waste disposal regulations for our locality or return your appliance to the retailer. Retain the retailer's receipt as proof of purchase.

Carmen has a policy of continuous improvement in product quality and design. Carmen therefore reserves the right to change the specifications of its products at any time.
