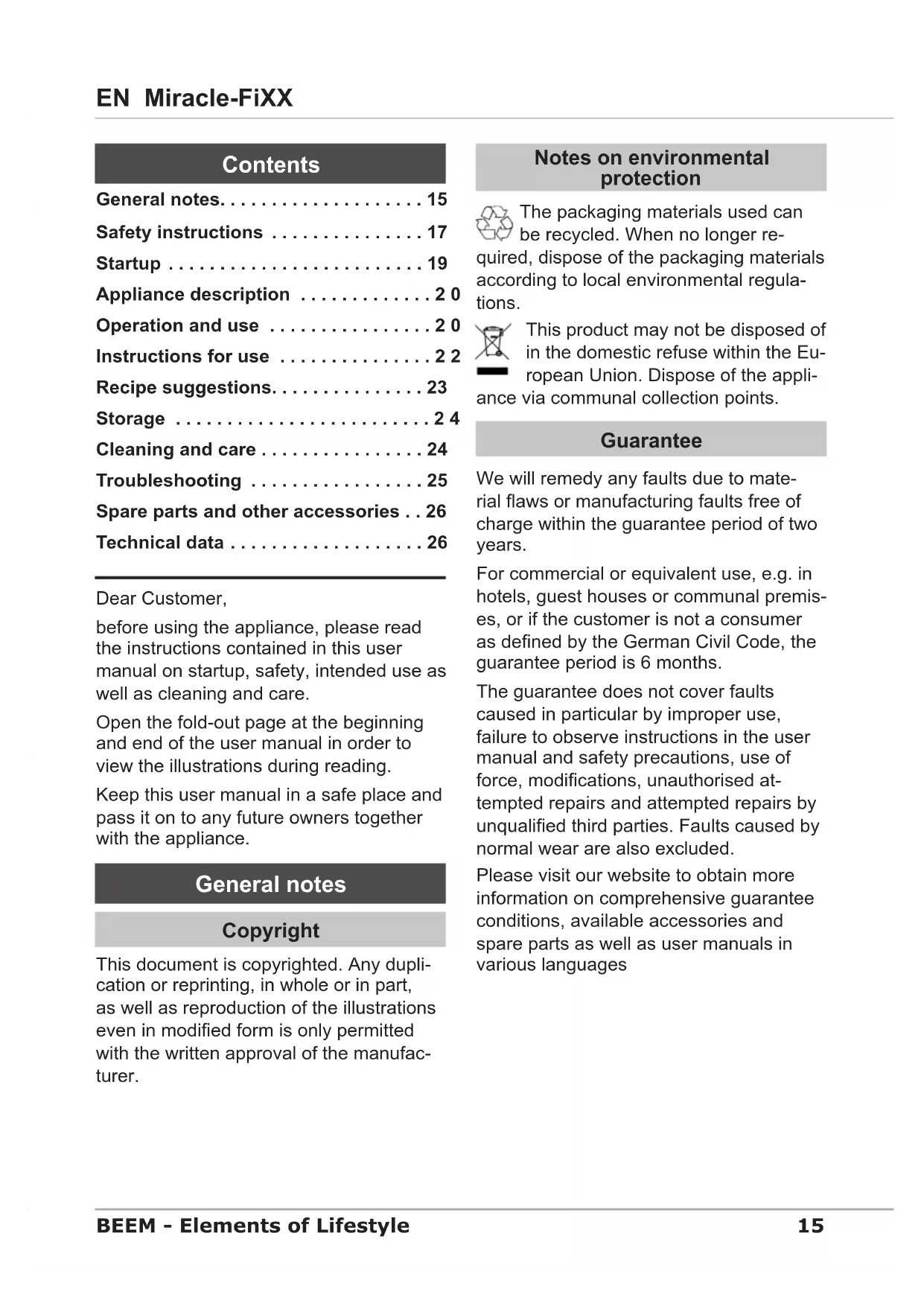

USER MANUAL MiracleFiXX BEEM

Safety instructions 17

Startup 19

Appliance description 20

Operation and use 20

Instructions for use 2 2

Recipe suggestions. 23

Storage 24

Cleaning and care 24

Troubleshooting 25

Spare parts and other accessories . . 26

Technical data 26

Dear Customer,

before using the appliance, please read the instructions contained in this user manual on startup, safety, intended use as well as cleaning and care.

Open the fold-out page at the beginning and end of the user manual in order to view the illustrations during reading.

Keep this user manual in a safe place and pass it on to any future owners together with the appliance.

General notes

Copyright

This document is copyrighted. Any duplication or reprinting, in whole or in part, as well as reproduction of the illustrations even in modified form is only permitted with the written approval of the manufacturer.

Notes on environmental protection

The packaging materials used can be recycled. When no longer required, dispose of the packaging materials according to local environmental regulations.

This product may not be disposed of in the domestic refuse within the European Union. Dispose of the appliance via communal collection points.

Guarantee

We will remedy any faults due to material flaws or manufacturing faults free of charge within the guarantee period of two years.

For commercial or equivalent use, e.g. in hotels, guest houses or communal premises, or if the customer is not a consumer as defined by the German Civil Code, the guarantee period is 6 months.

The guarantee does not cover faults caused in particular by improper use, failure to observe instructions in the user manual and safety precautions, use of force, modifications, unauthorised attempted repairs and attempted repairs by unqualified third parties. Faults caused by normal wear are also excluded.

Please visit our website to obtain more information on comprehensive guarantee conditions, available accessories and spare parts as well as user manuals in various languages

Symbols used

DANGER

This indicates an imminent hazardous situation, which could lead to severe physical injury or death.

Follow these instructions to avoid danger.

WARNING

This indicates a possible hazardous situation, which could lead to severe physical injury or death.

Follow these instructions to avoid danger.

CAUTION

This indicates a potentially hazardous situation, which could lead to minor injuries or material damage.

Follow these instructions to avoid danger.

NOTE

A note contains additional information to simplify the use of the appliance.

Symbols on the appliance

Symbol Meaning

Risk of crushing when lowering the motor head

Intended use

This appliance is intended primarily for non-commercial use in closed rooms for stirring food, kneading dough and whipping cream or egg whites in normal domestic quantities. Any use other than previously stated is considered as improper use.

WARNING

If not used for its intended purpose and/or used in any other way, the appliance may be or become a source of danger.

Use the only for its intended purpose.

Observe the procedures described in this user manual.

No claims of any kind will be accepted for damage resulting from use of the for other than its intended purpose.

The risk must be borne solely by the user. If used commercially, please pay attention to the changes in the guarantee period.

Declaration of Conformity

BEEM hereby declares that this appliance complies with the fundamental requirements and other relevant provisions of 2006/95/EC and 2004/108/EC directives. The full declaration of conformity can be found under www.beem.de.

Limitation of liability

All technical information, data and instructions contained in this user manual represent the latest status at the time of printing.

No claims can be made based on the specifications, illustrations and descriptions of this user manual.

The manufacturer assumes no liability for damage or injury resulting from failure to observe the user manual, use for other than the intended purpose, unprofessional repairs, unauthorised modifications or use of non-approved spare parts and/or consumables.

Safety instructions

Inspect the appliance for visible signs of damage before use. Do not use a damaged appliance.

This appliance is not intended for use by persons (including children) with restricted physical, sensory or mental capabilities or with insufficient experience and/or knowledge unless they are supervised by a person responsibly for their safety or have received instructions on the use of the appliance from such a person.

Children must be supervised to ensure that they do not play with the appliance.

Store the appliance and accessory parts out of the reach of children.

Do not leave the appliance unattended during operation.

Only allow repairs to the appliance to be carried out by an authorised specialist or by the works customer service; this particularly applies to replacing a damaged connecting cable. Unqualified repairs can lead to considerable danger for the user. They will also invalidate the guarantee.

Repairs to the appliance during the guarantee period may only be carried out by service centres authorised by the manufacturer, otherwise the guarantee will become invalid in the event of damage or subsequent damage.

Defective parts may only be replaced with original spare parts. Only original spare parts guarantee that the safety requirements are met.

Only use spare parts from the manufacturer or spare parts that are specifically recommended by the manufacturer. The guarantee will otherwise be invalidated.

Do not use this appliance together with an external timer or a separate remote control system.

DANGER

Risk of suffocation!

Never play with packaging material. Risk of suffocation.

DANGER

Danger from electric current!

Do not use the appliance if the mains cable or mains plug is damaged.

Do not open the housing of the ap- pliance. Danger from electric current if live connections are touched and/ or the electrical and mechanical configuration is changed.

Never immerse the drive unit or the mains plug in water or other liquids.

Pull the plug out of the mains socket, before you attach or remove a stirring tool,

if you are not using the appliance, if a malfunction occurs during operation,

before you clean the appliance. -

WARNING

Danger from moving parts!

Always disconnect the mains plug before assembling, disassembling, cleaning or storing the appliance.

To prevent injury during operation, avoid any contact of your fingers, hair, clothing, dough scrapers, knives and other tools with the whisk, stirring or kneading hook

After switching off, wait until the ap- appliance has completely stopped.

WARNING

Danger of burns!

Do not use the appliance with boiling liquids.

Danger of crushing!

When lowering the motor head, do not wedge your fingers between the motor head and the housing.

CAUTION

Do not pull the connecting cable to remove the plug from the mains socket.
Only use the accessories supplied. Using other parts can lead to personal injury or damage to property.
Do not use sharp objects or abrasive cleaning agents to clean the surfaces.

When using for prolonged periods of time, allow the appliance to cool down occasionally to avoid overheating.

Never lift or move the appliance with the mains cable.

Requirements for the place of use

For safe and trouble-free operation of the appliance, the installation location must satisfy the following requirements:

Place the appliance on a firm, dry, flat, waterproof and heat-resistant surface.

Do not install the appliance in a hot, wet or very humid environment.

The mains socket must be easily accessible and allow fast disconnection in the event of an emergency.

The surface finishes on furniture may contain substances that can be detrimental to the suction feet of the appliance. If necessary, place a mat under the feet of the appliance.

Electrical connection

For safe and trouble-free operation of the appliance, the following instructions must be observed for the electrical connection:

Before connecting the appliance, compare the connection data (voltage and frequency) on the rating plate with those of your mains power supply. This data must correspond in order to avoid damage to the appliance. If in doubt, ask your electrical appliance retailer.

The mains socket must be protected by at least a 10 A automatic circuit breaker.

Ensure that the mains lead is undamaged and is not laid over sharp edges.

The mains cable must not pulled tightly, bent or come into contact with hot surfaces.

Route the cable to prevent risk of trip- ping.

The electrical safety of the appliance is only assured when it is connected to a properly installed protective earth (PE) conductor system. Connection to a mains socket without PE conductor is forbidden. If in doubt, the electrical system must be checked by a qualified electrician. The manufacturer assumes no liability for injury or damage caused by a missing or interrupted protective earth conductor.

Startup

Unpacking

Remove the appliance, all accessory parts and the user manual from the box.

Remove all packaging materials and protective foils from the product and the accessories before using it for the first time.

NOTE

Do not remove the rating plate or any warning signs on the appliance. If possible, keep the original packaging throughout the warranty period so that the appliance can be duly packed in case of a warranty claim. Transport damage will invalidate the guarantee.

Check the delivery contents

Check for visible signs of damage or missing items.

Report incomplete or damaged contents to your supplier immediately.

Before using for the first time

Clean the appliance and the accessories as described in the section Cleaning and care.

Appliance description

(See illustration on the left fold-out page)

Mixing bowl1

Stirring tool mounting2

Motor head3

Beater4

Whisk5

Kneading hook6

Speed controller7

Release button8

Mixing bowl mounting9

User manual (not illustrated)10

Speed controller

Level

0

1-6

Function

Impulse operation.

Run the appliance intermittently at maximum power for short intervals.

Appliance switched off.

Continuous operation:

Position 1: lowest speed

Position 6: highest speed

Operation and use

Switching the appliance on/off

The appliance is turned on and off via the speed controller (7).

Turn the speed controller (7) clockwise to the desired level for continuous operation.

To switch off the appliance, turn the speed controller (7) anticlockwise to the 0 position.

or impulse operation, turn the rotary switch (7) to level

The appliance runs at maximum speed as long as the speed controller is held.

Inserting/removing mixing bowl (image A)

Align the keyways of the mixing bowl (1) and the recesses in the mounting (9) with each other and insert the mixing bowl into the mounting.

Turn the mixing bowl clockwise to lock it.
To unlock the mixing bowl, turn it anticlockwise and remove it.

Attaching the stirring tools (images B1 - B5)

Align the keyways of the mounting (2) and recesses in the stirring tool (4/5/6) with each other and push the mixing tool into the mounting against the spring.

Turn the stirring tool anticlockwise to lock it.

Removing the stirring tool

Push the stirring tool upwards against the spring and turn it clockwise.

Pull the stirring tool downwards to remove it.

Using the appliance

Press the release button (8) to unlock the motor head (image C1).

Raise the motor head (3) until it audiably snaps in (image C2).

Add the ingredients to the mixing bowl (1).

NOTE

Pay attention to the maximum filling quantity of 1.2kg

Insert the mixing bowl as described in the section Inserting/removing the mixing bowl.

Depending on the application (see instructions for use and recipe suggestions), attach the whisk (5), beater (4) or the kneading hook (6) as described in the section Attaching the stirring tools.

Press the release button (8) to unlock the motor head.

Lower the motor head (3) until it audiably snaps in.

Insert the plug into the mains socket.

Switch on the appliance with the speed controller (7) and set the desired speed.

NOTE

The tougher the mass to be stirred, the slower the speed to be set (see Speed table).

After completing the stirring process, switch off the appliance and pull the plug out of the mains socket.

Press the release button (8) to unlock the motor head.

Raise the motor head (3) until it audiably snaps in.

Remove the stirring tool as described in the section Removing the stirring tools.

Insert the mixing bowl as described in the section Inserting/removing the mixing bowl.

Empty the mixing bowl.

Clean the appliance as described in the section Cleaning and care.

Instructions for use
Table of use

Stirring tool	Application Level Duration
Kneading hook	For kneading thick dough such as yeast, bread or pasta dough.	1 - 2 5-10 minutes
Beater	For mixing batter and less thick dough such as biscuit dough.	3 - 4 2-5 minutes
Whisk	For whisking egg whites, cream, mousse, junket, mayonnaise etc.	5 - 6 1	-2 minutes

Speed table

Level	Application
1	kneading thick dough
2	Mixing dry ingredients at low speed
	Mixing liquid ingredients
	Adding liquids
3	Kneading crumble
	alternate addition of dry and liquid ingredients,
	Mixing stirred cake at medium speed
4	Butter cream
	Icing sugar
	Mashed potato
5-6	Beating egg whites
	Whipping cream

Recipe suggestions

Whipped cream

Ingredients:

600 ml whipping cream (well cooled, 30% fat)
3 packets of vanilla sugar
3 packets of cream stiffener

Pour the whipping cream into the mixing bowl with attached whisk and switch the motor to high speed. Add the vanilla sugar and cream stiffener while stirring and whip the cream until it is stiff.

Stirred cake

Ingredients:

250 g of soft butter
200 g of sugar
5 eggs
1 packet of vanilla sugar
100 g ground hazel nuts
100 g grated chocolate
500 g of flour
1 packet of baking powder
1 cup of milk

Beat the butter with the sugar and vanilla sugar with the beater at low speed until it foams. While stirring, add the eggs one by one. Mix the flour with the baking powder and add to the mixture alternately with milk. Finally mix in the hazel nuts and the chocolate. Put the batter into a greased cake tin. Bake the cake at medium heat (175^) for approx. 45 minutes.

Yeast dough

Ingredients:

500 g wheat flour (type 405)

250 ml milk
80g melted butter
70 g of sugar
egg yolkst
yeast cube
1 pinch of salt

Add the flour to the bowl and form a hollow in the middle. Dissolve the yeast in lukewarm milk and pour it into the hollow. Cover the bowl with a kitchen towel and allow the dough to rise at a warm draught-free location for 15 minutes.

Put the bowl and the kneading hook into the appliance and switch it to a low speed. Add the rest of the ingredients to the dough and allow the appliance to knead until the dough is even and does not stick to the sides of the bowl. Cover the the bowl with a kitchen towel again and leave it at a warm location for 30 minutes. The yeast dough is then ready for further processing. This dough can be processed further as pizza base, yeast bun, sweet rolls as required.

Example: take the yeast dough out of the bowl with floured hands and roll it out to a size that will fit onto a baking tray covered with baking paper. Put fruit, e.g., pieces of apple or quartered plums onto the rolled-out dough. Sprinkle a little sugar or crumble over the fruit and then bake the yeast cake at medium heat (175^) for roughly 30 minutes.

Crumble

Ingredients:

600 g of flour

1 pinch of salt

400 g of sugar

400 g butter

a little cinnamon, as required

Add the ingredients to the mixing bowl in the above-listed order and put it and the kneading hook onto the appliance. Switch on the appliance and stir the ingredients. The crumble dough is ready when it looks crumbly. Spread the crumbs onto the fruit on the cake.

Storage

If you do not intend to use the appliance for a longer period of time, clean it as described in the section Cleaning and care.

Store the appliance and all accessory parts at a dry, clean and frost-free location, which is protected against direct sunlight.

Cleaning and care

Before beginning work, pay attention to the safety instructions in the section on safety!

Cleaning the appliance

Wipe the outside housing of the appliance with a lightly damp cloth.

All other parts can be cleaned in a warm washing-up liquid solution.

Dry all parts of the appliance thor- roughly after cleaning.

NOTE

Dried and caked food residues can be removed more easily if you allow them to soak in warm washing-up liquid solution for 10 minutes before cleaning.

Troubleshooting

The following table helps in localising and remedying minor faults:

Fault Possible cause Remedy
The appliance does not work after turning the speed controller.	Plug not inserted into socket. Insert plug.
	Automatic circuit breaker in electrical distribution board tripped.	Switch on the automatic circuit breaker again.
	The motor head is not snapped into the lower position.	Lower the motor head until it audibly snaps in.
The automatic circuit breaker in the electrical distribution board trips	Too many appliances connect-ed to the same power circuit.	Reduce the number of appliances on the power circuit.
	Appliance is defective.	Contact customer service.
Motor runs extremely slowly or stops.	Mixing bowl overfilled	Remove some of the ingredients.

NOTE

If you cannot resolve the problem with the steps described above, please contact customer service.

Spare parts and other accessories

Item* Article No.	Designation
1 900 695 001 Mixing bowl
4 900 695 011 Beater
5 900 695 006 Whisk
6 900 695 016 Kneading hook

• numbering according to the description of the appliance

Technical data

Model	Miracle-FiXX blender
Type number M22.001
Dimensions (W x H x D) 360 x 215 x 290 mm
Net weight approx. 4.75 kg
Operating voltage 220 - 240 V~
Mains frequency 50 - 60 Hz
Power consumption 450 W
Protection class II

Table des matieres

Subject to printing error.

For service in other countries contact your local dealer.
