USER MANUAL SPD5240CC PHILIPS

Exterior view of a black hard drive with USB cable and power connector (no text or symbols visible)

4 What's in the box?
5 How to connect this external hard disk to your computer?
5 How to safely disconnect?
6 How to use the One-Click Back-Up button?
6 How to install for Mac, Windows 98 SE or Windows ME?
7 Warranty, Environment and Safety
8 Specifications

Important note

To start using the One-Click Back-Up button, first activate the

Carry it Easy software (once only) by clicking on the CarryitEasy.exe file located on your hard disk. For instructions and more information, see page 6.

When the computer does not recognize the hard disk (some

computers provide insufficient bus power), we advise you to use the Y-cable supplied together with this product. For instructions and more information, see page 5.

EN

What's in the box?

Line drawing of a Philips hardcover with three stacked layers (no text or symbols)

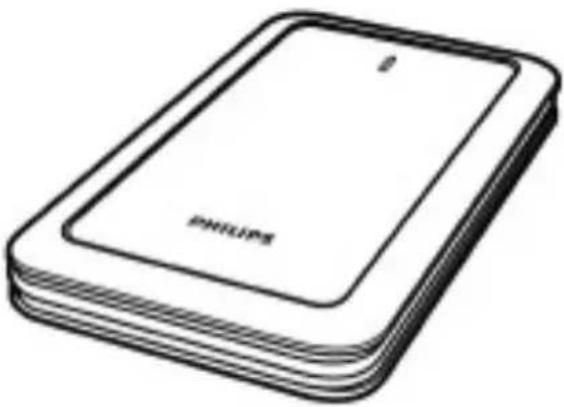

A : External hard disk

Illustration of two USB cables with black and gray connectors (no text or symbols)

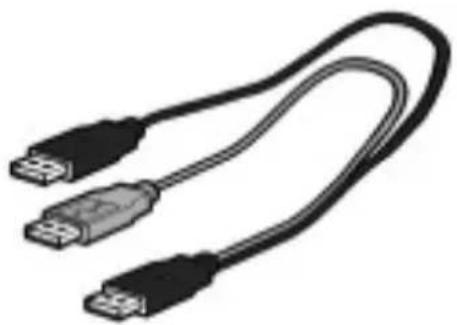

B : Y-cable

Welcome Quick Start Guide ■ Init ■ Custom ■ Inv

C : Quick Start Guide

How to connect this external hard disk on your system?

EN

Diagram showing a device being connected via cable to a server or memory unit (no text or symbols present)

Plug the wrap around USB cable into an empty USB port of your computer.

A drive icon, Philips External Hard Disk, appears in Windows Explorer. (The computer sometimes needs to be restarted, before you can use the new hardware).

Diagram showing connections between a device and a server, with no visible text or symbols

When the computer does not recognize the hard disk (some computers provide insufficient bus power), we advise you to use the Y-cable supplied together with this product. Connect the Y-cable to the USB cable of the hard disk and plug in the 2 connectors in the free USB ports of your computer. The black connector is for data transfer and power, the gray connector is for additional power only.

How to safely disconnect?

I Double-click the Safely Remove Hardware icon in the task bar in the lower right part of the screen.

2 In the window that appears, select the name of the device that is to be removed, then click the Stop button.
3 When the Stop a hardware device screen appears, make sure the correct information is displayed, and then click the OK button.
4 When the message Safe to remove hardware appears, remove the drive from the computer's USB port.

For windows only, this functionality doesn't work with Mac computers

The One-Click Back-Up button allows you to instantly synchronize or back-up your files with the CoSoSys Carry it Easy software. To launch the software, double-click on the CarryitEasy.exe file on the hard disk in your Windows explorer. Follow the instructions on your screen to get started.

See the Carry it Easy manual in the folder manuals on your hard disk for more instructions and more information.

How to install for Mac, Windows 98 SE or Windows ME?

The hard disk is preconfigured for Windows 2000 and Windows XP, with a NTFS format. For Mac, Windows 98SE and Windows ME, the hard disk needs to be formatted to FAT32.

How to find warranty information?

Browse to the Philips warranty folder on the hard disk or look on www.philips.com/support

You need Adobe Reader software to open these files. If you don't have Adobe Reader, you can download it for free on www.adobe.com.

The Philips warranty may not apply if damage is caused by accidents, shock, misuse or neglect.

Be responsible Respect copyrights

"The making of unauthorized copies of copy-protected material including computer programs, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence. This equipment should not be used for such purposes."

WEEE mark: "Information to the Consumer".

Disposal of your old product

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. Please inform yourself about the local separate collection system for electrical and electronic products, including those marked by the crossed-out wheel bin symbol. Please act according to your local rules and do not dispose of your old products with your normal household waste.

WARNING

Plastic bags can be dangerous

To avoid danger of suffocation, keep this bag away from babies and small children.

Although this product has been designed with utmost care for long-lasting performance. Philips does advise you to handle electronics with good care: Avoid contact with water, exposure to extreme forces.

Please make sure you place the device in a well-ventilated environment, to ensure longest possible lifetime and optimal performance.

Specifications

Technical Specifications:

Interface Hi-Speed USB 2.0

Transfer speed 480 Mb/s

Rotational speed 5600 rpm

Cache memory 8 MB

System requirements USB1.1 (USB 2.0 for max. transfer speed)

Windows 2000, Windows XP

Additional information available at our website:

www.philips.com/support

www.philips.com/storage

Line drawing of a Philips hardcover with three stacked layers (no text or symbols)

Coiled black USB cable with two connectors (no text or symbols visible)

B : câble Y

Welcome Quick Start Guide ■ I know ■ Current ■ very

Diagram showing a device being connected via cable to a server or memory unit (no text or symbols visible)

Diagram showing a device connected to a power bank via cable, with no visible text or symbols

Be responsible Respect copyrights

www.philips.com/support

www.philips.com/storage

Line drawing of a Philips hardcover with a flat cover and stack of layers (no text or symbols)

A : Externe Festplatte

Illustration of two USB cables with black connectors and gray connector (no text or symbols)

B: Y-Kabel

Welcome Quick Start Guide ■ Init ■ Custom ■ Inv

C : Kurzanleitung

Diagram showing a device being connected via cable to a server or memory unit (no text or symbols visible)

Diagram showing connections between a device and a server, with no visible text or symbols

Be responsible Respect copyrights

www.philips.com/support

www.philips.com/storage

Inhoud

Line drawing of a Philips hardcover with a flat cover and stack of three sheets (no text or symbols)

Illustration of two USB cables with black connectors and gray connector (no text or symbols)

B : Y-kabel

Welcome Quick Start Guide ■ Init ■ Custom ■ Inv

C : Korte handleiding

Diagram showing a device being connected via cable to a server or memory unit (no text or symbols visible)

Diagram showing a device connected to a power bank via cable, with no visible text or symbols

Be responsible Respect copyrights

www.philips.com/support

www.philips.com/storage

Contenido

Line drawing of a Philips hardcover with three stacked layers (no text or symbols)

A : Disco duro externo

Illustration of two USB cables with black connectors and gray connector (no text or symbols)

B : Cable Y

Welcome Quick Start Guide ■ Init ■ Custom ■ Inv

Diagram showing a device being connected via cable to a server or memory unit (no text or symbols visible)

Diagram showing connections between a device and a server, with no visible text or symbols

Be responsible Respect copyrights

www.philips.com/support

www.philips.com/storage

Sommario

Line drawing of a Philips hardcover with three stacked layers (no text or symbols)

Illustration of two USB cables with black connectors and gray connector (no text or symbols)

B : Cavo a Y

Welcome Quick Start Guide ■ Init ■ Custom ■ Inv

Diagram showing a device being connected via cable to a server or memory unit (no text or symbols visible)

Diagram showing a device connected to a power bank via cable, with no visible text or symbols

Be responsible Respect copyrights

www.philips.com/support

IT

www.philips.com/storage

Conteúdo

Line drawing of a Philips hardcover with three stacked layers (no text or symbols)

Illustration of two USB cables with black connectors and gray connector (no text or symbols)

B : Cabo em Y

Welcome Quick Start Guide ■ Init ■ Custom ■ Inv

Diagram showing a device being connected via cable to a server or memory unit (no text or symbols present)

Diagram showing connections between a device and a server, with no visible text or symbols

www.philips.com/support

Be responsible Respect copyrights

www.philips.com/support

www.philips.com/storage

PT

İçindekiler

Line drawing of a Philips hardcover with three stacked layers (no text or symbols)

A : Harici sabit disk

Coiled black USB cable with two connectors (no text or symbols visible)

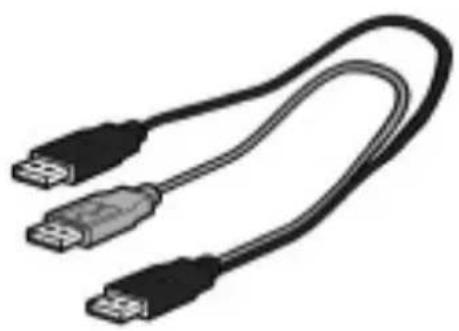

B : Y-kablosu
