USER MANUAL 340 W&D BRAUN

(Audio Supplies Company Ltd.)

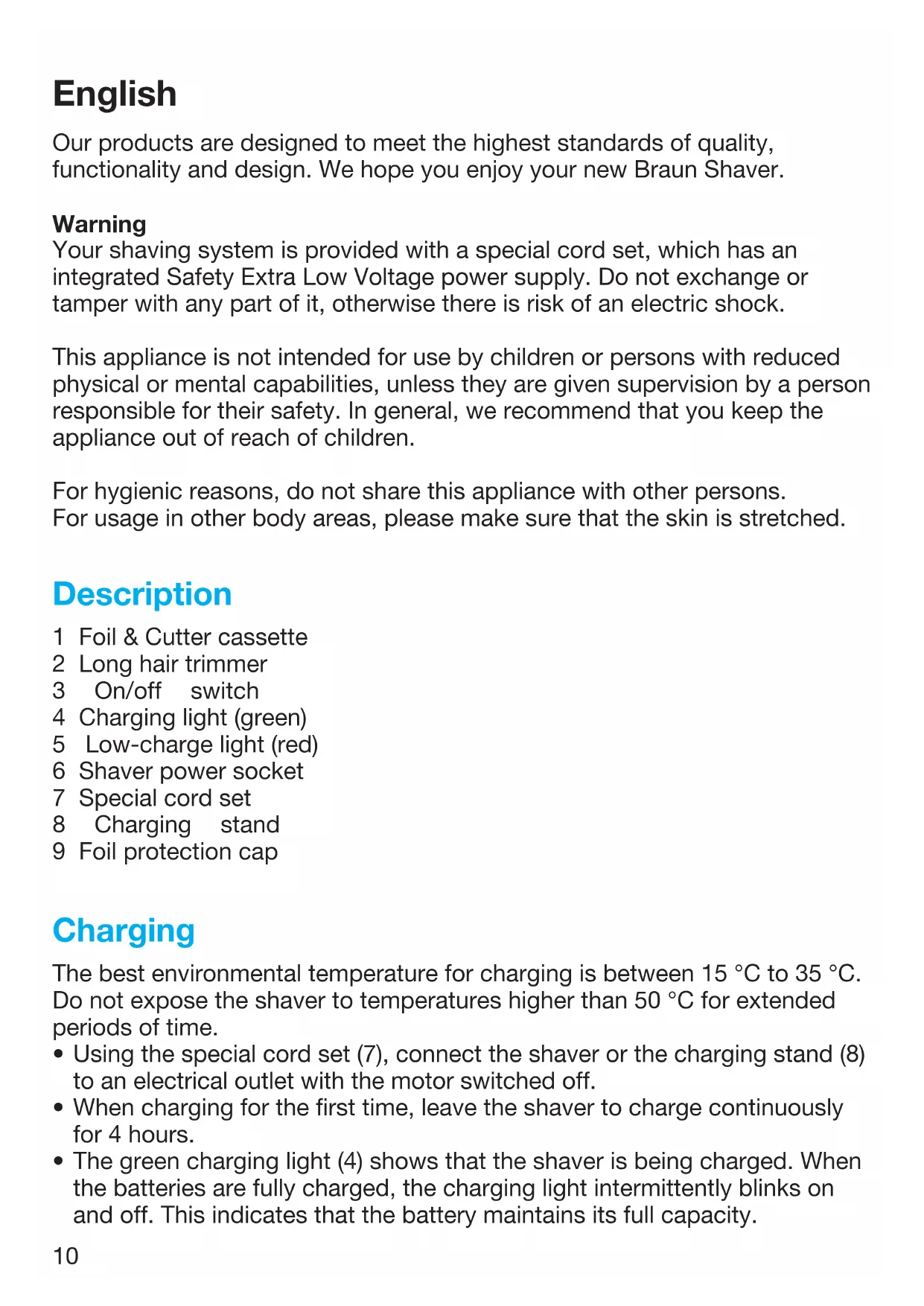

Our products are designed to meet the highest standards of quality,

functionality and design. We hope you enjoy your new Braun Shaver.

Your shaving system is provided with a special cord set, which has an

integrated Safety Extra Low Voltage power supply. Do not exchange or

tamper with any part of it, otherwise there is risk of an electric shock.

This appliance is not intended for use by children or persons with reduced

physical or mental capabilities, unless they are given supervision by a person

responsible for their safety. In general, we recommend that you keep the

appliance out of reach of children.

For hygienic reasons, do not share this appliance with other persons.

For usage in other body areas, please make sure that the skin is stretched.

1 Foil & Cutter cassette

4 Charging light (green)

5 Low-charge light (red)

6 Shaver power socket

The best environmental temperature for charging is between 15 °C to 35 °C.

Do not expose the shaver to temperatures higher than 50 °C for extended

Using the special cord set (7), connect the shaver or the charging stand (8)

to an electrical outlet with the motor switched off.

When charging for the first time, leave the shaver to charge continuously

The green charging light (4) shows that the shaver is being charged. When

the batteries are fully charged, the charging light intermittently blinks on

and off. This indicates that the battery maintains its full capacity.

98727784_340_S6-60.indd 1098727784_340_S6-60.indd 10 26.05.2008 9:21:08 Uhr26.05.2008 9:21:08 Uhr11

Once the shaver is completely charged, discharge the shaver through

normal use. Then recharge to full capacity. Subsequent charges will take

A full charge provides up to 45 minutes of cordless shaving time

depending on your beard growth. However, the maximum battery capacity

will only be reached after several charging/discharging cycles.

5-minute quick charge is sufficient for a shave.

The red low-charge light (5) glows when the shaver capacity has dropped

below 20% provided the shaver is switched on. The remaining capacity

will then be sufficient for 2 to 3 shaves.

Press the on/off switch (3) to operate the shaver (picture).

The flexible shaving foils automatically adjust to every contour of your face

Tips for the perfect shave

For best results, Braun recommends you follow 3 simple steps:

1. Always shave before washing your face.

2. At all times, hold the shaver at right angles (90°) to your skin.

3. Stretch your skin and shave against the direction of your beard growth.

This appliance is suitable for use in a bath or shower.

Regular cleaning ensures better shaving performance. Rinsing the shaver

head under running water after each shave is an easy and fast way to keep it

Switch the shaver on (cordless) and rinse the shaver head under hot

running water. You may use liquid soap without abrasive substances.

Rinse off all foam and let the shaver run for a few more seconds.

If you regularly clean the shaver under water, then once a week apply a

drop of light machine oil onto the long hair trimmer (2) and shaver

Foil & Cutter cassette (1) (picture).

Alternatively, you may clean the shaver using a brush:

Switch off the shaver. Remove the shaver Foil & Cutter cassette and tap

it out on a flat surface.

Using a brush, clean the inner area of the shaver head. However, do not

clean the shaver Foil & Cutter cassette with a brush as this may damage it

Keeping your shaver in top shape

To maintain 100% shaving performance, replace the shaver Foil & Cutter

cassette (1) at least every 18 months or when worn.

Foil & Cutter cassette: 32B Preserving the batteries

In order to maintain the optimum capacity of the rechargeable batteries, the

shaver has to be fully discharged (by shaving) every 6 months approximately.

Then recharge the shaver to full capacity.

Environmental notice

This product contains rechargeable batteries. In the interest of

protecting the environment, please do not dispose of the product in

the household waste at the end of its useful life. Disposal can take

place at a Braun Service Centre or at appropriate collection sites

provided in your country.

Subject to change without notice.

This product conforms to the European Directives EMC 2004/108/EC

and Low Voltage 2006/95/EC.

For electric specifications, see printing on the special cord set.

We grant 2 years guarantee on the product commencing on the date of

purchase. Within the guarantee period we will eliminate, free of charge, any

defects in the appliance resulting from faults in materials or workmanship,

either by repairing or replacing the complete appliance as we may choose.

This guarantee extends to every country where this appliance is supplied by

Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear

and tear (e.g. shaver Foil & Cutter cassette) as well as defects that have a

negligible effect on the value or operation of the appliance. The guarantee

becomes void if repairs are undertaken by unauthorised persons and if

original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete

appliance with your sales receipt to an authorised Braun Customer Service

This guarantee in no way affects your rights under statutory law.
