USER MANUAL CN 228230 X BEKO

NL GebruiksaanwijzingWARNING!

In order to ensure a normal operation of your refrigerating appliance, which uses a completely environmentally

friendly refrigerant the R600a (flammable only under certain conditions) you must observe the following rules:

 Do not hinder the free circulation of the air around the appliance.

 Do not use mechanical devices in order to accelerate the defrosting, others than the ones recommended by the

 Do not destroy the refrigerating circuit.

 Do not use electric appliances inside the food keeping compartment, other than those that might have been

recommended by the manufacturer.

 Gebruik geen andere elektrische toestellen in de bewaarlade voor etenswaren dan de toestellen die eventueel door de

fabrikant worden aangeraden.This appliance is not intended for use by person with reduced physical, sensory or mental

capabilities or lack of experience and knowledge unless they have been given supervision or

instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Dieses Gerät ist nicht dafür bestimmt durch Personen (einschließlich Kinder) mit

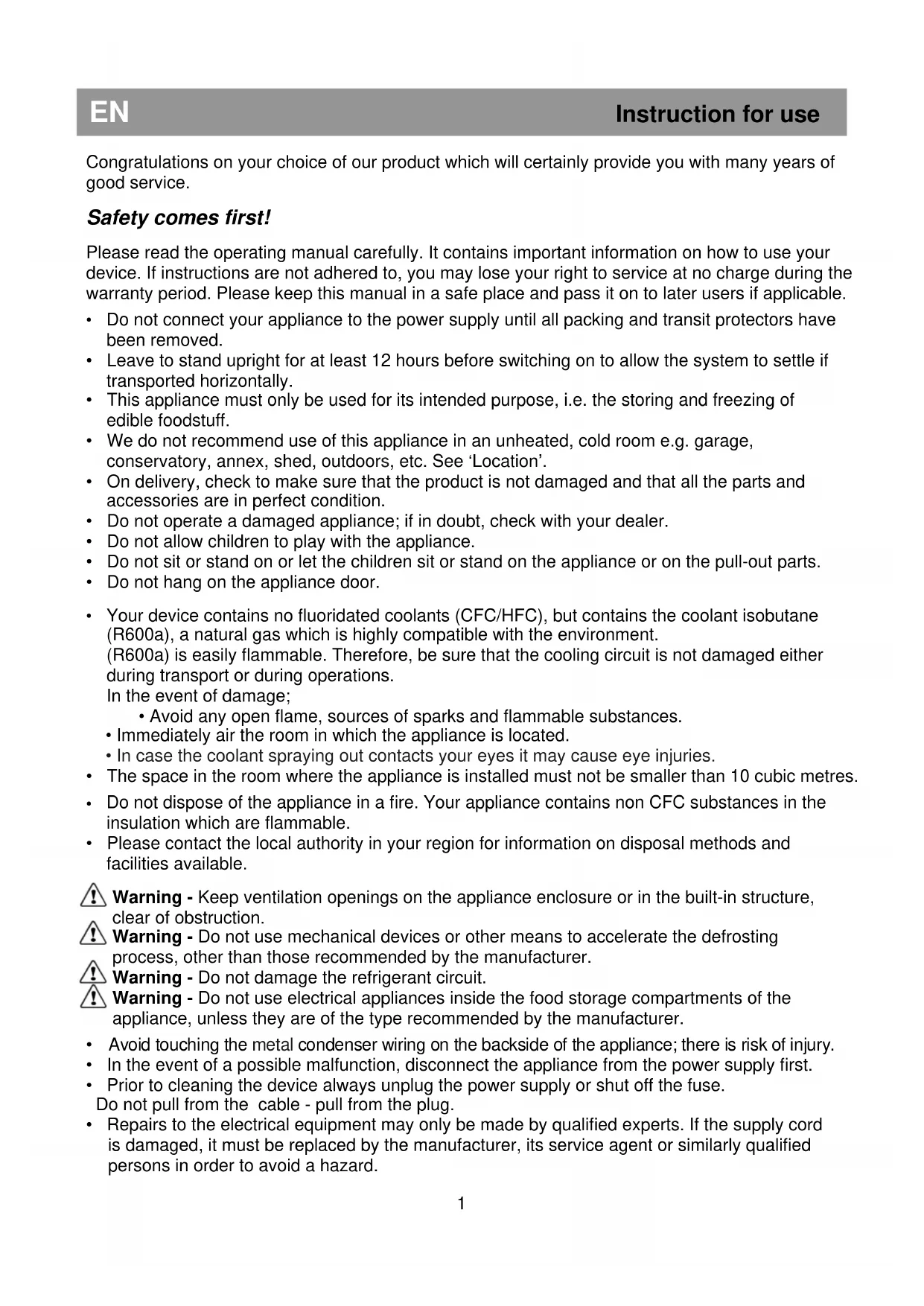

10Congratulations on your choice of our product which will certainly provide you with many years of

Please read the operating manual carefully. It contains important information on how to use your

device. If instructions are not adhered to, you may lose your right to service at no charge during the

warranty period. Please keep this manual in a safe place and pass it on to later users if applicable.

Do not connect your appliance to the power supply until all packing and transit protectors have

• Leave to stand upright for at least 12 hours before switching on to allow the system to settle if

transported horizontally.

• This appliance must only be used for its intended purpose, i.e. the storing and freezing of

• We do not recommend use of this appliance in an unheated, cold room e.g. garage,

conservatory, annex, shed, outdoor

s, etc. See ‘Location’.

• On delivery, check to make sure that the product is not damaged and that all the parts and

accessories are in perfect condition.

• Do not operate a damaged appliance; if in doubt, check with your dealer.

• Do not allow children to play with the appliance.

• Do not sit or stand on or let the children sit or stand on the appliance or on the pull-out parts.

• Do not hang on the appliance door.

Your device contains no fluoridated coolants (CFC/HFC), but contains the coolant isobutane

(R600a), a natural gas which is highly compatible with the environment.

(R600a) is easily flammable. Therefore, be sure that the cooling circuit is not damaged either

during transport or during operations.

In the event of damage;

• Avoid any open flame, sources of sparks and flammable substances.

• Immediately air the room in which the appliance is located.

• In case the coolant spraying out contacts your eyes it may cause eye injuries.

• The space in the room where the appliance is installed must not be smaller than 10 cubic metres.

Do not dispose of the appliance in a fire. Your appliance contains non CFC substances in the

insulation which are flammable.

• Please contact the local authority in your region for information on disposal methods and

facilities available.

Warning - Keep ventilation openings on the appliance enclosure or in the built-in structure,

clear of obstruction.

Warning - Do not use mechanical devices or other means to accelerate the defrosting

process, other than those recommended by the manufacturer.

Warning - Do not damage the refrigerant circuit.

Warning - Do not use electrical appliances inside the food storage compartments of the

appliance, unless they are of the type recommended by the manufacturer.

• Avoid touching the metal condenser wiring on the backside of the appliance; there is risk of injury.

• In the event of a possible malfunction, disconnect the appliance from the power supply first.

• Prior to cleaning the device always unplug the power supply or shut off the fuse.

Do not pull from the cable - pull from the plug.

• Repairs to the electrical equipment may only be made by qualified experts. If the supply cord

is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified

persons in order to avoid a hazard.

EN Instruction for use2

Transport instructions

The appliance should be transported only in

Before the performance of the working test in the

shop, the packing of the appliance must be intact.

After a transport in the horizontal position, the

device may only be taken into operation 12 hours

after being stood up vertically again.

The appliance must be protected against rain,

moisture and other atmospheric influences.

The manufacturer assumes no liability if safety

instructions are disregarded.

Make the device unusable immediately.

Pull out the mains plug and cut the power cable.

Remove or destroy snap or latch locks

before disposing of the device. In this

manner you prevent children from locking

themselves in and endangering their lives.

Do not operate your appliance in a room where

the temperature is likely to fall below

10°C at night and/or especially in winter. At lower

temperatures the appliance may not operate,

resulting in a reduction in the storage life of the

The climate class rate of your appliance is given

in Technical Features leaflet and written on the

rating label inside the appliance. It specifies the

appropriate operating ambient temperatures as

Ambient temperatures

SN +10 °C to 32 °C N +16 °C to 32 °C ST +16 °C to 38 °C T +16 °C to 43 °C SN-ST +10 °C to 38 °C SN-T +10 °C to 43 °C Location

Only place the appliance, as shown in the

illustration in dry rooms which can be aired.

Avoid direct sunlight or direct heat sources such

as a stove or a heater.

If this cannot be avoided, the following minimum

distances should be maintained:

Electric stoves: 3,00 cm

Cooling devices: 2,50 cm

• Ensure sufficient air circulation for your device.

• Make sure that sufficient room is provided

around the appliance to ensure free air circulation

Fit the two plastic wall spacers supplied with

the appliance rotating 1/4 turn to the condenser at

the back of the appliance (Item 4).

• The appliance should be located on a smooth

surface. The two front feet can be adjusted as

required (Item 5). To ensure that your appliance is

standing upright adjust the two front feet by turning

clockwise or counter-

clockwise, until the product is in

firm contact with the floor.

Correct adjustment of feet avoids excessive

vibration and noise.

Electrical connections

This appliance must be grounded.

• Check whether the power type and voltage in

your region corresponds to the one stated on the

rating label inside the appliance.

• The electrical safety of the appliance is only

assured when the grounding system in the house is

installed in accordance with regulations.

• When placing the appliance, do not let the power

cable get stuck under it; otherwise the cable will

• Ensure that the plug remains readily accessible.

Get to know your device

Below information about accessories are supplied

just for reference. Below accessories may not be

exactly same as the accessories of your

5. Adjustable Cabinet shelves

8. Fresh zone compartment

9. Ice tray support & ice tray

10. Compartment for quickly freezing

11. Compartments for frozen froods keeping

12. Adjustable front feet

13. Dairy Compartment

15. Shelf for bottles

The fans has the purpose to provide the

circulation of the air in compartment.

Before you begin operating your device,

the following points should be re-checked for

• Is the device standing properly on the floor?

• Is there sufficient space for good air

• Is the interior clean? (Also see the section

“Cleaning and care”)

• Now connect the appliance to the mains.

The compressor is turned on; the interior light

comes on when the Fridge door is opened.

Do not place foodstuff into the refrigerator until the

temperature has reached the desired level.

Setting the operating temperature

Fresh Food and Freezer Compartment

Temperature can be adjused by the electronic

“ION” symbol is continuously lightning on display

and indicates that your appliance is provided with

The ionizer is an electronic device who cleans air

from bacteria in fresh food compartment. It

operates during certain intervals of time, start/stop

of device being controlled by a special algorithm.

Ionizer is switched off when fresh food

compartment door is opened.

EN Instruction for use4

Description of the Control Functions

1- Quick Fridge Function

When you press Quick Fridge button, the

temperature of the compartment will be colder

than the adjusted values.

This function can be used for food placed in the

fridge compartment and required to be cooled

If you want to cool large amounts of fresh food, it

is recommended to active this feature before

putting the food into the fridge. Quick Fridge

indicator will remain lit when the Quick Fridge

function is enabled. To cancel this function press

Quick Fridge button again. Quick Fridge indicator

will turn off and return to its normal settings.

If you do not cancel it, Quick Fridge will cancel

itself automatically after 2

hours or when the fridge

compartment reaches to the required temperature.

This function is not recalled when power restores

after a power failure.

2- Quick Fridge Indicator

This icon flashes in an animated style

when the Quick Fridge function is active.

3- Fridge Set Function

This function allows you to make the fridge

compartment temperature setting.

Press this button to set the temperature of the

fridge compartment to 8, 6, 4, 2 respectively.

4- Fridge Compartment

Temperature Setting Indicator

Indicates the temperature set for the Fridge

5-Fridge Compartment Temperature

8, 6, 4 and 2 indicators light up continuously.

6- Freezer Set Function

This function allows you to make the freezer

compartment temperature setting. Press this

button to set the temperature of the freezer

compartment to -18, -20, -22 and -24 respectively.

7- Freezer Compartment

Temperature Setting Indicator Indicates the

temperature set for the Freezer Compartment.

8- Freezer Compartment

Temperature Indicators

-24, -22, -20 and -18 indicators light up

Freeze function is on. To cancel this function

press Quick Freeze button again. Quick Freeze

indicator will turn off and return to its normal

settings. If you do not cancel it, Quick Freeze will

cancel itself automatically after 4 hours or when

the freezer compartment reaches to the required

If you want to freeze large amounts of fresh food,

press the Quick Freeze button before putting the

food into the freezer compartment. If you press

the Quick Freeze button repeatedly with short

intervals, the electronic circuit protection will be

activated and the compressor will not start up

This function is not recalled when power restores

after a power failure.

10- Quick Freeze Indicator

This icon flashes in an animated style when the

Quick Freeze function is active.

11- Eco-Fuzzy (Special Economic Usage)

Press the Quick Freeze button for 3 seconds to

activate the Eco Fuzzy Function. Refrigerator will

start operating in the most economic mode

6 hours later and the economic usage indicator

will turn on when the function is active. Press the

Quick Freeze button for 3 seconds again to

deactivate the Eco Fuzzy Function.

12- High Temperature/ Error Warning

This light comes on during high temperature

failures and error warnings.

13- Economic Usage Indicator

Economic Usage Indicator turns on when the

Freezer Compartment is set to -18°C. Economic

Usage Indicator turns off when the Quick Fridge or

Quick Freeze function is selected.

14 - Ionizer Indicator Light

Indicator light lights up continuously. This light

indicates that your refrigerator is protected against

Press Quick Freeze button for 3 seconds, Energy

saving icon will light up. If no button on the display

is pressed for 10 minutes and if the door is not

opened, Energy Saving Mode will be activated. In

Energy Saving Mode, all icons on the display

other than energy saving icon will turn off.

When the Energy Saving Mode is active, if any

button is pressed or the door is opened, Energy

Saving Mode will be exited and the icons on

display will return to normal. If the Quick

Freeze button is pressed for 3 seconds again,

Energy Saving icon will turn off

Mode will not be active.

Press Quick fridge and FF Set buttons

concurrently for 3 seconds. Key lock icon will light

up and key lock mode will be activated. Buttons

will not function if the Key Lock mode is active.

Press Quick fridge and FF Set buttons

concurrently for 3 seconds again. Key lock icon

will turn off and the key lock mode will be exited.

The fridge compartment is for the short-term

storage of fresh food and drinks.

Store milk products in the intended compartment

in the refrigerator.

Bottles can be stored in the bottle holder or in the

bottle shelf of the door.

Raw meat is best kept in a polyethylene bag at the

second shelf from the top of the refrigerator.

Allow hot foods and beverages to cool to room

temperature prior to placing them in the

It is suggested not to keep frozen food over

crisper cover for thawing purposes.

The other shelves can be used for thawing

Store concentrated alcohol only standing upright

Do not store explosive substances or containers

with flammable propellant gases (canned cream,

spray cans etc.) in the appliance. There is a

danger of explosion.

EN Instruction for use6

The freezing area is marked with

You can use the appliance for freezing fresh food

as well as for storing pre-frozen food Please refer

to the recommendations given on the packaging of

Do not freeze fizzy drinks, as the bottle may burst

when the liquid in it is frozen.

Be careful with frozen products such as coloured

Do not exceed the freezing capacity of your

appliance in 24 hours. See Technical Features

In order to maintain the quality of the food, the

freezing must be effected as rapidly as possible.

Thus, the freezing capacity will not be

exceeded, and the temperature inside the freezer

Keep the already deep-frozen food always

separated with freshly placed food.

When deep-freezing hot food, the cooling

compressor will work until the food is completely

frozen. This can temporarily cause excessive

cooling of the refrigeration compartment.

If you find the freezer or fresh food door difficult to

open just after you have closed it, don’t worry.

This is due to the pressure difference which will

equalize and allow the door to open normally after

You will hear a vacuum sound just after closing

the door. This is quite normal.

cube tray 3/4 full with water and place it

As soon as the water has turned into ice, you can

take out the ice cubes.

Never use sharp objects such as knives or forks to

remove the ice cubes. There is a risk of injury!

Let the ice cubes slightly thaw instead, or put the

bottom of the tray in water for a short moment.

Defrosting of the device

The appliance is a frost free refrigerator.

So there will not be any frost accumulation

inside the food storage area.

However there will be an automatic defrost at the

evaporation area of the appliance when it needs.

The water drams into reservoir at the back of the

appliance and evaporates automatically through

the compressor heat .

Ensure that the reservoir is fixed properly above

The fans inside the freezer and fresh food

compartments circulates cold air. Never insert any

object through the guard. Do not allow children to

play with the fresh food andfreezer fan.

Never store products that contain inflammable

propellant gas (eg dispensers, spray cans etc.) or

explosive substances.

Don’t cover the shelves with any protective

materials, which may obstruct air circulation.

Do not allow children to play with the appliance or

tamper with the controls.

Do not obstruct the fan guards to ensure that you

obtain the best possible performance from your

appliance. (Item 9 and Item 10)

Your appliance is fitted with 2 circulating fans

which are essential for the performance of the

refrigerator. Please ensure the fans are not

blocked (stopped) or impaired by food or

packaging. Blocking (stopping) or impairing the

fan can result in an increase of the internal freezer

temperature (Thawing).

EN Instruction for use7

Replacing the interior light bulb

In case that the light bulb is out of function it is

easily to replace. First make sure that the

refrigerator / freezer is disconnected from the

power supply by removing the plug. Take a flat

screwdriver and keep it carefully without force into

the left gap between lamp cover and internal

cabinet. Then press the handle of the screwdriver

carefully to the left side until you notice that the left

pin of the cover is disengaged . Repeat this

procedure on the right gap, however now press

the handle of the screwdriver carefully to the right

side. If both sides are loosened the cover can be

Ensure that bulb is screwed securely in the bulb

holder. Plug the appliance into the power supply. If

the light still fails, replace E14 screw-cap type 15

Watt (Max) bulb from your local electrical store

and then fit it. Carefully dispose of the burnt-out

light bulb immediately.

If you have changed the light bulb please fix the

cover again in it’s former position. Take care that

the cover snaps-in correctly.

Interior and Exterior Surfaces

Always unplug the power cable or switch

off the circuit breaker before cleaning.

Clean the exterior using lukewarm water and a

Never use detergents, abrasive or acidic agents.

Wipe the inside compartment dry.

Be careful to prevent water from getting into

contact with the electrical connections of the

temperature control or the interior light.

If the device is not going to be used for a

long period of time, unplug the power cable and

remove all food. Clean the appliance and keep the

To preserve the appearance of your appliance,

you can polish the exterior and the door

accessories with a silicone wax.

Clean the condenser at the back of the appliance

once a year using a brush or a vacuum cleaner.

Dust build-up leads to increased energy

Inspect the door gasket at regular intervals.

Clean with water only, and wipe totally dry.

Cleaning of the accessories

Remove all food from the door shelves.

Lift the cover of the shelf upwards and pull it off

Remove the bottom of the door shelf by pushing it

Collecting container (Pan):

Make sure that the pan at the back of the

appliance is always clean.

Gently release the snap of the pan from the

compressor by pushing it using a tool (like

screwdriver), so that the pan can be removed.

Lift the pan, clean it and wipe it dry.

Re-assemble in reverse order.

To clean a drawer, pull it out as far as possible, tilt

it upwards and then pull it out completely

EN Instruction for usePractical tips and notes

• Clean fresh food and vegetables before storing

• Always pack or wrap food, or put it in a suitable

container, before storing it in the appliance.

• Wrap food which is not suitable for storage at

cold temperatures in polyethylene bags

(pineapple, melons, cucumbers, tomatoes etc.).

• Food with strong odour or apt to acquire odour

should be wrapped in airtight or smellproof

• Keep fresh food separate from cooked food, to

avoid bacteria contamination.

• Never keep fresh meat in the fridge for more

• Remove any left-over canned food from the can

and store it in a suitable container.

• Refer to the shelf life indicated on the food

• Do not obstruct the air circulation inside the

device by covering the shelves.

• Never keep any dangerous or poisonous

substances inside your device.

• Always check food that has been stored for a

long period of time for its suitability for

• Do not store fresh and cooked food together in

• Close the door immediately after opening, to

avoid unnecessary energy consumption.

• Do not use hard or sharp objects to remove the

• Do not load hot food into your appliance.

• Always leave food to thaw in a container that

allows the thawing water to run off.

• Do not exceed the maximum allowable freezing

capacity when freezing fresh food (see the section

• Do not give children ice-cream and water ices

direct from the freezer.

The low temperature may cause freeze burns on

• Never re-freeze defrosted food; defrosted food

must be consumed within 24 hours. Only food that

has been cooked can be refrozen.

• Do not take out frozen food with wet hands.

• Store only fresh and impeccable food.

• Always use appropriate packaging material to

avoid odour penetration or degradation of the

• Store commercially frozen food in accordance

with the instructions given on the packaging.

• Freeze cooked food in small quantities. This

ensures rapid freezing and maintains the quality of

• Do not freeze liquid in tightly closed bottles or

The bottles/containers may burst at low

• Carry pre-frozen food in suitable bags and place

it in your freezer as soon as possible.

Always defrost food in the fridge compartment.

EN Instruction for useEN Instruction for use

White wine, beer and mineral water chill before use

Bananas do not store in a fridge

Fish or offal store in polyethylene bags only

use airtight containers or polyethylene bags; for

best results, take out from the fridge an hour

store only for a short period of time, use airtight

Raw meat and poultry

do not store together with delicate food such as

Freezer compartment shelves

Various frozen food such as meat, fish, ice cream,

Fridge compartment shelves

Food in pans, covered plates and closed

Fridge compartment door shelves

Small and packaged food or drinks (such as milk,

fruit juice and beer)

Crisper Vegetables and fruits

Fresh zone compartment

Delicatessen products (cheese, butter, salami and

4°C This is the normal recommended setting.

-22 or -24°C 4°C These settings a

re recommended when the

temperature exceeds 30°C.

the process is over.

-18°C or colder 2°C If you think that your

fridge compartment is not

cold enough because of the hot

opening and closing of the door.

-18°C or colder Quick Fridge

You can use it when your fridge compartment is

overloaded or if you wish to cool down your food

recommended that you activate

fridge function 4-8 hours before placing the

EN Instruction for use

Normal operating noises

Various functional noises are completely

normal due to the operation of the cooling

system of your appliance;

• Gurgling, hissing, boiling or bubbling noises are

caused by the refrigerant, circulating inside the

cooling system. These noises can still be heard for

a short period of time after the compressor shuts

• Sudden, sharp cracking or popping noises are

caused by the expansion and contraction of the

inside walls or some components inside the

• Buzzing, whirring, pulsating or high-pitched

humming noises are caused by the compressor.

These noises are slightly louder at the start-up of

the compressor and reduce when the appliance

reaches the operating temperatures.

Also to avoid disturbing vibrations and

noises make sure that;

• Your refrigerator is standing level on all four feet.

• Your refrigerator is not in contact with the walls,

surrounding objects or kitchen cabinets and

• Cans, bottles or dishes inside the refrigerator are

not touching and rattling against each other.

and bins are mounted correctly inside

the refrigerator cabinets and doors.

Practical advice concerning the

reduction of the electricity

1. Make sure that the appliance is located in well-

ventilated areas, far from any source of heat

(cooker, radiator etc.). At the same time, the

location of the appliance must be done in such a

way that it prevents it to be under the direct

incidence of the sunbeams.

2. Make sure that the food purchased in

refrigerated/frozen condition is placed into the

appliance as soon as possible, especially during

summertime. It is recommended to use thermal

insulated bags to transport the food home.

3. We recommend the thawing of the packets

taken out from the freezer compartment be done

in the refrigerator compartment. For this purpose,

the packet which is going to be thawed will be

placed in a vessel so that the water resulting from

the thawing does not leak in the refrigerator

compartment. We recommend you to start the

thawing at least 24 hours before the use of the

4. We recommend reducing the number of door

openings to the minimum.

5. Do not keep the door of the appliance open

more than necessary and make sure that after

each opening the door is well closed. When doors

are open, warm air enters the fridge/freezer

cabinets and the appliance consumes more

energy to cool down the foodstuffs.Thus please do

not open doors frequently in order to save energy

and to keep foods at ideal storage temperature.

6. Maximum frozen food storage volume is

achieved without using the middle and upper

drawer provided in the freezer compartment.

Energy consumption of your appliance is declared

while the freezer compartment is fully loaded

without using the middle and upper drawer.

7. Do not block the freezer fan grill by

placing foods in front.There must always be left

minimum 3 cm open distance in front of the

freezer fan grill to allow necessary air flow to

freeze the compartment efficiently.

8. Activate “Energy Saving Function”. When

energy Saving Function is active, all icons on the

display will turn off except energy saving icon. All

icons will be lightened, if freshfood door is opened

or display is touched.

9. Recommended temperature settings are +4°C

and -20°C for freshfood and freezer compartments

respectively.What, if....

1- The appliance will not work, even

though it is switched on.

• Check if the power cable is properly connected!

• Check if the mains supply is in order, or if a

circuit breaker has been tripped!

• Check the temperature control for correct

2- There is a power failure.

Keep the doors of your device

will not be affected if the power failure lasts less

than the ‘Conservation Time From Failure” (hours)

declaration mentioned in the Technical Features

leaflet. If the power failure lasts longer, check the

food and consume it immediately.

You can also cook the defrosted food and then re-

3- The interior light does not work.

Check the power supply!

Check the installation of the light bulb! Unplug

the power cable before checking the light bulb.

(Also see the section “Replacing the interior light”)

4- There is high temperature alarm

If the actual temperature of the freezer

compartment is warm then the alarm icon on the

display (Fig. 2/12) lights on. The alarm icon lights

off when the actual temperature of the freezer

compartment cools down.

The high temperature alarm may rise up due

following situations.

a) Warm food storage

b) Warm air in the freezer compartment

c) Freezer door is left open for a long time

If the high temperature alarm remains on for more

than 24 hours then contact with the customer

The high temperature alarm is not active in

24 hours after plugging the appliance into the

There is error messages and alarm

Incase any failure condition due wiring connection

of the appliance occurs, and then the alarm icon

on the display (Fig. 2/12) starts blinking together

with the relevant error message.

Incase some certain characters (E0, E3, ..etc.)

appear on the display then contact with the

The alarm icon lights off just after the removal of

6- There is actual fridge temperature failure

The appliance performs cooling considering the

fridge set temperature. The actual fridge

temperature shown on the display will reach the

adjusted fridge set temperature, when the

packages are cold enough.

There may be some oscillations on the actual

fridge temperature shown on the display due;

a) The fridge door is Opened / Closed frequently

b) Loading warm packages inside the fridge.

c) Leaving the fridge door open for a long period

7- Other possible malfunctions

Not every malfunction is a case for our customer

service. Very often, you can easily resolve the

problem without requesting service.

Before requesting service, please check if the

malfunction has been caused by an operating

error. If this is the case, and a service has been

requested, a service charge will be levied even if

the device is still under guarantee.

If the problem persists please contact your dealer

or customer service.

Please have the type and serial number of your

device when calling. The rating label is located

Noise [dB(A) re 1 pW] 41

Ecological refrigerating agent R600a

(1) Energy class: A . . . D (A+++ = more economical . . . D = less economical)

(2) The real power consumption depends on using conditions and appliance location.

There is a built in buzzer in the appliance that will

inform customer if the fridge door is left open for a

minute. This alarm is a periodic alarm and it

reminds the customer that the fridge door is left

There is no buzzer alarm related to freezer door.

In order to stop the door open alarm, it is enough

to press any button on the display or close the

door. Thus the alarm will stop till next time.

The symbol on the product or on packaging indicates that this product may not be treated as

household waste. Instead it shall be handed over to the applicable collection point for the recycling of

electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help

prevent potential negative consequences for the environment and human health, which could

otherwise be otherwise be caused by inappropriate waste handling of this product. For more detailed

information about recycling of this product, please contact your local city office, your household waste

disposal service or the shop where you purchased the product.

EN Instruction for use

The door of your refrigerator is designed to

operate towards both sides at your convenience. If

you want the door to open towards the other side,

please call the nearest authorized maintenance

service for assistance.Herzlichen Glückwunsch zum Kauf unseres Produktes, das Ihnen ganz sicher viele Jahre lang gute

efficacement ce compartiment.
