USER MANUAL DS141120 S BEKO

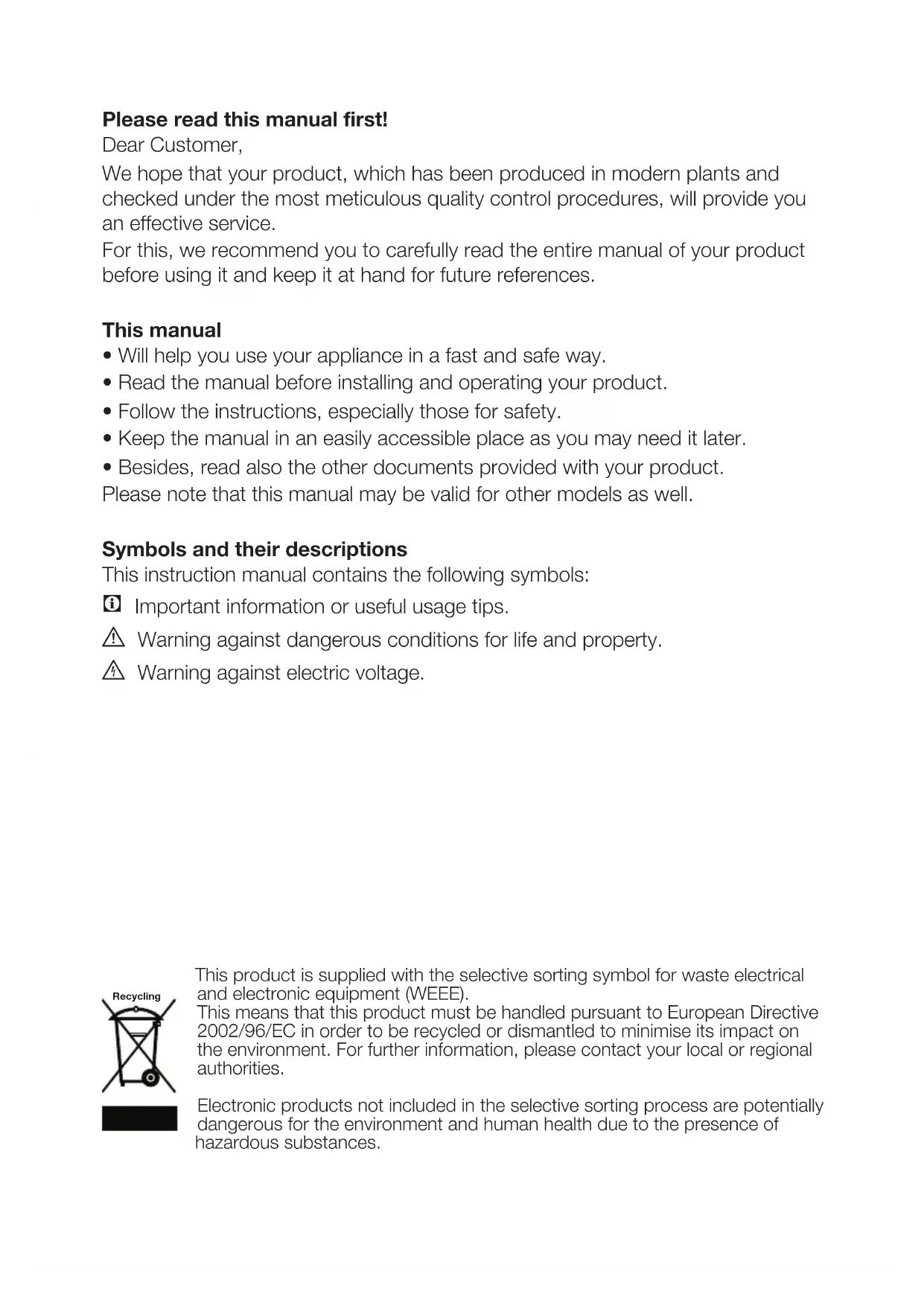

We hope that your product, which has been produced in modern plants and

checked under the most meticulous quality control procedures, will provide you

an effective service.

For this, we recommend you to carefully read the entire manual of your product

before using it and keep it at hand for future references.

• Will help you use your appliance in a fast and safe way.

• Read the manual before installing and operating your product.

• Follow the instructions, especially those for safety.

• Keep the manual in an easily accessible place as you may need it later.

• Besides, read also the other documents provided with your product.

Please note that this manual may be valid for other models as well.

Symbols and their descriptions

This instruction manual contains the following symbols:

C Important information or useful usage tips.

A Warning against dangerous conditions for life and property.

B Warning against electric voltage.

This product is supplied with the selective sorting symbol for waste electrical

and electronic equipment (WEEE).

This means that this product must be handled pursuant to European Directive

2002/96/EC in order to be recycled or dismantled to minimise its impact on

the environment. For further information, please contact your local or regional

Electronic products not included in the selective sorting process are potentially

dangerous for the environment and human health due to the presence of

hazardous substances.

For products with a water

Things to be done for energy saving 7

Points to be considered when re-

transporting your refrigerator 8

Before operating your refrigerator ..8

Electric connection 8

Disposing of the packaging 9

Disposing of your old refrigerator ...9

Placing and Installation 9

Adjusting the feet 10

Replacing the interior light bulb ...10

Reversing the doors 11

Using the rotary crisper (in some

Crisper humidity control sliders ....15

Protection of plastic surfaces 16

7 Recommended solutions

for the problems 17EN

Figures that take place in this instruction manual are schematic and may not

correspond exactly with your product. If the subject parts are not included in the

product you have purchased, then it is valid for other models.

6- Fridge compartment shelves

11- Adjustable front feet

16- Freezer compartment

17- Fridge compartment

2 Important Safety Warnings

Please review the following

information. Failure to observe this

information may cause injuries or

material damage. Otherwise, all

warranty and reliability commitments

will become invalid.

The usage life of the unit you

purchased is 10 years. This is the

period for keeping the spare parts

required for the unit to operate as

This product is intended to be used

– indoors and in closed areas such as

– in closed working environments such

as stores and offices;

– in closed accommodation areas such

as farm houses, hotels, pensions.

• This product should not be used

• When you want to dispose/scrap

the product, we recommend you

to consult the authorized service in

order to learn the required information

and authorized bodies.

• Consult your authorized service for

all your questions and problems

related to the refrigerator. Do not

intervene or let someone intervene to

the refrigerator without notifying the

authorised services.

• For products with a freezer

compartment; Do not eat cone ice

cream and ice cubes immediately

after you take them out of the freezer

compartment! (This may cause

frostbite in your mouth.)

• For products with a freezer

compartment; Do not put bottled and

canned liquid beverages in the freezer

compartment. Otherwise, these may

• Do not touch frozen food by hand;

they may stick to your hand.

• Unplug your refrigerator before

cleaning or defrosting.

• Vapor and vaporized cleaning

materials should never be used in

cleaning and defrosting processes of

your refrigerator. In such cases, the

vapor may get in contact with the

electrical parts and cause short circuit

• Never use the parts on your

refrigerator such as the door as a

means of support or step.

• Do not use electrical devices inside

• Do not damage the parts, where

the refrigerant is circulating, with

drilling or cutting tools. The refrigerant

that might blow out when the gas

channels of the evaporator, pipe

extensions or surface coatings are

punctured causes skin irritations and

• Do not cover or block the ventilation

holes on your refrigerator with any

• Electrical devices must be repaired

by only authorised persons. Repairs

performed by incompetent persons

create a risk for the user.

• In case of any failure or during

a maintenance or repair work,

disconnect your refrigerator’s mains

supply by either turning off the

relevant fuse or unplugging your

• Do not pull by the cable when pulling

• Place the beverage with higher proofs

tightly closed and vertically.

• Never store spray cans containing

flammable and explosive substances

in the refrigerator.

• Do not use mechanical devices

or other means to accelerate the

defrosting process, other than those

recommended by the manufacturer.

• This product is not intended to be

used by persons with physical,

sensory or mental disorders or

unlearned or inexperienced people

(including children) unless they are

attended by a person who will be

responsible for their safety or who will

instruct them accordingly for use of

• Do not operate a damaged

refrigerator. Consult with the service

agent if you have any concerns.

• Electrical safety of your refrigerator

shall be guaranteed only if the earth

system in your house complies with

• Exposing the product to rain, snow,

sun and wind is dangerous with

respect to electrical safety.

• Contact authorized service when

there is a power cable damage to

• Never plug the refrigerator into

the wall outlet during installation.

Otherwise, risk of death or serious

• This refrigerator is intended for only

storing food items. It must not be

used for any other purpose.

• Label of technical specifications is

located on the left wall inside the

• Never connect your refrigerator to

electricity-saving systems; they may

damage the refrigerator.

• If there is a blue light on the

refrigerator, do not look at the blue

light with optical tools.

• For manually controlled refrigerators,

wait for at least 5 minutes to start the

refrigerator after power failure.

• This operation manual should be

handed in to the new owner of the

product when it is given to others.

• Avoid causing damage on power

cable when transporting the

refrigerator. Bending cable may cause

fire. Never place heavy objects on

power cable. Do not touch the plug

with wet hands when plugging the

• Do not plug the refrigerator if the wall

• Water should not be sprayed directly

on inner or outer parts of the product

for safety purposes.

• Do not spray substances containing

inflammable gases such as propane

gas near the refrigerator to avoid fire

• Never place containers filled with

water on top of the refrigerator,

otherwise this may cause electric

• Do not overload your refrigerator

with excessive amounts of food. If

overloaded, the food items may fall

down and hurt you and damage

refrigerator when you open the

door. Never place objects on top

of the refrigerator; otherwise, these

objects may fall down when you

open or close the refrigerator's door.EN

• As they require a precise temperature,

vaccines, heat-sensitive medicine and

scientific materials and etc. should

not be kept in the refrigerator.

• If not to be used for a long time,

refrigerator should be unplugged. A

possible problem in power cable may

• The plug's tip should be regularly

cleaned; otherwise, it may cause fire.

• Refrigerator may move if adjustable

legs are not properly secured on the

floor. Properly securing adjustable

legs on the floor can prevent the

refrigerator to move.

• When carrying the refrigerator, do not

hold it from door handle. Otherwise, it

• When you have to place your product

next to another refrigerator or freezer,

the distance between devices should

be at least 8cm. Otherwise, adjacent

side walls may be humidified.

For products with a water

Pressure of water mains should be

minimum 1 bar. Pressure of water

mains should be maximum 8 bars.

• Use only potable water.

• If the door has a lock, the key should

be kept away from reach of children.

• Children must be supervised to

prevent them from tampering with the

If your product's cooling system

This gas is flammable. Therefore, pay

attention to not damaging the cooling

system and piping during usage and

transportation. In the event of damage,

keep your product away from potential

fire sources that can cause the

product catch a fire and ventilate the

room in which the unit is placed.

Ignore this warning if your

product's cooling system contains

Type of gas used in the product is

stated in the type plate which is on the

left wall inside the refrigerator.

Never throw the product in fire for

Things to be done for energy

• Do not leave the doors of your

refrigerator open for a long time.

• Do not put hot food or drinks in your

• Do not overload your refrigerator so

that the air circulation inside of it is not

• Do not install your refrigerator

under direct sunlight or near heat

emitting appliances such as ovens,

dishwashers or radiators.

• Pay attention to keep your food in

• For products with a freezer

compartment; You can store

maximum amount of food items in

the freezer when you remove the

shelf or drawer of the freezer. Energy

consumption value stated for your

refrigerator has been determined

by removing freezer shelf or drawer

and under maximum load. There

is no harm to use a shelf or drawer

according to the shapes and size of

• Thawing frozen food in fridge

compartment will both provide energy

saving and preserve the food quality.EN

BPlease remember that the

manufacturer shall not be held liable if

the information given in the instruction

manual is not observed.

Points to be considered

when re-transporting your

1.Your refrigerator must be emptied and

cleaned prior to any transportation.

2.Shelves, accessories, crisper and etc.

in your refrigerator must be fastened

securely by adhesive tape against any

jolt before repackaging.

3.Packaging must be tied with thick

tapes and strong ropes and the

rules of transportation printed on the

package must be followed.

Please do not forget…

Every recycled material is an

indispensable source for the nature

and for our national resources.

If you wish to contribute to recycling

the packaging materials, you can

get further information from the

environmental bodies or local

Before operating your

Before starting to use your refrigerator

check the following:

1.Is the interior of the refrigerator dry and

can the air circulate freely in the rear

2.Please install the 2 plastic wedges

as illustrated in the figure. Plastic

wedges will provide the required

distance between your refrigerator

and the wall in order to allow the air

circulation. (The illustrated figure is

only an example and does not match

exactly with your product.)

3.Clean the interior of the refrigerator as

recommended in the “Maintenance

and cleaning” section.

4.Plug the refrigerator into the wall outlet.

When the fridge door is open, the

fridge compartment interior light will

5.You will hear a noise as the

compressor starts up. The liquid and

gases sealed within the refrigeration

system may also give rise to noise,

even if the compressor is not running

and this is quite normal.

6.Front edges of the refrigerator may feel

warm. This is normal. These areas

are designed to be warm to avoid

Connect your product to a grounded

socket which is being protected by a

fuse with the appropriate capacity.

• The connection must be in compliance

with national regulations.

• The power cable plug must be easily

accessible after installation.

• The specified voltage must be equal to

must not be used for connection.EN

BA damaged power cable must be

replaced by a qualified electrician.

BProduct must not be operated before

it is repaired! There is danger of

Disposing of the packaging

The packing materials may be

dangerous for children. Keep the

packing materials out of the reach

of children or dispose of them by

classifying them in accordance with the

waste instructions. Do not dispose of

them along with the normal household

The packing of your refrigerator is

produced from recyclable materials.

Disposing of your old

Dispose of your old refrigerator without

giving any harm to the environment.

•You may consult your authorised dealer

or waste collection center of your

municipality about the disposal of

Before disposing of your refrigerator, cut

out the electric plug and, if there are

any locks on the door, make them

inoperable in order to protect children

Placing and Installation

A If the entrance door of the room

where the refrigerator will be

installed is not wide enough for the

refrigerator to pass through, then call

the authorised service to have them

remove the doors of your refrigerator

and pass it sideways through the

1. Install your refrigerator to a place that

2. Keep your refrigerator away from heat

sources, humid places and direct

3. There must be appropriate air

ventilation around your refrigerator

in order to achieve an efficient

operation. If the refrigerator is to be

placed in a recess in the wall, there

must be at least 5 cm distance with

the ceiling and at least 5 cm with

the wall. If the floor is covered with

a carpet, your product must be

elevated 2.5 cm from the floor.

4. Place your refrigerator on an even floor

surface to prevent jolts.

5. Do not keep your refrigerator in

ambient temperatures under 10°C.EN

If your refrigerator is unbalanced;

You can balance your refrigerator by

turning the front legs as shown in the

illustration below. The corner where

the leg exists is lowered when you turn

it in the direction of black arrow and

raised when you turn in the opposite

direction. Taking help from someone to

slightly lift the refrigerator will facilitate

Replacing the interior light

Should the light fail to work switch

off at the socket outlet and pull out

the mains plug. Follow the below

instructions to check if the light bulb

has worked itself loose.

If the light still fails to work obtain a

replacement E14 screw cap type

15 Watt (Max) bulb from your local

electrical store and then fit it as

1. Switch off at the socket outlet and

pull out the mains plug. You may find

it useful to remove shelves for easy

2. Remove the light diffuser cover as

shown in figure (a-b).

3. Replace the burnt-out light bulb.

4. Reassemble the light diffuser cover

as shown in figure (c).

“Push firmly to ensure cover is fitted

5. Carefully dispose of the burnt-out

light bulb immediately.

“Replacement light bulb can easily be

obtained from a good local electrical or

C Your refrigerator should be installed at

least 30 cm away from heat sources

such as hobs, ovens, central heater

and stoves and at least 5 cm away

from electrical ovens and should not

be located under direct sunlight.

C The ambient temperature of

the room where you install your

refrigerator should at least be 10°C.

Operating your refrigerator under

cooler conditions than this is not

recommended with regard to its

C Please make sure that the interior

of your refrigerator is cleaned

C If two refrigerators are to be installed

side by side, there should be at least

2 cm distance between them.

C When you operate your refrigerator

for the first time, please observe the

following instructions during the initial

- The door should not be opened

- It must be operated empty without

- Do not unplug your refrigerator. If

a power failure occurs out of your

control, please see the warnings in

the “Recommended solutions for

the problems” section.

C Original packaging and foam

materials should be kept for future

transportations or moving.EN

Thermostat setting button

The interior temperature of your

refrigerator changes for the following

• Seasonal temperatures,

• Frequent opening of the door and

leaving the door open for long

• Food put into the refrigerator

without cooling down to the room

• The location of the refrigerator in the

room (e.g. exposing to sunlight).

• You may adjust the varying interior

temperature due to such reasons

by using the thermostat. Numbers

around the thermostat button

indicates the cooling degrees.

• If the ambient temperature is higher

than 32°C, turn the thermostat button

to maximum position.

• If the ambient temperature is lower

than 25°C, turn the thermostat button

to minimum position.

Using your refrigerator

A) Fridge compartment

Fridge compartment performs full-

automatic defrosting. Water drops and

a frosting up to 7-8 mm can occur

on the inner rear wall of the fridge

compartment while your refrigerator

cools down. Such formation is normal

as a result of the cooling system.

The frost formation is defrosted by

performing automatic defrosting

with certain intervals thanks to the

automatic defrosting system of the rear

wall. User is not required to scrape the

frost or remove the water drops.

Water resulting from the defrosting

passes from the water collection

groove and flows into the evaporator

through the drain pipe and evaporates

Check regularly to see if the drain pipe

is clogged or not and clear it with the

stick in the hole when necessary.

Deep freezer compartment does not

perform automatic defrosting in order

to prevent decaying of the frozen food.EN

B) Freezer compartment

Defrosting is very straightforward and

without mess, thanks to a special

defrost collection basin.

Defrost twice a year or when a

frost layer of around 7 (1/4”) mm

has formed. To start the defrosting

procedure, switch off the appliance

at the socket outlet and pull out the

All food should be wrapped in several

layers of newspaper and stored in a

cool place (e.g. fridge or larder).

Containers of warm water may be

placed carefully in the freezer to speed

Do not use pointed or sharp-edged

objects, such as knives or forks to

Never use hair dryers, electrical

heaters or other such electrical

appliances for defrosting.

Sponge out the defrost water

collected in the bottom of the freezer

compartment. After defrosting, dry the

interior thoroughly.

Insert the plug into the wall socket and

switch on the electricity supply.

Stopping your product

If your thermostat is equipped with “0”

- Your product will stop operating

when you turn the thermostat button

to “0” (zero) position. Your product

will not start unless to you turn the

thermostat button to position “1” or

one of the other positions again.

If your thermostat is equipped with

- Unplug your product to stop it.

Fill the ice container with water and

place it into its seat. Your ice will be

ready approximately in two hours.

You can easily remove your ice by

slightly twisting the ice container.EN

“Turbo cooling fan is designed to

ensure homogenous distribution and

circulation of the cold air inside your

refrigerator. Operation time of the

turbo cooling fan may vary depending

on the properties of your product.

While the turbo fan works only with

the compressor in some products,

the control system determines its

operation time in some products

in accordance with the cooling

requirement. This situation is explained

on a separate warning and information

label attached on the refrigerator in

products equipped with turbo fans

running under different conditions than

Using the rotary crisper (in

The crisper of your refrigerator which

opens with a rotating movement is

designed specially to provide ease of

usage and allow you to store more

vegetables and fruits (large volume)

you buy during large shopping.

When you grab and pull the handle

on the lower left hand side of the

crisper, it will rotate from left to right

and open easily. The separator in the

crisper will allow you to separate the

vegetables and fruits according to their

types and prevent them from crushing.

Crisper humidity control

Using the crisper humidity control

Crisper of your refrigerator is designed

specially to keep your vegetables fresh

without loosing their humidity. Cold air

circulates basically around the crisper

and the amount of the cold air passing

through the crisper is controlled by the

sliders on the front side of the crisper

You can adjust the humidity control

sliders to a suitable position according

to the humidity and cooling condition

of your food in the crisper.

If you want your food in the crisper

to cool more, open the holes of the

humidity control sliders and if you

want them to cool less and keep their

humidity for a longer time, close the

6 Maintenance and cleaning

A Never use gasoline, benzene or

similar substances for cleaning

B We recommend that you unplug the

appliance before cleaning.

B Never use any sharp abrasive

instrument, soap, household

cleaner, detergent and wax polish for

C Use lukewarm water to clean the

cabinet of your refrigerator and wipe it

C Use a damp cloth wrung out in

a solution of one teaspoon of

bicarbonate of soda to one pint of

water to clean the interior and wipe it

B Make sure that no water enters the

lamp housing and other electrical

B If your refrigerator is not going to be

used for a long period of time, unplug

the power cable, remove all food,

clean it and leave the door ajar.

C Check door seals regularly to ensure

they are clean and free from food

A To remove door racks, remove all the

contents and then simply push the

door rack upwards from the base.

Protection of plastic

C Do not put the liquid oils or oil-cooked

meals in your refrigerator in unsealed

containers as they damage the

plastic surfaces of your refrigerator. In

case of spilling or smearing oil on the

plastic surfaces, clean and rinse the

relevant part of the surface at once

7 Recommended solutions for the problems

Please review this list before calling the service. It might save you time and

money. This list includes frequent complaints that are not arising from defective

workmanship or material usage. Some of the features described here may not

exist in your product.

The refrigerator does not operate.

• Is the refrigerator properly plugged in? Insert the plug to the wall socket.

• Is the fuse of the socket which your refrigerator is connected to or the main fuse

blown out? Check the fuse.

Condensation on the side wall of the fridge compartment (MULTIZONE, COOL CONTROL and FLEXI ZONE).

• Very cold ambient conditions. Frequent opening and closing of the door. Highly

humid ambient conditions. Storage of food containing liquid in open containers.

Leaving the door ajar. Switching the thermostat to a colder degree.

• Decreasing the time the door left open or using it less frequently.

• Covering the food stored in open containers with a suitable material.

• Wipe the condensation using a dry cloth and check if it persists.

Compressor is not running

• Protective thermic of the compressor will blow out during sudden power

failures or plug-out plug-ins as the refrigerant pressure in the cooling system of

the refrigerator has not been balanced yet. Your refrigerator will start running

approximately after 6 minutes. Please call the service if the refrigerator does not

startup at the end of this period.

• The fridge is in defrost cycle. This is normal for a full-automatically defrosting

refrigerator. Defrosting cycle occurs periodically.

• Your refrigerator is not plugged into the socket. Make sure that the plug is

properly fit into the socket.

• Are the temperature adjustments correctly made?

• Power might be cut off.

The fridge is running frequently or for a long time.EN

• Your new product may be wider than the previous one. This is quite normal.

Large refrigerators operate for a longer period of time.

• The ambient room temperature may be high. This is quite normal.

• The refrigerator might have been plugged in recently or might have been loaded

with food. Cooling down of the refrigerator completely may last for a couple of

• Large amounts of hot food might have been put in the refrigerator recently. Hot

food causes longer running of the refrigerator until they reach the safe storage

• Doors might have been opened frequently or left ajar for a long time. The warm

air that has entered into the refrigerator causes the refrigerator to run for longer

periods. Open the doors less frequently.

• Freezer or fridge compartment door might have been left ajar. Check if the doors

• The refrigerator is adjusted to a very low temperature. Adjust the refrigerator

temperature to a warmer degree and wait until the temperature is achieved.

• Door seal of the fridge or freezer may be soiled, worn out, broken or not properly

seated. Clean or replace the seal. Damaged/broken seal causes the refrigerator

to run for a longer period of time in order to maintain the current temperature.

Freezer temperature is very low while the fridge temperature is sufficient.

• The freezer temperature is adjusted to a very low temperature. Adjust the freezer

temperature to a warmer degree and check.

Fridge temperature is very low while the freezer temperature is sufficient.

• The fridge temperature might have been adjusted to a very low temperature.

Adjust the fridge temperature to a warmer degree and check.

Food kept in the fridge compartment drawers are freezing.

• The fridge temperature might have been adjusted to a very low temperature.

Adjust the fridge temperature to a warmer degree and check.

Temperature in the fridge or freezer is very high.

• The fridge temperature might have been adjusted to a very high degree.

Fridge adjustment has an effect on the temperature of the freezer. Change

the temperature of the fridge or freezer until the fridge or freezer temperature

reaches to a sufficient level.

• Doors might have been opened frequently or left ajar for a long time; open them

• Door might have been left ajar; close the door completely.

• Large amount of hot food might have been put in the refrigerator recently. Wait

until the fridge or freezer reaches the desired temperature.

• The refrigerator might have been plugged in recently. Cooling down of the

refrigerator completely takes time.

The operation noise increases when the refrigerator is running.EN

• The operating performance of the refrigerator may change due to the changes in

the ambient temperature. It is normal and not a fault.

Vibrations or noise.

• The floor is not even or it is weak. The refrigerator rocks when moved slowly.

Make sure that the floor is strong enough to carry the refrigerator, and level.

• The noise may be caused by the items put onto the refrigerator. Items on top of

the refrigerator should be removed.

There are noises coming from the refrigerator like liquid spilling or spraying.

• Liquid and gas flows happen in accordance with the operating principles of your

refrigerator. It is normal and not a fault.

There is a noise like wind blowing.

• Fans are used in order to cool the refrigerator. It is normal and not a fault.

Condensation on the inner walls of refrigerator.

• Hot and humid weather increases icing and condensation. It is normal and not a

• Doors might have been left ajar; make sure that the doors are closed fully.

• Doors might have been opened frequently or left ajar for a long time; open them

Humidity occurs on the outside of the refrigerator or between the doors.

• There might be humidity in the air; this is quite normal in humid weather. When

the humidity is less, condensation will disappear.

Bad odour inside the refrigerator.

• Inside of the refrigerator must be cleaned. Clean the inside of the refrigerator with

a sponge, lukewarm water or carbonated water.

• Some containers or package materials might cause the smell. Use a different

container or different brand packaging material.

The door is not closing.

• Food packages may prevent the door's closing. Replace the packages that are

obstructing the door.

• The refrigerator is not completely upright on the floor and rocking when slightly

moved. Adjust the elevation screws.

• The floor is not level or strong. Make sure that the floor is level and capable to

carry the refrigerator.

• The food might be touching the ceiling of the drawer. Rearrange food in the

Inverter as portas 10

C Verifique regularmente as borrachas

 

 
