USER MANUAL EeeTop ET2311IUKH ASUS

Before launching your TV Tuner application, check if your digital TV-in or analog TV-in cable is connected.

Launching your TV Tuner Application

To launch ArcSoft TV 5.0 in Windows® 8, do one of the following:

From the Windows desktop, click the Arcsoft TV 5.0 icon.

NOTE: The Arcsoft TV desktop shortcut icon is not available for AIO ET2300

• Click to launch the search screen for applications. Type "Arcsoft" in the search field and click the Arcsoft TV icon from the search results.

Setting up your TV Tuner Application

To set up ArcSoft TV 5.0:

1. On the main menu, click Live TV.

1. The Setup Wizard will launch to guide you through setting up your TV Tuner application. Select your country or region and click Next to continue.

1. The Setup Wizard will attempt to detect the installed TV Tuner device. Select the appropriate TV tuner card which came with your All-in-One PC.

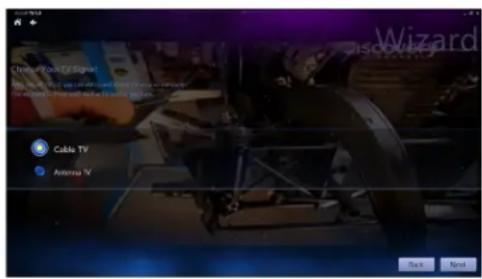

2. Select the type of television service you use.

3. Select Cable TV for cable television.

4. Select Antenna TV for television received via an antenna.

5. Click Scan to begin scanning for available channels.

6. If your All-in-One PC came with both an analog and digital TV tuner, the Setup Wizard will prompt you to set up your second TV tuner.

7. Select Yes to set up the second TV Tuner.

8. Select No to complete the Setup Wizard.

ennnn

1. Click Finish to complete the Setup Wizard.

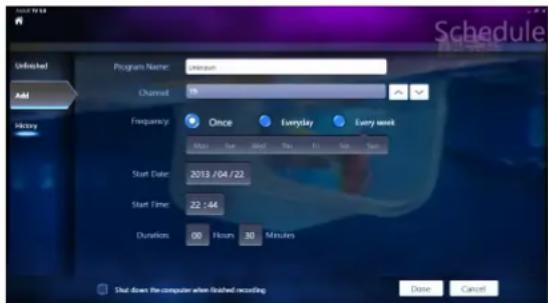

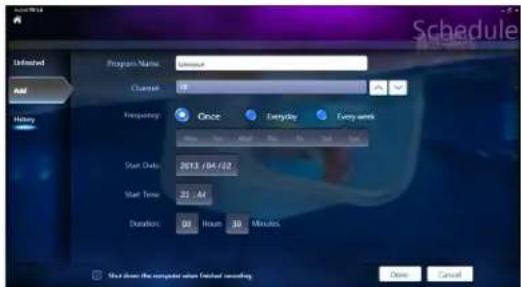

Scheduling recordings of TV broadcasts

To schedule recordings of TV broadcasts:

1. On the main menu, click Schedule.

1. On the left panel, click Add.

2. Configure the following options:

Program Name
- Channel
Frequency
- Start Date/Time - Specify the date/time of recording.
Duration - Specify length of recording.
- Shut down the computer when finished recording

1. Click Done to save settings and schedule recording.

NOTE: The All-in-One PC needs to be powered on to automatically record TV broadcasts.

1. To schedule additional recordings, repeat steps 1~4.

NOTE: The number of recordings you can schedule is limited by the available storage on your All-in-One PC.

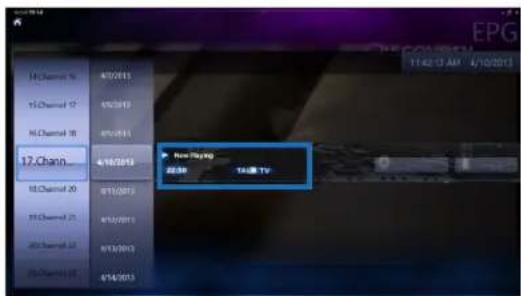

Using the Entertainment Program Guide (EPG)

The EPG displays the time and TV programs playing on a specified channel and date.

NOTE: EPG is only available for All-in-One PCs with a digital TV tuner.

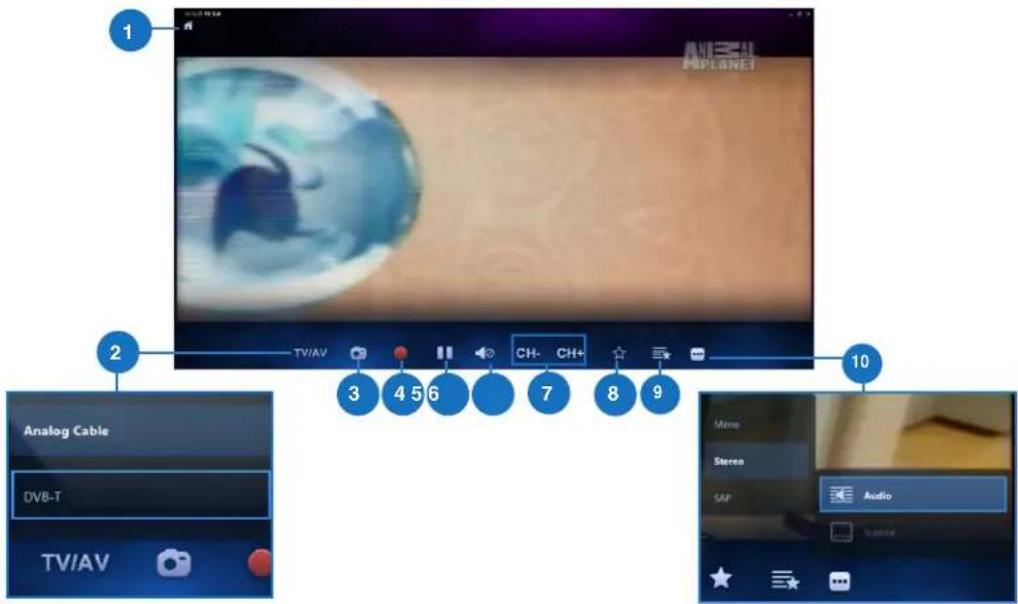

Using the Live TV Onscreen Controls

Home button

Click this icon to go to the Arcsoft TV 5.0 main menu.

2 TV/AV

Click this button to toggle between analog TV and digital TV.*

*This item is only available for All-in-One PCs with both an analog and digital TV tuner.

Take a screenshot

Click this button to take a screen capture of the video or media playing.

4 Record

Click this button to begin recording the television broadcast.

5 Pause

Click this button to pause recording or playback.

Volume Controls

Click this button to display onscreen volume controls to increase/decrease volume.

CH-/CH+

Click this button to increase or decrease the channel by one.

8 Add to Favorites

Click this button to add this channel to the Favorites list.

9 Favorites List

Click this button to display list of saved Favorites.

Subtitles and Audio Tracks

Click this button to display list of available subtitles and audio channels/tracks.

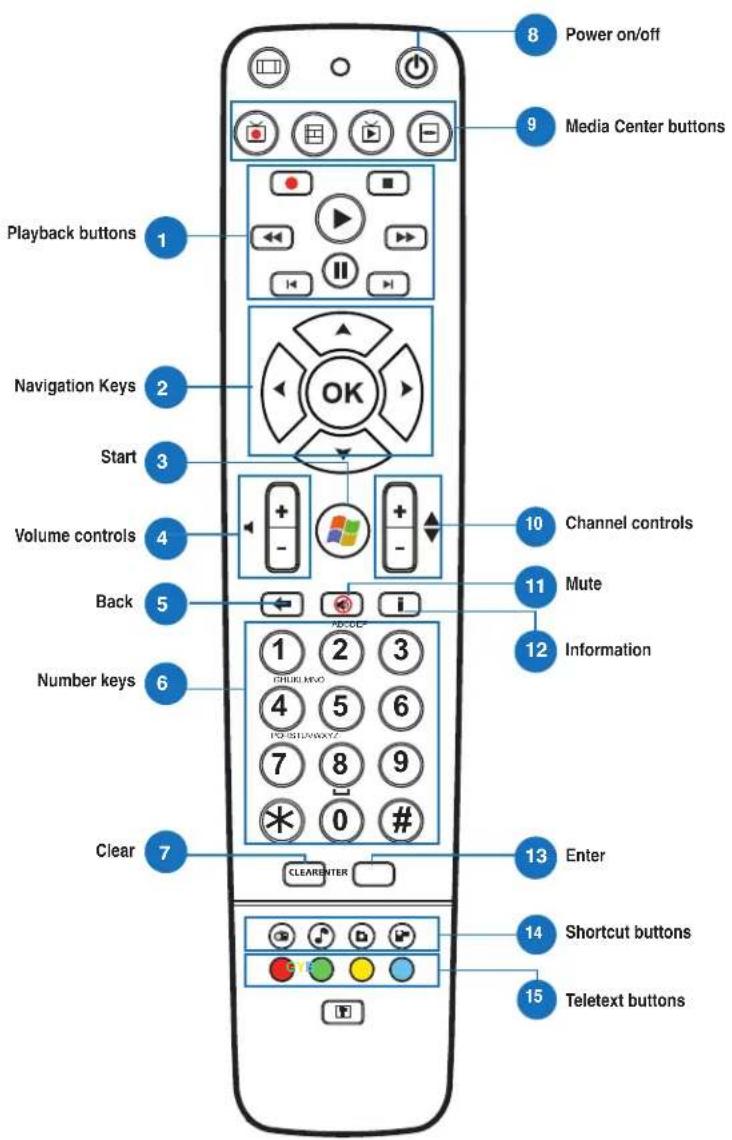

Using the Remote Control

Playback Buttons

Play

Starts playing media. If playback is paused, pressing this button begins playback from the current position.

Pause

Pauses media playback at the current position.

Stop

Stops playing media at the current position.

Record

Record the TV show to disk. If pressed while Live TV is on, records the current show. If pressed from the EPG screen, records a TV show or TV series to disk.

Fast Forward

Speeds up the playback of the media file to the first forward value (3X).

Rewind

Reverses direction of playback and speeds up the time base to the first rewind value (3X).

Skip Forward

Skipping forward one increment when this button is pressed.

Skip Back

Skipping backward one increment when this button is pressed.

Navigation Keys

Press the up/down keys to move through the menu bar in a submenu.

Press the up/down keys to decrease/increase a numerical value.

Press the left/right keys to move through the main menus in the Home screen.

Press the left/right keys to move through the items in a submenu.

Press OK to confirm the selection.

Start*

Takes the user to the Windows Media Center Start menu.

*This button is only available for All-in-One PCs installed with Windows Media Center.

4	Volume controls Press the (+) button to increase the volume by one unit. Press the (-) button to decrease the volume by one unit.
5	Back Moves back one position in the user interface,
6	Number keys
7	Clear Clear any entered user input.
8	Power on/off Press this button to put the All-in-One PC to sleep mode. Press a second time to wake up the system from sleep mode.
9	Media Center Buttons*
	Record TV Displays the Recorded TV page in Windows Media Center.
	Guide Displays the media guide in Windows Media Center.
	Live TV Shows live TV on the currently selected channel.
	DVD menu Displays the DVD menu.
	*These buttons are only available for All-in-One PCs installed with Windows Media Center.
10	+ Channel controls Increases/decreases the current channel by one.
11	Mute Mutes the computer audio.
12	Information Press to display information about the movie, video, or music.
13	Enter Press this button to select an option or input text.

Media Center Shortcut buttons

Displays the main Radio page in Windows Media Center.

Displays the Music Library in Windows Media Center.

Displays the Picture Library in Windows Media Center.

Displays the Video Library in Windows Media Center.

*These buttons are only available for All-in-One PCs installed with Windows Media Center.

Teletext buttons*

Press these buttons to access Teletext features when available.

*These buttons are only available for All-in-One PCs installed with Windows Media Center.

NOTE:

• To avail of Windows Media Center features, you can purchase a Windows 8 Media Center Pack separately.
• You can download a version of this manual in a different language at the ASUS support site at http://support.asus.com

All-in-OnePC

English

All-in-One PC TV

Stručná príručka

9 Listen over favorite

Klik pa donne knap for at vise listen over gemte favoritkanaler.

10 Undertekster og lydspor

Klik på deutsche knap for at vise listen over tilgengelige undertekster og lydkanaler/numre.

ksueq

HagaWhile in this case, the bot is a bot that can be used to carry out the task.

Shut down the computer when finished

Bruke programguiden (EPG = Electronic Program Guide)

Viser hovedsiden for radio i Windows Media Center.

IIaHnPoBaHH 3aHcN TeJIeHepea:

1. B T J A B H O M M E H O H A X M I T E P a c i n c a H C.

1. HaJIeBOH IIaHeJIH NaKMHTe I06aBHTb.

2. CkOHpynpyIte cJIeDyIOUHne OIIHH:

3. Ha3BaHHe IpoIpaMMbI
   KaHaJI

4. Hactora
5. Data / Bpem HauaJa - YkaKeTe DaTy/ Bpem 3aHCH.
6. PpOIOJIJKHTeJBHoCTb - YKaJKTe IPOJOJIJKHTeJBHoCTb 3aIINCH.
   BbIKIOHTb KOMIIbIOTep IocJIe 3aBCPINCHN3aINCH

1. HaxMMTe FToTOB O DJI coXpaHeHH HaCTpoE K3aIIINCH.

IIIPHMEHAHHe: MoHO6IOUHbI KOMIbIOTep IOJIKeH 6bITb BKIOOHeH JJIa ABTomaTHueCKo3aIHc H TeJIepeJa.

*TaOnHnHaOnCTyHnTAoBkoIITKOMNbIOTepOBcHaTOrOBblIM HnHpOBoBIM TB-THOcpOM.

3 Cde.natb ckpnnnH

6 PeryHpOBKa rPOMKoCTH

HaKMTRE OYHKOHky JpyeryHPOBKn rpoMkoctn.

CH-/CH+

HaKMHe 3Ty KHOINKy IIA CMeHb KaHaJa.

8 106abHbBn3paHHoe

HaKMHTe 3Ty KhoNky IJIA IO6aJIbEHHI 3TOI KOHaIa B H36paHHe.

9 H36paHHoe

HaKMMTe 3Ty KhoIky IJn OTo6paKeHH cIiNcKa H36paHHe.

10 Cy6HTtpb H 3ByKOBbIe IopOzKN

HaKMHTc 3ry KhoNNy IIN OTO6paKeHHIOCTYINHbIX cy6THTPOB H 3ByKOBbIX KaHApOB/npOJKeK.

All-in-One PC

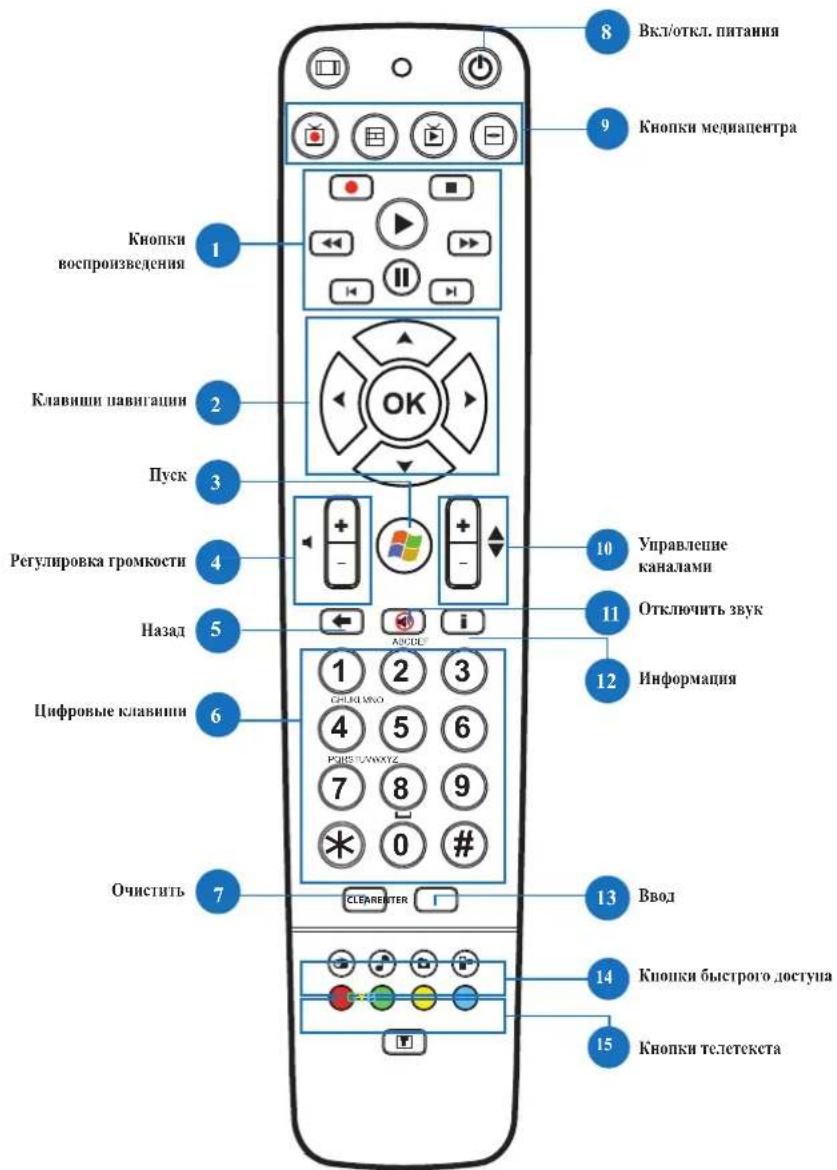

HcnoJb3ObaHne npIbTa DY

6

KhoIKNBocpnOBcEHHN

Bocnpoh3Bectn

HaHHaET BOCpON3BedeHHe faHJa. EcHIN BOCpON3BedeHHe IPhOCTaHOBJeHO, HAKATHE 30T KHOJIKN HAHTET BOCpON3BedeHHe c TeKyuIeIIO3HIIH.

Hay3a

IphocTaHaBnBaet BocPOn3BeDenHe B TeKyuEi IIO3HmH.

Cron

OCTaHaBJIHBAeT BOCIIPOIH3BeDEHeHc.

3aenncb

3aHHcBbAeTeTenepeaay Ha Hsck. EcnH haxata npn IpocmoTpe nepeaun, 3aHHcBbAeTeKuyio npeaay. EcnH haxata Ha Kpahe EPG, 3aHHcBbAeTeTenepeaay Ha Hsck.

Nepemotka Bnepe

Yckopenoe (3X) Bocnpn3BeIeHne BnpeE.

Iepemotka nazad

Yckopenhoe (3X) Bocnpon3BcJeHne Ha3aI.

Bnepa

YBeJIHHBaETCKOpOCTbIepeMOTKNBIIepeHaOHN.

Ha3a

YBEINHBAeTCKOPOCTbIIEpEMOTKNHa3aHaODHH.

Kjabnnn nabraun

HcnoIb3yIte KJIaBHHIN BBepx/BHN3 IJIa HABHraunn B IOIMCHIO.

HcnoIb3yIITe KJIaBHHIN BBCpx/BHH3JyYBeJIuHCHn/YMeHbIIeHH 3HaueHH.

HnoB3yIe KJIABHH BJEBO/BIIpaBO JIN HABHraIH N B IaBHOM MeHO.

HIOJIb3yIe KJIABHH BJIeBO/BIIpaBO JIA HABHraHH IO IyHKaTm IOJMeHO.

HaKMHTe OK JINIIOITBepKJENH Bb6opa.

Nyc

OTKpbBaet MeHIO Hyck B Windows Media Center.

^* Та КНПКА ДОСТУПА TOЛБКИ MA MOHOBLOUHOM KOMПьОтеpe C Windows Media Center.

All-in-OnePC

OTo6paKaer cTpaHnHy H3o6paKeHHB Windows Media Center.

OTo6paKaTcTaHnUyBnEcoBWindowsMediaCenter.

*TH KHOHKNIOCTyINbI TOJIbKO HA MOHOJIOHOM KOIMBIOTepe C Windows Media Center.

KhoiKHeTeJIeTeKcta\*

HIOJIb3yIte 3TH KHOIIKII IIN IOCTYIIa K FyHKIIaM TeIeTeKcTa, npn ero haJIHH.

*TH KHOHKn DOCTYINbTOJbKO HA MOHOJOHOM KOMIbIOTpe c Windows Media Center.

IIPNMEYAHHE:

-ДИнIOJIb3OBaHHIpyHKINH Windows Media Center MoKHO npHo6peCTn Windows 8 Media Center otJeJIbHO.
PykoBOCTBO HJIb3OBaTcJIHa IpyROM 3bIKc MoKIO cKaaTa b caIa ASUS http://support.asus.com

Monitoimi-PC-TV

Pikaopas

Digitalisen/Analogisen TV-virittimen asettaminen
