Product type	Clothes iron
Brand	Applica
Model	ICR515
Power supply	120 V, 60 Hz
Power	Approximately 1500 W
Water tank capacity	Up to the MAX mark
Main functions	3-way automatic shut-off, anti-drip system, Smart Steam technology, steam burst, vertical steam, spray, AUTO CLEAN self-cleaning system, cord rewind
Safety	Automatic shut-off (30 sec on soleplate/side, 8 min upright), polarized plug, non-loosening screw
Light indicator	Green for operation, flashing for automatic shut-off
Handle	Comfort Grip
Heel rest	Non-stick rubberized
Fabric guide	Under the heel rest
Maintenance	Clean surfaces with a damp cloth; AUTO CLEAN self-cleaning system once a month
Parts and accessories	Available at 1-800-738-0245 (USA/Canada)
Warranty	1 year limited (USA and Canada)
Country of manufacture	People's Republic of China
Use	Household use only

Frequently Asked Questions - ICR515 Applica

How do I fill the water tank of the ICR515 iron?

Open the water tank cover, tilt the iron and pour water using a measuring cup up to the MAX mark. Do not overfill. Close the cover. Use tap water, not softened water.

How do I use the steam burst?

Fill the tank to MAX, set the fabric selector between 4 and 6. Pump the steam button at intervals of 5 seconds. The steam stops automatically below setting 3.

How does the automatic shut-off work?

The iron turns off automatically after 30 seconds of inactivity if lying on the soleplate or side, and after 8 minutes if upright on the heel. Five beeps sound and the light flashes.

What should I do if the iron does not heat up?

Check that the iron is plugged in and the fabric selector is not set to 0. If the green light does not come on, wait 90 seconds. If the problem persists, contact customer service at 1-800-231-9786.

How do I clean the soleplate?

Unplug the iron and let it cool. Wipe the soleplate with a soft damp cloth. Add mild detergent if necessary. Then iron over an old cloth to remove residues from the vents.

How do I use the AUTO CLEAN self-cleaning system?

Fill the tank below MAX. Plug in, set the selector to 6, place the iron on the heel. Then set to 0, unplug, hold the iron over a sink soleplate down, and press and hold the AUTO CLEAN button until the iron is empty. Let dry for 2 minutes.

Why does water drip from the soleplate?

This is normal if the iron has not reached the proper temperature. The anti-drip system prevents leaks at low temperature. Make sure the tank is not too full and the selector is set correctly.

How do I store the iron?

Unplug and let it cool. Check that the selector is set to 0. Press the cord rewind button to wind the cord. Store the iron vertically on its heel to avoid leaks.

What is the warranty for the ICR515 iron?

The iron has a one-year limited warranty (USA and Canada) against defects in workmanship or materials. Keep the sales receipt. Contact 1-800-231-9786 or visit www.prodprotect.com/applica.

How do I contact customer service?

For USA/Canada, dial 1-800-231-9786 for general assistance, or 1-800-738-0245 for parts and accessories. For Mexico, dial 01-800-714-2503.

USER MANUAL ICR515 Applica

Register your product online at www.prodprotect.com/applica, for a chance to WIN $100,000! For US residents only

Accessories/Parts (USA/Canada)

IMPORTANT SAFETY INSTRUCTIONS

When using your iron, basic safety precautions should always be followed, including the following:

Read all instructions before using.
Use iron only for its intended use.
To protect against a risk of electric shock, do not immerse the iron in water or other liquid.
The iron should always be turned off (refer to "How to Use" section) before plugging into or unplugging from an outlet. Never yank cord to disconnect from outlet; instead grasp plug and pull to disconnect.
Do not allow cord to touch hot surfaces. Let iron cool completely before putting away. Loop cord loosely around iron when storing.
Always disconnect iron from electrical outlet when filling with or emptying of water and when not in use.
- Do not operate iron with a damaged cord or if the iron has been dropped or damaged. To avoid the risk of electric shock, do not disassemble the iron, take it to a qualified serviceman for examination and repair. Incorrect reassembly can cause a risk of electric shock when the iron is used.
- Close supervision is necessary for any appliance being used by or near children. Do not leave iron unattended while connected or on an ironing board.
Burns can occur from touching hot metal parts, hot water, or steam. Use caution when you turn a steam iron upside down or use the surge of steam - there may be hot water in the water tank. Avoid rapid movement of iron to minimize hot water spillage.

SPECIAL INSTRUCTIONS

To avoid a circuit overload, do not operate another high-wattage appliance on the same circuit.
If an extension cord is absolutely necessary, a 15-ampere and 120-volt, or 7-ampere and 220-volt cord should be used. Cords rated for less amperage may overheat. Care should be taken to arrange the cord so that it cannot be pulled or tripped over.

SAVE THESE INSTRUCTIONS.

POLARIZED PLUG (120V Models Only)

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will fit into a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a tamper-resistant screw to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.

Note: If the power supply cord is damaged, it should be replaced by qualified personnel or in Latin America by an authorized service center.

Product may vary slightly from what is illustrated.

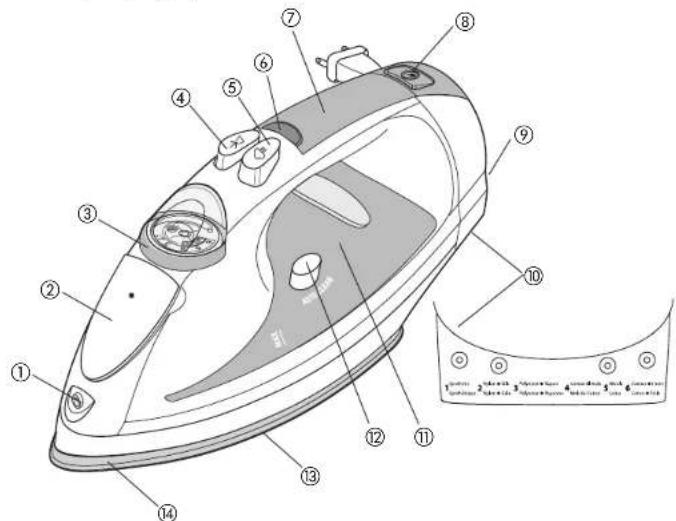

1. Spray nozzle
2. Water-fill cover
3. Fabric-select dial
4. Spray button
5. Steam button
6. On/auto off indicator light
7. Comfort Grip TM handle
8. Cord reel button
9. Anti-slip rubberized heel
10. Fabric guide
11. Water tank
12. AUTO CLEAN button
13. Soleplate
14. Button groove

How to Use

This appliance is intended for household use only.

GETTING STARTED

Remove any labels, stickers or tags attached to the body or soleplate of the iron.

Note: Use ordinary tap water for ironing. Do not use water processed through a home softening system.

Important: For optimum performance, let the iron stand for 90 seconds before beginning to iron.

Tip: If unsure of a garment's fiber, test a small area (on an inside seam or hem) before roning.

FILLING WATER TANK

1. Open the water-fill cover (A).

1. Tilt the iron and using a clean measuring cup, pour water into opening until the water reaches the MAX level mark on the water tank (B). Do not overfill.
2. Close the water-fill cover.

1. Plug in the iron. The power indicator light illuminates and stays on during the ironing cycle (C).

Note: If you need to add water while ironing, unplug the iron and follow above steps.

SPECIAL FEATURES

Automatic Shutdown in 3 Positions

Note: Wait for iron to reheat completely before resuming operation.

Anti-Drip System

The anti-drip system prevents water spotting at low temperatures.

IRONING WITH STEAM

Smart Steam™ Technology

The Smart Steam™ system automatically generates the right amount of steam for the fabric type selected. Once you select the temperature, the Smart Steam™ technology detects the set temperature and adjusts the steam power accordingly.

Surge of Steam

Use to remove stubborn creases

1. With the water tank filled to the MAX mark, set fabric selection dial to appropriate setting (between 4 and 6) for your fabric (E).

Note: See fabric guide under the heel rest and read garment's label to help you determine fabric type.

1. Be sure there is water in the tank. Steam is automatically turned off between settings 0 and 3.

1. Press the surge-of-steam button to generate a burst of steam (F). For best performance, leave an interval of 5 seconds between bursts.

2. When finished ironing, turn the fabric selection dial to 0 and unplug the iron.

Important: Always stand the iron on its heel rest when powered on but not in use.

Vertical Steam

Use for removing wrinkles from hanging clothes and drapes.

1. Be sure the water tank is filled to the MAX mark.

2. Hang the garment to be steamed on a clothes hanger. (Curtains or drapes can be steamed once they are hung.)

G

1. Turn the fabric selection dial to appropriate setting (between 4 and 6) for your fabric.
2. Hold the iron close to, but not touching, the fabric.
3. Pull the fabric tight in your free hand and pump the surge-of-steam button as you move the iron over the fabric (G).
   Important: Always stand the iron on its heel rest when powered on but not in use.

USING SPRAY

Use to dampen tough wrinkles at any setting (H).

1. Be sure the iron is filled with water.
2. On first use, pump the spray button several times.

IRONING WITHOUT STEAM

1. Turn the fabric selection dial to setting between settings 0 and 3 to iron without steam (I). The Smart Steam™ system will automatically turn off.
2. To dry iron at higher settings, empty the water from the tank to prevent steaming.

EMPYTING WATER TANK (OPTIONAL)

Note: It is not necessary to empty the water after each use.

1. Unplug the iron and let it cool.
2. Open the water-fill cover.
3. To release the water, hold the iron over a sink with the tip pointing down. Water will empty out of the water-fill opening (K).

Care and Cleaning

This product contains no user-serviceable parts. Refer service to qualified service personnel. CLEANING OUTSIDE SURFACES

1. Make sure iron is unplugged and has cooled completely.
2. Wipe the soleplate and outer surfaces with a soft cloth dampened with water.

3. Add mild household detergent. Never use abrasives, heavy-duty cleansers, vinegar or scouring pads that may scratch or discolor the iron.

4. After cleaning, steam iron over an old cloth to remove any residue from the steam vents. AUTO CLEAN SYSTEM

To keep the steam vents free of any buildup, about once a month follow these instructions.
1. Fill the water tank well below the MAX line. Plug in the iron.
2. Turn the fabric-selection dial to 6 and stand the iron on its heel rest. Allow it to heat
3. Turn fabric selection dial to 0, unplug the iron and hold over a sink with the soleplate facing down.

1. Press and hold the AUTO CLEAN button. Be careful, as after several seconds, hot water and steam will come out of the steam vents (L). Continue to hold the AUTO CLEAN button until all the water has emptied. If necessary, rock iron side to side and front to back.
2. When finished, release the button, stand the iron on its heel rest and plug it in.
3. Heat the unit for about 2 minutes to dry out any remaining water.

STORING YOUR IRON

1. Unplug the iron and allow it to cool.
2. Check that the selector is set to 0.
3. Press and hold the cord reel button to retract the cord (M).
4. Store vertically on its heel to prevent water leaking from the soleplate.

IMPORTANT MISES EN GARDE

For service, repair or any questions regarding your appliance, call the appropriate "800" number on the cover of this book. Do not return the product to the place of purchase. Do not mail the product back to the manufacturer nor bring it to a service center. You may also want to consult the website listed on the cover of this manual.

One-Year Limited Warranty

(Appplies only in the United States and Canada)

What does it cover?

• Any defect in material or workmanship; provided; however, Applica's liability will not exceed the purchase price of the product.

For how long?

One year after the date of original purchase.

What will we do to help you?

• Provide you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get service?

• Save your receipt as proof of the date of sale.
• Check our on-line service site at www.prodprotect.com/applica, or call our toll-free number, 1-800-231-9786, for general warranty service.
  If you need parts or accessories, please call 1-800-738-0245.

What does your warranty not cover?

• Damage from commercial use
• Damage from misuse, abuse or neglect
• Products that have been modified in any way
• Products used or serviced outside the country of purchase
  Glass parts and other accessory items that are packed with the unit
• Shipping and handling costs associated with the replacement of the unit
• Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)

How does state law relate to this warranty?

• This warranty gives you specific legal rights, and you may also have other rights that vary from state to state or province to province.

;NECESITA AYUDA?

Electromechanics, S.A.

San Jose, Costa Rica

Tel.: [phone]

223-0136

Ecuador

City Market Nivel Plaza

Local 153

Diagonal Hotel Melia,

Caracas.

Tel. [phone]

www.aplica-latam.com

[e-mail]

Col. Chapultepec Morales, Mexico D.F

Deleg. Miguel Hidalgo

CP 11570

MEXICO

Copyright © 2008 Applica Consumer Products, Inc.

Made in People's Republic of China Printed in People's Republic of China
