USER MANUAL EM4610 Eminent

EM4610 WiFi Travel Reader

Table of contents

1.0 Introduction ......3
2.0 (EN) Interface & LED Indicator description 3
3.0 (EN) Installation....4

3.1 Secure your connection .... 4

4.0 (EN) How to use the Travel Reader Storage Function to stream files.... 5
5.0 (EN) Download files to your iPhone, iPad or iPod 6
6.0 (EN) Upload pictures and movies to the Travel Reader 6
2.0 (NL) Omschrijving van de aansluitingen en de LED's.... 7
3.0 (NL) Installatie 7

3.1 Beveilig uw verbinding 8

Congratulations with the purchase of this high-quality Eminent product! This product has undergone extensive testing by Eminent's technical experts. Should you experience any problems with this product, you are covered by a five-year Eminent warranty. Please keep this manual and the receipt in a safe place.

Register your product now on www.eminent-online.com and receive product updates!

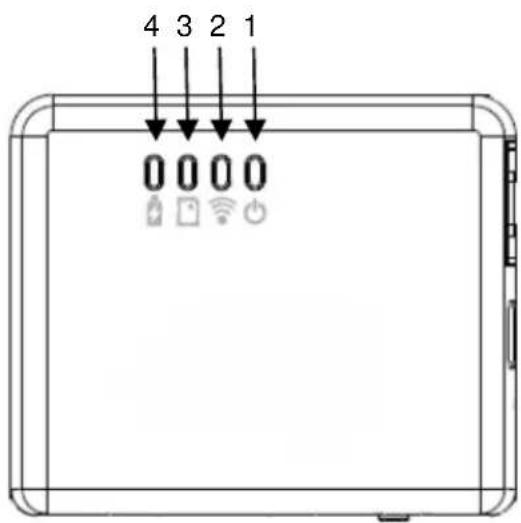

2.0 (EN) Interface & LED Indicator description

4 3 2 1 0 0 0 0

1) Power LED green : the power is on
1) Power LED orange : battery is low
2) WiFi LED blue : Wireless LAN is working
3) Access LED green : media access
4) Battery Charger LED red : battery is charging (turns off when fully charged)

Diagram of a device rear panel with internal socket and port layout (no text or labels)

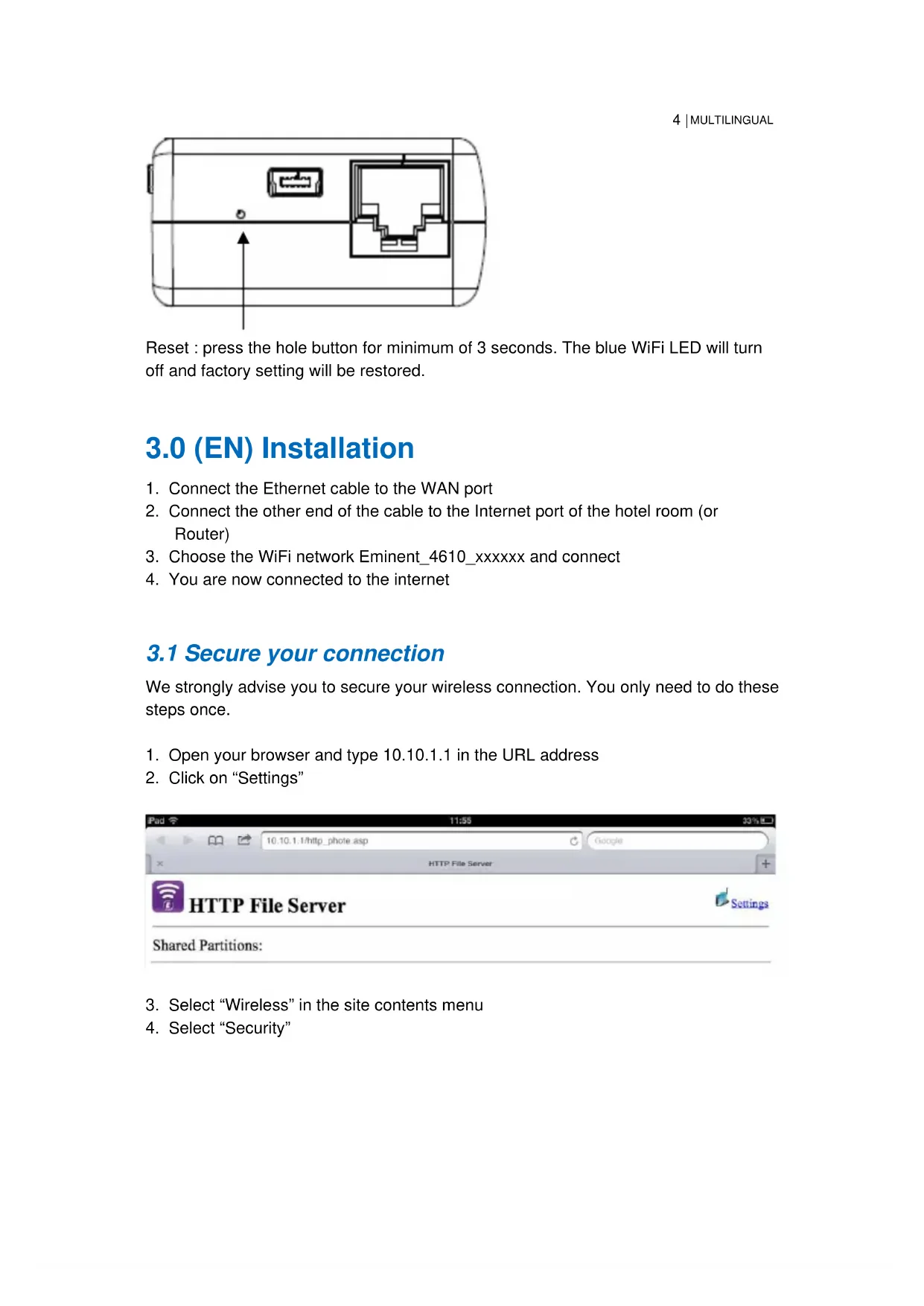

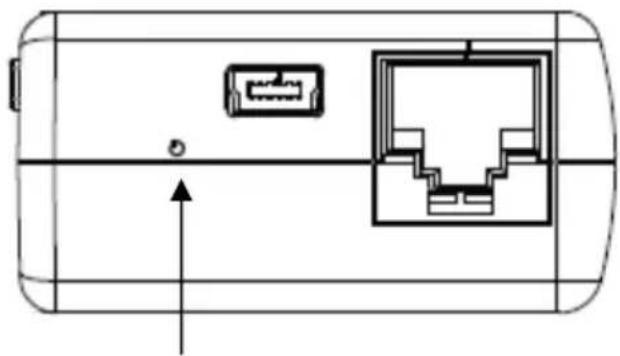

Reset : press the hole button for minimum of 3 seconds. The blue WiFi LED will turn off and factory setting will be restored.

3.0 (EN) Installation

1. Connect the Ethernet cable to the WAN port
2. Connect the other end of the cable to the Internet port of the hotel room (or Router)
3. Choose the WiFi network Eminent_4610_xxxxxx and connect
4. You are now connected to the internet

3.1 Secure your connection

We strongly advise you to secure your wireless connection. You only need to do these steps once.

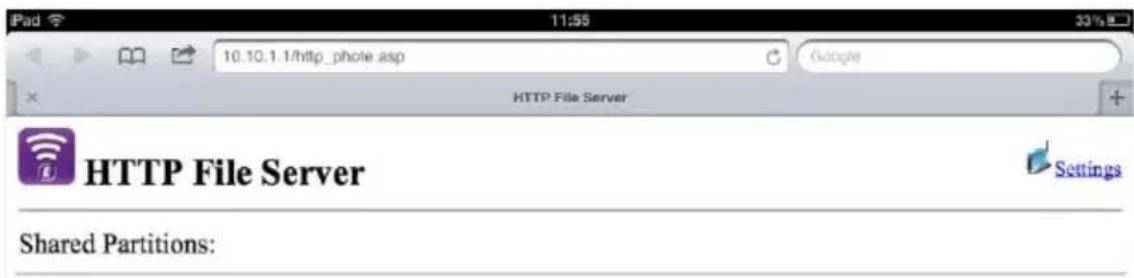

1. Open your browser and type 10.10.1.1 in the URL address
2. Click on "Settings"

iPad 11:55 33% 10.10.1.1/http_photo.asp Google HTTP File Server HTTPS HTTPS File Server Settings Shared Partitions:

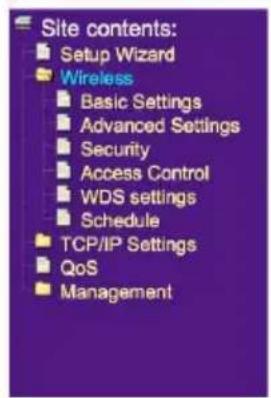

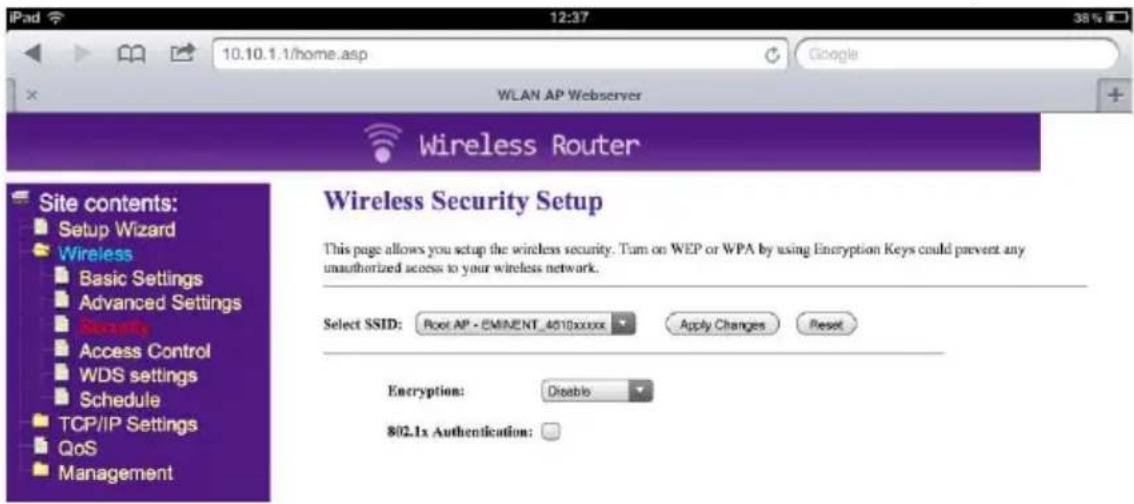

1. Select "Wireless" in the site contents menu
2. Select "Security"

iPad 12:37 10.10.1.1/home.asp WLAN AP Webserver Wireless Router Site contents: Setup Wizard Wireless Basic Settings Advanced Settings Security Access Control WDS settings Schedule TCP/IP Settings QoS Management Wireless Security Setup This page allows you setup the wireless security. Turn on WEP or WPA by using Encryption Keys could prevent any unauthorized access to your wireless network. Select SSID: Root AP - EMENT_4510xxxxx Apply Changes Reset Encryption: Disable $02.1x Authentication:

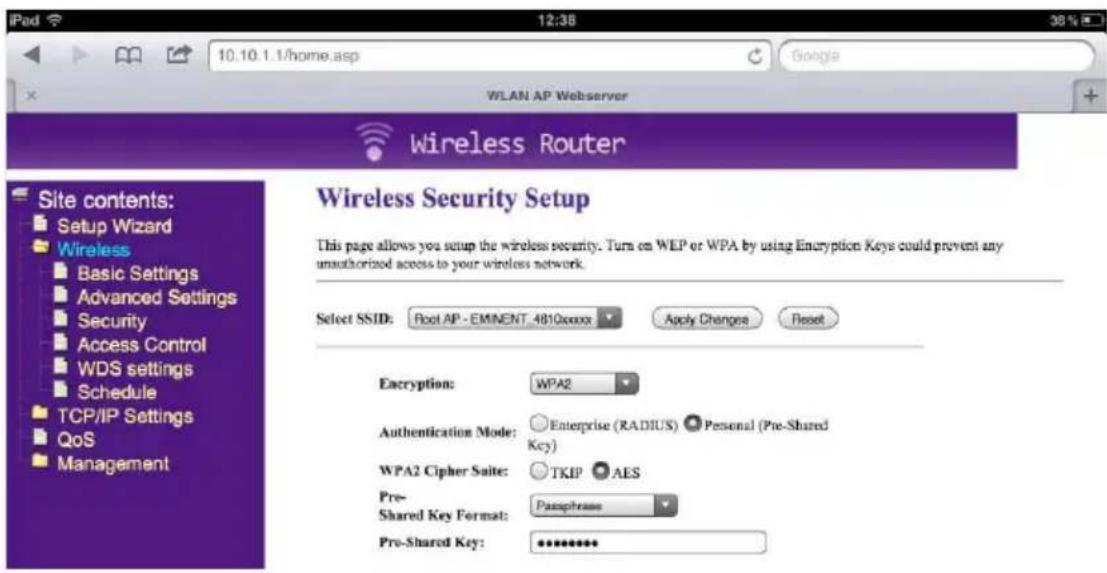

1. Select Encryption and choose "WPA2"
2. Type your password in the "Pre-Shared Key"

iPad 12:36 10.10.1.1/home.asp WLAN AP Webserver Wireless Router Site contents: Setup Wizard Wireless Basic Settings Advanced Settings Security Access Control WDS settings Schedule TCP/IP Settings QoS Management Wireless Security Setup This page allows you setup the wireless security. Turn on WEP or WPA by using Encryption Keys could prevent any unauthorized access to your wireless network. Select SSID: Root AP - EMINENT 4810xxxx Apply Changes Reset Encryption: WPA2 Authentication Mode: Enterprise (RADIUS) Personal (Pre-Shared Key) WPA2 Cipher Suite: TKIP AES Pre- Shared Key Format: Passphrase Pre-Shared Key: **********

1. Press "Apply Changes"
2. Reconnect with the EM4610 Travel Router with your password

4.0 (EN) How to use the Travel Reader Storage Function to stream files

1. Plug in an USB stick or SD card in the Travel Reader (not both at the same time)
2. Install the EMINENT 4610 app from the Apple store
3. Click video's, photos, music or documents to stream them to your device

5.0 (EN) Download files to your iPhone, iPad or iPod

1. Choose "videos" "photos" "music" "documents" or "folder view"
2. Press the "edit" button
3. Select a file

1. Press the button and select "download"

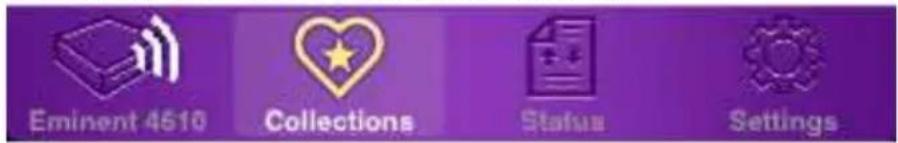

2. Downloaded files can be found under "collections"

Eminent 4610 Collections Status Settings

6.0 (EN) Upload pictures and movies to the Travel Reader

1. Go to "collections"
2. Select "upload from Camera Roll"
3. Select the files you want to upload
4. Press "done" and choose your upload location
5. Press "done"

Please note that you can only access file formats that Apple devices support!

Please check our website www.eminent-online.com for the newest updated manual, drivers and firmware. Also, you will find frequently asked questions in the FAQ section.

Technical line drawing of a device rear panel with internal components and an arrow indicating direction (no text or symbols)

1. Selecteer "Wireless" in het menu
2. Selecteer "Security"

iPad 12:37 10.10.1.1/home.asp WLAN AP Webserver Wireless Router Site contents: Setup Wizard Wireless Basic Settings Advanced Settings Security Access Control WDS settings Schedule TCP/IP Settings QoS Management Wireless Security Setup This page allows you setup the wireless security. Turn on WEP or WPA by using Encryption Keys could prevent any unauthorized access to your wireless network. Select SSID: Root AP - EMIMENT_4510xxxxx Apply Changes Reset Encryption: Disable 8/02.1x Authentication:

iPad 12:38 10.10.1.1/home.asp WLAN AP Webserver Wireless Router Site contents: Setup Wizard Wireless Basic Settings Advanced Settings Security Access Control WDS settings Schedule TCP/IP Settings QoS Management Wireless Security Setup This page allows you setup the wireless security. Turn on WEP or WPA by using Encryption Keys could prevent any unauthorized access to your wireless network. Select SSID: Root AP - EMNENT 4810xxxx Apply Changes Reset Encryption: WPA2 Authentication Mode: Enterprise (RADIUS) Personal (Pre-Shared Key) WPA2 Cipher Suite: TKIP AES Pre- Shared Key Format: Passphrase Pre-Shared Key: **********

Technical line drawing of a device rear panel with internal socket and port layout (no text or symbols)

3.0 (FR) Installation

iPad 11:55 30% 10.10.1 1/http_photo.asp Google HTTP File Server HTTP File Server Settings Shared Partitions:

iPad 12:37 10.10.1.1/home.asp WLAN AP Webserver Wireless Router Site contents: Setup Wizard Wireless Basic Settings Advanced Settings Security Access Control WDS settings Schedule TCP/IP Settings QoS Management Wireless Security Setup This page allows you setup the wireless security. Turn on WEP or WPA by using Encryption Keys could prevent any unauthorized access to your wireless network. Select SSID: Root AP - EMENT_4510xxxxx Apply Changes Reset Encryption: Disable $02.1x Authentication:

iPad 12:36 10.10.1.1/home.asp WLAN AP Webserver Wireless Router Site contents: Setup Wizard Wireless Basic Settings Advanced Settings Security Access Control WDS settings Schedule TCP/IP Settings QoS Management Wireless Security Setup This page allows you setup the wireless security. Turn on WEP or WPA by using Encryption Keys could prevent any unauthorized access to your wireless network. Select SSID: Root AP - EMINENT 4810xxxx Apply Changes Reset Encryption: WPA2 Authentication Mode: Enterprise (RADIUS) Personal (Pre-Shared Key) WPA2 Cipher Suite: TKIP AES Pre- Shared Key Format: Passphrase Pre-Shared Key: **********

Technical line drawing of a device rear panel with internal components and an arrow indicating direction (no text or symbols)

10.10.1.1/http_photo.asp HTTP File Server HTTP File Server Shared Partitions:

iPad 12:37 10.10.1.1/home.asp WLAN AP Webserver Wireless Router Site contents: Setup Wizard Wireless Basic Settings Advanced Settings Security Access Control WDS settings Schedule TCP/IP Settings QoS Management Wireless Security Setup This page allows you setup the wireless security. Turn on WEP or WPA by using Encryption Keys could prevent any unauthorized access to your wireless network. Select SSID: Root AP - EMINENT_4610xxxxx Apply Changes Reset Encryption: Disable $02.1x Authentication:

iPad 12:38 10.10.1.1/home.asp WLAN AP Webserver Wireless Router Site contents: Setup Wizard Wireless Basic Settings Advanced Settings Security Access Control WDS settings Schedule TCP/IP Settings QoS Management Wireless Security Setup This page allows you setup the wireless security. Turn on WEP or WPA by using Encryption Keys could prevent any unauthorized access to your wireless network. Select SSID: Root AP - EMNENT 4810xxxx Apply Changes Reset Encryption: WPA2 Authentication Mode: Enterprise (RADIUS) Personal (Pre-Shared Key) WPA2 Cipher Suite: TKIP AES Pre- Shared Key Format: Passphrase Pre-Shared Key: *********

Diagram of a device rear panel with internal components and an arrow indicating direction (no text or symbols)

3.0 (DE) Installation

iPad 12:37 10.10.1.1/home.asp WLAN AP Webserver Wireless Router Site contents: Setup Wizard Wireless Basic Settings Advanced Settings Security Access Control WDS settings Schedule TCP/IP Settings QoS Management Wireless Security Setup This page allows you setup the wireless security. Turn on WEP or WPA by using Encryption Keys could prevent any unauthorized access to your wireless network. Select SSID: Root AP - EMENT_4510xxxx Apply Changes Reset Encryption: Disable $02.1x Authentication:

iPad 12:38 10.10.1.1/home.asp WLAN AP Webserver Wireless Router Site contents: Setup Wizard Wireless Basic Settings Advanced Settings Security Access Control WDS settings Schedule TCP/IP Settings QoS Management Wireless Security Setup This page allows you setup the wireless security. Turn on WEP or WPA by using Encryption Keys could prevent any unauthorized access to your wireless network. Select SSID: Root AP - EMINENT 4810xxxx Apply Changes Reset Encryption: WPA2 Authentication Mode: Enterprise (RADIUS) Personal (Pre-Shared Key) WPA2 Cipher Suite: TKIP AES Pre- Shared Key Format: Passphrase Pre-Shared Key: *********

Site contents: Setup Wizard Wireless Basic Settings Advanced Settings Security Access Control WDS settings Schedule TCP/IP Settings QoS Management

Technical line drawing of a device rear panel with internal socket and port layout (no text or symbols)

10.10.1.1/http_photo.asp HTTP File Server HTTP File Server Shared Partitions:

Pad 12:37 10.10.1.1/home.asp WLAN AP Webserver Wireless Router Site contents: Setup Wizard Wireless Basic Settings Advanced Settings Security Access Control WDS settings Schedule TCP/IP Settings QoS Management Wireless Security Setup This page allows you setup the wireless security. Turn on WEP or WPA by using Encryption Keys could prevent any unauthorized access to your wireless network. Select SSID: Root AP - EMINENT_4510xxxxx Apply Changes Reset Encryption: Disable 802.1x Authentication:

iPad 12:38 10.10.1.1/home.asp WLAN AP Webserver Wireless Router Site contents: Setup Wizard Wireless Basic Settings Advanced Settings Security Access Control WDS settings Schedule TCP/IP Settings QoS Management Wireless Security Setup This page allows you setup the wireless security. Turn on WEP or WPA by using Encryption Keys could prevent any unauthorized access to your wireless network. Select SSID: Root AP - EMINENT, 4810xxxx Apply Changes Reset Encryption: WPA2 Authentication Mode: Enterprise (RADIUS) Personal (Pre-Shared Key) WPA2 Cipher Suite: TKIP AES Pre- Shared Key Format: Passphrase Pre-Shared Key: **********

Technical line drawing of a device rear panel with internal components and an arrow indicating direction (no text or symbols)

10.10.1.1/http_photo.asp HTTP File Server HTTP File Server Shared Partitions:

iPad 12:37 10.10.1.1/home.asp WLAN AP Webserver Wireless Router Site contents: Setup Wizard Wireless Basic Settings Advanced Settings Security Access Control WDS settings Schedule TCP/IP Settings QoS Management Wireless Security Setup This page allows you setup the wireless security. Turn on WEP or WPA by using Encryption Keys could prevent any unauthorized access to your wireless network. Select SSID: Root AP - EMENT_4510xxxxx Apply Changes Reset Encryption: Disable $02.1x Authentication:

iPad 12:36 10.10.1.1/home.asp WLAN AP Webserver Wireless Router Site contents: Setup Wizard Wireless Basic Settings Advanced Settings Security Access Control WDS settings Schedule TCP/IP Settings QoS Management Wireless Security Setup This page allows you setup the wireless security. Turn on WEP or WPA by using Encryption Keys could prevent any unauthorized access to your wireless network. Select SSID: Root AP - EMINENT_4810xxxx Apply Changes Reset Encryption: WPA2 Authentication Mode: Enterprise (RADIUS) Personal (Pre-Shared Key) WPA2 Cipher Suite: TKIP AES Pre- Shared Key Format: Passphrase Pre-Shared Key: **********

7.0 Frequently Asked Questions and other related information

The latest Frequently asked questions for your product can be found on the support page of your product. Eminent will update these pages frequently to assure you have the most recent information. Visit www.eminent-online.com for more information about your product.

8.0 Service and support

This users manual has been carefully written by Eminent's technical experts. If you have problems installing or using the product, please fill out the support form at the website www.eminent-online.com/support.

You can also contact us by phone. Below you will find a list with phone numbers for each supported country.

Country	Phone number	Rate per minute*
Belgium (Dutch)	070 277 286 €0.30
Belgium (French)	070 277 286 €0.30
Denmark	[phone] Local Costs
Finland	[phone] Local Costs
Germany	[phone] Local Costs
Italy	[phone] Local Costs
Norway	[phone] Local Costs
Spain	807 080 042 €0.41
Sweden	[phone]	Local Costs
The Netherlands	0900-3646368 €0.45
UK	[phone]	Local Costs
Hungary	1-4088902 (From Budapest)	Local Costs
Hungary	06-1-4088902 (From the rest of Hungary)	Local Costs
Hungary	[phone] (International)	Local Costs

* Rates mentioned in this table do not include cell phone charges.

9.0 Warning and points of attention

Due to laws, directives and regulations set out by the European parliament, some (wireless) devices could be subject to limitations concerning its use in certain

European member states. In certain European member states the use of such devices could be prohibited. Contact your (local) government for more information about this limitations.

Always follow up the instructions in the manual*, especially where it concerns devices which need to be assembled.

Warning: In most cases this concerns an electronic device. Wrong/improper use may lead to (severe) injuries!

Repairing of the device should be done by qualified Eminent staff. The warranty immediately voids when products have undergone self repair and/or by misuse. For extended warranty conditions, please visit our website at www.eminent-online.com/warranty.

*Tip: Eminent manuals are written with great care. However, due to new technological developments it can happen that a printed manual does not longer contain the most recent information.

If you are experiencing any problems with the printed manual or you can not find what you are looking for, please always check our website www.eminent-online.com first for the newest updated manual.

Also, you will find frequently asked questions in the FAQ section. It is highly recommended to consult the FAQ section. Very often the answer to your questions will be found here.

10.0 Warranty conditions

The five-year Eminent warranty applies to all Eminent products unless mentioned otherwise before or during the moment of purchase. When having bought a second-hand Eminent product the remaining period of warranty is measured from the moment of purchase by the product's first owner. The Eminent warranty applies to all Eminent products and parts inextricably connected to and/or mounted on the main product. Power supply adapters, batteries, antennas and all other products not integrated in or directly connected to the main product and/or products of which, without reasonable doubt, can be assumed that wear and tear show a different pattern than the main product are not covered by the Eminent warranty. Products are not covered by the Eminent warranty when subjected to incorrect/improper use, external influences and/or when opened by parties other than Eminent.

11.0 Declaration of Conformity

To ensure your safety and compliance of the product with the directives and laws created by the European Commission you can obtain a copy of the Declaration of

Conformity concerning your product by sending an e-mail message to: [e-mail]. You can also send a letter to:

Eminent Europe BV

PO Box 276

6160 AG Geleen

The Netherlands

Clearly state ‘Declaration of Conformity’ and the article code of the product of which you would like to obtain a copy of the Declaration of Conformity.

EMINENT

WWW.EMINENT-ONLINE.COM

Trademarks: all brand names are trademarks and/or registered trademarks of their respective holders.

The information contained in this document has been created with the utmost care. No legal rights can be derived from these contents. Eminent cannot be held responsible, nor liable for the information contained in this document.

Eminent is a member of the Intronics Group
