DO9016J - Juicer DOMO - Free user manual and instructions

Product type	Juice extractor
Brand	DOMO
Model	DO9016J
Power supply voltage	230 V
Power	300 W (estimated)
Juice container capacity	1 L (estimated)
Main material	Plastic and stainless steel (filter)
Start-up	Automatic by pressing on the cone
Pulp adjustment	Yes, by selecting a pellet (small for less pulp, large for more)
Maximum continuous use duration	1 minute
Cleaning of accessories	With hot water immediately after use, do not put in dishwasher
Cleaning of the motor block	Slightly damp soft cloth
Weight	1.5 kg (estimated)
Dimensions (L x W x H)	25 x 20 x 30 cm (estimated)
Warranty	2 years
Included accessories	2 pressing cones, filter, juice container, lid
Spare parts available	Yes, online on Domo website
Use	Household, for fruits
Child safety	Can be used by children over 8 years old under supervision
Environmental instructions	Do not dispose with household waste, recycle at collection point

Frequently Asked Questions - DO9016J DOMO

How to use the DO9016J juice extractor?

Place the juice container on the support axis, then attach the pressing cone. Cut the fruits in half, plug in the appliance and press the fruit onto the cone: the motor starts automatically. The juice flows into the container. To stop, remove the fruit.

How to adjust the amount of pulp in the juice?

The filter has two pellets: use the small pellet for juice with little pulp, and the large pellet for juice richer in pulp.

Can I use the appliance for more than one minute at a time?

No, it is recommended not to use the appliance for more than one minute without interruption.

How to clean the accessories after use?

Clean the pressing cone and filter immediately with hot water to prevent the pulp from drying. Never put them in the dishwasher and do not use abrasive sponges or scouring powder.

Can I clean the motor block with water?

No, the motor block and the cord should never be immersed in water. Clean them with a slightly damp soft cloth.

What to do if the power cord is damaged?

The cord must be replaced by the manufacturer, its after-sales service or a qualified person to avoid any accident.

What is the warranty period of the extractor?

DOMO grants a 2-year warranty from the date of purchase, covering manufacturing defects. Keep your receipt.

Can I use the appliance to press vegetables?

The manual indicates that the appliance is intended for pressing fruits. It is not specified for vegetables, but you can probably press them if they are soft.

Is the appliance suitable for children?

The appliance can be used by children over 8 years old under supervision, but cleaning should only be done by children over 8 years old under supervision as well.

Where can I buy accessories or spare parts?

You can order authentic Domo accessories and parts online from the official Domo website.

USER MANUAL DO9016J DOMO

PRODUCT OF LINEA 002

GARANTIEVOORWAARDEN

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

Type nr. apparatus

N^ de modulo de l'appareil DO9016J

Type nr des Gerätes

Type nr. of appliance

Naam

Nom

Name

Name

Adres

Adresse

Adresse

Address

Aankoopdatum

Date d'achat

Kaufdatum

Date of purchase

RECYCLAGE-INFORMATIE

RECYCLING INFORMATIONEN

RECYCLING INFORMATION

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat package ecologically.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

OPGEPAST! HET IS ABSOLUUT NOODZAKELIJK DAT U DE GEBRUIKSAANWIJZING AANDachtIG LEEST ALVORENS UW TOESTEL TE GEBRUIKEN.

VEILIGHEIDSVOORSCHRIFTEN

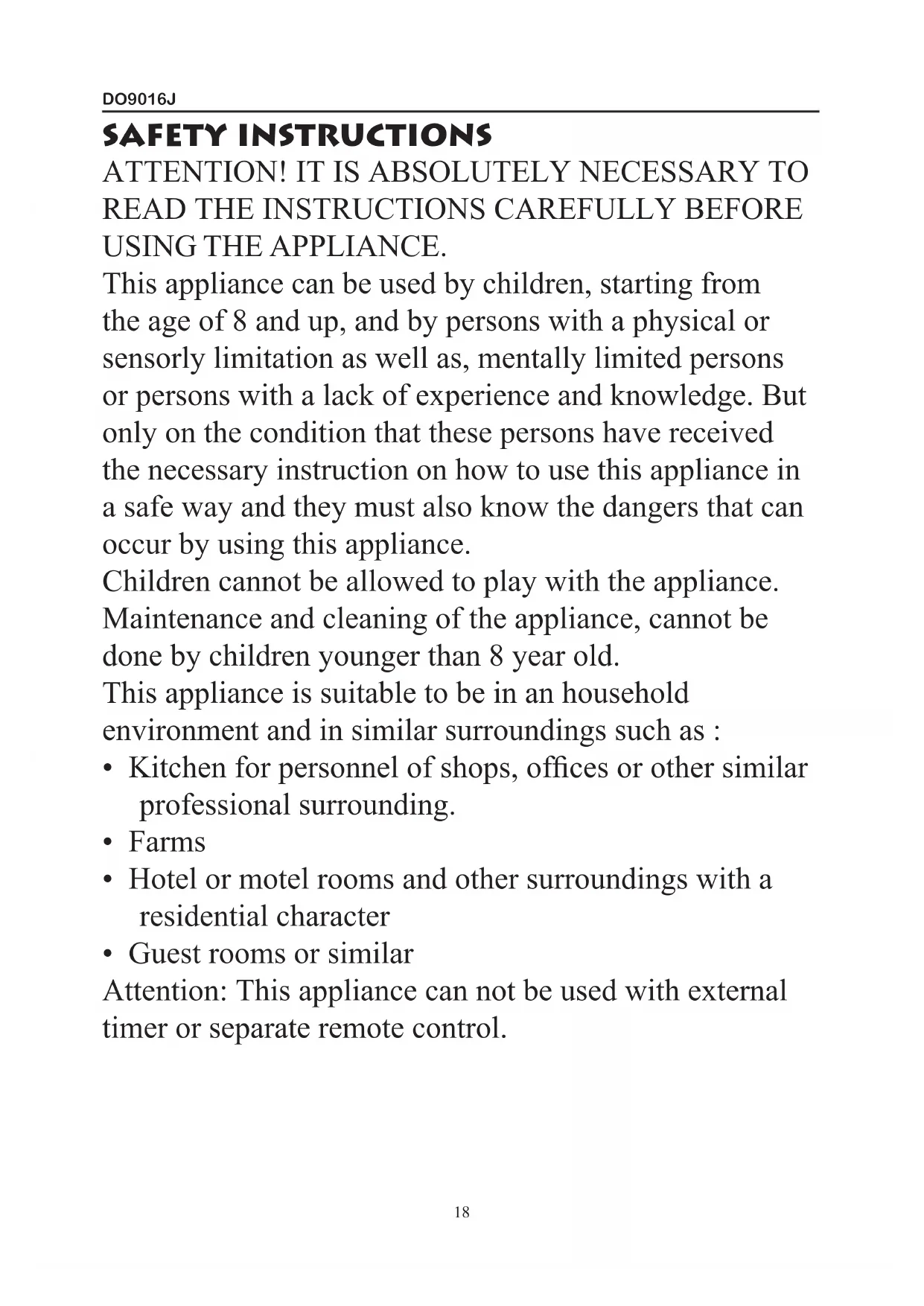

This appliance can be used by children, starting from the age of 8 and up, and by persons with a physical or sensorly limitation as well as, mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instruction on how to use this appliance in a safe way and they must also know the dangers that can occur by using this appliance.

Children cannot be allowed to play with the appliance. Maintenance and cleaning of the appliance, cannot be done by children younger than 8 year old.

This appliance is suitable to be in an household environment and in similar surroundings such as :

• Kitchen for personnel of shops, offices or other similar professional surrounding.
  Farms
• Hotel or motel rooms and other surroundings with a residential character
  Guest rooms or similar

Attention: This appliance can not be used with external timer or separate remote control.

KEEP TO THE SAFETY REGULATIONS

During the use of electrical appliances it is necessary to respect the safety regulations.

• Only use this appliance with a 230V current. Check the current of the appliance by looking at the rating label at the bottom of the unit, before using the appliance. The unit can only be connected to an electricity grid of which the installation is conform with the safety regulations.
• Special safety measurements need to be taken when the unit is used near children.
• Unplug the unit after every use.
• Don't use the appliance when it malfunctions or is damaged, when the plug or cord are damaged, or when the unit has been dropped or has come in contact with water. Return the unit to the store or to an after sales service center for repair.
• Don't ever use accessories not recommended by the manufacturer. This may result in electrocution or damage to the appliance.
• The use of not recommended accessories will result in the cancellation of the warranty.
• Don't use the appliance outdoors.
• Don't let the power cord hang over the corners of a table or counter top. Don't place the cord near or on a hot surface.
• Don't place the unit near a cooking plate or oven.

• Don't ever turn off the unit by pulling the power cord.

• This appliance is meant for household use only and can only be used for squeezing out fruits. This unit is not meant for professional use.

• Don't ever immerse the unit, the cord or plug into water.
• To prevent all accidents you should let a damaged cord be replaced by the factory, his after sales service or a qualified person.
• All damages as a result of not following the safety regulations will cancel the warranty.
• Don't use the unit for longer than 1 minute at a time.

SAVE THIS INSTRUCTION BOOKLET

BEFORE FIRSTUSE

Wash the removable parts of the appliance in warm water: the lid, the press cones, the filter and the juice bowl.

USE

Place the juice bowl on the shaft on the base and turn the juice bowl clockwise until it is locked.

Now place the filter with the desired press cone on the shaft.

Plug in the unit.

Slice the fruit in two.

Press the fruit on the cone. The motor will start automatically when the cone is pressed.

The juice will flow into the juice bowl. You can determine the amount of pulp in the juice by adjusting the filter, small bullet for little pulp, large bullet for much pulp.

Disconnect the unit after use and clean the cone and the filter.

Use the juice bowl to pour the juice into glasses.

CLEANING

Clean the accessories in warm water immediately after every use, to remove the pulp. When the pulp dries up it will be much harder to remove. Never clean the accessories in the dishwasher or use a scouring sponge or abrasive cleaner.

Clean the base and the electrical cord with a soft, moist cloth.

Never immerse these parts of the appliance in water or any other liquid.

Store the plug and the cord.

Place the lid back on the unit before storing.
