DO9096W - Scale DOMO - Free user manual and instructions

Product type	Kitchen scale
Brand	Domo
Model	DO9096W
Power supply	2 AAA batteries (not included)
Measurement units	grams (g), ounces (oz), carats (ct), pennyweight (dwt)
Tare function	Yes, via the TARE button
Counting function	Yes, via the PCS button (sample count selection: 25, 50, 75, 100)
Backlight	Yes, can be turned on/off via the LIGHT button
Power on	ON/OFF button
Warranty	2 years (according to the manual conditions)
Usage	Domestic and similar (staff kitchens, farms, hotels, etc.)
Safety	Do not use by persons with reduced capacities without supervision; keep out of reach of children
Recycling	Do not dispose of with household waste; take to a collection point for electrical appliances
Batteries	Removable; remove before disposal; recycle in accordance with local regulations
Maintenance	Wipe with a soft, dry cloth; do not immerse in water
Spare parts	Not specified; contact after-sales service

Frequently Asked Questions - DO9096W DOMO

How to turn on the scale?

Press the ON/OFF button to turn the device on or off. Wait a few seconds until it starts.

How to change the measurement unit?

Press the UNITS button several times to toggle between grams, ounces, carats, and pennyweight.

How to use the tare function?

Place an empty container on the scale, then press the TARE button to reset to zero. Then add the item to be weighed.

How to use the counting mode?

Place a known number of objects (sample) on the scale, press PCS for 2 seconds. The display shows '25', use UNITS to select 50, 75, or 100, then confirm with PCS. The scale will then count identical objects.

What to do if the screen shows nothing?

Check that the batteries are correctly installed and not depleted. Replace both AAA batteries if necessary.

How to replace the batteries?

Slide the latch on the back of the device in the direction of the arrow to open the compartment. Replace both AAA batteries respecting polarity.

How to clean the scale?

Use a soft, dry cloth to clean the surface. Never use abrasive products or solvents. Do not immerse the scale in water.

Can I weigh liquids?

Yes, but use a suitable container and the TARE function to subtract the container weight. Avoid any spillage on the scale.

Is the scale under warranty?

Yes, the product has a 2-year warranty from the date of purchase, covering manufacturing defects. The warranty does not apply in case of improper use or repair by an unauthorized person.

How to recycle the scale at end of life?

Do not throw the scale away with household waste. Remove the batteries and take the device to a collection point for electrical and electronic equipment (container park, specialized store). Recycle the batteries in accordance with local regulations.

USER MANUAL DO9096W DOMO

Silver Domo Max 2X8e-5.019 digital camera with visible lens and control panel (no text or symbols on device body)

Handleiding PRECISIEWEEGSCHAAL

Mode d'emploi BALANCE DE PRÉCISION

Gebrauchsanleitung PRÄZISIONSWAAGE

Instruction booklet PRECISION SCALE

Návod na použitie LABORATORNÍVÁHA

GARANTIEVOORWAARDEN

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures which are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The warranty will only be valid if the warranty application has been completed by the dealer at the time of purchase. All parts, which are subject to wear, are excluded from the warranty.

REKLAMACE : (VYPLNÍ ZÁKAZNÍK NEBO OBCHOD)

Close-up of a battery pack with two batteries and a ventilation grille, no visible text or symbols

MILIEURICHTLIJNEN

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed out by two crossed lines, representing no waste or discharge (no text present)

Close-up of a battery pack with indicator lights and a control panel (no readable text or symbols)

MISE AU REBUT

Prohibition sign for a trash bin with crossed and unexposed lines, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

Close-up of a gray electronic device with two batteries and a ventilation grille (no visible text or symbols)

ENTSORGEN

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed out by two crossed lines, representing no waste or discharge (no text or numbers present)

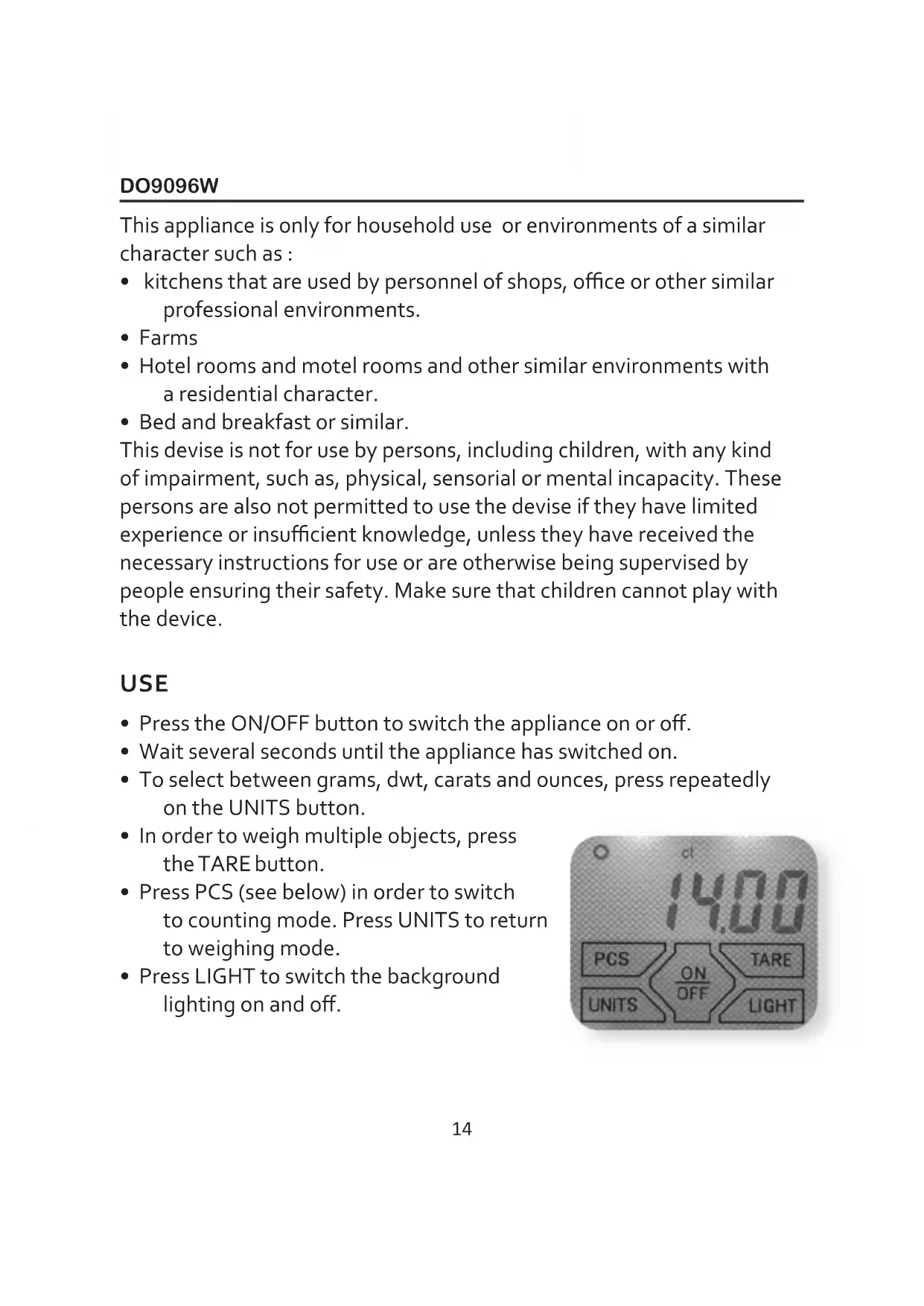

This appliance is only for household use or environments of a similar character such as :

• kitchens that are used by personnel of shops, office or other similar professional environments.
• Farms
• Hotel rooms and motel rooms and other similar environments with a residential character.
  • Bed and breakfast or similar.

This devise is not for use by persons, including children, with any kind of impairment, such as, physical, sensorial or mental incapacity. These persons are also not permitted to use the devise if they have limited experience or insufficient knowledge, unless they have received the necessary instructions for use or are otherwise being supervised by people ensuring their safety. Make sure that children cannot play with the device.

USE

• Press the ON/OFF button to switch the appliance on or off.
• Wait several seconds until the appliance has switched on.
• To select between grams, dwt, carats and ounces, press repeatedly on the UNITS button.

• In order to weigh multiple objects, press the TARE button.

- Press PCS (see below) in order to switch to counting mode. Press UNITS to return to weighing mode.

- Press LIGHT to switch the background lighting on and off.

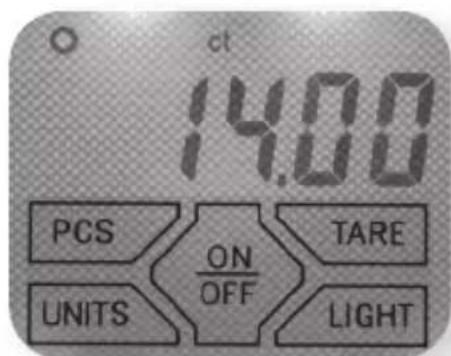

ct 14:00 PCS UNITS ON OFF TARE LIGHT

COUNTING

• Place a number of objects on on the scale and hold the PCS button in for 2 seconds.
• The display shows "25". By pressing the "unit" button you can select another quantity: 50, 75, 100.
• Press the PCS button to confirm the proposed quantity.
• Press the UNITS button to return to weighing mode.

BATTERIES

- In order to replace the batteries, slide off the battery cover on the rear of the appliance in the direction shown on the arrow, and replace the two AAA-batteries.

Close-up of a battery pack with indicator lights and a 'OPEN' button (no readable text or symbols beyond basic markings)

ENVIRONMENTAL GUIDELINES

Prohibition sign for a trash bin with crossed and unexposed lines, indicating no waste or discharge.

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste

handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

REMOVABLE BATTERY

Symbol of a trash bin crossed out by two diagonal lines, representing no waste or discharge (no text or numbers present)

The appliance is battery-operated, and the battery must not be disposed of with household waste, even after use. You can take the appliance to a collection point for discarded electrical appliances (Recupel) in your neighbourhood (container park, specialist shop, etc.). Batteries contain substances that are dangerous to human health and to the environment.

Remove the battery from the appliance before disposal as described in this manual. Recycle the battery in accordance with local laws and

regulations. Never pierce the battery or expose it to high temperatures; this may cause the battery to explode.

Battery leakage may occur under extreme conditions. If the liquid from the battery comes into contact with the skin, immediately wash it off with soap and water or neutralise it with a mild acid such as lemon juice or vinegar. If the liquid comes into contact with the eyes, rinse them abundantly with water for at least 10 minutes and contact a doctor.

Close-up of a battery pack with two batteries and a ventilation grille (no visible text or symbols)

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Prohibition sign with crossed-out trash bin and no text, indicating no waste or discharge

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed out by diagonal lines, representing no waste or discharge (no text or numbers present)

VYJÍMATELNÉ/VYMĚNITELNÉ BATERIE
