USER MANUAL DO9099W DOMO

natural_image Digital double-tread digital measuring device with black LCD screen and beige buttons (no visible text or symbols)

GARANTIEVOORWAARDEN

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The warranty will only be valid if the warranty application has been completed by the dealer at the time of purchase. All parts, which are subject to wear, are excluded from the warranty.

ZÁRUKA

RECYCLAGE-INFORMATIE

natural_image Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

RECYCLING INFORMATIONEN

natural_image Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

RECYCLING INFORMATION

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat package ecologically.

DOMO DO9099W - RECYCLING INFORMATION - 1

natural_image Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

DOMO DO9099W - RECYCLING INFORMATION - 2

INFORMACE O RECYKLACI ODPADU

natural_image Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

VEILIGHEIDSINSTRUCTIES

natural_image Simple line drawing of a U-shaped pipe fitting with two circular ends (no text or symbols)

GEBRUIK VAN DE WEEGSCHAAL ZONDER METING

natural_image Simple line drawing of a U-shaped pipe fitting with two handles (no text or symbols)

UTILISATION DE LA BALANCE SANS MESURES

bar_stacked | Gender | Age Group | Trop mince (%) | Mince (%) | Normal (%) | Surpoids (%) | |--------|-----------|----------------|---------|----------|--------------| | Femme | ≤ 30 | ~15% | ~10% | ~20% | ~15% | | Femme | > 30 | ~15% | ~10% | ~20% | ~15% | | Homme | ≤ 30 | ~10% | ~15% | ~20% | ~15% | | Homme | > 30 | ~10% | ~15% | ~20% | ~15% |

MESSAGES D'ERREUR

Lo

Indication de surcharge

natural_image Simple line drawing of a U-shaped pipe fitting with two circular ends (no text or symbols)
bar_stacked | Gender | Alter Count | Fett % | |--------|-------------|--------| | Frau | ≤ 30 | ~15% | | Frau | > 30 | ~20% | | Mann | ≤ 30 | ~15% | | Mann | > 30 | ~20% |

FEHLERMELDUNGEN

Lo

This appliance may be used by children from the age of 8 and up, and also by persons with a physical or sensory limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance.

Children cannot be allowed to play with the appliance. Maintenance and cleaning of the appliance may not be done by children, unless they are older than 8 years old and are under supervision.

Keep the appliance out of reach of children younger than 8 years old.

This appliance is suitable to be used in a household environment and in similar surroundings such as:

  • Kitchen for personnel of shops, offices or other similar professional surroundings
  • Farms
  • Hotel or motel rooms and other surroundings with a residential character
  • Guest rooms or similar

TO AVOID THE RISK OF FIRE OR INJURY DURING THE USE OF THE APPLIANCE, FOLLOW THE BASIC PRECAUTIONS, INCLUDING THE FOLLOWING:

  • Do not use the appliance near water, in a damp basement or near a pool. Always remove your shoes and socks before stepping on top of the scale. Also clean the soles of your feet. Always step carefully onto the scale. Always use the appliance on a flat surface.
  • The results of the body fat and hydration measurements are for reference use only. We do not recommend using this scale for medical ends. Always consult your doctor for advise concerning medication or diet to obtain a normal body weight.
  • The results may be misleading after intensive exercise, a strict diet or under serious dehydration.

  • The results may also deviate for the following persons:

  • Kids younger than 10 years old or adults older than 70 years old. In these cases the scale can only be used in normal mode.
    • Bodybuilding athletes or other professional athletes

- People with a pacemaker or another electronic, medical implant should not use this scale. The operation of the implant could be disturbed.

- The scale can not be used by pregnant women, people with symptoms of oedema and people that are being treated with dialysis.

- To prevent your scale from malfunctioning, do not use the scale near appliances that produce a strong magnetic field. Always keep enough distance between the scale and these appliances or turn off these appliances before using the scale.

- It is very dangerous to step onto the scale when the platform is wet. The scale would be slippery, with a high risk to slip.

INTRODUCTION

This appliance is specially designed for measuring your body fat percentage, hydration percentage, body muscle and body bone and for calculating your recommended calorie intake. This way you can monitor your body fat and hydration, your muscles, bone mass and weight on a daily basis. Based on the analysis of your height, weight and age, the scale will tell you your daily energy needs so you can control your weight.

OPERATION

The human body is slightly electrically charged. By standing on the metal electrodes of the weighing platform, a light electrical charge will be sent through the body. By determining the amount of resistance this charge receives, the percentages of fat, hydration, muscle and bone can be measured.

CALORIES

Calorie = energy unit

The scale also displays a number that indicates the amount of calories your body should receive every day. If you combine your calorie intake with exercise, this can be an effective way to lose weight. This is quite a simple theory. If your daily calorie intake can not support your energy use, the body will take energy from stored carbohydrates and fats, which leads to weight loss.

PREPARATION

Place a 1 x 3V (CR2032) battery into the compartment at the bottom of the scale. Place the scale on a dry, flat and solid surface. Avoid carpet or an uneven surface.

DOMO DO9099W - PREPARATION - 1

LCD DISPLAY

DOMO DO9099W - LCD DISPLAY - 1

text_image user gender hydration % fat% / muscle% / bone% indication weight level CODE 18 00.00.00 cm AGE height age KCAL st:lb kg% weighing unit calories

CHOOSING THE WEIGHING UNIT

At the bottom of the scale you can select the weighing unit kg or lb. Turn on your scale. Turn it over and press the button next to the battery compartment. Kg or lb will appear on the display, below the weight indication.

DOMO DO9099W - CHOOSING THE WEIGHING UNIT - 1

natural_image Simple line drawing of a U-shaped pipe fitting with two circular ends (no text or symbols)

USING THE SCALE WITHOUT MEASUREMENTS

  1. Briefly stand on the scale to turn it on.
  2. Step onto the scale again.
  3. Once the scale has determined your weight, the numbers will start blinking.

SEQUENTIAL ADDITIONAL WEIGHING

Once you have determined your weight, it is possible to determine additional weight without stepping off the scale.

For example:

  • You have measured your weight and you want to weigh an object.
  • Keep standing on the scale and grab the object.
  • The scale will automatically adjust the weight.
  • By subtracting your own weight from the total weight, you are able to determine the weight of the object.

SETTING THE SCALE

Briefly stand on the scale to turn it on. The display will now show 0.0.

- At this point you can start setting parameters for a new user or if you have already set up a user, you can now select the right user memory. You can select the memory by pressing the SET button for a few seconds and by using the up and down arrows.

  • There are 12 memories for 12 different users available.
  • Briefly stand on the scale to confirm the memory selection.

Setting the user memory:

  1. Press the SET button for a few seconds. The number 1 will start blinking.

  2. Press the SET button to adjust this user memory. The standard settings will contain the following values:

Gender: male Height: 165 cm Age: 25

  1. The gender will start blinking. Press the up or down arrow to set the gender to male or female. Press the SET button to

DOMO DO9099W - SETTING THE SCALE - 1

text_image CODE 165 cm

DOMO DO9099W - SETTING THE SCALE - 2

confirm the gender.

  1. Once you confirmed the gender, the height will start blinking. Adjust the height by using the up and down arrows. Press the SET button to confirm the height.

DOMO DO9099W - SETTING THE SCALE - 3

  1. Once you confirmed the height, the age will start blinking. Adjust the age by using the up and down arrows. Press the SET button to confirm the age.

DOMO DO9099W - SETTING THE SCALE - 4

  1. At this point the number 1 will start blinking again. If you would like to set several users, press the down arrow to set the next user. Repeat the steps above. If you are done setting the users, briefly stand on the scale to select the desired memory. You can now start the measurements.

Note: the scopes for the settings of gender, height and age are:

Memory: 1-12

Gender: male / female

Height: 100cm - 250cm

Age: 10 - 100

STARTING THE MEASUREMENTS

Make sure that your feet touch the metal electrodes on the weighing platform.

  1. Briefly stand on the scale to turn it on.

  2. Press the SET button for a few seconds

  3. Select your user memory (the display will always automatically show the previously selected memory).

  4. Briefly stand on the scale to confirm the setting. The display will now show 0.0.

  5. Step on to the scale and wait until the numbers are stabilised. The numbers will blink once, after which you will see symbols moving from the left to the right.

DOMO DO9099W - STARTING THE MEASUREMENTS - 1

text_image 52.8 kg 3% 3% 0000
  1. At this point the results will appear. The results will be repeated 3 times.

DOMO DO9099W - STARTING THE MEASUREMENTS - 2

other | Item | Value (kg) | Percentage (%) | |---|---|---| | 1 | 52.8 | | | 2 | 23.8 | | | 3 | 52.3 | | | 4 | 37.2 | | | 5 | 12.0 | | | 6 | 1840 | |

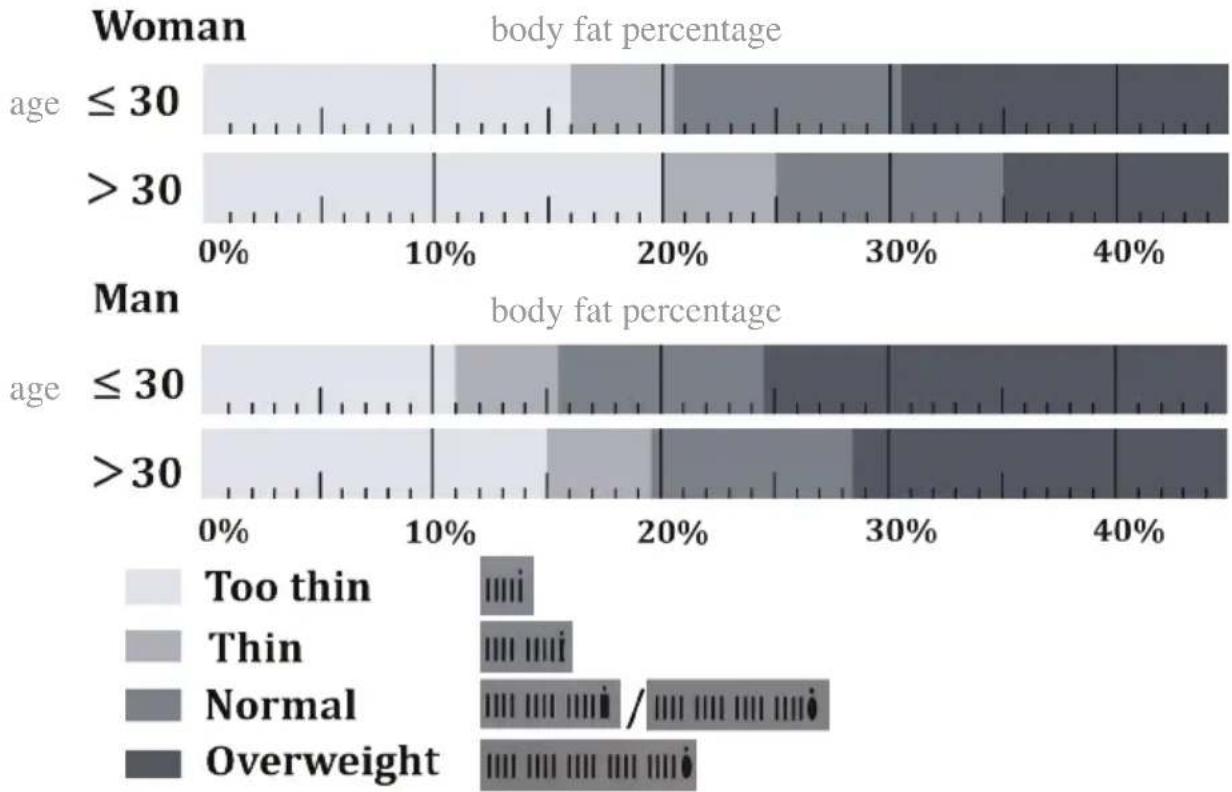

EVALUATION CHART

Use the chart below based on the age and body fat percentage for reference after the weighing.

DOMO DO9099W - EVALUATION CHART - 1

bar_stacked | Age Group | Body Fat Category | Too thin (%) | Thin (%) | Normal (%) | Overweight (%) | |-----------|-------------------|--------------|----------|------------|----------------| | ≤ 30 | Too thin | ~15% | ~10% | ~20% | ~15% | | ≤ 30 | Thin | ~10% | ~15% | ~25% | ~10% | | ≤ 30 | Normal | ~10% | ~15% | ~25% | ~10% | | ≤ 30 | Overweight | ~10% | ~15% | ~25% | ~10% | | > 30 | Too thin | ~10% | ~15% | ~20% | ~15% | | > 30 | Thin | ~10% | ~15% | ~20% | ~15% | | > 30 | Normal | ~10% | ~15% | ~20% | ~15% | | > 30 | Overweight | ~10% | ~15% | ~20% | ~15% |

ERRORS

DOMO DO9099W - ERRORS - 1

text_image 10

Low battery

The battery is almost empty. Please replace the battery.

DOMO DO9099W - Low battery - 1

text_image Err

Overload

The weight on the platform exceeds the maximum capacity of the scale.

DOMO DO9099W - Overload - 1

text_image Errl

Low body fat percentage

The body fat percentage is too low. An adjusted diet is recommended.

DOMO DO9099W - Low body fat percentage - 1

text_image Errh

High body fat percentage

The body fat percentage is too high. An adjusted diet is recommended.

DOMO DO9099W - High body fat percentage - 1

Retest

There has been an error. Please start over to obtain a correct result.

CLEANING AND MAINTENANCE

  • Clean the scale with a damp cloth only. Make sure that it is not possible for water to enter the scale through the metal electrodes.
  • Do not use any chemical or abrasive cleaning products.
  • Stand still during weighing.
  • The glass surface of the scale can be slippery when wet, keep the surface dry.
  • Do not shock or drop the scale.
  • Be careful with the scale, as it is a precision instrument.
  • Keep the scale in a cool, dry place.
  • Make sure that the scale is always in a horizontal position.
  • If you can not turn on the scale, check the battery and install a new one if necessary.
  • If the scale displays an error or if it does not shut down automatically after a longer period of time, remove the battery for approximately 3 seconds and put it back. If the problem is not solved this way, please contact your supplier.
  • Do not use for commercial ends.

DŮLEŽITÉ

natural_image Simple line drawing of a U-shaped pipe fitting with two circular ends (no text or symbols)

POUŽÍVÁNÍ VÁHY BEZ MĚŘENÍ
