USER MANUAL MJ3281BCS LG

OWNER’S MANUAL Please read this owner’s manual thoroughly before operating.

LIGHTWAVE CONVECTION MJ3281BC DEUTSCH FRANÇAIS ITALIANO SLOVENSCINA ENGLISH www.lg.com

MFL6716 0155CONTENTS How the Microwave Function Works Microwaves are a form of energy similar to radio, television waves, and ordinary daylight. Normally, microwaves spread outwards as they travel through the atmosphere and disappear without eect.This oven, however, has a magnetron that is designed to make use of the energy in microwaves. Electricity, supplied to the magnetron tube, is used to create microwave energy.These microwaves enter the cooking area through openings inside the oven. A tray is located inside the oven. Microwaves cannot pass through metal walls of the oven, but they can penetrate such materials as glass, porcelain and paper, the materials out of which microwave-safe cooking dishes are constructed.Microwaves do not heat cookware, though cooking vessels will eventually get hot from the heat generated by the food. Your Microwave oven, is one of the safest

of all home appliances. When the door

is opened, the oven automatically stops

producing microwaves. Microwave energy

is converted completely to heat when it

enters food, leaving no “left over” energy

to harm you when you eat your food.

A very safe appliance

IMPORTANT SAFETY INSTRUCTIONS

TECHNICAL SPECIFICATIONS When the oven is not used, it is recommended to unplug it from the electrical socket.

IMPORTANT SAFETY INSTRUCTIONS Important Safety InStructIonS Please keep for future reference. Read and follow all instructions before using your oven to prevent the risk of fіre, electric shock, personal injury, or damage when using the oven. This guide does not cover all possible conditions that may occur. Always contact your service agent or manufacturer about problems that you do not understand. This is the safety alert symbol. This symbol alerts you to potential hazards that can hurt or kill you and others. All safety messages will follow the safety alert symbol with either the word “WARNING” or “CAUTION”. These words mean:This symbol will alert you to hazards or unsafe practices which could cause bodily injury or property damage.This symbol will alert you to hazards or unsafe practices which could cause serious bodily harm or death.

CAUTION WARNING CAUTION WARNING CAUTION WARNING CAUTION

D o not attempt to tamper with, or make any adjustments or repairs to the door, door seals, control panel, safety interlock switches or any other part of the oven which would involve the removal of any cover protecting against exposure to microwave energy. Do not operate the oven if the door seals and adjacent parts of the microwave oven are faulty. Repairs should only be undertaken by a qualified service technician. • Unlike other appliances, the microwave oven is a high-voltage and a high electrical-current piece of equipment. Improper use or repair could result in harmful exposure to excessive microwave energy or an electrical shock. 2

D o not use the oven for the purpose of dehumidification. (For example: Operating the microwave oven with wet newspapers, clothes, toys, electric devices, pet or child etc.) • It can cause serious damage to safety which can result in a fire, burn or sudden death due to an electrical shock.

T he appliance is not intended for use by young children or elderly persons. Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.• Improper use may cause damage such as a fire, electric shock or burn. 4

A ccessible parts may become hot during use. Young children should be kept away.• They may get burnt. 5

L iquids or other foods must not be heated in sealed containers since they are likely to explode.Remove the plastic wrapping from food before cooking or defrosting. Note that in some cases food should be covered with plastic film, for heating or cooking.• They could burst. 6

B e certain to use proper accessories on each operation mode, refer to guide page 9.

• Improper use could result in damage to your oven and accessories, or could cause sparks and a fire.

T he children should not be allowed to play with accessories or hang down from the door handle.• They may get hurt. ENGLISH4

IMPORTANT SAFETY INSTRUCTIONS CAUTION

8 If the door or door seals are damaged, the oven must not be operated until it has been repaired by a

9 It is hazardous for anyone other than a competent person to carry out any service or repair operation

that involves the removal of a cover which gives protection against exposure to microwave energy.

10 When the appliance is operated in the combination mode, children should only use the oven under

adult supervision due to the temperatures generated.

11 The appliance and its accessible parts become hot during use. Care should be taken to avoid touching

heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

1 You cannot operate your oven with the door open due to the safety interlocks built into the door

mechanism. It is important not to tamper with the safety interlocks.

It could result in harmful exposure to excessive microwave energy. (Safety interlocks automatically switch off any

cooking activity when the door is opened.)

2 Do not place any object (such as kitchen towels, napkins, etc.) between the oven front face and the door

or allow food or cleaner residue to accumulate on sealing surfaces.

It could result in harmful exposure to excessive microwave energy.

3 Do not operate your oven if it is damaged. It is particularly important that the oven door closes properly

and that there is no damage to the: (1) door(bent), (2) hinges and latches (broken or loose), (3) door seals

and sealing surfaces.

It could result in harmful exposure to excessive microwave energy.

4 Please ensure cooking times are correctly set, small amounts of food require shorter cooking or heating

Over cooking may result in the food catching on fire and subsequent damage to your oven.

5 When heating liquids, e.g. soups, sauces and beverages in your microwave oven,

Avoid using straight sided containers with narrow necks.

Stir the liquid before placing the container in the oven and again halfway through the heating time.

After heating, let it stand in the oven for a short time; stir or shake it again carefully and check the

temperature of it before consuming to avoid burns (especially, contents of feeding bottles and baby

Be careful when handling the container. Microwave heating of beverages can result in delayed eruptive boiling

without evidence of bubbling. This could result in hot liquids suddenly boiling over.

6 An exhaust outlet is located on the top, bottom or side of the oven. Don’t block the outlet.

It could result in damage to your oven and poor cooking results.

7 Do not operate the oven when empty. It is best to leave a glass of water in the oven when not in use.

The water will safely absorb all microwave energy, if the oven is accidentally started.

Improper use could result in damage to your oven.5 IMPORTANT SAFETY INSTRUCTIONS

Do not cook food wrapped in paper towels, unless your cook book contains instructions for the food

you are cooking. And do not use newspaper in place of paper towels for cooking.

• Improper use can cause an explosion or a fire.

9 Do not use wooden containers and ceramic containers that have metallic (e.g. gold or silver) inlays.

Always remove metal twist ties. Check that the utensils are suitable for use in microwave ovens before

They may heat-up and char. Metal objects in particular may arc in the oven, which can cause serious damage.

10 Do not use recycled paper products.

• They may contain impurities which may cause sparks and/or fires when used in cooking.

11 Do not rinse the tray and rack by placing it in water just after cooking. This may cause breakage or

Improper use could result in damage to your oven.

12 Be certain to place the oven so the front of the door is 8 cm or more behind the edge of the surface on

which it is placed, to avoid accidental tipping of the appliance.

Improper use could result in bodily injury and oven damage.

13 Before cooking, pierce the skin of potatoes, apples or any such fruit or vegetables.

14 Do not cook eggs in their shell. Eggs in their shell and whole hardboiled eggs should not be heated in

microwave ovens since they may explode, even after microwave heating has ended.

Pressure will build up inside the egg which will burst.

15 Do not attempt deep fat frying in your oven.

This could result in a sudden boil over of the hot liquid.

16 If smoke is observed, switch off or disconnect the oven from the power supply and keep the oven door

closed in order to stifle any flames.

It can cause serious damage such as a fіre or electric shock.

17 When food is heated or cooked in disposable containers made of plastic, paper or other combustible

materials, keep an eye on the oven and check it frequently.

Your food may pour due to the possibility of container deterioration, which can also cause a re.

18 The temperature of accessible surfaces may be high when the appliance is operating. Do not touch

the oven door, outer cabinet, rear cabinet, oven cavity, accessories and dishes during grill mode,

convection mode and auto cook operations, before clearing make sure they are not hot.

As they become hot, there is danger of getting burnt unless wearing thick culinary gloves.

19 The oven should be cleaned regularly and any food deposits should be removed.

Failure to maintain the oven in a clean condition could lead to deterioration of the surface.

This could adversely aect the life of the appliance and possibly result in a hazardous situation.

20 Only use the temperature probe recommended for this oven.

You can not ascertain that the temperature is accurate with an unsuitable temperature probe.

IMPORTANT SAFETY INSTRUCTIONS

21 If there are heating elements, the appliance becomes hot during use. Care should be taken to avoid

touching the heating elements inside the oven.

• There is danger of getting burnt.

22 Follow exact directions given by each manufacturer for their popcorn product. Do not leave the oven

unattended while the corn is being popped. If corn fails to pop after the suggested times, discontinue

cooking. Never use a brown paper bag for popping corn. Never attempt to pop leftover kernels.

Overcooking could result in the corn catching re.

23 This appliance must be earthed.

The wires in the mains lead are colored in accordance with the following codes

GREEN & YELLOW ~ Earth

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured

markings identifying the terminals in your plug proceed as follows:

The wire which is colored BLUE must be connected to the terminal which is marked with the letter

N or Colored BLACK. The wire which is colored BROWN must be connected to the terminal which is

marked with the letter L or colored RED. The wire which is colored GREEN & YELLOW or GREEN must

be connected to the terminal which is marked with the letter E or

If the supply cord is damaged, it must be replaced by the manufacturer, a service agent or a similarly

qualified person in order to avoid potential hazards.

Improper use may cause serious electrical damage.

o not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass.

They can scratch the surface, which may result in the glass shattering.

his oven should not be used for commercial catering purposes.

Improper use could result in damage to your oven.

f the supplied flexible mains cord of this appliance is damaged, it must be replaced using the special

mains cord part number: 6411W1A017 This appliance is supplied with BS 1363 approved 13 Amp

fused mains plug. When replacing the fuse always use a 13 Amp BS 1362 approved type. Never use

this plug with the fuse cover omitted. To obtain a replacement fuse cover contact your supplying

dealer or LG Electronics U.K. LTD.

If the mains sockets in your home differ, or are not suitable for the type of plug supplied then the plug

should be removed and a suitable type fitted.

If the mains plug becomes severed from the mains lead it must be destroyed. A mains plug with bared

wires is hazardous if engaged in a mains output line socket.

If a 13 Amp BS 1363 plug is not suitable or any other type of plug used, then this appliance must be

protected by a 13 Amp fuse.

Improper use may cause serious damage of safety such as a re, an electric shock.

he microwave oven must be operated with the decorative door open if the microwave oven is

placed in a cabinet.

If the door is closed while operating, the airow will get worse possibly resulting in a fіre or damage to your oven

he connection may be achieved by having the plug accessible or by incorporating a switch in the

fixed wiring in accordance with the wiring rules.

Using an improper plug or switch can cause an electric shock or re.

hould be monitored to ensure that children do not play with the device.

he devices are not intended to be operated by an external timer or by a separate control.

nly use utensils that are suitable for use in microwave ovens.

he microwave oven shall not be placed in a cabinet unless it has

been tested in a cabinet.

his appliance is not intended for use by persons (including children) with reduced physical, sensory

or mental capabilities, or lack of experience and knowledge, unless they have been given supervision

or instruction concerning use of the appliance by a person responsible for their safety.Cleaning and

user maintenance shall not be made by children unless they are aged from 8 years and above and

he minimum height of free space necessary above the top surface of the oven.

he microwave oven is intended to be used freestanding.

BEFORE USE Unpacking & Installing

BEFORE USE By following the basic steps on these two pages you will be able to quickly check that your oven is operating correctly. Please pay particular attention to the guidelines on where to install your oven. When unpacking your oven make sure you remove all accessories and packing materials. Check to make sure that your oven has not been damaged during shipping. 1 Unpack your oven and place it on a at level surface.

High rackRotating ringGlass traySteam coverLow rackSteam plateSteam water bowl(Crisp tray)STEAMER

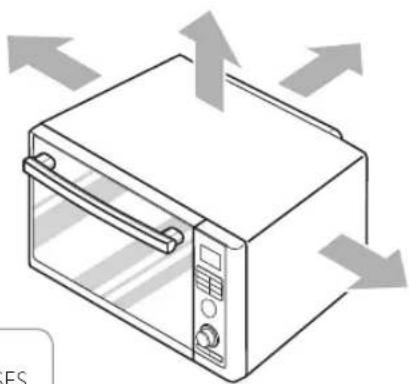

2 Place the oven on the level location of your choice with more than 85 cm height but make sure there is at least 20 cm of space on the top and 10 cm at the rear for proper ventilation.The front of the oven should be at least 8 cm from the edge of the surface to prevent tipping.An exhaust outlet is located on bottom or side of the oven. Blocking the outlet can damage the oven. • THIS OVEN SHOULD NOT BE USED FOR COMMERCIAL CATERING PURPOSES. 3 Plug your oven into a standard household socket. Make sure your oven is the only appliance connected to the socket. If your oven does not operate properly, unplug it from the electrical socket and then plug it back in. 4

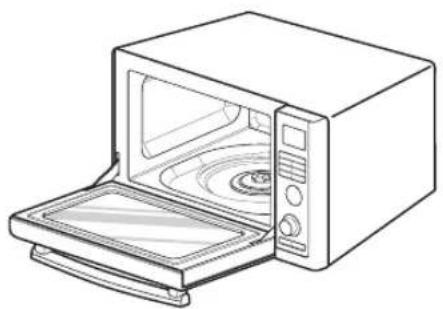

Open your oven door by pulling the door handle. Place the rotating ring inside the oven and place the glass tray on top.

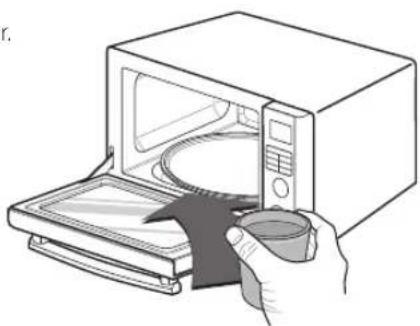

5 Fill a microwaveable-safe container with 300 ml (1/2 pint) of water. Place on the glass tray and close the oven door. If you have any doubts about what type of container to use please refer to Page 10.

Press the STOP/CLEAR button, and press the START/QUICK START button

once to set 30 seconds of cooking time.

7 The DISPLAY will count down from 30 seconds.

When it reaches 0 it will sound BEEPS. Open the oven door

and test the temperature of the water.

If your oven is operating the water should be warm.

Be careful when removing the container it may be hot.

YOUR OVEN IS NOW INSTALLED

8 The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before

consumption in order to avoid burns.

SECOND Method To Use Accessories As Per Mode

Convection Grill combi Conv combi SteamerHigh rackLow rackGlass tray Crisp tray Caution: Use accessories in accordance with cooking guides!

BEFORE USE Never use metal or metal trimmed utensils when using microwave function

Microwaves cannot penetrate metal. They will bounce o any metal object in the oven and cause arcing, an alarming

phenomenon that resembles lightning. Most heat resistant non metallic cooking utensils are safe for use in your

oven. However, some may contain materials that render them unsuitable as microwave cookware. If you have any

doubts about a particular utensil, there’s a simple way to nd out if it can be used in the microwave.

Place the utensil in question next to a glass bowl lled with water when using microwave function. Microwave at

power HIGH for 1 minute. If the water heats up but the utensil remains cool to the touch, the utensil is microwave-safe.

However, if the water does not change temperature but the utensil becomes warm, microwaves are being absorbed

by the utensil and it is not safe for use when using microwave function. You probably have many items on hand in

your kitchen right now that can be used as cooking equipment in the microwave. Just read through the following

Many kinds of dinnerware are microwave-safe. If in doubt consult the manufacturer’s literature or perform the

Glassware that is heat-resistant is microwave-safe. This would include all brands of oven tempered glass cookware.

However, do not use delicate glassware, such as tumblers or wine glasses, as these might shatter as the food warms.

Plastic storage containers

These can be used to hold foods that are to be quickly reheated. However, they should not be used to hold foods that

will need considerable time in the oven as hot foods will eventually warp or melt plastic containers.

Paper plates and containers are convenient and safe to use when using microwave function, provided that the

cooking time is short and foods to be cooked are low in fat and moisture. Paper towels are also very useful for

wrapping foods and for lining baking trays in which greasy foods such as bacon are cooked. In general, avoid

coloured paper products as the colour may run. Some recycled paper products may contain impurities which could

cause arcing or res when used in the microwave.

Plastic cooking bags

Provided they are made specially for cooking, cooking bags are microwave safe. However, be sure to make a slit

in the bag so that steam can escape. Never use ordinary plastic bags for cooking in using microwave function, as

they will melt and rupture.

Plastic microwave cookware

A variety of shapes and sizes of microwave cookware are available. For the most part, you can probably use items

you already have on hand rather than investing in new kitchen equipment.

Pottery, stoneware and ceramic

Containers made of these materials are usually ne for use when using microwave function, but they should be tested

Microwaveable-Safe Utensils • Some items with high lead or iron content are not suitable as cooking utensils.• Utensils should be checked to ensure that they are suitable for use in the microwave.

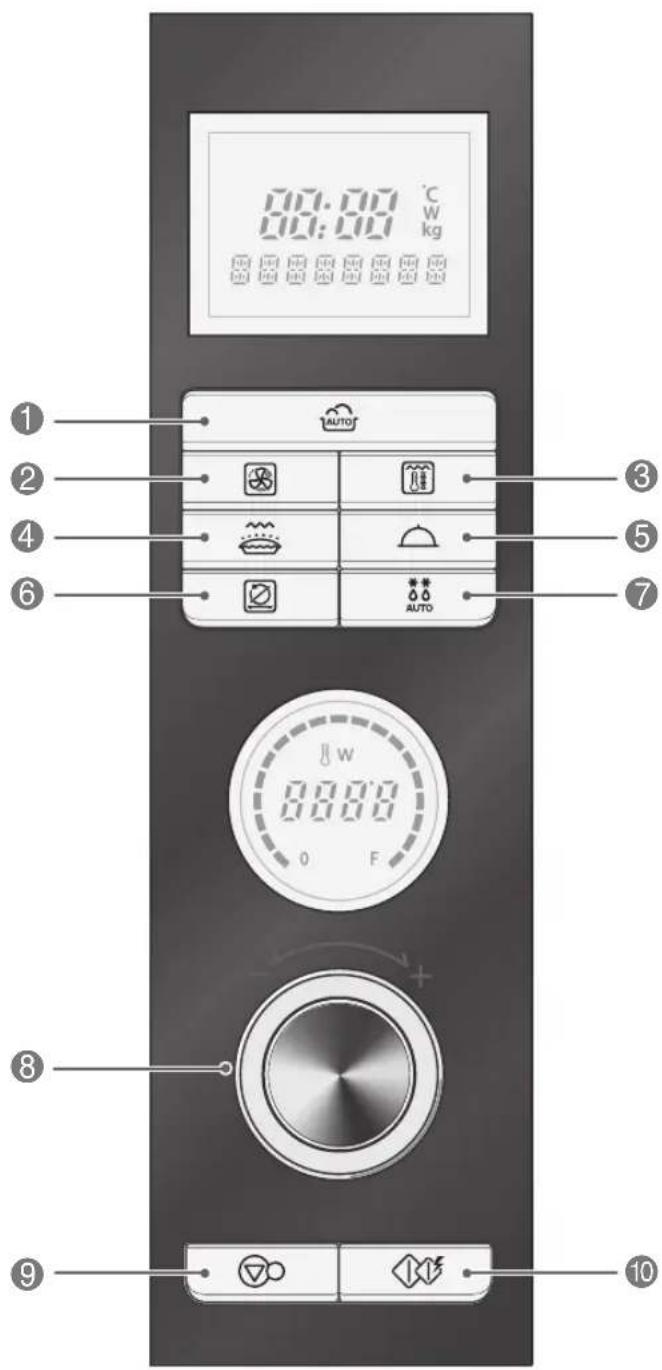

BEFORE USE Control panel

1 CHEF RECIPEChef Recipe allows you to cook most of yourfavourite food by selecting the food type and theweight of the food.See page 17 "Chef recipe" 2 ACTIVE CONVECTIONSee page 20 ”Active convection“ 3 GRILL TEMP CONTROLSee page 22 “Grill temp control” 4 CRISPY REHEATSee page 24 “Crispy reheat” 5 STEAM CHEFSee page 25 “Steam chef” 6 TuRN TABLE ON/OFFYou can select turn table on or o. 7 AuTO DEFROSTSee page 27 “Auto defrost” 8 COOk MODE • Determine the selected cooking category. • Set cooking times, temperature and power level. • While cooking with auto and manual function, you can increase or decrease the cooking time at any point by turning the dial (except defrost mode). 9 STOP/CLEAR • Stop over and clear all entries except time of day. : START/QuICk START • In order to start cooking what is selected, press button once. • The quick start feature allows you to set 30 second intervals of HIGH power cooking with a touch of the quick start button.

BEFORE USEYour oven has a safety feature that prevents accidental running of the oven. Once the child lock is set, you will be unable to use any functions and no cooking can take place.

The following example will show you how to set the child lock.

appears on the display and BEEP sounds.

If any button is pressed,

will appear on the display.

You will hear BEEP when it’s unlocked.

You can set either 12 hour clock or 24 hour clock.

The following example will show you how to set the

time for 14:35 when using the 24 clock.

Plug your oven for the first time.

(If you want to change a different option after setting

clock, you have to unplug and plug it back in.)

until display shows “14:00“.

until display shows “14:35”.

The clock starts counting.

For best cooking results, leave the turn table be on.

It can be turned off for large dishes. Press “

the turn table on or off. • When your oven is plugged in for the first time you will have to reset the clock.• If the clock (or display) shows any strange looking symbols, unplug your oven from the electrical socket and plug it back in and reset the clock.• Sometimes the turn table can become hot to touch. Be careful touching the turn table during and after cooking. • Do not run an empty microwave.

NOTE NOTE Quick Start

The following example will show you how to set

2 minutes of cooking on high power (900W).

four times to select

2 minutes on high power (900W).

Your oven will start before you have finished the

extend the cooking time up to 99 minutes

59 second by turning the

START/QuICk START feature allows you to set 30 second intervals of HIGH power (900W) cooking by pressing the START/QuICk START button.

HOW TO USE Microwave Power Cooking The following example will show you how to cook some food on 720W power for 5 minutes. 1 Press STOP/CLEAR. 2 Turn COOK MODE to select Microwave . The following indication is displayed: “ ”. Press START/QUICK START for mode confirmation. 3 Turn COOK MODE until display shows “720 W”. Press START/QUICK START for power confirmation.• Your oven has 5 microwave power settings. High power is automatically selected and turning off

COOK MODE will select a different power level.• Food to be cooked should be placed in a microwaveable-safe utensil.• Please do not use the following accessories.High rack Low rack

4 Turn COOK MODE until display shows “5:00”.Press START/QUICK START. Microwave Power Level This oven is equipped with 5 power levels to give you maximum flexibility and control over cooking.The table below shows some examples of food and their recommended cooking power levels for use with this oven.POWER LEVEL OUTPUT USE ACCESSORY HIGH 900 W• Boil water• Brown minced beef• Cook poultry pieces, fish, vegetables• Cook tender cuts of meatMicrowaveable-safeplateMED-HIGH720 W• All reheating• Roast meat and poultry• Cook mushrooms and shellfish• Cook foods containing cheese and eggs MED 540 W• Bake cakes and scones• Prepare eggs• Cook custard• Prepare rice, soup MED-LOW

• Melt butter and chocolate• Cook less tender cuts of meat

• Soften butter & cheese• Soften ice cream• Raise yeast-based dough

HOW TO USE ENGLISH14

HOW TO USE• Your oven has a combination cooking feature which allows you to cook food with Heater and Microwave. This generally means it takes less time to cook your food.• You can set three kinds of microwave power level (180W, 270W, and 360W) in grill combi mode.• This feature will allow you to brown and get food crisper more quickly.• For the best result use the following accessory.• Please do not use the following accessory.

• This feature will allow you to brown and get food crisper more quickly.• For the best result, use the following accessory.• Please do not use the following accessory.

NOTE High rackHigh rack Steamer

The following example will show you how to use the grill

to cook food for 12 minutes.

The following indication is displayed: “

for grill confirmation.

until display shows “12:00”.

The following example will show you how to programme

your oven with microwave power 360W and grill for a

cooking time of 25 minutes.

The following indications are displayed: “

until display shows “360 W”.

for power confirmation.

Always use gloves when removing food

and accessories after cooking as the oven &

accessories will be very hot.

HOW TO USE Convection preheat The following example shows you how to preheatthe oven to a temperature of 200° C. 1 Press

STOP/CLEAR. 2 Turn COOK MODE to select Conv

. The following indication is displayed: “ ”. Press START/QUICK START for convection confirmation. 3 Turn COOK MODE until display shows “200° C”.Press START/QUICK START for temperature confirmation. 4 Press START/QUICK START.Preheating will be started with the display “PREHEAT”.• The convection oven has a temperature range of 40° C and 100~230° C.• The oven has a ferment function at the oven temperature of 40° C. You should wait until the oven is cool because you cannot use a ferment function if the oven temperature is over 40° C.• Your oven will take a few minutes to reach the selected temperature.• Once it has reached correct temperature, your oven will BEEP to let you know that it has reached the correct temperature.• Then place your food in your oven and to start cooking.

NOTE Convection Cooking The following example shows you how to cook some food at a temperature of 230° C for 50 minutes. 1 Press STOP/CLEAR. 2 Turn COOK MODE to select Conv

. The following indication is displayed: “ ”. Press START/QUICK START for convection confirmation. 3 Turn COOK MODE until display shows “230° C”.Press START/QUICK START for temperature confirmation. 4 Turn COOK MODE

until display shows “50:00”. 5 Press START/QUICK START.If you do not set a temperature your oven will automatically select 180° C, the cooking temperature can be changed by turning

COOK MODE.For the best result please use the following accessory.Low rack

NOTE Always use gloves when removing food and accessories after cooking as the oven & accessories will be very hot.

HOW TO USE Convection Combi Cooking

The following example shows you how to programme

your oven with the microwave power 270W and at a

convection temperature of 200

for a cooking time of

The following indications are displayed: “

for Convection Combi

until display shows “270 W”.

until display shows “200° C”.

More Or Less Cooking

The following example shows you how to change the

COOK programmes for a longer or shorter cooking time.

Select weight of food.

The cooking time will increase or decrease. • If you find that your food is over or undercooked when using the preset COOK programme, you can increase or decrease cooking time by turning the

COOK MODE. • You can lengthen or shorten the cooking time (except defrost mode) at any point by turning the COOK MODE.

• For the best result use the following accessory.• Please do not use the following accessory. Low rack

NOTE Steamer You can set three kinds of microwave power level (180W, 270W and 360W). Always use gloves when removing food

and accessories after cooking as the oven &

accessories will be very hot.

HOW TO USE Chef recipe The following example will show you how to cook 0.6 kg of roast beef. 1 Press

STOP/CLEAR. 2 Press CHEF RECIPE.The following indication is displayed: “

3 Turn COOK MODE until display shows “4 ROAST BEEF”. Press START/QUICK START for category confirmation.• Chef Recipe menus are programmed. • Chef Recipe allows you to cook most of your favourite food by selecting the food type and the weight of the food.

NOTE Chef recipe guide Category Instructions1. Quiche lorraine- Food Temp. : Room- Utensil : Crisp tray on the low rackIngredients1 shortcrust pastry dough \ 125 g smoked slab bacon, grated1 tablespoons oil \ 2 eggs, lightly beaten \ 125 g milk125 g cream \ Nutmeg, salt and pepper to taste 100 g grated cheese 1. On lightly oured surface, roll out pastry into circle and put in the crisp tray.

Trim edges, leaving little overhang. Prick with fork and set aside. 2. Cook bacon in lightly oiled frying pan until lightly browned and drain away excess fat.3. Mix eggs, milk, cream, nutmeg, salt and pepper.4. Spread grated cheese evenly onto dough. 5. Pour egg-cream mixture on top then place the crisp tray on the low rack. Choose the menu, press start. 4 Turn COOK MODE until display shows “0.6 kg”.Press START/QUICK START. When cooking you can increase or decrease cooking time by turning COOK MODE. ENGLISH18

HOW TO USE Category Instructions

- Weight Limit : 0.1~0.3 kg

- Utensil : Microwaveable-safe bowl

Ingredients for rice

Rice 100 g 200 g 300 g

Butter,melted 30 g 40 g 50 g

Onion,grated 50 g 75 g 100 g

Chicken stock or water 250 ml 500 ml 750 ml

Bouquet garni and salt To taste

Add rice and melted butter in a deep and large bowl(3 L) and mix well.

Pour boiling chicken stock or water and add bouquet garni and salt.

Cover and vent with wrap.

Place the bowl in the oven. Choose the menu and weight, press start.

After cooking, stir and stand covered for 5~10 minutes if needed.

Ingredients for pasta

Pasta 100 g 200 g 300 g

Water 400 ml 800 ml 1200 ml

Place pasta and boiling water with salt in a deep and large bowl(3 L).

Place the bowl in the oven. Choose the menu and weight, press start.

After cooking, stand for 1~2 minutes. Rinse pasta with cold water.

1 teaspoon baking powder \ 3 eggs, lightly beaten

Mix yoghurt and sugar in a large mixing bowl. Add MaÏzena, cocoa

powder, baking powder, salt and mix.

Then add eggs and oil and mix until moistened.

Pour batter into a greased loaf pan. Place loaf pan on the low rack.

Choose the menu, press start.

After cooking, remove from the oven and let them cool.

- Weight Limit : 0.5~2.0 kg

- Food Temp. : Refrigerated

- Utensil : Low rack on a drip dish

Brush beef with melted butter or oil and season as desired.

Place food on the low rack on a drip dish. Choose the menu and weight,

When BEEP sound occurs, turn food over and then press start to continue

cooking. After cooking, stand covered with foil for 10 minutes.

4 round zucchini (courgettes) of 200 g per each \ 500 g ground beef

2 tablespoons olive oil \ Salt and pepper to taste

Cut tops o zucchini to form hats and seed them, taking care not to pierce

esh or skin. Stu zucchinis with ground beef and replace hat.

Place stued zucchini on the crisp tray on the low rack and drizzle with

olive oil. Choose the menu, press start.

HOW TO USE Category Instructions

1 kg potatoes \ 1 clove garlic

20 g butter \ 300 g cream

100 g grated cheese \ Nutmeg, salt and pepper to taste

Peel and wash potatoes then cut into 5 mm slices. Rub inside of a baking

dish with garlic clove and butter.

Place half of potatoes in the baking dish and season. Fill with remaining

potatoes and season then pour cream and cheese over the top.

Place the baking dish on the low rack. Choose the menu, press start.

Ingredients for meat sauce

9 uncooked lasagna noodles \ 2 kg meat and tomato sauce

40 g grated cheese \ 4 tablespoons olive oil

Salt and pepper to taste

Place 3 lasagna noodles side by side on bottom of a baking dish,

covering bottom. Spread 1/3 of meat and tomato sauce on top.

Continue with 3 lasagna noodles and another 1/3 of meat and tomato

sauce then nish with last 3 lasagna noodles and

tomato sauce. Sprinkle grated cheese on top.

Place baking dish on the low rack. Choose the menu, press start.

Meat and tomato sauce

1 celery stalk \ 2 onions

1 clove garlic \ 1.4 kg well-ripe tomatoes

1 sprig thyme \ 1 bay leaf

500 g ground beef \ Salt and pepper to taste

Finely chop celery, onions, garlic and tomatoes.

Cook celery, onions and garlic in a lightly oiled frying pan until soft.

Add tomatoes, thyme, bay leaf, salt and pepper. Stir and simmer for 30

Cook ground meat in another lightly oiled frying pan for 5 minutes while

stirring constantly. Pour tomato sauce into meat and cook for 5 minutes.

1 shortcrust pastry dough \ 5 apples

20 grams sugar \ 2 tablespoons liquid honey

On lightly oured surface, roll out pastry into circle and put in the crisp tray.

Trim edges, leaving little overhang. Prick with fork and set aside.

2. Chop 2 1/2 apples and place in a frying pan with sugar. Simmer until

apple is soft. Cut remaining apples into 5mm slices. Spread cooked

apples onto bottom of dough and arrange sliced apples in spiraling

rosettes over entire surface. Finally spread honey on top.

3. Place the crisp tray on the low rack. Choose the menu, press start.

After cooking, remove from the oven and let them cool.

HOW TO USE Active Convection guide • Active Convection menus are programmed. • Active Convection allows you to cook most of your favourite food by selecting the food type and the weight of the food.

NOTE Active Convection

The following example will show you how to cook 0.3kg

The following indication is displayed: “

until display shows “0.3 kg”.

When cooking you can increase or decrease cooking

Category Instructions

- Weight Limit : 0.8~1.8 kg

- Food Temp. : Refrigerated

- Utensil : Low rack on a drip dish

Brush whole chicken with melted butter or oil and season as desired.

Place whole chicken breast-side down on the low rack on a drip dish.

Choose the menu and weight, press start. When BEEP sound occurs, drain

juices and turn food over immediately and then press start to continue

cooking. After cooking, stand covered with foil for 10 minutes.

- Weight Limit : 0.2~0.8 kg

- Food Temp. : Refrigerated

- Utensil : Crisp tray on the high rack

Brush chicken pieces with melted butter or oil and season as desired.

Place food on the crisp tray on the high rack. Choose the menu and

weight, press start. When BEEP sound occurs, turn food over and press start

to continue cooking.

- Weight Limit : 0.5~2.0 kg

- Food Temp. : Refrigerated

- Utensil : Low rack on a drip dish

Brush pork with melted butter or oil and season as desired.

Place food on the low rack on drip dish. Choose the menu and weight,

press start. After cooking, stand covered with foil for 10 minutes.21

HOW TO USE Active Convection guide

Category Instructions

120 g all-purpose or bread flour \ 1 teaspoon active dry yeast

1/3 teaspoon salt \ 1 teaspoon sugar \ 70 ml warm water

1 teaspoon extra-virgin olive oil, plus little for coating

3 tablespoons tomato sauce \ 30 g sausage, sliced

1/2 onion, sliced \ 2 fresh mushrooms, sliced

1/2 fresh pepper \ 100 g shredded Mozzarella cheese

Combine all ingredients in a large mixing bowl.

Knead with an electric mixer to make smooth and elastic dough.

Roll dough out and place dough on the crisp tray.

Spread pizza sauce. Top with toppings and cheese.

Place the crisp tray on the low rack. Choose the menu, press start.

80 g brown sugar \ 80 g butter, softened

1 egg, lightly beaten \ 180 g all-purpose flour, sifted

1/2 teaspoon baking powder \ 1/2 teaspoon baking soda

100 g mini chocolate chips

Mix brown sugar and softened butter. Gradually add egg and stir until light

and uy. Add our, baking powder, baking soda and chocolate chips and

Drop dough by tablespoon onto the high rack and low rack covered with

aluminum foil. Cookies should be spaced 2 cm apart.

Place high rack and low rack in the oven. Choose the menu, press start.

After cooking, remove from the oven and let them cool.

Choose medium sized potatoes (200~220 g per each).

Wash and dry potatoes.

Pierce potatoes several times with a fork.

Place food on the low rack.

Choose the menu and weight, press start.

After cooking, stand covered with foil for 10 minutes.

crisp tray on the low rack

60 g sugar \ 100 g butter, softened

2 eggs, lightly beaten \ 150 g all-purpose flour, sifted

1/2 teaspoon baking powder

10~13 ea paper muffin cups (50 mm base x 30 mm height)

Mix sugar and softened butter. Gradually add eggs and stir until light and

uy. Add our and baking powder and mix well.

Evenly ll paper mun cups with butter (25~30 g per each). Place mun

cups on the crisp tray on the low rack. Choose the menu, press start.

After cooking, remove from the oven and let them cool.

HOW TO USE Grill Temp control The following example will show you how to use keep warm at a temperature of 80° C for 30 minutes. 1 Press STOP/CLEAR. 2 Press GRILL TEMP CONTROL.The following indication is displayed: “ ”.

3 Turn COOK MODE until display shows “2 KEEP WARM”.Press START/QUICK START for category confirmation. 4 Turn COOK MODE until display shows “80° C”.Press START/QUICK START. Turn COOK MODE until display shows “30:00”. 5 Press START/QUICK START .

Grill Temp Control Guide Function Instruction1. Slow cook- Range : 110° C (High) / 90° C (Low)- Utensil : Heatproof glass dish with cover on turntableThis function maintains a relatively low temperature compared to other cooking methods (such as baking, boiling, and frying), for many hours allowing unattended cooking of pot roast, stew, and other suitable dishes.90° C (Low) SettingThe low setting gently simmers food for an extended period of time without overcooking or burning. No stirring is required when using this setting.110° C (High) Setting The high setting will cook food in approximately half the time required for the low setting. Some foods may boil when cooked on the high setting, so it may be necessary to add extra liquid. Occasional stirring of stews and casseroles will improve avour distribution. Searing and browning before slow cooking is not necessary, but this will help to seal in the juices and avours, and keeps the meat tender.Slow cook guideTraditional cooking timeSlow cooker cooking time(without searing)Slow cooker cooking time(with searing)90° C(Low) 110° C(High) 90° C(Low) 110° C(High ) 35 to 60 minutes6 to 10 hrs 3 to 4 hrs 4 to 6 hrs 2 to 3 hrs1 to 3 hours 8 to 10 hrs 4 to 6 hrs 5 to 6 hrs 3 to 4 hrs2. Keep warm- Range : 60° C~80° C- Utensil : Heatproof glass dish with cover on turntableHeat from the top and bottom elements are used to maintain set temperature. You can use this function to keep food warm until ready to serve.For the best results with the grill temp control function, be sure to check that the oven cavity has cooled before use.

HOW TO USE Function Instruction

- Range : 40° C ~ 90° C

- Utensil : Crisp tray on the low rack

With this function, you can dry fruit, veggies, and beef into healthy and

nutritional snacks and tasty jerky without chemicals and preservatives. Place

baking paper on tray and spread food into a single layer.

Food dry guide Food type Preparation Set temp Time UseBananas Slice into 5~6 mm thick 60° C 5~8hrs Snacks, baby food, gra-nola, cookies and banana breadFigs Remove stems and halve60° C 8~10hrs Fillings, cakes, puddings, breads and cookiesKiwi Peel, slice into 8~12 mm thick 60° C 5~8 hrs SnacksMangos Remove skin, slice into 6~10 mm thick60° C 6~10 hrs S nacks, cereals, baked goodsPineapple Peel, core, slice into 8~12 mm thick60° C 6~10 hrs Snacks, baked goods, baked granolaTomatoes Wash and slice 6mm circle s

6 0° C 6~10 hrs Soups, stews, paste or sauceMushroom Clean with soft brush or cloth. Don’t wash 50° C 4~8 hrs Rehydrate for soups, meat dishes, omelettes or fryingBeef jerkyMarinate sliced meats (5~6 mm thick)in store-bought or your own recipe for 6 to 8hours in the refrigerator70° C 6~10 hrs Snack 4. Proof

- Utensil : Heatproof glass dish on

• Pour a 1000 ml milk into a proper heat-resistant bowl with cover.

• Boil it to proper temperature (up to 60~70° C) and then cool down to

• Add 150 ml natural yogurt into a bowl and stir well.

• Place covered bowl in the oven.

• Choose the menu, and set cook time 5~8 hours.

How to raise yeast dough

Place the dough in a proper heat-resistant bowl and cover with baking wrap

• Place the bowl in the oven.

• Choose the menu, and set cook time to about 40 minutes until

the dough has doubled in volume.

- Range :40° C ~100° C

- Utensil : On the low rack

Use this function to warm plates to a hot and comfortable temperature.

The following example will show you how to cook 0.5kg

The following indication is displayed: “

until display shows “0.5 kg”.

When cooking you can increase or decrease cooking

Category Instructions

- Weight Limit : 0.2~0.8 kg

- Food Temp. : Refrigerated

- Utensil : Crisp tray on the low rack

Place leftover cordon bleu (100~150 g/piece) on the crisp tray on

the low rack. Choose the menu and weight, press start.

- Weight Limit : 0.2~0.8 kg

- Food Temp. : Refrigerated

- Utensil : Crisp tray on the low rack

Cut leftover lasagna into pieces (200~250 g/piece).

Place food on the crisp tray on the low rack.

Choose the menu and weight, press start.

- Utensil : Low rack

Place frozen bread (50~100 g/piece) on the low rack.

Choose the menu and weight, press start.

- Weight Limit : 0.2~0.8 kg

- Food Temp. : Refrigerated

- Utensil : Crisp tray on the low rack

Cut leftover pie/tart into pieces (200~250 g/piece).

Place food on the crisp tray on the low rack.

Choose the menu and weight, press start. • Crispy Reheat menus are programmed. • Crispy Reheat allows you to cook most of your favourite food by selecting the food type and the weight of the food.

HOW TO USE 1. Always use oven gloves when removing a STEAMER from the oven. It’s very hot.2. Do not put a hot STEAMER on a glass table or a place that may melt after cooking. Always make sure a pad or tray is used.3. When you use this Steamer, pour at least 300ml water before use. If the amount of water is less than 300ml, it may cause incomplete cooking, or may cause a fire or fatal damage to the product.4. Be careful when you move the STEAMER with water.5. When you use the STEAMER, the steam cover and Steam water bowl should be set perfectly right. Eggs or chestnuts will explode if the steam cover and steam water bowl are not set.6. Never use this STEAMER with a product from a different model. It may cause fire or fatal damage to the product.

steam Chef The following example will show you how to cook 0.6kg of fish fillet. 1 Press

STOP/CLEAR. 2 Press STEAM CHEF.The following indication is displayed: “

3 Turn COOk MODE until display shows “3 FISH FILLET”. Press START/QuICk START

for category confirmation. 4 Turn COOk MODE

until display shows “0.6 kg”. 5 Press START/QuICk START. When cooking you can increase or decrease cooking time by turning COOk MODE.Steamer ENGLISH26

Category Instructions

- Weight Limit : 0.2~0.8 kg

- Food Temp. : Refrigerated

- Utensil : Steam cover / Steam plate / Steam

Clean the food such as shrimp, crab.

( Make sure it is under 25 cm length)

Pour 300 ml tap water into the steam water bowl. Place the steam

plate on the steam water bowl. Place the prepared food on the

steam plate in a single layer. Cover with the steam cover.

Place the steam water bowl in the centre of the glass tray.

After cooking, stand for 3~5 minutes in the oven.

- Weight Limit : 0.1

- Food Temp. : Refrigerated

- Utensil : Steam cover / Steam plate / Steam

Clean the food, such as clam, scallops and cuttlesh.

(Make sure it is under 25 cm length).

Pour 300ml tap water into the steam water bowl. Place the steam

plate on the steam water bowl. Place the prepared food on the

plate in a single layer. Cover with the steam cover.

Place the steam water bowl in the centre of the glass tray.

After cooking, stand for 3~5 minutes in the oven.

- Weight Limit : 0.2

- Food Temp. : Refrigerated

- Utensil : Steam cover / Steam plate / Steam

Clean the food. Make sure it is under 2.5 cm thick.

Pour 300ml tap water into the steam water bowl. Place the steam

plate on the steam water bowl. Place the prepared food on the

steam plate in a single layer. Cover with the steam cover.

Place the steam water bowl in the centre of the glass tray.

After cooking, stand for 3~5 minutes in the oven.

Clean the vegetables and cut into similar sized pieces.

Pour 300ml tap water into the steam water bowl. Place the steam

plate on the steam water bowl. Place the prepared food on the

steam plate in a single layer. Cover with the steam cover.

Place the steam water bowl in the centre of the glass tray.

After cooking, stand for 3~5 minutes in the oven.

5. Broccoli / Cauliower

Pour 300ml tap water into the steam water bowl. Place the steam

plate on the steam water bowl. Place the green bean on the steam

plate in a single layer. Cover with the steam cover.

Place the steam water bowl in the centre of the glass tray.

After cooking, stand for 3~5 minutes in the oven.

- Cut into 4 pieces.

- Food Temp. : Refrigerated

- Utensil : Steam cover / Steam plate / Steam

Pour 300 ml tap water into the steam water bowl. Place the steam

plate on the steam water bowl. Place the eggs on the steam plate

in a single layer. Cover with the steam cover.

Place the steam water bowl in the centre of the glass tray.

After cooking, stand for 3~5 minutes in the oven.27

HOW TO USE • Your oven has 4 microwave defrost settings: - Meat, Poultry, Fish and Bread; each defrost category has different power settings.• Food to be cooked should be placed in a microwaveable-safe utensil.• Please do not use the following accessories.

NOTE High rack Low rack

The following example will show you how to defrost 0.8kg of frozen poultry. 1 Press STOP/CLEAR. 2 Press AUTO DEFROST.The following indication is displayed: “ ”. 3 Turn COOK MODE until display shows “2 POULTRY”. Press START/QUICK START for category confirmation. 4

Turn COOK MODE until display shows “0.8 kg” for the weight of frozen food.Press START/QUICK START. The temperature and density of food varies, it is recommended that the food be checked before cooking begins. Pay particular attention to large joints of meat and chicken, some foods should not be completely thawed before cooking. For example: Fish cooks so quickly that it is sometimes better to begin cooking while still slightly frozen. This will require a standing time to allow the centre to thaw. Weigh the food that you are about to defrost. Be certain to remove any metallic ties or wraps; then place the food onto the microwaveable-safe dish on the glass tray in your oven and close the oven door.

5 During defrosting your oven will “BEEP”, at which point you should open the oven door, turn food over and separate it to ensure even thawing. Remove any portions that have thawed or shield them to help slow down thawing. After checking, close the oven door and press START/QUICK START to resume defrosting. Your oven will not stop defrosting (even when the BEEP sounds) unless the door is opened. Microwaveable-safe dishGlass tray ENGLISH28

HOW TO USE Defrosting Guide

Food to be defrosted should be placed in a suitable microwave proof container and placed uncovered on the glass tray.

If necessary, shield small areas of meat or poultry with flat pieces of aluminum foil.

This will prevent thin areas from becoming warm during defrosting.

Ensure the foil does not touch the oven walls.

Separate items like minced meat, chops, sausages and bacon as soon as possible.

When BEEP sounds, turn food over.

Remove defrosted portions. Continue to defrost remaining pieces.

After defrosting, allow to stand until completely thawed.

Category Instructions

- Minced beef, Fillet steak, Cubes for stew, Sirloin steak, Pot roast, Rump roast,

Beef burger, Pork chops, Lamb chops, Rolled roast, Sausage, Cutlets(2 cm).

- Turn food over at BEEP.

- After defrosting, cover with aluminum foil and let stand for 5~15 minutes.

- Whole chicken, Legs, Breasts, Turkey breasts (under 2.0 kg).

- Turn food over at BEEP.

- After defrosting, let stand for 20~30 minutes.

- Fillets, Steaks, Whole sh, Seafood.

- Turn food over at BEEP.

- After defrosting, let stand for 10~20 minutes.

- Weight Limit : 0.1~0.5 kg

- Utensil : Paper towel

- Sliced bread, Buns, Baguette, etc.

- After defrosting, let stand for 1 minute.29

FOOD CHARACTERISTICS & MICROWAVE COOKING Keeping an eye on things

The recipes in this book have been formulated with great care, but your success in preparing them depends on

how much attention you pay to the food as it cooks. Always watch your food while it cooks. Your microwave

function is equipped with a light that turns on automatically when the oven is in operation so that you can see

inside and check the progress of your food. Directions given in recipes to elevate, stir, and the like should be

thought of as the minimum steps recommended. If the food seems to be cooking unevenly, simply make the

necessary adjustments you think are appropriate to correct the problem.

Factors affecting microwave cooking times

Many factors aect cooking times. The temperature of ingredients used in a recipe makes a big dierence in

cooking times. For example, a cake made with ice-cold butter, milk, and eggs will take considerably longer to

bake than one made with ingredients that are at room temperature. All of the recipes in this book give a range

of cooking times. In general, you will nd that the food remains under-cooked at the lower end of the time

range, and you may sometimes want to cook your food beyond the maximum time given, according to personal

preference. The governing philosophy of this book is that it is best for a recipe to be conservative in giving cooking

times because overcooked food is ruined for good. Some of the recipes, particularly those for bread, cake, and

custards, recommend that food be removed from the oven when they are slightly undercooked.

This is not a mistake. When allowed to stand, usually covered, these foods will continue to cook outside of the oven

as the heat trapped within the outer portions of the food gradually travels inward. If the food is left in the oven

until it is cooked all the way through, the outer portions will become overcooked or even burnt. You will become

increasingly skillful in estimating both cooking and standing times for various foods.

Light, porous food such as cakes and breads cook more quickly than heavy, dense foods such as roasts and

casseroles. You must take care when microwaving porous food so that the outer edges do not become dry and

The upper portion of tall foods, particularly roasts, will cook more quickly than the lower portion.

Therefore, it is wise to turn tall food several times, during cooking.

Moisture content of food

Since the heat generated from microwaves causes moisture to evaporate, relatively dry food such as roasts and

some vegetables should either be sprinkled with water prior to cooking or covered to retain moisture.

Bone and fat content of food

Bones conduct heat and fat cooks more quickly than meat. Care must be taken when cooking bony or fatty cuts of

meat in order to prevent unevenly or overcooked meat.

The number of microwaves in your oven remains constant regardless of how much food is being cooked.

Therefore, the more food you place in the oven, the longer the cooking time. Remember to decrease cooking

times by at least one third when halving a recipe.

Microwaves penetrate only about 2 cm into food, the interior portion of thick foods are cooked as the heat

generated on the outside travels inward. Only the outer edge of food is cooked by microwave energy; the rest is

cooked by conduction. The worst possible shape for a food that is to be microwaved is a thick square.

The corners will burn long before the centre is even warm. Round thin foods and ring shaped foods cook most

successfully in the microwave.

A cover traps heat and steam which causes food to cook more quickly. Use a lid or microwave cling lm with a

corner folded back to prevent spitting.

FOOD CHARACTERISTICS & MICROWAVE COOKING ENGLISH30

FOOD CHARACTERISTICS & MICROWAVE COOKING Browning

Meats and poultry that are cooked fteen minutes or longer will brown lightly in their own fat. Foods that are

cooked for a shorter period of time may be brushed with a browning sauce such as worcestershire sauce, soy

sauce or barbecue sauce to achieve an appetising colour. Since relatively small amounts of browning sauces are

added to food, the original avour of the recipe is not altered.

Covering with greaseproof paper

It provides a looser cover than a lid or cling lm, which may dry food out slightly. But because it makes a looser

cover than a lid or cling lm, it allows the food to dry out slightly.

Arranging and spacing

Individual foods such as baked potatoes, small cakes and hors d’oeuvres will heat more evenly if placed in the oven

at an equal distance apart, preferably in a circular pattern. Never stack foods on top of one another.

Stirring is one of the most important of all microwaving techniques. In conventional cooking, food is stirred for the

purpose of blending. Microwaved food, however, is stirred in order to spread and redistribute heat. Always stir from

the outside towards the centre as the outside of the food heats rst.

Large, tall foods such as roasts and whole chickens should be turned so that the top and bottom will cook evenly.

It is also a good idea to turn cut up chicken and chops.

Placing thicker portions facing outwards

Since microwaves are attracted to the outside portion of food, it makes sense to place thicker portions of meat,

poultry and sh to the outer edge of the baking dish. This way, thicker portions will receive the most microwave

energy and the food will cook evenly.

Strips of aluminium foil (which block microwaves) can be placed over the corners or edges of square and

rectangular foods to prevent those portions from overcooking. Never use too much foil and make sure the foil is

secured to the dish or it may cause‘arcing’ in the oven.

Thick or dense foods can be elevated so that microwaves can be absorbed by the underside and centre of the

Foods enclosed in a shell, skin or membrane are likely to burst in the oven unless they are pierced prior to cooking.

Such foods include yolks and whites of eggs, clams and oysters and whole vegetables and fruits.

Food cooks so quickly in a oven, it is necessary to test it frequently. Some foods are left in the microwave until

completely cooked, but most foods, including meats and poultry, are removed from the oven while still slightly

undercooked and allowed to nish cooking during standing time. The internal temperature of foods will rise

between 5° F (3° C) and 15° F (8° C) during standing time.

Foods are often allowed to stand for 3 to 10 minutes after being removed from the oven. Usually the foods are

covered during standing time to retain heat unless they are supposed to be dry in texture (some cakes and

biscuits, for example). Standing allows foods to nish cooking and also helps avour blend and develop.

FOOD CHARACTERISTICS & MICROWAVE COOKING31

FOOD CHARACTERISTICS & MICROWAVE COOKING / QUESTIONS & ANSWERS 1 Keep the inside of the oven clean Food spatters or spilled liquids stick to oven walls and between the seal and door surfaces. It is best to wipe up spillovers with a damp cloth right away. Crumbs and spillovers will absorb microwave energy and lengthen cooking times. Use a damp cloth to wipe out crumbs that fall between the door and the frame. It is important to keep this area clean to assure a tight seal. Remove greasy spatters with a soapy cloth then rinse and dry. Do not use harsh detergent or abrasive cleaners. The metal tray can be washed by hand or in the dishwasher. 2 Keep the outside of the oven clean Clean the outside of your oven with soap and water then with clean water and dry with a soft cloth or paper towel. To prevent damage to the operating parts inside the oven, the water should not be allowed to seep into the ventilation openings. To clean control panel, open the door to prevent the oven from accidentally starting, and wipe with a damp cloth, followed immediately by a dry cloth. Press Stop/Clear after cleaning. 3

If steam accumulates inside or around the outside of the oven door, wipe the panels with a soft cloth. This may occur when the oven is operated under high humidity conditions and in no way indicates a malfunction of the unit. 4

The door and door seals should be kept clean. Use only warm, soapy water, rinse then dry thoroughly. DO NOT USE ABRASIVE MATERIALS, SUCH AS CLEANING POWDERS OR STEEL AND PLASTIC PADS. Metal parts will be easier to maintain if wiped frequently with a damp cloth. 5 Do not use steam cleaners. 6

Unplug your oven from the electrical socket when you clean the control panel with a wet cloth or spray water on control glass to clean. If it is not unplugged, this product can be operated by touching the Quick Start button. To Clean Your Oven

FAQ AnswerWhat’s wrong when the oven light does not glow?There may be several reasons why the oven light does not glow.Either the light bulb has blown or the electric circuit has failed.Does microwave energy pass through the viewing screen in the door?No. The holes, or ports, are made to allow light to pass; they do not let microwave energy through.Why does the BEEP tone sound when a button on the control panel is touched?The BEEP tone sounds to assure that the setting is being properly entered.Will the microwave function be damaged if it operates empty?Yes. Never run it empty.Why do eggs sometimes pop? When baking, frying, or poaching eggs, the yolk may pop due to steam build up inside the yolk membrane. To prevent this, simply pierce the yolk before cooking. Never microwave eggs in the shell.Why is standing time recommended after microwave cooking is over?After microwave cooking is nished, food keeps on cooking during standing time. This standing time nishes evenly cooking throughout the food. The amount of standing time depends on the density of the food.Why doesn’t my oven always cook as fast as the cooking guide says?Check your cooking guide again to make sure you’ve followed directions correctly, and to see what might cause variations in cooking time. Cooking guide times and heat settings are suggestions, chosen to help prevent overcooking, the most common problem in getting used to this oven. Variations in the size, shape, weight and dimensions of the food require longer cooking time. Use your own judgement along with the cookingguide suggestions to test food conditions, just as you would do with a conventional cooker.

QUESTIONS & ANSWERS ENGLISH32

Place a at plate on the center of the glass tray.

Use the “Auto defrost 1” function and select appropriate

When BEEP sound occurs, turn food over and press start

to continue cooking.

Place a Pyrex dish on the center of the glass tray.

Place a ø22 cm Pyrex dish on the center of the glass tray.

Place a Pyrex dish on the center of the glass tray.

200° C Place a ø22 cm Pyrex dish on low rack.

Cake - 170° C Place a ø22 cm Pyrex dish on low rack.

Chicken Auto key function

Place chicken breast-side down on the low rack on a drip

dish. Use the “Active convection 1” function and select

appropriate weight. When BEEP sound occurs, turn food

over and press start to continue cooking.

2450 MHz +/- 50MHz(Group 2/Class B)

Group 2 equipment: group 2 contains all ISM RF equipment in which radio-frequency energy in the frequency range 9

kHz to 400GHz is intentionally generated and used or only used, in the form of electromagnetic radiation, inductive and

/ or capacitive coupling, for the treatment of material or inspection/analysis purposes.

Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected

to a low voltage power supply network which supplies buildings used for domestic purposes.

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by

the European Directive 2002/96/EC.

2. All electrical and electronic products should be disposed of separately from the municipal waste stream

via designated collection facilities appointed by the government or the local authorities.

3. The correct disposal of your old appliance will help prevent potential negative consequences for the

environment and human health.

4. For more detailed information about disposal of your old appliance, please contact your city office, waste

disposal service or the shop where you purchased the product.

Disposal of your old applianceDEUTSCH

(Courgettes farcies)
