HD2383 - Waffle Maker PHILIPS - Free user manual and instructions

Product type	Sandwich maker (waffle iron)
Brand	Philips
Model	HD2383
Power supply	220-240 V, 50-60 Hz
Power	750 W (estimated)
Dimensions (L x W x H)	Approximately 25 x 20 x 10 cm (estimated)
Weight	Approximately 1.2 kg (estimated)
Capacity	2 sandwiches
Plate material	Non-stick coating
Main functions	Red power indicator, green ready indicator, automatic lock, cord storage, on/off switch
Maintenance and cleaning	Clean with a damp cloth or sponge after cooling
Safety	Do not immerse in water, hot surfaces, use under supervision
Spare parts and repairability	Repair by an authorized Philips Service Center
General information	Household use only, complies with EMC standards

Frequently Asked Questions - HD2383 PHILIPS

How to clean the cooking plates?

After cooling, remove excess grease with a paper towel, then clean with a damp sponge or soft cloth. Never use abrasive products.

Why is there smoke during first use?

This is normal during first use: manufacturing residues burn off. Ensure good ventilation and let the appliance heat up empty for a few minutes before first cooking.

What to do if the green light does not turn off?

The green light turns on and off during cooking to maintain temperature. If it stays on permanently, unplug the appliance and contact Philips Consumer Care.

Can I use metal utensils?

No, only use wooden or plastic utensils to avoid damaging the non-stick coating.

Is the appliance suitable for other foods besides sandwiches?

This appliance is designed exclusively for preparing sandwiches. Do not use it to grill other foods.

How to store the power cord?

Wrap the cord around the cord storage under the appliance after use, then store the appliance vertically or horizontally.

What to do if the appliance does not heat up?

Check that the appliance is plugged in and the switch is set to 'I'. If the red light does not come on, contact an authorized Philips Service Center.

Can I use the appliance without buttering the plates?

It is recommended to lightly butter the plates or bread slices to prevent sandwiches from sticking and achieve a golden color.

How to prevent sandwiches from sticking?

Lightly butter the sides in contact with the plates, and do not use overly wet fillings. Clean the plates after each use to preserve the non-stick coating.

Does the appliance turn off automatically?

No, the appliance does not have automatic shut-off. You must turn off and unplug manually after use.

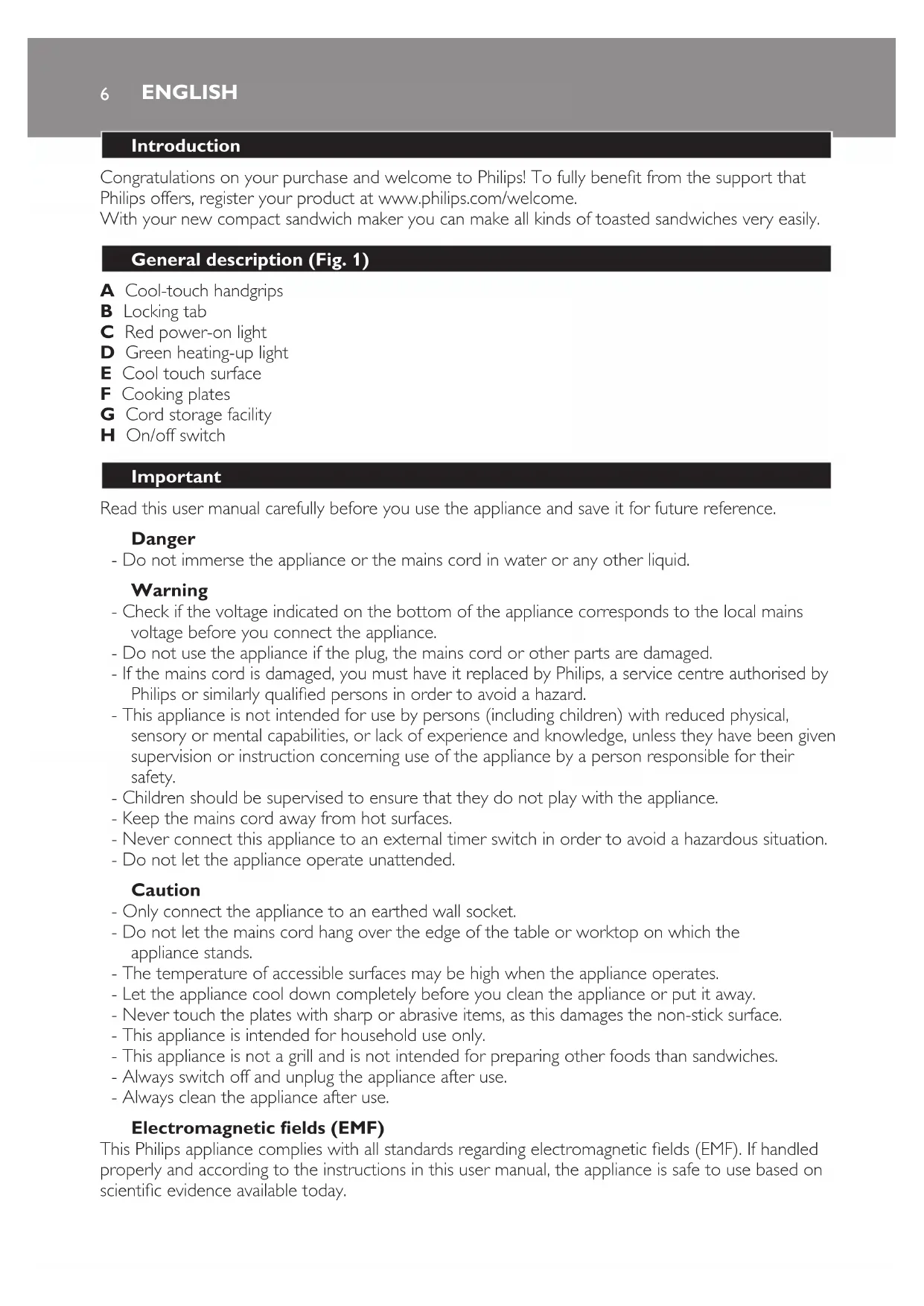

USER MANUAL HD2383 PHILIPS

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

With your new compact sandwich maker you can make all kinds of toasted sandwiches very easily.

General description (Fig. 1)

A Cool-touch handgrips B Locking tab C Red power-on light D Green heating-up light E Cool touch surface F Cooking plates G Cord storage facility H On/off switch

Important

Read this user manual carefully before you use the appliance and save it for future reference.

Danger

• Do not immerse the appliance or the mains cord in water or any other liquid.

Warning

• Check if the voltage indicated on the bottom of the appliance corresponds to the local mains voltage before you connect the appliance.
• Do not use the appliance if the plug, the mains cord or other parts are damaged.
• If the mains cord is damaged, you must have it replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Keep the mains cord away from hot surfaces.
• Never connect this appliance to an external timer switch in order to avoid a hazardous situation.
• Do not let the appliance operate unattended.

Caution

• Only connect the appliance to an earthed wall socket.
• Do not let the mains cord hang over the edge of the table or worktop on which the appliance stands.
• The temperature of accessible surfaces may be high when the appliance operates.
• Let the appliance cool down completely before you clean the appliance or put it away.
• Never touch the plates with sharp or abrasive items, as this damages the non-stick surface.
• This appliance is intended for household use only.
• This appliance is not a grill and is not intended for preparing other foods than sandwiches.
• Always switch off and unplug the appliance after use.
• Always clean the appliance after use.

Electromagnetic fields (EMF)

This Philips appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.

Before first use

1 Remove any stickers and wipe the body of the sandwich maker with a damp cloth. 2 Pull the locking tab upwards (1) and open the sandwich maker (2) (Fig. 2). 3 Clean the cooking plates with a damp cloth or sponge (Fig. 3).

Note: The appliance may give off some smoke when you use it for the first time. This is normal.

Using the appliance

Making toasted sandwiches

1 Lightly grease the cooking plates with a little butter or oil. 2 To adjust the length of the cord, wind part of it round the cord storage facility. 3 Put the mains plug in the wall socket and set the on/off switch to 'l' (Fig. 4).

The red power-on light goes on. This light stays on as long as the appliance is connected to the mains (Fig. 5). The green heating-up light goes on. The green heating-up light goes out when the appliance is ready for use. Prepare the ingredients for the toasted sandwiches while the appliance is heating up.

Note: For each sandwich, you need two slices of bread and a suitable filling. See chapter 'Recipes' for suggestions.

Note: Lightly butter the sides of the bread that come into contact with the cooking plates to obtain an even, golden brown result.

Note: To ensure optimal sealing, do not spread fillings too close to the edges of the slices of bread.

5 Open the sandwich maker. (Fig. 2) Put the sandwiches to be prepared on the lower cooking plate (Fig. 6).

Note: You can also toast only one sandwich, if you wish. 7 To close the sandwich maker, lower the upper cooking plate carefully onto the bread (1) until the locking tab locks the plates automatically (2) (Fig. 7).

Note: During cooking, the green heating-up light goes on and off. This indicates that the heating elements are switched on and off to maintain the correct temperature. 8 Open the sandwich maker after 3-4 minutes to check whether the sandwiches are golden brown.

Note: The cooking time required to obtain crispy brown sandwiches depends on the type of bread, the filling and your personal taste.

9 Remove the sandwiches (Fig. 8).

Use a wooden or plastic utensil (e.g. a spatula) to remove the toasted sandwiches from the sandwich maker. Do not use metal, sharp or abrasive kitchen utensils.

10 If you wish to continue making sandwiches, wait until the green heating-up light goes out before you put new sandwiches in the sandwich maker. After use, set the on/off switch to 'O' and unplug the appliance (Fig. 9).

Cleaning

Never use aggressive or abrasive cleaning agents and materials, as this damages the non-stick coating of the plates.

Never immerse the appliance in water or any other liquid, nor rinse it under the tap.

Switch off and unplug the appliance. 2 Let the appliance cool down properly in open position. 3 First remove excess oil from the plates with a piece of kitchen paper before you clean them. Use a wooden or plastic spatula to remove sticky food residues (for example solidified cheese) from the cooking plates.

Do not use metal, sharp or abrasive utensils.

Clean the cooking plates with a moist soft cloth or sponge (Fig. 10). 6 Clean the outside of the appliance with a moist cloth.

Storage

1 Wind the cord round the cord storage facility (Fig. 11). 2 Store appliance in vertical or horizontal position.

Environment

• Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment (Fig. 12).

Guarantee and service

If you need service or information or if you have a problem, please visit the Philips website at www.philips.com or contact the Philips Consumer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Consumer Care Centre in your country, go to your local Philips dealer.

Recipes

Toasted sandwiches

Ham, cheese & pineapple sandwich

Ingredients

• 4 slices of white bread
• 2 slices of cheese
• 2 slices of pineapple
• 2 thin slices of ham
• curry powder

1 Preheat the sandwich maker.

2 Put the cheese, the pineapple and the ham on two slices of bread. Sprinkle the ham with some curry powder and put the other two slices of bread on top. 4 Toast the sandwiches for 3-4 minutes.

Note: See chapter 'Using the appliance' for further instructions.

Tomato, cheese & anchovy sandwich

Ingredients

• 4 slices of white bread
• 1 or 2 tomatoes (cut into slices)
• 2 tbs of grated Parmesan cheese
• 6 anchovies
• paprika
• marjoram

Preheat the sandwich maker.

Put the slices of tomato, the anchovies and the grated cheese on two slices of bread.

Sprinkle the filling with some paprika and marjoram and put the other two slices of bread on top.

Toast the sandwiches for 3-4 minutes.

Note: See chapter 'Using the appliance' for further instructions.
