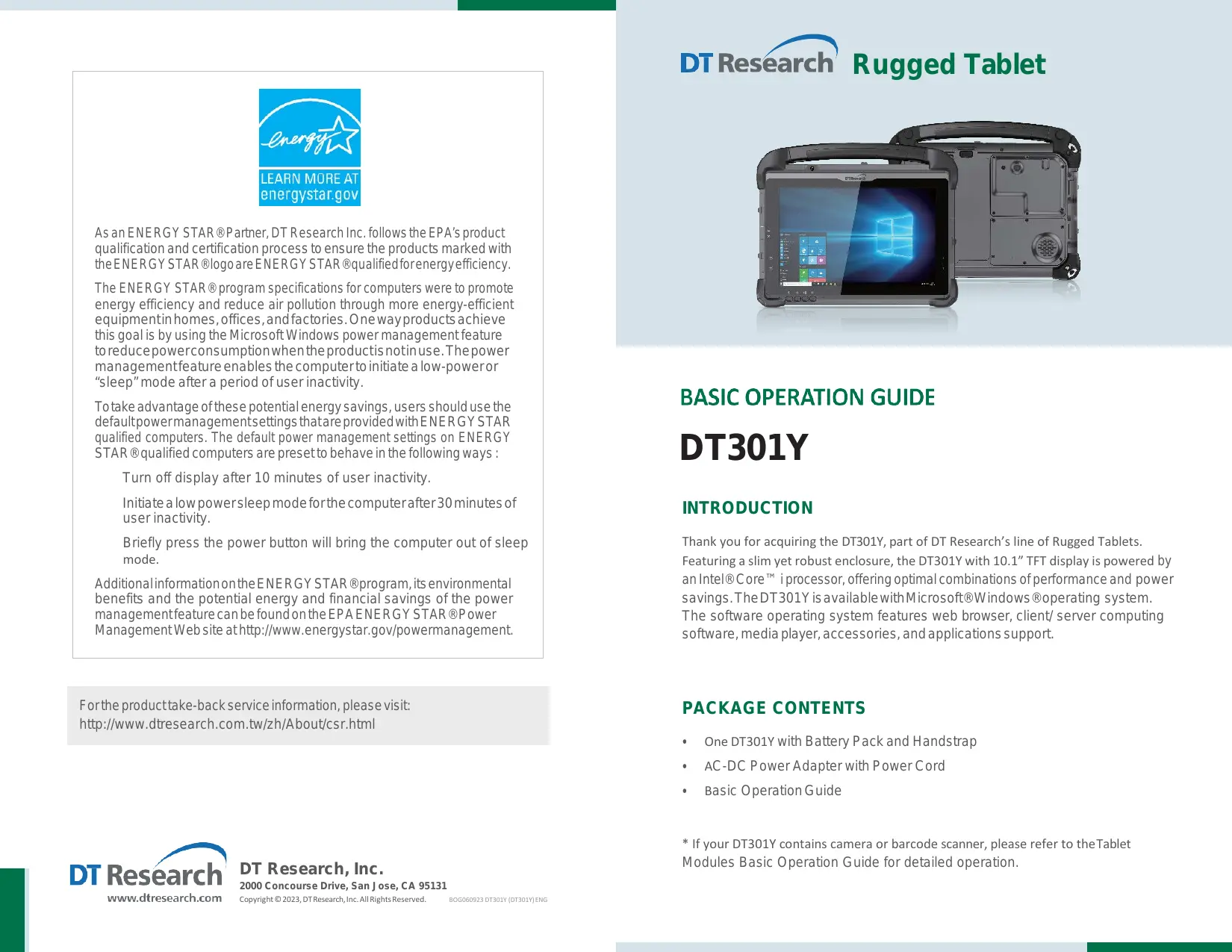

USER MANUAL DT301Y DT Research

As an ENERGY STAR Pariner, DT Research Inc. follows the EPA's product qualification and certification process to ensure the products marked with theENERGY STAR®@logo are ENERGY STAR®qualifiedforenergy efficiency. The ENERGY STAR® program specifications for computers were to promote energy efficiency and reduce air pollution through more energy-efficient equipmentinhomes. offices, andfactories. Oneway products achieve this goal is by using the Microsoft Windows power management feature toreducepowerconsumptionwhenthe productisnotinuse.Thepower managementfeature enables the computertoinitiate alow-power or “sleep” mode after a period of user inactivity. Totake advantage of these potential energy savings. users should usethe default powermanagementsettingsthatare provided with ENERGY STAR qualified computers. The default power management settings on ENERGY STAR®qualified computers are preset to behave in the following ways : Turn off display after 10 minutes of user inactivity. Initiate alow power sleep mode forthe computer after 30 minutes of user inactivity. Briefly press the power button will bring the computer out of sleep mode. Additionalinformationonthe ENERGY STAR@program, its environmental benefits and the potential energy and financial savings of the power management feature can be foundonthe EPAENERGY STAR®Power Management Web site at http:/{www.energystar.gov/powermanagement. Forthe producttake-back service information, please visit: http:/{www.dtresearch.com.tw/zh/About/csr.html DT Research DT Research, Inc. 2000 Concourse Drive, San Jose, CA 95131 www.dtresearch.com Copyright © 2023, DT Research, Inc AIlRights Reserved. 0923 DT3ONY (OT301YIENG DTReséarch Rugged Tablet

BASIC OPERATION GUIDE

DT301Y INTRODUCTION Thank you for acquiring the DT301Y, part of DT Research’s line of Rugged Tablets. Featuring a slim yet robust enclosure, the DT301Y with 10.1” TFT display is powered by anintel® Core Ti processor, offering optimal combinations of performance and power savings.TheDT301Yisavailablewith Microsoft® Windows®operating system. The software operating system features web browser, client/ server computing software, media player, accessories, and applications support. PACKAGE CONTENTS

• One DT301Y with Battery Pack and Handstrap + AC-DC Power Adapter with Power Cord *__ Basic Operation Guide

• If your DT301Y contains camera or barcode scanner, please refer to theTablet Modules Basic Operation Guide for detailed operation.

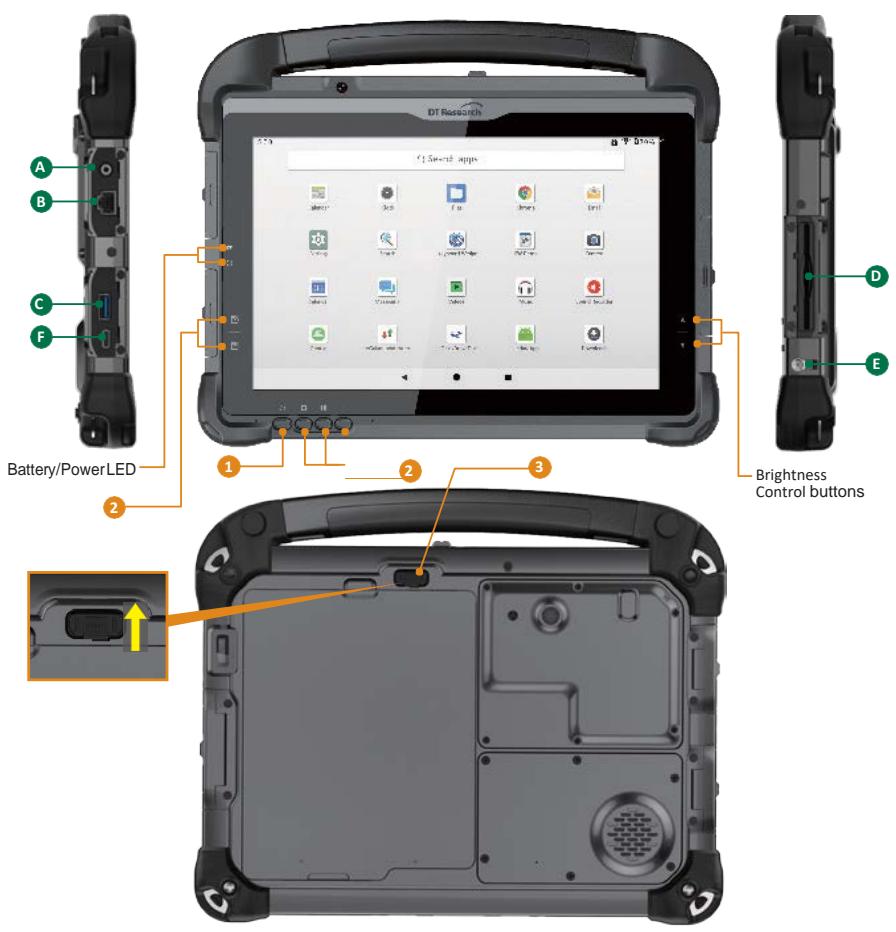

PRECAUTIONS + Always exercise care when operating and handling the DT301Y. + Do NOT apply excessive pressure to the display screen *__Werecommendusingthe Digital Pen (optional) to keep the screen clean. + Avoid prolonged exposure of the display panel to any strong heat source. Wherever possible, the DT301Y should face away from direct light to reduce glare +__Ifthe AC-DC power adapter is used to recharge or power the tablet, do NOT use any AC-DC adapter other than the one provided or acquired from the manufac- turer or its partners. *__Inthe unlikely event that smoke, abnormal noise, or strange odor is present, ar immediately power offthe DT301Y and disconnectall power sources. Report rightness Control buttons the problem to your device provider immediately. Battery/PowerLED *__ Neverattempttodisassemble the DT301Y, as this will voidthe warranty. NOTE: ToobtainprotectionconsistentwithanylPratingforthedevice,thel/O (audio, power,USB, cardreader, etc.) portdoors mustbeclosed.lfthelP protectionis compromised by mishandling or misuse, such as by leaving port doors open or improperly closed, any resulting product damage will not be covered under any DT Research warranty. BASIC FEATURES Input/Output Ports The DT301Y rugged tablet integrates a bright display, USB ports, and embedded @ Headphone Jack © smart Card Reader networking elements such as wireless LAN. © LANPort @ DC-inJack A DT301Y typically integrates an 802.11ac wireless LAN (WLAN) adapter that may Are connect to other wireless devices or access points. If your DT301Y does not come @ USB30Port pe with such a network adapter, please consult your device provider to establish the desired network connectivity. Button Functions BUTTON ACTION (1] Power Button C2] Programmable Buttons e Battery Latch ‘Pushtheswitchuptounlockthelatch.thenslidethelatchlefttoremovethebattery.

OPERATION Powering ON and OFF Toactivatethe DT301Y,pushandquicklyreleasethe Power Button. The display will come on in a few seconds. To put the DT301Y in Standby mode, push and quickly releasethe PowerButton. Toturnthe DT301 Y offforextendedstorage, power off safely using any software function that “shuts down computer” provided in the software operating system. NOTE: Thebatterypackshippedwithyourtabletmaybelowinpower—pleaseuse the AC-DC adapter with the DT301Y when setting up for the firsttime to fully charge the battery pack, or use the optional battery chargerkit. NOTE: Whenthebatterypackischarging,theblue-coloredBattery LED shouldblink slowly.Ifplugginginthe AC-DC adapter does nottriggerthisblinkingactivity andthe LED stays dark, the battery pack(s) may havebeendrainedsubstantially. Tryunplugging/repluggingthe AC-DC adaptertothe DT301Yafewtimesto activate the chargingprocess. NOTE: Toconservepower,use (pushandquickrelease)thePowerButtontoputthe tabletin“Standby”modewhilenotinuse. Pushingbrieflyonthesame button will wake up the system within seconds. NOTE: ForDT301Y,avoidusingthe Power Button (“hold4+seconds”feature)toturn offthetablet—this formofhardware shutdownisintendedto be a means of recovery from lockups, and not as normal operation. Start Up Ifthe power up (from Standby mode or otherwise) is successful, the appropriate interface will be displayedafter a launchsequence ofseveral seconds. The wireless LAN connection may take 10-15 seconds to be established. Configuring the Mobile Tablet The DT301Y maybe configuredusingthe utilities and methods dictated by the software operating system. The DT301Y should be configurable for various propertiessuchasuserprofiles,networkfeatures, andseveralsystemelements. Wireless Networking Wireless LAN The DT301Y is often delivered with an embedded (user-inaccessible) 802.1 tac WLAN adapter equipped with a hidden custom antenna. + Throughthe supportoftypical WLAN adapters, the DT301 Y should be able to detect all 802.11 access points in the vicinity for you to select the access point of your choice forconnection. + The SSID and WEP/WPA/WPA2 (ifenabled) parameters onthe DT301Y andthe access points haveto match. The SSIDiscase-sensitive anditisrecommended thatyouenable WEP/WPA/WPA2encryption (oradvancedalternatives) for secure access. + When WEP/WPA/WPAis enabled, you may need to consult your network administrator or your networking equipment literature to properly configure associated settings such as Authentication mode, etc. + __ Refertothe access pointoperating manuals for setting upthe 802.11 access points.

To Hold the Tablet Lefthand:grip the left backside ofthe tablet with your lefthandfourindexfingers, withthumbrestingonthe top of the back side of the tablet and palm securely against the back. Righthand:griptherightback side ofthe tablet with yourrighthandfourindexfingers, withthumbresting on the top of the back side of the tablet and palm securely against the back. Peripherals Support Through its USB ports, the DT301Y supports a wide range of USB-based peripherals. These peripherals are applicable for software installation, applications storage, data storage, and system software recovery and updates. Ifthe DT301Y comes with a Mobile broadband module, please contact your product and/or service provider for the SIM Card installation procedures.

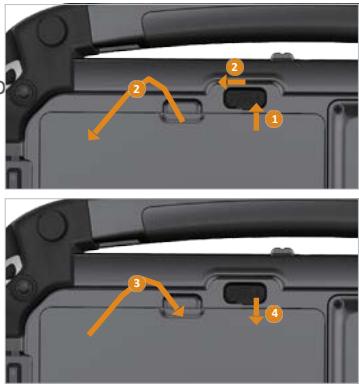

Replacing the Battery Pack

1. Slide the battery latch to the unlocked positiof

2. Liftthe battery pack off the compartment.

3. Fit another battery pack into place.

4. Slide the latch to the locked position.

5. lfyouwanttopurchaseextrabatterypacks,

please contact your dealers, or visit our Support page: https://www.dtresearch.com/en/ Support/contact.html CAUTION: There is danger of explosion ifthe battery is incorrectly replaced. Replace the battery onlywiththe Tabletmanufacturer'sbattery. Discardusedbatteries according to the dealer's instructions. CAUTION: Do not attempt to disassemble the battery pack. Battery Usage and Maintenance DT Research tablets and laptops are powered by lithium polymer battery packs in proprietary form factors. Battery configurations forthe DT Research devices include internal (bridge or backup), removable or swappable implementations. Battery usage cycles, orduration between necessary re-charge, vary with anumber offactors, including device model, device usage pattern and battery health/aging. The DTR battery packs may be charged while attachedto the device or when sepa- rated from the device and docked in proprietary battery charging cradles. Following theguidelinesongoodpracticebelowcanhelptokeepabatterypackhealthyand prolong battery usage cycles and battery lifespan. Avoidletting the battery packremaininvery highly chargedstate oroverlylow chargedstate for extensive periods of time. Keeping the battery capacity between 30%and80% ofmaximumcapacityisrecommended.Theprevailing battery level(s) can be read from the Battery utility within the Windows operating system. Avoid letting the battery be over-discharged or depleted. Over-discharge can occur when afully-discharged (0% level orthereabouts) battery packis allowed toremainin suchastate for an extended period oftime (weeks or months). Theembeddedbatterycontrolsenteraprotectionmodeandrechargingwillbe prevented for safety reasons. To reduce the likelihood of over-discharge, consider rechargingidle batteries regularly to some level between 30%-80% of capacity. For long term storage, it is recommended that removable battery packs be stored separated from the device. Otherwise, the system should be placed in Shutdown mode. Thebatterylevelwilldecrease withtime anditisrecommendedthatthe battery packsbe monitoredorrechargedevery2-3monthstomaintainbattery health. The targeted battery level should be within 30% to 80% of maximum capacity. Avoid high heat conditions during operation, idle, charging, and storage states. Product End-of-Life Notice Forreuseandrecyclingfacilities, please visitbelowlinkto getdisassembly instructions: http://www.dtresearch.com.tw/zh/About/csr.html or http:/www.dtresearch.com.tw/EPEAT/DT301Y_Product_End-of-Life_Disassembly_ Instructions.pdf

RF Exposure Information (RED & UKCA) To be protected against all verified adverse effects, the separation distance of at least Omm must be maintained between the antenna of the radio having max. 4.0dBi antenna and all persons. Hereby, [DT Research, Inc.] declares that the radio equipment type [DT301Y] is in compliance with Directive 2014/53/EU and UK Radio Equipment Regulations 2017. The full text of the EU and UK declaration of conformity is available at the following internet address: http:/{www.dtresearch.com. The functions of Wireless Access Systems including Radio Local Area Networks(WAS/RLANSs) within the band 5150-5350 MHz for this device are restricted to indoor use only within all European Union countries (BE/BG/CZ/DK/DE/EE/IE/EL/ES/FR/HR/ IT/CY/LV/LT/LU/HU/MT/NL/AT/PL/PT/RO/SI/SK/FI/SE/TR/N O/CH/IS/LI/UK(NI). Maximum EIRP for EU Bluetooth:2402MHz-2480MHz 13.0dBm Bluetooth LE:2402MHz-2480MHz 9.44dBm Wifi: 2412MHz-2472MHz/2422MHz-2462MHz 19.6dBm Wifi: 5150MHz-5725MHz 20.07dBm Wifi: 5725MHz-5875MHz 13.85dBm Wifi: 5955MHz-6415MHz 19.23dBm This equipment complies with Directive 2014/53/EU and UK Radio Equipment Regulations 2017 radiation exposure limits set forth for an uncontrolled environment. End user must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The portable device is designed to meet the requirements for exposure to radio waves established by European Union market(France). These requirements set a SAR limit of 2W/kg averaged over 10 gram of tissue. The highest SAR value 1.88 W/kg reported under this standard during product certification for use when properly worn on the body. The equipment has been tested with radios set to their highest transmission levels with following setup: Mode use against the head worn or carried against the torso of the body Worn on limbs Separation / 0 mm ! SAR Value / 1.88 W/kg / Sar Limit 2W/kg (over 10 g) 2W/kg (over 10 g) 4W/kg (over 10 g) Body-worn accessories (e.g., carry case, belt clip) containing metallic components which has not been tested or certified may change the RF performance of the device, including its compliance with RF exposure. User shall avoid using such accessories and should operate at least the above stated separation distance to maintain RF exposure compliance.

Operating authorizations must exist to operate the product in the following member states of the European Union, refer to the table below. Greta er Te Lo on D ebetofa ter MATIERE CAR | CE uw Importer Name: Concept International GmbH Importer Address: Zweibrückenstr. 5-7 80331 München Germany

Federal Communication Commission Interference This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference ina residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. lf this equipment does cause harmiul interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of thefollowing measures: . Reorient or relocate the receiving antenna. . Increase the separation between the equipment and receiver. . Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. . Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operatethis equipment. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating inconjunction with any other antenna or transmitter. RF Exposure Compliance This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End user must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The portable device is designed to meet the requirements for exposure to radio waves established by the FCC. These requirements set a SAR limit of 1.6 W/kg averaged over one gram of tissue. The highest SAR value reported under this standard during product certification for use when properly worn on the body, with Omm separation. FCC ID Label is in removable battery compartment, it could be easily found by removing the battery cover. Supplier's Declaration of Conformity 47 CFR 8 2.1077 Compliance Information Unique Identifier Trade Name: PS Model No.: DT301Y DT Reséarch Responsible Party — U.S. Contact Information DT Research, Inc. 2000 Concourse Drive, San Jose, CA 95131 htip//www.dtresearch.com
