USER MANUAL CLPB600IPG2 Cameo

INFORMATION ON THIS USER MANUAL

MANUFACTURER"S DECLARATIONS

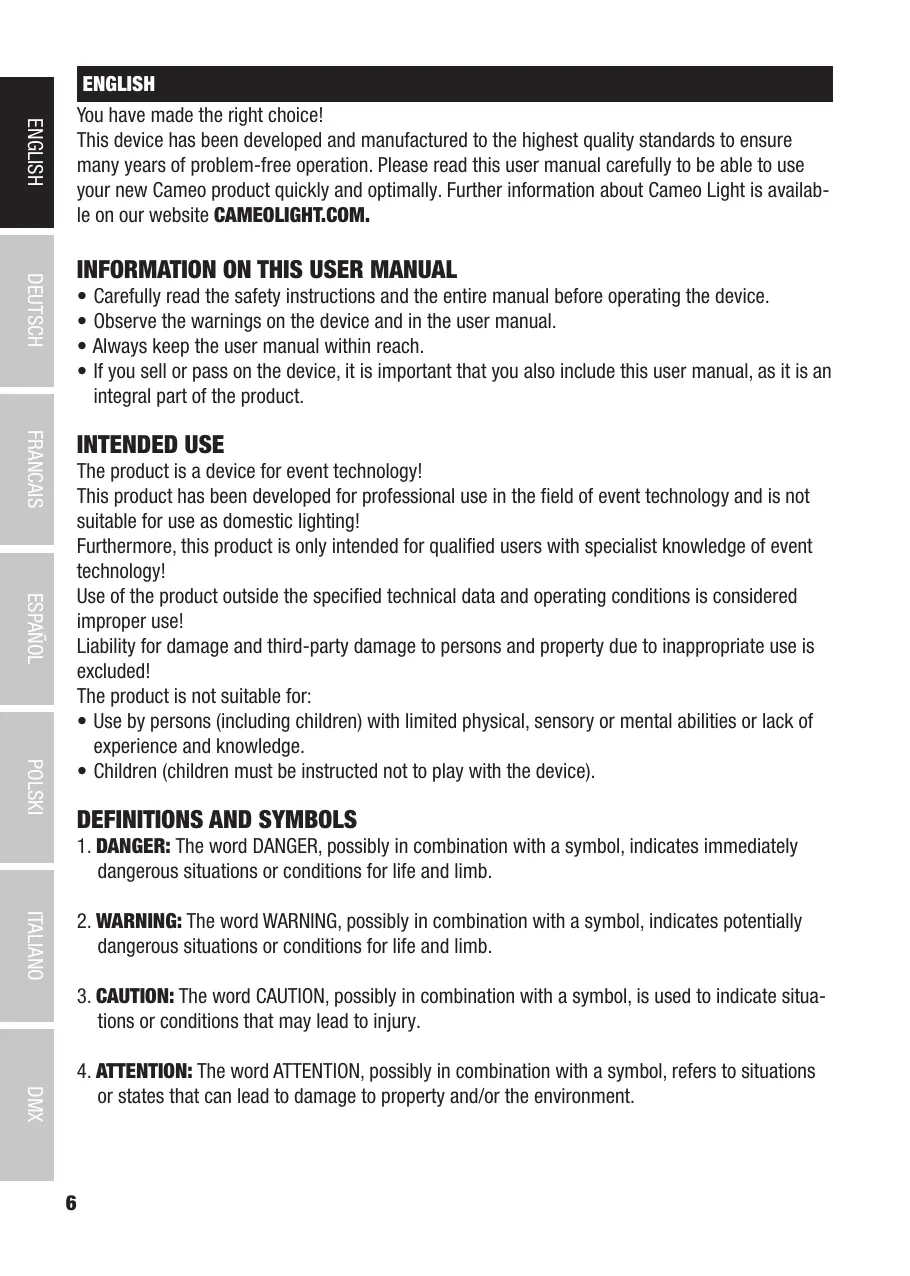

You have made the right choice! This device has been developed and manufactured to the highest quality standards to ensure many years of problem-free operation. Please read this user manual carefully to be able to use your new Cameo product quickly and optimally. Further information about Cameo Light is availab- le on our website CAMEOLIGHT.COM.

INFORMATION ON THIS USER MANUAL

+ Carefully read the safety instructions and the entire manual before operating the device. + Observe the warnings on the device and in the user manual. + Always keep the user manual within reach. < If you sell or pass on the device, it is important that you also include this user manual, as it is an integral part of the product. INTENDED USE The product is a device for event technology! This product has been developed for professional use in the field of event technology and is not suitable for use as domestic lighting! Furthermore, this product is only intended for qualified users with specialist knowledge of event technology! Use of the product outside the specified technical data and operating conditions is considered improper use! Liability for damage and third-party damage to persons and property due to inappropriate use is excluded! The product is not suitable for: + Use by persons (including children) with limited physical, sensory or mental abilities or lack of experience and knowledge. + Children (children must be instructed not to play with the device).

DEFINITIONS AND SYMBOLS

1. DANGER: The word DANGER, possibly in combination with a symbol, indicates immediately

dangerous situations or conditions for life and limb.

2. WARNING: The word WARNING, possibly in combination with a symbol, indicates potentially

dangerous situations or conditions for life and limb.

3. GAUTION: The word CAUTION, possibly in combination with a symbol, is used to indicate situa-

tions or conditions that may lead to injury.

4. ATTENTION: The word ATTENTION, possibly in combination with a symbol, refers to situations

or states that can lead to damage to property and/or the environment.

This symbol identifies hazards that can cause electric shock. ENGLISH This symbol identifies hazardous areas or hazardous situations. This symbol indicates hazards caused by hot surfaces. This symbol indicates hazards caused by intense light sources. This symbol indicates a device in which there are no user-replaceable parts. OBEEE This symbol indicates additional information on the operation of the product. SAFETY INSTRUCTIONS

2. f your device no longer functions properly, if liquids or objects get inside it or if it

has been damaged in any other way, switch it off immediately and disconnect it from the mains. The device may be repaired only by authorised repair technicians.

8. For devices of protection class 1, the protective conductor must be connected

correctly. Never disconnect the protective conductor. Devices of protection class 2 do not have a protective conductor.

4. Ensure that live cables are not kinked or otherwise mechanically damaged.

5. Never bypass the unit fuse.

PL 1. The device may not be operated if it shows obvious signs of damage.

2. The device may only be installed in a voltage-free state.

3. If the power cable of the device is damaged, do not operate the device.

4. Permanently connected power cables may only be replaced by a qualified person.

1. Do not operate the unit if it has been exposed to large temperature fluctuations

(for example, after transport). Moisture and condensation can damage the device. Switch on the device only when it has reached room temperature.

2. Make sure that the voltage and frequency of the mains supply correspond to the

values indicated on the unit. If the device has a voltage selector switch, do not connect the device until it has been set correctly. Use only suitable power cables.

8. To disconnect the unit from the mains at all poles, it is not sufficient to press the

on/off switch on the unit.

4. Make sure that the fuse used corresponds to the type printed on the unit.

5. Make sure that appropriate measures have been taken against overvoltage (e.g.

tion. Ensure that the total current consumption of all connected devices does not exceed the specified value.

7. Replace pluggable mains cables only with original cables.

1. Danger of suffocation! Plastic bags and small parts must be kept out of reach of

persons (including children) with reduced physical, sensory or mental capabilities.

2. Danger from falling down! Make sure that the device is securely installed and will

not fall down. Only use suitable stands or mounts (particularly for fixed installa- tions). Ensure that accessories are properly installed and secured. Ensure that applicable safety regulations are observed.

1. Use the device only in the manner intended.

2. Operate the device only with the accessories recommended and intended by the

3. During installation, observe the safety regulations applicable in your country.

4. After connecting the unit, check all cable routes to avoid damage or accidents, e.g.

due to tripping hazards.

5. Always observe the specified minimum distance to normally flammable materials!

Unless explicitly stated, the minimum distance is 0.3 m.

6. Always observe the minimum distance to the illuminated surface that can be read

1. In the case of moving components such as mounting brackets or other moving

components, there is a possibility of jamming.

2. In the case of units with motor-driven components, there is a risk of injury from the

movement of the unit. Sudden movement of the device can cause shock reactions.

3. The housing surface of the device can become very hot during regular operation.

Ensure that accidental touching of the housing is not possible. Always allow the lamp to cool sufficiently before removal, maintenance work and charging etc. ENGLISH ATTENTION:

1. Do not install or operate the device near any radiators, heat registers, stoves or other

heat sources. Ensure that the device is always installed in such a way that it is suffi- ciently cooled and cannot overheat.

2. Do not place ignition sources such as burning candles near the device.

3. Ventilation openings must not be covered and fans must not be blocked.

4. Use the original packaging or packaging provided by the manufacturer for trans-

6. Observe the IP rating as well as the ambient conditions such as temperature and

humidity according to the specification.

7. Devices can be constantly further developed. In the event of deviating information on

operating conditions, performance or other device properties between the user manual and the device labelling, the information on the device always takes priority.

8. The unit is not suitable for tropical climates and for operation above 2000 m above

9. Unless explicitly stated, the unit is not suitable for operation in marine conditions .

PLEASE NOTE: For conversion or retrofit sets or accessories provided by the manufacturer, it is essential to observe the instructions included. GAUTION! IMPORTANT INFORMATION REGARDING LIGHTING PRODUCTS!

1. Never look directly into the beam of light, not even for a short period of time.

2. Never look into the beam of light using optical devices such as a magnifying glass.

3. Stroboscopic effects may cause epileptic seizures in susceptible individuals!

4. Permanently installed lamps are built into these lighting units. These may not

be replaced by the user. In the event of a fault, please contact your distribution partner.

mie SIGNAL TRANSMISSION AND CONTROL BY RADIO (e.g. W-DMX or audio radio systems, Bluetooth): The quality and performance of wireless signal transmissions generally depends on the ambient conditions. The following factors can impact range and signal stability, for example: Shielding (e.g. masonry, metal structures, water) High volumes of radio traffic (e.g. powerful wireless LAN networks) Interference Electromagnetic radiation (e.g. LED video screens, dimmers) All range specifications refer to free-field application with visual contact and without interference! The operation of transmission systems is subject to official regulations. These may vary from region to region and must be checked by the operator before use (e.g. radio frequency and transmission power).

WARNING: Devices with wireless signal transmission are not suitable for use in sen-

sitive areas in which radio operation can lead to potential detrimental effects. These include e.g.: < Hospitals, health centres or other healthcare facilities that provide patient treatment with skilled personnel and equipment. + Hazardous areas Class |, Il and Ill < Restricted areas e Military facilities < Aircraft or vehicles < Areas where the use of mobile phones is prohibited

TRANSMISSION VIA W-DMX

WARNING: In general, wireless DMX transmission must not be used for applications

with safety-related factors that could result in personal injury or property damage in the event of failure. This applies in particular to moving scene or traverse structures, DMX-controlled mo- tors/lifts or lifting devices for operating DMX-operated platform lifts, hydraulic systems or comparable moving components. Furthermore, wireless DMX transmission must not be used to trigger flame or pyro- technic devices, explosion-driven effects, or to control gas or liquid effects. These include e.g. CO2 cannons, confetti shooters, water effects or similar.

1. Temporary operation! Event equipment is generally only designed for temporary

2. Continuous operation or permanent structural installation — particularly outdoors —

can impair the function, surfaces and seals and accelerate material fatigue.

3. Damage to the surface coating can impair the device's corrosion protection.

Damaged surface coating (e.g. scratches) must be promptly repaired by suitable measures. mie ENGLISH PACKAGING CONTENT Remove the product from the packaging and remove all packaging material. Please check the completeness and integrity of the delivery and notify your distribution partner immediately after purchase if the delivery is not complete or if it is damaged. included with the CLPB400IPG2 product are: D> 1 x PIXBAR® 400 1P65 G2 RGBW spotlights > 2 sliding mounting feet with folding SPIN16® mounting spigot (pre-assembled) D 1 x standard frost filter > 1 x glare shield >> 1 x power cable > User manual included with the CLPB600IPG2 product are: 1 x PIXBAR® 600 IP65 G2 RGBWAUv spotlights 2 sliding mounting feet with folding SPIN16® mounting spigot (pre-assembled) 1 x standard frost filter 1 x glare shield 1 x power cable User manual LAAAAAL INTRODUCTION PIXBAR® 400 IP G2 Outdoor Spotlights CLPB4001PG2 with 16 4int RGBW LEDs PIXBAR® 600 IP G2 Outdoor Spotlights CLPB600IPG2 with 16 Gin RGBWAUV LEDs

CONTROL FUNCTIONS: CLPB400IPG2 1-channel, 3-channel Preset, 4-channel Direct, 7-channel Direct Control, 8-channel 16-bit, 10-channel Direct CCT, 11-channel Effect Pattern, 16-channel Wash, 36-channel Pattern, 48-channel Pixel RGB, 64-channel Pixel, 68-channel Pixel Dim, D2-channel, D4-channel Preset and D7-channel Direct DMX Control CLPB600IPG2 1-channel, 3-channel Preset, 6-channel Direct, 9-channel Direct Control, 12-channel 16-bit, 12-channel Direct CCT, 13-channel Effect Pattern, 20-channel Wash, 44-channel Pattern, 48-channel Pixel RGB, 96-channel Pixel, 100-channel Pixel Dim, D2-channel, D4-channel Preset and D9-channel Direct DMX Control RDM W-DMX"' Master/Slave modes Stand-alone functions FEATURES: + IP65 Rating + Convection cooling + Operating voltage: 100 - 240 VAC The spotlights feature the RDM standard (remote device management). This remote device management enables the status query and configuration of RDM end devices via an RDM-capable controller, such as the optionally available Cameo UNICON (item number CLIREMOTE). The Cameo UNICON also allows access to the entire spotlight menu.

- The CLPB400IPG2 and CLPB600IPG2 models feature identical connections, operating and display elements -

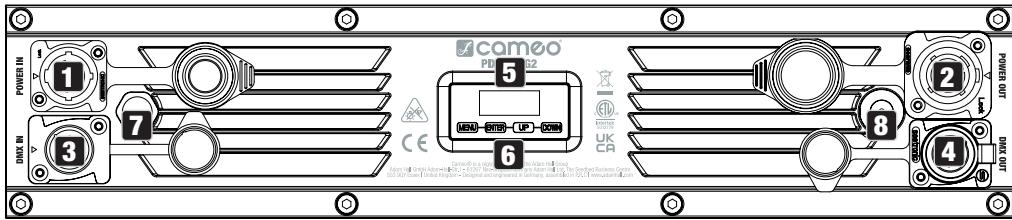

IP65 mains input socket with rubber sealing cap (TRUE1 compatible). Operating voltage 100 - 240 VAC / 50 - 60 Hz. Connection via supplied power cable (when not in use, always close with rubber sealing cap). FA POWER our IP65 mains output socket with rubber sealing cap (TRUE1 compatible). Facilitates power supply to other CAMEO spotlights. Ensure that the total current consumption of all connected devices does not exceed the value specified on the device in amperes (A) (when not in use, always close with the rubber sealing cap). BE omxiN Male IP65 5-pin XLR socket for connecting a DMX control device (e.g. DMX console, when not in use always close with the rubber sealing cap). © omx our Female IP65 5-pin XLR socket for sending DMX control signal (when not in use, always close with the rubber sealing cap). Æ 0LED DISPLAY The OLED display shows the currently activated operating mode or the current DMX address (main display), the menu items in the menu and the numerical value or operating mode in certain menu items.

MENU- Press MENU to access the main menu. Press again or repeatedly to return to the main display. UP and DOWN - Select the menu items in the main menu (DMX address, operating mode, etc.) and in the sub-menus using UP and DOWN. Change value or status in a menu item, e.g. DMX address. To quickly change a value, such as the DMX start address, press and hold UP or DOWN. ENTER -— Press ENTER to access the menu level to make value or status changes, and to access one of the sub-menus. Confirm value or status changes by pressing ENTER. e PLEASE NOTE: L < Before navigating the unit menu, make sure that the control panel is dry and clean so that its functionality is not impaired. + Water on the control unit can lead to incorrect operation of the spotlight, e.g. in outdoor operation. Therefore, after configuring the spotlight, activate the lock function to prevent incorrect operation by water (Settings -> Display -> Autolock).

PRESSURE EQUALISATION ELEMENT

Pressure equalisation element to prevent condensation inside the housing. In order to ensure its proper function, the element must be protected from contamination. 6 W-DMX"* ANTENNA Antenna for control via W-DMX"". ATTENTION: To ensure IP65 splash resistance for the DMX and network sockets, the PA special input and output sockets must be correctly sealed with the IP65 special plugs or the rubber sealing caps must be used for sealing. When connected correctly, or when sealed correctly with the rubber sealing caps, the POWER IN and POWER OUT sockets are protected from spraying water, as in accordance with IP65. OPERATION NOTE + As soon as the spotlight is correctly connected to the power supply, the following are displayed in succession: “Update wait …” (for service purposes only), “Welcome to Cameo”, the model name and the software version. After this process, the spotlight is ready for operation and the previously activated operating mode is launched. + _lfthere is no input for approx. 30 seconds, the display automatically returns to the main dis- play.

Note on the main display in the operating modes with external control: As soon as the control signal is interrupted, the characters in the display start flashing; if the control signal is present again, the flashing stops. Briefly pressing UP when in the main display rotates the display by 180°. SETTING DMX START ADDRESS (DMX address) Starting from the main display, press MENU to enter the main menu. Now use UP and DOWN to select the menu item DMX Address and confirm with ENTER. Using the UP and DOWN buttons, configure the desired DMX start address and press ENTER to confirm (highest value dependent upon activated DMX mode). Menu DMX Address DMX Address DMX Mode oo Stand Alone EZ Remote Slave Settings Service System Info CONFIGURING DMX MODE (DMX Mode) Starting from the main display, press MENU to enter the main menu. Now use UP and DOWN to select the menu item DMX Mode and confirm with ENTER. Now select the desired DMX mode ENGLISH using UP and DOWN and confirm the selection with ENTER. DMX operating modes with DMX delay channel and group selection (Group 0 - 24) are marked with "D". Tables with the channel assign- ments can be found in these instructions under DMX CONTROL.

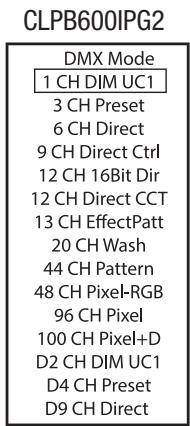

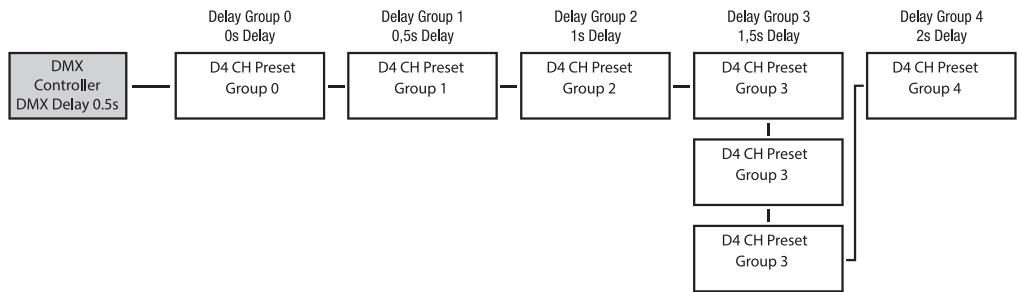

DMX modes with DMX delay channel The DMX Delay function is a simple way to create a running light effect with a large number of spotlights that are all the same model and that are all running the same software version. This is otherwise only achievable with a suitable DMX controller and time-consuming programming. Allthe spotlights used (same models, same software version) are set to the same DMX operating mode with DMX delay channel and controlled via the same DMX start address. Setting the DMX delay: Select one of the DMX operating modes with DMX delay channel and confirm the selection (in the example D4 CH Preset). Assign the spotlights to one of up to 24 groups (plus Group 0) according to preference, whereby several spotlights can be assigned to one group. The group number is also the factor by which the set delay time set in the DMX controller is multiplied. Confirm each entry by pressing ENTER. Menu DMX Mode D4 CH Preset DMX Address DA CH Preset Group 0-24 DMX Mode Stand Alone EZ Remote Slave Settings Service System Info The delay time (delay time of the DMX signal) is set by means of a DMX controller in the separate DMX delay channel of the corresponding DMX mode (0.0s to 2.0s in 0.1s increments). Setup example: Delay Group 0 Delay Group 1 Delay Group 2 Delay Group 3 Delay Group 4 0s Delay 058 Delay 5 Delay 1,88 Delay 25 Deby DMX DA CH Preset DA CH Preset DA CH Preset D4 CH Preset D4 CH Preset Controller | —| Groupo |] Groupt | Group2 | Groups Group DMX Delay 055 DA CHPreset Group 3 D4 CHPreset Group 3

STAND-ALONE MENU MASTER / ALONE

In the stand-alone modes Direct LED, Color Preset, CCT, HSI, Auto Program and Play Loop, the control signal of the corresponding mode can be output to slave units via XLR (DMX OUT) and W-DMXTM: Stand Alone -> Master/Alone -> Master If the output of the control signal is not desired, the output can be deactivated: Stand Alone -> Master/Alone -> Alone A delay for slave units can be set for the time-delayed output of the control signal of the stand-alone modes Auto Program and Play Loop. Starting from the main display, press MENU to enter the main menu. Now select the Stand Alone menu item, confirm, select Master/Alone and confirm again.

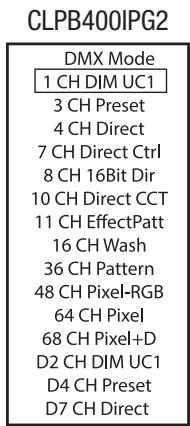

Menu Stand Alone DMX Address DMX Mode Direct LED Z Color Preset 2 EZ Remote ccT S Slave HSI Settings Play Loop Service Timer System Info Edit User Color Edit Loop This will take you to the submenu for configuring the submenu items (see table). Send to XLR Control signal is forwarded via DMX OUT On Activate DMX control signal forwarding via W-DMX off Deactivate sending of the DMX control signal via Master | Send to W-DMX W-DMX Force to pair_| Pairing with ready-to-pair W-DMX devices Unlink All Disconnect all W-DMX connections DMX Delay | Set DMX delay for slave units: Off, 0.1s - 2.0s Alone Do not forward control signal

STAND-ALONE DIRECT LED MODE

The stand-alone Direct LED mode allows dimmer, strobe, R, G, B and W (CLPB400IPG2) or R, G, B, W, A and UV (CLPB600IPG2) to be set directly on the unit, similar to a DMX controller. In this way, an individual scene can be created without an additional DMX controller. Starting from the main display, press MENU to enter the main menu. Use UP and DOWN to select Stand Alone, confirm with ENTER, then select Direct LED and confirm again with ENTER. Now select the menu item you want to edit, confirm the selection, set the desired value and confirm the entry.

CLPB400IPG2 CLPB6001PG2

Menu Stand Alone Direct LED Direct LED DMX Address Master/Alone Dimmer 0%-100%]| |[Dimmer 0% - 100%] DMX Mode Direct LED Red O%-100%| |Red 0%-100% Color Preset Green 0%-100% | | Green 0%-100% EZ Remote CT Blue 0%-100% | | Blue 0%-100% Slave Hs! White _0%-100% | | White 0%-100% Settings Play Loop Amber _ 0% - 100% Service Timer UV 0%-100% System Info Edit User Color Edit Loop

49 different colour presets plus eight individually adjustable user presets (see Edit User Color) are available. The brightness can be set at a higher level. Starting from the main display, press MENU to enter the main menu. Use UP and DOWN to select the menu item Stand Alone, confirm the selection, then select Color Preset and confirm again with ENTER. Now select GEL or User Color and confirm the selection. The desired preset can now be selected, confirm the selection. Now select Dimmer (brighiness), confirm the selection and make the settings as desired. Confirm the entry. Menu Stand Alone Color Preset DMX Address Master/Alone DMX Mode Direct LED GEL User Color EZ Remote CCT Slave HS Settings Play Loop Service Timer System Info Edit User Color Edit Loop CCT STAND-ALONE MODE (Correlated Colour Temperature) In stand-alone CCT mode, the colour temperature can be adjusted in 100K steps from 2200K to 8000K, plus the hue (tint) and brightness (dimmer). Starting from the main display, press MENU to enter the main menu. Use UP and DOWN to select the Stand Alone menu item, confirm the selection, then select GOT and confirm again with ENTER. Now select the menu item you want to edit, confirm the selection and make the settings as desired. Confirm the entry. Menu Stand Alone ai DMX Address Master/Alone DMX Mode Direct LED CCT_ 2200K -8000K Color Preset Tint -10-10 EZ Remote Slave Hst Settings Play Loop Service Timer System Info Edit User Color Edit Loop STAND-ALONE MODE HSI (Hue - Saturation - Intensity) In the stand-alone HSI mode, the hue, saturation and brightness can be adjusted separately as desired. Starting from the main display, press MENU to enter the main menu. Use UP and DOWN to select the Stand Alone menu item, confirm the selection, then select HSI and confirm again With ENTER. Now select the menu item you want to edit, confirm the selection and make the settings as desired. Confirm each entry.

Menu Stand Alone Hs DMX Address Master/Alone Dimmer _ 0%-100%] DMX Mode Direct LED Hue 07-360" Color Preset Saturation 0% - 100%) EZ Remote cCT Slave Settings Play Loop Service Timer System Info Edit User Color Edit Loop STAND-ALONE OPERATION MODE PLAY LOOP (8-step colour sequences 1 - 8) The 8 available loops are pre-programmed at the factory, but can be customised in the Edit Loop menu item. The brightness can be set at a higher level. Starting from the main display, press MENU to enter the main menu. Using UP and DOWN, select the menu item Stand Alone, confirm With ENTER, then select the submenu item Auto and confirm again with ENTER. Now select the menu item you want to edit, confirm the selection and make the settings as desired. Confirm each entry. Menu Stand Alone Play Loop DMX Address Master/Alone Diner 07100] DMX Mode Direct LED Loop 8 Color Preset EZ Remote €CT Slave Hs! Setings Service Timer System Info Edit User Color Edit Loop TIMER FUNCTION The timer function allows timed control of the Direct LED, Colour Preset, CCT and HSI stand-alone modes in such a way that the fade-in time (Fade In) can be set from 0 to 60 minutes, the dwell time from 1 to 24 hours and the fade-out time from 0 to 60 minutes. After activation of the timer function, the timer control will be implemented upon the next system start. Starting from the main display, press MENU to enter the main menu. Select Stand Alone, confirm the selection, then select Timer and confirm again. Select the setting On under Timer and confirm. For the individual timer control settings, select Fade In, Dwell Time or Fade Out and confirm. You can now set the respective value as desired. Confirm all entries. To deactivate the timer function, select the setting Off under Timer and confirm the entry. Note: The timer function is suitable for use in master/slave operation via cable and W-DMX". Menu Stand Alone Timer DMX Address Master/Alone DMX Mode Direct LED Faden O-60min Color Preset DwellTime 1-24h EZ Remote ccT Fade Out _0-60min Slave Hs! Settings Play Loop Service System Info Edit User Color Edit Loop

EDITING USER-PRESETS (Edit User Color) The eight user presets available in the stand-alone mode Colour Preset can be edited individually. Starting from the main display, press MENU to enter the main menu. Using UP and DOWN you now select the menu item Stand Alone, confirm with ENTER, then select Edit User Color and confirm once again. Select the desired preset (User Color 1 - 8) and confirm the selection. Now decide which way you want to create the colour for the preset and select one of the four methods Direct, CCT, Preset and HSI and confirm the selection. Now set the desired colour as described in the instructions for the respective stand-alone mode. Menu Stand Alone Edit User Color User Color x DMX Address Master/Alone DMX Mode Direct LED | Set via CCT Color Preset User Color 8 Set via Preset EZ Remote CCT Set via HSI Slave HS Settings Play Loop Service Timer System Info Edit Loop EDIT LOOP (Edit LOOP) Brightness, step duration and fade time can be set separately for all eight loops. Starting from the main display, press MENU to enter the main menu. Using UP and DOWN you now select the menu item Stand Alone, confirm with ENTER, then select Edit Loop and confirm once again. Now select the desired loop for editing and confirm the selection. Menu Stand Alone Edit Loop Loop x DMX Address Master/Alone DMX Mode Direct LED Ï LStep Color Preset Loop 8 t-Fade EZ Remote €cT Color Preset Slave Hs! Settings Play Loop Service Timer System Info Edit User Color

This will take you to the submenu for configuring the submenu items (see table). The settings for each loop are made separately and are retained even after restarting the device. ENGLISH Step 1-8 Step selection T-Step T-Ste Os - 10s = 0,1s steps Setting the step duration for the p 10s - {min = 1s steps selected step min - 20min = 1min steps T-Fade Os - 10s = 0,1s steps Setting the fade time for the T-Fade :

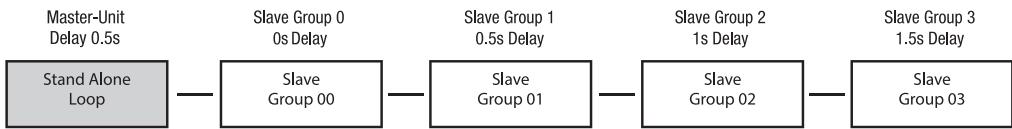

SLAVE MODE Standard slave operation: Starting from the main display, press MENU to enter the main menu. Using the UP and DOWN buttons, you now select the menu itemSlave confirm with ENTER, select the Slave Group 0 and confirm again with ENTER. Connect the slave and master units (same mo- del, same software version) using a DMX cable or W-DMXTM and activate one of the stand-alone modes (Direct LED, Color Preset, CCT, HSI, Auto Program, Play Loop) in the master unit. The slave unit will now follow the master unit. Extended slave operation: lf you want to control the slave units by one of the stand-alone modes Auto Program or Play Loop in master / slave operation, the control signal can be played back with a time delay of up to 24 steps, the delay is set in the Stand Alone menu Master/Alo- ne in the master unit, the delay factor in the slave menu of the corresponding fixture (Group). This is a simple way to create a running light effect with a large number of spotlights that are all the same model and have the same software version. This is otherwise only possible using a suitable DMX controller and time-consuming programming. Connect the slave and master units (same model, same software version) using à DMX cable or via W-DMX"" En ge Group 0-24 [set slave group for signal delay ress rou a DMX Mode Receive Mode XLR (permanent aktiv) Stand Alone Activate W-DMX EZ Remote On module Settings Receive : Deactivate W-DMX Service Wire- |Off System Info Mode less module Disconnect all con- Unlink nections and place in pairing standby mode Assign the spotlights to one of up to 24 groups (plus Group 0) according to preference, whereby several spotlights can be assigned to one group. The group number is also the factor by which the delay time set in the master unit is multiplied. Setup example: Master-Unit Slave Group 0 Slave Group 1 Slave Group 2 Slave Group 3 Delay 0.5s Os Delay 0.5s Delay 15 Delay 1.5 Delay Stand Alone Slave Slave Slave Slave Loop — Group 00 |[— Group 01 — Grupo |[— Group 03

SYSTEM SETTINGS (Settings) Starting from the main display, press MENU to enter the main menu. Using the UP und DOWN buttons you now select the menu item Settings and confirm with ENTER. Menu DMX Address DMX Mode Stand Alone EZ Remote Slave Service System Info This will take you to the submenu for setting the submenu items (see table, select with UP and DOWN, confirm with ENTER, change value or status with UP and DOWN, confirm with ENTER). W-DMX |On Activate W-DMX State Off W-DMX deactivated Receive W-DMX mode: Receiver perte Transmit G3 (G3 transmission standard) G4s (transmission standard G4s ) Unlink Uncouple all units and make them ready for coupling Wireless |... Pair with W-DMX devices. W-DMX must Wireless |= settings Einking Link/Force to | be enabled on all devices, and the pairing pair with a transmitter be retained (Receive Reset). Send to XLR | Send incoming signal to XLR connector Signal Backup by Using the incoming signal from the XLR Routing XLR connector when the W-DMX signal is lost. No connection between W-DMX signal and Receive only XLR connectors on Display is rotated by 180° (e.g. for over- Reverse head installation) Off No display rotation Always On Display lighting permanently on : Off Timer Deactivation of the display lighting after Display |= Display Off after 205 approx. 20 seconds ofinactity ‘ settings PT Off Function disabled The controls and display are locked after Autolock On after 60s approx. 60 seconds without any operation. Unlock: Press UP and DOWN simultane- ously for approx. 5 seconds

Dimmer curve: The light intensity increas- Linear es linearly with the DMX value Dimmer curve: The light intensity can be Exponential adjusted finely in the lower DMX value range and coarsely in the upper DMX Dimming |Curve value range Dimmer behaviour Dimmer curve: The light intensity can be and PWM : : frequency Logarithmie adjusted coarsely in the lower DMX value range and finely in the upper DMX value range Light intensity can be finely adjusted at Curve S-Curve lower and higher DMX values and broadly adjusted at medium DMX values 650 Hz, 1530 ns Wire Fe Select LED PWM frequency KHz, 25 kKHz Light responds abruptly to changes in LED Dimming |Response DMX value = s F b s Light behaves like a halogen spotlight with ehaviour Halogen : : Dimmer and PWM light brightness changes frequency accurately mimics the colour drift of dim- ming a halogen spotlight. When dimming . the spotlight, the colour temperature Redshift Dim to Warm changes automatically to increasingly warm white tones and amber (and vice versa). Off Function disabled R, G, B, and W (CLPB4001PG2) or R, G, B, RAW W, À and Uv (CLPB6001PG2) with maxi- mum value 255 Colour CLPB4001- Color Cal |_ calibra- qe RGBUW Individual colour calibration. Cross-mode ibration tion User Fee nn brighiness setting with values from 0-255 WAUv Factory Factory calibration (cross-mode) Smart Merging factory and RAW calibration

Operating [Hold Last command is retained mode on [Last Stand Alone Last activated stand-alone mode is started | ES : . control Fade to Black (10s) 10s fade to blackout 2 Signal Fail |= | S signal Blackout Instant blackout £ interrup-_ | User Color 1 User Colour 1 is activated tion Full Full On Pixel _ [Mirror [Off Function disabled Mirror [pixel On Pixels are mirrored Store all [User A Store with ENTER system |User B Store with ENTER Store __|settings Detaut UE luserc Store with ENTER presets SERVICE MENU (Service) Starting from the main display, press MENU to enter the main menu. Select Service using UP and DOWN and confirm with ENTER. Menu DMX Address DMX Mode Stand Alone EZ Remote Slave Settings System Info Information on the submenu items in the service menu and the corresponding options can be found in the table below (select with UP and DOWN, confirm with ENTER, change value or status with UP and DOWN, confirm with ENTER). Factory Reset to factory setting Reset to User À values (Save user values: Settings -> Store Default) Load Default Reset to User B values User À User B (Save user values: Settings -> Store Default) User C Reset to User C values (Save user values: Settings -> Store Default) Reset Service | No Cancel operation Timer Reset now | Reset service operation time Password For service purposes only

SYSTEM INFORMATION (System Info) Starting from the main display, press MENU to enter the main menu. Select System Info using UP and DOWN and confirm with ENTER. Menu DMX Address DMX Mode Stand Alone EZ Remote Slave Settings Service System Info Information on the submenu items in the system info menu and the corresponding options can be found in the table below (select with UP and DOWN, confirm with ENTER, change value or status with UP and DOWN, confirm with ENTER). , DISP VXXX Display of the firmware version of the Firmware x DRV VXXX corresponding component LED 00 °C / °F Display of the temperature of the corresponding component Temperature TC Temperature Unit SE Setting the temperature unit Total X00€ h : XX M Total operating time Operation 200 h : xx M Usable time Runtime LED 200 h : xx M Lamp operating time : Operating time after resetting the Service 2000€ À : xx M : ut service operating time RDM-UID RDM Unique Identifier

INSTALLATION DANGEROverhead mounting requires extensive experience, including the calculation VAN of the load limit values of the installation material and regular safety inspection of all installation materials and spotlights. If you do not have these qualifications, do not attempt to perform an installation yourself. Refer instead to a qualified professional. There is a risk that devices that are incorrectly mounted and secured may come loose and fall down. This can cause serious injury or death. The unique coupling mechanism means that when several PIXBAR® G2 are docked, there is also a uniform pixel spacing at the transitions from one to the next PIXBAR® G2. ENGLISH Thanks to the adjustable stand or mounting feet, the PIXBAR® G2 can be set up in a suitable position on a flat floor (e.g. as an uplight).

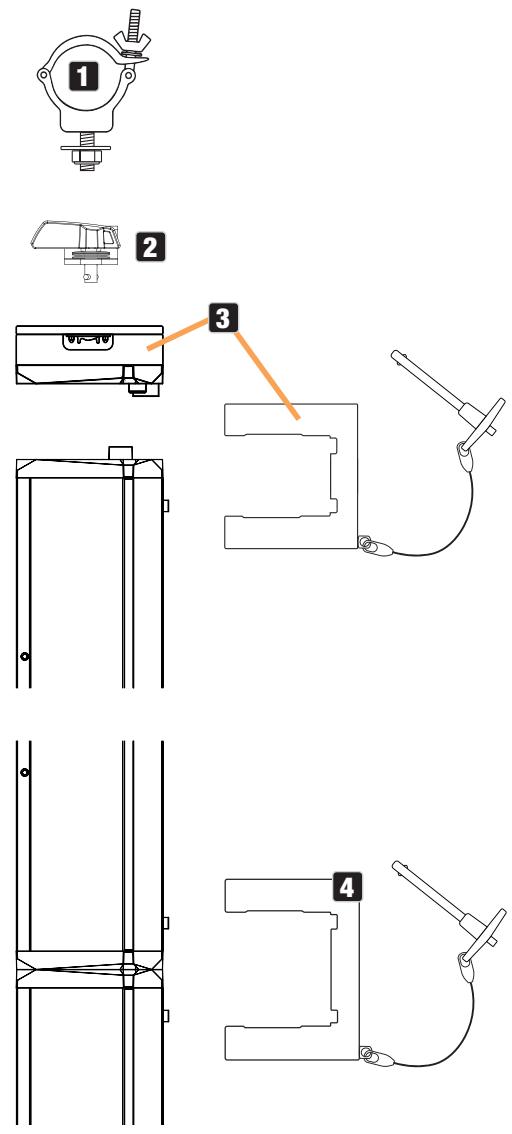

MOUNTING A PIXBAR® ON A TRUSS

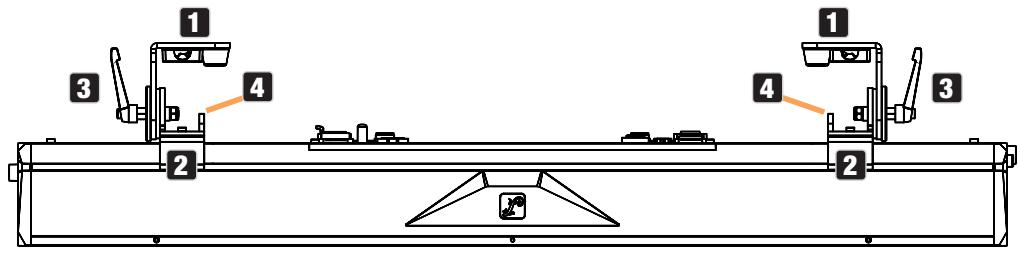

Mounting on a truss is done using optionally available truss clamps, which are either attached directly to the mounting feet (1), or to optionally available Omega mounting brackets (part number CLOMEGABRACKET1). The mounting feet can be moved on the housing of the PIXBAR® G2. To do this, loosen the middle of the five hexagon socket screws (2), move the foot to the desired position and tighten the screw again. The direction of radiation can be adjusted using the tommy screws (3) on the mounting feet. Ensure that the connections are tight and that the PIXBAR® G2 cannot come loose. When mounting the PIXBAR® G2 overhead, secure it with a suitable safety rope to one of the safety lugs provided (4). When mounting several docked PIXBAR® G2 horizontally over- head, each individual PIXBAR® G2 must be attached separately to the truss with the mounting feet and secured with a suitable safety rope.

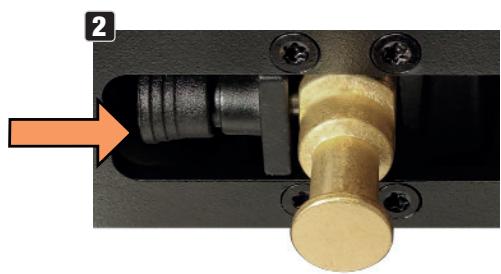

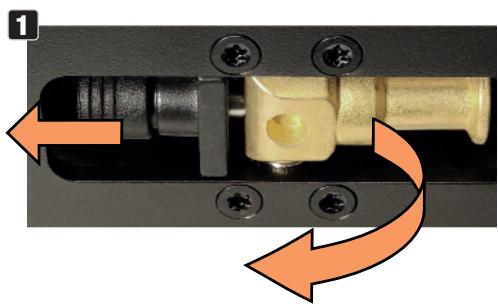

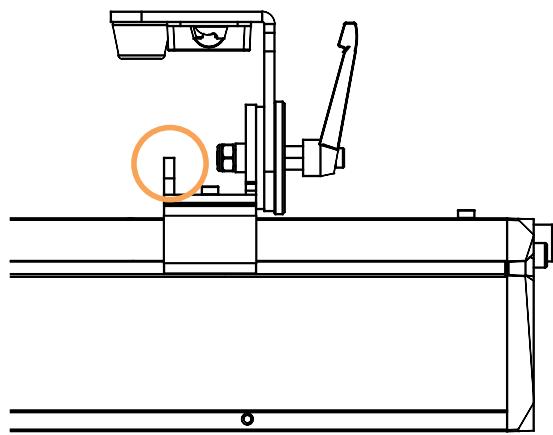

The mounting feet of the PIXBAR® G2 have 16 mm TV spigots that can be extended and retracted without tools. To unfold a TV spigot, pull the spring-loaded locking bolt out of the locking hole in the direction of the arrow (1), fold the TV spigot forwards and let the locking bolt engage in the locking hole offset by 90° (2). Use suitable truss clamps for mounting. Ensure that the connections are tight and that the headlamp cannot come loose. When mounting the headlamp overhead, secure it with a suitable safety rope to one of the safety lugs provided (see marking).

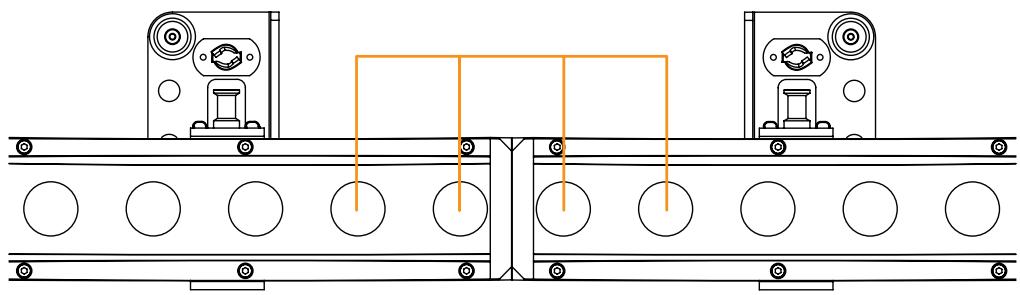

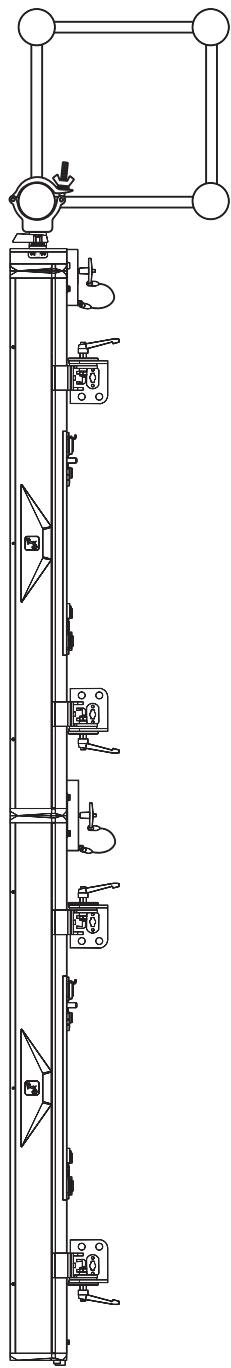

For vertical hanging mounting, up to three PIXBAR® G2 may be connected to each other. The following optionally available products must be used for this: A suitable truss clamp with sufficient load-bearing capacity for the total load (e.g. half coupler). BA One Omega Bracket (item number CLO- MEGABRACKET1). Æ One stop set (item number CLPBG2VER- TIMOUNT). Æ One or two connecting elements are needed to connect two or three PIX- BAR® 62 and to secure the connection {item number CLPBG2STACKKIT). The safety eyelet of the top foot of the top bar serves as a safety point. Make sure that the safety rope used to secure the bars is suitable for the total weight of the bars. For optical reasons, the mounting feet can be folded to the side of the housing. À rub- ber buffer prevents the surface from being damaged.

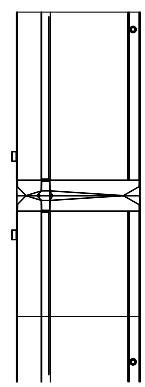

VERTICAL FLOOR MOUNTING

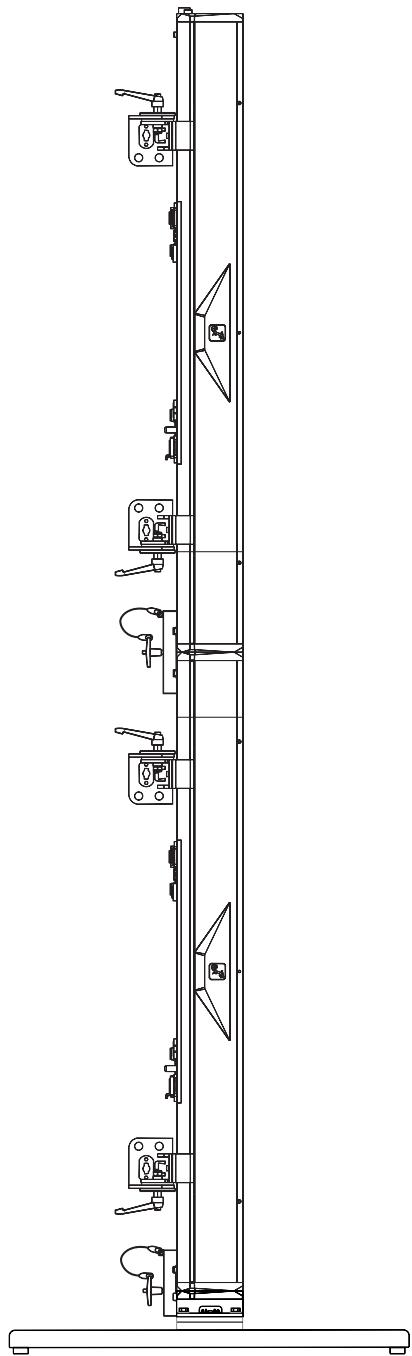

For vertical floor mounting, a maximum of two PIXBAR® G2 may be connected to each other. The following optionally available products must be used for this: &B One connector {item number CL- PBG2STACKKIT). @ One stop set (item number CLPBG2VER- TIMOUNT). Æ3 One M20 connection set (item number CLPBG2M20ADA). QD A heavy steel stand with M20 thread and sufficient stability for the total load. The stability in combination with the stand used must be assessed by the user. No additional loads may be introduced. For optical reasons, the mounting feet can be folded to the side of the housing. À rub- ber buffer prevents the surface from being damaged.

VERTICAL FLOOR MOUNTING

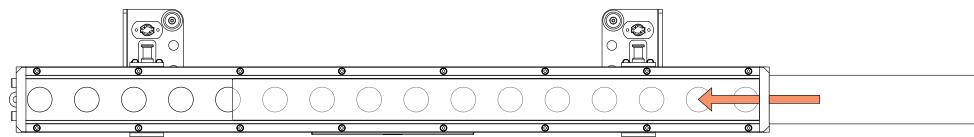

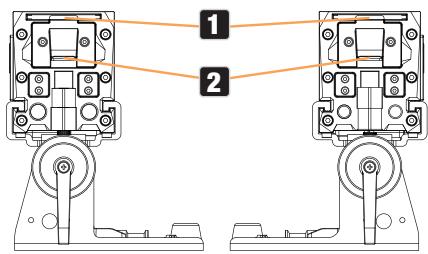

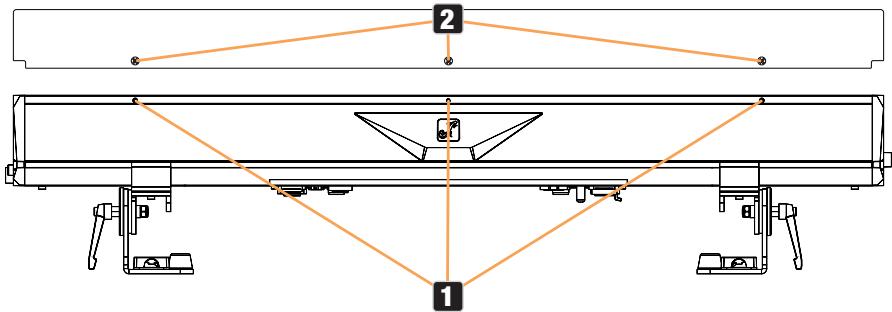

FROST FILTER A standard frost filter is included with the PIXBAR® G2. To insert the frost filter into the holder provided for it ŒB of the bar, open the sliding latch at one end of the bar (E, slide down the handle). After inserting the frost filter into the holder, close the latch again to prevent the filter from falling out. GLARE SHIELD A glare shield is included with the PIXBAR® G2. On both sides of the PIXBAR® G2 there are three threads on the top edge of the housing ÆB. Mount the glare shield on the desired side of the PIXBAR® G2 using the three knurled screws 8.

In order to ensure the long-term, proper functioning of the device, it must be regularly cleaned and, if necessary, maintained. The maintenance requirement depends on the intensity of use and the environment in which it is used. We generally recommend a visual inspection before each operation. Furthermore, we recommend carrying out all the applicable maintenance measures specified below once every 500 operating hours or, in the case of a lower intensity of use, at the latest after one year. Warranty claims may be limited in the event of defects resulting from inadequate maintenance. ENGLISH CARE (carried out by user) WARNING! Before carrying out any care or maintenance, the power supply — and, if possible, all device connections — must be disconnected. D PLEASE NOTE! Improper care can lead to impairment of the device or even its 1 destruction.

1. Housing surfaces must be cleaned with a clean, damp cloth. Make sure that no moisture can

penetrate the device.

2. Air inlets and outlets must be regularly cleaned of dust and dirt. If compressed air is used, make

sure that damage to the device is prevented (e.g. fans must be blocked in this case, as they could otherwise over-rev.).

3. Lines and plug contacts must be cleaned regularly and dust and dirt must be removed.

5. Devices must generally be stored dry and protected from dust and dirt.

6. To ensure correct and safe operation, all accessible or removable lenses and light-emitting

apertures must be cleaned regularly. MAINTENANCE AND REPAIR (by qualified personnel only) DANGER! There are live components in the unit. Even after disconnecting the mains connection, there may still be residual voltage in the device, for example, due to charged capacitors. S PLEASE NOTE! There are no user-serviceable assemblies in the device.

PLEASE NOTE! Maintenance and repair work may only be carried out by sufficiently qualified specialist personnel. If in doubt, consult a specialist workshop. PLEASE NOTE! Improperly performed maintenance work may affect the warranty 1 claim.

. PLEASE NOTE! For conversion or retrofit sets provided by the manufacturer, be sure l to observe the enclosed installation instructions. OPTIONAL ACCESSORIES CLPBG2FILTER55 55° frost filter CLPBG2FILTER70 70° frost filter CLPBG2FILTER2555 25° x 55° Frost filter CLPBG2STACKKIT Connecting element for the secure mechanical connection of two PIXBAR® G2 CLPBG2VERTIMOUNT Stop set for mounting a PIXBAR® G2 on the Omega mounting bracket CLOMEGABRACKET1 and for mounting on the connection set CLPBG2M20ADA CLOMEGABRACKETI Omega mounting bracket

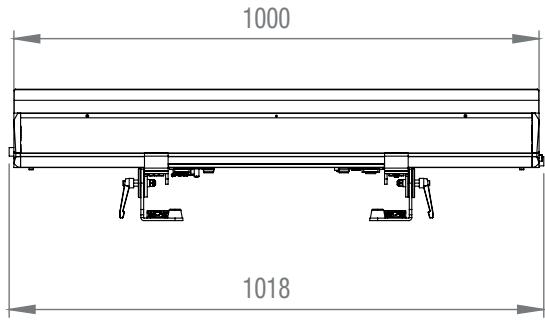

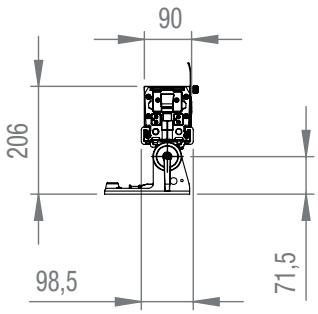

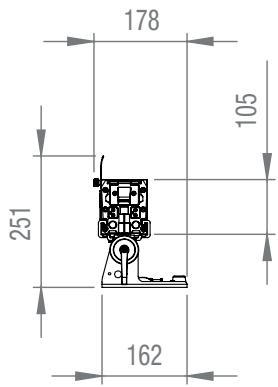

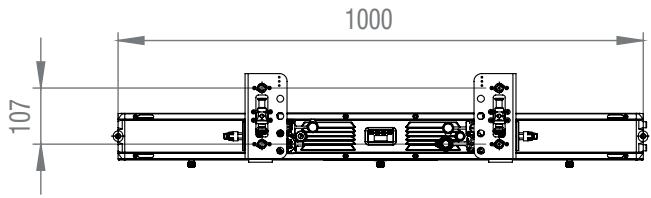

Connection set for mounting a PixBar G2 on a stand with M20 thread

1. An IP rating only reflects protection from solid objects and water. lt does not describe general

weather resistance, such as protection from UV radiation and temperature, etc.

2. The first identification digit indicates protection from dust, solid objects and contact:

IP2X | Protected against solid foreign bodies > 12.5 mm in diameter IP3X_ | Protected against solid foreign bodies > 2.5 mm in diameter IP4X_ | Protected against solid foreign bodies > 1.0 mm in diameter IP5X | Protected against dust in harmful quantities and completely protected against contact IP6X | Are dust-tight and completely protected against contact

3. The second identification digit indicates protection from water:

IPXO | No protection IPX1_ | Protection against dripping water IPX2 | Protection against dripping water when the device is tilted up to 15° IPX3_ | Protection against falling spray water up to 60° from the vertical IPX4 | Protection against splashing water on all sides

IPX5_ | Protection against water jets (nozzle) from any angle IPX6_ | Protection against strong water jets IPX7_ | Protection against temporary immersion

4. In addition, some device-specific measures such as covers and sealing caps are necessary in

order to achieve the specified rating (e.g. protective caps on unused connections). Eù The IP rating of the product can be found in the technical data and is printed on the device.

MINIMUM DISTANCE TO ILLUMINATED SURFACE

This symbol with distance information in metres (m) indicates the minimum q 05m Ë distance of the luminaire to the illuminated surface. In this example, the distance is 0.5 m. The value valid for this unit can be found in the technical data in this manual and in the imprint on the unit housing!

MINIMUM DISTANCE TO NORMALLY FLAMMABLE MATERIALS

This symbol with distance indication in metres (m) indicates the minimum LL Desm Ê distance of the appliance to normally flammable materials. In this example, the distance is 0.5 m. For the value valid for this unit, please refer to the technical data in this manual! DISPOSAL NA PACKAGING: ae 1. Packaging can be fed into the reusable material cycle using the usual disposal methods.

2. Please separate the packaging in accordance with the disposal laws and recycling

regulations in your country. D DEVICE:

1. This appliance is subject to the European Directive on Waste Electrical and

— Electronic Equipment as amended. WEEE Directive Waste Electrical and Electronic Equipment. Old appliances do not belong in household waste. The old device must be disposed of via an approved disposal company or a municipal disposal facility. Please observe the applicable regulations in your country!

2. Observe all disposal laws applicable in your country.

3.As a private customer, you can obtain information on environmentally-friendly dis- posal options from the seller of the product or the appropriate regional authorities.

MANUFACTURER’S DECLARATIONS

Manufacturer's warranty & limitation of liability Adam Hall GmbH | Adam-Hall-Str.1 | 61267 Neu-Anspach | Germany E-mail: [e-mail] / +49 (0)6081 / 9419-0. Our current warranty conditions and limitation of liability can be found at: https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf For service requests, please contact your distribution partner. CE conformity Adam Hall GmbH hereby confirm that this product meets the following guidelines (where applica- ble): Low-Voltage Directive (2014/35/EU) EMC Directive (2014/30/EU) RoHS (2011/65/EU) RED (2014/53/EU) EC Declaration of Conformity Declarations of conformity for products subject to the LVD, EMC, RoHS Directive can be requested from [e-mail]. Declarations of conformity for products subject to RED can be downloaded from www.adamhall. com/compliance/. Subject to misprints and errors, as well as technical or other modifications!

Menu Stand Alone Direct LED Direct LED DMX Address Master/Alone Dimmer 0%-100%]| | [Dimmer 0% - 100%] DMX Mode Direct LED Red O0%-100%| |Red 0%-100% Color Preset Green 0%-100% | | Green 0%-100% EZ Remote CT Blue 0%-100% | | Blue 0%-100% Slave Hs! White _0%-100% | | White 0%-100% Settings Play Loop Amber _ 0% - 100% Service Timer UV ___0%-100% System Info Edit User Color Edit Loop

Menu Stand Alone Direct LED Direct LED DMX Address Master/Alone 00% DMX Mode Direct LED Red O%-100%| |Red 0%-100% Color Preset Green 0%-100% | | Green 0%-100% EZ Remote ccT Blue 0%-100% | | Blue 0%-100% Slave Hs! White _0%-100% | | White 0%-100% Settings Play Loop Amber _ 0% - 100% Service Timer UV 0%-100% System Info Edit User Color Edit Loop
