USER MANUAL Ocelot Gaming Desk X Rocker

2.1 BLUETOOTH - ENGLISH

VIEW LATEST INSTRUCTIONS ONLINE:

XROCKERGAMING.COM XROCKERUK.COM

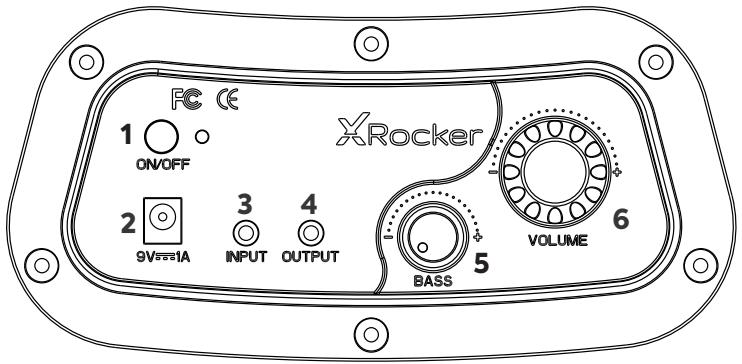

FC CE 1 ON/OFF XRocker 2 9V=1A 3 INPUT 4 OUTPUT 5 BASS 6 VOLUME

1. On/Off	Press to toggle chair on/off
2. Power Input	Plug your power supply into this socket
3. Input Socket	Plug the 3.5mm cable into here for audio from your TV or your controller
4. Output Socket	Allows you to connect multiple chairs or audio devices together
5. Bass	Rotate the dial to adjust the intensity of Bass audio
6. Volume	Rotate this dial to adjust volume

Missing Parts?

Contact X Rocker Support:

WWW.XROCKERGAMING.COM

WWW.XROCKERGAMING.COM/PAGES/SUPPORT

WWW.XROCKERUK.COM

WWW.XROCKERUK.COM/PAGES/SUPPORT

BLUETOOTH CONNECTION

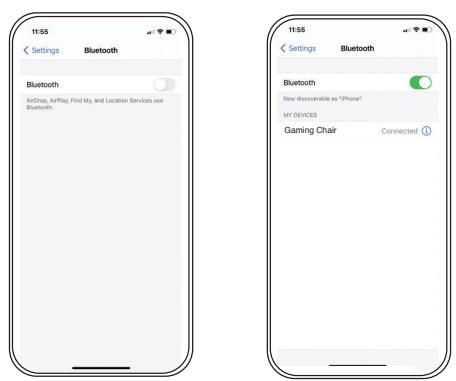

11:55 Settings Bluetooth Bluetooth AirDisp, AirPlay, Find My, and Location Services use Bluetooth.

11:55 Settings Bluetooth Bluetooth New discoverable as "iPhone" MY DEVICES Gaming Chair Connected

FC CE ON/OFF 9V=1A INPUT OUTPUT PC R XRocker ON/OFF SW=1A INPUT OUTPUT BASS VOLUME

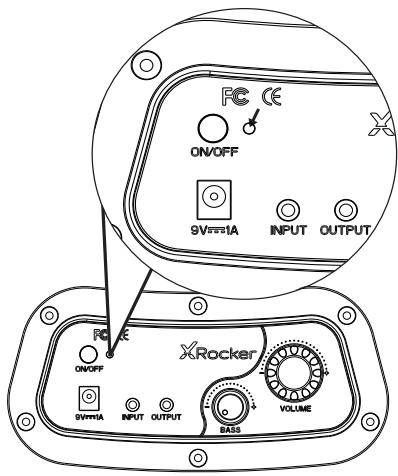

1. On the Audio output device go into its Bluetooth settings, turn Bluetooth on if it is not on already and search for XROCKER. Upon finding this, select the XROCKER option. If a passcode is required the four digit code will be '0000'.
2. After connecting, the indicator light on the panel will stay on.

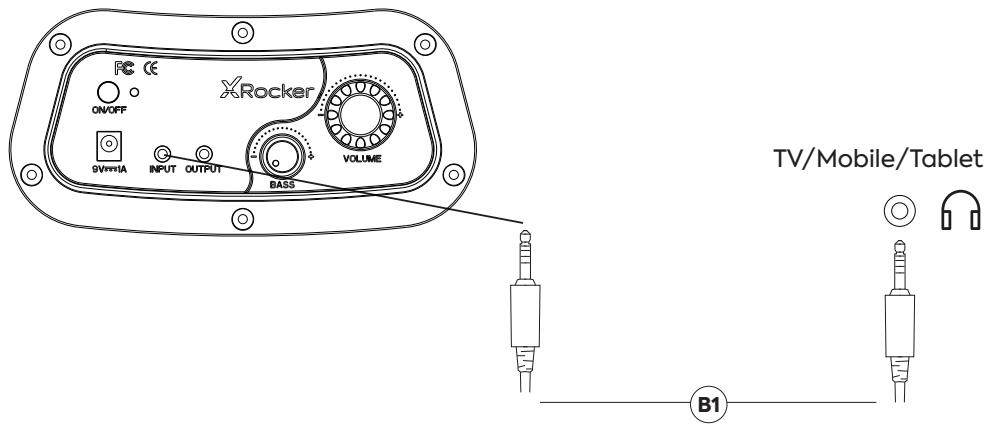

CONNECT TO TV (WIRED)

XRocker ON/OFF 9V~1A INPUT OUTPUT BASS VOLUME TV/Mobile/Tablet B1

1. Connect the B1 cable to X Rocker control panel INPUT socket.
2. Connect other end of the B1 3.5mm end into the headphone socket of your television.*
3. Once connected to your TV, increase volume to 50% of the maximum for the best sound level.**

*If your TV does not feature a headphone socket then you may need to purchase an additional TOSlink adapter to get connected directly to a console for audio.

**Depending on your TV, you may need to increase the headphone volume separately in the TV sound settings.

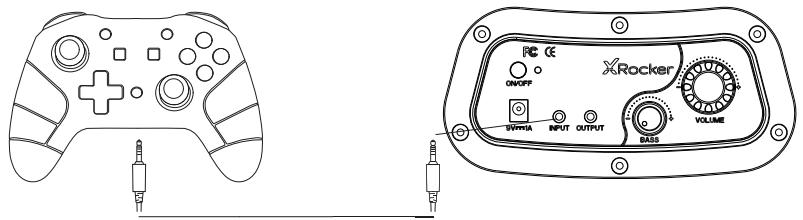

CONSOLE CONNECTION: CONTROLLER CONNECTION METHOD (PS4/PS5, XBOX ONE/SERIES, SWITCH)

PC CE ON/OFF SWHA INPUT OUTPUT BASS XRocker VOLUME

SWITCH CONNECTION GUIDE

1. Connect the B1 Cable to the bottom of the Switch via the headset socket.***
2. Connect the other end of the B1 cable to the chair via the green input port.

XBOX ONE / SERIES CONTROLLER GUIDE\*

1. Connect the B1 cable to the bottom of the xbox controller via the headset socket.**
2. Connect the other end of the B1 cable to the chair via the green input port.
3. The Xbox will automatically recognize the connection and pass through to the product.
4. To increase volume, press the guide button, navigate to the speaker icon and increase the headset volume setting.

PS4 DUALSHOCK 4 CONNECTION GUIDE\*

1. Connect the B1 cable to the bottom of the PS4 controller via the headset socket.
2. Connect the other end of the B1 cable to the chair via the green input port.
3. With the PS4 turned on go to the main menu (or locate the main menu screen). Press and hold the PS button on the PS4 controller until the quick menu appears on screen.
4. In this menu select [adjust sound and devices].
5. Then select [output to headphones].
6. Change the setting from [chat only] to [all audio].
7. Make sure the volume in the previous menu is set to the maximum.

PS5 DUALSENSE CONNECTION GUIDE\*

1. Connect the B1 cable to the bottom of the PS5 Dual Sense controller via the headset socket.
2. Connect the other end of the B1 cable to the chair via the green input port.
3. Press the Playstation button once to bring up the control center.
4. Select [Sound] > [Output Device] > [Headset (controller)].
5. Ensure that [Output to headphones] is correctly set to [All Audio].
6. You can check this by going to [Settings] > [Sound] > [Audio Output] > [Output to headphones] > [All Audio].

TROUBLESHOOTING TIPS

• Make sure the power cable is connected correctly.
• Make sure that the power source is working correctly.
• With the chair turned to the ON position, give the power cable a slight wiggle in the port. If any light flickers (or not) please contact support

NO SOUND

• Connect a mobile phone to the X Rocker using the phone connection guidelines in the manual to test the chair for sound.
  • Confirm that the device/system is correctly configured as per previous connection guide.
  • Make sure that you indeed have a headphone socket on your TV. This will typically be marked with a headphone symbol or "H/P OUT".

STEREO SPEAKERS DO NOT PRODUCT SOUND/SOUND IS FAINT

• Please make sure the volume of the source device is at a higher level to strengthen the audio signal.

THE CABLES CONNECTED TO MY X ROCKER HAVE BEEN BROKEN ACCIDENTALLY

• Please contact X Rocker Support regarding this issue.

DON'T HAVE A HEADPHONE SOCKET ON YOUR TV?

• You may need to purchase a TOSlink adapter. If you are unsure as to which to purchase, please contact X rocker support regarding this issue.

NEED ADDITIONAL ASSISTANCE? CONTACT X ROCKER SUPPORT:

WWW.XROCKERGAMING.COM

XROCKERGAMING.COM/PAGES/SUPPORT

WWW.XROCKERUK.COM

XROCKERUK.COM/PAGES/SUPPORT

HEALTH AND SAFETY INFORMATION

• For the first time use and installation of your X Rocker product, please ensure that cables and power supplies are handled by a adult to ensure safe and correct usage.
• Make sure to unplug the X Rocker Power supply from the mains socket before cleaning.
• Avoid direct contact with liquids. To clean, wipe with a damp cloth. If a spillage occurs, switch off the X Rocker and wait for the product to dry before reusing.
• Do not use any type of abrasive pad or abrasive cleaning solutions as these may damage the X Rocker surface material.
• Please consult X Rocker Support before unscrewing and disassembling any of the electrical components or undertaking any changes to the chair. If any unauthorized modifications or repairs are made before consultation, then this will void your warranty.
  • To reduce potential trip hazards or entanglement hazards, arrange and secure any cables so that people and pets are not likely to trip over or accidentally pull on them as they move around or walk through the area.
• Please be careful when rotating and swiveling the X Rocker when in use. Cables and wires may be pulled or damaged in the process and cause damage to the X Rocker control panel or cabling.
• If any of the cables or electrical equipment become damaged in any way, stop using immediately and contact X Rocker for more details on how to replace the component.
• Do not stand on the chair at any time or exceed the 120kg weight limit via other means.
• Do not lean back on the chair or force the chair to the point in which the pedestal would lift off the ground as this will potentially cause damage to the product or injury to the user.
  • X Rocker armrests are designed for support and comfort during gameplay, please do not stand or sit of the arms directly. Do not apply weight to the armrests when leaving the chair to ensure long term durability.
• Do not use the X Rocker speakers at high volume for any extended period. To avoid hearing damage, use your speaker at a comfortable, moderate volume level. Parents, please monitor your child's usage to avoid long term hearing loss or discomfort.
• When not in use, keep cables and power supplies out of reach of children, please also ensure that these are not subject to harsh impacts such as dropping or throwing the components.
• Never place any type of candle or naked flame on or near the X Rocker at any time. While X Rocker products are compliant with UK and European fire safety regulations, prolonged exposure to naked flames will result in damage to the product and other safety hazards.

POWER SUPPLY SAFETY INFORMATION

ATTENTION:

A. To reduce the risk of fire, electric shock or product damage, do not expose the X Rocker power supply to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, should be placed near the power supply. If you spill any liquid into the power supply, it can cause serious damage. Switch it off at the mains immediately. Withdraw the power supply and consult your dealer.
B. Always disconnect the power supply from the mains before connecting/disconnecting other devices or moving the X Rocker.
C. Only use the supplied cables, power supplies and accessories specified by and manufactured by X Rocker.
D. Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources such as radiators or gas/electric fires.
E. Avoid exposure to direct sunlight and other sources of heat.
F. Ensure that cables and power supplies are kept in a safe location, out of the reach of children to avoid any potential hazards that include; dropping, throwing, tripping over, cutting etc. If you encounter any visible notches or cuts in the power supply or other cables, avoid using the product and contact X Rocker Support for more assistance.

Power Supply unit trademark: ZL

Model name: ZL-A012W0901000

Input: AC 100-240V \~ 50/60Hz 0.5A Max

Output: DC 9V --- 1.0A

NEED ADDITIONAL ASSISTANCE? CONTACT X ROCKER SUPPORT:

WWW.XROCKERGAMING.COM

XROCKERGAMING.COM/PAGES/SUPPORT

WWW.XROCKERUK.COM

XROCKERUK.COM/PAGES/SUPPORT

2.1 BLUETOOTH - FRANÇAISE

VIEW LATEST INSTRUCTIONS ONLINE:

XROCKERGAMING.COM XROCKERUK.COM

FC CE 1 ON/OFF X-Rocker 2 9V=1A 3 INPUT 4 OUTPUT 5 BASS 6 VOLUME

B1 B2 Parties manquantes? Contact X Rocker Support: WWW.XROCKERGAMING.COM WWW.XROCKERGAMING.COM/PAGES/SUPPORT WWW.XROCKERUK.COM WWW.XROCKERUK.COM/PAGES/SUPPORT

CONNEXION BLUETOOTH

11:55 Settings Bluetooth Bluetooth AirDrop, AirPlay, Find My, and Location Services use Bluetooth 11:55 Settings Bluetooth Bluetooth Now discoverable as "iPhone": MY DEVICES Gaming Chair Connected

FC CE ON/OFF 9V=1A INPUT OUTPUT PC R XRocker ON/OFF SW=1A INPUT OUTPUT BASS VOLUME

PC CE ON/OFF X/Rocker VOLUME SWIVIA INPUT OUTPUT BASS

GUIDE DE CONNEXION DU COMMUTATEUR

WWW.XROCKERGAMING.COM

XROCKERGAMING.COM/PAGES/SUPPORT

WWW.XROCKERUK.COM

XROCKERUK.COM/PAGES/SUPPORT

INFORMATIONS SUR LA SANTÉ ET LA SÉCURITÉ

WWW.XROCKERGAMING.COM

XROCKERGAMING.COM/PAGES/SUPPORT

WWW.XROCKERUK.COM

XROCKERUK.COM/PAGES/SUPPORT

2.1 BLUETOOTH - ESPAÑOL

VIEW LATEST INSTRUCTIONS ONLINE:

XROCKERGAMING.COM XROCKERUK.COM

FC CE 1 ON/OFF X-Rocker 2 9V=1A 3 INPUT 4 OUTPUT 5 BASS 6 VOLUME

11:55 Settings Bluetooth Bluetooth AirDrop, AirPlay, Find My, and Location Services use Bluetooth.

11:55 Settings Bluetooth Bluetooth Now discoverable as "Phone" MY DEVICES Gaming Chair Connected

FC CE ON/OFF 9V=1A INPUT OUTPUT PC R XRocker ON/OFF SW=1A INPUT OUTPUT BASS VOLUME

XRocker ON/OFF 9V~1A INPUT OUTPUT BASS VOLUME TV/Móvil/Tableta B1

XRocker VOLUME ON/OFF SWIVIA INPUT OUTPUT BASS

WWW.XROCKERGAMING.COM

XROCKERGAMING.COM/PAGES/SUPPORT

WWW.XROCKERUK.COM

XROCKERUK.COM/PAGES/SUPPORT

WWW.XROCKERGAMING.COM

XROCKERGAMING.COM/PAGES/SUPPORT

WWW.XROCKERUK.COM

XROCKERUK.COM/PAGES/SUPPORT

Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

IC Radiation Exposure Statement:

This equipment complies with Canada radiation exposure limits set forth for uncontrolled environments. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
