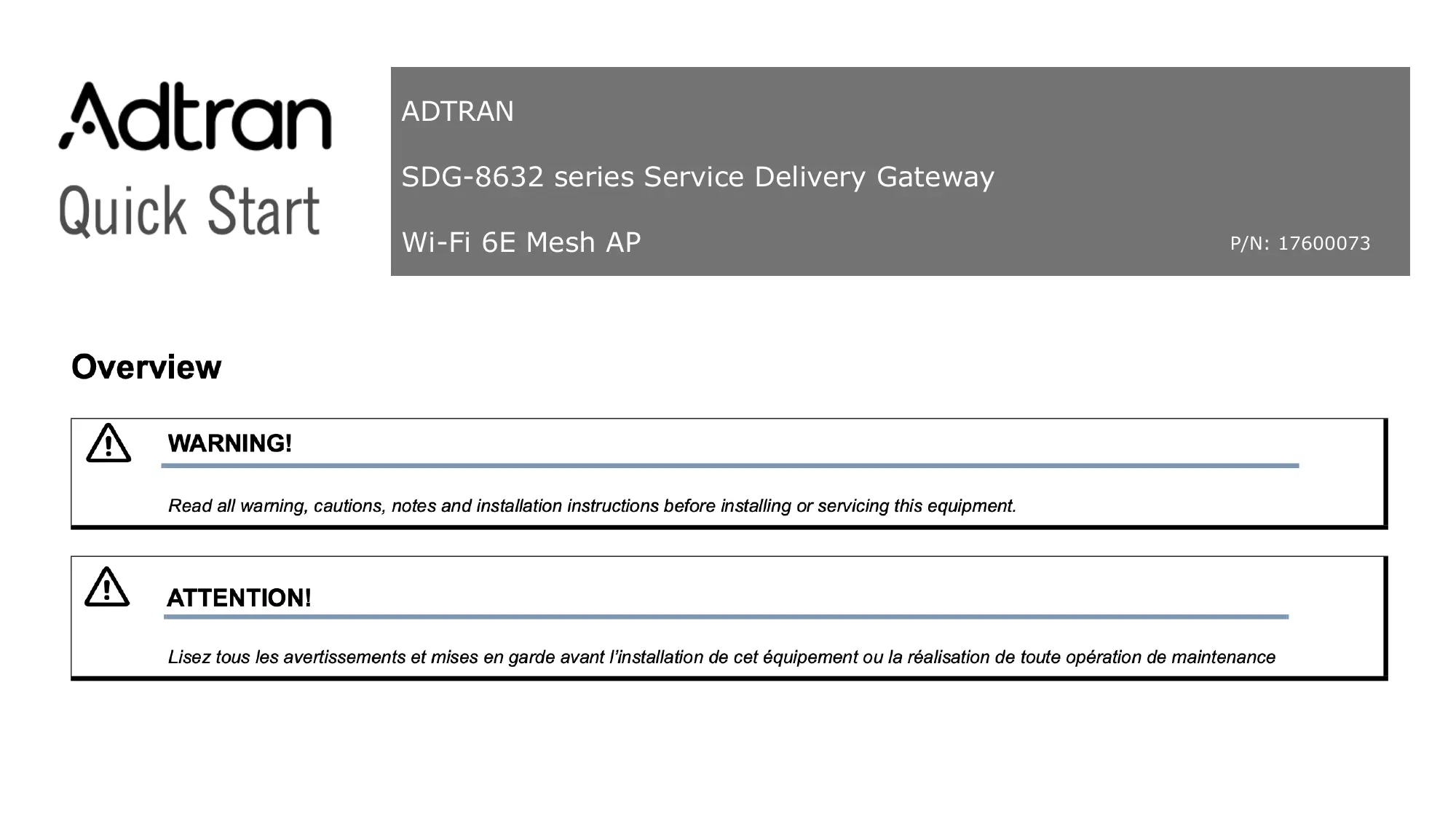

USER MANUAL SDG-8632 Adtran

The ADTRAN® SDG-8632 series is a Wi-Fi 6E Mesh AP, built to deliver top-end Wi-Fi 6E Mesh AP performance and advanced service delivery capabilities. This quick start describes how to install ADTRAN's Service Delivery Gateway. The SDG-8632 series is an indoor WiFi 6E Mesh. Figure 1 illustrates the front and back of the SDG-8632. Product Specifications [ = Ethernet | SDG-8632: 1 x 2.5 Gigabit Ethernet RJ-45 WAN interface | 1 x 2.5 Gigabit Ethernet RJ-45 LAN interfaces = WLAN Interface | Compliant with IEEE 802.11 b/g/n/ac/ax | Tri-Band Radios: 2.4 GHz 4x4 / 5.0 GHz 4x4 /6.0 GHz 4x4 | = USB Interface

1 x USB3.0 (TypeA) interface | | = Working Environment CE, sr : 419 F- 1040 F (5° C- 40° C) = Dimensions Figure 1. Front and Back of the SDG-8632 Gateway 185mm x 98mm x 98mm (H x W x D) VAN WARNING! = Power Supply Te WARNING indicates a hazard which, if AC Input: 100240 VAC @ 50/60Hz not avoided, could result in death, injury or serious property damage. VAN CAUTION! CAUTION indicates a hazard which, if not avoided, could result in service interruption, damage to the equipment, or minor property damage. il] NoTE NOTES inform the user of additional, but important, information or features.

Installing the SDG-8632 Gateway The following are guidelines for basic installation of the gateway. NOTE mme Refer to the national, state and local electrical codes for the requirements for power, grounding, wiring, and installation methods. A CAUTION! The product is intended for indoor use only. Ethernet cables and attached equipment are intended for use within the same building with equipotential bonding, and not intended to be placed in separate buildings or structures. Failure to deploy as described could result in permanent damage from lightning or other electrical events and voids the warranty. Furthermore, all connections from outside of the building, such as old wiring, must be disconnected prior to use. Package Contents = ADTRAN's WiFi 6E Mech AP = 15VDC/3A USB type C power adapter = CAT.SE Ethernet cable Prior to Installation Before installing the equipment, inspect the gateway. If damage has occurred during shipping, file a claim with the carrier, and then contact ADTRAN Customer Support.

Connecting the Gateway Figure 2 illustrates the installation (connection) options for the gateway. The following subscriber connections are available on the rear of the device: = 1x 2.5Gigabit Ethernet port (RJ-45 Connector) - LAN port = 1x 2.5Gigabit Ethernet port (RJ-45 Connector) - WAN port = 1x USB 3.0 (Type À Connector) port To connect the subscriber Ethernet interfaces, refer to Figure 2 and insert a Category 5E (or better) RJ-45 cable into one of the LAN ports or the 2.5 Gigabit Ethernet port (WAN) until there is an audible “click”. Figure 2. Gateway Installation

Connecting the Power Supply

1. Connect the end of the power adapter to the Power port on the bottom of the gateway.

2. Plug other end of the power adapter into the wall outlet.

3. Confirm that the power is connected properly. The Power LED should be lit on the gateway.

Resetting the Gateway A reset button is available if the device needs to be rebooted. To reboot the device, press the Reset button on the rear panel of the gateway for 5 seconds or less. To reset the device to custom defaults, press the Reset button for 5 seconds or more.

Set up Connect to http://192.168.1.1 from web browser, go through the instructions to complete the router mode setup.

1. Click on “Set up a new Intellifi® device”.

2. Simply input “12345678” as the password, re-enter the “12345678” again, click on “Set password”.

3. Then click on “Continue” to the next page.

Adtran Set up a new Intellifi® device Reset device to default settings Welcome to Quickstart Lets start by setting your login password so your device can be configured in the future. Enter password Re-enter password set password Cancel Cancel Set up your Intellifi device First lets select your device's operating mode and role in your Intellifi network, then we'll configure your WiFi based on the role you have selected

5. Type “samplewifi” as SSID, and type “12345678” as password, then press “Continue”.

< Back Router mode Router mode provides a router between your Internet Service Provider (ISP) WAN and your home network LAN. Select this if you do not currently have a router. Next > < Back Select your device's operating mode Configure your device as à Router or as an Access Point. Access Point < Back Configure your WiFi network samplewifi

6. Press “Yes, set up Guest WiFi, Then press “Finish” to complete setup.

< Back < Back Do you want to set up Guest WiFi? Almost done! Let's review. Guest WiFi is à great way to give house guests access to the Internet without sharing your primary WiFi password or access to Operating Mode Set up complete! your network Router Intellifi Mode This window will automatically close in 10 seconds once settings Controller have finished applying to your device. WiFi Name (SSID) To manage your device settings in the future, navigate to : http://router.local = samplewifi WiFi Password + 12345678 sion Not now |

Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

IMPORTANT NOTE: Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 32 cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Country Code selection feature to be disabled for products marketed to the US/CANADA Operation of this device is restricted to indoor use only. FCC regulations restrict the operation of this device to indoor use only. The operation of this device is prohibited on oil platforms, cars, trains, boats, and aircraft, except that operation of this device is permitted in large aircraft while flying above 10,000 feet. Operation of transmitters in the 5.925-7.125 GHz band is prohibited for control of or communications with unmanned aircraft systems

EU & UKCA Declaration of Conformity Hereby, Adtran Inc declares that the radio equipment type [SDG-86321 is in compliance with Directive 2014/53/EU. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the Radio Equipment directive: 2014 / 53 / EU: The full text of the EU declaration of conformity is available at the internet address: This device complies with the essential requirements of the Radio Equipment directive: 2014 / 53 / EU and Radio Equipment Regulations 2017 (SI 2017/1206). The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the Radio Equipment directive: 2014 / 53 / EU and the Radio Equipment Regulations 2017(SI 2017/1206): Radio Equipment directive: 2014 / 53 / EU Radio Equipment Regulations 2017(S1 2017/1206) EN 300 328 v2.2.2 EN 300 328 v2.2.2 EN 301 893 V2.1.1 EN 301 893 V2.1.1

ETSI EN 303 687 V1.1.1 ETSI EN 303 687 V1.1.1

IR 2030 - UK Interface Requirements 2030

EN IEC 62311:2020 BS EN IEC 62311:2020
