USER MANUAL MW BI2505DCG CATA

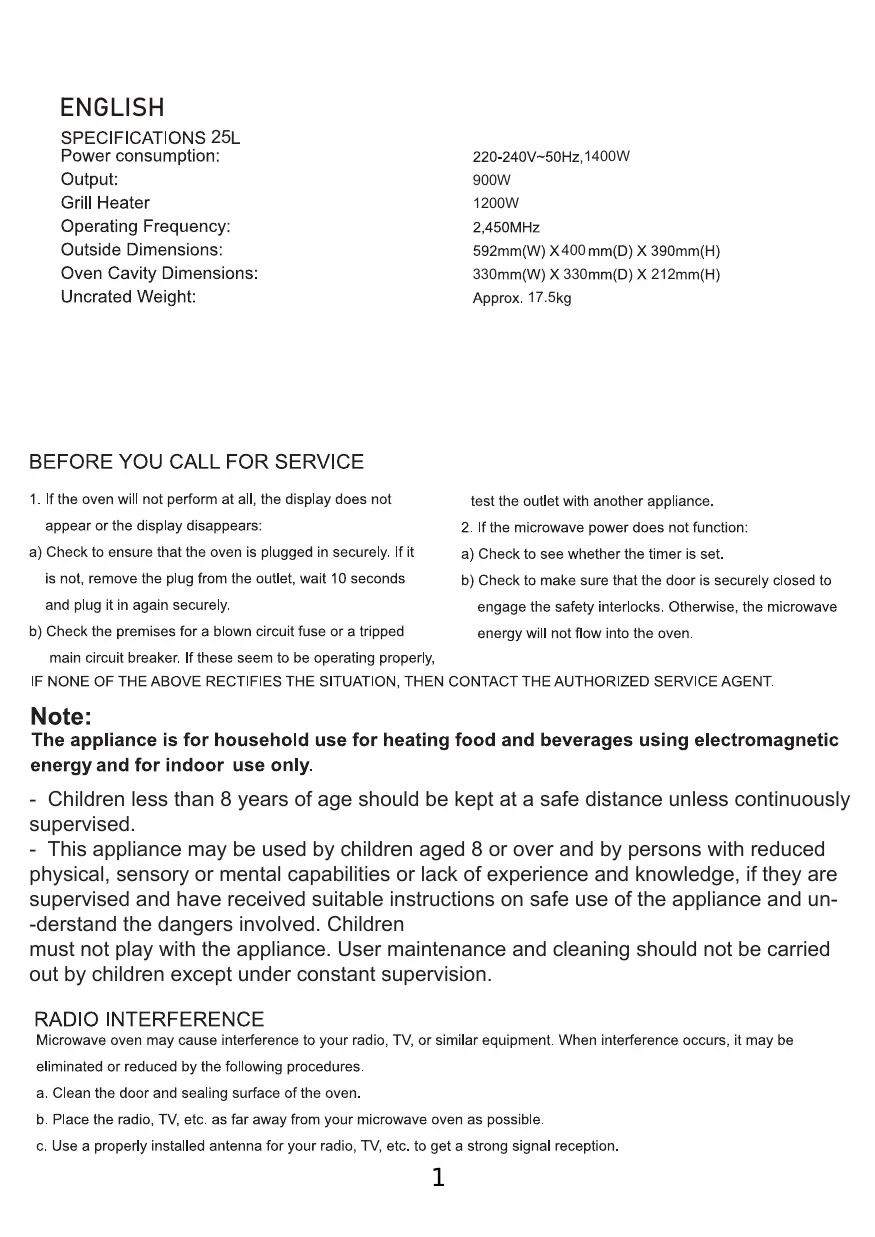

1. Ifthe oven wil not perform at all, the display does not test the outlet with another appliance.

appear or the display disappears: 2. Ifthe microwave power does not function a) Check to ensure that the oven is plugged in securely. Ifit a) Check to see whether the timer is set. is not, remove the plug from the outlet, wait 10 seconds b) Check to make sure that the door is securely closed to and plug it in again securely engage the safety interlocks. Otherwise, the microwave b) Check the premises for a blown circuit fuse or a tripped energy will not flow into the oven main circuit breaker. these seem to be operating properiy, IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT THE AUTHORIZED SERVICE AGENT. Note: The appliance is for household use for heating food and beverages using electromagnetic energy and for indoor use only. - Children less than 8 years of age should be kept at a safe distance unless continuously supervised. - This appliance may be used by children aged 8 or over and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, if they are supervised and have received suitable instructions on safe use of the appliance and un- -derstand the dangers involved. Children must not play with the appliance. User maintenance and cleaning should not be carried out by children except under constant supervision. RADIO INTERFERENCE Microwave oven may cause interference to your radio, TV, or similar equipment. When interference occurs, it may be eliminated or reduced by the following procedures. a. Clean the door and sealing surface of the oven. b. Place the radio, TV, etc. as far away from your microwave oven as possible. c. Use a propeny installed antenna for your radio, TV, etc. to get a strong signal reception.

1. Make sure all the packing materials are removed from

the inside of the door.

2. Inspect the oven after unpacking for any visual

damage such as Misaligned Door Damaged Door Dents or Holes in Door Window and Screen Dents in Cavity If any of the above are visible, DO NOT use the oven WARNING-THIS APPLIANCE MUST BE EARTHED.

1. The plug socket should be within easy reach

2. This oven requires 1.1 KVA for its input.

consultation with service engineer is suggested when installing the oven.

3. This Microwave Oven weighs 13.5 kg and must be

placed on a horizontal surface strong enough to support this weight.

4. The oven must be placed away from high temperature

5. DO NOT place anything on top of the oven.

6. DO NOT remove the turn -table drive shaf.

7. As with any appliance, close supervision is necessary

when used by children. CAUTION-This oven is protected internal by a 250V, 8 Amp Fuse. IMPORTANT The wires in this mains lead are coloured in accordance with the following code: Green-and-yellow : Earth Blue Brown Neutral Live As the colours of the wires in the mains leads of the appliance may not correspond with the coloured markings indentifing the terminals in your plug, proceed as follows: The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol L coloured green of green-and-yellow. The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L'or coloured red.

-WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated: (Only for the model with grill function) -WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person; -WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy; -WARNING: liquids and other foods must not be heated in sealed containers since they are liable to explode. -WARNING: Oniy allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use; = The oven must have suffcient air flow.Keep 10 cm space at back:15 cm at both sides and 30cms from top of the oven.Don't remove oven's feet, do not block air events of the oven. - Only use utensils that are suitable for use in microwave ovens. - When heating food in plastic or paper containers, keep an eye on the oven due to the possibiliy of ignition: = Ifsmoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames; - Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container; - The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns; - Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended: - When cleaning surfaces of door, door seal, cavity of {he oven, use only mild, nonabrasive soaps, or detergents applied with a sponge or soft cloth. = The oven should be cleaned regularly and any food deposits removed: - Failure to maintain the oven in a clean condition could lead to deterioration of ihe surface that could adversely affect the life of the appliance and possibly result in a hazardous situation: = Ifthe supply cord is damaged, it must be replaced by the manufacturer, is service agent or similariy qualified persons in order to avoid a hazard.

SAFETY INSTRUCTIONS FOR GENERAL USE

Listed below are, as with all appliances, certain rules to follow and safeguards to assure top performance from this oven:

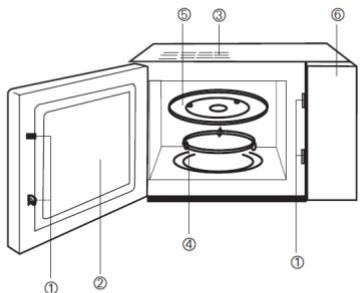

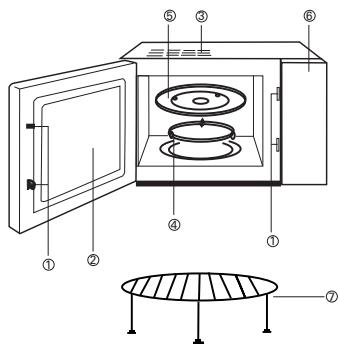

1. Always have the glass tray, roller arms, coupling and roller track in place when operating the oven.

2. Do not use the oven for any reason other than food preparation, such as for drying clothes, paper, or any.

other nonfood items, or for sterilizing purposes.

3. Do not operate the oven when empty. This could damage the oven.

4. Do not use the oven cavity for any type of storage,such a papers, cookbooks, etc.

5.Do not cook any food surrounded by a membrane,such as egg yolks potatoes,chicken livers,etc without first being pierced several times with a fork.

6. Do not insert any object into the openings on the outer

7. Do not at any time remove parts from the oven such as

the feet, coupling, screws, etc.

8. Do not cook food directly on the glass tray. Place food

in/on proper cooking utensil before placing in the oven

MICROWAVE OVEN Do not use metal pans or dishes with metal handies. Do not use anything with metal trim. Do not use paper covered wire twist-ties on plastic bags. Do not use melamine dishes as they contain a material which will absorb microwave energy. This may cause the dishes to crack or char and will slow down the cooking speed Do not use Centura Tableware. The glaze is not suitable for microwave use. Corelle Livingware closed handle cups should not be used. Do not cook in a container with a restricted opening, such as a pop botte or salad oil botle, as they may explode if heated in a microwave oven. Do not use conventional meat or candy thermometers. There are the thermometers available specifically for microwave cooking. These may be used Microwave utensils should be used only in accordance with manufacturers instructions. Do not attempt to deep-fry food in this oven. Please remember that a microwave oven only heats the liquid in a container rather than the container itself.Therefore, even though the lid of a container is not hot to the touch when FEATURE DIAGRAM removed from the oven, please remember that the food/liquid inside will be releasing the same amount of steam and/or spitting when the lid is removed as in conventional cooking.

13. Always test the temperature of cooked food

yourself especially if you are heating or cooking food/liquid for babies. It is advisable never to consume foodfliquid straight from the oven but allow it to stand for a few minutes and stir food/ liquid to distribute heat eveniy. Food containing a mixture of fat and water, €.g.stock,should stand for 30-60 seconds in the oven after it has been tumed off. This is to allow the mixture to setlle and to prevent bubbling when a spoon is placed in the food/liquid or a stock cube is added.

When preparing/cooking food/liquid and remember that there are certain foods, e.g. Christmas puddings, jam and mincemeat, which heat up very quickiy. When heating or cooking foods with a high fat or sugar content do not use plastic containers. Cooking utensil may become hot because of heat transferred from the heated food. This is especially true if plastic wrap has been covering the top and handies of the utensil. Potholders may be needed to handle the utensil. 17.To reduce the risk of fire in {he oven cavity a)Do not overcook food. Carefully attend microwave oven if paper, plastic, or other combustible materials are placed inside the oven Lo facilitate cooking. (b)Remove wire twist-ties from bags before placing bag in oven. (o)lf materials inside the oven should ignite, keep oven door closed, tum the oven off at the wall switch, or shut off power at the fuse or circuit breaker panel

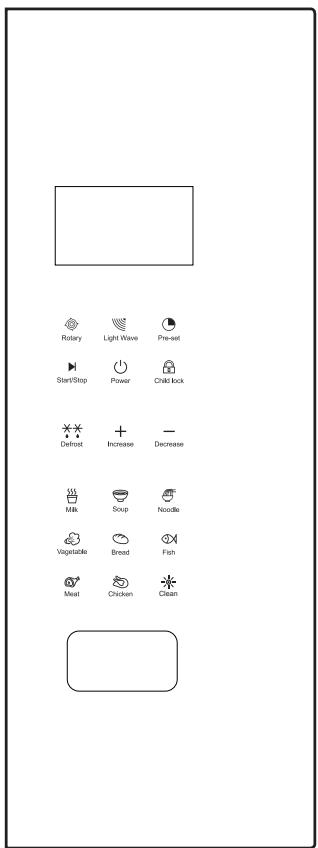

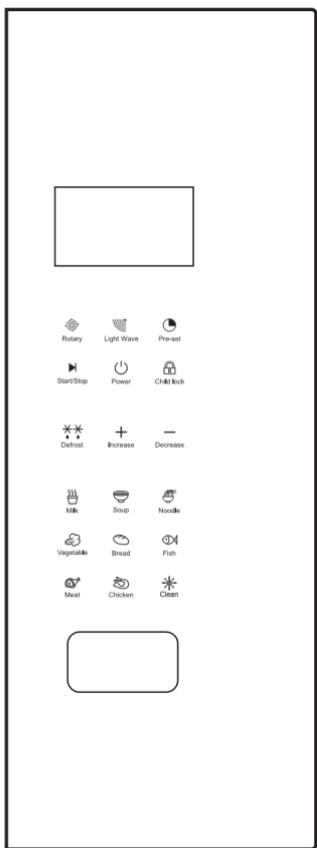

Operation Instruction 1 Single Button Heating Only with a single press of a button, you can start simple cooking, it is very convenient and quick to heat a glass of water etc. Example:To heat a glass of water a) Put a glass of water onto the glass turntable, and close the door. b) Press the button " Li ", the microwave oven will work on P100 power for 1 minutes. c) You will hear 5 beeps when cooking is complete. 2.Microwave Heating This function has two options.

1) Quick microwave heating (P100 power)

Example: to heat food on P100 power for 5 minutes a)Press” "or" —" button until "5:00" displayed. b) Press " Bi".

2) Manual-operation microwave heating

Example:To heat food on P70 power for 10 minutes a)Press" © "button, select "P70" power: b)Press" “or — “button until "10:00" displayed

The longest microwave heating time is 60 minutes; c) Press Microwave power have 5 settings.and its P100. P70. PS0. P30 and P10 from high to low power. 3.Auto weight defrost Select the food type and weight, it will automatically help you to adjust the power level and time. Example:defrost 5009 frozen meat. a) Press the button "##", "dEF" will be displayed. b)Press”_ "or —— " button to setthe weight 500g c) Press" M" The weight of food must be less than 2000g, Each step is 100g, 4Auto-menu You only need to select the food type and weight, it will help you to automatically adjust the power and time Example: Auto cooking 400g meat.

a) Press “@ " button to choose A-7. b)Press f — * button to set welght 400g c) Press" = eigne Menu] A A2 A3 m as A6 A7 3 Toucting Timés=\, [MI Soup Noodis | Vagetbles | Broad Fish Meat | Chicken 1 250 5009 1 100 100g 1009 2009 | 2009 2 5009 | 009 2 200 200 2009 2009 | 4008 3 3009 3009 3009 4009 | 6009 4 400 4009 soog | 8008 5 5009 5009 600g | 10009 6 6009 6009 7009 | 12009 7 7009 8009 | 1400g 8 800g 9009 | 16009 E 9009 10008 | 18009

Remark:Noodie in marked by loLEach lot is around 100-1509.

You may press * 1" buiton Lo select such functions: (Ihe longest cooking lime is 60 minutes) Gil power have 2 setings,and is G-1 and G-2 from high lo low power Example: cooking food with G-1 for 20 minutes A) Press \X " unil the LED displayed "G-1".

8) Set cooking time "20:00"

C)Press® M * Wen griling, the food isn't heated by microwave, heat is radiated from {he metal heater at he Lop of the oven Wen gril is working, the cooking time has 2 stages, After the {st hal of the cooking, the program vil automatically pause and sound 2 beeps, indicating you Lo open ne oven and tum food over, afler luming over, close Ie door, press " Bi" button, the cooking will continue for the 2nd half. If you do not want to turn the food over, the oven vil re-stat after 1 min pause.

6. Combination Cooking

This appliance offers you a choice of two methods of combination cooking Combi power have 2 settings taking the reference of microwave power. C-1 and C-2 from high to low power.

Example : Cooking food using option "C-1" for 30 minutes. a) Press” 14” button 3 times until i dispalys “C-1" b) Set cooking time for 30 minutes c) Press" M"

In standby mode, press “_ (1 “ button to make the icon flash. Press" "or" “button to set the reservation time. After setting the reservation time, set the cooking type according to the requirements.

Press the” 2£ * bution lo display "15:00", press the * D * button, and only the furnace lamp, fan motor and rotary plate motor will work for 15 minutes.

9. Child-safety lock

Under standby situation to activate the child safety lock, press" & Press" & for1.5 seconds again, it will unlock this function. for 1.5 seconds.

a) In the course of operation, pressing " Je||" button will stop operation. b) If any program was set before pressing start, pressing this button will cancel all the set program.

CARE OF YOUR MICROWAVE OVEN

1.Tumn the oven off and remove the power plug from the wall socket before cleaning. 2.Keep the inside of the oven clean.When food splatters or spilled liquids adhere to oven walls wipe with a damp cloth.The use of harsh detergent or abrasives is not recommended. 3.The outside oven surface should be cleaned with a damp cloth.To prevent damage to the operating parts inside the oven,water should not be allowed to seep into the ventilation openings. 4.Do not allow the Control Panel to become wet. Clean with a soft, damp cloth, Do not use detergents, abrasives or spray-on cleaners on the control Panel. 5.1f steam accumulates inside or around the outside of the oven door, wipe with a soft cloth.This may occur when the microwave oven is operated under high humidity conditions and in no way indicates malfunction of the unit. 6.it is occasionally necessary to remove the glass tray for cleaning.Wash the tray in warm sudsy water or in à dishwasher. 7.The roller ring and oven cavity floor should be cleaned regulariy to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent.water or window cleaner and dry.The roller ring may be washed in mild sudsy water or dish washer.Cooking vapour collect during repeated use but in no way affect the bottom surface or roller ring wheels. When removing the roller ring from cavity floor for cleaning,be sure to replace it in the proper position. 8.Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowil. Microwave for 5 minutes.wipe thoroughly and dry with a soft cloth. 9.When it becomes necessary to replace the oven light,please consult a dealer to have it replaced.
