468172222 - 468504222 - 468504222DK - Gas barbecue CHAR BROIL - Free user manual and instructions
Find the device manual for free 468172222 - 468504222 - 468504222DK CHAR BROIL in PDF.
📄
Document temporarily unavailable
The manual is currently being transferred to our new server. It will be accessible again in a few hours. Thank you for your patience.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product type | Gas barbecue |
| Brand | CHAR BROIL |
| Models | 468172222, 468504222, 468504222DK |
| Gas category | I3+ (28-30/37), I3B/P (30), I3B/P (50) |
| Gas types | Butane, Propane or mixtures |
| Gas pressure | 28-30 mbar (Butane), 37 mbar (Propane), 30 mbar, 50 mbar |
| Total nominal heat input | 6.16 kW (448 g/h) |
| Injector size (main burners) | 0.85 mm (2 pieces) or 0.75 mm (2 pieces) |
| Injector size (sear burner) | Not specified |
| Destination countries | GB, FR, BE, ES, IT, PT, CZ, SK, CH, CY, GR, IE, LT, LU, LV, SI, DK, NO, NL, SE, FI, IS, AT, DE, etc. |
| Ignition | Electronic or match |
| Material | Stainless steel |
| Usage | Outdoor only |

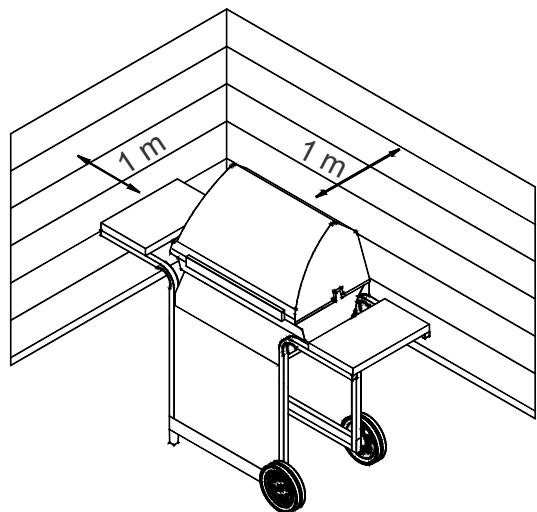

| Safety distance | At least 1 m from walls, 3 m from flammable objects |
| Maximum load (warming rack/side shelf) | 4.5 kg |
| Cooking container diameter | 200 mm min, 260 mm max |
| Recommended hose length | Max 1.5 m (1.2 m in Finland) |

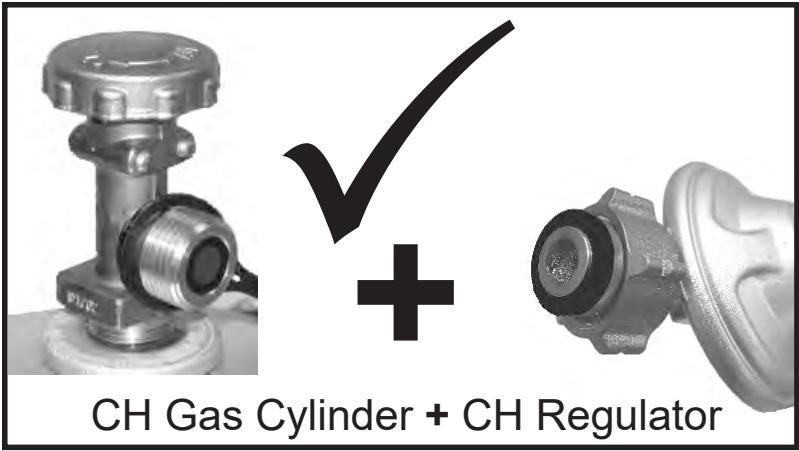

| Regulator | Certified EN16129, max flow 1.5 kg/h |
| Maintenance | Regular cleaning of burners, grates and interior; CLEAN function |
| Safety | Leak test before each use; never use indoors |
Frequently Asked Questions - 468172222 - 468504222 - 468504222DK CHAR BROIL
How to light the barbecue?
Open the lid, turn the valves to OFF, open the gas from the cylinder, then press and turn the burner knob to HIGH while holding the electronic ignition button until the burner lights. If nothing happens within 5 seconds, close the valves, wait 5 minutes and try again.
What if the barbecue does not light?

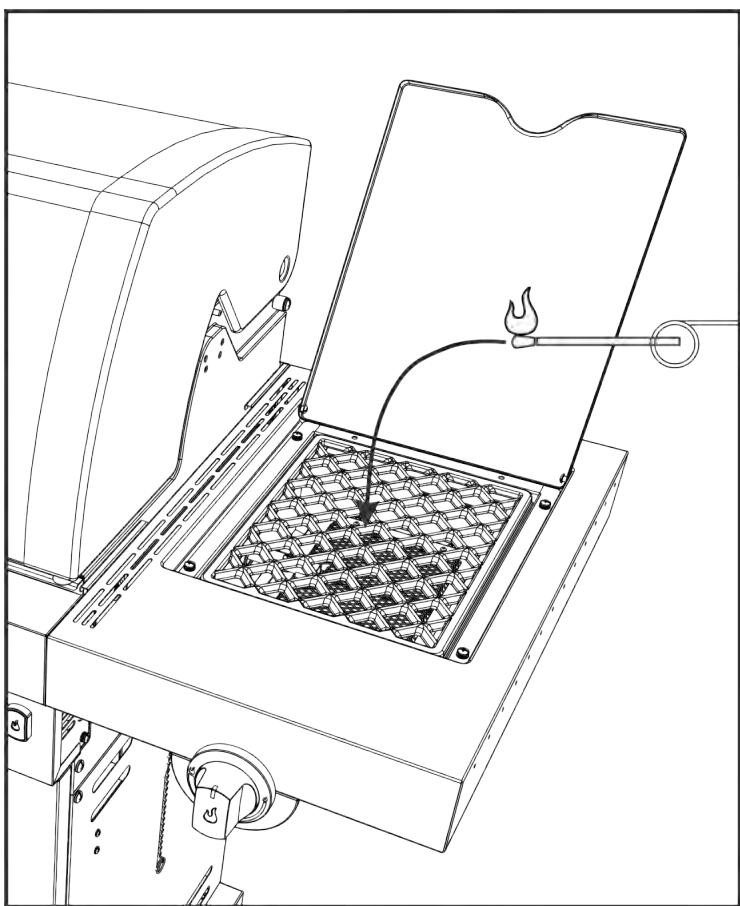

Check that the gas cylinder is open and contains gas. Make sure the igniter is sparking. If not, check the condition of the wires, electrodes and battery. Clean the electrodes with a cloth soaked in alcohol. If necessary, use a match.
How to clean the burners?

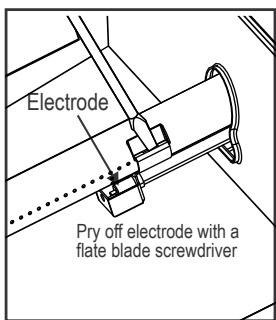

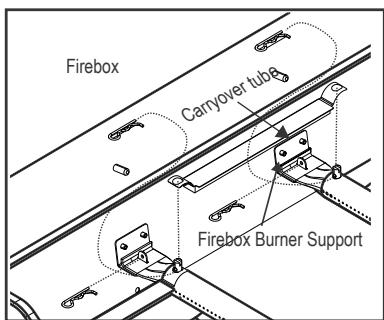

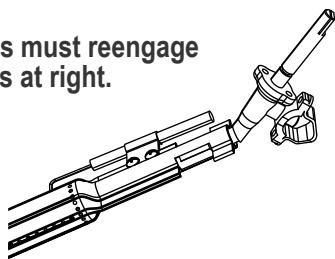

Turn off the gas, remove the grates and heat tents. Disconnect the hoses and electrodes. Gently lift the burners. Clean the inside of the tubes with a stiff wire or pipe cleaner, and the outside with a wire brush. Check the orifices with an unfolded paperclip. Replace the burners by properly interlocking them into the valves.
How to avoid grease fires?
Clean the appliance regularly, especially the grease tray. Do not close the lid on a grease fire. Avoid using water. If a grease fire develops, turn off the control knobs and the gas cylinder. Use the CLEAN function after each cooking session to burn off residues.
Can the barbecue be used indoors?
No, use only outdoors in a well-ventilated area. Never use it in a garage, porch, covered patio or under a suspended structure.
How to perform a leak test?
Turn all knobs to OFF. Make sure the regulator is properly attached to the cylinder. Open the gas. Apply a soapy solution (water + soap) to the connections. If bubbles appear, there is a leak. Immediately turn off the gas and tighten the connections. Repeat the test until no bubbles appear.
What to do in case of gas smell?
Immediately shut off the gas supply to the appliance and the cylinder. Extinguish any open flame. Open the lid. If the smell persists, move away from the appliance and call your gas supplier or the fire department.
How to store the barbecue?
Clean the grates. Store it in a dry place. If the cylinder is connected, store the appliance in a well-ventilated area, out of reach of children. For indoor storage, the cylinder must be closed, disconnected and stored outdoors.
Why is the flame low or the barbecue hard to light?
This may be due to spider webs or insects blocking the venturis or burners. Clean the burners and venturi tubes regularly, especially after a long period of non-use.
What types of gas to use?

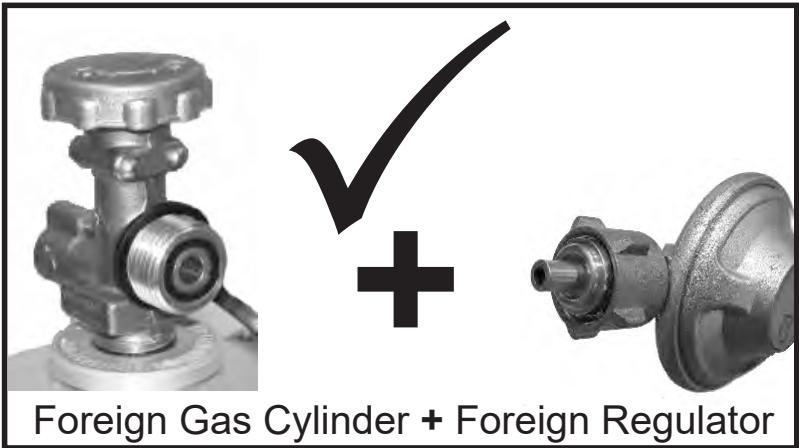

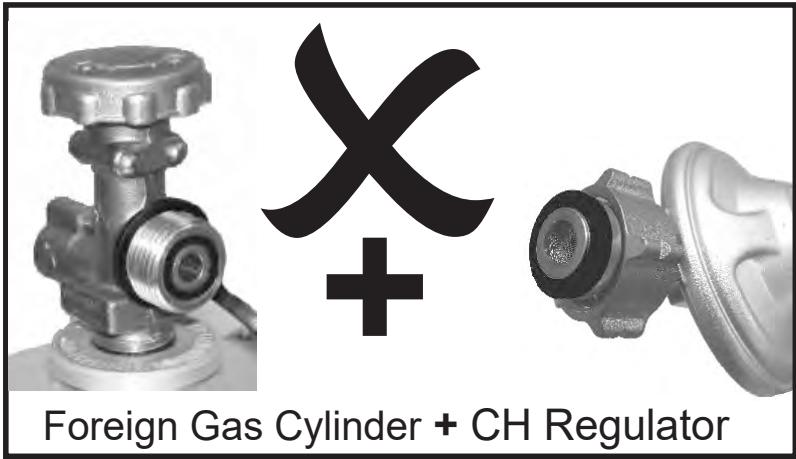

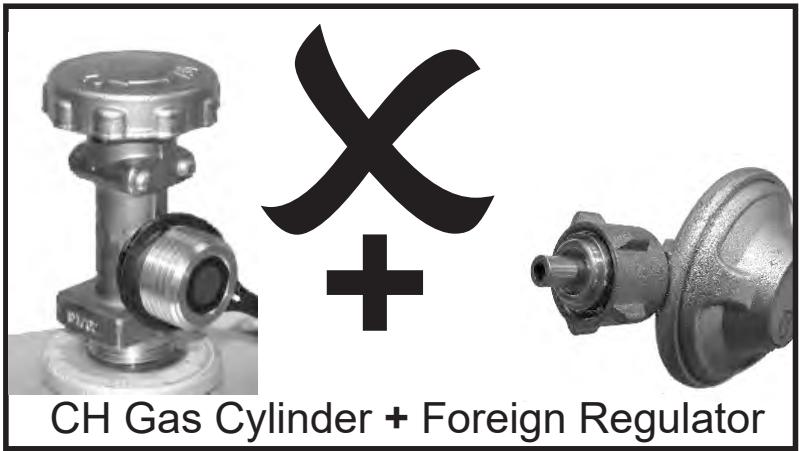

Use butane or propane depending on the models. The gas pressure is indicated in the technical data (28-30 mbar for butane, 37 mbar for propane, etc.). Use a certified EN16129 regulator suitable for your country and gas cylinder.
