USER MANUAL HSA26 STIHL

1 Introduction 35
2 Guide to Using this Manual 35
2.1 Applicable Documentation 35
2.2 Warning Notices in Text 36
2.3 Symbols in Text 36
3 Overview 36
3.1 Shrub Shears, Battery and Charger 36
3.2 Shrub Shear Blade and Grass Shear Blade 37
3.3 Symbols 37
4 Safety Precautions 38
4.1 Warning Symbols 38
4.2 Intended Use 38
4.3 The Operator 39
4.4 Clothing and Equipment 39
4.5 Work Area and Surroundings 40
4.6 Safe Condition 41
4.7 Operation 43
4.8Charging 44
4.9 Connecting to Power Supply 44
4.10 Transporting 45
4.11 Storing 46
4.12 Cleaning, Maintenance and Repairs 46
5 Preparing Shrub Shears for Operation 47
5.1 Preparing Shrub Shears for Operation 47
6 Charging the Battery, LEDs 47
6.1 Mounting the Charger on a Wall 47
6.2Charging the Battery 48

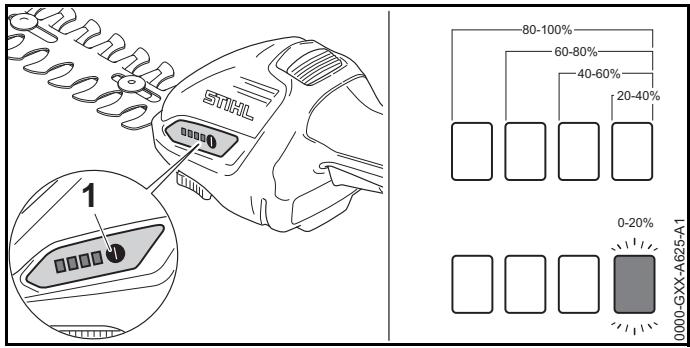

6.3 Displaying State of Charge 48
6.4 LEDs on Shrub Shears 48
6.5 LED on Charger 48
7Assembling the Shrub Shears 49

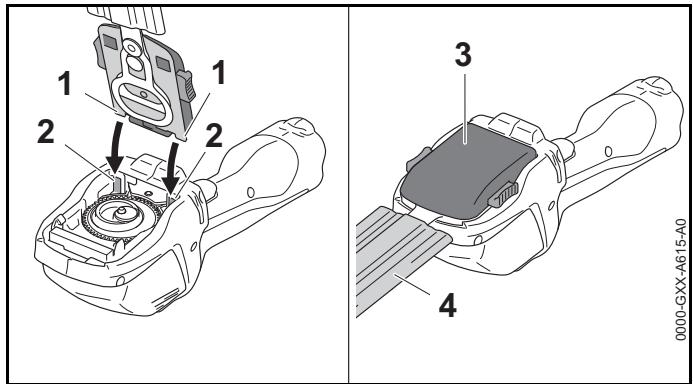

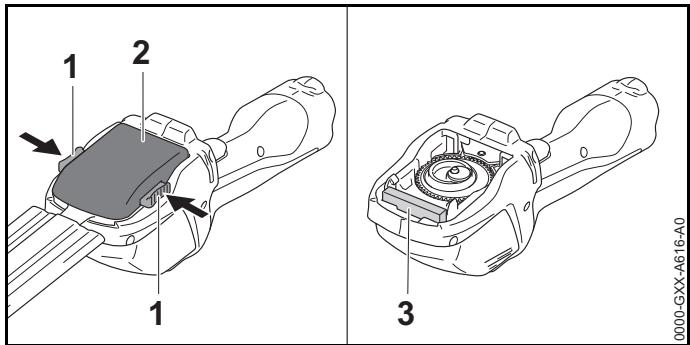

7.1 Fitting and Removing the Cutting Blades 49
8 Removing and Fitting the Battery 49

8.1 Fitting the Battery 49

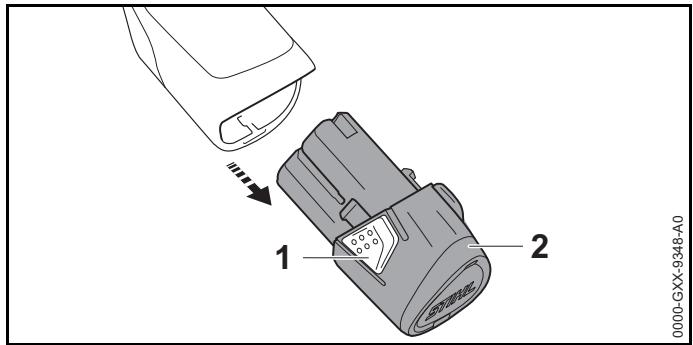

8.2 Removing the Battery 50
9 Switching the Shrub Shears On/Off 50
9.1 Switching On 50
9.2 Switching Off 50
10 Checking the Shrub Shears and Battery 50
10.1 Checking the Controls 50
10.2 Testing the Battery 51
11 Operating the Shrub Shears 51
11.1 Holding and Controlling the Shrub Shears 51

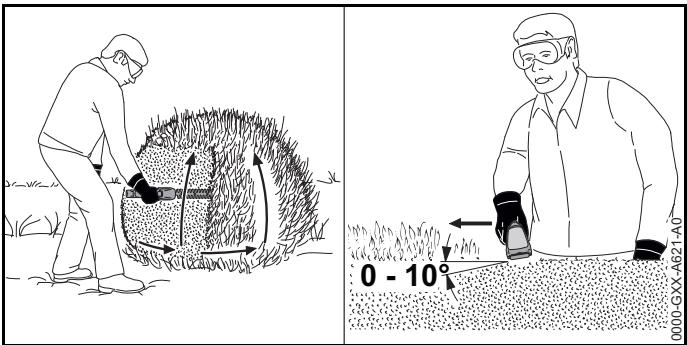

11.2 Cutting Shrubs 51

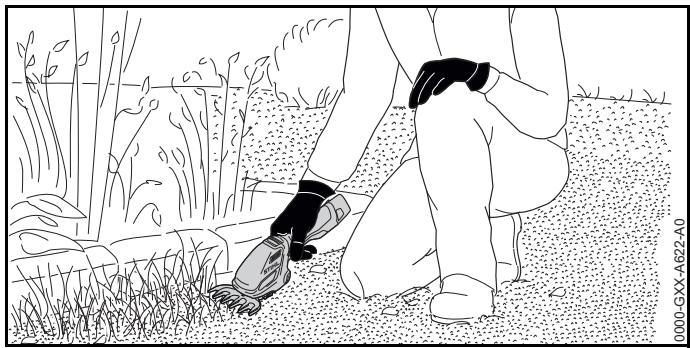

11.3 Cutting Grass 51
12 After Finishing Work 52
12.1 After Finishing Work 52
13 Transporting 52
13.1 Transporting the Shrub Shears 52
13.2 Transporting the Battery 52
13.3 Transporting the Charger 52
14 Storing 52
14.1 Storing the Shrub Shears 52
14.2 Storing the Battery 52
14.3 Storing the Charger 53
15 Cleaning 53
15.1 Cleaning the Shrub Shears 53
15.2 Cleaning the Cutting Blades 53
15.3 Cleaning the Battery 53
15.4 Cleaning the Charger 53
16 Maintenance 53

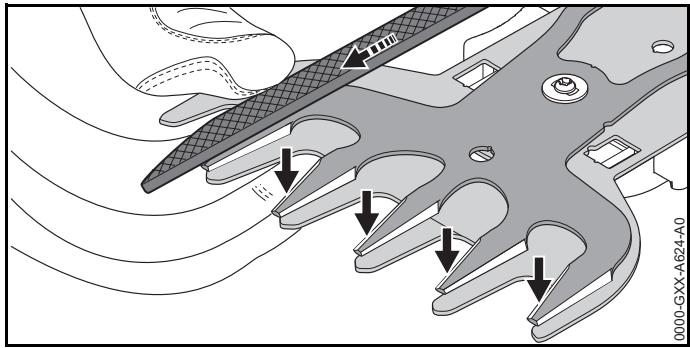

16.1 Sharpening the Cutting Blades 53
17 Repairing 55
17.1 Repairing the Shrub Shears, Battery and Charger... 55
18 Troubleshooting 56

18.1 Troubleshooting Shrub Shears and Battery 56
18.2 Troubleshooting Charger 57

19 Specifications 58

19.1 STIHL HSA 26 Shrub Shears 58
19.2 Shrub Shear Blades, Grass Shear Blades 58
19.3 STIHL AS Battery 58
19.4 STIHL AL 1 Charger 58
19.5 Extension Cords 58
19.6 Noise and Vibration Data 59
19.7 REACH 59

20 Spare Parts and Accessories 59
20.1 Spare Parts and Accessories 59
21 Disposal 59
21.1 Disposal of Shrub Shears, Battery and Charger .59
22 EC Declaration of Conformity 59
22.1 STIHL HSA 26 Shrub Shears 59
22.2 STIHL AL 1 Charger Conformity Notice 60
23 General Power Tool SafetyWarnings 60
23.1 Introduction 60
23.2 Work area safety 60
23.3 Electrical safety 61
23.4 Personal safety 61
23.5 Power tool use and care 61
23.6 Battery tool use and care 62
23.7 Service 62
23.8 Hedge Trimmer SafetyWarnings 62

1 Introduction

Dear Customer,

Thank you for choosing STIHL. We develop and manufacture our quality products to meet our customers' requirements. The products are designed for reliability even under extreme conditions.

STIHL also stands for premium service quality. Our specialist dealers guarantee competent advice and instruction as well as comprehensive service support.

We thank you for your confidence in us and hope you will enjoy working with your STIHL product.

Dr. Nikolas Stihl

IMPORTANT: READ BEFORE USE AND KEEP IN A SAFE PLACE.

2 Guide to Using this Manual

2.1 Applicable Documentation

Local safety regulations apply.

• Read, understand and save the following documents in addition to this instruction manual:

• Safety information for STIHL batteries and products with built in batteries: www.stihl.com/safety-data-sheets

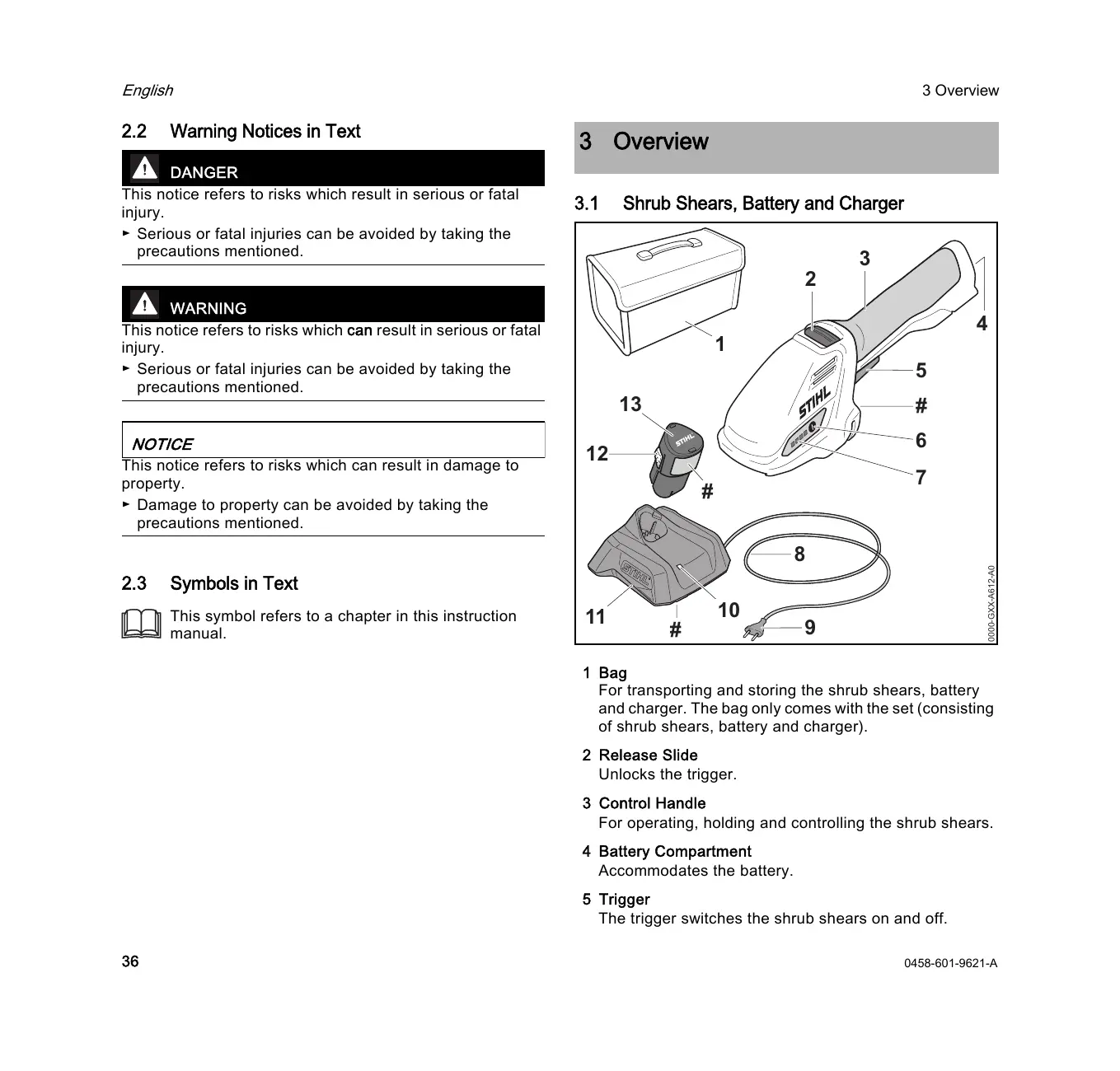

2.2 Warning Notices in Text

DANGER

This notice refers to risks which result in serious or fatal injury.

• Serious or fatal injuries can be avoided by taking the precautions mentioned.

WARNING

This notice refers to risks which can result in serious or fatal injury.

• Serious or fatal injuries can be avoided by taking the precautions mentioned.

NOTICE

This notice refers to risks which can result in damage to property.

• Damage to property can be avoided by taking the precautions mentioned.

2.3 Symbols in Text

This symbol refers to a chapter in this instruction manual.

3 Overview

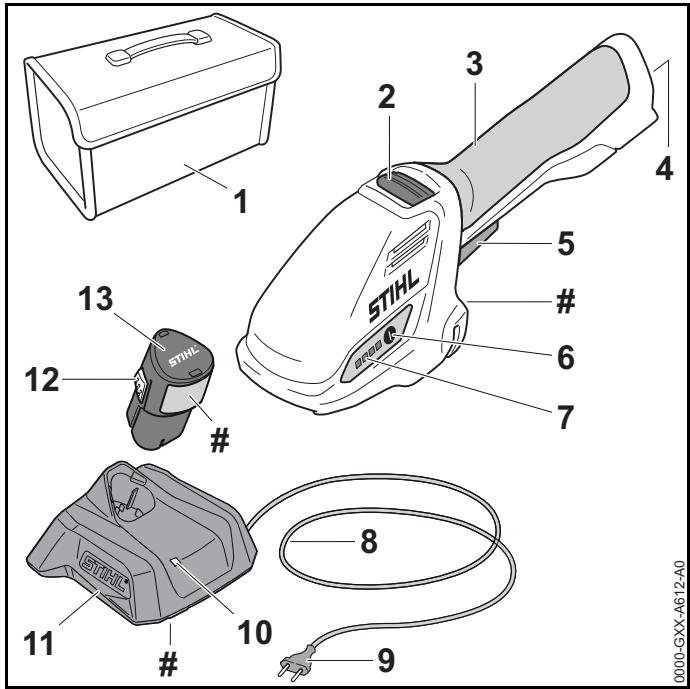

3.1 Shrub Shears, Battery and Charger

1 Bag

For transporting and storing the shrub shears, battery and charger. The bag only comes with the set (consisting of shrub shears, battery and charger).

2 Release Slide

Unlocks the trigger.

3 Control Handle

For operating, holding and controlling the shrub shears.

4 Battery Compartment

Accommodates the battery.

5 Trigger

The trigger switches the shrub shears on and off.

6 Button

Activates the LEDs on the shrub shears.

7 LEDs

Indicate battery's state of charge and malfunctions.

8 Connecting Cable

Connects charger to appliance plug.

9 Appliance Plug

Connects cable to wall outlet.

10 LED

The LED indicates the operating status of the charger.

11 Charger

Charges the battery.

12 Locking Hook

Holds the battery in the battery compartment.

13 Battery

Supplies power to the shrub shears.

Rating Label with Serial Number

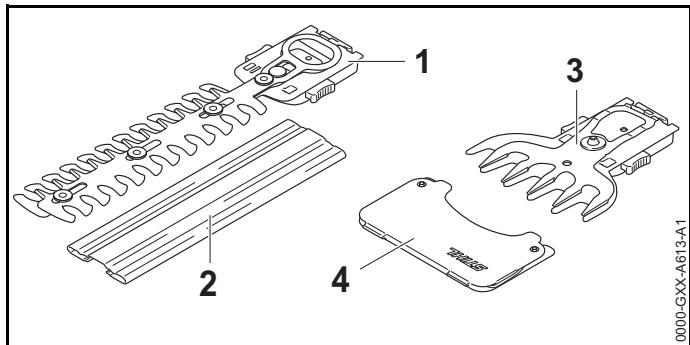

3.2 Shrub Shear Blade and Grass Shear Blade

1 Shrub shear blade, cutting blades

The cutting blades cut shrubs.

2 Blade Scabbard

Helps protect user from contact with the shrub shear blade.

3 Grass shear blade, cutting blades

The cutting blades cut grass.

4 Blade Scabbard

Helps protect user from contact with the grass shear blade.

3.3 Symbols

Meanings of symbols that may be on the shrub shears, battery and charger:

The LED glows or flashes green. Battery is being charged.

LED flashes red. No electrical contact between battery and charger or malfunction in battery or charger.

LwA directive 2000/14/EC in dB(A) in order to make sound emissions of products comparable.

The data next to this symbol indicates the energy content of the battery according to the cell manufacturer's specification. The energy content available during operation is lower.

Operate the electric product in a dry place, indoors only.

Do not dispose of the product with your household waste.

Read, understand and save the instruction manual.

4 Safety Precautions

4.1 Warning Symbols

Meanings of warning symbols on the shrub shears, battery and charger:

Observe safety notices and take the necessary precautions.

Read, understand and save the instruction manual.

Wear safety glasses.

Do not touch coasting cutting blades.

Do not touch moving cutting blades.

Observe safety notices on flying debris and take the necessary precautions.

Maintain safe distance.

Protect shrub shears and charger from rain and dampness.

Always remove the battery during work breaks, transport, storage, maintenance or repairs.

Protect battery from heat and fire.

Protect the battery from rain and damp - do not immerse it in fluids.

nded Use

The STIHL HSA 26 shrub shears are designed for the following applications:

• With shrub shear blade: Cutting shrubs
• With grass shear blade: Cutting grass

Do not use the shrub shears in the rain.

The STIHL AS battery supplies power to the shrub shears.

The STIHL AL 1 charger recharges the STIHL AS battery.

WARNING

• Batteries and chargers not approved for the shrub shears by STIHL may cause a fire or explosion. This can result in serious or fatal injuries and damage to property.

• Use the shrub shears with a STIHL AS battery.

• Recharge the STIHL AS battery with a STIHL AL 1 charger.

• Using the shrub shears, battery or the charger for purposes for which they were not designed may result in serious or fatal injuries, and damage to property may occur.

• Use the shrub shears, battery and charger as described in this instruction manual.

4.3 The Operator

WARNING

• Users without adequate instruction cannot recognize or assess the risks involved in using the shrub shears, battery and charger. The user or other persons may sustain serious or fatal injuries.

• Read, understand and save the instruction manual.

• If you lend the shrub shears, battery and charger on to another person: Always give them the instruction manual.
  Make sure the user meets the following requirements:

• The user must be rested.

• The user must be in good physical condition and mental health to operate and work with the shrub shears, battery and charger. If the user's physical, sensory or mental ability is restricted, he

or she may work only under the supervision of or as instructed by a responsible person.

• The user is able to recognize and assess the risks involved in using the shrub shears, battery and charger.
• The user must be of legal age or is being trained in a trade under supervision in accordance with national rules and regulations.
• The user has received instruction from a STIHL servicing dealer or other experienced user before working with the shrub shears and using the charger for the first time.
• The user must not be under the influence of alcohol, medication or drugs.

If you have any queries: Contact a STIHL servicing dealer for assistance.

4.4 Clothing and Equipment

WARNING

• Long hair can be sucked into the shrub shears during operation. This can result in serious injuries.
• Tie up and confine long hair so that it cannot be entangled in the shrub shears.
• Objects can be thrown through the air at high speed during operation. This can result in personal injury.

• Wear close-fitting safety glasses. Suitable safety glasses that have been tested and labeled in accordance with EN 166 or national standards are available from retailers.

• Wear a long-sleeved, snug-fitting upper garment and long trousers.

• Dust can be whipped up during operation: Whipped up dust can damage the respiratory passages and cause allergic reactions.

If dust is generated: Wear a dust respirator mask.

• Inappropriate clothing can snag on wood, brush or the shrub shears. Not wearing personal protective equipment may result in serious injury.

Wear snug-fitting clothing.
Do not wear a scarf or jewelry.

• The user can come into contact with the cutting blades during operation. This can result in serious injuries.

Wear footwear made of durable material.
Wear long trousers made of durable material.

• The user can come into contact with the cutting blades during cleaning and maintenance work. This can result in personal injury.
  Wear work gloves made of durable material.
  Wearing unsuitable footwear may cause you to slip or stumble. This can result in personal injury.
  Wear sturdy enclosed footwear with non-slip soles.

4.5 Work Area and Surroundings

4.5.1 Shrub Shears

WARNING

• Bystanders, children and animals are not aware of the dangers of the shrub shears or thrown objects.

Bystanders, children and animals may be seriously injured and damage to property may occur.

• Keep bystanders, children and animals away from the work area.

Do not leave the shrub shears unattended.
- Make sure that children cannot play with the shrub shears.

• The shrub shears are not waterproof. Working in the rain or a damp location may result in an electric shock. This can result in injuries to the user and may damage the shrub shears.

Do not work in the rain or a damp location.

• Electrical components of the shrub shears can produce sparks. Sparks may cause a fire or an explosion in an easily combustible or explosive environment. This can result in serious or fatal injuries and damage to property.

• Do not work in an easily combustible or explosive environment.

4.5.2 Battery

WARNING

• Bystanders, children and animals cannot recognize or assess the dangers of the battery. Bystanders, children and animals may be seriously injured.

• Keep bystanders, children and animals away from the work area.
  Do not leave the battery unattended.
  Make sure that children cannot play with the battery.

• The battery is not protected against all ambient conditions. If the battery is exposed to certain ambient conditions, it may catch fire or explode. This can result in serious injuries and damage to property.

Protect battery from heat and fire.
Do not throw the battery into a fire.

• Use and store the battery at temperatures between -20^ and +50^ .

• Protect the battery from rain and damp – do not immerse it in fluids.

• Keep battery away from metallic objects.
  Do not expose battery to high pressure.
  Do not expose battery to microwaves.
  Protect battery from chemicals and salts.

4.5.3 Charger

WARNING

• Innocent bystanders and children are not aware of and cannot assess the dangers of a charger or electric current. Innocent bystanders, children and animals may be seriously or fatally injured.

• Keep bystanders, children and animals away from the work area.

• Make sure that children cannot play with the charger.

• The charger is not waterproof. Working in the rain or a damp location may result in an electric shock. This can result in injuries to the user and may damage the charger.

• Do not operate it in the rain or a damp location.

• The charger is not protected against all ambient conditions. If the charger is exposed to certain ambient conditions, it may catch fire or explode. This can result in serious injuries and damage to property.

Operatethechargerainadryplace,indoorsonly.
- Do not operate the charger in an easily combustible or explosive environment.
- Do not operate the charger on an easily combustible surface.

• Use and store the charger at a temperature between -20^ and +50^ .
• Persons may trip over the connecting cable. This can result in injuries and may damage the charger.
  Lay the connecting cable flat on the floor.

4.6 Safe Condition

4.6.1 Shrub Shears

The shrub shears are in a safe condition if the following points apply:

• The shrub shears are not damaged.
• The shrub shears are clean and dry.
• The controls function properly and have not been modified.
• The shrub shear blade or grass shear blade is properly mounted.
• Only original STIHL accessories designed for these shrub shears are fitted.
• Accessories are properly mounted.

WARNING

If components do not comply with safety requirements, they will no longer function properly and safety devices may be rendered inoperative. This can result in serious or fatal injuries.

Work only with undamaged shrub shears.
- If the shrub shears are dirty or wet: Clean the shrub shears and allow them to dry.
Do not modify the shrub shears.
- If the controls do not function properly: Do not use your shrub shears.
- Only fit original STIHL accessories designed for these shrub shears.
- Mount accessories as described in this instruction manual or the instructions supplied with the accessory.

Never insert objects in the shrub shears' openings.
Replace worn or damaged labels.
If you have any queries: Contact a STIHL servicing dealer for assistance.

4.6.2 Cutting Blades

The cutting blades are in a safe condition if the following points are observed:

• Cutting blades are undamaged.
• Cutting blades are not deformed.
• Cutting blades move freely.
• Cutting blades are properly sharpened.
• Cutting blades have no burrs.

WARNING

If they are in an unsafe condition, parts of the cutting blades may come off and be thrown at high speed. This can result in serious injuries.

Work only with undamaged cutting blades.
- Make sure the cutting blades are properly sharpened and deburred.
If you have any queries: Contact your STIHL servicing dealer.

4.6.3 Battery

The battery is in safe condition when the following conditions are met:

• The battery is not damaged.
• The battery is clean and dry.
• The battery is working and has not been modified.

WARNING

• The battery cannot function safely if it is not in safe condition. There is a risk of serious injury to persons.

Use an undamaged and functioning battery.
Do not charge a damaged or defective battery.
- If the battery is dirty or wet: clean the battery and allow it to dry.
Do not modify the battery.
Do not insert objects into the apertures in the battery.
- Never connect the battery terminals to metallic objects and cause a short circuit.
Do not open the battery.
Replace worn or damaged warning signs.

• Fluid may leak from a damaged battery. If the fluid contacts the skin or eyes, this may cause irritation.

Avoid contact with the fluid.
In the event of contact with the skin: wash the affected areas with plenty of soap and water.
In the event of contact with the eyes: rinse the eyes with plenty of water for at least 15 minutes and seek medical attention.

• A damaged or defective battery may emit an unusual odour, smoke or catch fire. This may result in serious or fatal injury to people and damage to property.

• If the battery emits an unusual odour or smoke: do not use the battery and keep it away from flammable materials.

• If the battery catches fire: try to extinguish the battery using a fire extinguisher or water.

4.6.4 Charger

The charger is in a safe condition if the following points are observed:

• Charger is undamaged.
• Charger is clean and dry.

WARNING

If components do not comply with safety requirements, they will no longer function properly and safety devices may be rendered inoperative. This can result in serious or fatal injuries.
Do not use a damaged charger.
- If the charger is dirty or wet: Clean the charger and allow it to dry.
- Never attempt to modify the charger.
- Never insert objects in the charger's openings.
- Never bridge the charger's contacts with metallic objects (short circuit).
Do not open the charger.

4.7 Operation

WARNING

• The user cannot concentrate on the work in certain situations. The user may stumble, fall and be seriously injured.
  Work calmly and carefully.
• If light and visibility are poor: Do not use your shrub shears.
  Operate the shrub shears alone.
  Watch out for obstacles.
• Stand on the ground while working and keep a good balance. If it is necessary to work at heights: Use a lift bucket or a safe platform.
  If you begin to feel tired: Take a break.
• Working above shoulder height can cause you to tire quickly. This can result in serious injuries.
  Work above shoulder height for short periods only.
  Take regular breaks.

If the moving cutting blades make contact with a hard object they can be brought to a sudden stop. The reactive forces that occur can cause the user to lose control of the shrub shears and be seriously injured.

• Before starting work, check the shrub or grass for hard objects and remove any such objects.

• The moving cutting blades can cut the user. This can result in serious injuries.

• Keep your free hand away from the cutting blades.
  Do not touch moving cutting blades.
• If the cutting blades are blocked by an object: Switch off the shrub shears and remove the battery. Then remove the object causing the blockage.

If the behavior of the shrub shears changes during operation or feels unusual, it may no longer be in a safe condition. This can result in serious injuries and damage to property.

• Stop work, remove the battery and contact your STIHL servicing dealer for assistance.

Vibrations may occur while using the shrub shears.

Wear gloves.
Take regular breaks.
If signs of circulation problems occur: Seek medical advice.

Note that the cutting blades continue to run for about 1 second after you release the trigger. The moving cutting blades can cut the user. This can result in serious injuries.

• Hold the shrub shears firmly by the control handle and wait until the cutting blades come to a complete standstill.

DANGER

• Working near live electric cables can result in accidental contact with and damage to the cutting blades. This can result in serious or fatal injuries.
  Do not work near live electric cables.

4.8 Charging

WARNING

• A damaged or defective charger may produce an unusual smell or emit smoke during the charging process. This may result in personal injuries and damage to property.
  Disconnect the plug from the wall outlet.
• The charger can overheat and cause a fire if heat dissipation is inadequate. This can result in serious or fatal injuries and damage to property.
  Do not cover the charger.

4.9 Connecting to Power Supply

Contact with live components may occur for the following reasons:

• The connecting cable or extension cable is damaged.
• Connecting cable plug or extension cable is damaged.
• Wall outlet is not properly installed.

DANGER

• Contact with live components can result in an electric shock. This can result in serious or fatal injuries.

• Check that the connecting cable, extension cable and their plugs are not damaged.

If the connecting cable or extension cable is damaged:

Do not touch damaged areas.
Disconnect the plug from the wall outlet.

• Never touch the connecting cable, extension cable or their plugs with wet hands.

• Insert the plug of the connecting cable or extension cable in a properly installed fused wall outlet with ground contact.
  Install the charger with a ground fault circuit interrupter (30 mA, 30 ms).

A damaged or unsuitable extension cable can cause an electric shock. This can result in serious or fatal injuries.

Use an extension cable with the correct wire gauge, 19.5.

WARNING

• Overvoltage can occur in the charger if the line voltage or frequency are incorrect during charging. The charger may be damaged.

• Make sure the line voltage and frequency agree with the data on the charger's rating plate.

• A carelessly laid connecting or extension cable can be damaged and cause others to trip or fall. This can result in injuries and may damage the connecting cable or extension cable.

• Position and mark connecting cable and extension cable so they do not represent a trip hazard.

• Position the connecting and extension cables so that they are not under tension or entangled.
  Position the connecting and extension cables so that they cannot be damaged, kinked, pinched or chafed.
• Protect the connecting cable and extension cable from heat, oil and chemicals.
• Lay the connecting and extension cables on a dry surface.

The extension cable becomes hot during operation. If the heat cannot dissipate, it may cause a fire.
If you use a cable drum: Unwind the extension cable to its full length.
If electric cables or pipes are embedded in the wall, they may be damaged when the charger is mounted on a wall. Contact with electric cables can result in an electric shock. This can result in serious injuries and damage to property.
- Check that there are no electric cables or pipes embedded in the wall.
If the charger is not mounted on the wall as described in this instruction manual, the charger or the battery may fall down or the charger may overheat. This may result in personal injuries and damage to property.
- Mount the charger on the wall as described in this instruction manual.
If the charger is mounted on a wall with the battery inserted, the battery may fall out and be damaged. This may result in personal injuries and damage to property.
- Mount the charger on the wall first and then insert the battery.

4.10 Transporting

4.10.1 Shrub Shears

WARNING

• The shrub shears may turn over or shift during transport. This may result in personal injuries and damage to property.

Remove the battery.

• Fit the blade scabbard so that it completely covers the cutting blades.
  Transport the battery in the bag supplied.

• If no bag is supplied with the battery: Secure the shrub shears with lashing straps, belts or a net to prevent turnover and movement.

4.10.2 Battery

WARNING

• The battery is not protected against all ambient conditions. The battery may be damaged if it is exposed to certain ambient conditions and damage to property may occur.

• Never transport a damaged battery.
  Transport the battery in the bag supplied.

• If no bag is supplied with the garden pruner: Transport the battery in non-conductive packaging.

• The battery may turn over or shift during transport. This may result in personal injuries and damage to property.

• Pack the battery in packaging in such a way that it cannot move.
  Secure the packaging so that it cannot move.

4.10.3 Charger

WARNING

• The charger can turn over or move while being transported. This may result in personal injuries and damage to property.

Disconnect the plug from the wall outlet.
Remove the battery.
Transport the charger in the bag supplied.
- If no bag is supplied with the charger: Secure the charger with lashing straps, belts or a net to prevent it turning over and moving.

• The connecting cable must not be used for carrying the charger. The connecting cable and the charger may be damaged.

• Wind up the connecting cable and attach it to the charger.

4.11 Storing

4.11.1 Shrub Shears

WARNING

Children are not aware of and cannot assess the dangers of shrub shears and can be seriously injured.

Remove the battery.

• Fit the blade scabbard so that it completely covers the cutting blades.

• Store the shrub shears out of the reach of children.

• Dampness can corrode the electrical contacts on the shrub shears and metal components. This can damage the shrub shears.

Remove the battery.

• Store the shrub shears in a clean and dry condition.

4.11.2 Battery

WARNING

Children are not aware of and cannot assess the dangers of the battery and can be seriously injured.
- Store the battery out of the reach of children.
- The battery is not protected against all ambient conditions. The battery may be damaged if it is exposed to certain ambient conditions.
- Store the battery in a clean and dry condition.
- Store the battery in an enclosed location.
- Store the battery separately from the shrub shears and charger.
- Store the battery in non-conductive packaging.

• Store the battery at a temperature between -20°C and +70°C.

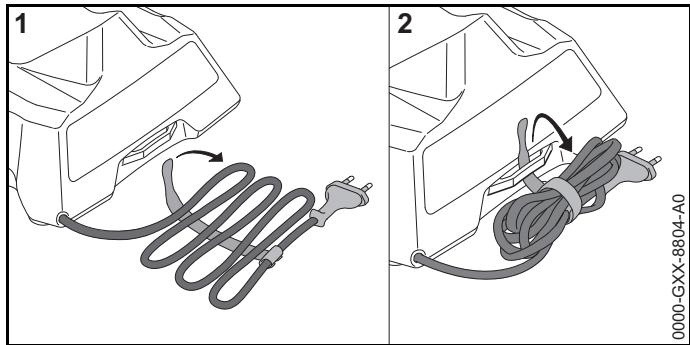

4.11.3 Charger

WARNING

Children are not aware of and cannot assess the dangers of a charger. Children may sustain serious or fatal injuries.

Remove the battery.
- Store the charger out of the reach of children.

• The charger is not protected against all ambient conditions. The charger may be damaged if it is exposed to certain ambient conditions.

• Remove the battery.
  If the charger is hot: Allow charger to cool down.

• Store the charger in a clean and dry condition.
• Store the charger in an enclosed location.

• Store the charger at a temperature between - 20^ and +70^ .

• The connecting cable must not be used for carrying or hanging up the charger. The connecting cable and the charger may be damaged.

• Hold the charger by the housing. A recessed handle is provided on the back of the charger.
  Hang the charger on the wall bracket.

4.12 Cleaning, Maintenance and Repairs

WARNING

• The shrub shears may start unintentionally if the battery is left in place during cleaning, maintenance or repair operations. This can result in serious injuries and damage to property.

Remove the battery.

• Aggressive cleaning agents, a water jet or pointed objects can damage the shrub shears, cutting blades, battery and charger. If the shrub shears, cutting blades, battery or charger are not cleaned correctly, components may no longer function properly or safety devices may be rendered inoperative. This can result in serious injuries.
• Clean the shrub shears, cutting blades, battery and charger as described in this instruction manual.
• If the shrub shears, cutting blades, battery or charger are not serviced correctly, components may no longer function properly or safety devices may be rendered inoperative. This can result in serious or fatal injuries.
• Do not attempt to service or repair the shrub shears, battery or charger.
• If the shrub shears, battery or the charger require servicing or repairs: Contact a STIHL servicing dealer for assistance.
• Maintain the cutting blades as described in this instruction manual.
• The user can be cut by the sharp cutting edges while cleaning or servicing the cutting blades. This can result in personal injury.
  Wear work gloves made of durable material.

5 Preparing Shrub Shears for Operation

5.1 Preparing Shrub Shears for Operation

Perform the following steps before starting work:

• Make sure the following components are in a safe condition:

• Shrub shears, 4.6.1.

• Cutting blades, 4.6.2.
  -Battery, 4.6.3.
  -Charger, 4.6.4.
  Check the battery, 10.2.
  Fully charge the battery, 6.2.

Clean the shrub shears, 15.1.
Check the controls, 10.1.

• If 3 LEDs flash red while you are checking the controls: Remove the battery and contact your STIHL dealer for assistance.

There is a malfunction in the shrub shears.

If you cannot carry out the above steps: Do not use your shrub shears and contact your STIHL servicing dealer.

6 Charging the Battery, LEDs

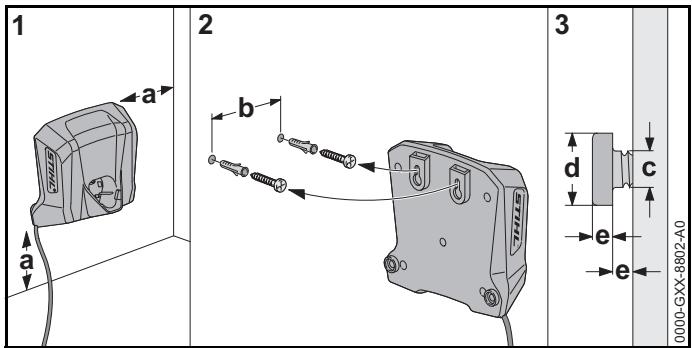

6.1 Mounting the Charger on a Wall

The charger can be mounted on a wall.

• Check the following points when mounting the charger on a wall:

• Suitable fixing materials.

• The charger is level.

• The following dimensions are observed:

• a = at least 100 mm

• b = 54 mm
• c = 4.5 mm
• d = 9 ~mm
• e = 2.5 mm

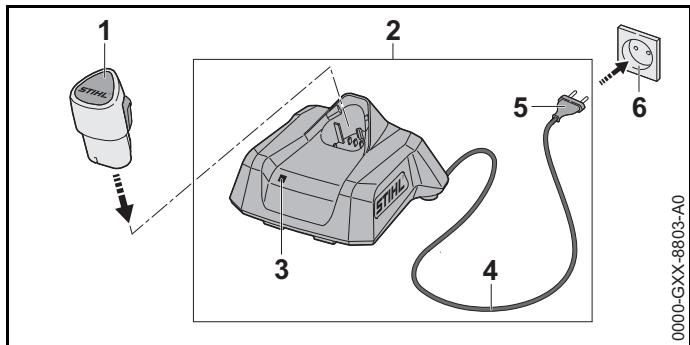

6.2 Charging the Battery

The charging time depends on several factors, e.g. temperature of the battery or the ambient temperature. The actual charging time may differ from the specified charging time. For specified charging times see www.stihl.com/charging-times.

The charging process starts automatically when the plug is inserted in a wall outlet and the battery is fitted in the charger. The charger switches itself off automatically when the battery is fully charged.

The battery and charger become hot during the charging process.

• Insert the plug (5) in a convenient wall outlet (6). The charger (2) runs a self test. The LED (3) glows green for about 1 second and then red for about 1 second.
  Fit the connecting cable (4).
• Insert the battery (1) in the guides in the charger (2) and press it home as far as stop. The LED (3) glows or flashes green. The battery (2) is being charged.
• If the LEDs (3) stop glowing: The battery is fully charged and can be taken out of the charger (2).
• If the charger (2) is no longer required. Disconnect the plug (5) from the wall outlet (6).

6.3 Displaying State of Charge

Fit the battery.
Press the button (1).

The LEDs glow green for about 5 seconds and indicate the state of charge.

If the left LED flashes green: Charge the battery.

6.4 LEDs on Shrub Shears

The LEDs can show the state of charge or malfunctions. The LEDs can glow or flash green or red.

The state of charge is indicated when the LEDs glow or flash green.

If the LEDs glow or flash red: Troubleshooting, 18.1. There is a malfunction in the shrub shears or battery.

6.5 LED on Charger

The LED indicates the operating status of the charger or faults. The LED can glow or flash green or red.

If the LED glows or flashes green, the battery is being charged.

• If the LED glows or flashes red: Troubleshooting, 18.2. There is a malfunction in charger or battery.

7 Assembling the Shrub Shears

7.1 Fitting and Removing the Cutting Blades

7.1.1 Fitting the Shrub Shear Blade or Grass Shear Blade

The shrub shear blade and grass shear blade are fitted on the shrub shears in the same way.

Switch off the shrub shears and remove the battery.
- Fit the blade scabbard so that it completely covers the cutting blades.

• Engage the lugs (1) of the shrub shear blade (3) or grass shear blade (3) on the guides (2).
• Swing the shrub shear blade (3) or grass shear blade (3) down and press it firmly into place.

The shrub shear blade (3) or grass shear blade (3) engages with an audible click.

Remove the blade scabbard (4).

7.1.2 Removing the Shrub Shear Blade or Grass Shear Blade

The shrub shear blade and grass shear blade are removed in the same way.

• Switch off the shrub shears and remove the battery.
• Fit the blade scabbard so that it completely covers the cutting blades.

Press in both locking levers (1).

The shrub shear blade (2) or grass shear blade (2) is unlocked.

• Remove the shrub shear blade (2) or grass shear blade (2).

A foam seal (3) protects the gearbox from contamination during operation. The seal (3) is permanently connected to the shrub shears and cannot be removed.

8 Removing and Fitting the Battery

8.1 Fitting the Battery

• Push the battery (1) into the battery compartment (2) as far as stop.

The battery (1) engages in position with a click.

8.2 Removing the Battery

Depress both locking hooks (1). The battery (2) is unlocked and can be removed.

9 Switching the Shrub Shears On/Off

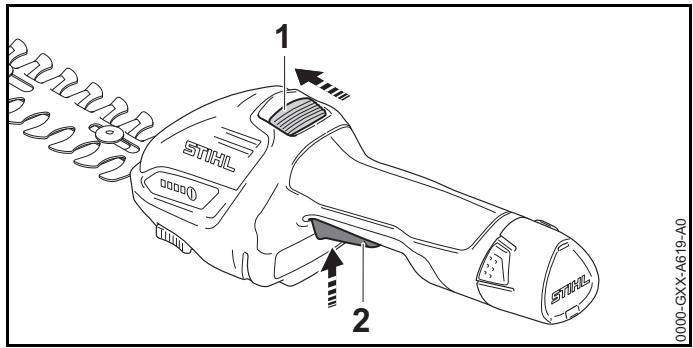

9.1 Switching On

• Push the release slide (1) in the direction of the cutting blades with your thumb and hold it there.
• Pull the trigger (2) with your index finger and hold it there. You can let go of the release slide (1). The motor accelerates and the cutting blades run.

9.2 Switching Off

Let go of the trigger and release slide.

• Wait until the cutting blades come to a complete standstill after about 1 second.
• If the cutting blades continue to run after about 1 second: Remove the battery and contact your STIHL servicing dealer.

There is a malfunction in the shrub shears.

10 Checking the Shrub Shears and Battery

10.1 Checking the Controls

Release slide and trigger

Remove the battery.
Attempt to pull the trigger lever without depressing the release slide.
- If the trigger can be pulled: Do not use your shrub shears and contact your STIHL servicing dealer.

The release slide has a malfunction.

• Push the release slide in the direction of the cutting blades with your thumb and hold it there.
  Pull the trigger.
  Let go of the trigger and release slide.
• If the trigger or the release slide is stiff or does not spring back to the idle position: Do not use your shrub shears and contact your STIHL servicing dealer.

The trigger or release slide has a malfunction.

Switch on the shrub shears

Fit the battery.
- Push the release slide in the direction of the cutting blades with your thumb and hold it there.
Pull the trigger and hold it there.

The cutting blades run.

Release the trigger.

The cutting blades stop running after about 1 second.

• If the cutting blades continue to run after 1 second: Remove the battery and contact your STIHL servicing dealer.
  There is a malfunction in the shrub shears.

10.2 Testing the Battery

Fit the battery.
Depress the button on the shrub shears.

The LEDs glow or flash.

• If the LEDs do not glow or flash: Do not use your shrub shears or battery and contact your STIHL dealer for assistance.

There is a malfunction in the shrub shears or battery.

11 Operating the Shrub Shears

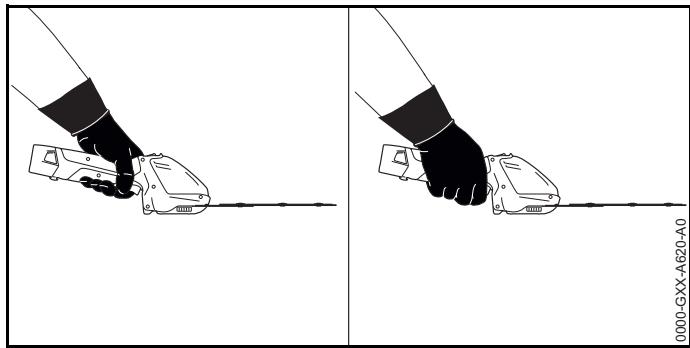

11.1 Holding and Controlling the Shrub Shears

• Hold the shrub shears with one hand on the control handle - wrap your thumb around the handle.
• Keep your free hand away from the cutting blades.

11.2 Cutting Shrubs

Mount the shrub shear blades.
- Use lopping shears, a hedge trimmer or chainsaw to cut out thick branches first.

• Swing the shrub shears from the bottom upwards in an arc while making the cut.
  Lower the shrub shears without cutting.
  Walk slowly and steadily forwards.
• Swing the shrub shears from the bottom upwards in an arc while making the cut.
  Cut the other side of the shrub in the same way.
• Hold the cutting blades at an angle of 0^ to 10^ to the top of the shrub.
• Swing the shrub shears horizontally and in an arc while making the cut.
• If cutting performance deteriorates: Sharpen the cutting blades.

11.3 Cutting Grass

Mount the grass shear blades.

• Hold the shrub shears at the required height while cutting the grass.

12 After Finishing Work

12.1 After Finishing Work

Switch off the shrub shears and remove the battery.
If the shrub shears are wet: Allow the shrub shears to dry.
If the battery is wet: Allow the battery to dry.
Clean the shrub shears.
Clean the cutting blades.
- Fit the blade scabbard so that it completely covers the cutting blades.
Clean the battery.

13 Transporting

13.1 Transporting the Shrub Shears

Switch off the shrub shears and remove the battery.
- Fit the blade scabbard so that it completely covers the cutting blades.
- Carry the shrub shears by the control handle.
Transporting the shrub shears in a vehicle:

Transport the battery in the bag supplied.
- Secure the bag to prevent turnover and movement.
- If no bag is supplied with the battery: Secure the shrub shears to prevent turnover and movement.

13.2 Transporting the Battery

• Switch off the shrub shears and remove the battery.
  Make sure the battery is in a safe condition.
  Pack the battery in the bag supplied.

• If no bag is supplied with the battery: Pack the battery so that the following points apply:

• The packaging must be non-conductive.

• Make sure the battery cannot shift inside the packaging.

Secure the packaging so that it cannot move.

The battery is subject to the requirements for the transport of dangerous goods. The battery is classified as UN 3480 (lithium-ion batteries) and has been tested in accordance with UN Manual of Tests and Criteria, Part III, sub-section 38.3.

For transport regulations see www.stihl.com/safety-datasheets

13.3 Transporting the Charger

Disconnect the plug from the wall outlet.
Remove the battery.
Wind up the connecting cable and attach it to the charger.
Transporting the charger in a vehicle:

Transport the charger in the bag supplied.
- Secure the bag to prevent turnover and movement.
- If no bag is supplied with the charger: Secure the charger to prevent turnover and movement.

14 Storing

14.1 Storing the Shrub Shears

Switch off the shrub shears and remove the battery.
- Fit the blade scabbard so that it completely covers the cutting blades.
- Observe the following points when storing the shrub shears:

• The shrub shears are out of the reach of children.
• The shrub shears are clean and dry.

14.2 Storing the Battery

STIHL recommends that you store the battery with a charge between 40% and 60% (2 LEDs glow green).

• Check the following points when storing the battery:

• Battery is out of the reach of children.
  Battery is clean and dry.

• Battery is in an enclosed location.
• Battery is stored separately from the shrub shears and charger.
• Battery is in non-conductive packaging.
• Battery is in a temperature range between - 20^ and + 60^ .

14.3 Storing the Charger

• Disconnect the plug from the wall outlet.
  Remove the battery.

Wind up the connecting cable and attach it to the charger.
Observe the following points when storing the charger:

• Charger is out of the reach of children.
• Charger is clean and dry.
• Charger is in an enclosed space.
• Charger is stored separately, away from the battery.
• Charger is not hanging from the connecting cable.
• Charger is in a temperature range between - 20^ and +60^ .

15 Cleaning

15.1 Cleaning the Shrub Shears

Switch off the shrub shears and remove the battery.
- Clean the shrub shears with a damp cloth or STIHL resin solvent.

15.2 Cleaning the Cutting Blades

Switch off the shrub shears and remove the battery.
Spray both sides of blades with STIHL resin solvent.
Fit the battery.
- Switch on the shrub shears for 5 seconds. The cutting blades run. STIHL resin solvent is distributed evenly.

15.3 Cleaning the Battery

Clean the battery with a damp cloth.

15.4 Cleaning the Charger

• Disconnect the plug from the wall outlet.
  Clean the charger with a damp cloth.
  Clean the charger's electrical contacts with a soft brush.

16 Maintenance

16.1 Sharpening the Cutting Blades

Shrub shear blades

STIHL recommends you have the cutting blades resharpened by a STIHL servicing dealer.

WARNING

The teeth of the cutting blades are very sharp. There is a risk of cut injuries.

Wear work gloves made of durable material.
Switch off the shrub shears and remove the battery.
Remove the shrub shear blades, 7.1.2.

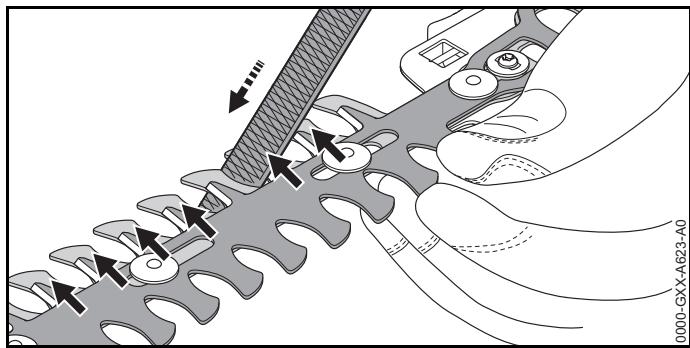

• Move the cutting blades so that the cutting edges are easily accessible.
• Use a STIHL flat crosscut file to sharpen each cutting edge on the upper blade. The file only sharpens on the forward stroke. Maintain the prescribed sharpening angle, 19.2.
  Turn shrub shear blades over.
  Sharpen the remaining cutting edges.
• Use a damp cloth to remove the filing dust.
• Spray both sides of shrub shear blades with STIHL resin solvent.
  Mount the shrub shear blades, 7.1.1.
• Switch on the shrub shears for 5 seconds. The cutting blades run. STIHL resin solvent is distributed evenly.
  If you have any queries: Contact a STIHL servicing dealer for assistance.

Grass shear blades

STIHL recommends you have the cutting blades resharpened by a STIHL servicing dealer.

WARNING

The teeth of the cutting blades are very sharp. There is a risk of cut injuries.

Wear work gloves made of durable material.

Switch off the shrub shears and remove the battery.
Remove the grass shear blades, 7.1.2.

• Push the upper cutting blade fully in one direction so that one side of the cutting edges is easily accessible.
• Use a STIHL flat crosscut file to sharpen each cutting edge on the upper blade. The file only sharpens on the forward stroke. Maintain the prescribed sharpening angle, 19.2.
• Push the upper cutting blade fully in the other direction so that the other side of the cutting edges is easily accessible.
  Sharpen the remaining cutting edges.
• Use a damp cloth to remove the filing dust.
• Spray both sides of grass shear blades with STIHL resin solvent.
  Mount the grass shear blades, 7.1.1.
• Switch on the shrub shears for 5 seconds. The cutting blades run. STIHL resin solvent is distributed evenly.

17 Repairing

• If you have any queries: Contact a STIHL servicing dealer for assistance.

17 Repairing

17.1 Repairing the Shrub Shears, Battery and Charger

The shrub shears, cutting blades, battery and charger are not user serviceable.

• If the shrub shears are damaged: Do not use your shrub shears and contact your STIHL servicing dealer.
• If the cutting blades are damaged: Replace the cutting blades.
• If the battery has a malfunction or is damaged: Replace the battery.
  If the charger has a malfunction or is damaged: Replace the charger.
• If the connecting cable has a malfunction or is damaged: Do not use the charger and have connecting cable replaced by a STIHL servicing dealer.

18 Troubleshooting

18.1 Troubleshooting Shrub Shears and Battery

Condition	LEDs on garden pruner	Cause	Remedy
Shrub shears do not start when switched on.	1 LED flashes green.	Battery has low charge.	Charge the battery.
	1 LED glows red.	Battery too hot or too cold.	Remove the battery. Allow battery to cool down or warm up.
	3 LEDs flash red.	There is a malfunction in the shrub shears.	Remove the battery. Clean contacts in battery compartment. Fit the battery. Switch on the shrub shears. If 3 LEDs continue to flash red: Do not use the shrub shears and contact your STIHL servicing dealer.
	3 LEDs glow red.	Shrub shears are too hot.	Remove the battery. Allow the shrub shears to cool down.
	4 LEDs flash red.	There is a malfunction in the battery.	Remove battery and insert it again. Switch on the shrub shears. If 4 LEDs continue to flash red: Do not use the battery and contact your STIHL dealer for assistance.
		No electrical contact between the shrub shears and battery.	Remove the battery. Clean contacts in battery compartment. Fit the battery.
		Shrub shears or battery damp.	Allow shrub shears or battery to dry.
		Cutting blades do not run freely.	Spray both sides of blades with STIHL resin solvent. If shrub shears still do not start when switched on: Do not use the shrub shears and contact your STIHL servicing dealer.
Shrub shears cut out during operation.	3 LEDs glow red.	Shrub shears are too hot.	Remove the battery. Allow the shrub shears to cool down.
		There is a electrical malfunction.	Remove battery and insert it again. Switch on the shrub shears.
Shrub shears runtime is too short.		Battery not fully charged.	Fully charge the battery.
		Normal battery life has been exceeded.	Replace the battery.

18.2 Troubleshooting Charger

Condition	LED on Charger	Cause	Remedy
Battery not being charged.	One LED glows red.	Battery too hot or too cold.	Leave battery in the charger. Charge process starts automatically as soon as permissible temperature range is reached.
	LED flashes red.	No electrical contact between charger and battery.	Remove the battery. Clean contacts on charger. Fit the battery.
		There is a malfunction in the charger.	Do not use the charger and contact your STIHL dealer for assistance.
		There is a malfunction in the battery.	Do not use the battery and contact your STIHL dealer for assistance.
The charger (3) does not run a self test.	The LED (4) glows green for about 1 second and then red for about 1 second.	Electrical contact to charger was briefly interrupted.	Disconnect the plug from the wall outlet. Wait 1 minute. Insert the plug in a wall outlet.

19 Specifications

19.1 STIHL HSA 26 Shrub Shears

Approved battery: STIHL AS
- Weight without battery:

with shrub shear blades: 0.9kg
with grass shear blades: 0.7kg

For battery life see www.stihl.com/battery-life.

19.2 Shrub Shear Blades, Grass Shear Blades

Shrub shear blades

Maximum opening: 8mm
- Tooth spacing: 19 mm
- Cutting length: 200 mm
- Sharpening angle: 30^

Grass shear blades

• Tooth spacing: 16 mm
• Cutting length: 120 mm
• Sharpening angle: 35^

• Battery technology: Lithium-ion
  Voltage: 10.8 V
• Capacity in Ah: see rating label
• Energy content in Wh: see rating label
• Weight in kg: see rating label
• Permissible temperature range for operation and storage: - 20^ up to +50^

Battery runtime may be shorter and the performance of the shrub shears reduced if the battery is used at a temperature below 0^ or higher than +30^ .

19.4 STIHL AL 1 Charger

• Rated voltage: see rating label
  Frequency: see rating label
• Rated power: see rating label
• Charging current: see rating label
• Permissible temperature range for operation and storage: - 20^ and +50^
  Maximum energy content of approved STIHL AS battery: 12.5 Ah

For charging times see www.stihl.com/charging-times.

Charging times may be longer if the charger is used at a temperature below +5^ or higher than +30^ .

19.5 Extension Cords

If an extension cord is used, the cross sectional area of its conductors must meet the following minimum requirements - depending on the line voltage and length of the extension cord:

If rated voltage on the rating label is 220V to 240V:

• Cord length up to 20m : AWG 15 / 1.5 mm²
• Cord length 20m up to 50m : AWG 13 / 2.5 mm²

If rated voltage on the rating label is 100V to 127V:

• Cord length up to 10 m: AWG 14 / 2.0 mm²
• Cord length 10 m up to 30 m: AWG 12 / 3.5 mm²

19.6 Noise and Vibration Data

K-value (uncertainty) for sound pressure levels is 2 dB(A).
K-value (uncertainty) for sound power levels is 2 dB(A).
K-value (uncertainty) for vibration level is 2 m/s².

HSA 26

Sound pressure level L_pA measured according to EN 60745-2-15: 69 dB(A)
- Sound power level L_WA measured according to EN 60745-2-15: 80 dB(A)
- Vibration level a_hv measured according to EN 60745-15-15: 1 m/s²

The vibration values quoted above have been measured according to a standardized test procedure and may be used to compare electric power tools. Depending on the type of usage, the vibrations that actually occur may differ from the values quoted. The vibration values quoted may be used for an initial assessment of the user's exposure to vibrations. The actual exposure to vibrations has to be estimated. This process may also take into account times during which the electric power tool is switched off and times during which it is switched on but running off load.

For information on compliance with Vibration Directive 2002/44/EC visit www.stihl.com/vib.

19.7 REACH

REACH is an EC regulation and stands for the Registration, Evaluation, Authorisation and Restriction of Chemical substances.

For information on compliance with the REACH regulation see www.stihl.com/reach.

20 Spare Parts and Accessories

20.1 Spare Parts and Accessories

STIHL These symbols identify original STIHL replacement parts and original STIHL accessories.

STIHL recommends the use of original STIHL replacement parts and accessories.

Original STIHL replacement parts and original STIHL accessories are available from STIHL servicing dealers.

21 Disposal

21.1 Disposal of Shrub Shears, Battery and Charger

Contact your STIHL servicing dealer for information on disposal.

• Dispose of the shrub shears, battery, charger, accessories and packaging in accordance with local regulations and environmental requirements.

22 EC Declaration of Conformity

22.1 STIHL HSA 26 Shrub Shears

ANDREAS STIHL AG & Co. KG
Badstrasse 115
D-71336 Waiblingen
Germany
declare in exclusive responsibility that
- Category: Cordless shrub shears with shrub and grass shear blades
- Make: STIHL
- Model: HSA 26

- Serial identification: HA03

conforms to the relevant provisions of Directives 2011/65/EU, 2006/42/EC, 2014/30/EU and 2000/14/EC and has been developed and manufactured in compliance with the following standards in the versions valid on the date of production: EN 55014-1, EN 55014-2, EN 60745-1, EN 60745-2-15, EN 60335-1 and EN 50636-2-94.

Applied conformity assessment procedure in accordance with Directive 2000/14/EC, Annex V.

• Measured sound power level: 80 dB(A)
• Guaranteed sound power level: 82 dB(A)

Technical documents are deposited at ANDREAS STIHL AG & Co. KG Produktzulassung (Product Licensing).

The year of manufacture, country of manufacture and serial number are applied to the shrub shears.

Thomas Elsner, Director Product Management and Services

22.2 STIHL AL 1 Charger Conformity Notice

This charger has been manufactured and put on the market in accordance with the following directives: 2014/35/EU, 2014/30/EU and 2011/65/EU.

The year of manufacture, country of manufacture and serial number are applied to the charger.

The complete EC Declaration of Conformity is available from ANDREAS STIHL AG & Co. KG, Badstrasse 115, 71336 Waiblingen, Germany.

23 General Power Tool SafetyWarnings

23.1 Introduction

This chapter reproduces the pre-formulated, general safety precautions specified in the IEC 62841 standard for handheld motor-operated electric tools.

STIHL is obliged to publish these texts.

The safety precautions and warnings on avoiding an electric shock given under "Electrical Safety" do not apply to STIHL cordless products.

WARNING

Read all the safety precautions, instructions, illustrations and specifications accompanying this electric power tool. Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury. Save all safety warnings and instructions for future reference.

The term "electric power tool" in the safety warnings refers to mains-operated (corded) power tools or battery-operated (cordless) power tools.

23.2 Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

23.3 Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, hanging up, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord extension suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

23.4 Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, nonskid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off position before connecting to power source and/or battery pack, picking up or carrying the power tool.

Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
g) If dust extraction and collection devices can be mounted, they should be connected and used correctly. Use of dust collection can reduce dust-related hazards.
h) Do not be lulled into a false sense of security and do not disregard the safety rules even if you are thoroughly familiar with the electric power tool. Carelessness can result in serious injuries within fractions of a second.

23.5 Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or take a removable battery pack out of the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools and accessories with care. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting attachments sharp and clean. Properly maintained cutting attachments with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories, tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grip surfaces dry, clean and free from oil and grease. Slippery handles and grip surfaces do not allow proper operation and control of the power tool in unforeseen situations.

23.6 Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130^ (265°F) may cause explosion.
g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

23.7 Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b) Never service damaged batteries. Service of battery packs should only be performed by the manufacturer or authorized service providers.

23.8 Hedge Trimmer SafetyWarnings

• Keep all parts of the body away from the cutting blades. Do not remove cut material or hold material to be cut when blades are moving. Make sure the switch is off when clearing jammed material. A moment of inattention while operating the hedge trimmer may result in serious personal injury.
• Carry the hedge trimmer by the handle with the cutting blades stopped. When transporting or storing the hedge trimmer always fit the blade scabbard. Proper handling of the hedge trimmer will reduce possible personal injury from the cutting blades.
• Always hold your electric power tool by the insulated handles because the cutting blades may contact hidden electrical wires. Any blade contact with a live wire may energize metallic parts of the power tool and result in an electric shock.

Table des matieres

Chere cliente, cher client,
