Congratulations on your new Aduro Stove! To get the best possible experience and benefit from your new Aduro wood burning stove, it is important that you read the user manual thoroughly through before you install the stove and start using it. Errors or incorrect settings can cause hazardous conditions and/or poor operation. For further information, please go to www.adurofire.com. 5-year warranty — Free online registry You have the opportunity to extend the warranty on your wood burning stove from two to five years for free. All you need to do is register the stove at www.adurofire.com/warranty. The deadline for registering is five months from the date of purchase. Production number The wood stove has a production number on the rating plate on the back of the stove. We recommend that you note down this number in the box below before mounting the wood stove. For the purposes of the guarantee and for other enquiries, it is important that you are able to quote this number. Enjoy! HOW TO SUCCEED WITH YOUR NEW WOOD STOVE In our customer service center Aduro Customer Service you will find tips and tricks on how to succeed with your new Aduro wood burning stove. Here you will have direct access to interesting content about installation and maintenance of your stove as well as support related information. Find us here and make the most of your Aduro wood stove.

Aduro 9 Lux Ceramic complies with the European Directive Ecodesign 2022, the EN13240 European standard as well as the NS 3058 Norwegian standard and is thereby approved for installation and use in Europe. Atthe same time, the manufacturing process is subject to external quality control. DoP (Declaration of Performance) can be downloaded at www.adurofire.com/download.

Aduro 9 Lux Ceramic Data Nominal power

Height exhaust branch above floor 111.1cm Distance from floor to centre of rear outlet 101 cm Distance from centre of exhaust branch to rear edge 228 cm of stove " Weight 167 kg Material Ceramic / Sheet iron Fuel Wood and wood briquettes Max wood length 39 cm Convection stove vi Primary, secondary, and tertiary air supply F4 Air-wash system F4 Ashpan F4 Energy efficiency 80 % Energy efficiency index 108.9 Energy efficiency class A+ Chimney draft 12Pa Maximum combustion amount per hour (wood) Approx. 3.1 kg Heat rating in buildings with - Optimum insulation - Average insulation - Inadequate insulation 150 m 100 m 60 m?

When taking your wood burning stove home, please ensure that it travels in an upright position. If you wish to lay it flat, it is important that you remove all loose parts from the combustion chamber (cast iron grate, baffle plates and loose fireproof tiles) and remove the ashpan. Please use wood from the packaging for the first use. The plastic packaging should be discarded.

2. Mounting of the stone cover

Aduro 9 Lux Ceramic is mounted with a stone cover. Please remove the stones before placement. See page 97-98 for instructions. The stones can be mounted when the stove is placed atits final position.

2.1 Mounting smoke outlet at the back of the stove

If you choose to use the smoke outlet atthe back of the stove, itis important to mount the pipes before the stones are mounted. Remember to place the cover plate correctly. See section 3.2.

3. Installation of the stove

You are welcome to install your wood burning stove yourself — but we strongly recommend that you consult your chimney sweep before you begin the installation. Itis important to ensure that all local rules and regulations, including ones relating to national and European standards, are complied with when installing this device. Y our dealer can also provide you with installation advice. Remember, itis your responsibility that rules in force are complied with. You may not begin to use the stove until it has been inspected and approved by your local chimney sweep.

3.1 Position of the stove / distance requirements

The wood burning stove must be installed in a suitable and physically possible position. You need to be sure that the position complies with local regulations. Distance requirements will only apply if the wood burning stove is to be placed close to flammable materials: Distance to flammable material (see illustration below) Behind the stove To the sides Above the stove | Corner arrangement | Distance to furniture 7,5 cm 40 cm 50 cm 10 cm 100 cm Distance (mm) to flammable material Distance {mm} to flammable material

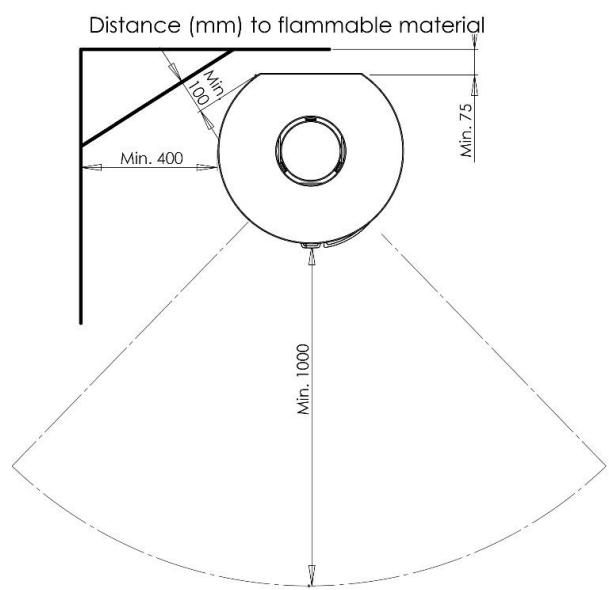

If the stove is positioned against a brick wall or other non-flammable material, there are no minimum distance requirements. To facilitate cleaning and for the best use of the convection air, we recommend that you leave a distance of approximately 5-10 cm to the wall. Ifthe wood burning stove is to be placed close to flammable material such as a wooden floor or carpet, it must be placed on à non-flammable base. The floor plate should extend for at least 30 cm in front of the wood burning stove and 15 cm on each side measured from the opening of the combustion chamber. Please ensure that all local rules and regulations are complied with, including CE marking of the exhaust connector. Additionally, distance requirements to flammable material for the exhaust connector must be respected. The wood burning stove must be installed on a floor with the adequate load- bearing capacity. If the existing construction does not meet this requirement, appropriate adaptation measures must be taken (e.g. a load-distributing plate).

Aduro 9 Lux Ceramic leaves the factory with the flue outlet mounted on the top. If you require the flue outlet on the back, “brake” the two cover plates on top of the back of the stove. Exchange the exhaust connector (from the top outlet) with the cover plate from the rear outlet. Mount the cover plate from the rear outlet to the top outlet. The top outlet is finished with the plate that lies in the ashpan. À flue pipe with an internal diameter of 150 mm should be used for Aduro stoves.

3.3 Connection to a brick chimney

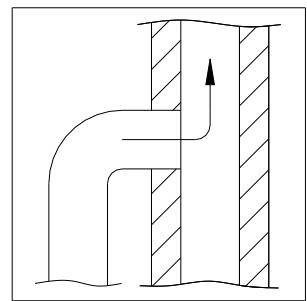

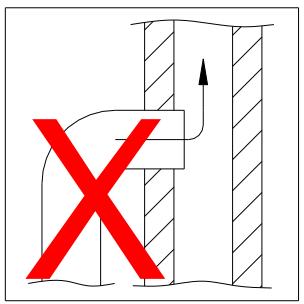

If the stove is being connected to a brick chimney, the rear outlet or a curved flue pipe via the top outlet should be used. After measuring, a hole is made in the chimney in which the pipe sleeve is placed, and stove mortar is used to seal it in place. The stove is placed in position and the flue pipe is put in place. A thin gasket is placed between the flue pipe and the pipe sleeve to seal the joints. The flue pipe should protrude into the pipe sleeve but must not block the opening in the chimney (see the illustration below). The stove can be connected to a chimney to which other heat sources are connected. If the rear outlet is used, you may benefit from putting a slim gasket between the flue on the stove and the flue pipe. i JA

3.4 Supply of combustion air

All wood burning stoves need constant supply of air to ensure a clean and efficient combustion. This is often a problem in modern energy-efficient houses that are very tight. Therefore, the Aduro 9 Lux Ceramic is equipped with external supply of combustion air, where the air to the combustion is supplied from the outside

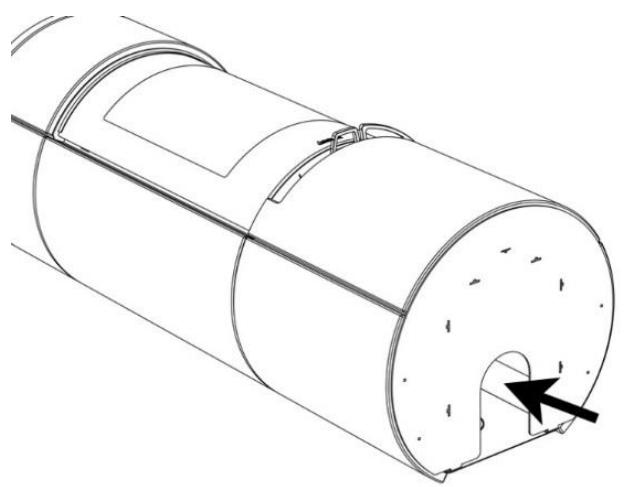

and directly into the wood burning stove. Air from the outside can be provided through a channel, which is connected to the connecting pipe under the combustion chamber. The amount of air needed for combustion is 25m3/h. The connecting pipe has an external diameter of 78 mm, to which you need a pipe with a diameter of 80 mm. Ifthe pipework is more than 100 cm, or ifthere are bends on the tube, the resistance in the pipe increases significantly. Negative pressure outside on the sheltered side of the house can also affect the resistance of the pipe significantly. In these situations, the pipe should have à diameter of minimum 100 mm. It may also require a stronger chimney draft, which you can achieve by installing an Aduro DraftO ptimizer. You can easily test the resistance in the pipe by opening a window close to the stove, disconnect the external air supply and then light up the stove. Ifthe combustion looks different than before, there is too much resistance in the external air supply. The pipe with external supply of combustion air can be taken out at the bottom of the back side of the stove or under the stove (see illustration below): If you want to use the wood burning stove without connecting the supply of combustion air, “brake” off the cover plate in the rear cover atthe bottom of the back of the stove.

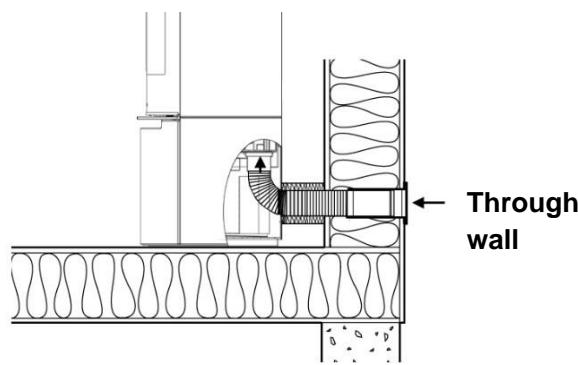

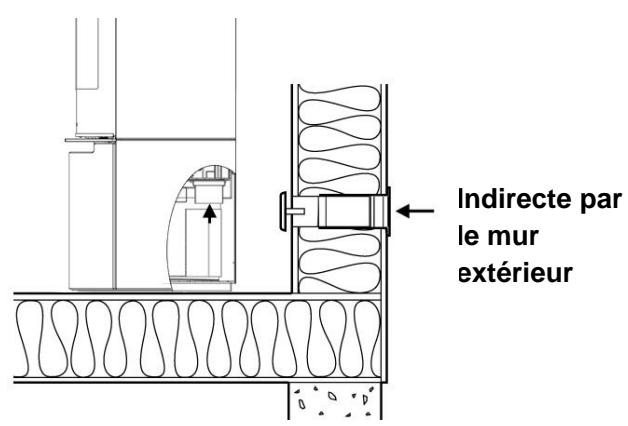

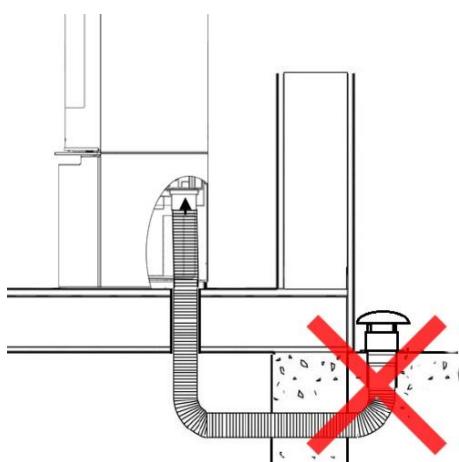

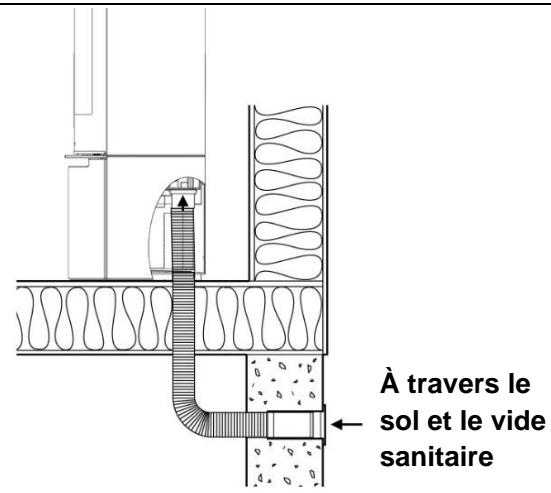

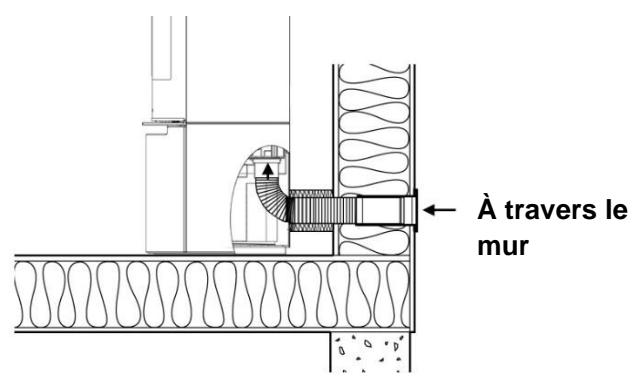

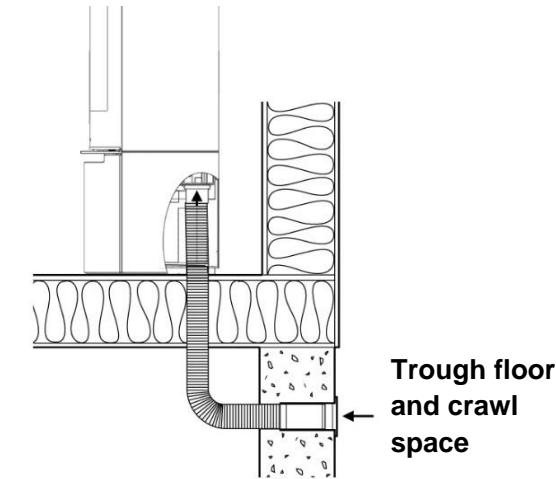

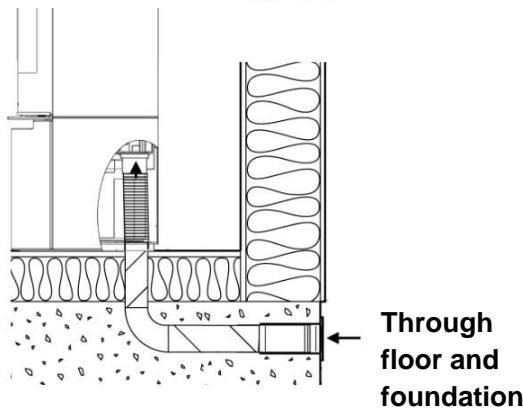

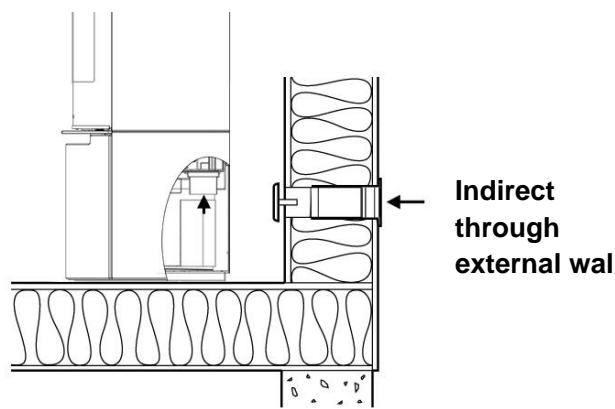

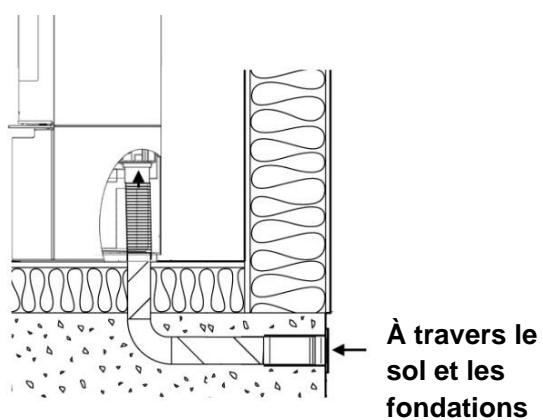

Indirect through external wal (| [I] Through = wall Do not install the stove in the following ways: Through a damp crawl space: If the air is drawn from a damp crawl space, you won't achieve an optimum air intake. Trough floor — and crawl space = Through

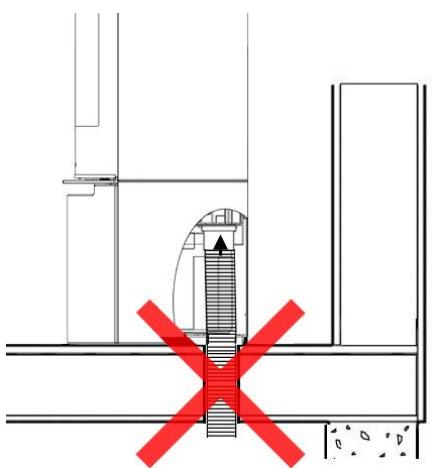

floor and foundation With air intake upwards: If the air intake is turned upwards, there will be too much resistance for the airintake.

4, Lighting the stove Important safety information ° The wood burning stove will become warm during use and therefore it should be treated with all necessary caution. e Never keep easily combustible fluids such as petrol in the vicinity of the wood burning stove. e _Neveruse easily combustible fluids to light the fire in the wood burning stove. ° When lighting a fire, itis important to get the fire burning fast. If the fire does not start quickly and wood only smoulders, it can cause strong smoke formation and in worst case cause an explosive ignition of the flue gasses, which can damage the stove. ° Never empty the ashpan when the wood burning stove is warm. Embers may still be found in the ashpan for up to 24 hours after the fire has gone out. Please wait to empty the ashpan until you are sure that there are no embers in the ash. ° The door should be kept closed while the wood burning stove is in use. While lighting the fire, the door can stand ajar for the first few minutes. ° _Inthe event of a chimney fire: Close all the dampers on the wood burning stove and call the fire- fighting service.

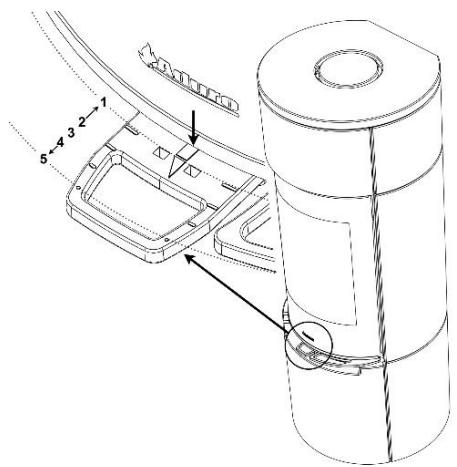

The stove is equipped with a damper under the door, which regulates the combustion air: primary, secondary, and tertiary air supply. The primary air is used at the beginning to get the fire going, the secondary air keeps the fire burning evenly, and the tertiary air ensures that flue gasses are burned. You must always add secondary and tertiary air, while firing the stove. The damper allows you to adjust the stove according to the chimney draft and the heat output you require. The longer the damper is pulled out, the more air is added and the more powerful the combustion. The illustration below shows the stove seen from the front with the dampers indicated. Use edge of door to read position of inlet air: 1: Fully open primary, secondary, and tertiary air inlet. This position can be maintained with the Aduro key, which must be placed in the two holes. 2: Closed primary air inlet, fully open secondary and tertiary air inlet. 3: Closed primary air inlet, half way closed secondary air inlet, and fully open tertiary air inlet. 4: Closed primary and secondary air inlet, fully open tertiary air inlet. 5: Regulator pushed all the way in. All air inlet closed.

4.1.1 Secondary air supply

In normal circumstances, the wood burning stove should be working with this damper open between 60 % and 100 %. You should never close the air intake so far that the flames are extinguished. There should always be visible flames in order to achieve clean and efficient combustion. A too low supply of air can lead

to bad combustion, high emissions and a bad efficiency. The air-wash system that minimizes soot collecting on the glass panes is also adjusted by this damper. If you want to fire the stove with the lowest effect possible — around 3 KW — you must close the secondary damper almost completely 45 minutes after the wood has been put in. Atthis point there are only few flames and the stove can burn clean by using the tertiary air from behind in the stove.

4.1.2 Primary damper

When you add a new log, the primary damper should be opened until the fire is burning properly. In order to utilize the fuel to the fullest extent, the embers should have burnt for so long that it is necessary to open the primary damper for approx. 2 minutes to get the new log to burn. In order to reduce the risk of ash falling from the stove when the door is opened to add more fuel, it is a good idea to open the primary damper for approx. 1 minute before the door is opened. This increases the draft through the stove and reduces the risk that ash will drop on the floor. If you overload the wood burning stove and burn more than approx. 3.1 kg wood/hour, there is a risk that the lacquered surface of the stove will become discoloured and eventually fall off. The stove can be resurfaced, but this is not covered by the manufacturer’s guarantee. In the same way, any other damage to the stove caused by overloading will not be covered by the guarantee.

The patent-applied control Aduro-tronic is a manually operated mechanical start-up device, which works without the use of electricity and automatically regulates the combustion. All you have to do is put dry wood in the stove and activate the control system. Aduro-tronic does the rest, leaving you to enjoy the flames, the benefits of efficient combustion, and a reduced firewood usage up to 40 %. For further information, go to www.adurofire.com.

4.2.1 How to operate Aduro-tronic

When lighting When lighting a fire in the stove for the first time, the maximum amount of | primary air will be needed to light the fire. For that reason, the primary damper | | can be kept “forcibly open”. This is done by pulling the primary damper forward nn —— as far as possible and then fixing it with the Aduro Key (see illustration). When | the stove is warm and a layer of embers has been created on the bottom ofthe combustion chamber, the Aduro-tronic can be set to the automatic position, i.e. || the Aduro Key can be removed. Alternatively, you can leave the door ajar the | | first minutes during lighting the fire (without the key). When stoking || Each time fresh wood is put in the stove, a precise amount of primary air will be | allowed in for the first few minutes. What's more important is that the primary air & _ } is not allowed in for too long. This is to ensure optimum combustion. The Aduro-tronic control will ensure intake of primary air at the right tempo. The automatic is activated by pulling

the primary damper out each time fresh wood is put in the stove. The automatic closes then the primary air gradually. Regulation of the Aduro-tronic control The control is pre-set to close the primary air intake within 6 minutes. This setting has been used during testing at the Danish Technological Institute using a standard chimney and ‘standard’ sized logs (approx. 30 cm long, 10x10 cm thick) with maximum moisture content of 18%. In practice, such circumstances can differ, which is why the Aduro-tronic control can be adjusted to your circumstances. If you want a slower intake of primary air (e.g. for a slower flue draft, larger sized wood or for longer intervals between stoking), adjust the screw on the front of the control level using a small allen key to slow closure rate. Ifthe screw is turned to the right, closing time is increased and if turned to the left, closing time is reduced.

4.3 How should I! use my wood burning stove?

The wood burning stove is intended for intermittent combustion. This means that each stoking should burn down to embers before new logs are added. To obtain the best possible combustion, you should regulate the effect/heat output with the fuel. Burning small logs provides more powerful combustion than burning large logs as the surface area is greater and more gas is released. The amount of wood in the combustion chamber is another factor that affects combustion. The optimum combustion is achieved by placing two logs in the stove. If you want an enhanced effect, you can add more logs. The ideal heat output is reached by burning approx. 2.2 kg per hour. If you experience problems lighting the fire or the fire dies after a short time, it can be due to the following reasons: ° The firewood is not dry enough. The firewood should have à moisture content of max. 18%. ° There is a negative pressure in the house. ° The smoke outlet from the outside may be blocked from sooth. This can occur after chimney sweeping. Control the smoke outlet. ° The used amount of wood may have been too small. Therefore, the embers were too weak and cold to light the next load of wood. Use of dry wood of the right size is important to achieve optimum combustion. 44 The first time a fire is lit The wood burning stove is packed in recycling packaging. The wood from the packaging can be sawed into smaller pieces and used the first few times a fire is lit. The plastic packaging must be disposed according to national rules regarding disposal of waste. During transportation, it may happen that the exhaust deflector in steel falls out of place. Therefore, before using the stove, please make sure that the exhaust deflector is properly placed (on the hooks or fastened to the bolts depending on the model) for optimum combustion and preventing soot on the glass. The first few times the wood burning stove is used, there may be some smoke and unpleasant odours from the wood burning stove, which is fairly normal. This is caused by the heat-resistant paint hardening. Make sure there is sufficient ventilation during this stage. It is also important not to let the fire burn too fiercely the first 2-3 times, so that the wood burning stove has time to expand slowly.

You should also be aware that the stove may make some clicking sounds as it heats up and cools down — like pouring boiling water into a sink. These are caused by the great differences in temperature to which the materials are being exposed. During the first firing, which should be carried out using approximately 1 kg of wood, the stoking door must be left slightly open and must not be closed until the stove is cold. This is to prevent the sealing rope sticking to the stove.

4.5 Lighting a fire in the wood burning stove

The fire lighting method is very important for starting combustion quickly and efficiently.

1. Pullthe damper under the door forward to open primary, secondary, and tertiary air supply.

2. Place a log of wood crosswise in the combustion chamber and put 2 firelighters close to the log.

Light the firelighters and quickly put a new log close to the firelighters and several small logs at an angle above it. Air must be able to reach the firelighters, but the logs should be touching to “warm” each other.

3. Keep the door approx. 1 cm ajar, until the glass is too hot to touch. Then close the door. When there

are distinct, visible flames and the fire has taken hold, close the primary air intake/damper (see

The control handles will get warm when the wood burning stove is in use. Please use the glove provided when you operate the wood burning stove.

4.6 Recommended fuels

Wood and wood briquettes. We recommend the use of split hardwood that has been stored outdoors under cover for at least 1 year. Wood that has been stored indoors tends to become too dry and will burn too quickly. We recommend that you fell the wood during the winter when a lot of the moisture in the wood will have been drawn down into the roots. To achieve optimum combustion, the wood's moisture level should not exceed 18 %, which roughly corresponds to storing the wood under cover outdoors for one year. The moisture level of the wood can be measured using a moisture meter or by applying dishwashing liquid to one end ofthe log and blowing air in the other end. Ifthe wood is dry enough, soap bubbles will appear. The wood should be chopped into logs with a diameter of approx. 10 cm and a log length of max. 39 cm. Firing with wet fuel will reduce the energy efficiency and increase the particle emission. Burning varnished wood, impregnated wood, chipboard, paper, and other waste is strictly forbidden. Burning these materials will damage the environment, the wood burning stove, and your own health. Fossil fuels must not be used.

The optimum combustion is achieved at a constant chimney draft of 10-14 Pascal (Pa) measured in the flue pipe above the stove (when having a smoke exhauster). However, with natural draft (chimney without smoke exhauster) the draft in the chimney will be between 18-25 Pa when conditions are optimum. There are many factors that affect the chimney draft, including the outside temperature, wind strength, and surrounding buildings. There are no requirements with respect to specific chimney heights, but a chimney must be tall

enough to provide a good draft. If the recommended chimney draft is not achieved, there may be problems with smoke out of the door by firing. Data for chimney calculation Wood Flue temperature at [20°C] 245 Chimney draft at testing power [mbar]/[P a] 0.12 / 12 Flue gas mass flow [g/s] 5,7

5.1 Inadequate draft in the chimney

If you experience poor draft in the stove after the installation, please make sure that there is nothing in the chimney to restrict the smoke and that no nearby buildings or trees affect the winds around the chimney. If the chimney is too short, leaks, or is inadequately insulated, there may be problems with the chimney draft (let the chimney sweep assess this). The draft should be sufficient during the ignition phase when the stove/chimney is cold to provide a clean combustion and prevent smoke leakage. Therefore, we recommend a chimney draft around 5 Pa in the ignition phase. Once the ignition is a success and the smoke temperature is rising, it is important that the chimney draft reaches a stable area around 18-25 Pa in operation (1 hour after ignition) when the chimney/stove is hot. The draft in the area of 18-25 Pa when the stove is hot is essential in order to achieve an optimum and clean combustion. Therefore, we recommend that you measure your chimney draft when the chimney is cold and when it is hot after 1 hour in operation. In practice, the chimney draft will differ — especially in cold condition. Therefore, the best indication of the chimney draft is to measure the draft when it is hot. If the chimney sweep judges the draft to be sufficient, but you still have problems lighting a fire, try extending the fire lighting phase by using more thin pieces of kindling and 1-2 firelighters, so that the chimney gets thoroughly warm. The chimney will not draw at optimum effect until it is warm. When a layer of embers has been formed, add 2-3 dry logs. Ifitis impossible to establish a sufficiently natural chimney draft, the chimney can be fitted with a smoke exhauster, e.g. Aduro DraftO ptimizer.

5.2 Chimney and Smoke

If you experience smoke coming out of the stove or the start section of the smoke pipe, it could be due to certain weather conditions. On stormy or cold winter days or ifthe chimney has not been used in a while, a cold plug can be created in the chimney, meaning the natural draft will be at its minimum. Ifthe chimney is cold and cold plugs are created, you may experience smoke leaks during the ignition and startup phase. In this situation there can be more smoke than usually in the combustion chamber and some of it might leak out of the stove. Therefore, if you have a cold chimney that has not been used for a while, we recommend that you use some wood sticks to heat the chimney and eliminate the cold plug.

6. Maintenance and cleaning of the stove

All maintenance and cleaning of the stove should be carried out when it is cold.

Combustion chamber The fireproof tiles in the combustion chamber eventually wear out and should be replaced when the cracks are more than 0.5 cm. The durability of the tiles depends on how often and how intensively the stove is used. You can change the tiles yourself. They are available as a ready-to-use set. For further information, go to www.aduroshop.com. How do I remove the Bauart spring? All Aduro stoves are fitted with a “Bauart” safety spring. The mechanism ensures that the door of the stove closes automatically. The “Bauart” spring is only a law requirement in Germany. How to remove it: °__Ifyou wish to remove or replace the spring with a new one itis possible to cut the spring using a pincer. Itis advisable to hold the spring with pliers or cover it with a cloth or other device to absorb the tension, as the pieces might spring out right after the cut. e Please note thatthe spring is in tension when the door opens, so make sure to protect yourself during fitting and removal. «After that, close the hole in the oven with the enclosed self-tapping screw. Glass Wet wood, unsatisfactory chimney draft, and wrong use of the stove can leave soot stains on the glass pane. They can easily be removed using a damp cloth that you dip in cold ash and rub on the sooty glass. Special cleaning agents are also available to remove soot from glass, e.g. the Aduro Easy Clean pad. The pad neither scratch nor damage the glass and is for multiple usage. Water or other cleaning agents are not necessary. Itis common maintenance to tighten the glass fittings and the hinges shortly after the stove has been installed as well as to check ifthe gaskets are properly placed. Gaskets With time, gaskets around glass and door will wear. We recommend that you inspect them regularly. If leakages appear, they must be replaced. Ashes Empty the ashpan before it gets completely full. Always leave à layer of ashes in the stove because it insulates and makes it easier to light a fire. Cleaning the stove The inside of the stove and the flue pipe can be cleaned through the door or alternatively through the cleaning aperture in the flue pipe/chimney. The upper fireproof tile (the exhaust deflector) can be removed. To allow free access to the top of the stove and the flue pipe, remove the exhaust deflector in steel. The flue pipe can be removed from the stove and cleaned. Cleaning of the inside of the stove and the flue pipe should be undertaken at least once a year, or more frequently if necessary, depending on how often the stove is used. This work can also be carried out by the chimney sweep or your local Aduro GO partner. Do not clean the stove with water. If the stove is exposed to moisture, the stove may develop rust.

Cleaning of stone cover You can clean the stone cover by wiping it with a soft moist cloth. Spare parts and unauthorized alterations You may only use original spare parts for your stove. All forms of unauthorized alterations to the stove are strictly forbidden, as the stove will no longer comply with the approved specifications. At www.aduroshop.com you can buy original spare parts for your stove. 7, Accessories For Aduro stoves we offer a wide product range of accessories to fulfil the experience: Companion sets, firewood baskets and buckets, fireplace grid, briquette buckets, floor hearths in glass and steel, flue pipes, Aduro Easy Firelighter, and Aduro Easy Clean pad. For further information, go to www.adurofire.com/accessories.

8. Right of complaint

In accordance with the Danish Sale of Goods Act, you have a two-year right of complaint from the date of purchase of the wood burning stove. The dated receipt will be sufficient proof. The right of complaint does not cover damages caused by faulty installation and use of the stove. The right of complaint also does not cover loose and wearing parts (glass, gaskets, firebricks, handles, slides, painted surfaces, cast iron grate etc.) as they are subject to wear during normal use. These parts can be bought as spare parts in our online shop www.aduroshop.com. In addition, the right of complaint does not cover: ° Damages resulting from incorrect installation and use of the stove, e.g. overheating and wrong or missing maintenance of the stove. + Damages caused by (condensation) water in and around the chimney, too much or too little draft in the chimney and missing maintenance/cleaning. ° __ Mounting or demounting relating to repairs. ° Transportation costs relating to repairs. e Damages to the stove caused by external influences or damages caused by the stove on other objects.

9. Disposal of your Aduro stove

When disposing your wood burning stove, metal, vermiculite, and ceramic glass must be sorted separately. Dispose hereafter the materials according to the regulations at your nearest recycling depot.
