Wi-Fi Range Extender - WiFi Repeater TP-LINK - Free user manual and instructions

Product type	WiFi Repeater
Brand	TP-LINK
Model	Wi-Fi Range Extender
Dimensions (L × W × H)	80 × 60 × 30 mm (estimated)
Weight	100 g (estimated)
Power supply	Integrated power plug (100-240 V AC, 50/60 Hz)
Power consumption	5 W (max)
Wireless standards	IEEE 802.11 b/g/n (2.4 GHz)
Maximum wireless speed	300 Mbps
Ethernet ports	1 RJ45 port 10/100 Mbps
Buttons	Reset button, WPS button
Main functions	WiFi signal extension, Ethernet client mode, WPS
Wireless security	WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Maintenance and cleaning	Unplug before cleaning, use a soft dry cloth, avoid abrasive products
Usage safety	Keep away from water, fire, and moisture; do not disassemble or modify
Spare parts and repairability	No user-serviceable parts; contact TP-LINK support if defective
Warranty	3 years
Operating temperature	0°C to 40°C
Operating humidity	10% to 90% RH (non-condensing)
Package contents	WiFi Repeater, quick installation guide

Frequently Asked Questions - Wi-Fi Range Extender TP-LINK

How to access the repeater configuration page?

Open an internet browser and enter http://tplinkrepeater.net or http://192.168.0.254 in the address bar. Make sure your computer is connected to the repeater's Wi-Fi network or via an Ethernet cable.

What to do if I cannot access the configuration page?

Check that your computer is connected to the repeater (via Wi-Fi or Ethernet) and that it obtains an IP address automatically. Try using the default IP address 192.168.0.254. If the repeater is already connected to the router, check the router's DHCP client list to find the IP assigned to the repeater. As a last resort, reset the repeater.

How to reset the repeater?

Press and hold the RESET button on the repeater for about 10 seconds until all LEDs briefly turn off, then release. All settings will return to factory defaults.

What Wi-Fi password to use after configuration?

The Wi-Fi password of the repeater is the same as that of your source network (router). You set it during initial configuration.

Can I connect wired devices to the repeater?

Yes, if your repeater has an Ethernet port, you can connect a device such as a Blu-ray player, game console, or TV via an Ethernet cable. The repeater then acts as a Wi-Fi client for these devices.

Where to place the repeater for better coverage?

Plug the repeater halfway between your router and the area to cover. Avoid metal obstacles or thick walls for optimal signal.

What to do if the repeater LED does not light up?

Check that the repeater is properly plugged into a working power outlet and that the power switch (if any) is turned on.

Is the repeater compatible with all routers?

The repeater is compatible with most standard WiFi routers using 802.11 b/g/n standards. It operates on 2.4 GHz.

How to update the repeater firmware?

Log in to the configuration interface via a browser, go to System Tools then Firmware Upgrade. Download the latest firmware from the TP-LINK website and follow the instructions.

Is it normal for the repeater to get hot?

It is normal for the repeater to heat up slightly during operation. Ensure it is placed in a well-ventilated area and not obstructed. In case of excessive overheating, unplug it and contact technical support.

USER MANUAL Wi-Fi Range Extender TP-LINK

TP-Link Technologies Co., Ltd.

South Building(floors 1,3,4,5) and 28(floors 1-4), Central Science & Technology Park, Shennan Rd, Nanshan, Shenzhen, China

Unit 2 & 3 Riverview (142-144), Cardiff Road, Reading, RG1 8EW

TP-Link Italia S.r.l.

TP-Link Netherlands B.V.

Archimedesbaan 18,3439 ME Nieuwegein

TP-Link (Nordic) AB

Forumvagen 14, Plan 13, 131 53, Nacka, Sweden

TP-Link Hellas Ltd.

Marathonodromou 77, Marousi 151 24, Greece

NWS.TP-Link Portugal, Unipessoal, Lda.

Specifications are subject to change without notice. tp-link is a registered trademark of

TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from

TP-Link Technologies Co., Ltd. Copyright © 2017 TP-Link Technologies Co., Ltd. All rights reserved.

Quick Installation Guide

Wi-Fi Range Extender

7106507483 REV2.1.0

Contents

Deutsch 1
English- 4
Espanol 7
Elambdavika 10
Francais- 13
Italiano 16
Portugues 19
Suomi 22
Nederlands 25
Svenska 28
Norsk- 31
Dansk 34
Türkce 37

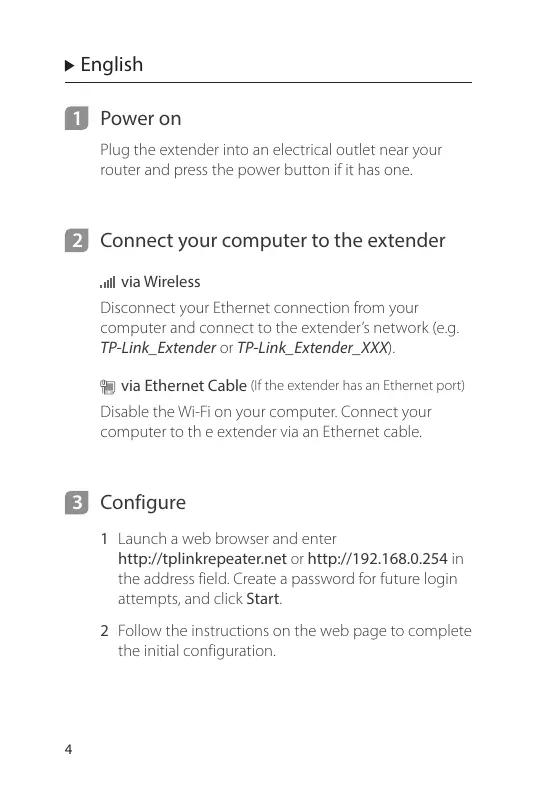

1 Einschalten

Plug the extender into an electrical outlet near your router and press the power button if it has one.

2 Connect your computer to the extender

..via Wireless

Disconnect your Ethernet connection from your computer and connect to the extender's network (e.g. TP-Link_Extender or TP-Link_Extender_XXX).

via Ethernet Cable (If the extender has an Ethernet port)

Disable the Wi-Fi on your computer. Connect your computer to the extender via an Ethernet cable.

3 Configure

1 Launch a web browser and enter http://tplinkrepeater.net or http://192.168.0.254 in the address field. Create a password for future login attempts, and click Start.

2 Follow the instructions on the web page to complete the initial configuration.

4 Relocate

To achieve better signal quality, plug in the extender halfway between your router and the

Wi-Fi dead zone.

Enjoy!

Connect your device to the extender using the extended SSID and Wi-Fi password that you've set during the configuration. The default Wi-Fi password is the same as your host network.

Entertainment Adapter

If your extender has an Ethernet port, it can be used as a wireless adapter to connect any Ethernet-only device such as a Blu-ray player, game console, DVR, or smart TV to your Wi-Fi network.

First, connect the extender to your router, then connect your Ethernet-only device to the extender via an Ethernet cable.

Ethernet Connection

Smart TV

Game Console

Desktop

Router

FAQ (Frequently Asked Questions)

Q1 Why can't I see the login page after entering http://tplinkrepeater.net in the browser?

A1: Make sure your computer is connected to the extender either via the extended SSID or via an Ethernet cable (if the extender has an Ethernet port).
A2: Make sure your computer is set to obtain an IP address automatically.
A3: Use the IP address to access the extender. The default IP is 192.168.0.254. If the extender is connected to the router, you should go to your router's DHCP client list to obtain the extender's current IP address.
A4: Reset the extender and connect to its wireless network, enter http://tplinkrepeater.net or http://192.168.0.254 in a web browser and press Enter.

Q2 How do I reset the extender?

A: With the extender powered on, press the RESET button until the LEDs turn on momentarily, then release the button.

1 Encender

ill mediate Wireless

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device.
• Do not use the device where wireless devices are not allowed.
• The socket-outlet shall be installed near the equipment and shall be easily accessible.
• For passthrough devices, plug the power strips into the integrated electrical sockets of the devices, but devices of the same or another type not be stacked in normal use.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

TP-Link Three Years Limited Product Warranty

For TP-Link Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE

EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTYES, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for a period of THREE YEARS form the date of original retail purchase by the end-user purchaser.

Espanol

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC and 2011/65/EU.

The original EU declaration of conformity may be found at http://www.tp-link.com/en/ce.

Espanol
