USER MANUAL BLOCK 50W - AC100-18B EQUATION

Illustration of a person seated in a chair emitting exhaust from a large air conditioner unit (no text or symbols present)

Modèle/Modelo/Modello/Movtéλo/Model			EAN
AC100-18B	BLOCK	84581574	3276007457339

FR Manuel d'Instructions
ES Manual de Instrucciones
PT Manual de Instruções
IT Manuale di Istruzioni
EL Εγχειρίδιο Οδηγιών

Troubleshooting......45

Warranty 46

AVERTISSEMENT

LIRE ATTENTIVEMENT LE MANUEL AVANT D'UTILISER L'APPAREIL

NE PAS COUVRIR!

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Illustration showing two washing machines with different weather and humidity indicators, illustrating environmental change or safety issues.

Technical line drawing of a vertical industrial machine with internal compartments and wheels (no text or symbols)

Filtre Nid d'abeille	Filtre anti-poussières
84587042
3276007458541	3276007591460

Technical line drawings of two mechanical components with internal grid patterns (no text or symbols)

DÉPANNAGE

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Illustration showing two washing machines with labeled components and a warning message about heat management.

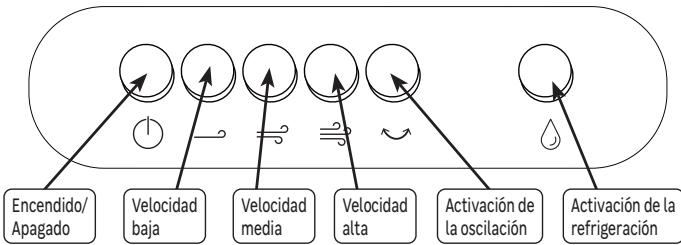

UTILIZACIÓN

Technical line drawing of a vertical industrial machine with internal compartments and wheels (no text or symbols)

Filtro de nido de abeja	Filtro antipolvo
84587042
3276007458541	3276007591460

Technical line drawing of two views of a grid-patterned device or enclosure (no text or symbols)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Illustration showing two washing machines with icons and text labels, illustrating environmental impact or safety measures.

Technical line drawing of a vertical industrial machine with internal compartments and wheels (no text or symbols)

Filtro alveolar	Filtro antipó
84587042
3276007458541	3276007591460

Technical line drawings of two structural components with grid patterns (no text or symbols)

REPARAÇÃO

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Illustration showing two washing machines with different air quality indicators and a warning symbol for cleaning or cleaning.

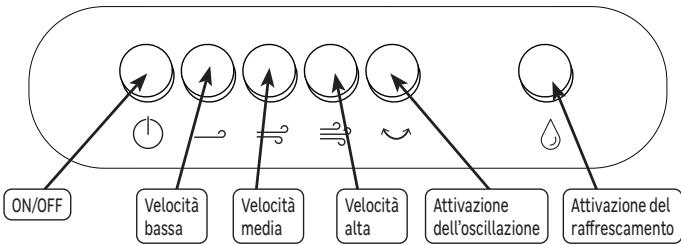

UTILIZZO

Technical line drawing of a vertical industrial machine with internal compartments and wheels (no text or symbols)

Filtro a nido d'ape	Filtro antipolvere
84587042
3276007458541	3276007591460

Technical line drawings of two mechanical components with internal grid patterns (no text or symbols)

RIPARAZIONE

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Illustration showing two washing machines with different weather and humidity indicators, illustrating environmental change or safety issues.

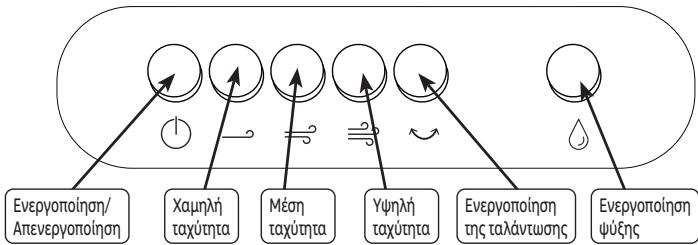


ΣΥΝΤΗΡΗΣΗ

Technical line drawing of a vertical industrial machine with internal compartments and wheels (no text or symbols)

Technical line drawings of two mechanical components with internal grid patterns (no text or symbols)

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Illustration showing two washing machines with icons and text labels, illustrating environmental impact or safety measures.

Technical line drawing of a vertical industrial machine with internal compartments and wheels (no text or symbols)

Technical line drawings of two mechanical components with internal grid patterns (no text or symbols)

USUWANIE USTEREK

Symbol of a trash bin crossed with a diagonal line and a solid rectangle below (no text or labels)

Illustration showing two washing machines with different weather and humidity indicators, illustrating environmental change or safety issues.

Technical line drawing of a vertical industrial machine with internal compartments and wheels (no text or symbols)

Technical line drawing of two views of a grid-patterned device or enclosure (no text or symbols)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Illustration showing two washing machines with labeled components and a warning message about heat management.

Technical line drawing of a vertical industrial machine with internal compartments and wheels (no text or symbols)

Filtru tip fagure	Filtru anti-praf
84587042
3276007458541	3276007591460

Technical line drawings of two structural components with grid patterns (no text or symbols)

DEPANARE

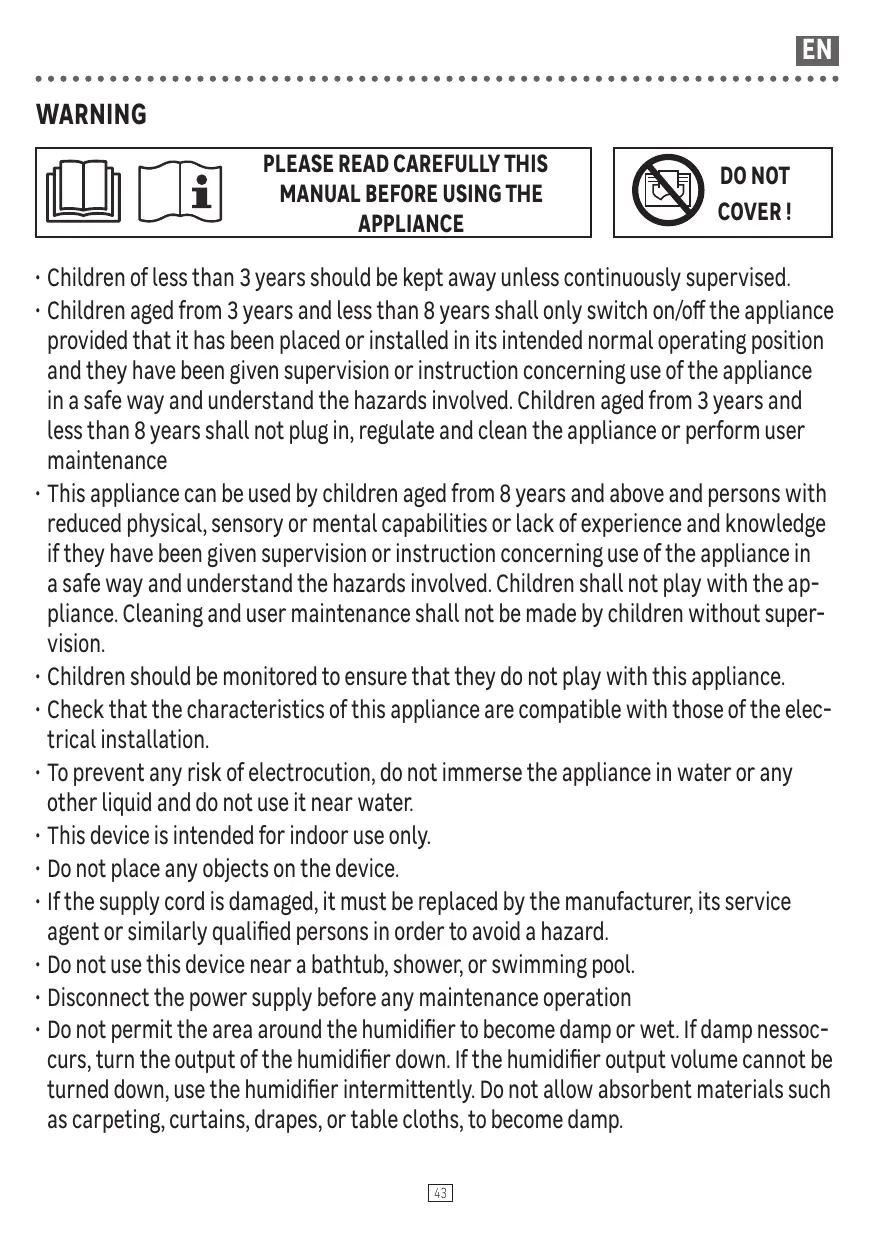

PLEASE READ CAREFULLY THIS MANUAL BEFORE USING THE APPLIANCE

DO NOT COVER!

• Children of less than 3 years should be kept away unless continuously supervised.
• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Children should be monitored to ensure that they do not play with this appliance.
• Check that the characteristics of this appliance are compatible with those of the electrical installation.
• To prevent any risk of electrocution, do not immerse the appliance in water or any other liquid and do not use it near water.
• This device is intended for indoor use only.
• Do not place any objects on the device.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not use this device near a bathtub, shower, or swimming pool.
• Disconnect the power supply before any maintenance operation

• Do not permit the area around the humidifier to become damp or wet. If damp nessoccurs, turn the output of the humidifier down. If the humidifier output volume cannot be turned down, use the humidifier intermittently. Do not allow absorbent materials such as carpeting, curtains, drapes, or table cloths, to become damp.

• Be aware that high humidity levels may encourage the growth of biological organisms in the environment.

• Never leave water in the reservoir when the appliance is not in use.
• Empty and clean the appliance before storage. Clean the appliance before next use.
• Warning: Micro-organisms that may be present in the water or in the environment where the appliance is used or stored, can grow in the water reservoir and be blown in the air causing very serious health risks when the water is not renewed and the tank is not cleaned properly every 3 days.

Disposing of the packaging

- The packaging must be totally recycled, as stated by the recycling symbol printed on it. The various components of the packaging must not be thrown out in nature, but disposed of probably in compliance with local regulations.

Processing waste of electronic and electric devices at life-cycle end.

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

This image indicates that this product must not be disposed of with unsorted home trash. A system for disposal and special processing of used electric and electronic devices, mandatory to follow, has been implemented including the right to have vendors retrieve free-of-charge used appliances upon purchase of new appliances, as well as special collection of such waste by approved organisations.

For more information on this, you can contact your store or your town hall. Proper disposal of used electric and electronic appliances ensures their adequate processing and recycling in order to avoid damage to the environment and public health as well as to preserve natural resources.

Appliance technical specification
Rated voltage	220-240V~
Rated frequency	50Hz
Power rating	50W
Maximum fan flow rate	24,46m3/min
Service value (SV)	0,54(m3/min)/W
Off mode power consumption (Poff)	0
Electrical protection class	II
Fan sound power level	58,15 dB(A)

INSTALLATION

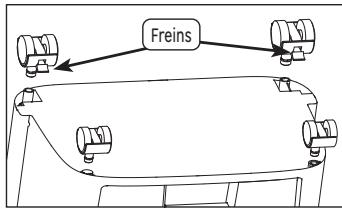

Foot-Wheel Installation

- Insert the foot-wheels by placing the models with brakes at the front of the device

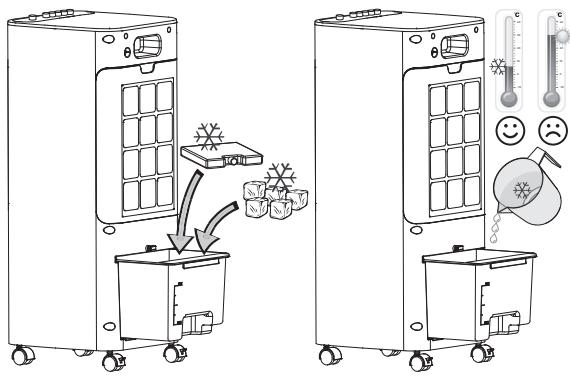

Filling

• Rotate the lock to take out the tank
• Place a ice-block or ice cubes in the tank
• Fill with very cold water without exceeding the MAX mark.
• Replace the tank
• Close the lock

Connection

• Connect the plug to a 220-240V \~ 50Hz wall socket
• Unplug the appliance when it is not in operation

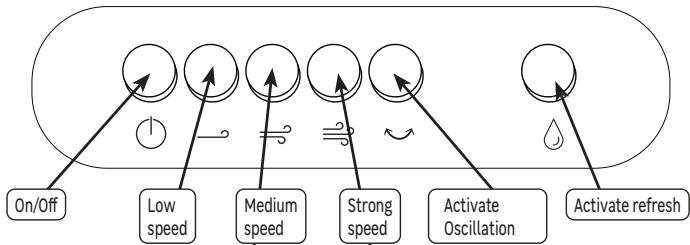

USE

Illustration showing two washing machines with different weather and humidity indicators, illustrating environmental change or safety issues.

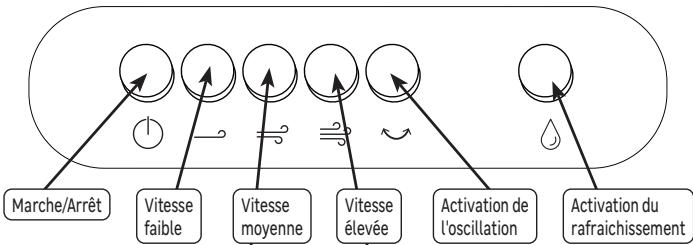


CLEANING

• Use a soft, dry cloth.
• For persistent stains, use a cloth dampened with soapy water and wipe immediately with a dry cloth.

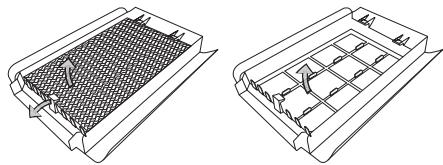

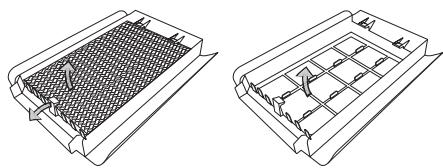

• Regularly clean the dust filter and the honeycomb filter.
• Replace the honeycomb filter if necessary.
• Regularly clean the tank

Technical line drawing of a vertical industrial machine with internal compartments and wheels (no text or symbols)

Honeycomb Filter	Anti-dust filter
84587042
3276007458541	3276007591460

Technical line drawings of two structural components with grid patterns (no text or symbols)

TROUBLESHOOTING

Malfunctions are often due to minor causes; please read the table below before contacting the after-sales service. This can save you time and avoid unnecessary expenses.

Problem	Causes, solutions
The device does not turn on.	Check the power supply.
The device makes an abnormal sound.	Check that no foreign body has been accidentally inserted.

WARRANTY

Terms and conditions of the ADEO SERVICES manufacturer warranty

Adeo Services offers a manufacturer warranty on its products.

The scope of the Adeo Services manufacturer warranty:

Adeo Services products are designed and built to provide quality performance for normal use. If a product proves to be defective during the warranty period under normal use, it is Adeo Services' responsibility to repair or replace it. The Adeo Services warranty covers the repair or replacement (at the discretion of Adeo Services) of your device marketed by Adeo Services if it proves to be defective due to a material or manufacturing defect during the warranty period. In case of unavailability of a part required for proper functioning of the product, Adeo Services commits to replacing it with a part of equivalent characteristics and performance levels The implementation of this warranty does not affect the exercise of your rights under the legal warranties provided by the civil code and the consumer code.

Cases excluded from the coverage of the Adeo Services manufacturer warranty:

The Adeo Services manufacturer warranty is not intended to apply in the cases listed below:

• Normal wear and tear of the product and/or its components.
• Accidental damage (due to dropping the product, impact or improper installation of the product)
• Damage resulting from use that does not comply with the information in the user manual and/or packaging (e.g. incorrect power supply voltage)
• Damage caused by failure to comply with the product maintenance recommendations.
• Damage caused by external sources such as transportation, weather, power failure or power surges.
• Cosmetic damage, including, but not limited to, scratches, scuffs, or broken plastic components,
• Failures caused by Acts of God (events beyond the control of Adeo Services, unforeseeable at the time of sale of the product and the effects of which could not be avoided by appropriate measures (e.g. natural disasters).
• Failures caused by:

▪ Negligent use, misuse, mishandling or careless use of the product.
- Use not in accordance with the product user manual.
- Use of the product for purposes other than normal domestic use in the country where it was purchased.
- Use of parts that are not assembled or installed in accordance with Adeo Services installation instructions.
- Use of parts and accessories that are not genuine Adeo Services components.
▪ Faulty installation or assembly.
☐ Repairs or modifications performed by parties other than those authorized by Adeo Services or its authorized agents.

- The warranty will also not be valid if the serial number or the nameplate of the product (if the product has a nameplate) is removed or defaced.

• If Adeo Services receives information from competent public authorities that the product has been stolen.

What are the terms and conditions for implementing the warranty?

The terms and conditions for implementing the Adeo Services warranty are as follows

• The warranty takes effect on the date of purchase (or on the date of delivery if later).
• A proof of delivery/purchase is required prior to performing any operation on your device under warranty. Please note that without this proof, any work to be done will be subject to an estimate, which must be accepted by the customer before any work can be done. Please keep your purchase receipt or delivery note.
• All work will be performed by Adeo Services or its authorized service providers.
• Any replaced part becomes the property of Adeo Services
• The repair or replacement of your device under warranty does not extend the warranty period.
• The warranty does not affect the exercise of your rights under the legal warranties provided by the civil code and the consumer code.
  • To make use of this warranty, you must contact the brand company from which you purchased your product.

Date of entry into force of the warranty:

The Adeo Services warranty takes effect on the date of purchase or the date of delivery of your product, whichever is later.

Geographic scope of Adeo Services warranty:

The warranty is valid in the country of purchase of the product.

If you use your device in a country other than the one in which you purchased it, the warranty may be invalidated. In this case, please contact the brand company in the country of origin where you purchased the product who will study the warranty claim on a case by case basis.

Fate of Adeo Services warranty in case of resale of the product:

In case of resale of the product during its warranty period, the warranty remains valid for the benefit of the buyer and can be implemented by the latter provided however:

That the proof of original purchase of the product is brought along,

That the proof of proof of proper functioning of the product at the time of the resale is brought along,

That the terms and conditions of implementation of the warranty as detailed within the present document are met. It is specified that the resale of the product has no effect on the warranty period remaining at the date of resale. Thus, the buyer of the resold product can claim the benefit of the Adeo Services warranty within the limit of the remaining validity time of the warranty at the date of the resale.

FR Traduction de la version originale du mode d'emploi
ES Traducción de las Instrucciones originales
PT Tradução das Instruções originais
IT Traduzione delle istruzioni originali

FR IT CE PAP

Made in China

ADEO SERVICES - 135 RUE SADI CARNOT - CS 00001 - 59790 RONCHIN - FRANCE
