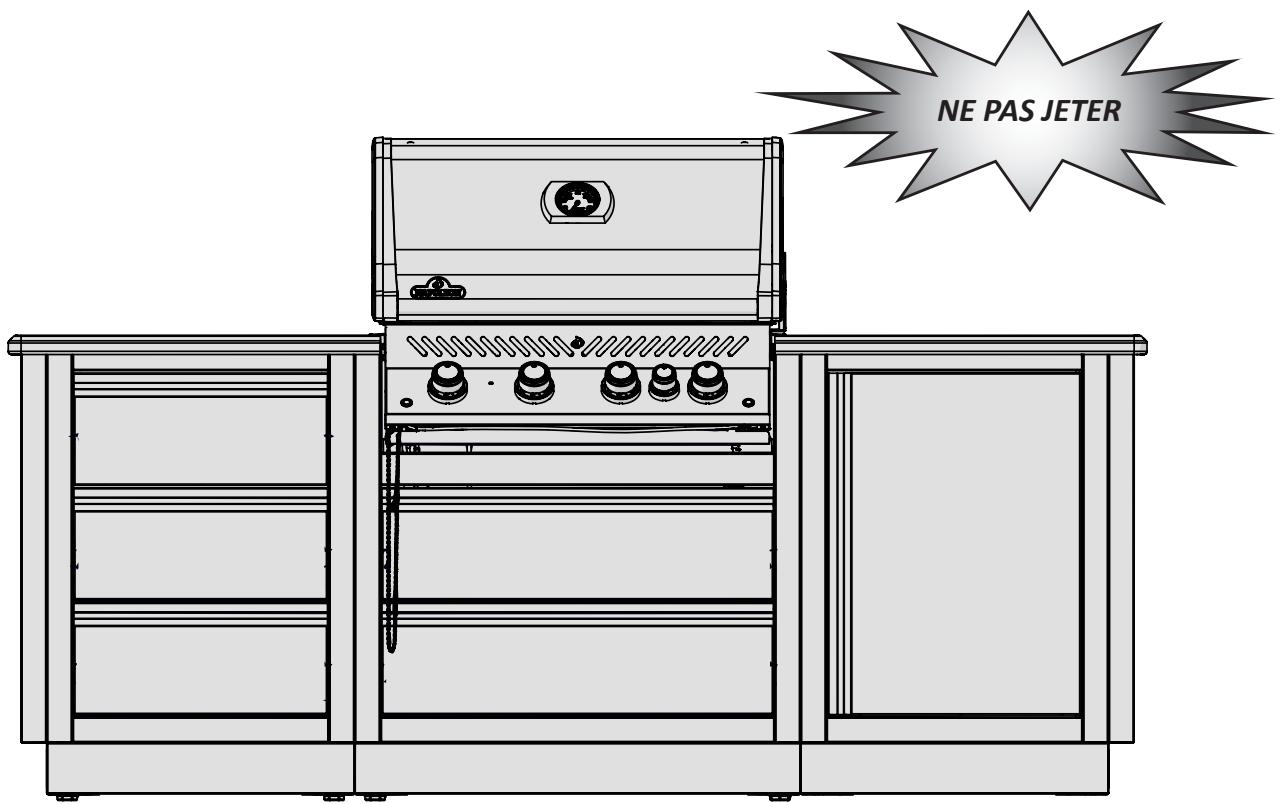

USER MANUAL BIPRO 500 NAPOLEON GRILLS
MODULAR CABINET ASSEMBLY INSTRUCTIONS
Use this manual in conjunction with your main manual to properly assemble your built-in grill. Refer to the main manual for operating, cleaning, and maintenance instructions. This grill is designed for NON-COMBUSTIBLE enclosures only, and must be installed and serviced by a qualified installer to local codes.
RETAIN THIS MANUAL FOR FUTURE REFERENCE.
Wolf Steel Ltd. 214 Bayview Drive, Barrie, Ontario, CANADA L4N 4Y8 grills@napoleonproducts.com
Wolf Steel Europe BV
Poppenbouwing 29-31, 4191 NZ Geldermalsen,
CCI No. 51509970, THE NETHERLANDS
info@napoleongrills.nl
Napoleon President's 10 Year Limited Warranty
NAPOLEON products are designed with superior components and materials, and are assembled by trained craftsmen who take great pride in their work. This product has been thoroughly inspected by a qualified technician before packaging and shipping to ensure that you, the customer, receive the quality product you expect from NAPOLEON.
NAPOLEON warrants that components in your new NAPOLEON product will be free from defects in material and workmanship from the date of purchase, for the following period:
Aluminum castings / stainless steel base 10 years
Stainless steel tube burners 10 years
Ceramic infrared burners (excluding screen) 5 years full coverage, plus 50% off until the 10th year
Stainless steel lid, door and drawer panels 5 years full coverage, plus 50% off until the 10th year
Porcelain-enameled cast iron cooking grids 5 years full coverage, plus 50% off until the 10th year
Stainless steel or porcelain sear plates 5 years full coverage, plus 50% off until the 10th year
Hinges, slides and enclosures 3 years full coverage, plus 50% off until the 10th year
All other parts 2 years
*Conditions and Limitations
This Limited Warranty creates a warranty period as specified in the aforementioned table, for any product purchased through an authorized NAPOLEON dealer, and entitles the original purchaser to the specified coverage in respect of any component replaced within the warranty period, either by NAPOLEON or an authorized NAPOLEON dealer, to replace a component of such product that has failed in normal private use as a result of a manufacturing defect. The "50% off" indicated in the table means the component is made available to the purchaser at a 50% discount off the regular retail price of the component for the period indicated. This Limited Warranty does not cover accessories or bonus items.
For greater certainty, "normal private use" of a product means that the product has been installed by a licensed, authorized service technician or contractor, in accordance with the installation instructions included with the product and all local and national building and fire codes; has been properly maintained; and has not been used as a communal amenity or in a commercial application.
Similarly, "failure" does not include: over-firing, blow outs caused by environmental conditions such as strong winds or inadequate ventilation, scratches, dents, corrosion, deterioration of painted and plated finishes, discoloration caused by heat, abrasive or chemical cleaners or UV exposure, chipping of porcelain enameled parts, or damages caused by misuse, accident, hail, grease fires, lack of maintenance, hostile environments such as salt or chlorine, alterations, abuse, neglect or parts installed from other manufacturers.
Should deterioration of parts occur to the degree of non-performance (rusted through or burnt through) within the duration of the warranted coverage, a replacement part will be provided. The replacement component is the sole responsibility of NAPOLEON defined by this Limited Warranty; in no event will NAPOLEON be responsible for installation, labor or any other costs or expenses related to the re-installation of a warranted part, for any incidental, consequential, or indirect damages or for any transportation charges, labor costs or export duties.
This Limited Warranty is provided in addition to any rights afforded to you by local laws. Accordingly, this Limited Warranty imposes no obligation upon NAPOLEON to keep parts in stock. Based on the availability of parts, NAPOLEON may at its discretion discharge all obligations by providing a customer a prorated credit towards a new product. After the first year, with respect to this Limited Warranty NAPOLEON may, at its discretion, fully discharge all obligations with respect to this warranty by refunding to the original warranted purchaser the wholesale price of any warranted but defective part(s).
The bill of sale or copy will be required together with a serial number and a model number when making any warranty claims from NAPOLEON.
NAPOLEON reserves the right to have its representative inspect any product or part prior to honoring any warranty claim. You must contact NAPOLEON Customer Service or an authorized NAPOLEON dealer to obtain the benefit of the warranty coverage.
napoleongrills.com
PLANNING YOUR NAPOLEON MODULAR OUTDOOR ISLAND
The Napoleon Outdoor Modular Island series has been developed with versatility in mind. The cabinets can be assembled in virtually any combination to suit your individual needs. They can be assembled against a house wall or as a standalone island, becoming the focal point of your backyard. With multifunction and storage capabilities, your backyard island can be transformed into an outdoor kitchen, placing the host in the center of the action when entertaining guests.
The cabinets are designed to be easy to assemble and install for either the home owner or private contractor. All cabinets are 35'' (889 mm) tall by 24'' (610 mm) deep. All cabinets are 24'' (610 mm) wide except for the BUILT-IN grill cabinets whose width correspond to the width of the unit it was designed for. The temperature control is located at the back of the fridge. The cabinet has a removable panel which allows access to the temperature control. Ensure that there is access to the panel when the cabinet is installed. Each cabinet has 4 leveling feet for adjustment on even surfaces. The 2 drawer cabinets are made to fit the Napoleon BUILT-IN series of grills only, available in several different sizes. BUILT-IN grills come in several different sizes. Refer to the installation manuals that come with the grill head for proper installation and operating instructions.
The BUILT-IN series of grills can be ordered in your choice of propane or natural gas configuration. Natural gas is an obvious selection for many people that already have it available in their home. All gas modifications or installations must be done by a qualified gas installer. Knockouts are present in the side and rear panels for easy piping and installation. For those who order a propane grill, a propane tank cabinet is available.
The cabinets can be installed against a NON-COMBUSTIBLE wall of a house, a masonry or stucco half-wall, or freestanding in an island configuration. Ensure there is adequate ventilation behind the fridge cabinet – a minimum gap of 6''(150mm) is required between the back of the cabinet and adjacent structures. Never block the vents located on the back of the cabinet. Failure to do so can result in the fridge overheating. An optional 4'' (102 mm) spacer panel must be purchased and installed when placing an island against a wall to allow clearance for the grill lid to open. The spacer also provides closure for the cabinet to prevent debris or rodents from entering behind the cabinets. A powdercoated, 2'' (51 mm) wide end panel can be purchased to cover the knockouts and mounting holes in the outside panels in a run of cabinets, giving a more finished look.
When utilizing 45^ and 90^ transitions in your design, modules on either side of the transition need to be chosen carefully. If doors or drawers are used on either side of the transition, they will interfere with each other when opened. If a drawer module is placed next to a grill, the control panel on the grill will prevent the top drawer from opening. The same applies to the paper towel/garbage module. Door modules can be used with 45^ transitions, but the control panel will prevent the door from fully opening and may damage the door. The best module for this application is the 2 drawer module (false drawer at the top).
Optional built-in sideburner kits are available through your Napoleon Gas Grill dealer. These sideburner kits are an excellent complement to the BUILT-IN series of grills. We recommend that the sideburner kit be installed over top of the IM-2DC cabinet. It has the false drawer front at the top of the cabinet which allows clearance for the sideburner valve and hose routing. The IM-2DC cabinet also provides the necessary clearance for those who would like to install a sink in their outdoor kitchen.
Countertops must be ordered and supplied locally by the homeowner. The countertop material must be NON-COMBUSTIBLE if a grill is to be installed into it. They can be ordered in advance by drawing out the floorplan of how the cabinets will be situated and adding up the width measurements, allowing 1-2 inches (25 mm-51 mm) of countertop overhang. Most countertop manufacturers are willing to come and take measurements after assembly of the cabinets is complete to ensure a perfect fit.
The built-in grillhead comes with stainless steel brackets and hardware that allow the unit to rest on the countertop above the corresponding island cabinet for that unit. Granite or Corian are excellent choices of countertop materials. In order for the drip pan to slide in and out properly, the grill head must be supported by a countertop with a thickness between 12'' (13mm) and 1 12'' (38mm).
Decorative countertops made of ceramic tile set on top of cement tiling board can be made to match your surrounding backyard furniture colors.
WARNING! This product can expose you to chemicals including nickel, which are known to the State of California to cause cancer, and chemicals including bisphenol A, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
TOOLS REQUIRED FOR ASSEMBLY (tools not included)

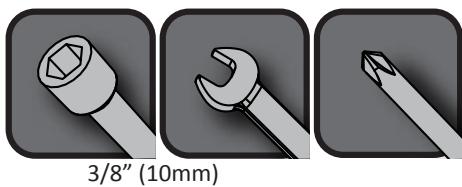

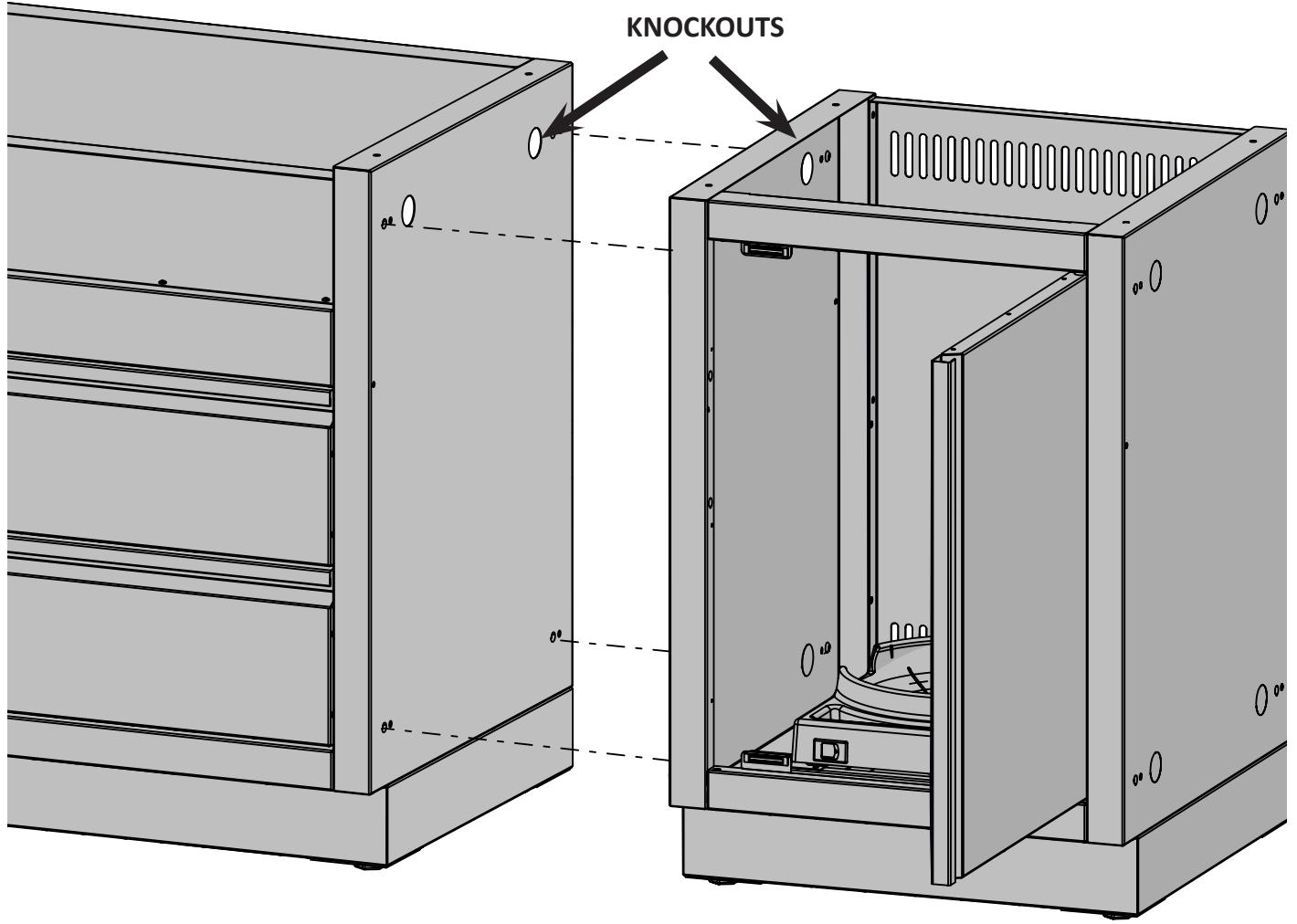

GAS AND ELECTRICAL PIPING
The piping up to the gas grill is the responsibility of the installer and piping should be located as shown in the built-in instructions. Do not use hose to connect the unit. It must be connected with either rigid pipe, copper tube or an approved flexible metal connector. The installation must comply with CAN B149.1 Natural Gas and Propane installation code in Canada, or to the National Fuel Gas code, ANSI Z223.1 in the United States. The minimum recommended piping size is NPS 1/2'' for rigid pipe, and 1/2'' OD for copper tubing (based on a 20 ft run). Longer runs may require larger sizes to conform with CAN B149.1. Propane Gas Installation Code in Canada or to the National Fuel Gas Code, ANSI Z223.1 in the United States. Look to the manual that came with the gas grill for further instructions.
To ease installation and piping, removable knockouts have been provided in the side panels and in the center of each backpanel. The knockouts in the side panels should be removed before the cabinets are bolted in a row. Only remove the knockouts that are required for the piping of any gas, plumbing or electrical lines.
IM-UTC

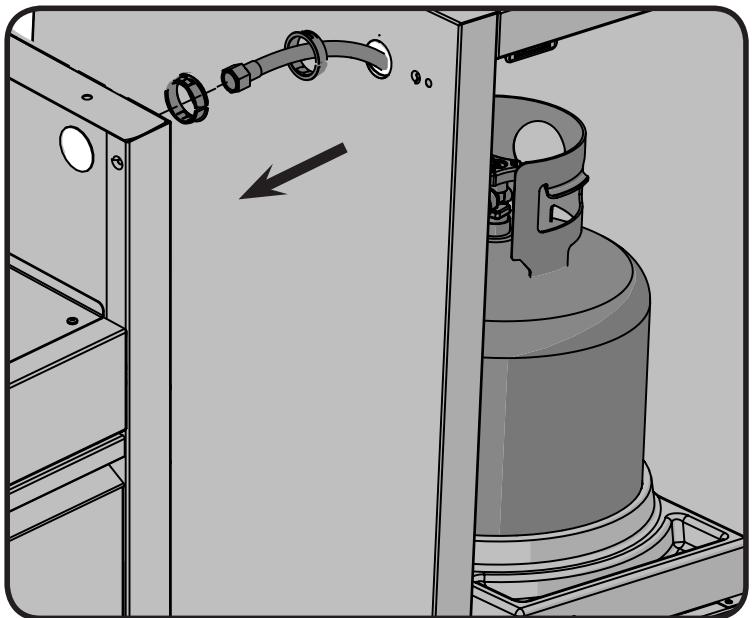

PROPANE SUPPLY HOSE ROUTING
EN
N105-0012
x2
The gas connection of the LEX series grills is at the left of the control panel. Placing the tank enclosure cabinet to the left of the unit cabinet will make for easier gas piping. Knockouts have been punched in the sides and back panels to provide easy routing of gas or electrical piping. Once the knockout has been removed a bushing must be installed to prevent the gas or electrical line being cut on the edge of the hole. Gas piping and installation must be done by a qualified gas installer.

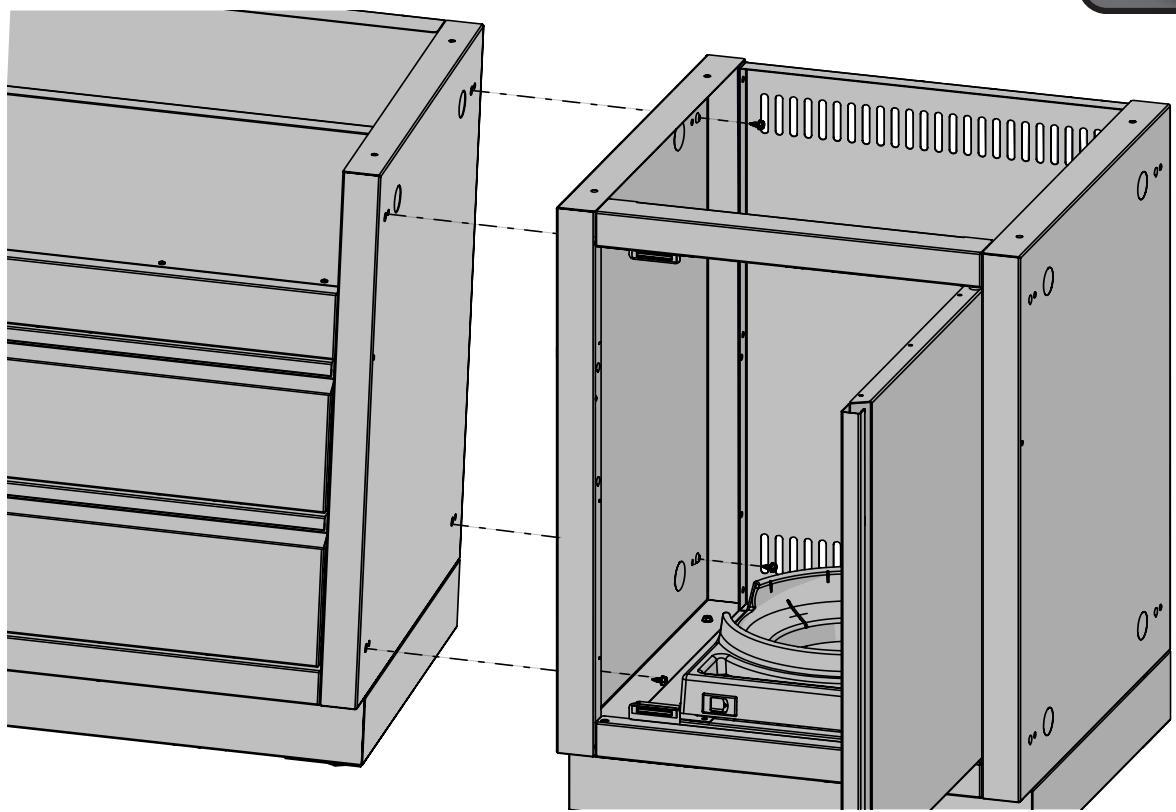

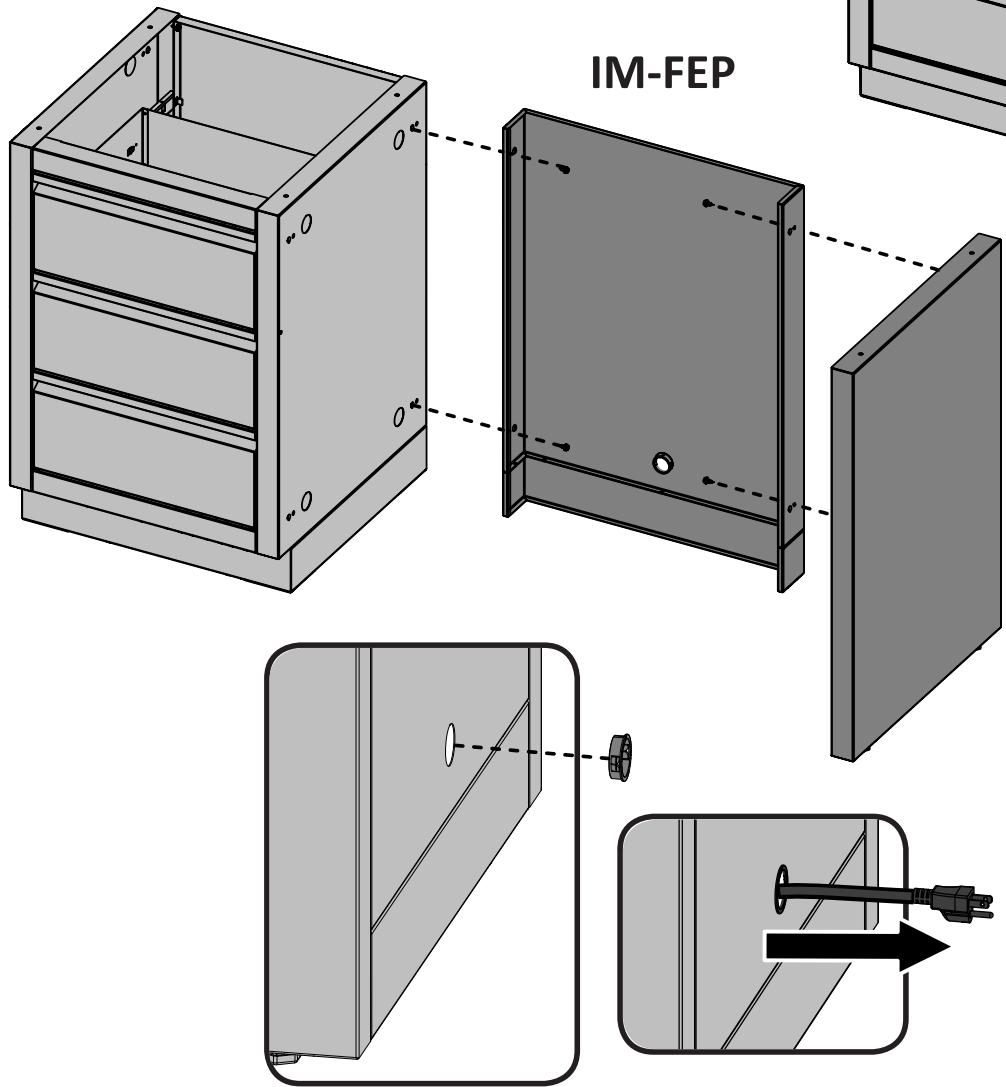

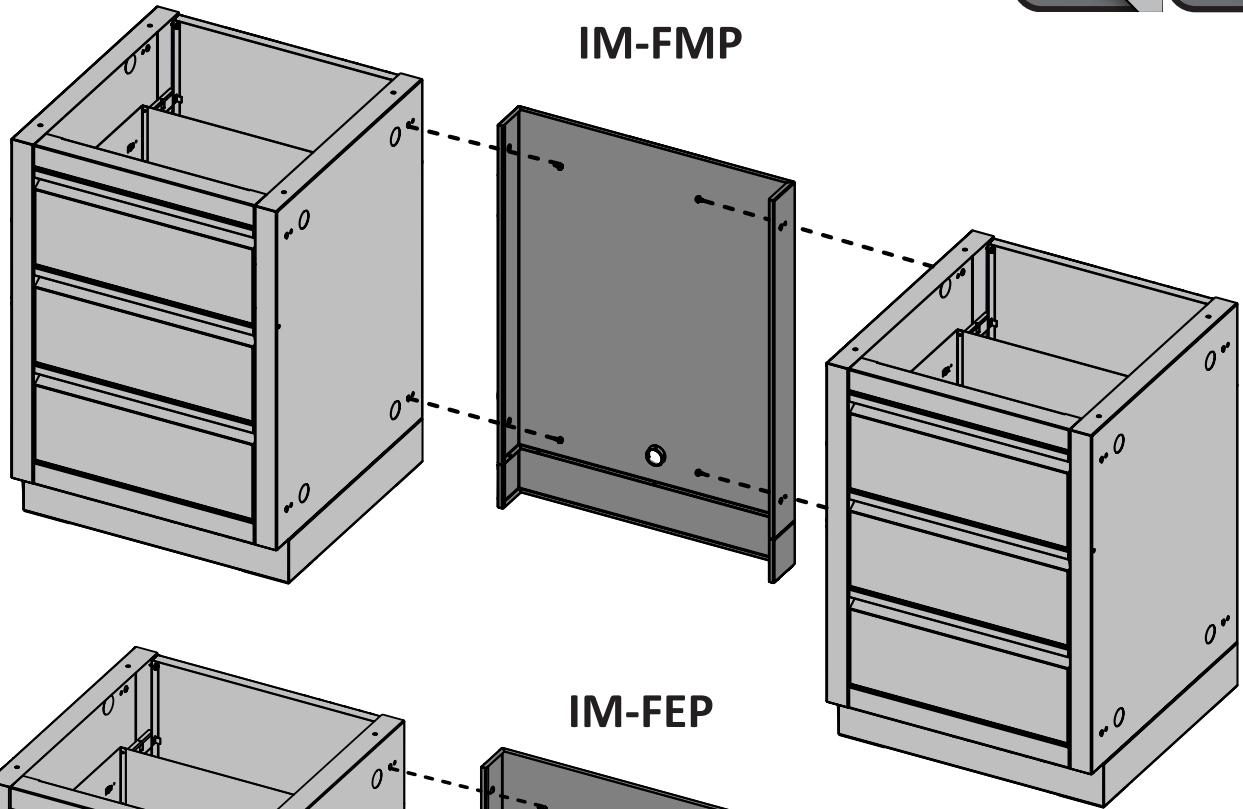

CABINET TO CABINET ASSEMBLY
N570-0086
N570-0086
N105-0012
x1

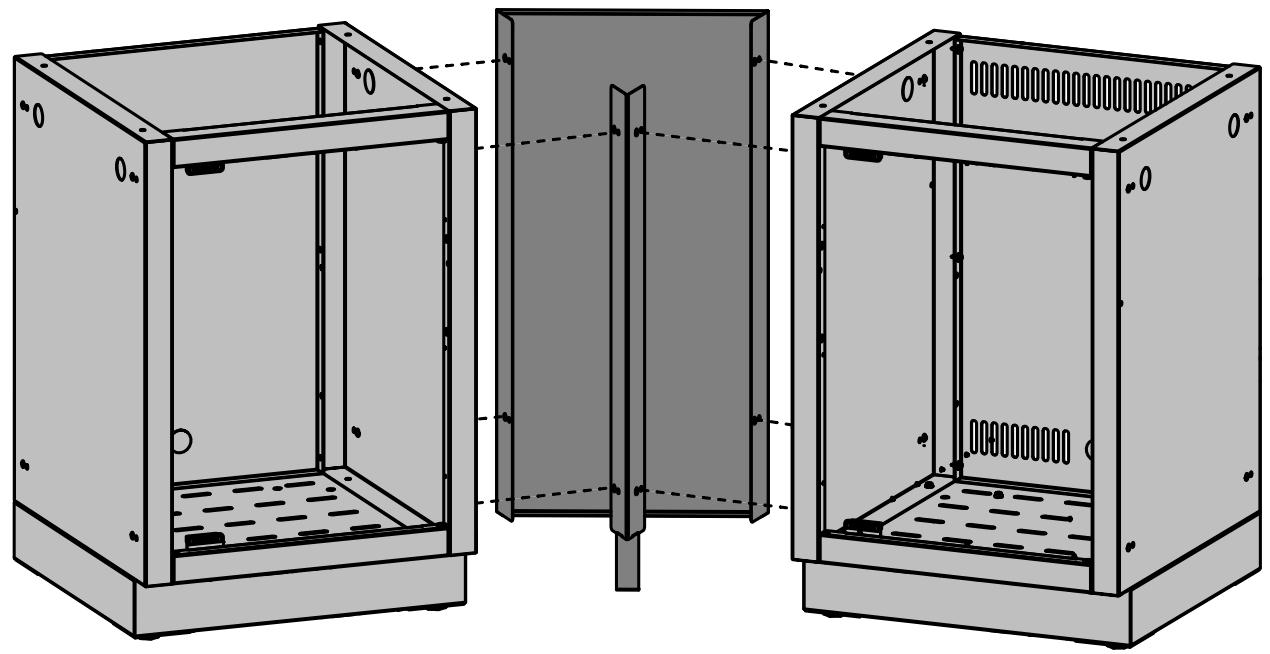

IM-45T CABINET 45 DEGREE CONNECTION
EN
N570-0086

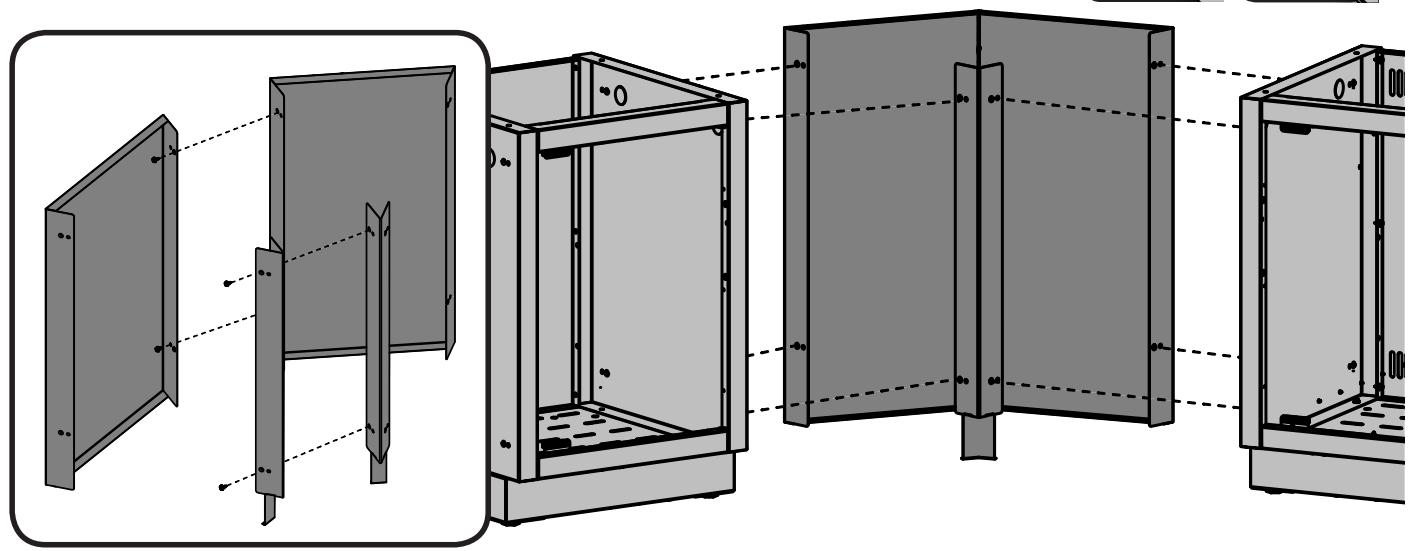

IM-45T X 2 CABINET 90 DEGREE CONNECTION
N570-0086
EN
8
IM-CEP

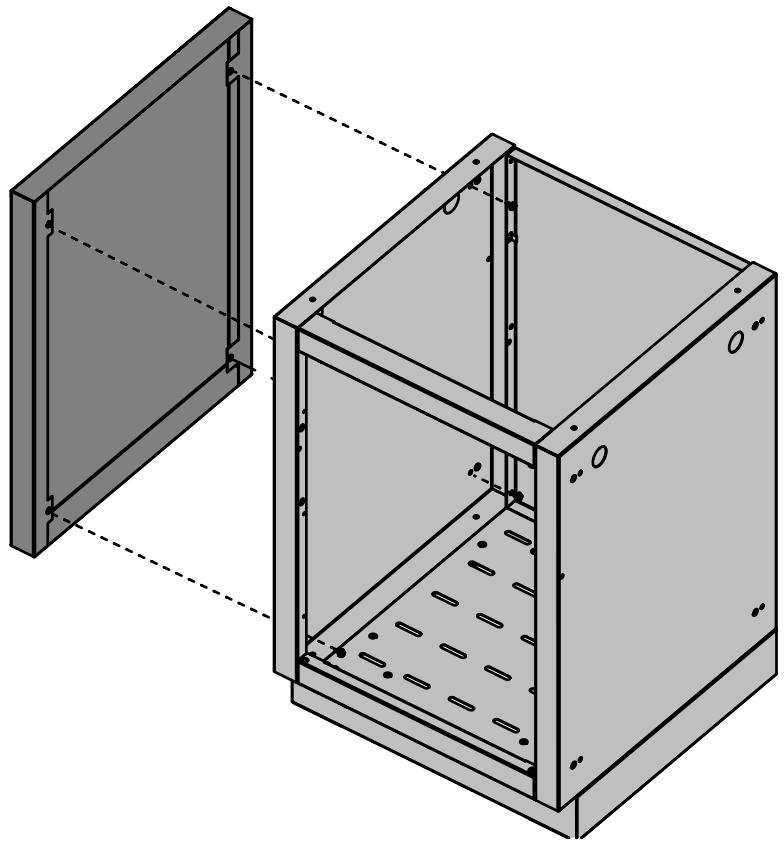

CABINET END PANEL KIT
N570-0086
x4

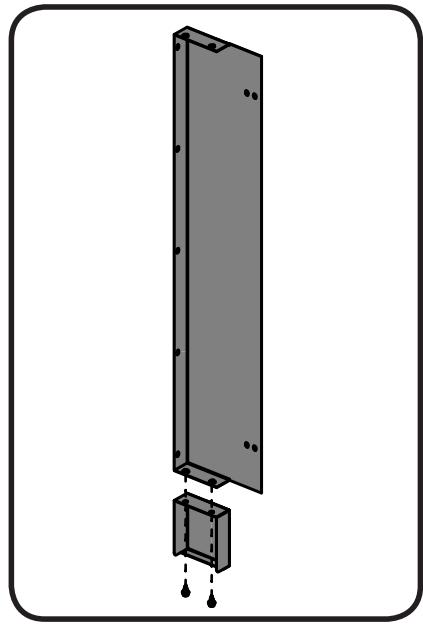

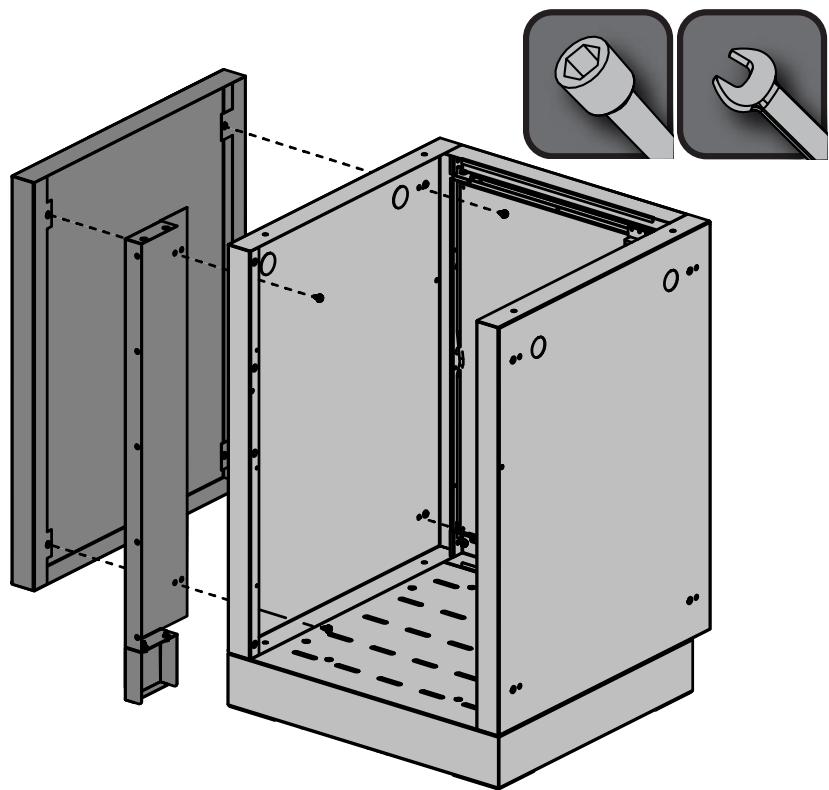

IM-CEP / IM-WSF CABINET END PANEL KIT
x6
N570-0086
SHOWN WITH REAR PANEL REMOVED

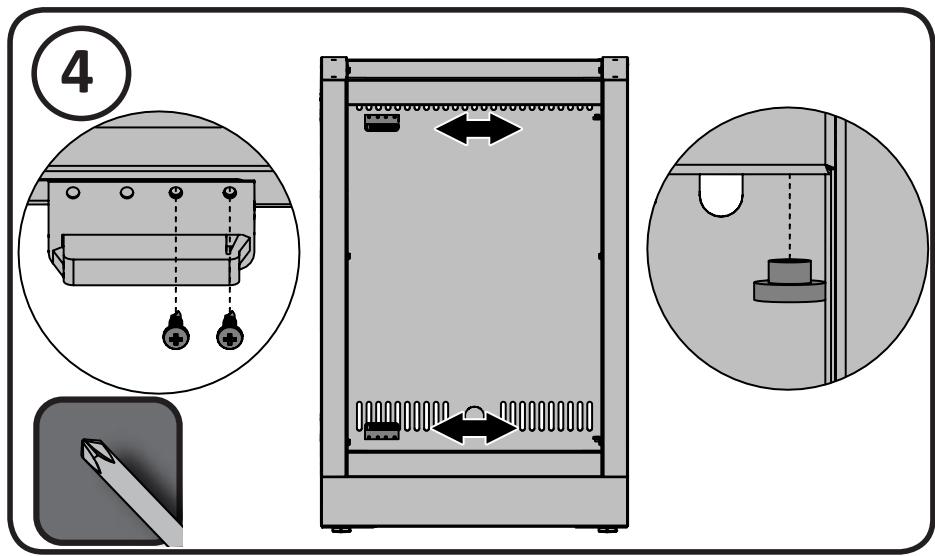

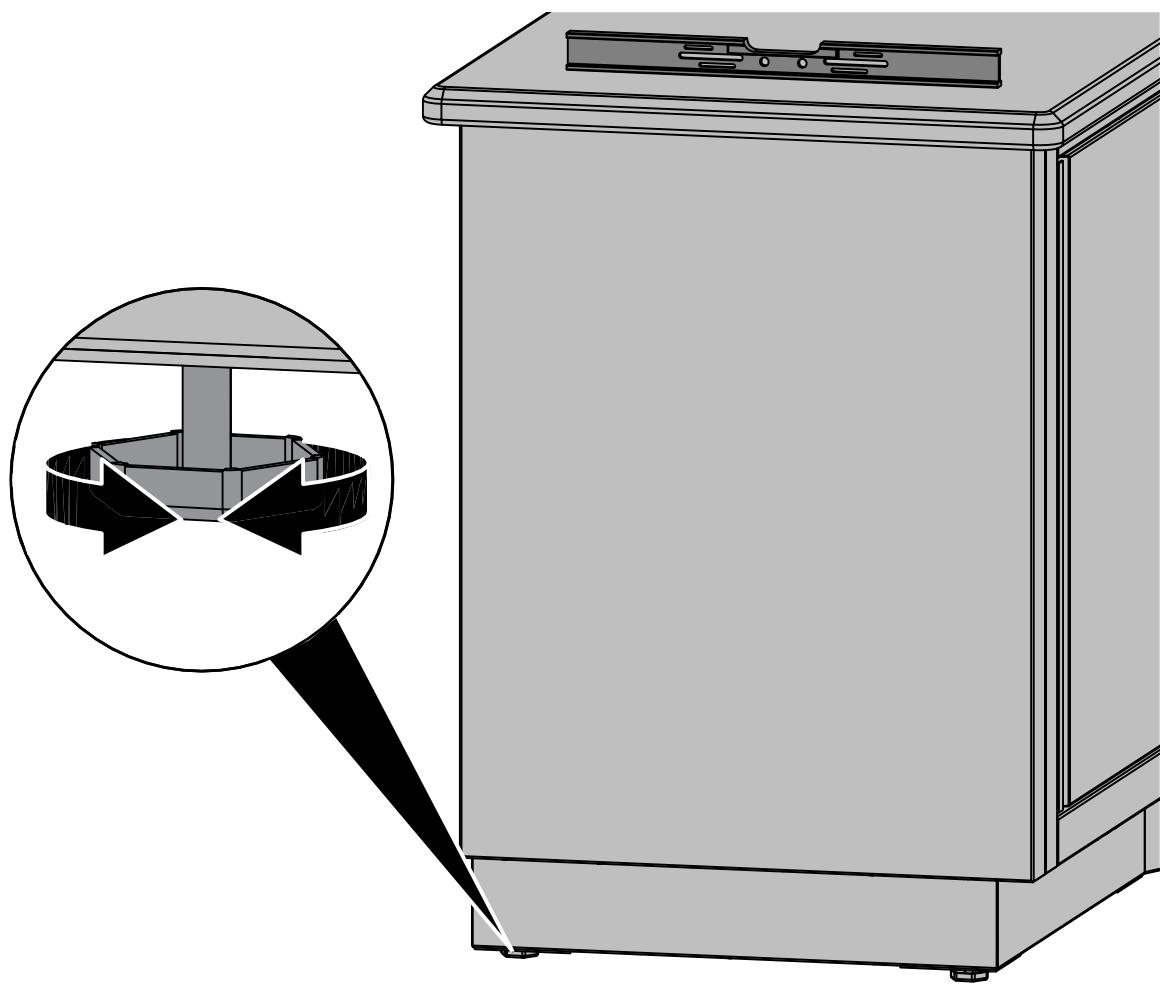

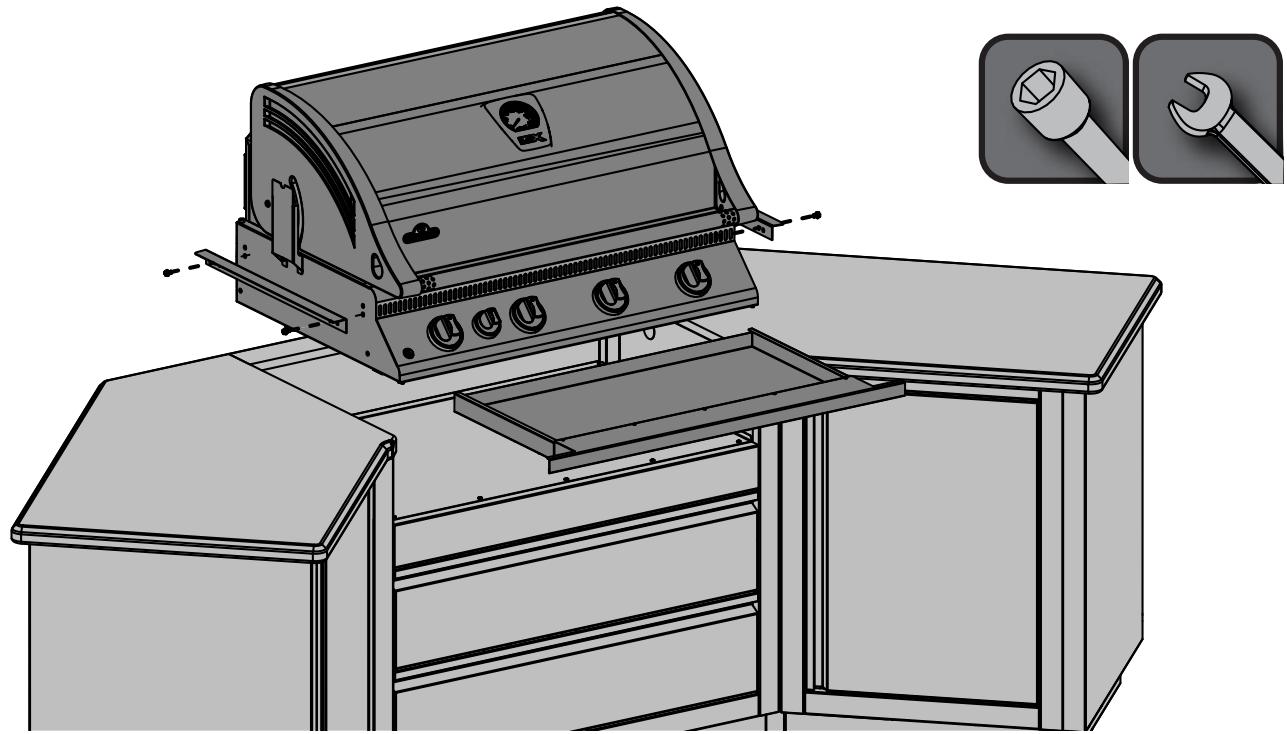

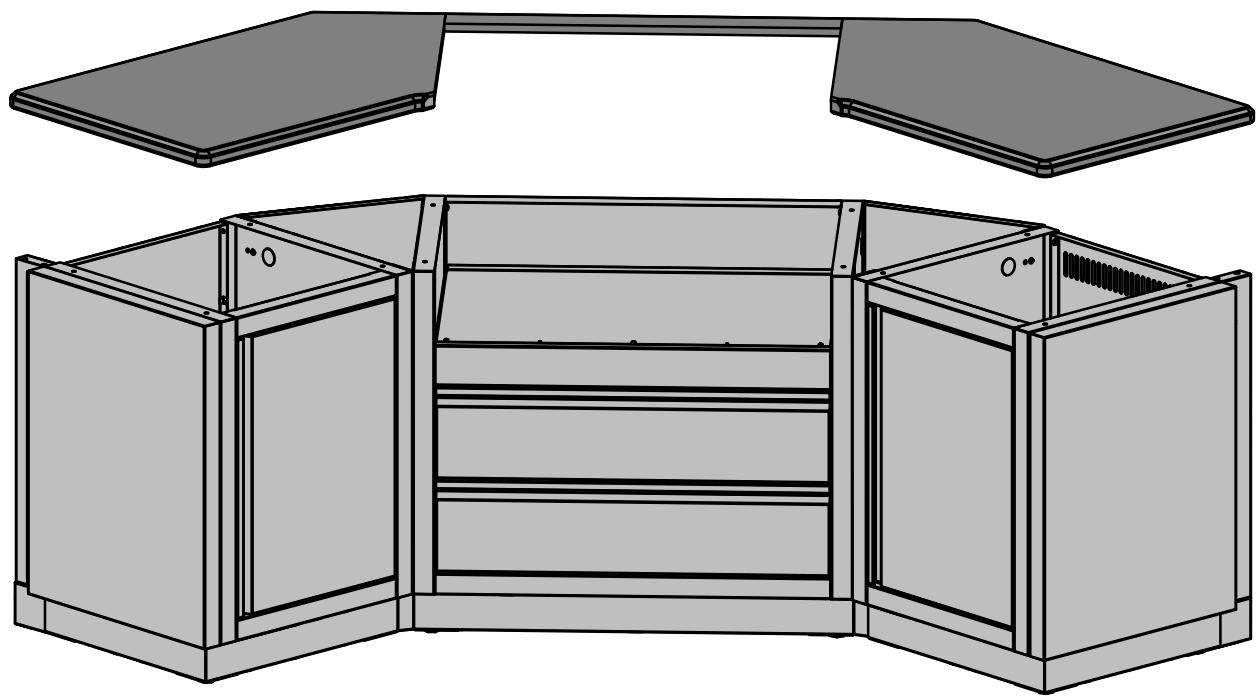

CABINET LEVELING PROCEDURE
EN
COUNTERTOP TO BE FASTENED AS PER MANUFACTURER'S INSTRUCTIONS. HOLES HAVE BEEN PLACED ON THE TOP FLANGE OF THE SIDE PANELS TO ALLOW FOR FASTENERS.
REFER TO BUILT-IN MANUAL THAT ACCOMPANIES THE GRILL FOR COMPLETE INSTRUCTIONS. GAS Piping MUST BE DONE BY A LICENSED GAS INSTALLER.

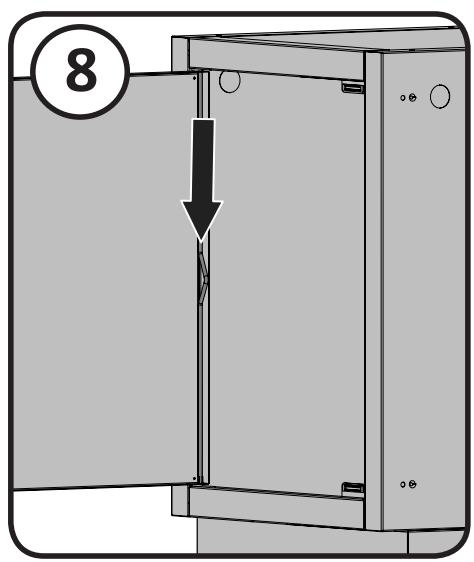

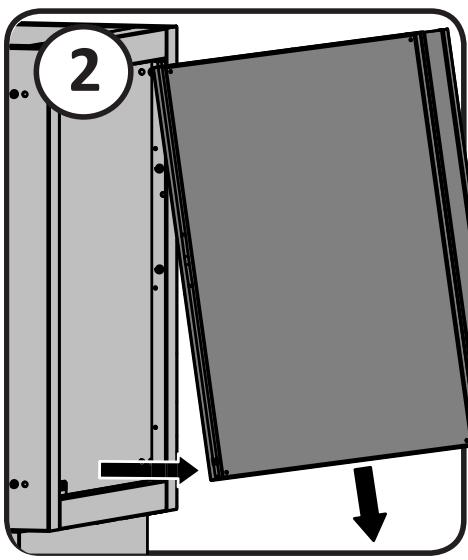

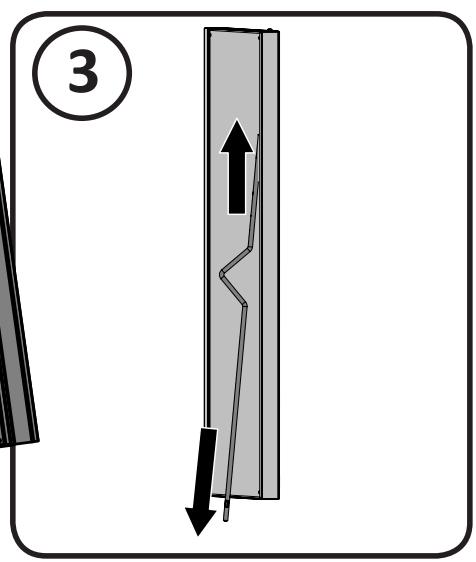

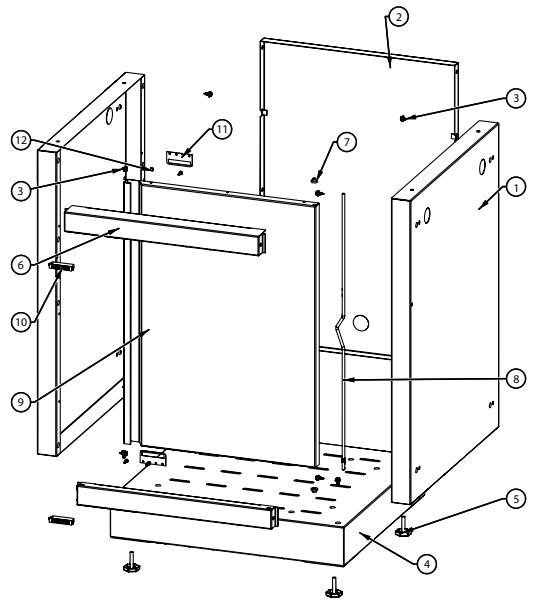

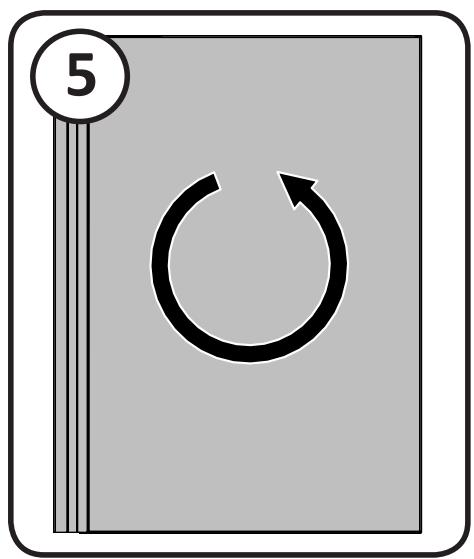

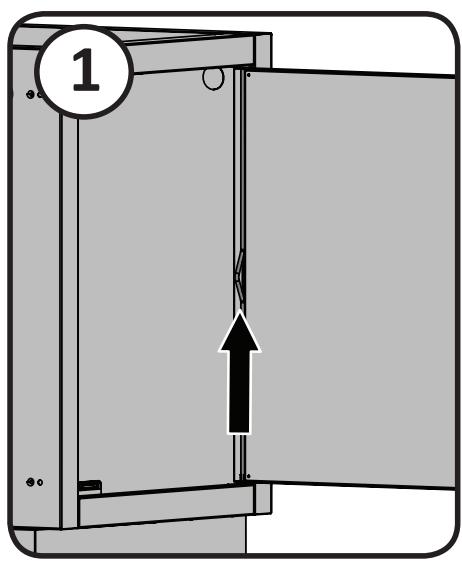

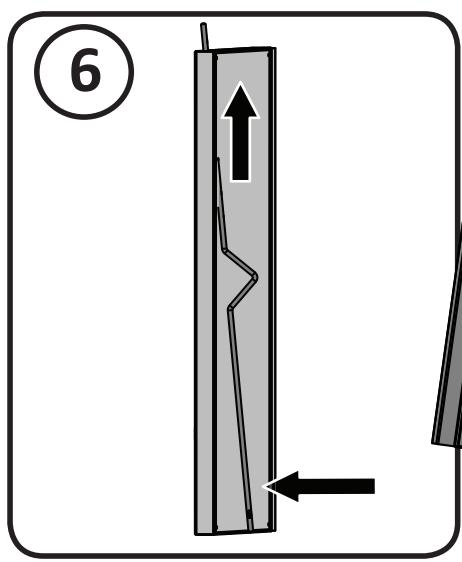

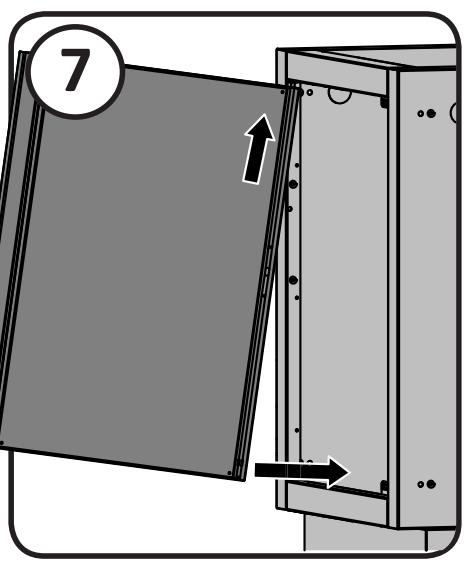

DOOR REVERSAL
EN

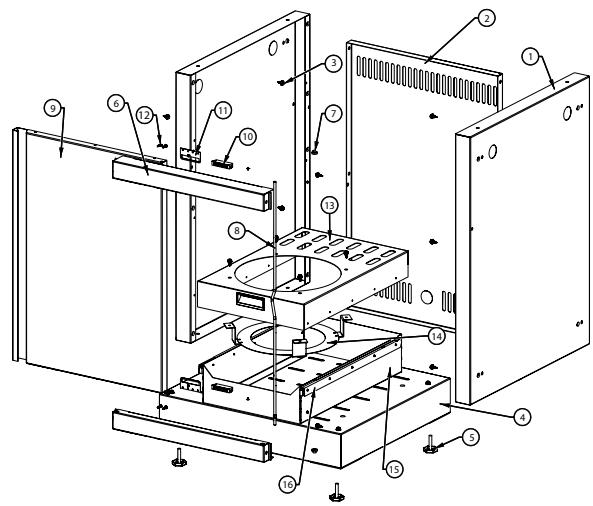

| # | Part # | Description | IM-UDC |
| 1 | N475-0223-CN1HR | side panel / panneau avant | x |
| 2 | N475-0224-CN1HR | back panel / panneau arrière | x |
| 3 | N570-0086 | #14 x 1/2" screw / vis #14 x 1/2" | x |
| 4 | N010-0575-CN1HR | bottom shelf assembly / ensemble de tablette inférieur | x |
| 5 | N570-0031 | leveling foot / mise à niveau du pied | x |
| 6 | N525-0018-CN1HR | top/bottom rail / support superior/inférier | x |
| 7 | N105-0011 | door bushing / bagues de porte | x |
| 8 | N555-0023 | door pivot rod / tige-pivot de porte | x |
| 9 | N010-0590 | door assembly / ensemble de porte | x |
| 10 | N430-0002 | magnetic catch / loquet magnétique | x |
| 11 | N080-0232-CN1HR | door magnet bracket / support de magnétique | x |
| 12 | N570-0013 | #8 x 5/8" screw / vis #8 x 5/8" | x |

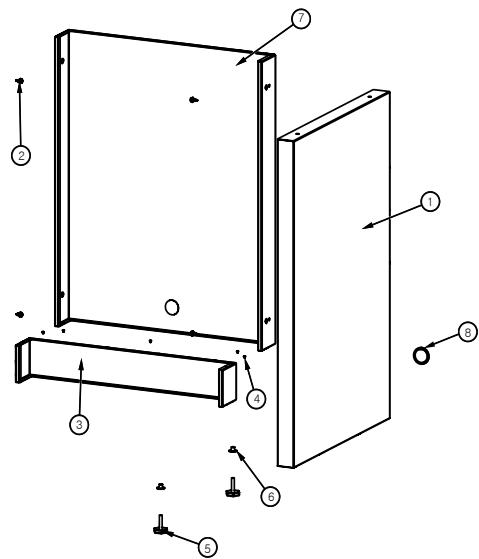

| # | Part # | Description | IM-FMP | IM-FEP |
| 1 | N475-0404-CN1HR | side panel / panneau avant | x | |
| 2 | N570-0086 | #14 x 1/2" scerw / vis #14 x 1/2" | x | x |
| 3 | N525-0055-CN1HR | bottom rail / support inférieur | x | x |
| 4 | N545-0005 | rivet / rivet | x | x |
| 5 | N570-0031 | leveling foot / mise à niveau de pied | x | |
| 6 | N450-0046 | nut / écrou | x | |
| 7 | N475-0403-CN1HR | back panel / panneau arrêté | x | x |
| 8 | N105-0012 | 1.5" bushing / bagues de porte 1.5" | x | x |

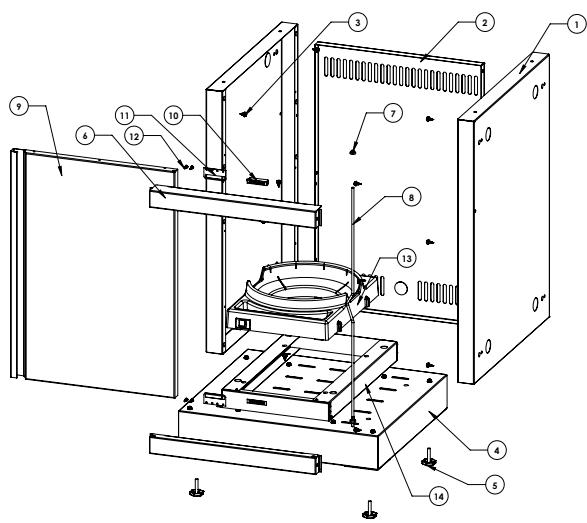

| # | Part # | Description | IM-UTC |
| 1 | N475-0223-CN1HR | side panel / panneau avant | x |
| 2 | N475-0237-CN1HR | back panel / panneau arrêté | x |
| 3 | N570-0086 | screw , #14 x 1/2" / vis #14 x 1/2" | x |
| 4 | N010-0575-CN1HR | assembly, bottom shelf / ensemble de tablette inférieur | x |
| 5 | N570-0031 | leveling foot / mise à niveau du pied | x |
| 6 | N525-0018-CN1HR | top/bottom rail / support superior.inférieur | x |
| 7 | N105-0011 | door bushing / bagues de porte | x |
| N105-0012 | 1.5" bushing / bagues de porte 1.5" | x | |
| 8 | N555-0023 | door pivot rod / tige-pivot de porte | x |
| 9 | N010-0590 | door assembly / ensemble de porte | x |
| 10 | N430-0002 | magnetic catch / loquet magnétique | x |
| 11 | N080-0232-CN1HR | door magnet bracket / support de magnétique | x |
| 12 | N570-0013 | #8 x 5/8" screw / vis #8 x 5/8" | x |
| 13 | N010-0938 | tank tray/ plateau de réservoir | x |
| 14 | N010-0995-CN1HR | tank tray support / support de bac à réservoir | x |
| # | Part # | Description | IM-UTC-CE |
| 1 | N475-0223-CN1HR | side panel / panneau avant | x |
| 2 | N475-0237-CN1HR | back panel / panneau arrêté | x |
| 3 | N570-0086 | screw , #14 x 1/2" / vis #14 x 1/2" | x |
| 4 | N010-0575-CN1HR | assembly, bottom shelf / ensemble de tablette inférieur | x |
| 5 | N570-0031 | leveling foot / mise à niveau du pied | x |
| 6 | N525-0018-CN1HR | top/bottom rail / support superior/inférier | x |
| 7 | N105-0011 | door bushing / bagues de porte | x |
| N105-0012 | 1.5" bushing / bagues de porte 1.5" | x | |
| 8 | N555-0023 | door pivot rod / tige-pivot de porte | x |
| 9 | N010-0590 | door assembly / ensemble de porte | x |
| N325-0016 | door handle / poignée de porte | x | |
| 10 | N430-0002 | magnetic catch / loquet magnétique | x |
| 11 | N080-0232-CN1HR | door magnet bracket / support de magnétique | x |
| 12 | N570-0013 | #8 x 5/8" screw / vis #8 x 5/8" | x |
| 13 | N710-0100-CN1HR | tank drawer CE / CE compartment à bonbonne | x |
| 14 | N010-0360-CN1HR | tank support ring / support du bonbonne | x |
| 15 | N080-0225-CN1HR | tank drawer support bracket / compartment à bonbonne support | x |
| 16 | N610-0004 | drawer slide / glisser tiroir | x |

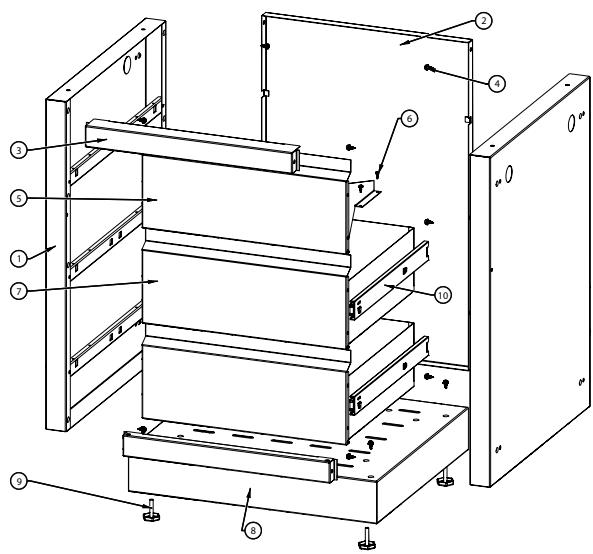

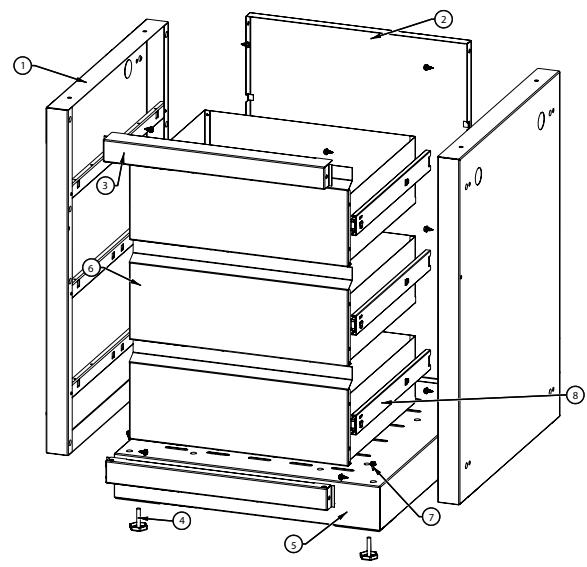

| # | Part # | Description | IM-3DC |
| 1 | N010-0678-CN | side panel / panneau avant | x |
| 2 | N475-0224-CN1HR | back panel / panneau arrêté | x |
| 3 | N525-0018-CN1HR | top/bottom rail / support superior/inférier | x |
| 4 | N570-0031 | leveling foot / mise à niveau du pied | x |
| 5 | N010-0575-CN1HR | assembly, bottom shelf / ensemble de tablette inférieur | x |
| 6 | N010-0677-CN | tractor assembly / assemblage du tiroir | x |
| 7 | N570-0086 | #14 x 1/2" screw / vis #14 x 1/2" | x |
| 8 | N610-0010 | tractor slide / glisser, tiroir | x |

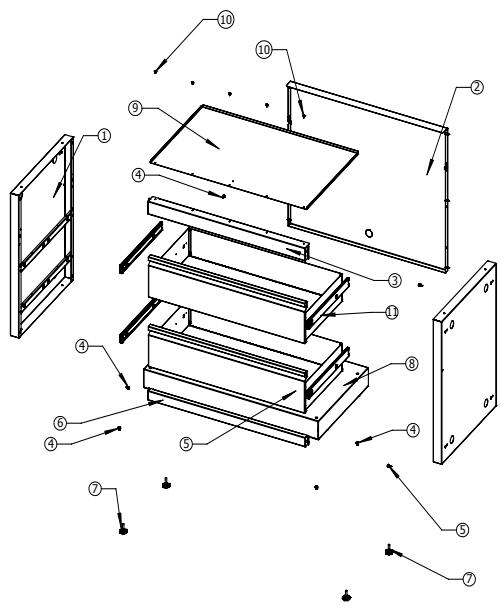

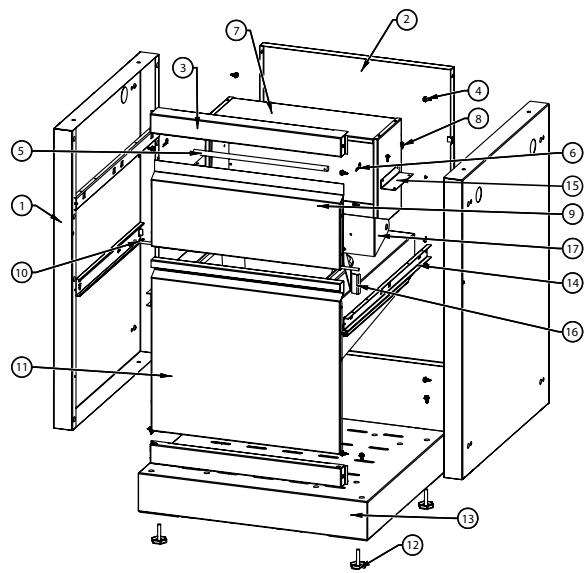

| # | Part # | Description | IM-2DC |
| 1 | N010-0678-CN | side panel / panneau avant | x |
| 2 | N475-0224-CN1HR | back panel / panneau arrêté | x |
| 3 | N525-0018-CN1HR | top/bottom rail / support superior/infévrier | x |
| 4 | N570-0086 | #14 x 1/2" screw / vis #14 x 1/2" | x |
| 5 | N010-0574 | false drawer front / avant faux de tiroir | x |
| 6 | N570-0008 | #8 x 1/2" screw / vis #8 x 1/2" | x |
| 7 | N010-0677-CN | drawer assembly / assemblage du tiroir | x |
| 8 | N010-0575-CN1HR | bottom shelf assembly / ensemble de tablette inférieur | x |
| 9 | N570-0031 | leveling foot / mise à niveau du pied | x |
| 10 | N610-0010 | drawer slide / glisser tiroir | x |
| # | Part # | Description | IM-WDC |
| 1 | N010-0678-CN | side panel / panneau avant | x |
| 2 | N475-0224-CN1HR | back panel / panneau arrière | x |
| 3 | N525-0018-CN1HR | top/bottom rail / support superior/inférier | x |
| 4 | N570-0086 | #14 x 1/2" screw / vis #14 x 1/2" | x |
| 5 | N555-0032 | paper towel rod / tige pour essuie-tout | x |
| 6 | N485-0012 | cotter pin / vis | x |
| 7 | N010-0576-CN1HR | paper towel housing assembly / assemblage de la porte du compartment à essuie-tout | x |
| 8 | N570-0008 | #8 x 1/2" screw / vis #8 x 1/2" | x |
| 9 | N010-0578 | paper towel door assembly / assemblage de compartment pour essuie-tout | x |
| 10 | N555-0031 | pivot rod / tige-pivot | x |
| 11 | N010-0679-CN | drawer assembly, trash can / assemblage du tiroir, panier à déchets | x |
| 12 | N570-0031 | leveling foot / mise à niveau du pied | x |
| 13 | N010-0575-CN1HR | assembly, bottom shelf / ensemble de tablette inférieur | x |
| 14 | N610-0010 | drawer slide / glisser tiroir | x |
| 15 | N080-0228-CN1HR | paper towel hoursing bracket / support tiroir de serviette en papier | x |
| 16 | N080-0230-CN1HR | door stop bracket / support cale-porte | x |
| 17 | N160-0018 | paper towel bracket / support de serviette en papier | x |
| N185-0004 | waste bin / poubelle | x |
| # | 605 | 730 | Description | |
| 1 | N010-0678-CN | N010-0678-CN | side panel / panneau avant | x |
| 2 | N475-0392-CN1HR | N475-0233-CN1HR | back panel / panneau arrêtè | x |
| 3 | N525-0020-CN1HR | N525-0021-CN1HR | top rail / support superior | x |
| 4 | N570-0086 | N570-0086 | #14 x 1/2" screw / vis #14 x 1/2" | x |
| 5 | N010-0682-CN | N010-0683-CN | washer assembly / assemblage du tiroir | x |
| 6 | N525-0023-CN1HR | N525-0024-CN1HR | bottom rail / support inférieur | x |
| 7 | N570-0031 | N570-0031 | leveling foot / mise à niveau du pied | x |
| 8 | N010-0581-CN1HR | N010-0583-CN1HR | bottom shelf / tablette inférieur | x |
| 9 | N585-0051-CN1HR | N585-0052-CN1HR | washer dripshield / écran anti-égouttement pour tiroir | x |
| 10 | N570-0013 | N570-0013 | #8 x 5/8" screw / vis #14 x 5/8" | x |
| 11 | N610-0010 | N610-0010 | washer slide / glisser tiroir | x |
| N105-0012 | N105-0012 | 1.5" bushing / bagues de porte 1.5" | x | |
| N485-0007 | N485-0007 | black plug / bouchon noir | x |
| # | 245/300 | 485-1 | 500 | Description | |
| 1 | N010-0678-CN | N010-0678CN | N010-0678-CN | side panel left / panneau avant gauche | x |
| 2 | N475-0224-CN1HR | N475-0302-CN1HR | N475-0302-CN1HR | back panel / panneau arrêté | x |
| 3 | N525-0031-CN1HR | N525-0042-CN1HR | N525-0041-CN1HR | top rail / support superior | x |
| 4 | N570-0086 | N570-0086 | N570-0086 | #14 x 1/2" screw / vis #14 x 1/2" | x |
| 5 | N010-0677CN | N010-0745-CN | N010-0745-CN | washer assembly / assemblage du tiroir | x |
| 6 | N525-0018-CN1HR | N525-0040-CN1HR | N525-0040-CN1HR | bottom rail / support inférieur | x |
| 7 | N570-0031 | N570-0031 | N570-0031 | leveling foot / mise à niveau du pied | x |
| 8 | N010-0575-CN1HR | N010-0744-CN1HR | N010-0744-CN1HR | bottom shelf / tablette inférieur | x |
| 9 | N585-0062-CN1HR | N585-0085-CN1HR | N585-0084-CN1HR | washer dripshield / écran anti-égouttement pour tiroir | x |
| 10 | N570-0013 | N570-0013 | N570-0013 | #8 x 1/2" screw / vis #8 x 1/2" | x |
| N610-0010 | N610-0010 | N610-0010 | slide, drawer / glisser, tiroir | x | |
| N485-0007 | N485-0007 | N485-0007 | black plug / bouchon noir | x | |
| N105-0012 | N105-0012 | N105-0012 | 1.5" bushing / bagues de porte 1.5" | x | |
| N710-0066 | dripan, replaces pan included with BI300 / tiroir d'égouttement, replace le tiroir inclus avec le BI300 | x |
KEEP YOUR RECEIPT AS PROOF OF PURCHASE TO VALIDATE YOUR WARRANTY.
Ordering Replacement Parts
Warranty Information
MODEL:
DATE OF PURCHASE:
SERIAL NUMBER:
(Record information here for easy reference)
For replacement parts and warranty claims, contact the Napoleon dealer where the product was purchased.
Before contacting the dealer, check the Napoleon Grills Website for more extensive cleaning, maintenance, troubleshooting and parts replacement instructions at www.napoleongrills.com.
To process a claim, the following information is required:
- Model and serial number of the unit.
- Part number and description.
- A concise description of the problem ('broken' is not sufficient).
- Proof of purchase (photocopy of the invoice).
In some cases, Napoleon could request to have the parts returned to the factory for inspection before providing replacement parts.
Before contacting Napoleon dealer, please note that the following items are not covered by the warranty:
Costs for transportation, brokerage or export duties.
Labour costs for removal and reinstallation.
Costs for service calls to diagnose problems.
- Discolouration of stainless steel parts.
- Part failure due to lack of cleaning and maintenance, or use of improper cleaners (oven cleaner or other harsh chemicals).
Notes
NAPOLEON
APPOSEZ LÉTIQUETTE DU NUMERO DE SERIES DU CARTON
No de série
XXXXXX000000
NO DE MODELE
FR
