USER MANUAL PRPGP750/150 RIBIMEX

User and maintenance manual

IT

POMPA DI GRANDE PROFONDITA

Warning: This pump is not intended for swimming pools. Under no circumstances should it be used for the cleaning or maintenance of swimming pools.

This pump is not intended for pumping drinking water.

Carefully read this instruction manual before operating this appliance.

Incorrect operation may cause injury and/or damages.

Please keep this manual for future reference.

AVVERTENZA:

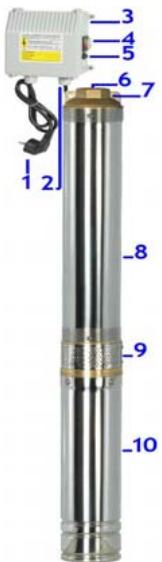

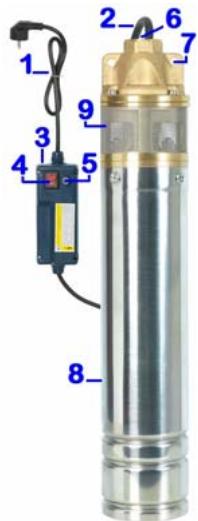

1. Power cord with plug
2. Electrical cable connected to the pump
3. Control box
4. ON/OFF switch
5. Circuit breaker
6. Connector for drain hose
7. Grommets
8. Submersible pump
9. Suction openings
10. Immerged motor

Fig.1a

Fig.1b

II. CHARACTERISTICS

Description	Automatic Submersible clear water pump
Reference	PRPGP750/67 [511911]	PRPGP750/60/1TL [516506]	PRPGP750/150 [516516]	PRPGP1100/94 [511926]	PRPGP1100/128 [511961]
Model / Type	100QJD210-0.75	4SKm100	QGDa1.2-100-0.75	100QJD214	4SRm219-1.1
Voltage & frequency	230V ~ 50Hz	230V ~ 50Hz	230V ~ 50Hz	230V ~ 50Hz	230V ~ 50Hz
Power	750W	750W	750W	1100W	1100W
Turbine (impeller)	10 turbines	1 turbine brass	Screw type	14 turbines	19 turbines
Max Delivery capacity	4000 l/h	3000 l/h	1800 l/h	4000 l/h	4800 l/h
Max. pressure	6.7 bar	6.0 bar	15.0 bar	9.4 bar	12.8 bar
Max. delivery height	67m	60m	150m	94m	128m
Max. immersion depth	15m	15m	15m	15m	15m
Min. water level for operation	50cm	50cm	50cm	50cm	50cm
Particle size (max)	0.2mm	0.2mm	0.5mm	0.2mm	0.2mm
Connector size	1" (25,4mm)	1" (25,4mm)	1" (25,4mm)	1" (25,4mm)	1"1/4 (30mm)
Weight (kg) approx.	15.80 kg	14.60 kg	16.60 kg	16.80 kg	24 kg
Liquid temperature (max.)	35°C	35°C	35°C	35°C	35°C
Motor	Service S1	Service S1	Service S1	Service S1	Service S1

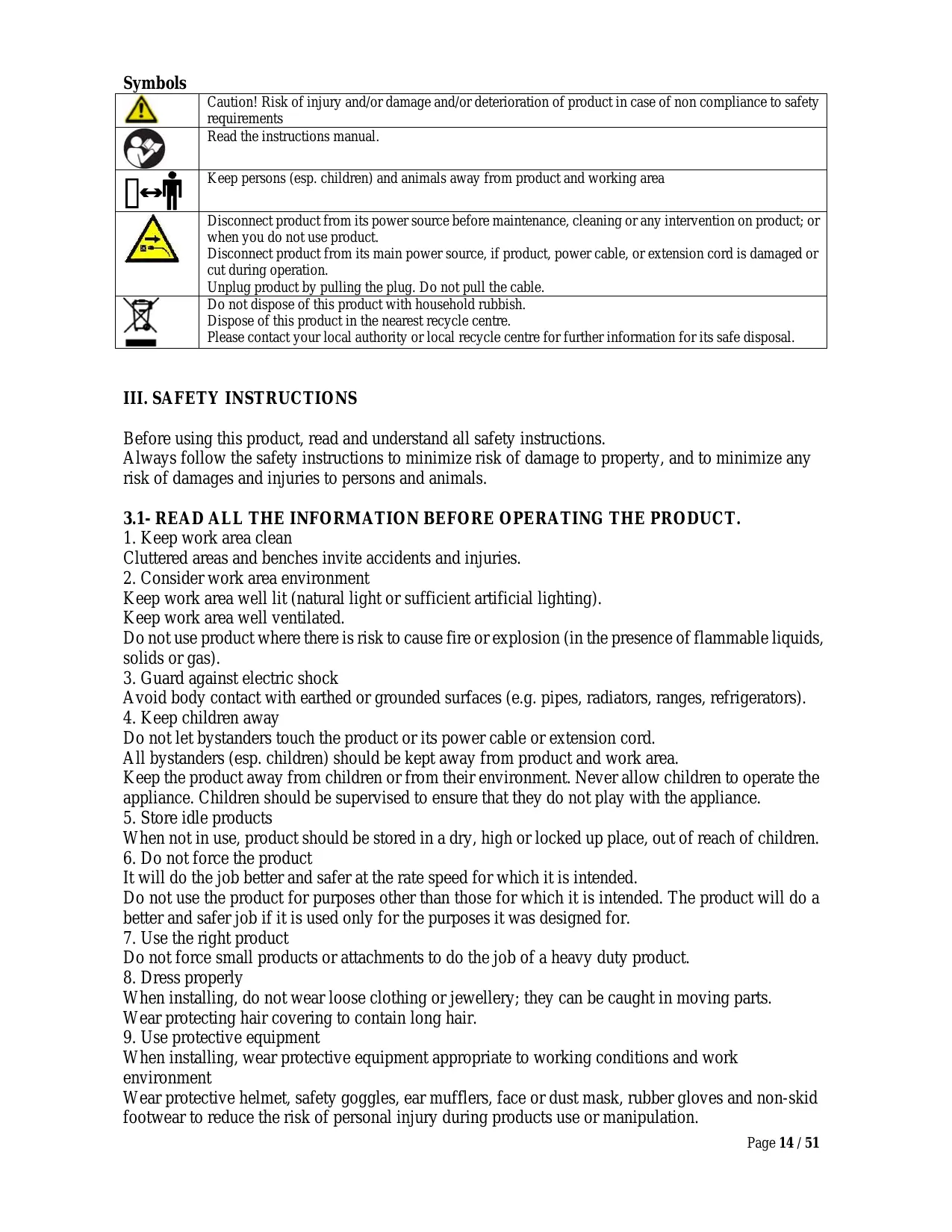

Symbols

	Caution! Risk of injury and/or damage and/or deterioration of product in case of non compliance to safety requirements
	Read the instructions manual.
	Keep persons (esp. children) and animals away from product and working area
	Disconnect product from its power source before maintenance, cleaning or any intervention on product; or when you do not use product. Disconnect product from its main power source, if product, power cable, or extension cord is damaged or cut during operation. Unplug product by pulling the plug. Do not pull the cable.
	Do not dispose of this product with household rubbish. Disposition of this product in the nearest recycle centre. Please contact your local authority or local recycle centre for further information for its safe disposal.

III. SAFETY INSTRUCTIONS

Before using this product, read and understand all safety instructions.

Always follow the safety instructions to minimize risk of damage to property, and to minimize any risk of damages and injuries to persons and animals.

3.1- READ ALL THE INFORMATION BEFORE OPERATING THE PRODUCT.

1. Keep work area clean

Cluttered areas and benches invite accidents and injuries.

1. Consider work area environment

Keep work area well lit (natural light or sufficient artificial lighting).

Keep work area well ventilated.

Do not use product where there is risk to cause fire or explosion (in the presence of flammable liquids, solids or gas).

1. Guard against electric shock

Avoid body contact with earthed or grounded surfaces (e.g. pipes, radiators, ranges, refrigerators).

1. Keep children away

Do not let bystanders touch the product or its power cable or extension cord.

All bystanders (esp. children) should be kept away from product and work area.

Keep the product away from children or from their environment. Never allow children to operate the appliance. Children should be supervised to ensure that they do not play with the appliance.

1. Store idle products

When not in use, product should be stored in a dry, high or locked up place, out of reach of children.

1. Do not force the product

It will do the job better and safer at the rate speed for which it is intended.

Do not use the product for purposes other than those for which it is intended. The product will do a better and safer job if it is used only for the purposes it was designed for.

1. Use the right product

Do not force small products or attachments to do the job of a heavy duty product.

1. Dress properly

When installing, do not wear loose clothing or jewellery; they can be caught in moving parts.

Wear protecting hair covering to contain long hair.

1. Use protective equipment

When installing, wear protective equipment appropriate to working conditions and work environment

Wear protective helmet, safety goggles, ear mufflers, face or dust mask, rubber gloves and non-skid footwear to reduce the risk of personal injury during products use or manipulation.

1. Do not abuse the power cable

Never carry the product by the cable or yank it to disconnect it from the socket.

Keep the cable away from heat, oil and sharp edges.

Inspect product cable periodically and if damaged have it repaired by an authorized service facility.

Inspect extension cords periodically and replace, if damaged.

1. Do not overreach

When installing, keep proper footing and balance at all times.

1. Maintain product with care

Keep product clean for better and safer performance.

1. Disconnect product

When not in use, before servicing and when changing accessories.

1. Avoid unintentional starting

Ensure switch is off when plugging in.

1. Use of extension leads

When product is used with extension cord, ensure that extension cord withstands product ratings.

If used outdoors, use only extension cords intended for outdoor use.

1. Stay alert

Watch what you are doing. Use common sense.

Do not operate product when you are tired, under the influence of alcohol, prescription medicines or drugs.

1. Check damaged parts

Before further use or reuse of the product, it should be carefully checked to determine that it will operate properly and perform its intended function.

1. Defective switches or other part that is damaged should be properly repaired or

replaced by an authorized service centre. Do not use the product if the switch does not turn it on and off.

1. Warning

The use of any accessory or attachment, other than those recommended in this instruction manual, may present a risk of injury to persons or animals and may cause damages.

The user and/or operator are responsible for any damages or injury caused to properties and/or persons.

1. Have your product repaired by a qualified person

Unless otherwise indicated in this instruction manual, repairs or replacement of any damaged part in an authorized service centre is recommended.

This electric product is in accordance with the relevant safety requirements. Repairs should only be carried out by qualified persons using original spare parts, otherwise this may result in considerable danger to the user.

1. Remarks:

The safety precautions and instructions given in this manual are unable to cover in detail all the conditions and situations that may arise.

The operator and/or user must use common sense and caution when operating the product especially for any matters that are not referred in the above

3.2- Special warnings when using the pump

1. Become familiar with the controls and the proper use of the equipment.
2. The use of this product by children is forbidden.
3. Only well-instructed adults should operate the product. This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the product by a person responsible for their safety.
4. If the power cable is damaged, it must be replaced by the manufacturer, its after sales service or a person with similar qualification in order to avoid any danger.

If the power cable or extension cord is damaged or cut during operation, immediately disconnect plug from its main power source. Do not touch the cable or extension cord before unplugging from main power.

3.3- Safety prescriptions

1. The supply voltage should correspond to that given on the rating label (230 V-50Hz).

Do not use any other type of power supply.

1. The pump should be supplied by a circuit fitted with a residual current device (circuit breaker, RCD) with a sensitivity not exceeding 30mA .

Connect control box before operating the pump.

Consult with a qualified electrician.

1. The supply cable should be checked periodically and before each use to see if there are any signs of ageing or damage.
2. If an extension is used, ensure that it is officially approved. Keep it well away from sharp edges, heat sources and combustibles.
3. The plug-in connector for the extension should be of the 2 poles + earth of type 10-16A/250V, in accordance with IEC and European standards. The wire section in the cable should be equal to or greater than 1mm^2 . The cable should not be lighter than cables of HO7 RN-F.
4. When disconnecting the power cable from the socket, always grip the plug itself and not the cable.
5. If the pump is used for emptying a pond, it should not be used when there are people or animals in the pond. Similarly, to avoid accidents during pump operation: washing, swimming or domestic animals bathing, watering is strictly forbidden around the pump operating area.
6. When the pump is immersed, handling should not be carried out using the power cable, but by using a device (for ex. a rope) connected to the grommets (7).
7. Water pollution may occur following lubricant leakage.
8. If the pump is not in good condition, do not use it. Have it repaired by an authorized centre.

3.4- Safety related to pump applications

The following conditions must be observed when using the water pump:

1. The pump must be installed and used in compliance with national/local laws.
2. The pump is used for small diameter well. It is widely used in areas of low water level, high head and far distance to draw water.
3. These pumps are recommended for pumping clean water and chemically non-aggressive fluids.
4. They are not suitable for pumping inflammable liquids or for operating in places where there is danger of fire or explosion.
5. When storing, do not pile weights or other boxes on top of the pump.
6. The manufacturer declines all responsibility in the event of accident or damage due to negligence or failure to observe the instructions described in this book or in conditions that differ from those indicated on the rating plate. It also declines all responsibility for damage caused by improper use of the water pump.
7. Pumping medium is clean water, which temperature must be below 35^ or other non corrosive liquids with same physical and chemical characters as water; with a PH value between 6.8 and 8.
8. The content of solids in water should be below 0.1% (quality proportion) and diameter must be smaller than 0.2mm or 0.5mm (according to model).
9. The submersible pump shall not be used in swimming pools.
10. NOTICE! : Installation can be a fairly complex operation. It must therefore be carried out by competent and authorized persons.
11. Caution: during installation apply all safety regulations issued by the competent / local authorities and use common sense at all times.

IV. GETTING STARTED

a- Before installing the water pump, make sure that the power supply mains is earthed and complies with regulations.
b- Do not underestimate the risk of drowning if the installation has to be performed in a well at a certain depth.
c- Make sure there are no toxic discharges or harmful gases present in the atmosphere.
d- If the installation involves welding, take all necessary precautions to avoid explosions.
e- Ensure that the well is free of sand and other deposits and that it is important for the pump to be lifted in and out.
f- Caution: If there is any doubt about the safety of the pump, do not use it.

4.1- Unpacking

4.1.1- Check the pump

1. Remove product from its packaging and check that product and accessories are not damaged.
2. Check all of the rated values on the rating plate of the pump whether or not matching with the motor and that the pump is whether in good condition.
3. Before installation, check on the nameplate of the pump whether in accordance with the demands of application conditions
4. Check that the shaft of the pump can rotate freely.

4.1.2- Check the motor

1. Firstly check on the name plate that the model, power (HP or kW), voltage, phase and frequency, meet with your requirements.
2. Check the motor cable whether it is fastened properly and in good condition.
3. Use a DC mega-ohm-meter with 500 or 1000 volt-ampere to measure the insulated-resistance for each motor cable to the base plate of motor.

The insulated-resistance should be 20 mega-ohm at lowest which is for the motor but not for the cable.

1. Take note of the motor model, power (HP or kW), voltage, date code and serial number in a recording sheet for future reference.

4.2- Well or installation location conditions

1. The well, where you intend to install the deep well submersible pump, should:

2. be a straight well,

3. keep a certain gap between the biggest outer-diameter of the pump and the inner wall of the well. Make sure that when the pump is operating at the stipulated depth, it must not touch the walls of the well.

4. Fit a steel pipe or a hard rubber pipe to the outlet connector (6) and fixed by a hoop tightly.

Fix the hanging rope in hanging ring (7-grommets) and prepare to hang up the pump.

NOTE: it is strictly forbidden to use power cable as hanging rope.

The submerged depth of the pump cannot exceed more than 15 meters and the distance from bottom should be over 50cm .

It is recommended to install a dirt-stopping grid around the pump to prevent foreign materials, such as water weeds, block the filter net, and influence the pump normal operation.

1. The motor should be kept sufficiently cool.

The well should provide with enough water quantity, to ensure max flow which is stipulated on the rating plate

If the condition and structure of the well cannot ensure the stipulated quantity of water, the temperature of water in well may exceed 40^ (104F), you should reduce the load of motor or increase the gush quantity to prevent over heat of motor.

1. The installation of a non-return valve on the delivery pipe is not required as one is already incorporated inside the pump.
2. Install probes which will cut off the pump power supply before the water level drops to the level

that leaves the pump exposed.

4.3- Electrical connection

4.3.1- Power supply

1. Check the voltage, frequency and intensity of power supply, whether it is according with the requirements of motor.
2. The voltage of power supply should be (in the case of single-phase voltage) 220 - 240V (these are the permitted limit values), 50 - 60Hz , the voltage fluctuation is within 0.94-1.06 times the rated value.
3. Avoid contact between the power supply and the liquid to be pumped.

4.3.2-Cable

1. The cable should be suitable for use in water and its size can endure the current of motor.

The cable should comply with the local standards.

In order to keep the line voltage, the length of cable cannot exceed the stipulated length by motor manufacturer (i.e. < 40m ).
2. If the distance to power supply is far, it is recommended to use a bigger diameter cable.

The insulation resistance of motor stator winding should be over 5mega-Ohm.
3. It is first recommended to hang the pump and fixed it firmly, then install a leakage protector at the end of power cable and finally make earth grounding connection with the ground wire.

The wire identified by the colour combination green/yellow shall be grounded safely to prevent electric shock (plug marked grounding).

1. Fix the power supply cable to the delivery pipe so that it can not be twisted. Allow for expansion of the delivery pipe by leaving a little slack between the clamps.

2. When carrying out connections, make sure that there is an efficient earth circuit.

3. The earth wire must be longer than the live wires, and must be the first wire to be connected when the pump is being set up and the last to be disconnected during disassembly

4. Connect the pump to a socket of 2 poles + earth type of 10-16A/250V, fitted with residual current device (RCD) or circuit breaker with a sensitivity not exceeding 30mA .

4.4- Control Box

1. Each single phase three wires of the motor should be connected to a control box
2. Check that the data on the rating plate corresponds with the stipulated values.
3. According to the standard, the control box should consist of the capacitor providing single-phase power, two poles switch and overload cut off protection.
4. Check the electrical equipment installations and control box which should accord with all of the safety rules and the requirements of motor where included the size of fuse or breaker and over-load protector, all of metal pipe and control box connected with the earth wire of power supply to prevent electric shock, should conform to the safety rule of law both of national and regional.
5. If the overload cut-out triggers, check the cause of the overload before restart again.
6. Caution: It is the installer's responsibility to perform the connections in compliance with the regulation in force in the country of installation.

4.5- Pump/motor installation

1. If the pump is installed in an enclosed area with emission of noxious fumes, the installation must be carried out in compliance with local and/or national laws by qualified personnel so as to avoid danger.
2. The pump must be in a vertical position over 0.5m from the water bottom (ensure that it is stable during operation).
3. The suction holes (9) must never be obstructed (e.g. avoid clogging by weed or other matter). It is therefore preferable that the pump should never be placed directly on the ground or on the bottom of the well. For example, place the pump on a brick.
4. Inspect the pump shaft as it should be rotating freely.
5. The pump can be installed either using metal piping (which can be used to support the pump) or

flexible piping.

1. In the case of flexible piping, the pump must be supported by a cable made of material which is not liable to deteriorate in the long term.
   The cable should be passed through the two grommets (7) on the cover.
2. Check the pump, motor, cable, or the socket connection whether they are in good condition. All the screws connected should be tightened.
3. After connecting the pump to the power supply, let the motor run idle for a few seconds to check the pump is correctly starting, operating, and motor is running in proper direction.

4. Note: - you may use plastic or rubber clips to support the power cord to the discharge at regular intervals of 3 meters (10feet).

5. ensure that discharge pipe joints are tightened to prevent loosening due to the torque of motor.

4.6-Operation

1. Before starting the pump, check:
2. the direction of motor rotation: trial-run the pump for no more than 1 minute to check the motor rotates counter clockwise (when looking at pump from above);
3. that electrical connection is correctly setup;
4. that the electrical cable and drain hose are properly laid to avoid accidents;
5. that check valves (if fitted) are opened
6. Check all joints of water pipe to determine water does not leak and soak any electric component.
7. Start the pump to check the ampere value and the condition for water to be discharged by the pump. If it is under normal conditions; then you may let the pump continue operating until water is clean and unblocked.
8. After starting, check that motor operates and stops without noise and vibrations.
9. After operating for at least 15 minutes, check pump output, motor input, lowest level of water and other characteristics.

All above should be steady and in accord with the assigned characteristics.

1. Check the pump performance whether the capacity of pump should be in 0.7 1.2 times rated scope, otherwise the pump operating is in abnormal condition, so the motor may overheat, even burn.
2. If any abnormal phenomenon appears, such as abnormal sound, lack of water or intermittent flow, you should stop the motor immediately and investigate the reasons.

Regularly check water level during pump operating so as not to fall under pump recommended lower level, as the pump cannot operate if water level is low.

Pay attention during cold temperatures (when air temperature is below 4^ ) to prevent frost-broken the pump body.

1. Do not wash, swim and pasture domestic animals in water within the pump working area for about two square meters.
2. Strictly forbid anyone to touch the pump by hand when under power so as to avoid accident.

V. OPERATION

5.1- Intended use

1. This submersible pump can be used for domestic, industrial or farming applications, for pumping clear water with particles in suspension that are less than 0.2mm or 0.5mm in diameter (according to pump model).
2. The pump is fully submersible: the immersion depth must not exceed 15m (refer to characteristics table).
3. The pump should not be used for sucking up liquids or materials that are corrosive, combustible/flammable or explosive.
4. The temperature of liquids sucked up should not exceed 35^ .
5. Any other use, other than that described in the instructions, is likely to damage the pump and to put the user in serious danger.

5.2-Operation

1. Connect pump control box to mains power.

The pump will start and stop as soon as the switch is pressed.

1. Warning!

Never operate the pump without water.

Check the water level frequently while in operation, to see whether it is lowering and the pump shall not be out of water while running.

The submersible pump must be immersed before switching on.

5.3- Advise for users

1. if discharge stops although the pump continues to function, switch it off immediately.

Unplug the pump from the mains and check to see what is causing the problem.

Never attempt to remove the turbine when the pump is still connected to the power supply.

1. The pump control box is protected by a thermal safety. In the event of overheating, the motor stops automatically. As soon as the temperature returns to normal, press the reset button (5) to restart pump.

VI. MAINTENANCE AND STORAGE

Before any intervention on product, ensure that product is disconnected from its power source.

6.1- Maintenance

1. The pump does not require specific cleansing.
2. However, if you remove pump for storage, rinse out the pump with clean water, including the suction circuit.
3. Before each re-use, ensure that all parts of the pump are in good working order.
4. Do not use aggressive cleansers (solvents or abrasive cleansers), or an abrasive sponge or sharp point scrapers.
5. Where there is the risk of freezing or the pump is not sufficiently submerged, the pump should be removed from water, and emptied and kept in a dry place.
6. Do not let the pump submerged in water for a long time when unused, it should be cleaned in running clean water for a few minutes on both inside and outside of the pump, then put it in a room with good ventilation.
7. When the pump stops operation because of some trouble, you should cut off the power and find out the reason. After the trouble is removed, the pump can be run again.
8. If some problems appear on both pump and motor, it must be repaired by experienced technicians or send the pump to the maintenance department your dealer, otherwise we decline responsibility.
9. You are advised to check the following periodically: The condition of the cables and grommets, especially at their attachment.

6.2-Breakdown

Never attempt to dismantle the pump.

If necessary, have it checked and repaired by an authorized centre (consult your dealer).

6.3- Troubleshooting

Trouble	Main reasons	Solution
Difficult start	1. Power voltage too low; 2. Impeller clogged 3. Big loss of cable voltage	1. Adjust voltage to 0.9 to 1.1 times the rated range. 2. Adjust clogged part. 3. Select the proper cable
Less water outlet	1. Head to high 2. Strainer and inlet hole clogged 3. Impeller worn badly 4. Submersion too shallow and air sucked in. 5. Discharge hose disconnected, leaking or worn out	1. Use within the rated head range 2. Remove water weed or foreign matter 3. Replace impeller 4. Adjust the submersion depth to no less than 0.5m 5. Check hose connection, fix it or replace if required.
Sudden stop	1. Switch disconnected or fuse burnt 2. Impeller clogged 3. Stator winding burnt	1. check whether the head in use or power voltage are in compliance with requirements and adjust accordingly. 2. Remove foreign matter 3. Seek assistance from authorised service centre
Stator winding burnt	1- Run too long with phase lost 2. Winding turn-to-turn short circuit or short circuit between phases due to mechanical seal leakage 3. Impeller clogged 4. Pump started to frequently 5. Pump overloaded	Seek assistance from vendor or authorised service centre

6.4- Storage

Clean the pump.

Pump must be stored in a dry, ventilated location. Always lock up product and keep out of reach of children.

6.5- Disposal

Carry out the disposal of the product, accessories and packaging in accordance with local regulations on waste collection and protection of the environment.

When discarding the pump, do not dispose of with household rubbish or into the environment.

Discard product in a waste collection centre for electrical and electronic equipment or seek advice from your local authority.

6.6- Example of installation

See Fig.2 (at the end of the manual)
