USER MANUAL YT5309-04 YAT

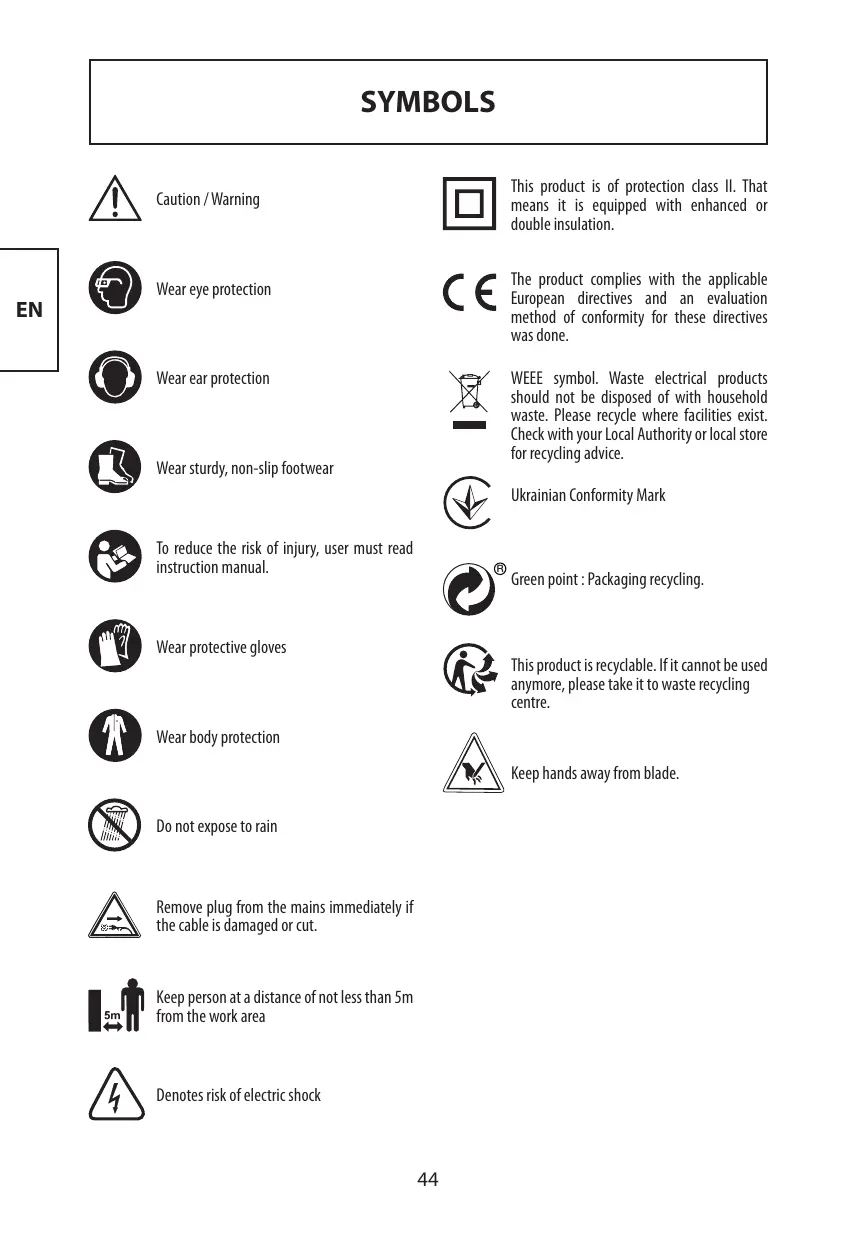

Wear sturdy, non-slip footwear

To reduce the risk of injury, user must read instruction manual.

Wear protective gloves

Wear body protection

Do not expose to rain

Remove plug from the mains immediately if the cable is damaged or cut.

Keep person at a distance of not less than 5m from the work area

Denotes risk of electric shock

This product is of protection class II. That means it is equipped with enhanced or double insulation.

The product complies with the applicable European directives and an evaluation method of conformity for these directives was done.

WEEE symbol. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice.

Ukrainian Conformity Mark

Green point: Packaging recycling.

This product is recyclable. If it cannot be used anymore, please take it to waste recycling centre.

Keep hands away from blade.

SAFETY INSTRUCTIONS

Intended use

1. This electric hedge trimmer YT5309-04 is designed with a rated power input of 450 Watts. This product is intended for cutting and trimming of hedges, bushes and shrubs in domestic gardens. The maximum cutting capacity must be observed. Do not cut branches exceeding the stated maximum capacity.

2. Do not use this product in case of rain or in a humid environment.

3. For safety reasons, always read the entire instruction manual before first operation and observe all the instructions therein.
4. This product is intended for private domestic use only, not for any commercial trade use. Do not use the product for any purposes other than those described.

General Power Tool SafetyWarnings

WARNING! Read all safety warnings and all

instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings

refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock

SAFETY INSTRUCTIONS

if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of

inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear

SAFETY INSTRUCTIONS

loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories

SAFETY INSTRUCTIONS

and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5)Service

a) Have your power tools serviced by a qualified repair person using only identical replacement parts. This will ensure that safety of the power tool is maintained.

Hedge trimmer safety warnings

1. Keep all parts of the body away from the cutter blade. Do not remove cut material or hold material to be cut when blades are moving. Blades continue to move after the switch is turned off. A moments of inattention while operating the

hedge trimmer may result in serious personal injury.

1. Carry the hedge trimmer by the handle with the blade stopped and taking care not to operate any power switch. Proper carrying of the hedge trimmer will decrease the risk of inadvertent starting and resultant personal injury from the blades.
2. Hold the power tool by insulated gripping surfaces only, because the cutter blade may contact hidden wiring or its own cord. Cutter blades contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
3. Keep cable away from cutting area. During operation the cable may be hidden in shrubs and can be accidentally cut by the blade.
4. When transporting or storing the hedge trimmer, always fit the blade cover. Proper handling of the hedge trimmer will decrease the risk of personal injury from the blades.
5. When clearing jammed material or servicing the unit, make sure all power switches are off and the power cord

SAFETY INSTRUCTIONS

is disconnected. Unexpected actuation of the hedge trimmer while clearing jammed material or servicing may result in serious personal injury.

1. Hold the hedge trimmer by insulated gripping surfaces only, because the blade may contact hidden wiring or its own cord. blade contacting a live wire may make exposed metal parts of the hedge trimmer live and could give the operator an electric shock.
2. Keep all power cords and cables away from cutting area. Power cords or cables may be hidden in hedges or bushes and can be accidentally cut by the blade.
3. Do not use the hedge trimmer in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning.

Additional hedge trimmer safety warnings

1. Keep hands and feet away from the cutting device at all times and especially when switching the product on.
2. Do not try to grasp or remove trimmings when the product is running. Only remove trimmings

when the product is switched off and disconnected from the power supply.

1. Never hold the product by the guard.
2. Always be sure of a safe and secure operating position, whilst using the product.
3. Never use the product standing on steps or a ladder. Do not work over shoulder height.
4. Always ensure the safety guard supplied is fitted before using the product. Never attempt to use an incomplete product or one fitted with an unauthorised modification.
5. Check the cutting device regularly for damage, and if damaged repair immediately.
6. Do not overload the product.
7. Check immediately if the product starts to vibrate abnormally. Excessive vibration can cause injury.
8. Switch the product off when the cutting device is blocked. Disconnect it from power supply and remove the blockage. Inspect the cutting device for damage before using the product again.
9. Follow the maintenance and repair instructions for this product. Never

SAFETY INSTRUCTIONS

carry out any modifications of the product. Information about maintenance and repair is provided in this instruction manual.

12.Know how to stop the product quickly in an emergency.
13.Do not expose the product to rain. Do not operate the product on a wet hedge.
14.Use the product only in daylight or good artificial light.
15.Prolonged use of the product exposes the user to vibrations that can cause a range of conditions collectively known as hand-arm vibration syndrome (HAVS) e.g. fingers going white; as well as specific diseases such as carpal tunnel syndrome.

To reduce this risk when using the product, always wear protective gloves and keep your hands warm. The symptoms of HAVS include any combination of the following: Tingling and numbness in the fingers; Not being able to feel things properly; Loss of strength in the hands; Fingers going white (blanching) and becoming red and painful on recovery (particularly in the cold and wet, and probably only in the tips at first). Seek medical advice immediately if such

symptoms are experienced.

1. Check the hedge for foreign objects before operation, e.g. wire fences. Take care that the cutting device does not come into contact with wire or other metal objects.
   17.Hold the hedge trimmer properly, e.g. with both hands if two handles are provided. Loss of control can cause personal injury.
   18.The product should be supplied via a residual current device (RCD) with a tripping current of not more than 30mA .

Maintenance and storage

If the supply cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. If the carbon brushes need to be replaced, have this done by a qualified repair person (always replace the two brushes at the same time).

1. Disconnect the product from the power supply (i.e. remove the plug from the power supply) and check for damage after use.
2. Disconnect the product from the power supply (i.e. remove the plug from the power supply) before carrying out maintenance or cleaning work.

SAFETY INSTRUCTIONS

1. Use only the manufacturer's recommended replacement parts and accessories.
2. Inspect and maintain the product regularly. Have the product repaired only by an authorised service centre or similar qualified specialist.
3. When not in use, store the product out of the reach of children.

Vibration and noise reduction

To reduce the impact of noise and vibration emission, limit the time of operation, use low-vibration and low-noise operating modes as well as wear personal protective equipment.

Take the following points into account to minimise the vibration and noise exposure risks:

1. Only use the product as intended by its design and these instructions.
2. Ensure that the product is in good condition and well maintained.
3. Use correct attachments for the product and ensure they are in good condition.
4. Keep tight grip on the handles/grip surface.
5. Maintain this product in accordance with these instructions and keep it well lubricated (where

appropriate).
6. Plan your work schedule to spread any high vibration tool use across a longer period of time.

Emergency

Familiarise yourself with the use of this product by means of this instruction manual. Memorise the safety directions and follow them to the letter. This will help to prevent risks and hazards.

1. Always be alert when using this product, so that you can recognise and handle risks early. Fast intervention can prevent serious injury and damage to property.
2. Switch off and disconnect from the power supply if there are malfunctions. Have the product checked by a qualified professional and repaired, if necessary, before you operate it again.

Residual risks

Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain. The following dangers can arise in connection with the structure and design of this product:

SAFETY INSTRUCTIONS

1. Health defects resulting from vibration emission if the product is being used over long periods of time or not adequately managed and properly maintained.
2. Injuries and damage to property due to broken cutting attachments or the sudden impact of hidden objects during use.
3. Danger of injury and property damage caused by flying objects.

WARNING! This product produces an electromagnetic field during operation! This field may under some circumstances interfere with active or passive medical implants! To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their doctor and the medical implant manufacturer before operating this product!

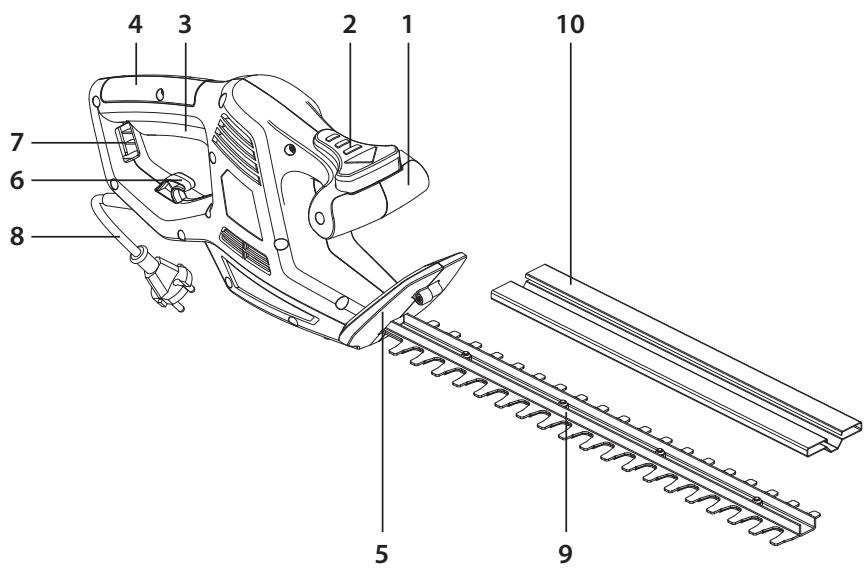

KNOW YOUR PRODUCT

1. Front handle
2. Hand safety switch
3. Switch trigger
4. Rear handle
5. Guard
6. Cable strain relief
7. Opening
8. Extension cord
9. Blade
10. Blade cover

TECHNICAL SPECIFICATIONS

Model	YT5309-04
Rated voltage	220-240V~50Hz
Rated input power	450W
Rated no-load speed	3800/min
Cutting length	420mm
Sound pressure level LpA	90 dB (A);
Uncertainty KpA	3.0 dB (A)
Measured sound power level LwA	101.1 dB (A)
Uncertainty KwA·	3 dB (A)
Guaranteed sound power level LwA	103 dB (A)
Vibration value of handle:	ah (rear handle)=2,36 m/s2ah (front handle)=2,75 m/s2K=1,5 m/s2

The sound intensity level for the operator may exceed 85dB(A) and protection measures are necessary. The declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool with another. The declared vibration total value may also be used in a preliminary assessment of exposure.

WARNING! The vibration emission value during actual use of the tool can differ from the declared value depending on the ways in which the tool is used. Identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time). Depending on the actual use of the product the vibration values can differ from the declared total! Adopt proper measures to protect yourself against vibration exposures! Take the whole work process including times the product is running under no load or switched off into consideration! Proper measures include among others regular maintenance and care of the product and application tools, keeping hands warm, periodical breaks and proper planning of work processes!

TROUBLE SHOOTING

Problem		Possible cause	Solution
1.	Product does not start	1.1. Not connected to power supply 1.2. Power cord or plug is defective 1.3. Other electrical defect to the product	1.1. Connect to power supply 1.2. Have it checked by a specialist electrician 1.3. Have it checked by a specialist electrician
2.	Product does not reach full power	2.1. Extension cord not suitable for operation with this product 2.2. Power source (e.g. generator) has too low voltage 2.3. Air vents are blocked	2.1. Use a proper extension cord 2.2. Connect to another power source 2.3. Clean the air vents
3.	Unsatisfactory result	3.1. Blade is worn/damaged 3.2. Thickness of branches exceeds capacity	3.1. Have it replaced with new one 3.2. Only cut branches complying with the capacity
4.	Excessive vibration or noise	4.1. Blade is damaged 4.2. Bolts/nuts are loose	4.1. Have it replaced with new one 4.2. Tighten bolts/nuts

Disposal and recycling

The product comes in a package that protects it against damage during shipping. Keep the package until you make sure that all parts have been delivered and the product operates properly. And then recycle the package.

CAUTION! This product shall not be discarded with household waste but that it shall be returned to a collection system which conforms to the European WEEE Directive. Contact your local authorities or stockist for advice on recycling. It will then be recycled or dismantled in order to reduce the impact on the environment. Electric and electronic equipment can be hazardous for the environment and for human health since they contain hazardous substances.

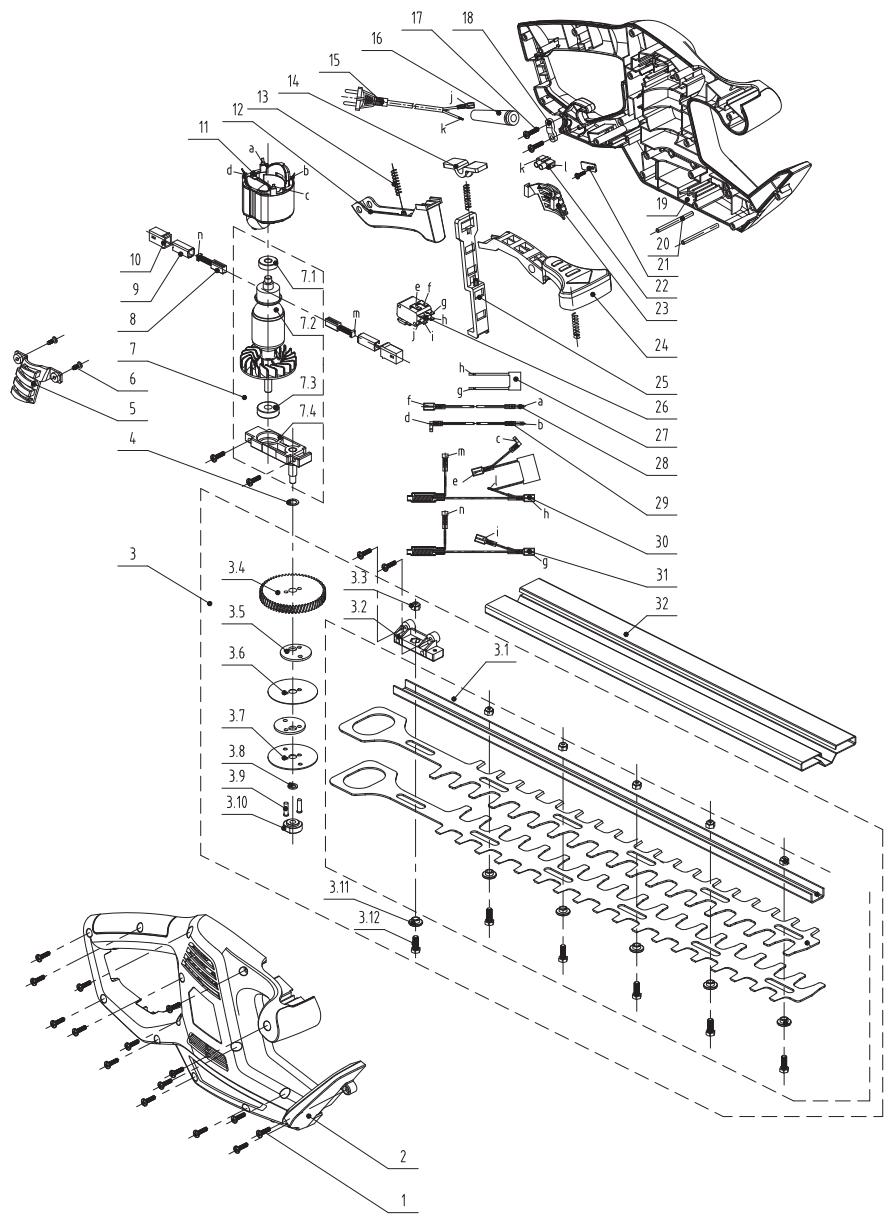

EXPLODED VIEW WITH PARTS LIST

EXPLODED VIEW WITH PARTS LIST

Part no.	Description	Part no.	Description
1	Screw	9	Copper brush holder
2	Right housing	10	Brush shell
3	Blade gear assembly	11	Stator
3.1	Blade assy	12	Switch trigger
3.2	Fixing base	13	Pressure spring
3.3	Locknut	14	Pull sleeve
3.4	Big gear	15	Cable/Plug
3.5	Wobbler	16	Cable sleeve
3.6	Blade baffle	17	Screw
3.7	Base plate	18	Cable clamp
3.8	Washer	19	Left housing
3.9	Pin	20	Blade fixed pin
3.10	Threaded sleeve	21	Insulation boards
3.11	Flanged Bushings	22	Connector
3.12	Screw	23	Left Hood
4	Washer	24	Front trigger
5	Right Hood	25	Switch Rod
6	Screw	26	Switch
7	Rotor component	27	Safety capacitance
7.1	Bearing	28	Line 9
7.2	Rotor assembly	29	cable
7.3	Bearing	30	Connecting components
7.4	Bearing pedestal	31	Connecting components
8	Carbon brush	32	Guide bar sleeve

EC DECLARATION OF CONFORMITY

We

ADEO Services

Declare that the product detailed below:

Electric Hedge Trimmer 450W

Model:YT5309-04

Satisfies the requirement of the Council Directives:

2006/42/EC----Machinery Directive

2014//30/EU----EMC Directive

2000/14/EC, Annex V & 2005/88/EC---- Outdoor Noise Directive

Measured Sound Power Level: 101.80 dB(A)

Guaranteed Sound Power Level: 103 dB(A)

ROHS Directive(EU)2015/863 amending Directive 2011/65/EU

and conforms to the norms:

EN 62841-4-2:2019

EN 62841-1:2015+AC:2015

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019

EN 61000-3-3:2013+A1:2019

IEC 62321-3-1:2013

IEC 62321-4:2013+AMD1:2017

IEC 62321-5:2013

IEC 62321-6:2015

IEC 62321-7-1:2015

IEC 62321-7-2:2017 & EN ISO 17075-1:2017

IEC 62321-8:2017

EN IEC 63000:2018

Signed in Shanghai 26/11/2021

Name and address of the person

(establish in the community) compiled the technical file:

Richie PERMAL

Supplier Quality Leader

Authorized representative of Julien Ledin, ADEO Quality Leader

ADEO Services 135 Rue Sadi Carnot - CS 00001 59790RONCHIN - France

Serial No.: Please refer to the back cover page

Last two numbers of the year CE marking applied: 19

随订单

ADEO Services

135 Rue Sadi Carnot

CS 00001

59790 RONCHIN - France

Made in P. R. C. 2019
