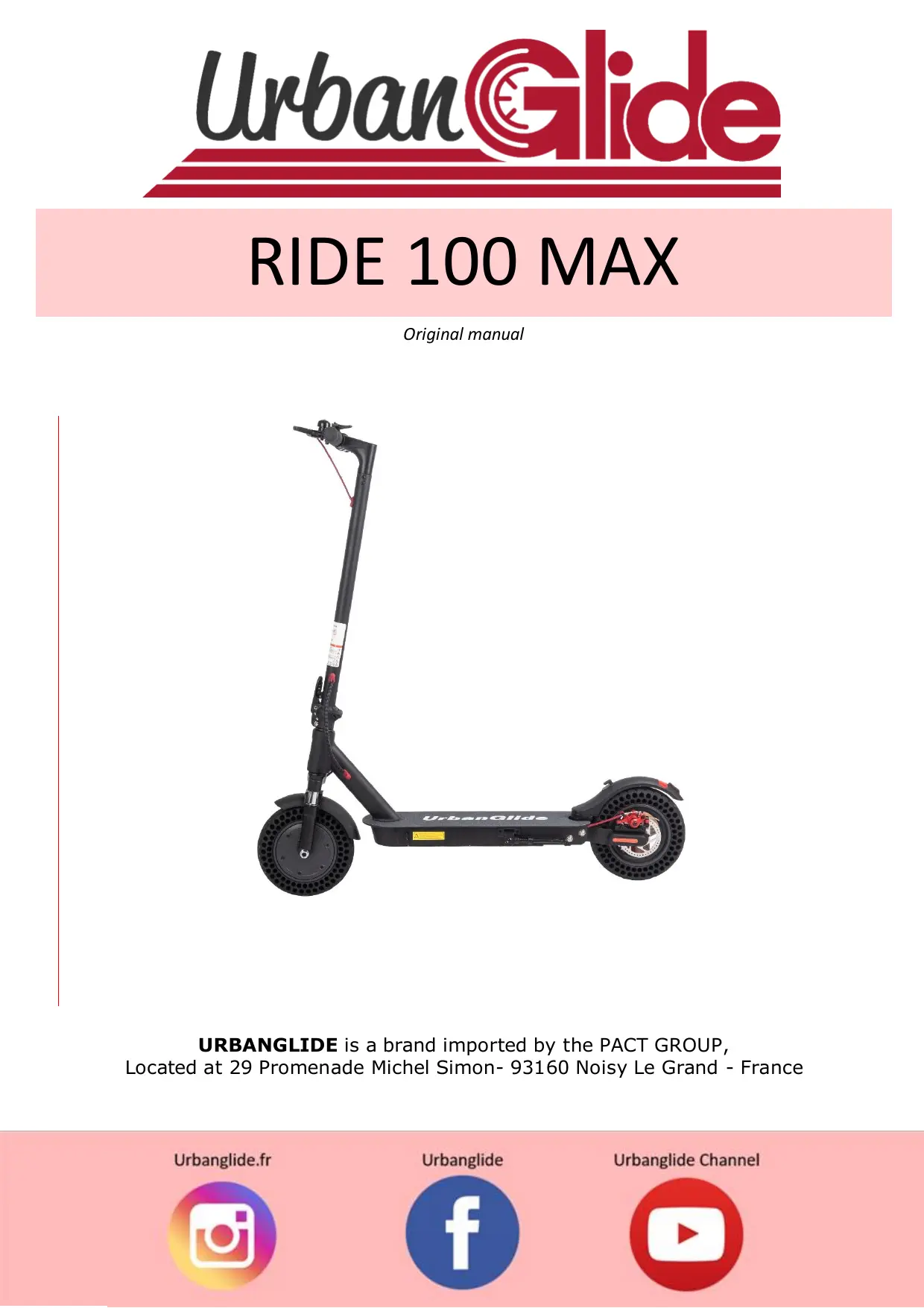

USER MANUAL Ride 100 MAX URBANGLIDE

Safety and precaution Follow and read the instructions in this manual on operating procedures, including ignition, starting, braking, maintenance and storage. Please read the risks and safety advice in the manual. The use of an electrical product can be dangerous if the user is not vigilant. Misuse and non-compliance with safety instructions does not implicate the company in the event of an accident. The user should use self-judgment and common sense to detect potential hazards. Please check your country's regulations and laws to find out where and how to legally use your product. You must obey the rules and laws applicable to vehicles and pedestrians. + Protective equipment Always wear the following protective equipment: Approved and certified helmet according to your location Knee pads and elbow patches Long sleeve t-shirt and long pant Gloves Shoes with rubber soles, never drive in barefoot or sandal. Verify to make the laces made and keep them as far as possible from the wheels and the internal system. + Driver's advice The user must not be more than 120 kg, the size and weight do not fully certify that the user will have full control of the vehicle. Itis your responsibility to make sure that all users are aware of the risks. . This appliance may be used by children aged 14 and over and by persons with reduced physical, sensory or mental capabilities, or lacking experience or knowledge, if they are properly supervised or if they have been instructed in the safe use of the appliance and have understood the risks involved. Children must not play with the unit. Cleaning and maintenance by the user must not be carried out by unsupervised children. It is your responsibility to supervise younger children, considering their skills, maturity and ability to follow the rules. Do not touch the motor or brakes of the product immediately after use, as these parts can be extremely hot. + Security advice Take the time to learn the basics of practice to avoid any serious accidents during the use of the product, this goes through the following points: - The age of the driver must be at least 12 years old, for a pleasant ride the hip of the driver must not exceed the handlebars of the scooter, and his visibility must be at least 30cm above the handlebars. The maximum height of the user must not exceed 2 m. - Get closer to the seller to be directed to an appropriate training organization; - Avoid high traffic areas or congested areas; - In all cases, anticipate your trajectory and speed while respecting the highway code, the pedestrian code and the most vulnerable beings; - Cross the protected passages while walking; - Do not divert the vehicle from its initial use; - Regularly check the tightening of the various bolted elements, in particular the wheel axles, the folding system, the steering system and the brake axle; - Eliminate sharp edges caused by use; - Do not modify or transform the vehicle, including the steering tube and sleeve, the stem, the folding mechanism and the rear brake. Itis your responsibility to operate the electric scooter using good judgment to reduce the risk of injury. Do not operate the electric scooter under the influence of drugs, alcohol or medication that may impair your judgment. Use common sense to detect and avoid hazards that present a risk to you, others and other people's property when operating your electric scooter.

+ Generaluse City traffic involves crossing many obstacles, such as sidewalks or steps. Itis recommended to avoid jumping obstacles. It is important to anticipate and adapt your trajectory and speed to those of a pedestrian before crossing these obstacles. It is also recommended to get out of the vehicle when these obstacles become dangerous due to their shape, height or the risk of skidding they present. In the event of an accident, get to safety and put on a yellow vest to be spotted on the road, turn off the scooter and call the emergency services. The maximum speed of the scooter (25 km/h) may vary depending on the weight of the user, the weather conditions and the inclination of the road. + Proper functioning To operate this scooter adjustment and maintenance before and after each use is necessary, do not expose yourself to any risk when these operations are carried out, wear personal protective equipment and contact the manufacturer in case of questions or doubts, take into account also from any reasonably foreseeable misuse. Any load attached to the handlebars will affect the stability of the vehicle, please do not carry heavy loads or attach accessories or additional items not approved by the manufacturer as this may make driving very unstable. + Procedures and driving conditions Please check the laws and regulations in your country before using the product. In France, the linear speed on flat ground and a person not exceeding the maximum permissible load is 25km/h. Look around when using the product, and pay attention to any potential hazards. It is important to respect everyone's rights and properties. For your safety, do not engage the accelerator if you are not on the product. This product is not designed for performing jumps, stunts and skids. Never drive on roads, near vehicles, stairs, hills, swimming pools or other bodies of water. Please hold the handlebar with both hands. Never mount more than one person on the product. Be sure to keep your fingers and all other parts of the body away from parts that can heat up during use (brake, motor, chain). Never use the product with an audio player, or with your smartphone in your hand. Never use the product to pull something as this will damage the components and wear outthe battery. Never put the product in contact with water, the electrical components may be damaged and create a dangerous situation. Ride only on flat, solid surfaces. Avoid surfaces with gravel, holes, ice, which can cause loss of product control. Do not ride at night or in areas where visibility is reduced. Also, don't ride indoors, where carpets and rugs can get in the way. The A-weighted emission sound pressure level atthe driving position does not exceed 70dB(A). The total value of the vibrations to which the hand-arm system is exposed does not exceed 2.5m/s?, the maximum frequency- weighted mean square value of the acceleration to which the whole body is exposed does not exceed 0.5m/2 (Measurement accuracy uncertain) After each use, check that each partis in its place and that it is not damaged. Before each use, check the following points: - Brakes are in good condition - All components are in good condition and in their places - The parts having presented anomalies during the last use have been repaired or changed according to the manufacturer's conditions. People who have medical monitoring or treatment such as: cardiac people, pregnant women, non-responsible people, people with back or neck problems, should not use the product.

+ __ Usage of the charger Before using the product, it is necessary to charge it. À long charge may be required before first use. Please rely on the light on the battery indicator. It is possible to charge your battery at any time to ensure constant power, it is not necessary to wait until the battery is completely empty to charge it. Use only with PS84B546Y1500S power supply unit. To recharge the battery, use only the detachable power supply unit supplied with the device Please do not use the charger of other brand, these may damage the battery of your product. It is important to charge your battery at least once every 3 months, even if you are not using the product, to ensure a normal life cycle. Avoid shocks and contact with water, these are factors not covered by the warranty that can damage the battery. The charger provided is "intelligent", it is designed to stop at 100% of the charge and not damage the battery. The charger must be in perfect condition each time you use it, check the wires, the condition of the tips and connectors. If the product does not charge, the charger may be faulty, it is then necessary to change it. The charger should only be used by an adult, itis important to unplug it from both sides when not charging. Do not charge your scooter unattended. The charging connector cover must be closed when the scooter is not being charged. The external flexible cable of this transformer cannot be replaced; if the cable is damaged, the transformer should be disposed of. + Battery Please do not store the battery in extreme temperatures. Below 30°C and above 0°C. If you do not use your product for 60-90 days, the battery may be less efficient than when it started. This loss of autonomy is due to lack of use and is therefore not covered by the warranty. Atthe end ofits cycle, the battery must be disposed of separately from undifferentiated generic waste. Dispose of the batteries in the containers provided for this purpose. Collecting and recycling batteries helps to protect the environment and conserve material resources. This product contains a Li-ion battery, any fire must be extinguished using a powder extinguisher (Class D fire) (The battery is subject to wear). This device contains a battery which may only be replaced by qualified personnel.

WARNING: To recharge the battery, use only the removable power supply unit supplied with the unit."

Charger part number (PS84B546Y 1500$). + Maintenance Please store your product in a dry and dust-free place, and avoid leaving it too long in a humid space or under the sun. To clean your device, use a damp cloth and mild detergent. Do not use alcohol, gasoline, kerosene or other harsh chemical solvents to clean your device, which will damage its appearance and structure. Constantiy check the condition of your product components, if any part is damaged, please replace it before using the product. If a partis not in working order, you risk falling and injuring yourself. + Transport If you wish to transport your product, as well as its battery, by plane or by other means of transport, please contact the competent local authorities and the carrier beforehand in order to inform you of any prohibitions and restrictions on transport. Lithium batteries are considered dangerous in many countries. Please ensure before a trip that access and transport is authorised. International law prohibits the air transport of lithium batteries Scooter handling: Always use both hands on the stem to carry and move the scooter safely, wear suitable footwear and check that the locking system is securely locked. + Use ofthe product To turn on your product, press the Power button located on your handlebars. Move the scooter forward with your foot to reach a speed of around 3 km/h, then press the acceleration trigger. The electric system will start up automatically. To brake use the manual brakes located on the handlebars. You can also use the rear mudguard, if your product is equipped with it. Before each use, please check that the wheels are free from obstruction, that the brakes are working. In order to make certain basic adjustments, in particular the play ofthe brake control, come and discover our tutorial videos available on our YouTube channel: URBANGLIDE CHANNEL. The use of this type of product over a long period can cause vibrations which can be unpleasant, take breaks regularly. To warn other users of your presence, use the buzzer located on your handlebars, if your product is equipped with them. Use the front LED to light your way in dark places. When you stop your product, use the stand to stabilize it.

+ Rebut THIS PRODUCT CONTAINS LITHIUM BATTERIES WHICH MUST BE SAFELY RECYCLED : The battery must be removed before disposal. Before any intervention, remember to turn it off and unplug it from the power outlet.

WARNING : As with any mechanical component, a vehicle is subject to high stress and wear. Different materials

and components may react differently to wear or fatigue. If the expected life of a component is exceeded, it may suddenly break and risk injuring the user. Cracks, scratches, and discoloration in high-stress areas indicate that the component has exceeded its life and should be replaced {This scooter is notintended to be used or parked in public places) + Listing of parts subject to wear: Some parts require replacement depending on the degree of wear and tear and the time of use, you can obtain spare parts atthe following address (Section RIDE 100 MAX) https://boutique.urbanglide.com Replacement Accepta pare p: a n Spare parts criteria criteria Replacement method References Loss of original shape, cracks, . : Wheel splinters or other Online video on YouTube p Urbanglide Channel 3700092665060 signs of wear and tear Abnormal noise Drive at 15Km/h Online video on YouTube Disc brake when braking, low Brake on 1m, the : 3700092664797 : Urbanglide Channel thickness (<2.5mm) | scooter must stop. Abnormal noises when braking or Online video on YouTube Brakc d! 3700092664834 rake pacs abnormal rubbing Urbanglide Channel noises Brake cable Fraying cable Online video on YouTube 3700092665015 Urbanglide Channel Reflectives sticker When it comes off Online video on YouTube On request to customer Urbanglide Channel service : ñ . | On request to customer Bearings Abnormal noises Contact our customer servicel 4 service The serial number has the year of manufacture as a prefix on the information label of your product. MMYYYYXXXXXXXXXXXX

Tips for use e Ê 4 S Itis not advisable to drive in When riding on unstable and Get off your scooter when you go the rain or in bad weather impassable terrain, reduce your through a door, lift or stairs. conditions. speed.

For your safety, do not Do not stand on the mudguard Leave both hands on your accelerate on the descents. of your product to avoid scooter when you ride. damaging it.

Do not go up and down any stairs With only your scooter. Do not touch the disc brakes after using your scooter, these parts can be hot after a long ride.

e ( ay. |la CAN OVER It is forbidden to ride on the road with your electric scooter. When turning, slow down to Do not ride in a puddle more avoid any risk of falling. than 2cm high. It is forbidden to ride in pairs on Do not depress the accelerator when Avoid obstacles when your scooter or to ride with a child you are not on the scooter. driving under the age of 14. #e [he Do not hang anything on your scooter that Leave both feet on the tray of your could affect weight distribution and cause scooter. you to fall.

USE The different parts

1 Drive wheel (6 Brake handle 2 Suspension 7 Folding hook 3 Folding system 8 Rear wheel 4 Accelerator fe] Disc brake 5 Screen 10 Stand 11 Button On/Off 12 Load port 13 [Rear suspension

1. Turn off the scooter and put away the handle lever.

2. Press and pull the button on the latch and fold the scooter.

3. Continue to fold until the hook on the handlebars engages in the opening on the mudguard.

4. You can carry your scooter with one or both hands as shown in the diagram below.

To keep your scooter in folded mode, bring the hook on the left side of your handlebars to the hook on the rear mudguard of your scooter.

Unfolding steps To unfold the scooter, first put the scooter on straight and then press the mudguard to release the hook, hold the chainring, lift the handlebars to the stem position and close the folding/unfolding latch. Using the screen Use of the button On/Off :

1. The battery indicator shows the remaining battery level in real

seconds. To turning off the scooter press 2 seconds.

3. Once the scooter is on, press the On/Off button twice to turn on

the front light. Press twice more to turn it off.

5. To change the unit between km and mph, press the On/Off button

3 times. Displays the speed at which you are travelling

D Switching on the front light: To do this, press the button briefly twice. To turn off, repeat the same operation. 3 Speed level: There are 4 speed modes (Walk mode, ECO/D/S), press the button 1 time to switch from one speed mode to another. 4 Error message 5 [Battery level 6 Button On/Off

1. Insert the handlebars into the stem without

2. Fix the handlebars with the 4 screws provided. Use the M3 spanner to

jamming the power cables. un attach the handlebars to your scooter. Make sure it is secure and the handlebars are stable before using your scooter. Stem/brake maintenance

1. If you feel that the brakes are too tight, please use the

M5 hexagonal spanner to loosen the plate screws on the disc brake, slide the brake cable back so that the length is slightly shorter, and then lock the plate screws; If you feel that the brake is too loose, loosen the plate screws, slide the brake cable back so that the length is slightly longer, and then lock the plate screws

2. Ifthe stem of the scooter shakes, please use the M5

hexagonal key to lock the two screws of the folding mechanism.

3. Before adjusting, make sure the scooter is stable and

secure to prevent it from tipping.

ERROR CODE ERROR Description Troubleshooting 4 Connection failure (Check the connection cables, change the controller 10 Failed to communicate (Check the connection between the display and the with the screen controller 11 Engine fault Check the connection between the motor and the controller 14 Throttle defect Check the accelerator connection 15 Brake defect Check the brake connection 16 Engine fault Check the engine connection 21 Battery BMS defect |Check the battery 50 Voltage fault Check the battery 53 System fault Check the controller 55 High controller Check the controller temperature

Troubleshooting The battery is not charged. Connections or cables are disconnected. The battery needs to be charged. The battery is not fully charged. Overload, cut-off Fuse bumnt The brakes are not properly adjusted. Ithas overloaded Bad driving condition. The tires / wheels are damaged.

Charge the battery, check ifthe red light is on. Check that the battery is firmly seated in the product Charge the battery, check ifthe red light is on. Make sure the power cable is well connected. The battery may need to be replaced. Overloading may result in product failure. Turn off the product, wait 15 seconds, then turn iton again. Prior to this, check the condition of all cables and connectors. Check the condition of the brakes and try to loosen. If this does not work, please contactthe after-sales service. Check that the user weighs less than the previously recommended weight. Check that there are no objects obstructing the proper operation of the product. Make sure you are on flat, dry, and constant ground. Check the condition of the wheels of the product.

For any information, contact our after-sales service at the following address: https://urbanglide.com/contact/ You will also find many tutorial videos concerning the maintenance of your product on our YouTube channel: UrbanGlide Channel Finally, do not hesitate to follow us on our social networks Instagram and Facebook to follow our news. You can find the latest update of this manual in digital format by logging on to our website: www.urbanglide.com (Model section concerned). The paper version will be given to you on request from our customer service department. All product names, logos and trademarks are the property of their respective owners. All company, product and service names mentioned in this manual are for identification purposes only. Mention of these names, logos and trademarks is not a recommendation for use. Urbanglide.fr Urbanglide Urbanglide Channel

DECLARATION OF CONFORMITY

1:2012+AC:2014+A11:2014+A13:2017 +A1:2019+A14:2019+A2:2019 EN 61000-3-3:2013+A1:2019 60335-2-29 Alltests were carried out by the laboratories mentioned below: Guangdong UTL Co. Ltd. Lianding Testing Building, No.18 Center Road of Yayuan Industrial Zone, Nancheng District, Dongguan, Guangdong, China. Contact details of the importer: PACT GROUP 29 Promenade Michel Simon 93160 Noisy le Grand — France Contact details of the person authorized to edit the technical document: Fung NIM 29 Promenade Michel Simon 93160 Noisy le Grand - France This declaration shall be issued under the responsibility of his representative. 3/10/2023 Representative of the company: ( x PACT GROUP
