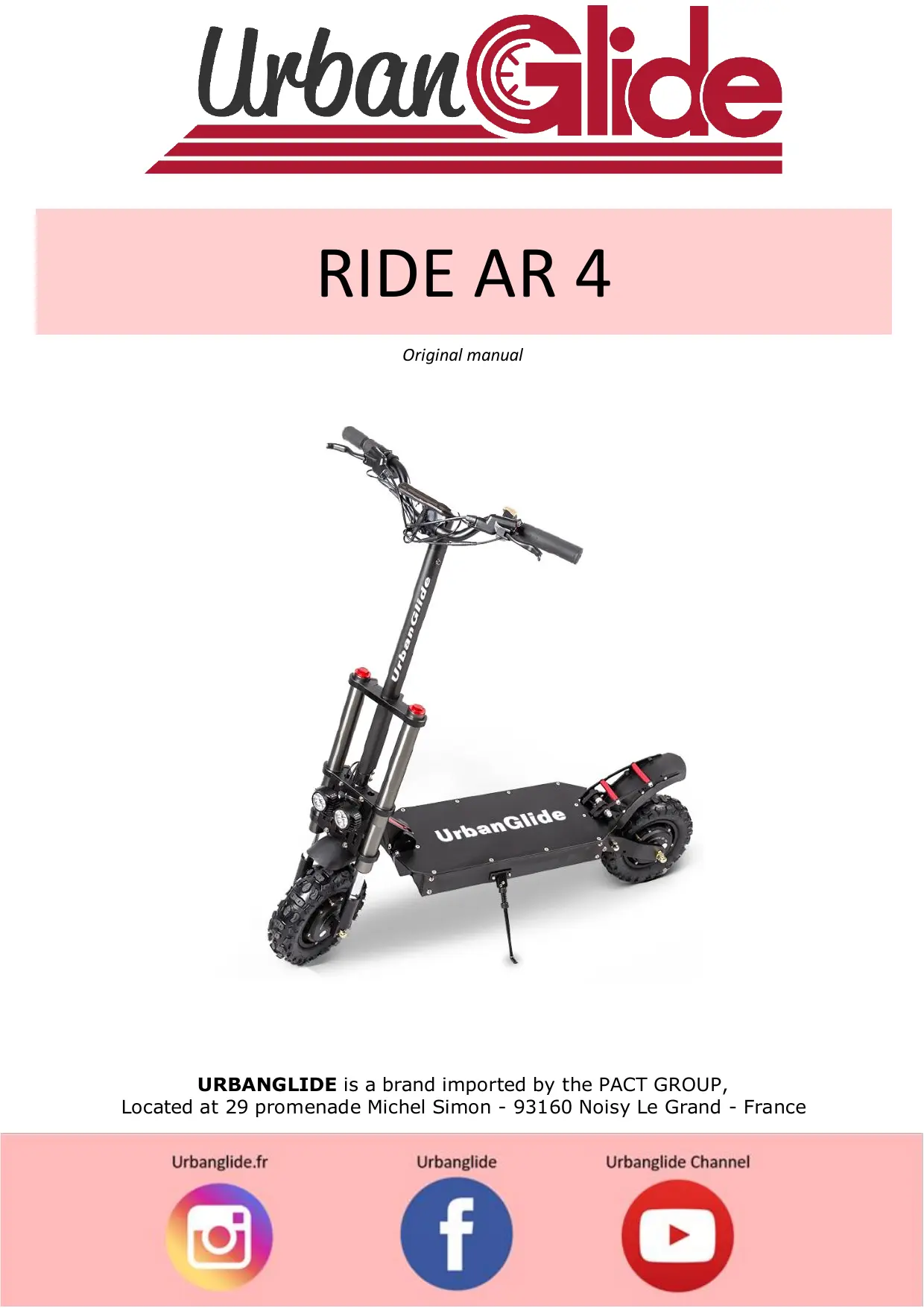

USER MANUAL ALL ROAD 4 URBANGLIDE

Safety and precaution Follow and read the instructions in this manual on operating procedures, including ignition, starting, braking, maintenance and storage. Please read the risks and safety advice in the manual. The use of an electrical product can be dangerous if the user is not vigilant. Misuse and non-compliance with safety instructions does not implicate the company in the event of an accident. The user should use self-judgment and common sense to detect potential hazards. Please check your country's regulations and laws to find out where and how to legally use your product. You must obey the rules and laws applicable to vehicles and pedestrians + Protective equipment Always wear the following protective equipment: Approved and certified helmet according to your location Knee pads and elbow patches Long sleeve t-shirt and long pant Gloves Shoes with rubber soles, never drive in barefoot or sandal. Verify to make the laces made and keep them as far as possible from the wheels and the internal system. + Driver's advice The user must not be more than 120 kg, the size and weight do not fully certify that the user will have full control of the vehicle. Itis your responsibility to make sure that all users are aware of the risks. Itis your responsibility to ensure that all users are fully aware of the risks involved. This appliance may be used by children aged 14 and over and by persons with reduced physical, sensory or mental capabilities, or lacking experience or knowledge, if they are properly supervised or if they have been instructed in the safe use of the appliance and have understood the risks involved. Children must not play with the unit. Cleaning and maintenance by the user must not be carried out by unsupervised children. Itis your responsibility to supervise younger children, considering their skills, maturity and ability to follow the rules. Do not touch the motor or brakes of the product immediately after use, as these parts can be extremely hot. + Security advice Take the time to learn the basics of practice to avoid any serious accidents during the use of the product, this goes through the following points: - The age of the driver must be at least 14 years old, for a pleasant ride the hip of the driver must not exceed the handlebars of the scooter, and his visibility must be at least 30cm above the handlebars. The maximum height of the user must not exceed 2 m. - Get closer to the seller to be directed to an appropriate training organization; - Avoid high traffic areas or congested areas; - In all cases, anticipate your trajectory and speed while respecting the highway code, the pedestrian code and the most vulnerable beings; - Cross the protected passages while walking; - Do not divert the vehicle from its initial use; - Regularly check the tightening of the various bolted elements, in particular the wheel axles, the folding system, the steering system and the brake axle; - Eliminate sharp edges caused by us - Do not modify or transform the vehicle, including the steering tube and sleeve, the stem, the folding mechanism and the rear brake. + Generaluse City traffic involves crossing many obstacles, such as sidewalks or steps. Itis recommended to avoid jumping obstacles. It is important to anticipate and adapt your trajectory and speed to those of a pedestrian before crossing these obstacles. It is also recommended to get out of the vehicle when these obstacles become dangerous due to their shape, height or the risk of skidding they present. In the event of an accident, get to safety and put on a yellow vest to be spotted on the road, turn off the scooter and call the emergency services. The maximum speed of the scooter (25 km/h | 15 mph) may vary depending on the weight of the user, the weather conditions and the inclination ofthe road.

Itis your responsibility to operate the electric scooter using good judgment to reduce the risk of injury. Do not operate the electric scooter under the influence of drugs, alcohol or medication that may impair your judgment. Use common sense to detect and avoid hazards that present a risk to you, others and other people's property when operating your electric scooter. + Proper functioning To operate this scooter adjustment and maintenance before and after each use is necessary, do not expose yourself to any risk when these operations are carried out, wear personal protective equipment and contact the manufacturer in case of questions or doubts, take into account also from any reasonably foreseeable misuse. Any load attached to the handlebars will affect the stability of the vehicle, please do not carry heavy loads or attach accessories or additional items not approved by the manufacturer as this may make driving very unstable + Procedures and driving conditions Please check the laws and regulations in your country before using the product. In France, the linear speed on flat ground and a person not exceeding the maximum permissible load is 25km/h. Look around when using the product, and pay attention to any potential hazards. Itis important to respect everyone's rights and properties. For your safety, do not engage the accelerator if you are not on the product. This product is not designed for performing jumps, stunts and skids. Never drive on roads, near vehicles, stairs, hills, swimming pools or other bodies of water. Please hold the handlebar with both hands. Never mount more than one person on the product. Be sure to keep your fingers and all other parts of the body away from parts that can heat up during use (brake, motor, chain). Never use the product with an audio player, or with your smartphone in your hand. Never use the product to pull something as this will damage the components and wear out the battery. Never put the product in contact with water, the electrical components may be damaged and create a dangerous situation. Ride only on flat, solid surfaces. Avoid surfaces with gravel, holes, ice, which can cause loss of product control. Do not ride at night or in areas where visibility is reduced. Also, don't ride indoors, where carpets and rugs can get in the way. The A-weighted emission sound pressure level at the driving position does not exceed 70dB(A). The total value of the vibrations to which the hand-arm system is exposed does not exceed 2.5m/s?, the maximum frequency-weighted mean square value of the acceleration to which the whole body is exposed does not exceed 0.5m/. (Measurement accuracy uncertain) After each use, check that each part is in its place and that itis not damaged. Before each use, check the following points: - Brakes are in good condition - All components are in good condition and in their places - The parts having presented anomalies during the last use have been repaired or changed according to the manufacturer's conditions. - The maximum tire inflation pressure is 6.40 bars. People who have medical monitoring or treatment such as: cardiac people, pregnant women, non- responsible people, people with back or neck problems, should not use the product. + __ Usage of the charger Before using the product, it is necessary to charge it. A long charge may be required before first use. Please rely on the light on the battery indicator. It is possible to charge your battery at any time to ensure constant power, it is not necessary to wait until the battery is completely empty to charge it Use only with XVE 126-6720175 power supply unit. To recharge the battery, use only the detachable power supply unit supplied with the device. Please do not use the charger of other brand, these may damage the battery of your product. Itis important to charge your battery at least once every 3 months, even if you are not using the product, to ensure a normal life cycle. Avoid shocks and contact with water, these are factors not covered by the warranty that can damage the battery. The charger provided is "intelligent", it is designed to stop at 100% of the charge and not damage the battery. The charger must be in perfect condition each time you use it, check the wires, the condition of the tips and connectors. Ifthe product does not charge, the charger may be faulty, itis then necessary to change it. The charger should only be used by an adult, itis important to unplug it from both sides when not charging. Do not charge your scooter unattended. The charging connector cover must be closed when the scooter is not being charged. The external flexible cable of this transformer cannot be replaced; if the cable is damaged, the transformer should be disposed of.

+ Battery Please do not store the battery in extreme temperatures. Below 30°C and above 0°C. If you do not use your product for 60-90 days, the battery may be less efficient than when it started. This loss of autonomy is due to lack of use and is therefore not covered by the warranty. Atthe end of its cycle, the battery must be disposed of separately from undifferentiated generic waste. Dispose of the batteries in the containers provided for this purpose. Collecting and recycling batteries helps to protect the environment and conserve material resources. This product contains à Li-ion battery, any fire must be extinguished using a powder extinguisher (Class D fire) (The battery is subject to wear). This device contains a battery which may only be replaced by qualified personnel.

WARNING: To recharge the patery. use only the removable power supply unit supplied with the unit."

Charger part aumber KVE 126-6720175). + Maintenance Please store your product in a dry and dust-free place, and avoid leaving it too long in a humid space or under the sun. To clean your device, use à damp cloth and mild detergent. Do not use alcohol, gasoline, kerosene or other harsh chemical solvents to clean your device, which will damage its appearance and structure. Constantly check the condition of your product components, if any part is damaged, please replace it before using the product. If a partis not in working order, you risk falling and injuring yourself. + Transport If you wish to transport your product, as well as its battery, by plane or by other means of transport, please contact the competent local authorities and the carrier beforehand in order to inform you of any prohibitions and restrictions on transport. Lithium batteries are considered dangerous in many countries. Please ensure before a trip that access and transport is authorised. International law prohibits the air transport of lithium batteries. Scooter handling: Always use both hands on the stem to carry and move the scooter safely, wear suitable footwear and check that the locking system is securely locked. + Use ofthe product To turn on your product, press the Power button located on your handlebars. . Move the scooter forward with your foot to reach a speed of around 3 km/h, then press the acceleration trigger. The electric system will start up automatically. To brake use the manual brakes located on the handlebars. You can also use the rear mudguard, if your product is equipped with it. Before each use, please check that the wheels are free from obstruction, that the brakes are working. In order to make certain basic adjustments, in particular the play of the brake control, come and discover our tutorial videos available on our YouTube channel: URBANGLIDE CHANNEL. The use of this type of product over a long period can cause vibrations which can be unpleasant, take breaks regularly. To warn other users of your presence, use the buzzer located on your handlebars, if your product is equipped with them. Use the front LED to light your way in dark places. When you stop your product, use the stand to stabilize it. + Scrap THIS PRODUCT CONTAINS LITHIUM BATTERIES WHICH MUST BE SAFELY RECYCLED : The battery must be removed before disposal. Before any intervention, remember to turn it off and unplug it from the power outlet.

WARNING : As with any mechanical component, a vehicle is subject to high stress and wear.

Different materials and components may react differently to wear or fatigue. If the expected life of a component is exceeded, it may suddenly break and risk injuring the user. Cracks, scratches, and discoloration in high-stress areas indicate that the component has exceeded its life and should be replaced. {This scooter is notintended to be used or parked in public places)

+ List of parts subject to wear : Some parts require replacement depending on the degree of wear and its usage time, you can obtain spare parts atthe following address (Section ALLROAD 4) : https://boutique.urbanglide.com Spare parts Replacement Acceptability Replacement method References criteria criteria Loss of original . shape, cracks, Online video on YouTube Tire splinters or other : On request to the : Urbanglide Channel à signs of wear and customer service tear Abnormal noise Drive at 15Km/h : : / Online video on YouTube Disc brake when braking, low Brake on 1m, the : : Urbanglide Channel thickness (<2.5mm) | scooter must stop. Abnormal noises On request to the Brak when braking or Online video on YouTube customer service rare abnormal rubbing Urbanglide Channel noises : Online video on YouTube Brake cable Fraying cable Urbanglide Channel On request to customer service Reflectives sticker When it comes off Online video on YouTube | On request to customer Urbanglide Channel service Bearings Abnormal noises (Contact our customer service] on request in customer The serial number has the year of manufacture as a prefix located on the information label of your product.

It is not advisable to drive in When riding on unstable and Get off your scooter when you go the rain or in bad weather impassable terrain, reduce your through a door, lift or stairs. conditions. speed. For your safety, do not Do not stand on the mudguard Leave both hands on your accelerate on the descents. of your product to avoid scooter when you ride. damaging it. (e)

Do not touch the disc brakes after using your scooter, these parts can be hot after a long ride. Do not go up and down any stairs with only your scooter.

- A It is forbidden to ride on the ù . When turning, slow down to Do not ride in a puddle more road with your electric avoid any risk of falling. than 2cm high. scooter. | : Ë It is forbidden to ride in pairs on Do not depress the accelerator Avoid obstacles when your scooter or to ride with a child when you are not on the scooter. driving under the age of 14. ; . | | z Do not hang anything on your scooter that Leave both feet on the tray of your could affect weight distribution and cause scooter. you to fall.

The different parts Front drive wheel 7 Buton Front light 8 Brake handle Front suspension 9 Foctrest Screen 10° Rear drive wheel Brake handle 11 Crutch Accelerator 12 Charging port

Front light Speed Voltage Km travelled Speed level Battery level

Turn the key to turn on your product. Select the desired speed level. There are 3 speed modes. Press this button to activate/deactivate the dual motor Turn your lights on and off with this button Horn

Load and power supply Remove the rubber cap, insert the charger into the charging port of your scooter. Once loaded, put the cap back in place and make sure it is secure and waterproof.

When loading your scooter make sure that the loading port is in good condition and that no residue is trapped inside. If this is the case, clean it with a dry cloth. Use the charger supplied with the product, and only this charger. If you have lost your charger, orif it is faulty, contact the Urbanglide support. Once the charger displays a green light, unplug your product. Do not leave the charger plugged in for too long after charging is complete. e@ Your device is charging. Please wait until the colour changes. e When the LED is green then your device is charged, unplug it and also disconnect the charger from its power source.

Troubleshooting Charge your battery and check that your The battery is not charged charger shows a red light. The connection cables are Check that all cables are securely connected disconnected. and that none of them are damaged. The battery needs to be Charge your battery and check that your recharged charger displays a red light correctly. Check that the motor cable is properly The battery is not fully connected. charged The battery may need to be replaced. Overloading may cause the product to fail. Overload/Cut Please turn off the product, wait 15 seconds, and then turn it back on. À fuse dropped Start by checking the status of all cables first. Check the condition of the brakes and try to Brakes are not properly release them. If this does not solve the adjusted problem, please contact the after-sales service. Check if the user weighs less than the previously recommended weight. Also make sure that no object interferes with the proper functioning of the product. The product is overloaded You use your product in Make sure you are on flat, dry and stable inappropriate conditions ground. Wheels and tires are Check the condition ofthe product's damaged wheels.

For any information, contact our after-sales service at the following address: Https://urbanglide.com/contact/ You will also find many tutorial videos concerning the maintenance of your product on our YouTube channel: UrbanGlide Channel Finally, do not hesitate to follow us on our social networks Instagram and Facebook to follow our news. You can find the latest update of this manual in digital format by logging on to our website: www.urbanglide.com (Model section concerned). The paper version will be given to you on request from our customer service department. All product names, logos and trademarks are the property of their respective owners. All company, product and service names mentioned in this manual are for identification purposes only. Mention of these names, logos and trademarks is not a recommendation for use. Urbanglide.fr Urbanglide Urbanglide Channel
