TT 93 E B625C - Refrigerator VALBERG - Free user manual and instructions

Product type	Refrigerator
Brand	VALBERG
Model	TT 93 E B625C
Climate class	SN, N, ST, T (from +10°C to +43°C)
Power supply	220-240 V ~ 50 Hz
Defrost type	Manual (natural)
Interior light	Incandescent bulb max 10 W, user-replaceable
Temperature setting	Rotary thermostat (MIN, MED, MAX, OFF)
Compartments	Adjustable glass shelves, vegetable crisper, door balconies, drip tray
Door reversibility	Yes (right to left conversion possible)
Adjustable feet	Yes (leveling)
Included accessories	Drip tray, shelves, vegetable crisper, balconies
Maintenance	Interior cleaning with baking soda, natural defrosting, regular cleaning of seal and condenser
Safety	Disconnect before cleaning or bulb replacement; do not use abrasive products or solvents
Warranty	2 years (upon presentation of receipt)
Additional information	Product distributed by ELECTRO DEPOT; brand HIGHONE

Frequently Asked Questions - TT 93 E B625C VALBERG

How to set the refrigerator temperature?

Turn the temperature control knob to MAX for more cooling or to MIN for less cooling. The recommended position is MED. The OFF setting turns the appliance off.

What to do if the refrigerator does not work?

First check that the appliance is plugged in and the voltage is not too low. Make sure there is no power outage or tripped circuit breaker. If the problem persists, contact customer service.

How to clean the inside of the refrigerator?

Unplug the appliance and remove all food. Use a soft cloth or sponge with a solution of two tablespoons of baking soda in one liter of hot water. Rinse and wipe dry. Do not use soap, abrasive detergent, or solvent.

How to defrost?

Turn off the refrigerator and remove food. Let the frost melt naturally at room temperature or use a plastic scraper. You can speed it up with hot water, but wipe thoroughly afterwards. Do not use metal objects.

What to do if the bulb does not light?

Unplug the appliance, remove the bulb cover, and unscrew the old bulb. Replace it with a new one of 10 W maximum (incandescent). Replace the cover and plug back in.

How to reverse the door opening direction?

Unplug the appliance and remove items from the balconies. Remove the top hinge, then the door, then the lower hinge. Reinstall the hinges on the opposite side and attach the door stop. See the manual for detailed steps.

Why does the compressor run for a long time?

This is normal in summer or when the ambient temperature is high. Avoid overloading the appliance, let hot food cool before placing it, and limit door openings.

What to do if water accumulates in the tray?

Regularly empty the drip tray to prevent overflow. Ensure the doors close properly and that defrosting does not generate too much water. If the problem persists, check the drain tube.

How to level the refrigerator?

Turn the leveling feet clockwise to raise, or counterclockwise to lower. Adjust until the appliance is stable and level.

What cleaning products to use?

Use mild soapy water or diluted detergent. Avoid abrasive products, steel wool, solvents (alcohol, acetone), and boiling water. For exterior surfaces, a damp cloth is sufficient.

USER MANUAL TT 93 E B625C VALBERG

Thank you for choosing this HIGHONE product. HIGHONE products are chosen, tested, and recommended by ELECTRO DEPOT, so you can be sure you are getting a top-quality, easy-to-use product that won't let you down.

We're confident your new device will be a pleasure to use every day!

Welcome to ELECTRO DEPOT.

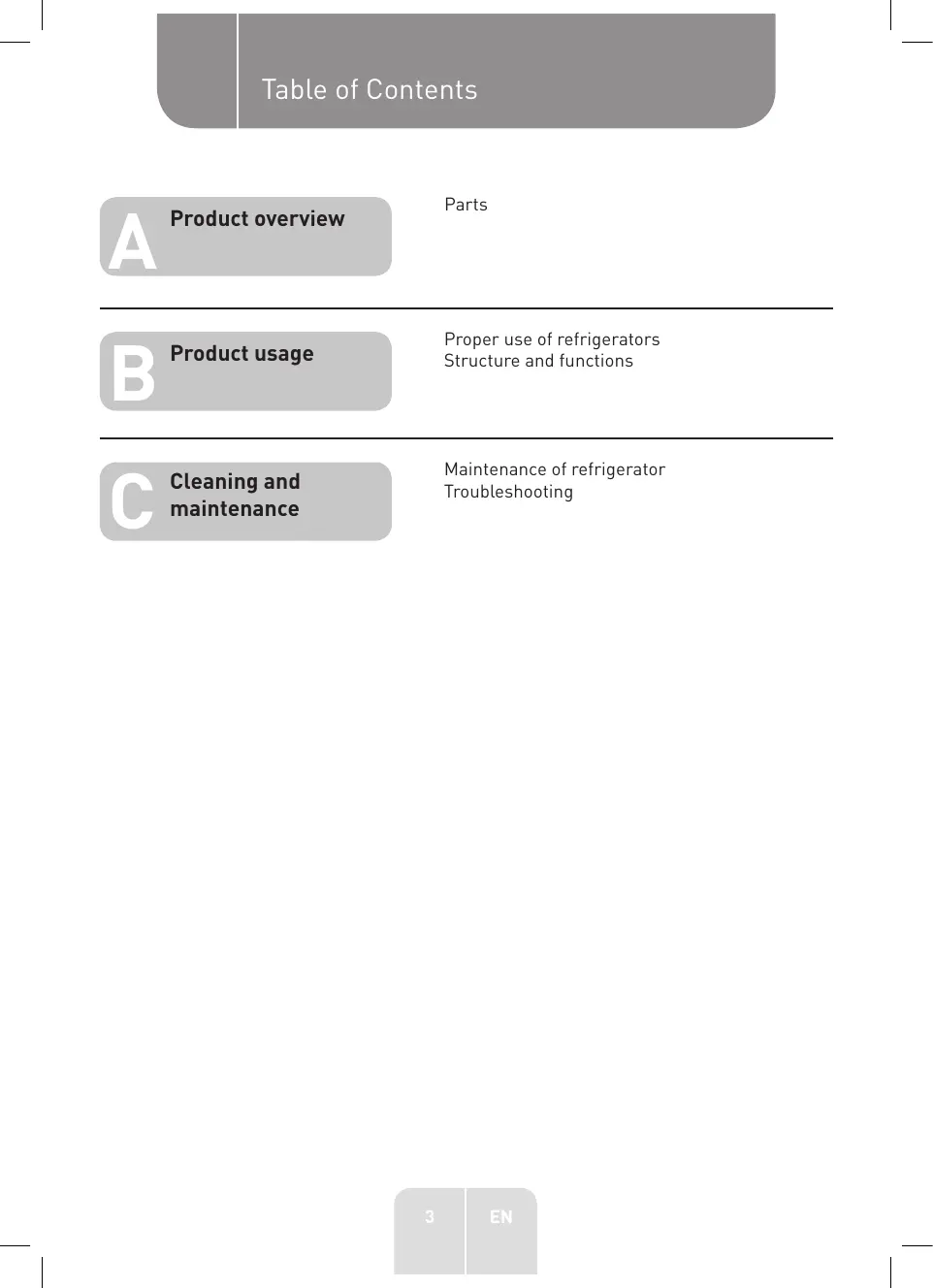

Table of Contents

A Product overview

Parts

B Product usage

Proper use of refrigerators Structure and functions

Cleaning and maintenance

Maintenance of refrigerator Troubleshooting

A Product overview

Parts

A Little door

E Shelf

B Drain tray

Fruit and vegetable box

Lamp

Fence

Temperature control knob

The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor.

Proper use of refrigerators

Placement

Before use, remove all packing materials, including bottom cushions, foam pads and tapes inside of the refrigerator; tear off the protective film on the doors and the refrigerator body.

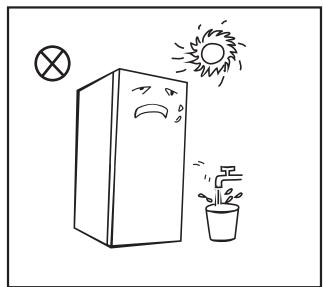

• Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or watery places to prevent rust or reduction of insulating effect.
• Do not spray or wash the refrigerator; do not put the refrigerator in moist places easy to be splashed with water so as not to affect the electrical insulation properties of the refrigerator.

• The refrigerator is placed in a well-ventilated indoor place; the ground shall be flat, and sturdy (rotate left or right to adjust the wheel for levelling if unstable).

• The top space of the refrigerator shall be greater than 30 cm, and the refrigerator should be placed against a wall with a free distance more than 10 cm to facilitate heat dissipation.

Precautions before installation:

• Information in the Instruction Manual is only for reference. The physical product may differ. Before installation and adjusting of accessories, it shall be ensured that the refrigerator is disconnected from power.
• Precautions shall be taken to prevent fall of the handle from causing any personal injury.

Levelling feet

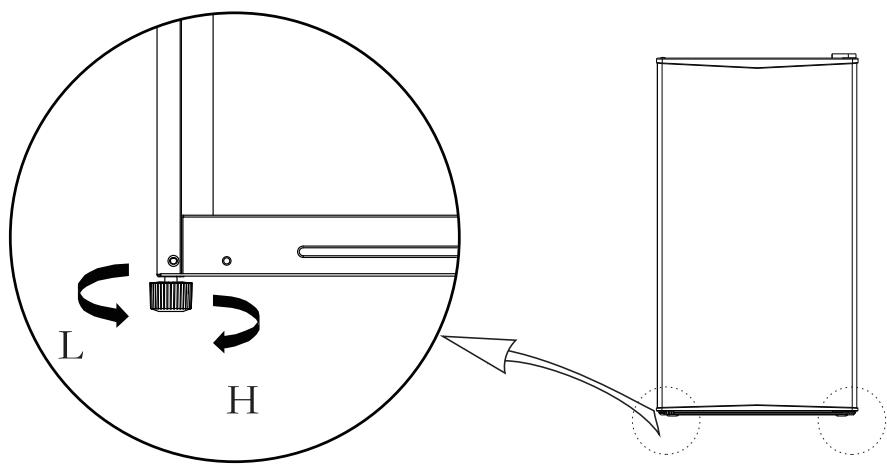

1. Schematic diagram of the levelling feet

The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor.

1. Adjusting procedures:

a. Turn the feet clockwise to raise the refrigerator; b. Turn the feet counterclockwise to lower the refrigerator; c. Adjust the right and left feet based on the procedures above to a horizontal level.

Door right-left change

List of tools to be provided by the user
	Cross screwdriver		Putty knife thin-blade screwdriver
	5/16" socket spanner		Masking tape

1. Power off the refrigerator, and remove all objects from the door trays.
2. Fix the door with tape.

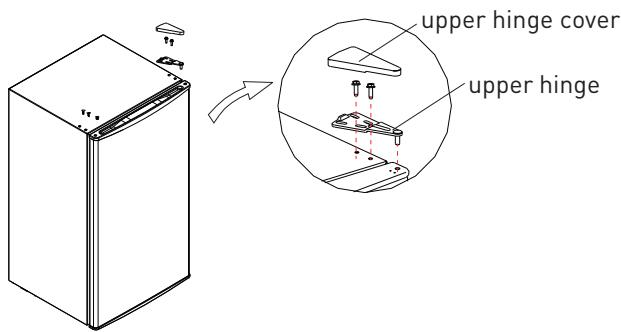

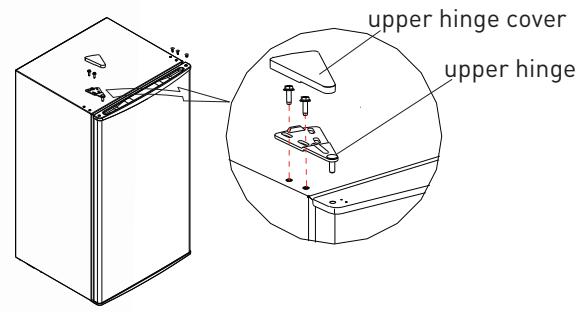

1. Dismantle the upper hinge cover, screws and upper hinge, and remove the plastic screw hole caps from the other side

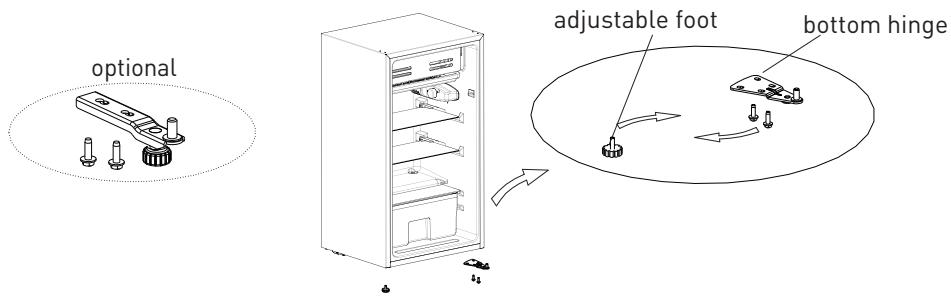

1. Dismantle the door and the bottom hinge assembly and adjustable foot, then assemble the bottom hinge assembly and adjustable foot on other side.

B Product usage

1. Dismantle the stopper under the door, then assemble the stopper on the other side. Put the door on bottom hinge and assemble the upper hinge, upper hinge cover and plastic screw hole caps successively.

The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor.

Changing the light (optional)

This product contains a light source exempted of energy efficiency class. Light source in this product can be replaced by the end user. - Please unplug the appliance before any light source change operation. - The light source shall be removed at the end of the product's useful life, with sorting and recycling done separately.

Replacement of incandescent lamps:

• Disconnect the power supply before carrying out the bulb replacement.

B Product usage

• Hold and remove the light bulb cover.
• Dismantle the old bulb by unscrewing it counterclockwise. Replace with a new bulb (Max. 10W) by screwing it clockwise, and make sure it is fixed in the bulb holder tightly.
• Reassemble the light cover and re-connect your fridge to the power supply.

Above is only for reference. The actual configuration will depend on the physical product or statement by the distributor.

Starting to use

• Before initial start, keep the refrigerator still for half an hour before connecting it to power supply.
• Before putting any fresh or frozen foods, the refrigerator shall have run for 2-3 hours, or for above 4 hours in summer when the ambient temperature is high.

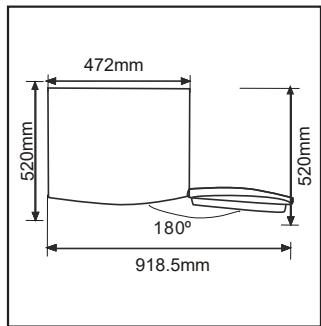

• Spare enough space for convenient opening of the doors and drawers or statement by the distributor.

Energy saving tips

• The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.

B Product usage

• Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
• Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance.
• Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the appliance less efficient.
• Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

Structure and functions

Refrigerating chamber

• The refrigerating chamber is suitable for storage of a variety of fruits, vegetables, beverages and other food consumed in the short term. Suggested storage time 3 days to 5 days. It is the most energy efficient to place food in the position.
• Cooking foods shall not be put in the refrigerating chamber until cooled to room temperature.
• Foods are recommended to be sealed up before putting into the refrigerator. The glass shelves can be adjusted up or down for a proper storage space and easy use.
• Drain tray is used for receiving water when defrosting.
• Please empty the water in the drain tray regularly in case the water overflowing into the cabinet.

Note: Storage of too much food during operation after the initial connection to power may adversely affect the freezing effect of the refrigerator. Foods stored shall not block the air outlet; or otherwise the freezing effect will also be adversely affected.

Functions

The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor.

The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor.

• Turn the temperature control knob to MAX, the internal temperature of the refrigerator becomes lower.
• Turn the temperature control knob to MIN, the internal temperature of the refrigerator becomes higher.
• The letter on the knob only represents the level, but does not mean the specific temperature, the «OFF» means stop working. Recommended gear: "MED"

NOTE: Please adjusting and using between "MAX" and "MIN".

Thermostat setting for ambient T°C :NORMAL +24°C (± 4°C)

Thermostat setting for ambient T°C : COLD +16°C (± 4°C)

Thermostat setting for ambient T°C : HOT +32°C (± 4°C)

Maintenance of refrigerator

Cleaning

• Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving.
• Check the door gasket regularly to make sure there are no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent.
• The interior of the refrigerator should be cleaned regularly to avoid odor.
• Please turn off the power before cleaning interior, remove all foods, drinks, shelves drawers, etc.
• Use a soft cloth or sponge to clean the inside of the refrigerator, with two tablespoons of baking soda and a quart of warm water. Then rinse with water and wipe clean. After cleaning, open the door and let it dry naturally before turning on the power.
• For areas that are difficult to clean in the refrigerator (such as narrow sandwiches, gaps or corners), it is recommended to wipe them regularly with a soft rag, softbrush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminants or bacterials accumulation in these areas.
• Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of the refrigerator or contaminated food.
• Clean the bottle frame, shelves, and drawers with a soft cloth dampened with soapy water or diluted detergent. Dry with a soft cloth or let them dry naturally.
• Wipe the outer surface of the refrigerator with a soft cloth dampened with soapy water, detergent, etc., and then wipe dry.
• Do not use hard brushes, steel wool, wire brushes, abrasives (such as toothpaste), organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, or acidic or alkaline items, as these may damage the surface and interior of the refrigerator. Boiling

C Cleaning and maintenance

water and organic solvents such as benzene may deform or damage plastic parts.

• Do not rinse directly with water or other liquids during cleaning to avoid short circuits or affect electrical insulation after immersion.

WARNING!

• Please unplug the refrigerator for defrosting and cleaning.

Defrost

• Power off the refrigerator.
• Remove the food from the refrigerator and place it properly to prevent food from melting.
• Clear the drain pipe (use soft materials to prevent damage to the liner), and prepare water containers for defrosting. (Pay attention to cleaning the compressor compartment water draining tray to avoid overflow to the ground).
• You can use natural temperature for natural defrosting, or you can use an ice scraper to remove frost (use a plastic or wooden ice scraper to avoid damaging the liner or pipes).
• You can also use an appropriate amount of hot water to speed up defrosting, and dry the water with a dry towel after defrosting.
• After defrosting, put the food back in the cabinet and power on the refrigerator.

Stop using

• Power failure: In case of power failure, even if it is in summer, foods inside the appliance can be kept for several hours; during

the power failure, the times of door opening shall be reduced, and no more fresh food shall be put into the appliance.

• Long-time nonuse: The appliance shall be unplugged and then cleaned; then the doors are left open to prevent odor.
• Moving: Before the refrigerator is moved, take all objects inside out, fix the glass partitions, vegetable holder, freezing chamber drawers and etc. with tape, and tighten the leveling feet; close the doors and seal them with tape. During moving, the appliance shall not be laid upside down or horizontally, or be vibrated; the inclination during movement shall be no more than 45°.

• The appliance shall run continuously once it is started. Generally, the operation of the appliance shall not be interrupted; or otherwise the service life may be impaired.

Troubleshooting

You may try to solve the following simple problems by yourself. If they cannot be solved, please contact the after-sales department.

Problem	Solution
Failed operation	·Check whether the appliance is connected to power or whether the plug is in well contact ·Check whether the voltage is too low ·Check whether there is a power failure or partial circuits have tripped
Odor	·Odorous foods shall be tightly wrapped ·Check whether there is any rotten food ·Clean the inside of the refrigerator
Long-time operation of the compressor	·Long operation of the refrigerator is normal in summer when the ambient temperature is high ·It is not suggestible having too much food in the appliance at the same time ·Food shall get cool before being put into the appliance ·The doors are opened too frequently
Light fails to get lit	·Check whether the refrigerator is connected to power supply and whether the illuminating light is damaged ·Have the light replaced by a specialist
Doors cannot be properly closed	·The door is stuck by food packages ·Too much food is placed ·The refrigerator is tilted
Loud noise	·Check whether the floor is level and whether the refrigerator is placed stably ·Check whether accessories are placed at proper locations
Door seal fails to be tight	·Remove foreign matters on the door seal ·Heat the door seal and then cool it for restoration (or blow it with an electrical drier or use a hot towel for heating)
Water pan overflows	·There is too much food in the chamber or food stored contains too much water, resulting in heavy defrosting ·The doors are not closed properly, resulting in frosting due to entry of air and increased water due to defrosting
Hot housing	·Heat dissipation of the built-in condenser via the housing, which is normal ·When housing becomes hot due to high ambient temperature, storage of tpp much food or shutdown of the compressor is shut down, provide sound ventilation to facilitate heat dissipation
Surface condensation	·Condensation on the exterior surface and door seals of the refrigerator si normal when the ambient humidity is too high. Just wipe the condensate with a clean towel.
Abnormal noise	·Buzz: The compressor may produce buzzes during operation, and the buzzes are loud particularly upon start or stop. This is normal. ·Creak: Refrigerant flowing inside of the appliance may produce creak, which is normal.

Table 1 Climate classes

Class	Symbol	Ambient temperature range
Extended temperate	SN	+ 10 to + 32
Temperate	N	+ 16 to + 32
Subtropical	ST	+ 16 to + 38
Tropical	T	+ 16 to + 43

Extended temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 10°C to 32°C;

Temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 32°C;

Subtropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 38°C;

Tropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 43°C;

This product is guaranteed against faults caused by defects in manufacturing or the materials used for a period of two years, starting from the date of purchase.* This warranty does not cover defects or damage caused by failure to install the device correctly, incorrect use of the product, or excessive wear and tear.

*Proof of purchase required.

WARRANTY CONDITIONS
