USER MANUAL SILK EPIL 9 SES 9-030 BRAUN

Stapled booklet, 148 x 210 mm, 28 pages (incl. 8 pages cover), 2/2c = black + Pantone 876 U

English 5 Thank you for purchasing a Braun product. We hope you are completely satisfied with Français 11 your new Braun Silk-épil. L If you have any questions, please visit Español 17 www.service.braun.com or call: US residents 1-800-BRAUN-11

TC) on = —\ÿ | Tr) of

Business Us: P&G'AUTHORIZED POA-00109238 Rev 001 Effective Date 2019-02-15 Printed 2020-02-06 Plge 40f28

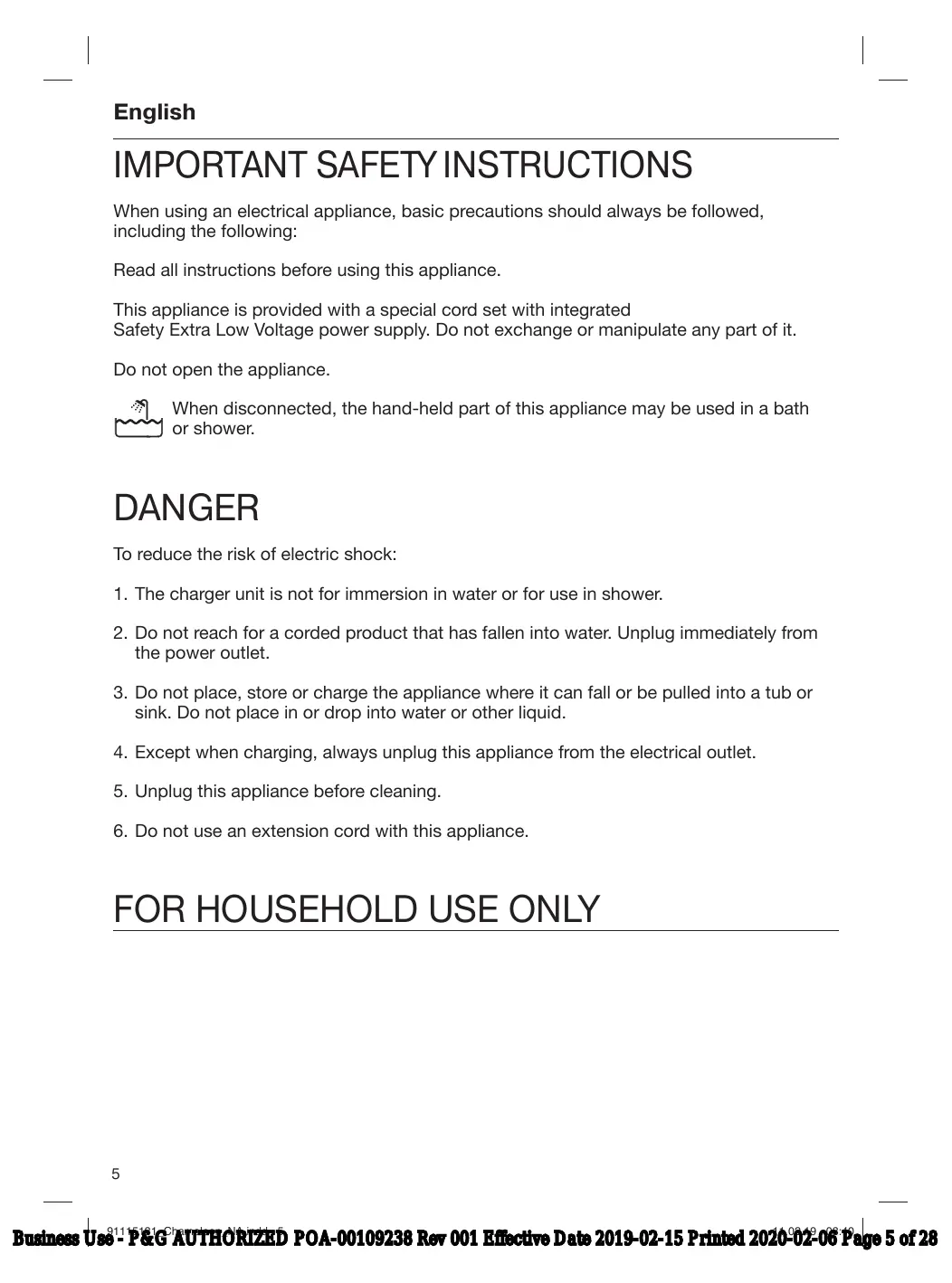

IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following:

Read all instructions before using this appliance.

This appliance is provided with a special cord set with integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it.

Do not open the appliance.

da When disconnected, the hand-held part of this appliance may be used in a bath

DANGER To reduce the risk of electric shock: 1. The charger unit is not for immersion in water or for use in shower.

2. Do not reach for a corded product that has fallen into water. Unplug immediately from the power outlet.

3. Do not place, store or charge the appliance where it can fall or be pulled into a tub or sink. Do not place in or drop into water or other liquid.

4. Except when charging, always unplug this appliance from the electrical outlet. 5. Unplug this appliance before cleaning.

6. Do not use an extension cord with this appliance.

FOR HOUSEHOLD USE ONLY

Business Usé: P&G AUTHORIZED POA-00109238 Rev 001 Effective Date 2019-02-15 Printed 2020-02-06 Page 50f28

WARNING To reduce the risk of burns, fire, electric shock, or injury to persons:

1. Close supervision is necessary when this appliance is used by, on, or near children or persons with disabilities.

2. Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.

8. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or if the power supply has been dropped into water. Return the appliance to a service center for examination and repair.

4. Keep the cord away from heated surfaces. 5. Never drop or insert any object into any opening.

6. Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.

7. Do not use this appliance with a damaged or broken foil, as serious skin injuries may occur.

8. Always attach plug to appliance first, then to outlet. To disconnect, turn all controls to «off», then remove plug from outlet.

9. When plugging to an electrical outlet outside the USA, use a plug adapter to match the outlet’s pin configuration.

10. Caution: The battery used in this device may present a fire or chemical burn hazard if mistreated. Do not disassemble, heat above 100 °C (212 ‘F) or incinerate.

11. To recharge the battery, only use the detachable power supply provided with this appliance. Braun power supply, type #£3—{492}C.

SAVE THESE INSTRUCTIONS

Business|U )"P&G'AUTHORIZED POA-00109238 Rev 001 Effective Date 2019-02-15 Printed 2020:62:06 Pig 60f28

+ This appliance is intended for household use only.

+ For hygienic reasons, do not share this appliance with other persons.

+ When switched on, the appliance must never come in contact with the hair on your head, eyela- shes, ribbons, etc. to prevent any danger of injury as well as to prevent blockage or damage to the appliance.

ia High-frequency massage cap 1b_ Skin contact cap 2 Epilation head Smart / SensoSmart"* light 4 Power button 5 Speed button 6 Charginglight 7 Release button 8 Power supply 9 Precision cap 10 Trimmer comb (3 mm) 11. Shaver head 12 Brush adapter 13 Exfoliation brush with protective cap* 14 Deep massage pad *

* not with all models

Power button Press the power button (4) to turn the appliance on and off.

When it is switched on, the Smart light (8) shines to provide good visibility of fine hairs.

SensoSmart”" pressure control (E)

When you apply too much pressure while epilating, the SensoSmart"“ light turns red. This function has been developed to provide best results when using the massage cap (1a). To activate it, press and hold the power button (4) until the white and red flashes stop (10 seconds). Proceed the same way to disable this function.

Travel lock (D) To activate the travel lock, press the power button

3 seconds until a beep confirms successful activation. To unlock the device, press the power button again 3 seconds. Release the power button, when the appliance starts running. Unlocking can also be done via charging.

Speed button Press the speed button (5) to switch between Speed Il: power mode (default) and Speed I: gentle mode

How to replace heads Turn offthe appliance, press the release button (7) and take off the head. Click-on a different one.

Before use, charge the appliance for 2 hours using the power supply (8).

Charging light (6) Flashing white: charging in progress White for 5 seconds: _fully charged

Yellow: approx. 15 min charge left Flashing yellow: please recharge

Operation time is up to 50 minutes when used within 24 hours after charging. Recharge when the yellow charging light comes on or when the motor has stopped completely. À 15-minute quick charge will provide 10 minutes operation time.

The best temperature range for charging, using and storing the appliance is between 59 ‘F and 95 'F Beyond this range, charging might take longer.

The built-in rechargeable battery can only be replaced by an authorized Braun Service center.

+ Ifyou have not used an epilator before, it may take some time for your skin to adapt to epilation. In the beginning, epilate on a weekly basis to help reduce the discomfort.

+ First time users should epilate in the evening so that reddening can disappear overnight. To relax the skin, we recommend applying a moisturizing cream after epilation.

+ We recommend using the massage cap (1a) with the SensoSmart function activated.

+ Epilation is easier and more comfortable when the hair is between 0.5-3 mm long. If hairs are longer, we recommend that you shorten them.

+ Exfoliation avoids ingrown hairs and provides optimum conditions for epilation.

Getting prepared Dry usage: Your skin must be dry and free from grease or cream.

Wet usage: Make sure your skin is very moist to achieve optimum gliding conditions for the appliance.

Make sure that the epilation head (2) is clean and provided with a cap.

Always stretch your skin while epilating. Guide the

appliance in a slow, continuous movement without

pressure against the hair growth in the direction of

Depending on model, there are various epilation

Massage cap (la): for best comfort

Skin contact cap (1b): for increased efficiency

Business US6 *P&G'AUTHORIZED POA-00109238 Rev 001 Effective Date 2019-02-15 Printed 2020:62:06 Pig 70f28

Legs: When epilating behind the knee, keep the leg stretched out straight.

Sensitive areas: Firstthoroughly clean and carefully dry sensitive areas to remove residues (like deodorant). When epilating the underarm, keep your arm raised up so that the skin is stretched and guide the appliance in different directions. As skin may be more sensitive after epilation, avoid using irritating substances such as deodorants with alcohol.

Face: Before epilating, clean your skin thoroughly with a disinfecting toner containing alcohol. Stretch the skin with one hand and slowly guide the epilator with your other hand in the direction of the light.

Cleaning the epilation head After use, turn off the appliance and clean the epilation head:

Remove the cap (1a/b). Brush out the tweezers while turning the tweezer element manually. Take off the epilator head and gently tap it to remove hairs from inside the head.

Ifa thorough cleaning is needed, you may hold the appliance with the epilation head under hot running water. Then take off the epilation head and shake off remaining water. Make sure it is dry before reattaching.

General information on epilation All methods of hair removal from the root can lead to irritation (e.g. itching, discomfort and reddening of the skin) depending on the condition of the skin and hair. This is a normal reaction and should quickly disappear, but may be stronger when you are removing hair at the root for the first few times or if you have sensitive skin.

In general, skin reactions and the sensation of pain tend to diminish considerably with repeated use.

If, after 36 hours, the skin still shows irritation, we recommend that you contact your physician.

To minimize the risk of infection or inflammation due to bacteria penetrating the skin when it comes to micro-injuries, thoroughly clean the epilation head and your skin before each use.

If you have any doubts about using this appliance, please consult your physician. In the following cases, this appliance should only be used after prior consultation with a physician: eczema, wounds, inflamed skin reactions such as folliculitis (purulent hair follicles) and varicose veins around moles, reduced immunity ofthe skin, e.g. diabetes mellitus, during pregnancy, Raynaud's disease, haemophilia, candida or immune deficiency.

The exfoliation brush (13) helps avoid ingrown hair 8

by removing dead skin cells. It also improves epilat- ing results when used 1-2 days before epilation.

The deep massage pad (14) helps improve the skin appearance.

You may use the exfoliation brush/ deep massage pad on a weekly basis on wet skin during your shower routine with your preferred body scrub or shower gel.

The deep massage pad may even be used more fre- quentiy with body lotion or massage oil.

When using the appliance in a bathtub, do not immerse it fully in water since this will not provide optimum results.

How to use Click the brush adapter (12) provided with brush (13) or pad (14) onto the appliance. Slowly guide the appliance in a circular motion over your skin to gentiy refine it. Avoid holding it on the same skin area for prolonged time. Do not use it on your face.

Cleaning After use, rinse the brush/pad (13/14) under running water. If needed, you may use some liquid soap for a thorough cleaning.

The silicone cap on the deep massage pad (14) needs to be removed to make sure there is no more water left inside.

Before storing the exfoliation brush (13), attach the protective cap.

With weekly use, we recommend that you replace the brush/pad after 12 months. Refills (ref. no.79 Spa) are available from your retailer or Braun Service Centres or via www.service.braun.com.

The shaver head (11) is designed for a fast and close shave of legs, underarms and bikini area. Shave on dry skin to obtain best results.

For trimming hairs to 3 mm length, attach the trim- mer comb (10) and guide it flat over the skin, against the direction of hair growth.

Cleaning Do not clean the shaver foil with the brush as this may damage it. The shaver head can be cleaned under running water. For drying purposes, remove the shaving unit. Lubricate it regularly (1. foil/

Disposal This product contains batteries and recyclable electronic waste. To protect the environment, do not dispose of it in the household waste but take it to appropriate local collection points.

Subject to change without notice.

Business US6 *P&G'AUTHORIZED POA-00109238 Rev 001 Effective Date 2019-02-15 Printed 2020:62:06 Pig 80f28

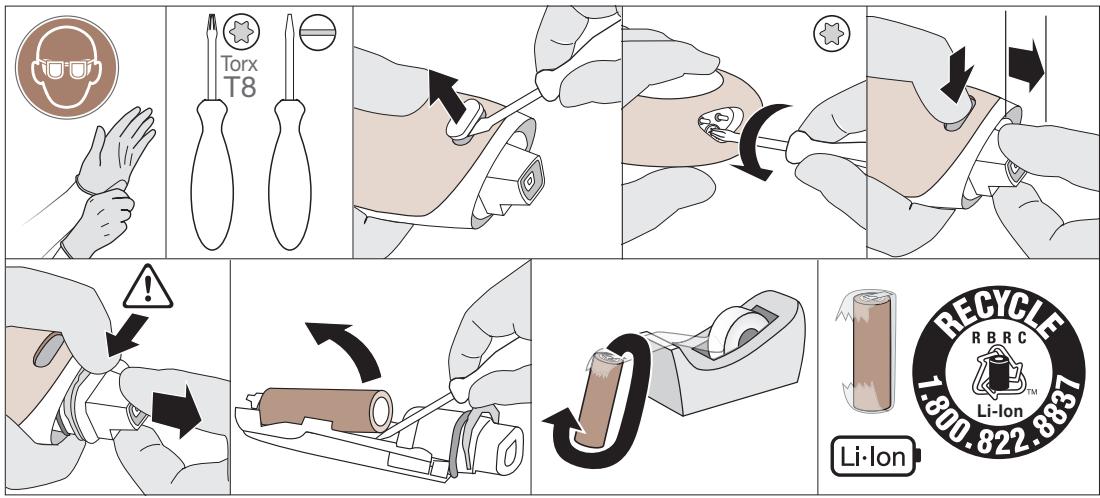

Battery removal at the end of the product's useful life This appliance contains a rechargeable battery. Before disposing of the appliance disassemble the housing as shown, remove the rechargeable battery and recycle or dispose of properly, according to local guidelines. Caution: Disassembling the appliance will destroy it and invalidate the warranty.

Make sure the battery is discharged before you disassemble as shown below:

Business|U “P&G'AUTHOÜRIZÉD POA-00109238 Rev 001 Effective Date 2019-02-15 Printed 2020:62:06 Pig 90f28

FOR USA ONLY FOR CANADA ONLY

1 year limited warranty

Braun warrants this product to be free of defects in material and workmanship for a period of one year from the date of original purchase.

Ifthe appliance exhibits such a defect, Braun will, at its option, either repair or replace it for the consumer without charge.

Please call 1-800-Braun 11 (800-272-8611) to be referred to the authorized Braun Service Center closest to you.

This warranty does not cover damage resulting from accident, misuse, abuse, dirt, water, tampering, unreasonable use, servicing performed or attempted by unauthorized service agencies or failure to provide reasonable and necessary maintenance.

ALL IMPLIED WARRANTIES INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE ARE LIMITED IN DURATION TO

1 YEAR FROM DATE OF ORIGINAL PURCHASE. IN NO EVENT WILL BRAUN INC. BE RESPONSIBLE FOR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other legal rights which vary from state to state.

In the event a Braun Silk-épil fails to function within 1 year from date of purchase, because of defects in material or workman- ship, and the consumer returns the unit to an authorized service center, Braun Canada, will, at its option, either repair or replace the unit without additional charge to the consumer.

This guarantee does not cover any product, which has been damaged by dropping, tampering, wrong current, servicing performed or attempted by unauthorized service agencies, misuse or abuse.

Exclusion of Warranties: The foregoing warranty is the sole warranty offered by Braun Canada hereby disclaims any implied warranty or merchantability or fitness for any particular purpose. In no event will Braun Canada be responsible for consequential damages resulting from the use of this product.

Business Usÿ ‘P&G AUTHÜRIZED POA-00109238 Rev 001 Effective Date 2019-02-15 Printed 2020-02-06 Péph 10 0f28

Business Vo: PEG AUTAURIZED POA-00109238 Rev 001 Effective Date 2019-02-15 Printed 2020-02-06 Péph 220f28

English FaceSpa, Type 5365

Your Silk-épil SES 9300 Beauty Set comes with a battery operated FaceSpa brush / epilator.

+ For hygienic reasons, do not share this appliance with other persons.

+ Do not use the appliance on irritated skin.

Do not use the epilation head on eyelashes. You

may use the epilation head for removing individual

hairs between or above the eyebrows, but not for

+ When switched on, the appliance must never

come in contact with the hair on your head, eye-

lashes, textile ribbons etc. to prevent any danger

of injury as well as to prevent blockage or damage

This product is not a toy. Keep the device out of

reach of children and pets.

Keep batteries away from children and pets.

If swallowed, consult a physician at once. For

information on treatment call (202) 625-3338.

+ This appliance is suitable for use in bath or 4 shower if itis used with the brush attachment.

Battery compartment On/off switch

Protective cap for epilation head Cleansing brush

Brush/pad adapter with release button (Ga)

Replace the battery as needed: Open the battery compartment (1) by turning the lid towards mf using the brush provided. Replace the battery (AA alka- line, 1.5 V) observing correct polarity. Replace the lid by aligning the dot with æf (see fig. c) and turning turning towards à to lock it. Make sure your hands and the appliance are dry when replacing the battery.

When the power decreases, replace the batteries promptiy. Non-rechargeable batteries are not to be recharged. Rechargeable batteries are to be remo- ved from the appliance before being charged. Batteries may explode or leak and cause burn injury ifrecharged, disposed of in fire, inserted backwards or disassembled.

The terminals must not be short-circuited.

Exhausted batteries are to be removed from the appliance and safely disposed of.

Batteries may leak if empty or not being used for a long time. Remove batteries in a timely manner and avoid skin contact whilst handling leaking batteries.

+ Before use, make sure your skin and the epilation head are thoroughly clean.

+ Turn on the appliance by sliding the on/off switch

(2) to the left or to the right. The rotating direction

of the tweezers depends on the direction

you move the switch when turning on. For best

results, make sure that the tweezers rotate against

the direction of hair growth.

To become familiar with the appliance, we recom-

mend trying it first on the chin or near the outer

corners of the mouth.

Hold the appliance with the tweezers against a

section of skin that you keep stretched with your

free hand. Carefully guide it with gentle pressure

against the direction of hair growth.

Do not press too hard as this may lead to skin

injury. To stretch the upper lip area, you may use

your tongue to push from below.

After use, slide the on/off switch to the «o» (= off)

Carefullÿ clean the epilation head using the

cleaning brush provided. You may want to dip the

brush into ethanol (70%). Make sure that it is com-

pletely dry before you re-attach it and close it with

+ To relaxthe skin we recommend applying a moisturizing cream after epilation.

+ When epilating for the first time, it is advisable to epilate in the evening, so that any reddening can disappear overnight.

Pull off the epilator head and attach the brush/pad

adapter (6) provided with a cleansing brush (5a) or

vitalizing pad (5b). Before use, moisten your skin.

+ Use the cleansing brush or vitalizing pad as part of your daily cleansing routine with water, soap, cleanser, cleansing milk, gel or exfoliating products.

+ The vitalizing pad additionally provides an inten- sive massage to improve your skin appearance.

Guide the brush/pad with gentie pressure and circular motions. Avoid the eye area and hairline. After use, rinse the brush/pad (5a/5b) with warm water. You may detach the brush/pad unit by pres- sing the release button (6a). After cleaning, leave all parts to dry completely before reattaching.

For best results, replace the brush/pad (5a/b) every 3 months. Different types of refills (Ref. no. 80 Face) are available from your retailer.

Business Usÿ ‘P&G AUTHÜRIZED POA-00109238 Rev 001 Effective Date 2019-02-15 Printed 2020-02-06 Péph 230f28

Environmental notice

Atthe end of their life, empty batteries and the appliance should not be discarded with the household waste. Please dispose

of them according to national or local regulations.

Subject to change without notice.
