USER MANUAL CYCLONIC-H2.3 VALBERG
CONDITION DE GARANTIE
This product is guaranteed against faults caused by defects in manufacturing or the materials used for a period of two years, starting from the date of purchase.* This warranty does not cover defects or damage caused by failure to install the device correctly, incorrect use of the product, or excessive wear and tear.
*proof of purchase required
GARANTIEVOORWAARDEN
NL
Thank you for choosing this VALBERG product. VALBERG products are chosen, tested, and recommended by ELECTRO DEPOT, so you can be sure you are getting a top-quality, easy-to-use product that won't let you down.
We're confident your new device will be a pleasure to use every day!
Welcome to ELECTRO DEPOT.

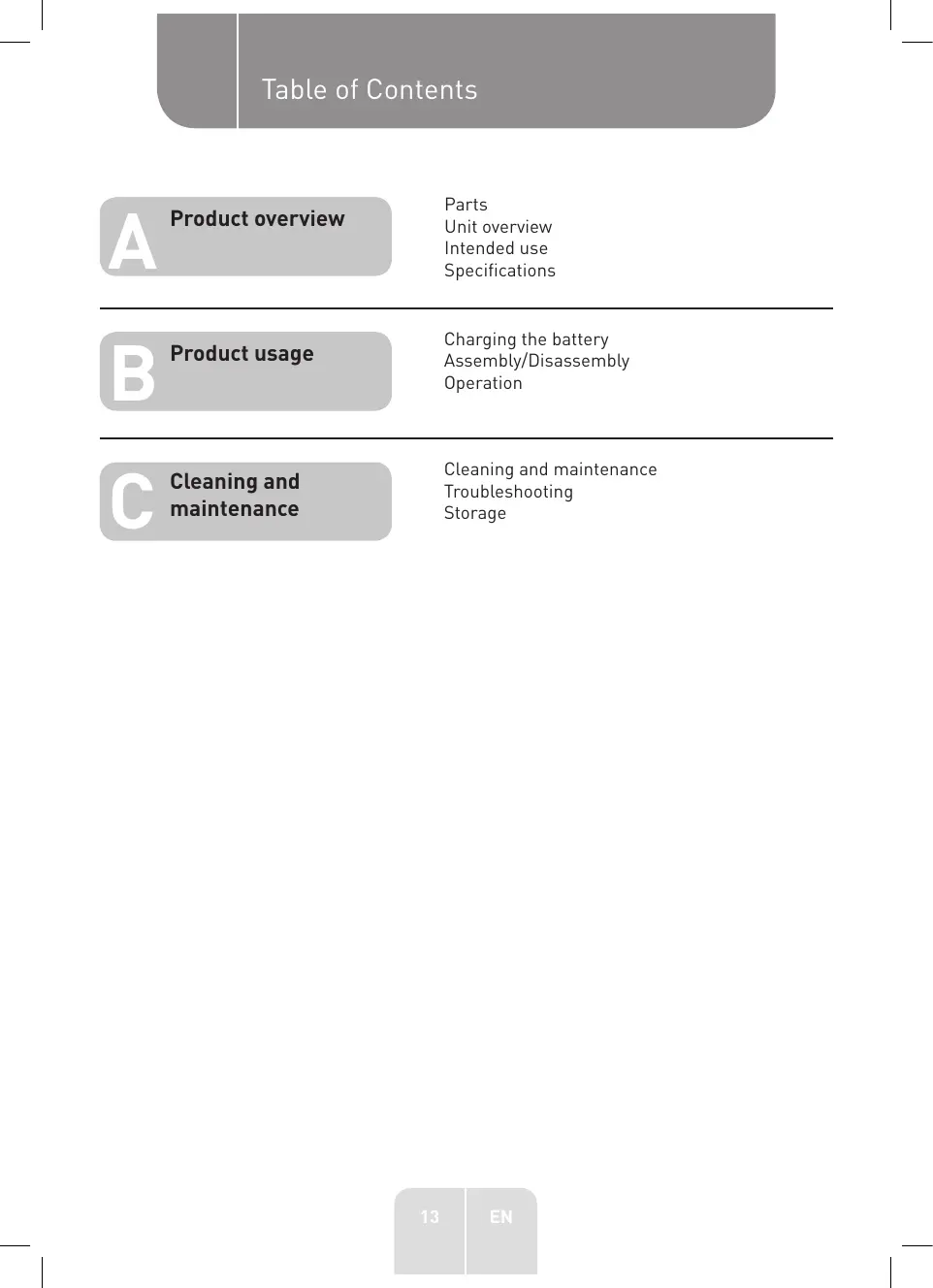

Table of Contents
Parts
Unit overview
Intended use
Specifications
Charging the battery
Assembly/Disassembly
Operation
Cleaning and maintenance
Troubleshooting
Storage
A Product overview
PLEASE TAKE TIME TO CAREFULLY READ THIS USER MANUAL AND THE SEPARATE REGULATORY BOOKLET BEFORE USING THE UNIT. KEEP BOTH BOOKLETS FOR FUTURE REFERENCE.
Parts
A USB charging cable and AC adapter
B Vacuum (main body) and handle
C Power button with LED indicator light
Micro USB-C charging socket
E Air vent
F Dust cup release button
G 2× HEPA filters (one filter is pre-installed and the other is a spare)
H Metal filter
Dust cup
2-in-1 nozzle
- Crevice tool for hard-to-reach places
- Brush for stubborn dirt on furniture, floors and carpets
K Base stand
Product overview
- Unpack the product. Remove all the labels from the product. Check that it is complete and in a good condition. If the unit is damaged or faulty, do not use it and take it to your retailer or after-sales service centre.
- Keep all packaging out of the reach of children. There is a risk of accidents if children play with packaging materials.
Intended use
This vacuum cleaner is for household use only. It has not been designed for industrial or professional use by cleaning companies.
Any other use may damage the unit or cause injury.
Specifications
| Model: | 987904 - CYCLONIC-H2 |
| Vacuum power output: | 90 W max. |
| Dust cup capacity: | 0.1 L |
| Suction power: | 23 W |
| Noise level: | ≤77 dB |
| Vacuum pressure: | 12 kPa |
| Rechargeable battery: | Lithium - 11.1 V DC, 2000 mAh |
| Operating voltage: | 5 V DC (USB) |
| Protection class: | Class III |
AC adapter
| Published information | Value and precision | Unit |
| Company name or registered trademark, business registration number and manufacturer's address: | ELECTRO DEPOT/R.C.S. 433 744 539
1 route de Vendeville, 59155 Faches Thumesnil, FRANCE | - |
| Model reference: | ZD010M050200EU | - |
| Input voltage: | AC100~240 | V |
| Input current frequency: | 50/60 | Hz |
A Product overview
| Output voltage: | 5.0 | V |
| Output current: | 2.0 | A |
| Output power: | 10.0 | W |
| Average efficiency in active mode: | 78.70 | % |
| Low load efficiency (10%): | 68.70 | % |
| No-load power consumption: | 0.1 | W |
Charging the battery
The battery must be charged before first use and whenever the vacuum will not turn on because the battery is too low.
NOTE:
-
When the power is too low and the battery needs to be charged, the indicator light will flash for 10 seconds and the vacuum will automatically turn off.
Always make sure that the appliance is turned off before charging.
-
Insert the micro USB-C connector into the micro USB socket on the underside of the vacuum.
- Insert the USB connector into a USB port on a computer or car, or use the USB charging plug adapter (provided). Make sure the port's rated power output is 5 V DC/2-4 A.
It takes up to 4 hours to fully charge the battery.
The Power button's battery LED indicator displays the battery status as follows:
| LED indicator | Meaning |
| Flashes | The USB cable is connected, and the battery is charging.
The Power button is on and the battery is low (less than 10%). |
| Constant | The battery is fully charged
(After 5 minutes of being fully charged, the LED will turn off.) |
Once fully charged, the vacuum has a usage time of approximately 14 minutes.
- To ensure the longevity of the battery and the product's lifespan, recharge the vacuum whenever the battery is dead, even if you do not plan to use it.
WARNING!
After charging, always unplug the USB cable from the vacuum and USB socket.
- Do not charge the battery at temperatures below 0^ or above 40^ .
- If the pins of the plug parts are damaged, the plug-in power supply shall be scrapped.
Assembly/Disassembly
WARNING: Moving Parts!
Always turn off the vacuum before attaching or removing parts.
To assemble:
Push the 2-in-1 nozzle into the handheld vacuum until it is firmly secured into place.
- Crevice tool - Use to remove dirt from tight or hard-to-reach corners.
- Brush tool - Use the bristle brush to remove stubborn dirt from furniture, blinds, floors and carpets.
To use the brush, press the button and slide the brush downwards. To use the crevice tool once more, press the button and slide the brush upwards to reveal the crevice tool.
To disassemble:
- Make sure the unit is turned off and the USB charging cable is unplugged.
Pull the 2-in-1 nozzle off the vacuum.
Operation
Once the unit is assembled and charged, it is ready for use.
- Press the Power button to turn on the vacuum. The battery LED indicator will light up.
- To turn off the vacuum, press the Power button again.
NOTE: For best performance, empty the dust cup when the MAX mark indicates that it is full or after each use (as shown in the Cleaning and maintenance section).
Cleaning and maintenance
WARNING!
- To prevent the risk of electrocution, turn off and unplug the unit from the power supply before cleaning.
- Never immerse the unit in water or any other liquid.
- Do not immerse the vacuum (main body) or USB charging cable in water or any other liquid, as they contain electrical components. Do not rinse them under a tap.
- Never use solvents, chemical or abrasive cleaning products, wire brushes, sharp objects or scouring pads to clean the unit.
Cleaning the exterior of the unit
- Detach the 2-in-1 nozzle from the vacuum.
- Clean the unit with a soft, slightly damp cloth. Make sure that no liquid enters the unit.
- After cleaning, dry the unit thoroughly.
Cleaning the dust cup and filters
Clean the dust cup after each use or when it is full and has reached the MAX mark. Clean the HEPA and metal filters when they are full, there is a loss of suction or every three months.
5 1 Press the dust cup release button and remove the dust cup (from the main body).
② Empty any dirt found within the dust cup into a bin.
Turn the metal and HEPA filters anticlockwise towards the unlock symbol to remove them. (To reattach the metal or HEPA filter, align the dot on the respective filter with the unlock symbol, then turn it clockwise until the dot lines up with the lock symbol and clicks firmly into place.)
Pull the HEPA filter to remove it.
Use water to clean the filters and dust cup, then leave to dry naturally and thoroughly before using them again.
WARNING!
-
To prevent damage to the unit, only use dry, intact filters!
-
Reassemble all the parts in reverse order.
Cleaning the 2-in-1 nozzle
- Detach the 2-in-1 nozzle from the vacuum.
- Remove any hair or bits. Wash with water.
- Allow to dry thoroughly before reattaching to the vacuum.
Troubleshooting
| Problem | Possible Cause | Solution |
| The unit does not work. | ·The unit is not charged.
·The charging indicator light does not light up while charging.
·The dust cup is full. | ·Fully charge the battery.
·Make sure the USB cable is securely connected to the USB power supply. Press the Power button. If the unit is still not working, get it checked by a qualified technician.
·Empty the dust cup. |
| The suction power is weak, there is no suction or the motor vibrates. | ·The nozzle is blocked.
·The filters are blocked, dirty or broken. | ·Remove the blockage.
·Clean the filters.
·If necessary, replace the filter with a new one. |
| The operating time is too short after charging. | ·It has not been charged for enough time.
·The battery is old. | ·Fully charge the battery, as indicated in the Charging the battery section. |
| The battery indicator light keeps flashing quickly. | ·The filters or dust cup are blocked, thus increasing the current.
·The battery is dead. | ·Remove the blockage.
·Clean the filters.
·Fully charge the battery, as indicated in the Charging the battery section. |
Storage
9 When all the parts are dry, reassemble and store the unit on the base stand, as indicated.
- Always unplug the unit before storing it.
- Store the unit in a fresh, dry and clean place, out of the reach of children and pets.
- Please retain the packaging and use it to store your unit when it is not in use for an extended period of time.
