USER MANUAL 510 C W566C HIGH ONE

Thank you! Thank you for choosing this HIGHONE product. HIGHONE products are chosen, tested, recommended by ELECTRO DEPOT, s, you are getting a top-quality, easy-to-use p that won't Let you down. We're confident your new device will be a pleasure to use Welcome to ELECTRO DEPO TRO DEPOT

Table of Contents Parts Specifications Installation Operation Cleaning and maintenance Trouble Shooting Transport Product fiche

A Product overview Parts La] Door CF] Service flap (s] Detergent dispenser Ô 4 x Cover caps Ce] Control panel CH] 1 x Supply hose cold water [o] Drain hose C1] Acoustic sponge (optional) 6 Power supply cord Note: © ° The product picture is for illustration only, please refer to real product as reference.

Product overview Model: Power Supply: MAX. Current: Standard Water Pressure: Washing Capacity: Dimension

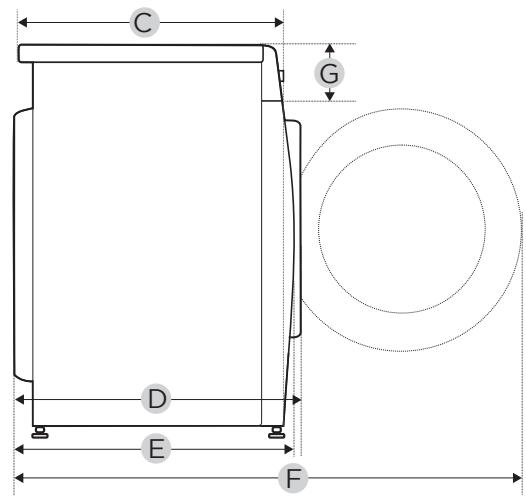

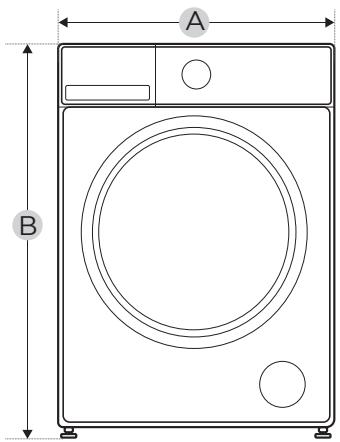

Weight: Rated Power: Reference Dimension

Product usage Installation Tools Needed If Installation By Yourself (not include) OBFAE: Installation area Stability is important to prevent the product from wandering! Make sure the machine is standing Leveled and stable. Make sure that the product does not stand onto the power cord Make sure to maintain the minimum distances from the walls as shown in the picture. Before installing the machine, the location characterized as follows shall be selected: + Rigid, dry, and level surface. Avoid direct sunlight. Sufficient ventilation. Room temperature is above 5°C. Keep far away from the heat sources such as coal or gas burning appliances. Unpacking/Packing the Machine

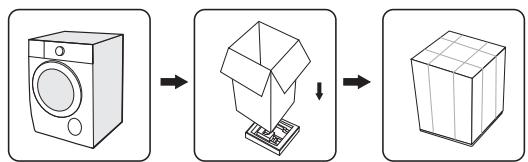

Product usage Warning! + Packaging material (e.g. Films, Styrofoam)] can be dangerous for children. + Thereis a risk of suffocation! Keep all packaging well away from children. Remove the cardboard box and styrofoam packing. Lift the machine and remove the base packaging. Remove the tape securing the power supply cord and drain hose. Remove the inlet hose from the drum. FON— The process of packing the machine is just the opposite of unpacking above.

Remove transport bolts Warning! + You must remove the transport bolts from the backside before using the product.

1. Loosen the 4 transport bolts with a spanner.

2. Remove the bolts including the rubber parts and keep them for future use.

3. Close the holes using the cover caps.

Levelling the washing machine Warning! + The Lock nuts on all four feet must be screwed tightly against the housing.

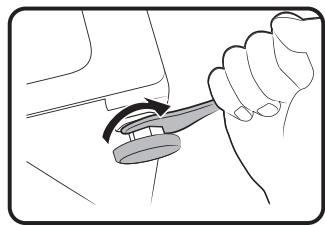

Product usage Loosen the Lock nut. Turn the foot until it reaches the floor.

3. Adjust the Legs and Lock the nuts with a spanner. Make sure the machine is Level using

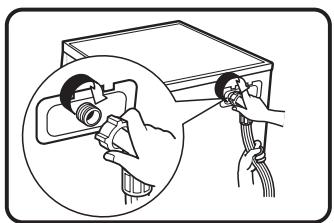

Connect the water supply hose Warning! To prevent leakage or water damage, follow the instructions in this chapter. + Do not kink, crush or modify water inlet hose. Connect the water supply hose to the water inlet valve and a water tap with cold water as indicated. Note: [@) + Connect manually, do not use tools. Check if the connections are tight. Drain Hose Warning! + Do not kink or protract the drain hose. + Position drain hose properly, otherwise damage might result of water leakage. + Itis not allowed to remove the buckle of drain pipe. There are two ways to place the end of drain hose: Water trough Max. 100c' Min. 60cm Max. 100em | Max. 100cm Min. 60em

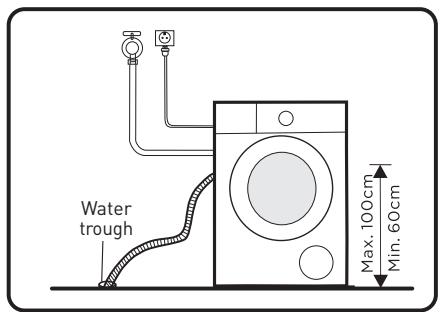

1. Putit into the water trough.

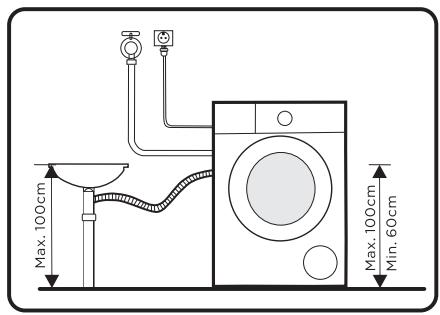

2. Connectit to the branch drain pipe of the trough.

Product usage Acoustic Sponge Note: [@) + Please make sure to assemble the acoustic sponges, which can effectively reduce the noise caused by the machine while working, in order to provide you with a more peaceful and quiet living environment.

1. Getthe machine laid on the floor, using some soft material like foam or clothes between

the machine and floor for a protection.

2. Stick the 2x longer sponges to the longer bottom edges of machine, and the 2x shorter

sponges to the shorter bottom edges. Operation Quick Start Caution! + Before washing, please make sure the washing machine is installed property. + Your appliance was thoroughly checked before it left the factory. To remove any residual water and to neutralize potential odors, it's recommended to clean your appliance before first use. For this reason, recommended to clean the inner drum by running the «Drum Clean» or other program with the optional temperature of 90°C. Be careful not to put laundry and detergent in the machine

Product usage Calibration! It's recommended to calibrate the machine, so that provide the best performance. The appliance is able to detect the amount of laundry Loaded. This function is optimizing the product performance by minimizing energy and water consumption, saving you money and time. For this reason it's recommended to calibrate the appliance for best use.

1. Remove all accessories from the drum and close the door;

Insert the mains plug to the socket; Switch on the washing machine, and within 10 seconds, long press “No Spin” button, and then the Llamp of “child Lock”, “No Spin” and “Pause/start” all Light Press “Pause/start” to calibrate, the drum will rotate for a minute. lf the machine is successfully calibrated, “Prewash” Llamp will Light, otherwise, “Extra Rinse” will light. + __ Before Washing Plugin Open tap Load Close door Add detergent nEON = Note: + Detergent need to be added in compartment | if the pre-wash function is selected. When closing the door, please make sure that your clothes are not caught between the sealing ring and the machine door to prevent water leakage caused by pulling and damaging the sealing ring during operation.

3. Press Start/Pause to start the program

1. If default is selected, step 2 can be skipped.

The function button line chart is for reference only, please refer to real product as standard.

+ After Washing Buzzer beep. Before Each Washing + The ambient temperature of the machine should be 5°C-40°C. If used under O°C, the inlet valve and draining system may be damaged. If the machine is installed under freezing conditions, it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose can unfreeze before use. + Please check your laundry care labels and the detergent use instructions before wash. Use non-foaming or less-foaming detergent suitable for washing machine properly.

Take all items out of the pockets Sort laundry according to color and textile type Tie together long textile strips and belts, close zips and button Put small items into a laundry bag Warning! + __Itis prohibited to wash clothes that adhere to any volatile or flammable substance such as cleaning agent, dry cleaning agent, spot remover, acetone, gasoline, kerosene, beauty oil, massage oil, animal oil, machinery oil, dry cleaning oil, volatile agent, alcohol, turpentine, wax, wax remover, banana water, disinfectant tablets, resin, etc. Washing single clothes items may easily create big eccentricity. Therefore it is suggested to add one or two more laundry items to the wash so that spin can be done smoothly. + Do not wash, spin water-proof seats, mats, or clothing. Detergent Dispenser

Pre wash Main wash 8 Softener Il Release button to pull out & the dispenser I Caution! + Detergent only need to be added in “compartment l” after selecting pre-wash function. + Do not put laundry beads into the detergent dispenser.

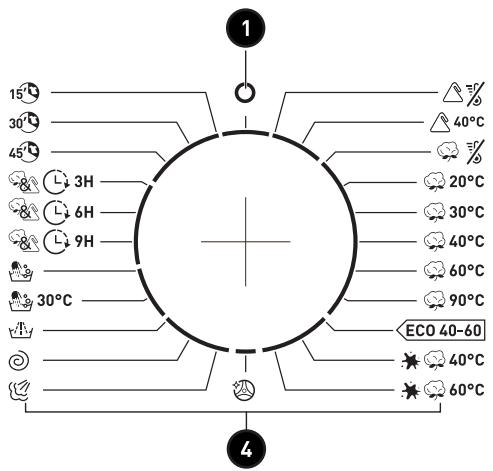

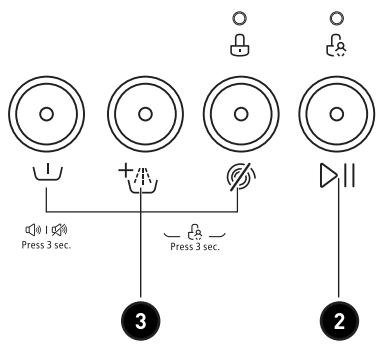

Product usage Control Panel y LL — à a æ La è Dies Frs O 0 Turn the appliance on and off. C2] Start/Pause Start or pause your programme. © Option This allows you to select additional functions and will light when selected. L:] Programmes Available according to the laundry type. Programme I IL/0 & BX Synthetic o e o A Synthetic 40°C Q © Q 2% Cold Wash e © <a 20c Cold Wash 20°C © Q Gs0°c Cotton 30°C © e Q G4oc Cotton 40°C © e © 60e Cotton 60°C © e © Gasoc Cotton 90°C Q © Q ECO 40-60 e © #@4%c Cotton intensive 40°C © Q

Product usage #@6c Cotton intensive 60°C © Q o Drum Clean e Steam Wash © e © © Spin Onty dy Rinse&Spin o #ssoc Delicate 30°C e © L2 Delicate e © Œ%H Ends in 94H e © %&G4w# Ends in 6H e © %Os# Ends in 3H e © 43 Quick Wash 45° © e © EL] Quick Wash 30° e © Le) Quick Wash 15° e © © Means must © Means optional Detergent Recommendation Recommended washing Type of laundry a a Meter and textile Wash cycles Washing temp. °C White laundry Heavy-duty detergent with bleaching agents made from boil- Cotton, 30/40/60/90 proof cotton or ECO 40-60 and optical brighteners : linen Colour detergent without Coloured laundry Cotton, bleaching agent and made from cotton ECO 40-60, Cold/20/30/40/60/90 optical brighteners or linen Cold Wash _ Coloured laundry Color or mild detergent de from easy Cold Wash, without optical : ? Cold/20/40 pu care fibres or Synthetic righteners synthetic materials Mild washing detergent … Delicate textiles, Synthetic Cold /40 silk, viscose

Product usage Note: + Agglomerating or ropy detergent or additive can be diluted in some water before pouring it into the detergent dispenser, to avoid its inlet to get blocked and thus cause a water overflow. Please choose the suitable type of detergent to get a maximum of washing performance and a minimum of water and energy consumption. To achieve the best cleaning result a proper detergent dosing is important Use a reduced detergent amount if the drum is not filled completely. Always adjust the amount of detergent to the water hardness, if your tap water is soft, use Less detergent. Dose according to how dirty your laundry is, Less dirty clothes require Less detergent. Highly concentrated (compact detergent] requires particularly accurate dosing Following symptoms are a sign of detergent overdosing: - Heavy foam formation = Poor washing and rinsing result Following symptoms are a sign of detergent underdosing: - Laundryturns grey = Built-up of limescale deposits on the drum, the heating element and/ or the laundry Programmes Programmes are available according to the laundry type. Programmes Wash synthetic articles, for example: shirts, coats, AY Synthetic blending. While washing the knitting textiles, detergent Awe quantity shall be reduced due to its loose string construction and easily forming bubbles. G% Cold Wash Cold water to wash clothes. Gare ou Hard-wearing textiles, heat-resistant textiles made of Gare Cotton ard-wearing textiles, heat-resistant textiles made o Que cotton or linen. Govc Able to clean normally soiled cotton laundry declared to be ECO 40-60 washable at 40°C or 60°C, together in the same cycle. Que MO Cotton intensive To increase the washing effects, washing time is increased.

Product usage It applys 90°C high temperature sterilization to make the clothes washing more green. When this procedure is performed, the clothes or other washing cannot be added. When proper amount of chlorine bleaching agent is put in, the barrel cleaning effect will be better. The customer can use this programme regularly according to the need. Le] Drum Clean The Steam Wash can deeply penetrate the fiber which &@ SteamWash effectively eliminate bacterias and germs preventing odors and protecting health. © SpinOnty Spins and drains the water. Rince & Spin Rinses and then spins the laundry, and then drains the P water. CEE For delicate, washable textiles, e.g. made of silk, satin, E sreate synthetic fibres or blended fabrics. se Ends in The function can be set with this programme, the total time ao including washing time and delaying time is 3h,6h or 9h. s It is suitable for washing few and not very dirty clothes : Quick Wash quickly. The washing time is 15’, 30° or 45°. Note: + Reference to your product to select the programmes. Programme Load{kg) Display Time AY Synthetic 25 3:18 Ac Synthetic 40°C 2.5 3:18 CEA Cold Wash 5.0 1:00 Ga2%c Cold Wash 20°C 5.0 1:01 Gawc Cotton 30°C 5.0 3:39 oc Cotton 40°C 5.0 3:39 Géoc Cotton 60°C 5.0 3:44 sc Cotton 90°C 5.0 3:49 ECO 40-60 5.0 3:08 #G4°c Cotton intensive 40°C 5.0 4:22

Nominal capacity in kg Synthetic Temperature setting

Cycle duration in h:min Energy consumption in kWh/cycle

Water consumption in L/cycle Highest washing temperature °C! Cold Residual moisture in % Spin speed? 70%/800

u o ECO 40-60 25 230 0.338 360 31 62.9%/1000 T5 = 230 0360 310 30 62.9%/1000 HG 0°c Cotton intensive 5.0 40 4:22 0994 51 40 70%/800 40°C 20 Cold 0:15 0085 31 Cold 75%/800 Quick Wash 15° + The above data is for reference only, and the data may change due to different actual use conditions. + The values given for programmes other than the ECO 40-60 programme are indicative only. + Cold Wash 20°C is able to clean lightly soiled cotton laundry, at a nominal temperature of 20 °Cwhich complies with the regulation (EU) 2019/2023. + Compliant to EN 60456: 2016+A11: 2020 With (EU) 2019/2014, (EU) 2019/2023, (EU) 2021/340, (EU) 2021/341. The EU energy efficiency class is: C Energy test program: ECO 40-60. Other as the default. Half load for 5.0kg machine: 2.5kg. Quarter load for 5.0kg machine: 1.5kg. fl The highest temperature reached by the laundry in the wash cycle for at least 5 minutes. El Residual moisture after the wash cycle in water content percent and the spin speed at which this was achieved. 8 The ECO 40-60 programme is able to clean normally soiled coton laundry declared to be washable at 40°C or 60°C, together in the same cycle. This programme is used to assess the compliance with the regulation (EU) 2019/2023. The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration.

Product usage Loading the household washing machine up to the capacity indicated for the respective programmes will contribute to energy and water savings. Noise and remaining moisture content are influenced by the spinning speed: the higher the spinning speed in the spinning phase, the higher the noise and the lower the remaining moisture content. Caution! + _Ifthere is any break in the power supply while the machine is operating, a special memory stores the selected programme. The machine will continue the programme when the power supply is re-established. Option Cycle ae CEE Additional functions A Synthetic Cold 1000 Pre Wash, Extra Rinse, No Spin Au Synthetic 40°C 40 1000 Pre Wash, Extra Rinse, No Spin 3% Cold Wash Cold 1000 Extra Rinse, No Spin Ge Cold Wash 20°C 20 1000 Extra Rinse, No Spin Ge Cotton 30°C 30 1000 Pre Wash, Extra Rinse, No Spin Gue Cotton 40°C 40 1000 Pre Wash, Extra Rinse, No Spin Gue Cotton 60°C 60 1000 Pre Wash, Extra Rinse, No Spin se Cotton 90°C 90 1000 Pre Wash, Extra Rinse, No Spin ECO 40-60 _ 1000 Que Fu Intensive 49 1000 No Spin waure Cononlntensie 6 1000 No Spin © DrumClean 90 — & Steam Wash 40 1000 Pre Wash, Extra Rinse, No Spin © SpinOny _ 1000 No Spin y Rinse &Spin _ 1000 Extra Rinse, No Spin Save Delicate 30°C 30 800 Extra Rinse, No Spin LA Delicate Cold 800 Extra Rinse, No Spin

Product usage CG4&# Ends in 3H/6H/9H 40 1 000 No Spin ETC 45 Quick Wash 45° 20 800 Pre Wash, Extra Rinse, No Spin ES] Quick Wash 30' 20 800 No Spin 5 Quick Wash 15' Cold 800 No Spin Note: + For the maximum spin speed, program time, and other details of the ECO 40-60 program, please refer to the content on the Product Fiche page. + The table shows which cycle offers which options for adjustment. y Pre Wash The Prewash function can get an extra wash before main washiit is suitable for washing the dust rises to surface of the clothes; You need to put detergent into the Case [I] when select it. Extra Rinse The laundry will undergo extra rinse once after you select it. (2) No Spin It will not spin i f you choose this function. d@) %ÿ Mutethe buzzer

Choose the Programme Press the [Prewash] button for 3sec. the buzzer is mute. To act the buzzer function, press the button again for 3 seconds. The setting will be kept until the next reset. Caution! + After uting the buzzer function, the sounds will not be activated any more FE Child Lock To avoid mis operation by children. » DII » LE Choose the Start Press [Extra Rinse] and [No Spin] 3 sec. till buzzer beep. (2) Programme

Product usage Cautiol FAN + Only press and hold the two buttons can release “Child Lock”, even power off, switch off and program end, the “Child Lock” will Lock all buttons except power button and “Child Lock” button. + Please release “Child Lock” before selecting program and starting washing. Note: Usage counter

Unplug the equipment for 105 and reconnect again. Power on and within 105, please press “Prewash” and “No Spin” on control panel simultaneously and continuously for around 5s until the buzzer beep. The number of times the light flashes represents an Arabic digit, for example, the usage count of equipment is 3 456, “Prewash” flashes 3 times; “Extra Rinse” flashes 4 times; “No Spin” flashes 5 times; “Pause/Start’ flashes étimes Repeat step 1 again and customer can resume to normal operation.

Cleaning and maintenance Cleaning and maintenance Warning! ° Always unplug the appliance and close the water tap before cleaning and maintenance. + When cleaning the product, do not stretch your hands, feet or arms into the bottom of the machine case to prevent scratches. Cleaning the Cabinet Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. lfthere is any water overflow, use a towel to wipe it off immediately. Never use sharp items to clean the appliance. Caution! + Never use abrasive or caustic agents. formic acids or its diluted solvents or similar substances, like alcohol or chemical products. Cleaning the Drum Any rust stains left inside the drum by metal articles must be removed immediately using chlorine-free detergents. Never use steel wool for cleaning the drum! Note: + Keep any laundry away from the machine while cleaning the drum.

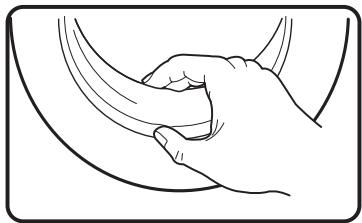

Cleaning and maintenance Cleaning the Door Seal and Glass Wipe the glass and seal after each wash to remove lint and stains. If Lint builds up it can cause leakages. Remove any coins, buttons and other objects from the seal after each wash. Clean the door seal and glass every month to ensure the normal operation of the appliance. Cleaning the Inlet Filter Note: + Diminishing water flow is a sign that the filter need to be cleaned. (Oo) 1.Close the tap and remove the water supply hose fromit. 2.Clean the filter with a brush. 3.Unscrew the water supply hose from the backside of the machine. Pull out the filter with long nose pliers. 4.Use a brush to clean the filter. 5.Reinstall the filter to the water inlet and reconnect the water supply hose. 6.Clean the Inlet filter every 3 months to ensure the normal operation of the appliance.

Cleaning and maintenance Clean The Detergent Dispenser 1.Press down the release [©] on the softener cover and pull the dispenser drawer out of the recess. Clean the inside of the recess with a brush.

2. Lift the softener cover off the dispenser drawer and wash both

items with water. 3.Restore the softener cover and push the drawer back into the recess.

1.Press the release and remove the dispenser. 2.Clean the dispenser drawer and the softener cover under water. 3.Clean the recess with a soft brush. 4.Insert the dispenser drawer. Note: + Do not use abrasive or caustic agents to clean plastic parts. + Clean the detergent dispenser every 3 months to ensure the normal operation of the appliance

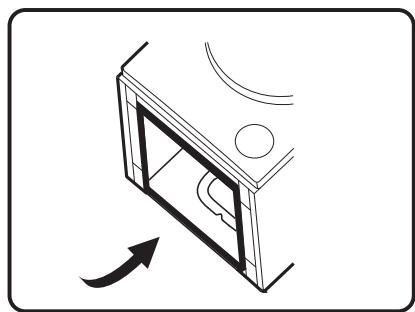

Cleaning and maintenance Cleaning the Drain Pump Filter Warning! + Make sure that the machine has finished the washing cycle and is empty. Switch it off and unplug it before cleaning the drain pump filter. + Be careful of hot water. Wait for water cooling down. Risk of scalding! + Clean the filter periodically every 3 months to ensure the normal operation of the appliance. r ù r n Filter cap L ) L ) r ù r n L ) KL )

1.0pen the lower cover cap. 2.0pen the filter by turning to the counter clockwise. 3.Remove extraneous matter.

4. Close the lower cover cap.

Cleaning and maintenance Caution! + When the appliance is in use and depending on the programme selected there can be hot water in the pump. Never remove the pump cover during a wash cycle, always wait until the appliance has finished the cycle, and is empty. When replacing the cover, ensure it is securely re-tightened. Trouble Shooting Whenever there is a problem with the appliance, check if you can solve it following the tables below. Description Possible cause Solution Appliance does not Door is not closed + Close the door properly and restart. start properly. + Check the laundry. Clothes are stuck. Door can't be Safety protection is opened activated. Disconnect the power and restart. Connections are not tight enough. Water leakage Check and fasten the water inlet pipe. Check and clean the outlet hose. Detergent residues Detergent is damp Clean and wipe the detergent dispenser in the detergent and/or clotted. dry. dispenser Indicator or display + PC board or harness + Switch off the power and check if the does not work have connection mains plug is connected properly. problems. Abnormal noise + Fixing bolts stillin + Check if the fixing bolts have been place. removed. + Floor is not solid or + Make sure the applianceis installed on level. a solid and Level floor. Error Codes Pzg > PriLii 553$ © © # © o © *Doorisnot closed + Restart after the door is closed. FSs F properly. + Check ifthe clothes is stuck.

C Cleaning and maintenance Description Possible cause Solution n + Water injecting + Checkifthe water pressure is too low. SRSEISRS problem while + Straighten the water pipe. washing. + Check if the inlet valve filter is blocked. o o ? ? o@ eo *Overtime water + Check the drain hose for blockage. S+<ESs draining. 2 © o e ë © * Water overflow. + Restart the washer. + Others + Please try again first, call up service line if there are still troubles. Transport

IMPORTANT STEPS WHEN MOVING THE APPLIANCE

Unplug the appliance and close the water inlet tap. Check if the door and the detergent dispenser are closed properly. Remove the water inlet pipe and the outlet hose from the house installations. Let the water drain completely from the appliance [see “Cleaning the Drain Pump Filter] Important: Re-install the 4 transport bolts in the back of the appliance. This appliance is heawy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door can not be used as a handle.

Product Fiche Supplier’s name or trade mark; Supplier’s address/}{; Model identifier": WF 510 C W566C General product parameters: Parameter Value Parameter Value Height 85 Rated capacity (kg) 5.0 Dimensions in eme | Width 60 Depth 40 Energy efficiency 889 Energy efficiency ce index (EEI, ° class) Washing efficiency Rinsing effectiveness indexl! 1.031 (g/kg)® 5.0 Energy consumption Water consumption in in KW per cycle, litre per cycle, based based on the eco on the eco 40-60 40-60 programme programme. Actual actual enr : 0.519 water consumption 41 consumption vil will depend on how depend bn our th the appliance is used aobliance ts sed. and on the hardness PP : of the water. : Rated M . _ temperature inside | capacity |“? | eighted remaining the treated textile | Half 31 |pgisture content ° 623 cl Quarter | 30 capacity [00 . Spin-drying efficiency jun w Spin speed®rpm) Hat | 1000 | classt c Quarter | 1000 Rated 308 Programme duration | C2P2cIy . Bh:min] Hat | 2:30 Type free-standing Quarter | 2:30

Product Fiche Airborne acoustical - . noise emissions in Airborne acoustical an 76 noise emission class Bu nn sa phas Off-mode [W] Standby mode [W] (if applicable) 0.50 (if applicable) N/A Delay start [W) Networked standby (if applicable) 4.00 (W lif applicable] N/A Minimum duration of the guarantee offered by the suppliertli: This product has been designed to release : n : = NO silver ions during the washing cycle Additional information: Weblink to the supplier's website, where the information in point 9 of Annex Il to Commission Regulation [EU] 2019/2023 l is found: this item shall not be considered relevant for the purposes of Article 2(6] of Regulation (EU) 2017/1369, for the eco 40-60 programme. ld changes to these items shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369. 1 it the product database automatically generates the definitive content of this cell, the supplier shall not enter these data.

1) The actual energy consumption will depend on how the appliance is used.

2] The actual water consumption will depend on how the appliance is used and on the hardness of the water. 3] Delivery of the spare parts within 15 working days after having received the order. Product Data Sheet concerning (EU) 2019/2014 The product data sheet for your appliance can be found online. Go to https://eprel.ec.europe.eu and enter the model identifier for your appliance to download the data sheet. The model identifier for your appliance can be found in the technical specifications section.

WARRANTY CONDITIONS This product is guaranteed against faults caused by defects in manufacturing or the materials used for a period of two rting from the date of purchase.* T warranty does not cover defects or damage caused by failure to install the device correctly, incorrect use of the product, or *proof of purchase required.
