USER MANUAL STEAMBOOST-07.3 VALBERG
Thank you for choosing this VALBERG product. VALBERG products are chosen, tested, and recommended by ELECTRO DEPOT, so you can be sure you are getting a top-quality, easy-to-use product that won't let you down.
We're confident your new device will be a pleasure to use every day!
Welcome to ELECTRO DEPOT.

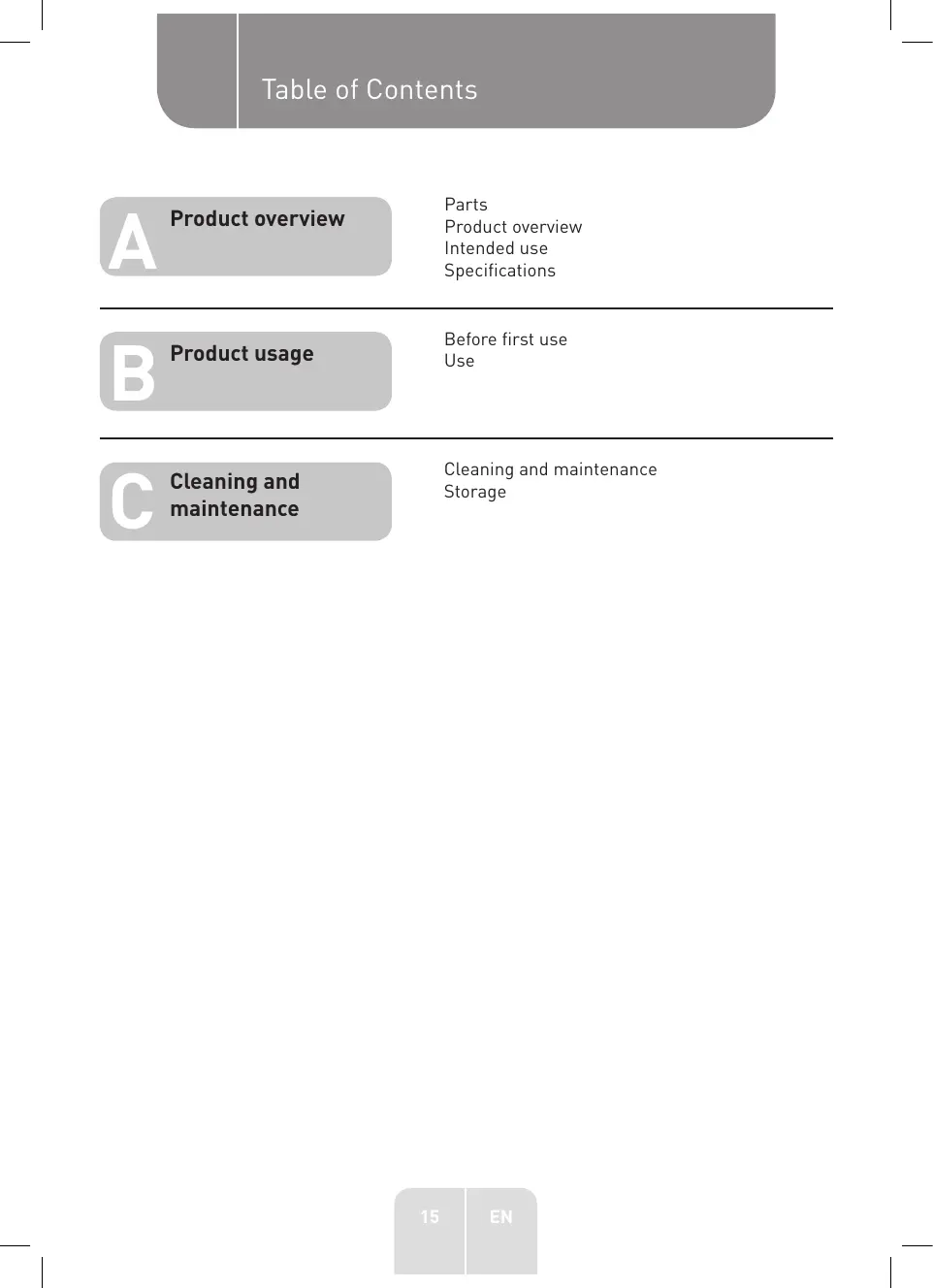

Table of Contents
Parts
Product overview
Intended use
Specifications
Before first use
Use
Cleaning and maintenance
Storage
Parts
A Iron handle B Thermostat button Iron preheating indicator light D Ceramic soleplate E Steam control Iron release button Iron rest Control panel
Power cable J Steam cable K Power cable storage Boiler M Soleplate tip housing Water tank (1.8 L max.) Water tank handle Tank water filler
Control panel
Power button with indicator light
Medium steam indicator light
Steam level selection button
Maximum steam indicator light
Operation indicator light
Boiler descending indicator light
Low steam indicator light
Empty water tank indicator light
Product overview
- Unpack the unit. Check that it is complete and in a good condition. Remove all the labels from the unit. If the unit is damaged or faulty, do not use it and take it to your retailer or after-sales service centre.
- Keep all packaging out of the reach of children. There is a risk of accidents if children play with packaging materials.
Intended use
This unit has been designed to iron a wide variety of clothing. Do not use it for any other purpose. Any other use may damage the unit or even cause bodily injury. The unit is intended for household use only and may not be used for commercial purposes.
Specifications
| Model: | 985850 - STEAMBOOST-07 |
| Operating voltage: | 220-240 V ~, 50-60 Hz |
| Nominal power: | 2520-3000 W |
| Tank capacity: | 1800 ml |
| Steam pressure: | 7 bar |
| Protection class: | Class I |
B Product usage
Before first use
- Before using the product for the first time, make sure it is switched off and disconnected from the power supply.
- Clean the product's exterior with a soft, damp cloth, then dry it thoroughly.
- Do not immerse the product in water or any other liquid.
- Remove the tank from its housing. Fill your tank via the water filler to its maximum level (1.8 L), then reposition the tank.
- Unlock your iron by sliding the iron release button to the left, towards the square symbol.
- Place your steam station on a flat, stable surface. Plug the cable into an electrical socket.
- Press the power button on the control panel once. The unit will then beep, and the operation indicator light will light up to indicate that the unit is on.
Note: The low steam indicator light will turn on because the low steam level is pre-programmed for when the unit starts up.
- Press the steam level selection button twice to select the maximum level. The maximum steam indicator will light up.
- Turn the thermostat knob to the MAX position. The iron preheating indicator light will turn on to indicate that the iron is heating up. Repeatedly press the steam control button to start the steam function, then iron over a tea towel for 10 minutes to remove any residue inside or on the soleplate.
Note: Steam is emitted in less than 15 seconds to indicate that the unit is ready.
Note: Odours and particles may be emitted from the unit during its first few uses. This is normal and will quickly stop. When you turn on your steam station, a pumping sound will be heard emanating from the unit. This is normal and indicates that water is being pumped through the system. During the iron's preheating phase, water may drip from the unit. This will only last a few seconds.
Use
Filling the tank
1. Remove the water tank from its housing by grasping its handle.
B. Product usage
Fill the tank using a measuring cup (not supplied) or directly under the tap, whilst taking care not to exceed the MAX level [1.8 L].
- Next, correctly reposition the tank in the station. Remember to always fill the tank before each use.
- During use, should you need to top up the tank, you must first remember to switch off the station by pressing the power button once. Remove the water tank by grasping its handle, then fill the tank via a measuring cup. Correctly reposition the tank in the station. Press the power button once to restart the station.
- Your unit is equipped with an empty water tank detection system. The indicator light will switch on and the unit will emit 2 beeps whenever there is not enough water in the tank. Furthermore, the steam function will automatically switch off. It is of the utmost importance to never fill the water tank past the indicated MAX level.
Note: Your unit has been designed to work with tap water. If your water is very hard, we recommend that you mix 50% tap water with 50% deionised water. Always ensure that the water tank has been correctly repositioned in the unit after being filled. To avoid damaging the unit, do not add perfume, vinegar, starch, descaler or any other chemicals to the tank.
Locking and unlocking your iron
3. Unlocking your iron: slide the iron release button to the left, towards the cap symbol. Locking your iron and moving the steam station: place the iron on its iron rest, making sure that the tip of the soleplate is properly inserted into the soleplate tip housing. 5. Slide the iron release button to the right, towards the symbol. Make sure the iron is properly locked before moving the steam station via the iron's handle.
Using your unit
- Remove the tank from its housing.
- Fill the tank via the water filler to its maximum level (1.8 L), then reposition the tank.
- Place your steam station on a flat, stable surface. Plug the power cable into an electrical socket.
- Press the power button on the control panel once. The unit will then beep, and the operation indicator light will light up to indicate that the unit is on.
Note: The low steam indicator light will turn on because the low steam level is pre-programmed for when the unit starts up.
- To select the steam level, press the steam level selection button. Select a different level with each press of the button.
B Product usage
- To turn off your unit, press and hold the power button for 3 seconds. The unit will beep, and the power indicator will turn off to indicate that the unit is off.
Dry ironing
- To dry iron without steam, turn the thermostat knob and set it between the and MAX position, depending on the type of fabric. For best results, wait for the heating indicator light to turn off. Do not press the steam control.
Steam ironing
- To steam iron, turn the thermostat knob and set it between the MAX and position, depending on the type of fabric. Select your level of steam flow. Wait for the heating indicator light to turn off before starting to iron. Remember to press the steam control to use this function.
Note: The boiler pressure increases according to the selected steam flow level. The selected steam flow indicator light flashes whilst heating up, then remains steadily lit when the boiler is ready.
A few drops of water may drip from the soleplate when the station is switched on. This is due to any steam condensation that has accumulated inside the steam cable after your previous use. Simply hold the iron over an old rag and press the steam control until the station generates steam. During use, if you notice any particles escaping from the soleplate, we recommend descaling the boiler.
Vertical steam
- Set the thermostat to MAX and then vertically position the iron in such a way that it is facing the garment, then press the steam control for 10 second intervals.
Steam boost function
- Turn the thermostat knob and set it between the MAX and position, depending on the type of fabric. Select high steam flow mode. Wait for the heating indicator light to turn off before starting to iron.
Note: You must wait 15 seconds between each double press of the button.
Automatic shutdown of the station
- If the station is not used for a period of 10 minutes, then the unit will beep and switch off automatically. Press the power button to turn your steam station back on again.
Station shutdown and storage
- Turn your iron's thermostat knob to the MIN position. Place your iron on its iron rest, then lock it into position. Press and hold the power button for 3 seconds to switch off the station. Unplug the station and let it fully cool down before putting it away.
- Wind the power cable and the steam cable around the station, making sure that each cable fits into the cable storage space.
After each use, remove the water tank from its housing, then empty any water remaining in the tank into the sink.
WARNING!
Whilst the unit is in use, the surfaces can become hot enough to potentially cause burns. Do not touch the unit's hot surfaces. Do not direct the iron-generated steam towards people or animals.
Ironing tips
- Always refer to the labels on your clothes to choose the suitable ironing setting. Always set the ironing temperature to that recommended on the care/ironing labels found on clothing and other textiles (sheets, curtains, etc.).
- For synthetics, blends and silk, we recommend choosing the lowest setting.
- Never iron over zips, studs or any other metal decorations, as this will damage the iron's soleplate.
| Fabrics | | Temperature | Steam setting |
| Synthetic | ● | 70-120 °C | - |
| Silk | ● to ● ● | 100-160 °C | - |
| Wool | ● ● to ● ● ● ● | 140-210 °C | ● |
| Cotton | ● ● ● | 170-225 °C | ● |
| Linen | MAX | 170-225 °C | ● |
Cleaning and maintenance
WARNING
Remove the plug from the mains socket, then let the unit fully cool down before cleaning it.
Clean the unit's exterior and soleplate with a soft, dry cloth. You can also clean them with a cloth dampened with a neutral pH product, then dry them with a clean, dry cloth.
Descaling the boiler
To maintain its efficiency and avoid any limescale discharge, it is essential that the steam station be descaled and the boiler rinsed whenever the boiler descending indicator light turns on.
- Press and hold the power button for 3 seconds to switch off your unit. Let the unit cool down completely before starting the descending operation.
- Move the unit near to a sink and make sure that it is placed on a flat, stable surface. Remove the water tank from its housing.
Turn the unit over and unscrew the drain plug.
① Drain plug
- Empty the water contained in the boiler.
- Pour two glasses of water into the boiler, then screw the drain plug back on.
- Return the unit to its original position and place the iron on a flat surface.
- Hold the station with both hands and shake it gently for 30 seconds. Next, unscrew the drain plug and drain the water. If the water coming out of the boiler is not clear, repeat this operation until the water runs clear.
- Once you have finished, screw the drain plug back on and place your iron back on its iron rest, whilst making sure to lock it in place.
C Cleaning and maintenance
- When you have finished using the iron, turn off your unit and wait for it to cool completely. Wind the power cable and the steam cable around the station, making sure that each cable fits into the cable storage space. Store your unit in a safe, dry place.
Important:
- If you have finished descending the boiler, the decaling light doesn't switch off, please make sure the boiler is completely empty before it starts operating the device again.
- Empty the water from the tank after each use.
- Do not use any cleaning or descaling products to clean the soleplate or housing.
- Never use sharp or pointed objects to remove deposits from the soleplate.
- Never run the iron or its housing under running water.
- Regularly clean the damp soleplate with a non-metallic sponge.
- Occasionally clean the plastic parts with a soft, slightly damp cloth.
Storage
- Always unplug the unit before storing it.
- Store the unit in a fresh, dry and dust-free place, out of the reach of children and pets.
- Please retain the packaging and use it to store your unit when it is not in use for an extended period of time.
Thank you!
This product is guaranteed against faults caused by defects in manufacturing or the materials used for a period of two years, starting from the date of purchase.* This warranty does not cover defects or damage caused by failure to install the device correctly, incorrect use of the product, or excessive wear and tear.
*proof of purchase required.
