USER MANUAL STEAMBOOST 05 VALBERG

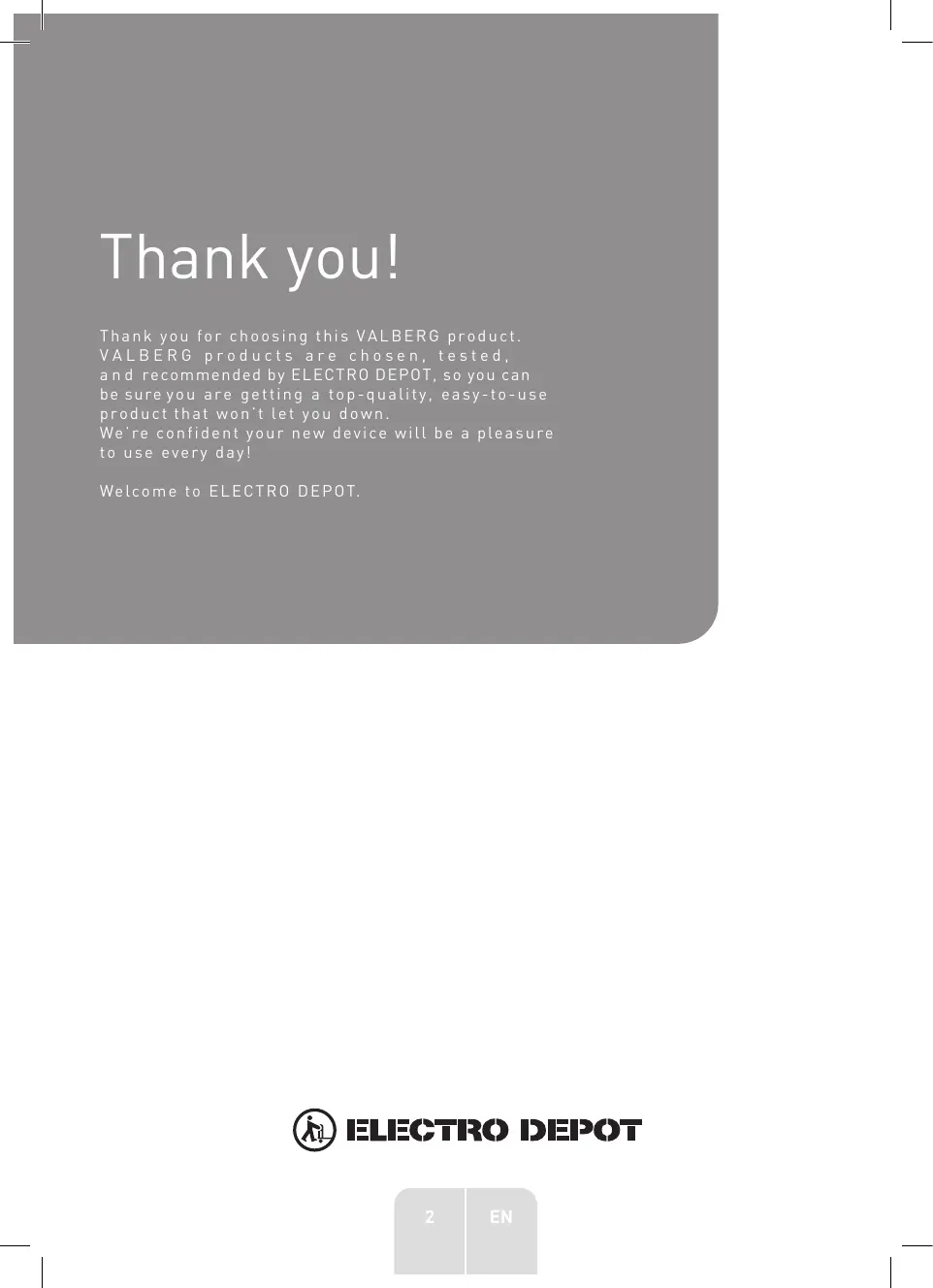

Thank you for choosing this VALBERG product. VALBERG products are chosen, tested, and recommended by ELECTRO DEPOT, so you can be sure you are getting a top-quality, easy-to-use product that won't let you down. We're confident your new device will be a pleasure to use every day!
Welcome to ELECTRO DEPOT.
Table of Contents
A Product overview
Parts Specifications
B Product usage
Features
Cleaning and maintenance
Cleaning and maintenance Troubleshooting Storage
Parts
A Bottom
B Water tank
Water tank handle
D Iron lock
E Iron lock release button
F Thermal insulation stand
Upper cover
H Display screen
① Automatic power failure prompt
(2) Energy Saving steam
3 Big gear steam
No water in the tank
5 Clean tips
Cleaning button
SET Steam mode button
K Power button
L Handle
Rear cover
Cord guard
Steam button
Wire reel barrel
Foot pad
Water pump damping silica gel
Specifications
| Model: | 988620 Perfect ST.5 |
| Operating voltage: | AC 220-240V~, 50-60Hz |
| Nominal power: | 3000W |
| Tank capacity: | 1.25L |
| Protection class: | I |
B Product usage
Features
Suggestions before using the iron for the first time
- Certain parts of the iron have been lightly greased therefore the iron could give off a little smoke when plugged in for the first time. This will cease after a short while.
- Before using the iron for the first time, remove the plastic protector from the base (if it has one) clean the base with a soft cloth.
- To protect the soleplate from scratches, do not run it over rough metal objects (such as against the ironing board, buttons, zips, etc.)
- Pure wool fibres (100% wool) can be ironed with the appliance in the steam position. By preference, select a high steam position and use a dry ironing cloth.
Thermal insulation stand
- When the iron is not in use, it should be locked on the thermal insulation stand. When locked, the whole unit can be carried with ease.
- To unlock the iron from the thermal insulation stand, press the Iron lock release button and then lift to remove the iron from the stand.
- To lock the iron on the thermal insulation stand, place the iron in the correct position on the stand, and then push the lock until it clicks into place.
NOTE: When the iron is not in use, it should be rested and locked in position on the thermal insulation stand.
Use product
- Press the power button and the product starts working.
- Long press the power button for 2 seconds, the product turns off.
Steady temperature
- Check the ironing instructions on the garment to be ironed.
- Electronic temperature control, no need to manually adjust temperature.
How to fill the water tank.
- Disconnect iron power supply.
- Pull out the water tank.
- Fill the water tank to the MAX water level through the water apertures.
- Place the water tank back to thermal insulation stand and click it into place.
Note: If you have hard water, it is advisable to use only distilled or demineralized water.
B Product usage
Warning: Do not use chemically de-limed water or perfumed.
Steam ironing
- Fill the iron as described in the section "how to fill the water tank".
- Plug the iron into the mains.
- Steam ironing is possible only when heating is complete. Otherwise, water may escape through the soleplate.
- Wait until the indicator does not flicker to prove that the bottom plate has been heated.
- Press Steam button to realize Steam ironing.
- When the iron is finished, place the iron in an upright position or on the base when the iron is interrupted.
- Disconnect the iron from the mains supply. Pour out any remaining water from the water tank and leave the iron to cool off.
Continuous steam
- Heating completed, temperature stabilized.
- Press the steam mode button to switch between two modes: Energy Saving steam and Big gear steam.
Explosion steam
- When the heating is completed, the temperature is stable.
- Press the steam button two times quickly in one second. The explosion steam lasts 2 seconds.
Auto shut off
- When the iron is stationary for more than 10 minutes, the iron goes out of power mode.
- The power-off sign flashed on the display, accompanied by six buzzing sounds.
- Press the steam button to restore the power.
- Irons will not be cut off during steam discharge.
Anti drip
This iron is equipped with a drip stop function: the iron automatically stops steaming when the temperature is too low to prevent water from dripping out of the soleplate.
Cleaning and maintenance
- Please make sure there is enough water in the tank before cleaning
- When the pump works for 25 hours, it will prompt the product to be cleaned.
- Please put the iron in a safe position before cleaning to prevent people from being injured by hot water during cleaning.
- After the heating is complete, long press the cleaning button for 3 seconds, and the iron enters the cleaning mode. The display on the screen flashes and goes with the 3 sounds of "bi".
- Two minutes later, the buzzer rang three times, indicating that the cleaning was complete.
Troubleshooting
| Problem | Solution |
| Iron emits an odor or smoke | • Iron gives off an odor when turned on for the first time. Oils used during manufacture need to be burnt off allow ten minutes for odor to disappear. |
| Iron does not heat | • The iron should be plugged into a 230 Volt, Whether the power switch is turned on. |
Storage
- Before storing the steam iron, ensure that it has cooled and dried thoroughly.
- Ensure that the water tank is empty before storing it.
- Bundle the water supply hose and fold it in two. Then, wind it along the water supply hose storage groove. In addition, tie the power cord with a cable tie.
- Store in a cool, dry place.
Merci!
This product is guaranteed against faults caused by defects in manufacturing or the materials used for a period of two years, starting from the date of purchase.* This warranty does not cover defects or damage caused by failure to install the device correctly, incorrect use of the product, or excessive wear and tear.
*proof of purchase required.
