Thank you for choosing this EDENWOOD product. EDENWOOD products are chosen, tested, and recommended by ELECTRO DEPOT, so you can be sure you are getting a top-quality, easy-to-use product that won't let you down.

We're confident your new device will be a pleasure to use every day!

Welcome to ELECTRO DEPOT.

Table of Contents

Parts
Product overview
Intended use
Specifications
Declaration of conformity

Connections Operation

Cleaning and maintenance Troubleshooting Storage

Parts

		Description
A		GUITAR IN input socket
B		MIC IN 1 input socket
C		MIC IN 2 input socket
D		GUITAR VOL knob
E	I	Skip to previous track button
F		MIC VOL knob
G	II	Play/pause button
H	III	Skip to next track button
I		Master VOLUME knob
J		Display screen
K	5V=1A	USB PLAYBACK socket
L		LINE OUT output socket
M		LINE IN input socket
N		MIC REVERB knob
O	TWS	BLUETOOTH/TWS button
P	MIC ECHO knob
Q	L	EQ button
R		SOURCE button
S		ON/OFF button
T		BASS button
U		LIGHT button
V		Strobe light
W		Speakers
X		Speakers with lights
Y		Handle
Z		Power socket
AA		FM antenna
BB		Wheel [x2]
CC		AC power cord

Product overview

• Unpack the product. Remove all the labels from the product. Check that it is complete and in a good condition. If the unit is damaged or faulty, do not use it and take it to your retailer or after-sales service centre.
• Keep all packaging out of the reach of children. There is a risk of accidents if children play with packaging materials.

Intended use

• This product has been designed exclusively for playing audio files and is intended for domestic use only. It may not be used for commercial purposes.
  Any other use may damage the product or cause injury.

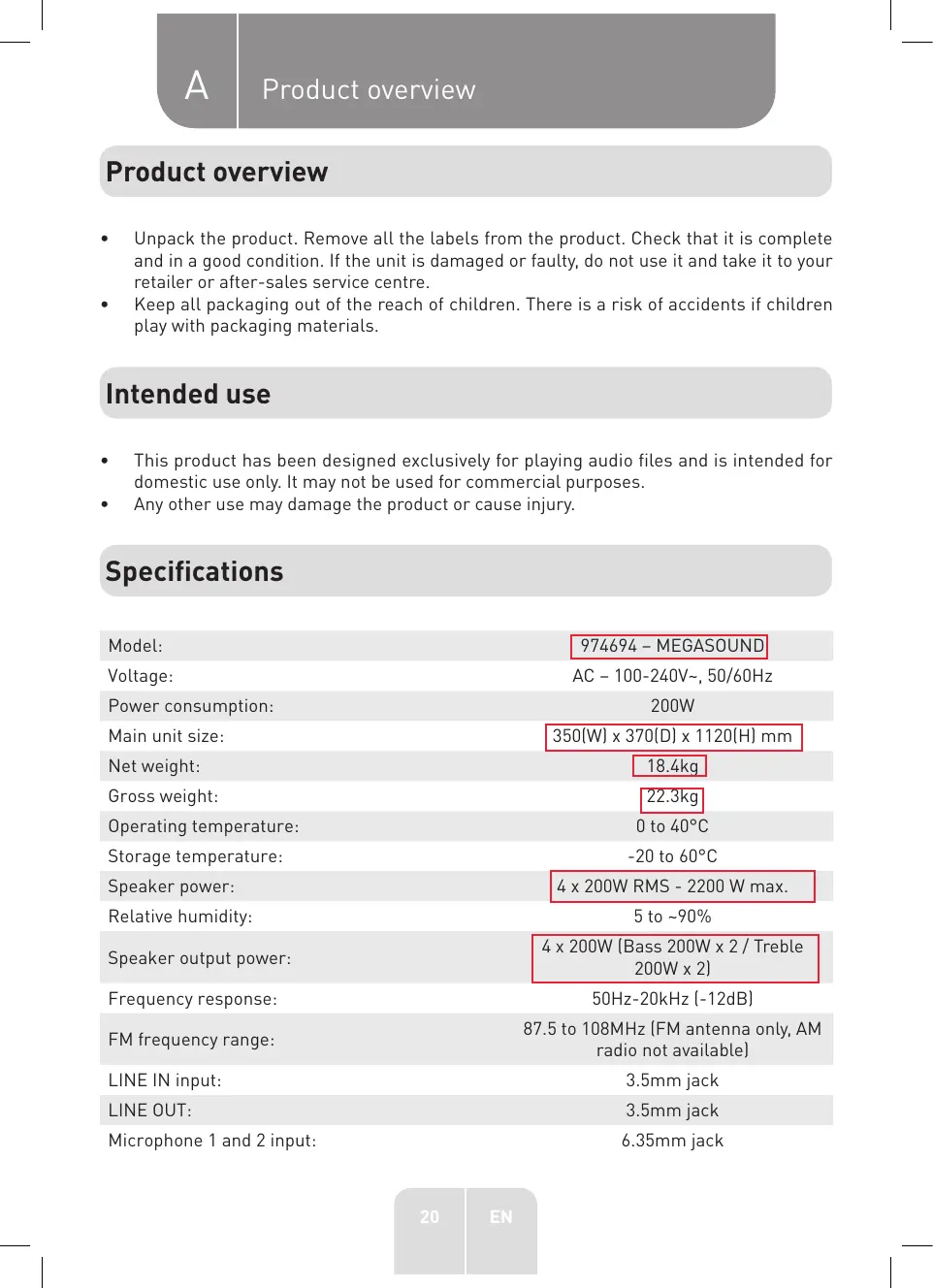

Specifications

Model:	974694 - MEGASOUND
Voltage:	AC - 100-240V~, 50/60Hz
Power consumption:	200W
Main unit size:	350(W) x 370(D) x 1120(H) mm
Net weight:	18.4kg
Gross weight:	22.3kg
Operating temperature:	0 to 40°C
Storage temperature:	-20 to 60°C
Speaker power:	4 x 200W RMS - 2200 W max.
Relative humidity:	5 to ~90%
Speaker output power:	4 x 200W (Bass 200W x 2 / Treble 200W x 2)
Frequency response:	50Hz-20kHz (-12dB)
FM frequency range:	87.5 to 108MHz (FM antenna only, AM radio not available)
LINE IN input:	3.5mm jack
LINE OUT:	3.5mm jack
Microphone 1 and 2 input:	6.35mm jack
Guitar input:	6.35mm jack
Bluetooth name:	EDENWOOD MEGASOUND
Bluetooth frequency:	2.4GHz
Bluetooth range:	Up to 10 metres
USB connection (PLAYBACK):	Output: 5V, 1A
USB compatibility:	Up to 32GB
Compatible formats:	MP3
Frequency bands:	2402 to 2480MHz
Maximum power output:	4.12dBm
Protection class:	Class II

Due to constant developments and improvements in the design of our products, changes to the specifications below are likely to occur without notice.

Compatibility disclaimer

Wireless performance is dependent on your device's Bluetooth wireless technology. Please check with the manufacturer. ELECTRO DÉPÔT cannot be held responsible for any data loss or leaks resulting from the use of these devices.

Declaration of conformity

In this document, ELECTRO DÉPÔT declares that this unit complies with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity can be viewed on the following website: http://www.electrodepot.fr/sav/ notices/

IMPORTANT!

• Before plugging in and starting the speaker system, make sure that all controls are turned off or set to a low level.

Connections

Connect your device to the speaker using the cables and sockets detailed below:

Device	Connection (cables not provided)	Speaker Socket
Phone, iPad or tablet	Use a 3.5mm plug to connect to LINE IN.	LINE IN
CD/DVD player	The other end of the cable must fit your audio device.
MP3 player
Record player
TV
VCR
USB memory stick	Plug in a USB memory stick to play MP3 files.	USB PLAYBACK
Microphone/guitar	Use a microphone/guitar cable with a 6.35mm plug to connect a microphone.	MIC IN 1 / MIC IN 2 / GUITAR IN

NOTE:

• For best playback, make sure only compatible MP3 audio files are stored on the USB memory stick.

Connecting the speaker to an additional speaker

• Connect a 3.5mm plug to the LINE OUT socket on the speaker.
• Connect the other end of the cable to an additional speaker.

NOTE: Please turn the volume of the LINE IN speaker to the loudest, and adjust the volume via the LINE OUT speaker after connection.

Pairing a Bluetooth device

To connect the speaker to a Bluetooth device, you must first pair the speaker with the device.

1. Turn on the Bluetooth device (such as your phone or tablet):

2. Go to settings on your device.

3. Select Bluetooth and turn it on.

B Product usage

1. Plug the power cord into the wall socket and press the button to turn on the speaker. A sound prompt will play, and HELLO will display on the screen. The speaker will automatically start searching for a Bluetooth device and BT will flash on the display to confirm it is searching.
2. If the speaker does not automatically start searching for a Bluetooth device, press and hold button. The speaker will then automatically start searching for a new or existing Bluetooth device.
3. When the Bluetooth device displays the speaker's Bluetooth name, EDENWOOD MEGASOUND, select the name and confirm the connection. When pairing is successful, a sound prompt will play, and BT will display constantly.

NOTE:

• If the speaker's Bluetooth name does not appear on your Bluetooth device, move the devices closer together. If that does not work, turn the devices off and then on again before starting the pairing process again.
• When pairing the devices, make sure they are not more than 10 metres apart and there are no physical obstructions between the devices.
  If you experience problems with connecting the devices, remove any existing connections on your Bluetooth device and restart the pairing process.
• Once you have paired a device, the units should remember the connection and you will not need to pair them again.

Disconnecting a Bluetooth connection

• In Bluetooth mode, press and hold the button or turn off the Bluetooth connection on your device to disconnect. BT will flash and a sound prompt will play to confirm they have been disconnected.

Connecting two speakers (TWS)

You can connect one MEGASOUND speaker to another MEGASOUND speaker via a Bluetooth connection.

1. Place the speakers near to each other. The speakers must be within 10 metres when using the TWS function.
2. Turn on both speakers and make sure they are in BT mode (BT will show on the screen).
3. Press and hold the _WS button on one speaker. Both speakers will enter TWS mode. TWS PAIRING will display.
4. When they are successfully connected, the master speaker will display HOST and the secondary speaker will display SLAVE.
5. Connect the external Bluetooth device through its Bluetooth settings to the speakers. Choose the pairing name of the master speaker (HOST). When the Bluetooth is connected, a sound prompt will play.
6. Press and hold the button on either speaker to exit TWS mode.

NOTE:

If you change the music source, the TWS function will be disconnected.
- If you want to make a TWS connection with a different speaker, remove previous connections before attempting to connect the new speaker.

Operation

WARNING! Before plugging in and starting the speaker system, make sure that all controls are turned off or set to a low level.

Playing music

1. Plug the power cord into the back of the speaker and the wall socket.
2. Press the button to turn on the speaker. HELLO will display on the screen and the speaker lights will briefly turn on. (Press the button again at any time to turn off the speaker, BYE will display, and all lights will turn off.)
3. Connect to your audio source as described in the Connections section.
4. To select the playback source, press the button continuously to select BT, USB, RADIO or LINE. You can also press the on the control panel to directly access the Bluetooth mode.

NOTE:

• USB will only display when the USB is plugged in. When you connect a USB memory stick the speaker will immediately enter this mode and start to play the music.

• Make sure the volume is turned up on both the speaker and external device it is connected to.

• To control playback of the audio, you can either use your external device's controls (if available), or you can use the following buttons on the speaker control panel:

Button	Mode	Action
Master VOLUME knob	All modes	Turn anticlockwise to lower the volume. Turn clockwise to increase the volume. Volume range is V00 to V40.
II	BT/USB	Press to play or pause the track or file.
I	BT/USB	Press to go to the previous track or file.
I	BT/USB	Press to go to the next track or file.
BASS	All modes	Press to turn the bass on or off. BASS ON will display when the bass is on, and BASS OFF will display when it is off.
Illi	All modes	Press repeatedly to select either ROCK, JAZZ, SAMBA, POP or BALAN (balance) sound reproduction.

1. When the speaker is not used for 10 minutes it will automatically turn off. Press the button to turn it on again.
2. Press the button to turn off the speaker.
3. Unplug the speaker to turn it off fully.

FM Radio

Unwind the FM antenna (at the back of the speaker).
- Press the button repeatedly to select RADIO mode. The frequency will display on the screen, for example 90.30.
- Press and hold the button to automatically scan. The number of the stored station will show on the display, for example P - - 01.
Press and hold the button again at any time to stop auto scanning.
- Press button to switch between preset station and frequency.
- When the stored station (for example P - - 01) is displayed on the screen, press▶or I▶ to skip to the next or previous station.
- When auto scanning has stopped and the radio frequency (for example 90.30) is displayed, press and hold the or button to fine tune the radio channel.

NOTE: You can store up to 30 stations. The actual number of stored stations depends on the reception in your area. Once stored, the stations will be saved even if you turn off the speaker.

Microphone

You can connect up to 2 microphones (not provided) to sing karaoke or create a loudspeaker system to communicate with a large audience.

• Connect a microphone cable (not provided).
• Turn the MIC VOL knob to adjust the microphone volume.
• If there is an echo when using the microphone, adjust the MIC ECHO knob until there is little or no echo.
• Turn the MIC REVERB knob to adjust sound reverberations from the environment.
• When you have finished using the microphone, unplug the cable from the speaker.

WARNING:

• Never hold the microphone too close to the speaker as this may cause feedback.

B Product usage

Guitar

You can connect an electric guitar to the speaker to play along to the music of your favourite songs.

• Connect the cable (not provided).
• Turn the GUITAR VOL knob to adjust the guitar volume.
• When you have finished using the guitar, unplug the cable from the speaker.

Changing the lighting effects

• Press the button repeatedly to select 1 of the 4 different lighting effects (LED1 to LED4) or turn the lights off (OFF will show on the display).
• Press and hold the button to turn the strobe light on or off.

Cleaning and maintenance

WARNING! Before cleaning, always unplug the unit.

• Clean the outside with a soft, dry cloth.
• Do not use flammable or abrasive detergents such as benzene or white spirit to clean the unit.
• Never immerse the speaker or cables in water and do not allow any liquid to enter any part of the unit.

Troubleshooting

Problem	Possible Cause	Solution
The speaker does not work.	·The plug is loose or not connected.	·Check the power cord and make sure it is firmly connected to the wall socket. ·Check the ON/OFF button is turned on and working.
There is no sound.	·The volume is set too low. ·The devices are incorrectly connected.	·Increase the speaker volume and check that the audio source is not on mute or low volume. ·In LINE IN mode, check the cable is connected and the external device is working properly. ·When using the microphone/guitar, check the cable, make sure the microphone/guitar is switched on and the volume is turned up on the speaker. ·In USB mode, check compatible files are on the USB memory stick and that they are not corrupted. Try reloading the files onto the USB memory stick or use another USB memory stick.
The Bluetooth name cannot be found.	• Your Bluetooth device may not have Bluetooth turned on. • You are too far away from the speaker. • Another Bluetooth connection is preventing you from pairing with the speaker.	• Make sure the Bluetooth function is activated on your Bluetooth device. • Move the Bluetooth device to within 10 metres of the speaker. • Remove any existing Bluetooth connections and then try again to pair the devices.
The control panel buttons are not working.	• Static electricity is affecting the speaker.	• Turn the speaker off. Then unplugging the unit and wait 10 seconds before plugging it in again and turning it on.

Storage

• Always unplug the unit before storing it.
• Store the unit in a fresh, dry and dust-free place, out of the reach of children and pets.
• Please retain the packaging and use it to store your unit when it is not in use for an extended period of time.
