USER MANUAL RB440N4AFD HISENSE

GH] K@FKLDCQNRP SHDAUPXITIITEC]

Before operating this unit, please read this manual thoroughly, and retain for future reference

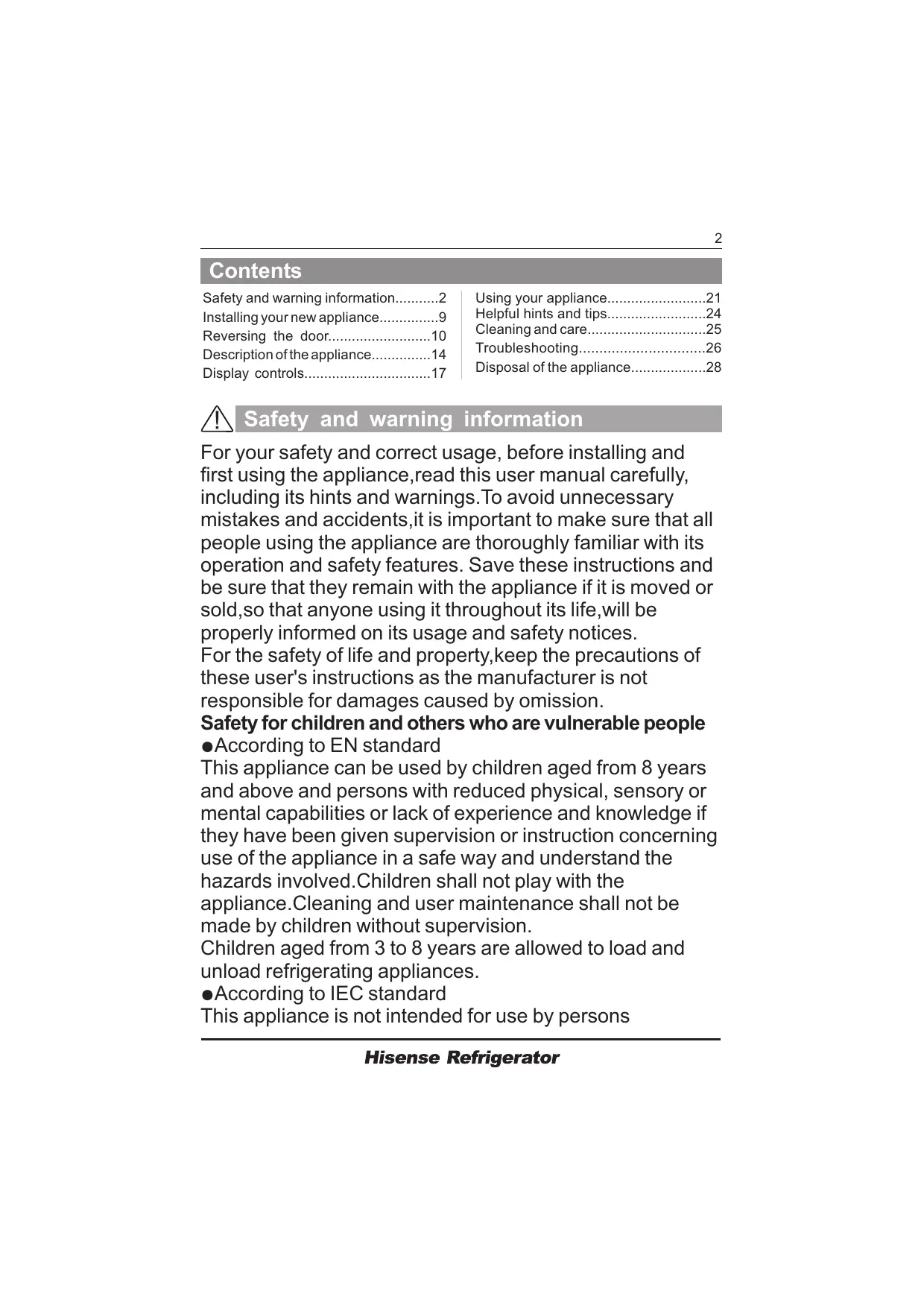

Safety and warning information Installing your new appliance Reversing the door... Description ofthe appliance. Display controls PAN Safety and warning information For your safety and correct usage, before installing and first using the appliance,read this user manual carefully, including its hints and warnings.To avoid unnecessary mistakes and accidents,it is important to make sure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and be sure that they remain with the appliance if itis moved or sold,so that anyone using it throughout its life,will be properly informed on its usage and safety notices. For the safety of life and property,keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission. Safety for children and others who are vulnerable people eAccording to EN standard This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.Children shall not play with the appliance.Cleaning and user maintenance shall not be made by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. eAccording to IEC standard This appliance is not intended for use by persons Using your appliance. Helpful hints and tips. 10 Cleaning and care. 14 Troubleshooting.. 17 Disposal of the applianc: Hisense Refrigerator

(including children) with reduced physical, sensory or mental capabilities,or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person being responsible for their safety. eChildren should be supervised to ensure that they do not play with the appliance. eKeep all packaging away from children as there is a risk of suffocation. elf you are discarding the appliance,pull the plug out of the socket,cut the connection cable (as close to the appliance as you can) and remove the door to prevent children playing from suffering an electric shock or from closing themselves inside it. elf this appliance, featuring a magnetic door seals,is to replace an older appliance having a spring lock (latch) on the door or lid,be sure to make the spring lock unusable before you discard the old appliance.This will prevent it from becoming a death trap for a child. General safety AN e WARNING —This appliance is intended to be used in household and similar applications such as -staff kitchen areas in shops.offices and other working environments,; -farm houses and hotels, motels and other residential type environments,; -bed and breakfast type environments; -catering and similar non-retail applications. e WARNING — Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. e WARNING — Ifthe supply cord is damaged,it must be replaced by the manufacturer,its service agent or similarly Hisense Refrigerator

qualified persons in order to avoid a hazard. e WARNING — Keep ventilation openings,in the appliance enclosure or in the built-in structure,clear of obstruction. e WARNING — Do not use mechanical devices or other means to accelerate the defrosting process,other than those recommended by the manufacturer. e WARNING — Do not damage the refrigerant circuit. e WARNING — Do not use electrical appliances inside the food storage compartments of the appliance,unless they are of the type recommended by the manufacturer. e WARNING — The refrigerant and insulation blowing gas are flammable. When disposing of the appliance,do so only at an authorized waste disposal centre.Do not expose to flame. e WARNING —When positioning the appliance,ensure the supply cord is not trapped or damaged. e WARNING —Do not locate multiple portable socket- outlets or portable power supplies at the rear ofthe appliance. Replacing the illuminating lamps eWARNING—The illuminating lamps must not be replaced by the user“ lfthe illuminating lamps is damaged,contact the customer helpline for assistance. This warning is only for refrigerators that contain illuminating lamps. Refrigerant The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance,a natural gas with a high level of environmental compatibility, which is nevertheless flammable.During transportation and installation of the appliance,ensure that none of the components of the refrigerant circuit becomes damaged. Hisense Refrigerator

The refrigerant (R600a) is flammable. e WARNING — Refrigerators contain refrigerant and gases in the insulation.Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal. The mea A is a warning and indicates the refrigerant and insulation blowing gas are flammable.

WARNING : Risk of fire / flammable materials

Ifthe refrigerant circuit should be damaged: -Avoid opening flames and sources ofignition. -Thoroughly ventilate the room in which the appliance is situated. Itis dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit;fire, and/or electric shock. AN etectrical safety 1.The power cord must not be lengthened.

2. Make sure that the power plug is not crushed or

damaged. A crushed or damaged power plug may overheat and cause a fire. 3.Make sure that you can access the main plug of the appliance.

4. Do not pull the main cable.

5. Ifthe power plug socket is loose, do not insert the power

plug. There is a risk of electric shock or fire. 6.You must not operate the appliance without the interior lighting lamp cover. 7.The fridge is only applied with power supply of single Hisense Refrigerator

phase alternating current of 220-240V/50Hz. If fluctuation of voltage in the district of user is so large that the voltage exceeds the above scope for safety sake, be sure to apply A.C. Automatic voltage regulator of more than 350W to the fridge.The fridge must employ a special power socket instead of common one with other electric appliances. Its plug must match the socket with ground wire. Daily use eDo not store flammable gas or liquids in the appliance, there is a risk of an explosion. eDo not operate any electrical appliances in the appliance (e.g. electric ice cream makers,mixers etc..). e When unplugging always pull the plug from the mains socket,do not pull on the cable. eDo not place hot items near the plastic components of this appliance. eDo not place food products directly against the air outlet on the rear wall. eStore pre-packed frozen food in accordance with the frozen food manufacture’s instructions. eThe appliances manufactures storage recommendations should be strictly adhered to.Refer to relevant instructions for storage. eDo not place carbonated or fizzy drinks in the freezer compartment as it creates pressure on the container,which may cause it to explode,resulting in damage to the appliance. eFrozen food can cause frost burns if consumed straight from the freezer compartment. eDo not place the appliance in direct sunlight. eKeep burning candles,lamps and other items with naked flames away from the appliance so that do not set the appliance on fire. Hisense Refrigerator

eThe appliance is intended for keeping food stuff and/or beverages in normal household as explained in this instruction booklet. You should take care when move it as the appliance is heavy. eDo not remove or touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns. eNever use the base, drawers,doors etc. to stand on or as supports. eFrozen food must not be refrozen once it has been thawed out. eDo not consume ice popsicles or ice cubes straight from the freezer as this can cause freezer burn to the mouth and lips. eTo avoid items falling and causing injury or damage to the appliance,do not overload the door racks or put too much food in the crisper drawers. eThis refrigerating appliance is not intended to be used as a a built-in appliance. caution! Care and cleaning eBefore maintenance,switch off the appliance and disconnect the mains plug from the mains socket. eDo not clean the appliance with metal objects,steam cleaner,ethereal oils,organic solvents or abrasive cleansers. eDo not use a sharp objects instead of a plastic scraper to remove frost from the appliance. Installation Important! eFor electrical connection carefully, follow the instructions given in this manual.Unpack the appliance and check if there are damages on it. eDo not connect the appliance if it is damaged. Report possible damages immediately to the place you bought Hisense Refrigerator

it.In this case retain packing. eltis advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor. eAdequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation, follow the instructions relevant to installation. eWherever possible the back of the product should not be too close to a wall to avoid touching or catching warm parts (compressor,condenser) to prevent the risk of a fire, follow the instructions relevant to installation. eThe appliance must not be locate close to radiators or cookers. eMake sure that the mains plug is accessible after the installation of the appliance. Service eAny electrical work required to do the servicing of the appliance should be carried out by qualified electrician or competent person. eThis product must be serviced by an authorized Service Center, and only genuine spare parts must be used. 1)fthe appliance is Frost Free. 2)If the appliance contains freezer compartment. Hisense Refrigerator

Note: eThis appliance performs well within the climate class from SN to T showed in the table below.lt may not work properly if being left at a temperature above or belowthe indicated range for a long period. Climate class [ Ambient temperature SN +10°Cto+32°C N +16°Cto+32°C ST +16°Cto+38°C T +16°Cto+43°C eStandyourapplianceinadryplaceto avoid high moisture. eKeepthe appliance outofdirect sunlight, rain orfrost. Standthe appliance away from heatsources such asstoves,firesorheaters. Levelingofappliance eForsufficientlevelingand air circulatinginthelowerrearsectionof the appliance, the bottom feetmay needtobe adjusted.You can adjust them manuallybyhandorbyusinga suitable spanner. eToallowthe doorstoself-close, tilt the topbackwards by about 10mm. <10mm Hisense Refrigerator

eversing the door The side at which the door opens can be changed, from the right side (as supplied) to the left side, ifthe installation site requires. Warning! When reversing the door, the appliance must not be connected to the mains. Ensure thatthe plugis removed from the mains socket. Tools you will need Not provided mm socket wrench | _Thin-biade screwdrver Gross-shaped screwdrver Emmwrench eWhen required, tilt the refrigerator back in order to gain access to the base, you should rest the appliance on soft foam packaging or similar material to avoid damaging the backboard of the refrigerator. To reverse the door, the following steps are generally recommended. Different models may correspond to different pictures. Models will be written in the picture. If some parts are not shown in the picture, please ignore the relevant description.

1. Stand the refrigerator upright.

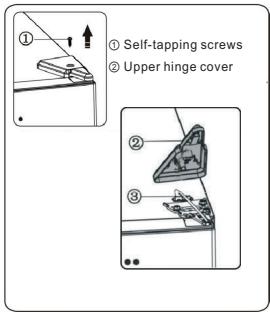

Open the upper door to take out all door racks (to avoid racks damaged) and then close the door. | Ex 2.Remove part ©,loose part © from the top right side of refrigerator. 3.Remove screws © and hinge ©.When the refrigerator with display on door, you need to pass connector © through the hole of hinge@. (Please hold upper door by hand when installing). © Special flange screws © Upper hinge

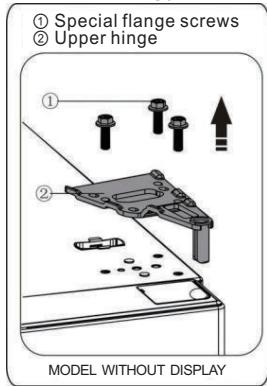

MODEL WITHOUT DISPLAY

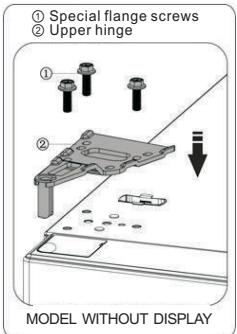

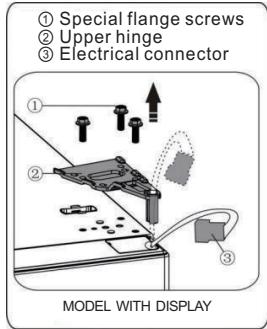

@ Special flange screws @ Upper hinge © Electrical connector

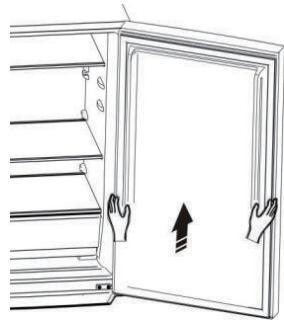

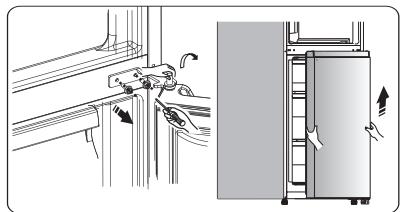

4. Remove the upper door from the

middle hinge by carefully lifting the door straight up. Then place the upper door on a smooth surface with its upper cover upwards. 5.When the refrigerator with a display on door, take screw hole cover(right) from plastic bag and install it onto the top right side of refrigerator body.Then remove screw hole cover(left) from the top left side of appliance and putitinto plastic bag. When the refrigerator without a display on door, pull out screw hole cover from the left side up rightly, and fix it on the right side. A <“ — Screw hole cover \fScrew hole cover (right) (left)

MODEL WITHOUT DISPLAY

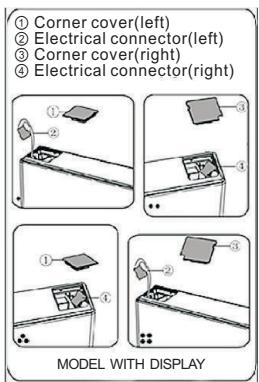

6.When the refrigerator with a display on door, remove part © from the top left side of upper cover and take out part © . Then remove part © and put part © into the top right side of upper cover. Refer to above operation, install part © on to the top left side of upper cover.Install part © of the top right side of upper cover. When the refrigerator without a display on door, skip this step. @ Corner cover(lent) © Electrical connector(left) © Corner cover(right) © Electrical connector(right)

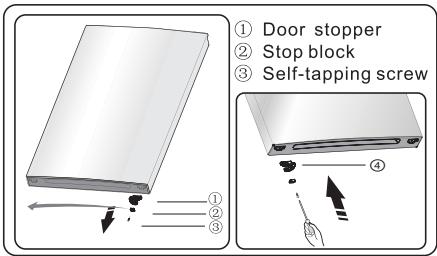

7. Loose screw © and take down

part © and part ©, Install replacement door stopper-left © provided (in the plastic bag) and part © (stop block) to the left side with screw ®. Keep part © with the appliance for future reference. Door stopper Stop block Self-tapping screw

8. Loose screws used to fix the

9. Place the lower door on a smooth

surface with its panel upwards. Loose screw © and take down part © and part ©, Install replacement door stopper-left @ provided (in the plastic bag) and part @(stop block) to the left side with screw ©. Keep part © with the appliance for future reference. @ Door stopper @ Stop block @ Self-tapping screw re (gnt) © Adjustabie bottom et part © Adiustable bottom fee part ing acreus © Adiustable Bottom fee part

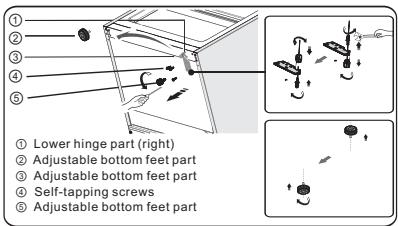

12. Remove part ® from the lower

hinge pin, loose out the lower hinge pin, change it to the reverse hole site, and then tighten into position, then install part © on the lower hinge pin.

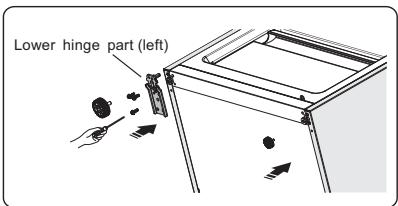

13. Replace the items remount in

step 11, change part © to left and then fix them with screws @. Install part © atlast. Lower hinge part (left)

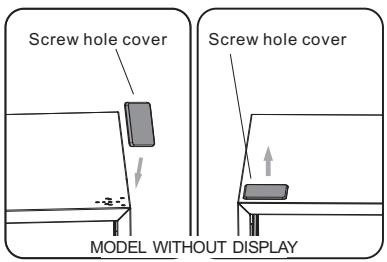

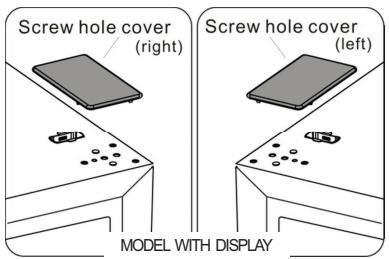

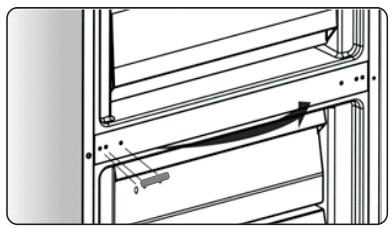

10. Change screw hole covers on

middle cover plate from left to right (as shown in figure below).

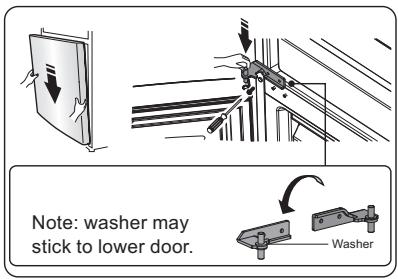

14. Slot the lower door onto the

bottom hinge pin and hold in position. Turn the middle hinge by 180°, change the washer on the axis to the lower side, adjust the middle hinge to the appropriate position and then install it ensuring the lower door in secured place. Note: washer may Stick to lower door.

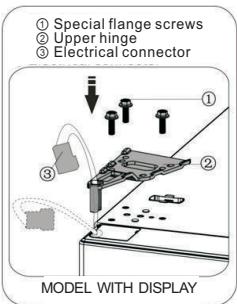

part® by screws@.Before fix part@, pass connector © through hinge © refer to step 3. (Please hold upper door by hand wheninstalling) Q Special flange screws | © Upper ninge

Special flange screus © Upper inge © Electrical connector CT MODEL wma DISPLAY

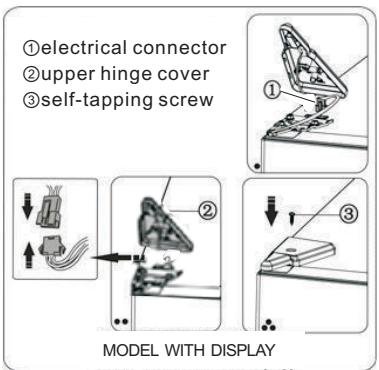

16. Connect electrical connector®

as shown in the picture, then fix part © by screw ® refer to step 2. electrical connector @upper hinge cover Oself-tapping screw

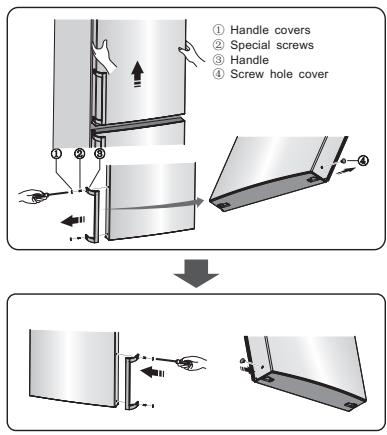

racks and then closeit. Note: If your appliance has handie,you have to reverse handle by follow instructions below. Remove the upper door and place it on a smooth surface with its panel upwards. Lever part © and part ©, then loose screws ©, as shown in the picture. Change handle © tothe right side, then install screws ©, part © and part © in turn.

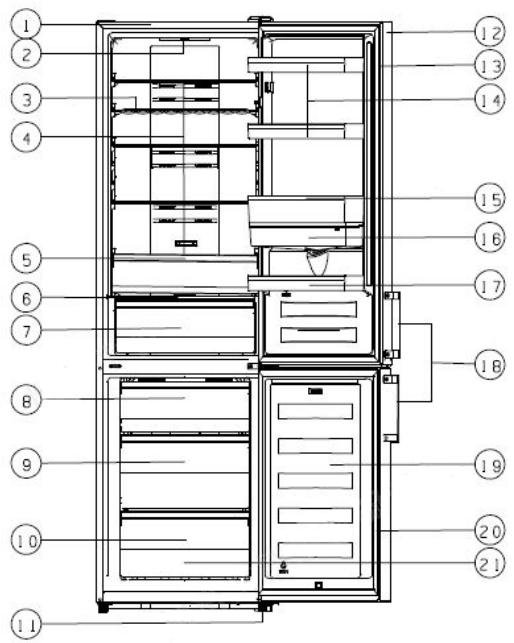

Description of the appliance The view of an appliance with dispenser (GE

O—— 1.Cabinet 12.Refrigerator door 2.LED light 13.Refrigerator door gasket 3.Wine shelf(alternative) 14.Upper rack(X2) 4.Glass shelves 15.Middle rack 5.Upper crisper 16.Water rack 6.Crisper cover 17.Lower rack 7.Lower Crisper 18.Handle (optional) 8.Upper drawer 9.Middie drawer 10.Lower drawer 11.Adjustable feet 19.Freezer door 20.Frezzer door gasket 21.Accessories Note: eDue to unceasing modification of our products,some parts of your refrigerator may be slightly different from this instruction manual,but its functions and using methods remain the same. eTo get more space in the freezer, you can remove drawers(except the bottom drawer in freezer! ) .To get the best energy of this product, please place all shelves drawers on their original position as the illustration above. Hisense Refrigerator

Description of the appliance The view of an appliance without dispenser 00%

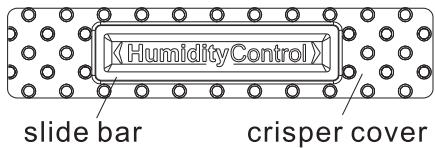

1.Cabinet 2.LED light 3.Wine shelf(alternative) 4.Glass shelves 5.Upper crisper 6.Crisper cover 7.Lower Crisper 8.Upper drawer 9.Middie drawer 10.Lower drawer 11.Adjustable feet Note: eDue to unceasing modification of our products,some parts of your refrigerator may be slightly different from this instruction manual, but its functions and using methods remain the same. eTo get more space in the freezer, you can remove drawers(except the bottom drawer in freezer! ) .To get the best energy of this product, please place all shelves drawers on their original position as the illustration above. 12.Refrigerator door 13.Refrigerator door gasket 14.Upper rack(X3) 15.Middle rack 16.Handle (optional) 17.Freezer door 18.Freeze door gasket 19.Accessories Hisense Refrigerator

Description of the appliance The view of an appliance with display on door 4 £

1.Cabinet 2.LED light 3.Wine shelf(alternative) 4.Glass shelves 5.Upper crisper 6.Crisper cover 7.Lower Crisper 8.Upper drawer 9.Middie drawer 10.Lower drawer 11.Adjustable feet Note: 12.Refrigerator door 13.Refrigerator door gasket 14.Upper rack(X2) 15.Middle rack 16.Water rack 17.Lower rack 18.Handie (optional) 19.Freezer door 20.Frezzer door gasket 21.Accessories eDue to unceasing modification of our products,some parts of your refrigerator may be slightly different from this instruction manual but its functions and using methods remain the same. eTo get more space in the freezer, you can remove drawers(except the bottom drawer in freezer! ) .To get the best energy of this product, please place all shelves drawers on their original position as the illustration above. Hisense Refrigerator

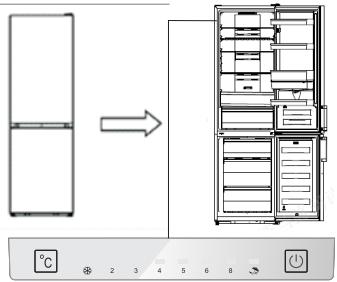

Display panel inside door User your appliance according to the following control regulations, your appliance has the corresponding functions and modes as the display panels showed in the pictures below. Whenthe appliance is powered on forthe firsttime, the backlighting ofthe icons on display panelstarts working. lfno buttons have been pressed andthe doors are closed, the backlighting will turn off. Display panel inside door Controllingthe temperature For optimum food preservation, Werecommendthatwhenyoustartyour refrigeratorforthefirsttime,the temperaturefortherefrigeratorissetto 4° C.lfyouwanttochangethe temperature, followtheinstructionsbelow .NOTE‘High temperature setting will accelerate food waste. Caution! When you set a temperature, you set an average temperature for the whole refrigerator cabinet. Temperatures inside each compartment may vary from the temperature values displayed on the panel, depending on how much food you store and where you place them. Ambient temperature may also affect the actual temperature inside the appliance. Fridge tosetfridge temperature between 2°C and 8°C as needed, and display panel will display corresponding values according to the following sequence. Note: Whenthe{%"is lighted, the holiday modeis activated. Checkthe Holiday mode instruction.

Super Freeze() Super Freeze will quickly lowerthe temperature within the freezer so food will freeze faster. This can lockinthe vitamins andnutrients offresh food and keep food fresh longer. eYoucanpress super freeze mode. eWhen Superfreeze Modeis selected, thelightwill beilluminated and the freezer temperature willbe setat-24°C. eln case ofthe maximum amount of food tobefrozen, please waitabout 24h. eSuper freeze automatically switches off after 52 hours andthenthe freezer temperature setting willrevert backtothe previous setting. &C— 6C — 5°C 2°C — 3°C — 4°C "for 3 sectogetinto Holiday (4) Ifyou are going to be away for along period oftime, press “[c]",you can activate this function. eWhen Holiday Modeis activated, the light willbeilluminated. The freezer temperature willbe setat-18°C andthe fridge temperature will be setat 15°C. Important!Donotstore any food in the fridge during this time. 3.Switch( door) You can switch on or switch off your )(display panelinside Hisense Refrigerator

appliance by press this button. ePress* "for 3 seconds, after a buzzer sound, the appliance willbe turned off. ePress“ "’foriseconds, after a buzzer sound, the appliance willbe turned on. Hisense Refrigerator

Display controls Display panel on door Display panel on door Controllingthe temperature For optimum food preservation, We recommendthatwhen you startyour refrigerator forthe firsttime,the temperature fortherefrigeratoris set to 4°C.lfyou want tochange the temperature, follow the instructions below. NOTE:High temperature setting will accelerate food waste. Caution! When you seta temperature, you setan average temperature forthe whole refrigerator cabinet. Temperatures inside each compartment may vary fromthe temperature values displayed onthe panel, depending on how much food you store and where you place them.Ambient temperature may also affectthe actual temperature inside the appliance. Fridge ePress“ZONE CHOICE",the* ‘light Willturn on. Then press “SET TEMP", you can setfridge temperature between 2°C and 8°C as needed, and display panel will display corresponding values according tothe following sequence. 8°C — 7°C — 6°C — 5°C 2°C— 3C— 4°C Freezer Press “ZONE CHOICE”, whenthe “ el " lightturns on. Then press “SETTEMP!”", you can setfreezer temperature between -14°Cand-24°C as needed, andthe display panel will display corresponding value according to the following sequence. *C—-19°C—-20"C. AT C— 16 C— 15°C 14 C— SuperFreeze( 3% ) Super Freeze will quickly lowerthe temperature within the freezer so food will freeze faster. This can lockinthe vitamins andnutrients offresh food and keep food fresh longer. e You can press “SUPER' to getinto super freezer mode. eWhensuperfreeze Modeis selected, thelightwill beilluminated and the freezer temperature willbe setat-24°C. eln case ofthe maximum amount of food tobefrozen, please waitabout 24h. eSuper freeze automatically switches off after 52 hours andthenthe freezer temperature setting willrevert backtothe previous setting. Ecoenergy This function makes the freezerworkin a power saving mode which is useful for reducing energy consumption when you are away. e You can press “ECO MODE" to getinto economic energy mode. eWhen economic energy Mode is Hisense Refrigerator

activated, thelightwill beilluminated. The freezer temperature will be setat-17°C andthe fridge temperature will be setat 6°C. Switch You can switch on or switch off your appliance by press this button. ePress“() "for 3 seconds, after a buzzer sound, meanwhile the digital light will show OF ‘theappliancewillbeturned off. ePress“ () "for3seconds, aftera buzzer sound,the appliance will be turned on. Alarm eWhenthe door of fridge has been opened for over 2 minutes, the door alarm willsound.Incase ofdoor alarm, buzzer willsound 3 times every 1 minute and will stop alarming automatically after 8 minutes. eTo save energy, please avoid keeping the door open for a long time when using the appliance. The door alarm can also be cleared by closingthe door. Hisense Refrigerator

Using your appliance Your appliance is supplied with a number of accessories and this section describes how best to use them. Doorrack eltis suitable forthe storage ofeggs, canned liquid, bottled drinks and packed food, etc. Do not place too many heavy thingsinthe racks. Shelf in Refrigerator chamber eTherearethree shelvesinrefrigerator chamber, and they can be taken outto be cleaned. Extra fresh box(optional) eln certain model, there will be an extra fresh box(drawer). In this drawer you can getalowertemperature to store fish, meatand other erodible food temporarily. Normallyitwillbe about 2°C lowerthan the other partofthe fresh compartiment. You can move the slide bar to setthe temperature. There are some recommendations in the belowtable which you can consult. fridgeteMP slide bar) food |storage period 2°C rightmost| fish&meat | <3 days SC Jrightmost| fruit <2 weeks 8°C |rightmost vegetables| <5 days Note: Duetothe environment temperature and setting temperature both influence the temperature ofextra fresh box(drawer), the actualtemperature may changeina certain range. The temperature ofthis drawer may lower than zero, soitis normal that liquid in this drawer was frozen. Flexible wine rack eltis for storing bottled wine or drinks, andit can be taken outto clean. Crisper cover eltis for controllingthe temperature ofthe crisper and avoiding the vegetable losing moisture. eYou can adjustthe slide baronthe crisper cover to keep different humidity in the crisper.Pushthe slide bartothe left, you willkeep a higher humidity which can storage vegetable andfruitlong and fresh,tothe rightwill be lower humidity. crisper cover slide bar Fruit and vegetable crisper eltis suitable forthe storage offruits and vegetable. Hisense Refrigerator

Freezer Drawer eltis used to store food which needs tobe frozen, including meat fish, ice cream, etc. Ice cube tray eltis used to make ice cubes. To make ice cubes, please fill waterinto the ice cube trays and the water level shallnotexceed the topline(ideally eighty percent ofthe ice tray volume). Place the trayintothe freezer drawer and waitatleast two hours forthe ice cubes to be formed. Afterthe cubes are formed, gently twistthe tray to separate the cubes andtrays.

Water Dispenser The water dispenser, located in the fridge door, is for storing drinking water. With this appliance you can obtain chilled water easily without opening the refrigerator. You should be informed of following tips. eBefore Using Before using this appliance for the firsttime, you should useit as follows.

1. Take out the middle rack.

2. Hold the two sides ofthe water

tank tightly, then pull up the water tank by shaking up and down.

3. Unscrew the head, then cleanit

and the inside of water tank. eAssembling Before assembling, please drain the water inside the tank , and check whether the washer reversed or not. 1.Insertthe head into the hole. 2.Fitthe tank along the guides on the door. 3.Press down two side ofthe tank. 4.When you hear a click sound, that means the installation is completed. Warning! 1.Be careful not to press on the head; 2.When fitting the water tank, ensure the head inserted into the Hisense Refrigerator

hole first. eFillingwater Before you fill the drinking water into the water tank, ensure that the water tank is steady and in a correct position. Caution! Fill with water up to 3L(which is suggested), and not above the level. Otherwise, it may overflow when the lid is close. 1.We recommend that you fill the water by the following way. 2.Open the small lid by rotatingit, and fill water from the inlet of the large lid. Please remember rotate the small lid backtoit's original position when finish filling water. Small lid Head Warning! Don't touch other parts ofthe appliance when filling water, it may cause the water leakage. Dispensing water 1.Make sure the cover of the water tankis fitted on. 2.Close the fridge door and check the dispenser. Receiving Water You should use the correct cup to receive water underneath the water dispenser. Warning! Don't push the dispenser lever forward without cup, it may cause the water leak from the dispenser. Receiving tank eCleaning 1.Putthe water tank out of the door carefully, and then wash the tank, lid and head lightly in water.

2. After you have successfully

cleaned the appliance, you should dry it by natural drying or using the dryer. 3.If you have used the water dispenser for many times, the water in the receiving tank may drop on the floor, which may make your floor wet, and you should clean the tank with dry towel regularly before overflow. Dispenser lever. Suggested position Hisense Refrigerator

Helpful hints and tips Energy savingtips We recommend that you follow the tips below to save energy. eTryto avoid keeping the door open for long periods in order to conserve energy. eEnsure the appliance is away from any sources of heat (Direct sunlight, electric oven or cooker etc) eDon'tsetthe temperature colder than necessary. eDon'tstore warm food or evaporating liquid in the appliance. ePlace the appliance in a well ventilated, humidity free, room. Please refer to Installing your new appliance chapter. elfthe diagram shows the correct combination for the drawers, crisper and shelves, do not adjust the combination as this is designed to be the most energy efficient configuration. Hints for fresh food refrigeration eDo not place hot food directly into the refrigerator or freezer.the internal temperature will increase resulting in the compressor having to work harder and will consume more energy. Do cover or wrap the food.particularly if ithas a strong flavor. ePlace food properly so that air can circulate freely aroundit. Hints for refrigeration eMeat (All Types) Wrap in polythene food: wrap and place on the glass shelf above the vegetable drawer. Always follow food storage times and use by dates suggested by manufacturers. eCooked food, cold dishes, etc.: They should be covered and may be placed on any shelf. eFruitand vegetables: They should be stored in the special drawer provided. eButter and cheese: Should be wrapped in airtight foil or plastic film wrap. eMilk bottles: Should have a lid and be stored in the doorracks. Hints for freezing eWhen first starting-up or after a period outofuse, letthe appliance run at least 2 hours on the higher settings before putting food in the compartment. ePrepare food in small portions to enable itto be rapidly and completely frozen and to makeit possible to subsequently thaw only the quantity required. eWrap up the food in aluminum foil or polyethylene food wraps which are airtight. eDonotallow fresh.unfrozen food to touchthe food which is already frozen to avoid temperature rise ofthe latter. elced products,if consumed immediately after removal from the freezer compartment.will probably cause frost burns to the skin. eltis recommended to label and date each frozen package in order to keep track ofthe storage time. Hints for the storage of frozen food eEnsure that frozen food has been stored correctly by the food retailer. eOnce defrosted food will deteriorate rapidly and should not be re-frozen. Do notexceed the storage period indicated by the food manufacturer. Switching off your appliance Ifthe appliance needs to be switched off for an extended periodithe following steps should be taken prevent mould on the appliance. 1.Remove all food. 2.Remove the power plug from the mains socket. 3.Clean and dry the interior thoroughly. 4.Ensure that all the doors are wedged open slightly to allow air to circulate. Hisense Refrigerator

Cleaning and care Forhygienicreasons the appliance (including exterior and interior accessories) should be cleanedregularly (atleasteverytwo months). Warning! The appliance mustnotbe connected to the mains during cleaning as there isa danger ofelectricalshock“Before cleaning switch the appliance offand remove the plug from the mains socket. Exterior cleaning To maintain good appearance of your appliance, you should cleanitregularly. eWipe the control panel with a clean, soft cloth. eSpray water ontothe cleaning cloth instead ofspraying directly on the surface ofthe appliance.This helps ensure aneven distribution ofmoisture tothe surface. eCleanthe doors, handles and cabinet surfaces with a mild detergentandthen wiped dry with a soft cloth. Caution! eDon'tuse sharp objects as they are likely to scratch the surface. eDon'tuse Thinner, Car detergent, Clorox, ethereal oil,abrasive cleansers or organic solventsuch as Benzene for cleaning. They may damage the surface ofthe appliance and may cause fire. Interior cleaning You should clean the applianceinterior regularly.ltwill be easier to clean when food stocks are low. Wipe the inside ofthe fridge freezer with aweak solution of bicarbonate ofsoda,andthenrinse with warm water using a wrung-outsponge or cloth.Wipe completely dry before replacingthe shelves and baskets. Thoroughly dryall surfaces and removable parts before putting them backinto place. Although this appliance automatically defrosts, a layer offrost may occur onthe freezer compartment'sinterior walls ifthe freezer dooris opened frequently or kept open toolong.lfthe frostis toothick, choose atime whenthe freezeris nearly empty and proceed as follow: 1.Remove existing food and accessories baskets, unplug the appliance fromthe mains power and leave the doors open. Ventilate the room thoroughlyto accelerate the process.

2. When defrosting is completed,clean

your freezer as described above. Caution! Do notuse sharp objects to remove frost from the freezer compartment. Only after theinterior is completely dry shouldthe appliance be switched back on and plugged back into the mains socket. Door seals cleaning Take care to keep door seals clean. Sticky food and drinks can cause seals to stickto the cabinet and tear when you open the door.Wash seal with a mild detergent and warm water. Rinse and dry itthoroughly after cleaning. Caution!lOnlyafterthe door seals are completely dry should the appliance be powered on. Replacingthe LEDlight:

Warning: The LED light mustnotbe

replaced by the user“Ifthe LED lightis damaged, contactthe customer helpline forassistance. Hisense Refrigerator

Troubleshooting If you experience a problem with your appliance or are concerned thatthe appliance is not functioning correctly, you can carry out some easy checks before calling for service,please see below. Warning! Don't try to repair the appliance yourself. Ifthe problem persists after you have made the checks mentioned below, contact a qualified electrician, authorized service engineer or the shop where you purchased the product. Problem Possible cause & Solution Check whetherthe power cordis plugged into the power outlet properly. Appliance is not Checkthe fuse or circuit of your power supply,replace working correctly ifnecessary. Itis normal that the freezeris not operating duringthe defrost cycle, or for a shorttime after the appliance is switched on to protect the compressor. Odours fromthe Theinterior may need to be cleaned compartiments Some food, containers or wrapping cause odours. The sounds below are quite normal: eCompressor running noises. eAir movement noise from the small fan motor in the freezer compartment or other compartments. eGurgling sound similar to water boiling. ePopping noise during automatic defrosting. Noise fromthe appliance! « Ciicking noise before the compressorstarts. Other unusual noises are due to the reasons below and may need you to check and take action: eThe cabinetis notlevel. eThe back of appliance touches the wall. eBottles or containers fallen or rolling. Itis normal to frequently hear the sound ofthe motor, itwill need to run more when in following circumstances: eTemperature settingis set colder than necessary The motorruns eLarge quantity ofwarm food has recently been stored continuously Within the appliance. eThe temperature outside the appliance is too high. eDoors are kept open too long ortoo often. eAfter yourinstalling the appliance orithas been switched offfor a long time. Hisense Refrigerator

Alayer offrostoccurs inthe compartment Checkthatthe air outlets are notblocked by food and ensure foodis placed within the appliance to allow sufficient ventilation.Ensure that dooris fully closed.To remove the frost, please refer to the“Cleaning and care” chapter. Temperature inside is too warm You may have leftthe doors open too long ortoo frequently: or the doors are keptopen by some obstacle; orthe applianceis located with insufficient clearance at the sides, back andtop. Temperature inside is too cold Increase the temperature by following the“Display controls” chapter. Doors can'tbe Check whetherthe top ofthe refrigeratoris tilted back by 10-15mmto allow the doors to self close, orifsomething losed easil s'osec easiy inside is preventing the doors from closing. The water pan (located at the rear bottom ofthe cabinet) may not be properly leveled, orthe draining spout under neath the top ofthe compressor depot may not be properly ; positioned to direct waterinto this pan, orthe water spoutis Water drips ; onthe floor blocked. You may need to pulltherefrigerator away fromthe wallto check the pan and spout. Checkiftherefrigeratoris power-off for a long time, this may cause the ice inthe bucket to meltinto water,and flow to the floor. Thelightis not working eThe LED light may be damaged.Refer to replace LED lights in cleaning and care chapter. eThe control system has disabled the lights due tothe door being keptopen too long,close and reopens the door toreactivate the lights. Hisense Refrigerator

posal of the appliance Itis prohibited to dispose ofthis appliance as household waste. Packaging materials Packaging materials with the recycle symbol are recyclable. Dispose ofthe packaging into a suitable waste collection container to recycleit. Before disposal ofthe appliance

1. Pulloutthe mains plug from the mains socket.

2. Cutoffthe power cord and discard with the mains plug.

Warning! Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal. Correct Disposal of this product This symbol on the product or in its packing indicates that this product may not be treated as household waste. Instead, it should be taken to the appropriate waste collection point for the recycling of electrical and electronic equipment. By ensuring this productis disposed of correctly, you will help prevent potential negative consequences forthe environment and human health, which could otherwise be caused by the inappropriate waste handling ofthis product. For more detailed BE | information aboutthe recyclingofthis product, please contact your local council your household waste disposal service, orthe shop where you purchased the product. To avoid contamination of food, please respect the following instructions: - Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. - Clean regularly surfaces that can come in contact with food and accessible drainage systems. - Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food. - Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making icecream and making ice cubes. - One-, two- and three-star compartments are not suitable for the freezing of fresh food. Hisense Refrigerator

Compartments| Target storage Appropriate food Order PE temp.[cl Eggs, cooked food, packaged food, fruits and Fridge 424 vegetables, dairy products, cakes, drinks and 1 9 2-+8 | Oertooës whichare notsuitabletorfreezing. Seafood (ish.shrimp.shellfish) freshwater aquatic products and meat pro: <-18 |fécommended tors monte. the longer ne Storage time.the worse the taste and nutrition),suitable for frozen fresh food. Seafood (fish, shrimp, shelfish) freshwater aquatic prodacts and meat products (recommended fo 3 3 Er <- months, the longer the storage time,the worse the Freezer <-18 faste and AU) are not suitable for frozen fresh Seafood (eh. shrimp. shelfish) freshwater aquatic products and meat produ 4 **_Freezer <-12 {recommended for 2 months,the donger the storage ime the worse the taste and nutrition), are not suitable for frozen fresh food. Seafood (sh. chrimp. shellsh) freshwater aquatic products and meat products 5 | *Freezer <-6 {recommended for 1 month the longer the storage üme the worse the taste and nutrition), are not suitable for frozen fresh food Fresh pork,beef, fish, chicken, some packaged processedfo0ds, etc. Recommended o ea within : _6- ihe same day, preferably no later than3 days) 6 0-star 6-0 Partally encapsulated processed foods (non- freezable foods) Fresh/frozen port, beef, chicken, freshwater aquatic products, etc.(7 days below 0 *C and above 0 °C isrecommended for consumption within that day, 7 Chill -2-+3 preferably no more than 2 days). Seafood (less than 0 for 15 days, itis not recommended to store above 0°C) Fresh pork,beef fish,chicken,cooked food,etc. 8 |Fresh Food O-+4 (Recommended to eat within the same day.preferably no more than 3 days) 9 Wine +5-+20 | red wine white wine,sparkling wine etc. Note: please store different foods according to the compartments or target storage temperature of your purchased products. - Ifthe refrigerating appliance is left empty for long periods,switch off,defrost, clean,dry, and leave the door open to prevent mould developing within the appliance. Hisense Refrigerator
